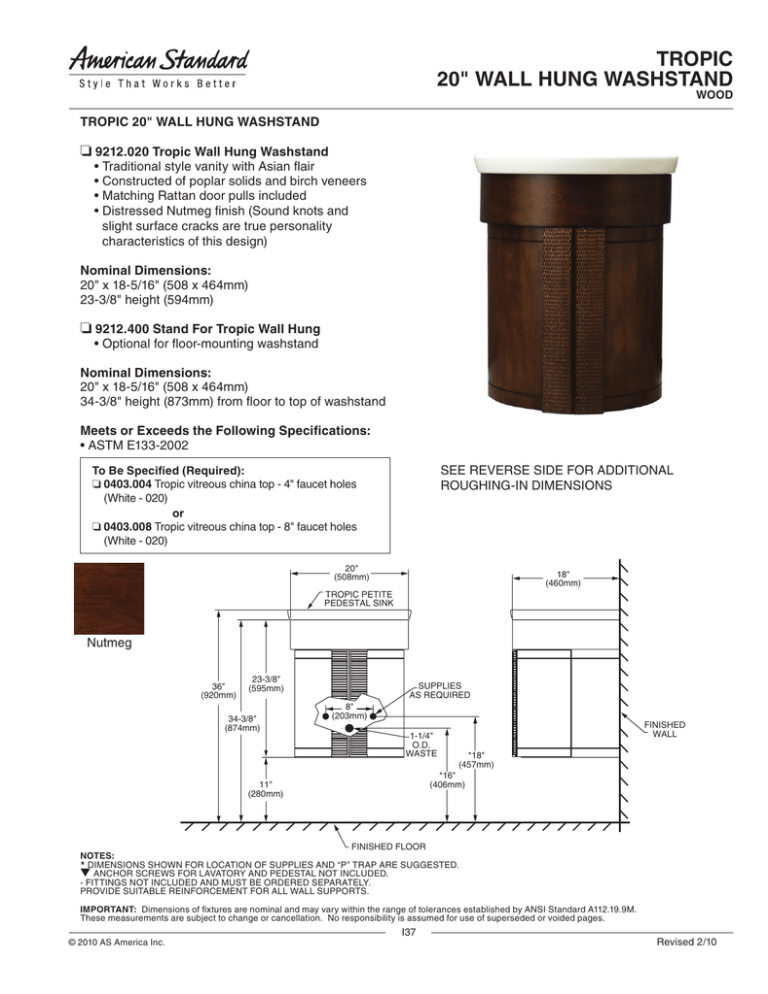

TROPIC 20" WALL HUNG WASHSTAND

TROPIC 20" WALL HUNG WASHSTAND
TROPIC
20" WALL HUNG WASHSTAND
WOOD
TROPIC 20" WALL HUNG WASHSTAND
❏ 9212.020 Tropic Wall Hung Washstand
• Traditional style vanity with Asian flair
• Constructed of poplar solids and birch veneers
• Matching Rattan door pulls included
• Distressed Nutmeg finish (Sound knots and
slight surface cracks are true personality
characteristics of this design)
Nominal Dimensions:
20" x 18-5/16" (508 x 464mm)
23-3/8" height (594mm)
❏ 9212.400 Stand For Tropic Wall Hung
• Optional for floor-mounting washstand
Nominal Dimensions:
20" x 18-5/16" (508 x 464mm)
34-3/8" height (873mm) from floor to top of washstand
Meets or Exceeds the Following Specifications:
• ASTM E133-2002
SEE REVERSE SIDE FOR ADDITIONAL
ROUGHING-IN DIMENSIONS
To Be Specified (Required):
❏ 0403.004 Tropic vitreous china top - 4" faucet holes
(White - 020)
or
❏ 0403.008 Tropic vitreous china top - 8" faucet holes
(White - 020)
20"
(508mm)
18"
(460mm)
TROPIC PETITE
PEDESTAL SINK
Nutmeg
36"
(920mm)
23-3/8"
(595mm)
34-3/8"
(874mm)
SUPPLIES
AS REQUIRED
8"
(203mm)
1-1/4"
O.D.
WASTE
FINISHED
WALL
*18"
(457mm)
*16"
(406mm)
11"
(280mm)
FINISHED FLOOR
NOTES:
SHOWN FOR LOCATION OF SUPPLIES AND “P” TRAP ARE SUGGESTED.
*▼DIMENSIONS
ANCHOR SCREWS FOR LAVATORY AND PEDESTAL NOT INCLUDED.
- FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.9M.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
© 2010 AS America Inc.
I37
Revised 2/10
TROPIC
20" WALL HUNG WASHSTAND
WOOD
20"
(508mm)
18"
(460mm)
TROPIC PETITE
PEDESTAL SINK
36"
(920mm)
23-3/8"
(595mm)
34-3/8"
(874mm)
SUPPLIES
AS REQUIRED
8"
(203mm)
1-1/4"
O.D.
WASTE
FINISHED
WALL
*18"
(457mm)
*16"
(406mm)
11"
(280mm)
FINISHED FLOOR
ADJUSTABLE
LEVELLERS
(UNDER EACH LEG)
Tropic Wall Hung Washstand with 9212.020 Stand for Optional Floor-Mounting
NOTES:
SHOWN FOR LOCATION OF SUPPLIES AND “P” TRAP ARE SUGGESTED.
*▼DIMENSIONS
ANCHOR SCREWS FOR LAVATORY AND PEDESTAL NOT INCLUDED.
- FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the range of tolerances established by ANSI Standard A112.19.9M.
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
© 2010 AS America Inc.
I38
Revised 2/10
TROPIC PETITE
COUNTERTOP SINK
VITREOUS CHINA
TROPIC PETITE COUNTERTOP SINK
• Vitreous china
• Contemporary styled lavatory
• Rear overflow
• Faucet ledge with large deck area
• Recommended Tropic faucets 7038.801
Widespread (illustrated) and 7038.201
Centerset not included
• Unglazed sink back must be mounted against
back wall
• Recommended with 9212.030 Tropic 30" vanity
and 9212.124 Marble Top
•S
tyle coordinates with
Tropic Cadet ®3 toilets
❏ 0403.008 Lavatory slab-203mm
❏
4"or 8"
(102 or 203mm)
3-1/4"
(82mm)
(8") centers (Illustrated)
0403.004 Lavatory slab-102mm
(4") centers
FINISHED WALL
OR BACKSPLASH
8-1/2"
(213mm)
8"
(203mm)
Nominal Dimensions:
531mm x 470mm
(21" x 18-1/2")
Bowl sizes:
445mm (17-1/2") wide,
292mm (11-1/2") front to back,
152mm (5-1/2") deep
Compliance Certifications Meets or Exceeds the
Following Specifications:
• ASME A112.19.2 - 2008/CSA B45.1-08
24"
(610mm)
5-1/2"
(141mm)
18-1/2"
(470mm)
34"
(864mm)
21"
(531mm)
10"
(254mm)
COUNTERTOP
1/2" (13mm) DIA. HOLES
FOR ANCHOR BOLTS
7-1/2"
(191mm)
FINISHED
WALL
9"
(229mm)
FINISHED FLOOR
8"
(203mm)
SUPPLIES
AS
REQUIRED
1-1/4"
O.D.
WASTE
6"
(152mm )
1-3/4"(43mm)
10-1/8"
(258mm)
12"
(305mm)
27"
(686mm)
1-1/4" OD
TAILPIECE
31" (787mm)
SUGGESTED
34" (864mm)
ADA
FINISHED FLOOR
To Be Specified:
❏ Color: ❏ White ❏ Bone ❏ Linen ❏ Black
❏ Faucet: ❏ 7038.801 Tropic Widespread
❏ 7038.201 Tropic Centerset
❏ Faucet Finish:
❏ 002 Polished Chrome
❏ 295 Satin Nickel
❏ Supplies:
❏ 1-1/4" Trap:
❏ Nipple:
* See faucet section for additional models available
© 2010 AS America Inc.
MEETS THE AMERICANS WITH DISABILITIES ACT GUIDELINES
AND ANSI A117.1 ACCESSIBLE AND USABLE
BUILDINGS AND FACILITIES - CHECK LOCAL CODES.
Install lavatory 864mm (34") from finished floor.
Lavatory installed 51mm (2") minimum from front edge
of countertop provides 686mm (27") knee clearance.
NOTES:
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND “P" TRAPS
*ARE
SUGGESTED.
■ SUITABLE FOR REINFORCEMENT ONLY. ACTUAL DIMENSIONS MUST
BE TAKEN FROM FIXTURE.
FITTING NOT INCLUDED AND MUST BE ORDERED SEPARATELY.
PROVIDE SUITABLE REINFORCEMENT FOR ALL WALL SUPPORTS.
INSTALLATION INSTRUCTIONS SUPPLIED WITH LAVATORY.
IMPORTANT: Dimensions of fixtures are nominal and may vary within the
range of tolerance established by ANSI Standard A112.19.2
These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.
J58
TROPIC
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
7038.201 Tropic 2 Handle Centerset
Metal Speed Connect® pop-up drain.
Metal Lever handles.
244mm
(9-5/8)
122mm
(4-3/4)
133mm
(5-1/4)
101mm
(4)
25mm
(1)
102mm
(4)
165mm
(6-1/2)
GENERAL DESCRIPTION:
189mm
(7-1/2)
64mm
(2-1/2)
FOR GROUND JOINT
OR 1/2" O.D. SLIP
CONNECTION
Durable cast brass spout and metal lever handles. Cast
brass waterway with one-half inch male inlet shanks and
brass coupling nuts. 1/4 turn washerless ceramic disc
valve cartridges. 20 inch (500mm) long flexible stainless
steel drain cable is pre-assembled to faucet body. Metal
Speed Connect® drain body with 1-1/4" (32mm) tail
piece. 1.5 gpm/5.7L/min. maximum flow rate.
32mm OD
(1-1/4 OD)
PRODUCT FEATURES:
Cast Brass Spout and Waterway: Durable. Ideal for
prolonged contact with water.
Ceramic Disc Valve Cartridges: Assure a lifetime of
smooth handle operation and drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Exclusive Speed Connect Metal Drain:
• Fewer Parts - installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet in
place.
SUGGESTED SPECIFICATION:
4" centerset lavatory faucet shall feature a cast brass spout and waterway with 1/2" male inlet shanks. Shall feature 1/4 turn
washerless ceramic disc valve cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting
shall be American Standard Model # 7038.201.___.
© 2008 AS America Inc.
C81
TROPIC
TWO-HANDLE CENTERSET LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B 125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
7028.201
Description
Tropic 2 Handle Centerset with Metal Speed Connect® Pop-up drain.
Metal Lever handles.
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2008 AS America Inc.
C82
Polished
Chrome
PVD
Satin
Nickel
002
295
