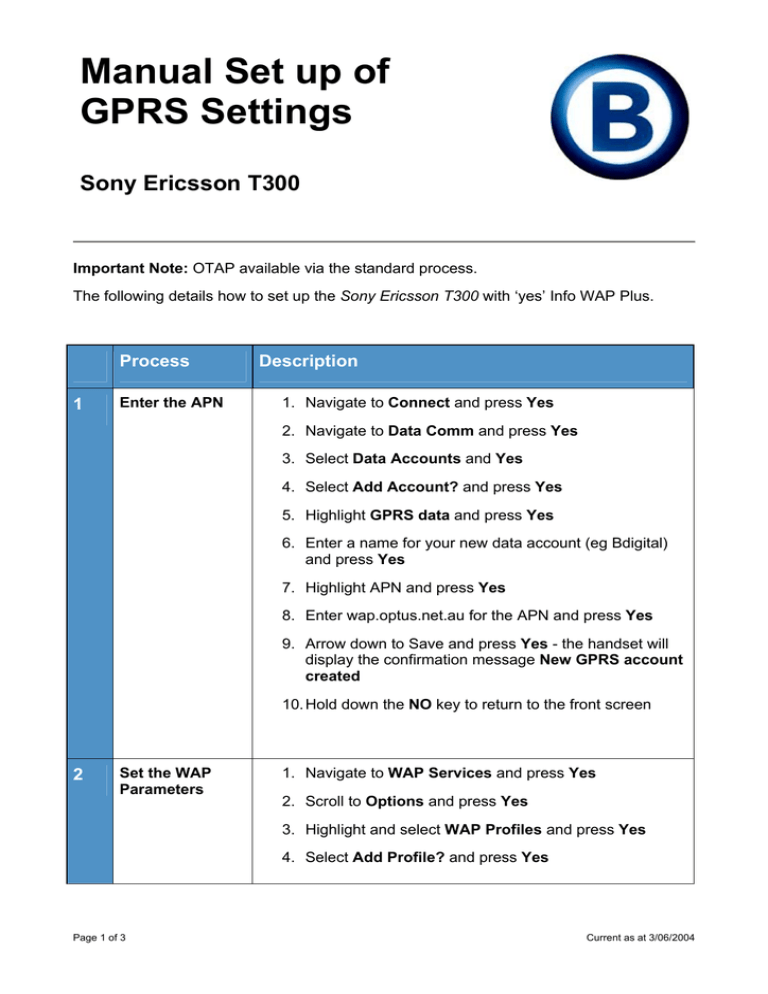

Manual Set up of GPRS Settings Sony Ericsson T300

Manual Set up of GPRS Settings Sony Ericsson T300
Manual Set up of
GPRS Settings
Sony Ericsson T300
Important Note: OTAP available via the standard process.
The following details how to set up the Sony Ericsson T300 with ‘yes’ Info WAP Plus.
Process
1
Enter the APN
Description
1. Navigate to Connect and press Yes
2. Navigate to Data Comm and press Yes
3. Select Data Accounts and Yes
4. Select Add Account? and press Yes
5. Highlight GPRS data and press Yes
6. Enter a name for your new data account (eg Bdigital)
and press Yes
7. Highlight APN and press Yes
8. Enter wap.optus.net.au for the APN and press Yes
9. Arrow down to Save and press Yes - the handset will
display the confirmation message New GPRS account
created
10. Hold down the NO key to return to the front screen
2
Set the WAP
Parameters
1. Navigate to WAP Services and press Yes
2. Scroll to Options and press Yes
3. Highlight and select WAP Profiles and press Yes
4. Select Add Profile? and press Yes
Page 1 of 3
Current as at 3/06/2004
Manual Set up of GPRS Settings – Sony Ericsson T300
5. Name profile (E.g. GPRS WAP) and press Yes
6. Select Connect Using and press Yes
7. Select the Data Account that was set up earlier and
press Yes
8. Select IP address and press Yes
9. Ensure the DNS Address is 202.139.083.152 and press
Yes
10. Scroll to Save and press Yes
11. Once created a confirmation message "New Profile
Created" will be displayed. Press Yes
12. Select the New Profile and press Yes
13. Select Edit and press Yes
14. Select Change Homepage and Press Yes
15. Hold down the C key to erase existing Homepage title
16. Enter a name for the Homepage title (Eg. Yes Info
WAP)
17. Press Yes
18. Hold down the C key to erase the existing homepage
URL
19. Enter the Optus Yes Info WAP homepage URL:
http://networker.optus.net.au/wap/index.wml and press
Yes
Note:
•
To enter : press the 1 key four times
•
To enter / press the 0 key once
•
To enter . press the 1 key once
20. Highlight Connect Using and press Yes
21. Select your Data Account and press Yes
22. Press No 4 times
23. Arrow up to Select Profile and press Yes
24. Select your WAP Profile and press Yes
Page 2 of 3
Current as at 3/06/2004
Manual Set up of GPRS Settings – Sony Ericsson T300
25. Arrow up to Homepage and press Yes
The phone will now connect to Yes Info WAP Plus
Visit us 365 days a year at
www.Bdigital.com.au
Or call
13 30 20
Page 3 of 3
Current as at 3/06/2004
This Factsheet is provided as a guide only to our Customers and is subject to the terms and conditions specified within our Terms of Use policy.
These terms can be viewed on our website or may be obtained by calling our Customer Care number. B Digital Limited ABN 99 085 089 970 trading as B.
