Panasonic | CF-53 | Operating instructions | Panasonic Toughbook CF-53MK3

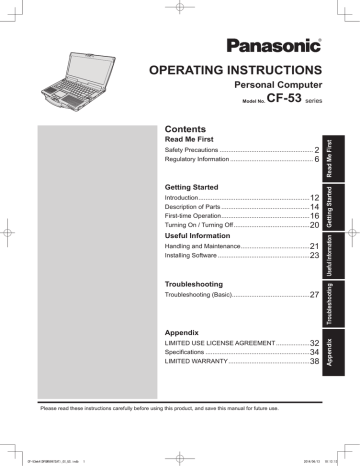

OPERATING INSTRUCTIONS
Personal Computer
Model No.
CF-53 series
Introduction................................................................ 12
Description of Parts................................................... 14
First-time Operation................................................... 16
Turning On / Turning Off............................................ 20
Useful Information
Handling and Maintenance........................................ 21
Installing Software..................................................... 23
Troubleshooting
Troubleshooting (Basic)............................................. 27
Getting Started
Getting Started
Useful Information
Safety Precautions...................................................... 2
Regulatory Information................................................ 6
Troubleshooting
Read Me First
Read Me First
Contents
LIMITED USE LICENSE AGREEMENT.................... 32
Specifications............................................................ 34
LIMITED WARRANTY............................................... 38
Appendix
Appendix
Please read these instructions carefully before using this product, and save this manual for future use.
CF-53mk4(DFQW5997ZAT)_OI_US.indb
1
2014/06/13
10:13:13
Safety Precautions
To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe
the following safety precautions.
Explanation of symbol word panels
The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused
when the denotation is disregarded and improper use is performed.
DANGER
Read Me First
Denotes a potential hazard that will result in serious
injury or death.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury.
NOTICE
Denotes a hazard that could result in property damage.
The following symbols are used to classify and describe
the type of instructions to be observed.
This symbol is used to alert users to a specific operating procedure that must not be performed.
This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safety.
DANGER
Electrolyte leakage, generation of heat, ignition or
rupture of the Battery Pack may result.
„„Do Not Throw the Battery Pack into a Fire or
Expose It to Excessive Heat
„„Do Not Insert Sharp Objects Into the Battery
Pack, Disassemble, or Modify It
„„Do Not Short the Positive (+) and Negative
(-) Contacts
ÖÖDo not place the battery pack together with
articles such as necklaces or hairpins when
carrying or storing.
„„Do Not Apply Shocks to the Product by
Dropping It, Applying Strong Pressure to It,
etc.
ÖÖIf this product is subjected to a strong impact, damaged or deformed, stop using it
immediately.
„„Do Not Charge the Battery Using Methods
Other Than Those Specified
„„Do Not Use the Battery Pack with Any Other
Product
• The battery pack is rechargeable and was
intended for the specified product.
„„Do Not Use This Product with a Battery
Pack Other Than the One Specified
ÖÖUse only the specified battery pack with
your product.
„„Avoid Extreme Heat (Near the Fire, in Direct
Sunlight, for Example)
„„When the Battery Pack Has Deteriorated,
Replace It With a New One
ÖÖ Do not continue to use a damaged battery pack.
2
CF-53mk4(DFQW5997ZAT)_OI_US.indb
2
2014/06/13
10:13:14
Fire or electric shock may result.
„„Do Not Do Anything That May Damage the AC
Cord, the AC Plug, or the AC Adaptor
Do not damage or modify the cord, place it near
hot tools, bend, twist, or pull it forcefully, place
heavy objects on it, or bundle it tightly.
ÖÖDo not continue to use a damaged AC cord,
AC plug and AC adaptor.
• Contact your technical support office for
repair.
„„Do Not Connect the AC Adaptor to a Power
Source Other Than a Standard Household AC
Outlet
ÖÖ Connecting to a DC/AC converter (inverter) may
damage the AC adaptor. On an airplane, only
connect the AC adaptor/charger to an AC outlet
specifically approved for such use.
„„Do Not Pull or Insert the AC Plug If Your Hands
Are Wet
„„Do Not Disassemble This Product
„„Do Not Touch This Product In a Thunderstorm
If Connected with the AC Cable or Any Other
Cables
„„Do Not Place Containers of Liquid or Metal Objects on Top of This Product
ÖÖIf foreign matter has found its way inside,
immediately turn the power off and unplug
the AC plug (and remove the battery pack).
Then contact your technical support office.
„„If a Malfunction or Trouble Occurs, Immediately
Stop Use
If the Following Malfunction Occurs, Immediately Unplug the AC Plug (and the Battery Pack)
• This product is damaged
• Foreign object inside this product
• Smoke emitted
• Unusual smell emitted
• Unusually hot
ÖÖAfter the above procedure, contact your
technical support office for repair.
„„Clean Dust and Other Debris of the AC Plug
Regularly
• If dust or other debris accumulates on the
plug, humidity, etc. may cause a defect in the
insulation.
„„Insert the AC Plug Completely
ÖÖDo not use a damaged plug or loose AC
outlet.
„„Close the Connector Cover Tightly When Using
This Product Where Is a Lot of Water, Moisture,
Steam, Dust, Oily Vapors, etc.
ÖÖIf foreign matter has found its way inside,
immediately turn the power off and unplug
the AC cord, and then remove the battery
pack. Then contact your technical support
office.
Low-temperature burns may result.
„„Do Not Use This Product in Close Contact With
Your Body For a Long Period of Time
ÖÖDo not use this product with exposing the
skin to the heat source of this product or AC
adaptor for a long period of time.
„„Do Not Expose Yourself or Other Persons to the
Hot Wind from the Ventilation Hole (Exhaust)
For a Long Period of Time.
• Covering the ventilation hole (exhaust) with
your hand or other object can cause heat to
build up inside, possibly resulting in burns.
Read Me First
WARNING
Detrimental health effects on your body may result.
„„Do Not Turn the Volume Up To Loud When Using
Headphones
• Listening at high volumes that overstimulate
the ear for long periods of time may result in
loss of hearing.
CAUTION
Fire or electric shock may result.
„„Do Not Move This Product While the AC Plug Is
Connected
ÖÖIf the AC cord is damaged, unplug the AC
plug immediately.
„„Do Not Connect a Telephone Line, or a Network
Cable Other Than the One Specified, Into the
LAN Port
ÖÖDo not connect to a network such as the
ones listed below.
• Networks other than 1000BASE-T,
100BASE-TX or 10BASE-T
• Phone lines (IP phone (Internet Protocol
Telephone), Telephone lines, internal phone
lines (on-premise switches), digital public
phones, etc.)
„„Do Not Subject the AC Adaptor To Any Strong
Impact
ÖÖDo not continue to use the AC adaptor after
a strong impact such as being dropped.
ÖÖContact your technical support office for
repair.
„„Do Not Leave This Product in High Temperature
Environment for a Long Period of Time
• Leaving this product where it will be exposed
to extremely high temperatures such as near
fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts.
„„Do Not Block the Ventilation Hole (Exhaust/Intake)
ÖÖDo not use this product wrapped in cloth or
on top of bedding or a blanket.
3
CF-53mk4(DFQW5997ZAT)_OI_US.indb
3
2014/06/13
10:13:14
Safety Precautions
CAUTION
Fire or electric shock may result.
„„Hold the Plug When Unplugging the AC Plug
„„Use Only the Specified AC Adaptor With This
Product
ÖÖDo not use an AC adaptor other than the
one supplied (supplied with the unit or one
sold separately as an accessory).
„„Use the Modem With a Regular Telephone Line
Read Me First
ÖÖDo not connect to the following lines.
• An internal phone line (on-premise switches)
of a company or business office
• A digital public phone
• Line in a country or area not supported by
this product.
This product may fall over or drop, resulting in an
injury.
„„Do Not Place This Product on Unstable Surfaces
„„Avoid Stacking
Detrimental health effects on your body may result.
„„Do Not Look Into the CD/DVD Drive
• Looking directly at the internal laser light
source may result in damage to eyesight.
ÖÖContact your technical support office for
check, maintenance and repair.
„„Do Not Use Discs That Are Cracked or Deformed
• Because the discs rotate at high speeds,
damaged discs may break apart causing
injury.
ÖÖDiscs that are not round and discs that have
been repaired using adhesives are similarly
dangerous, and so should not be used.
„„Take a Break Of 10-15 Minutes Every Hour
• Using this product for long periods of time
may have detrimental health effects on the
eyes or hands.
Burns, low-temperature burns, or frostbite may result.
„„Do Not Expose the Skin To This Product When
Using the Product In A Hot Or Cold Environment.
ÖÖWhen it is necessary to expose the skin to
this product such as to scan a fingerprint,
perform the operation in the shortest time
possible.
NOTICE
l Do not place the computer near a television or radio receiver.
l Keep the computer away from magnets. Data stored on the
hard disk may be lost.
l Do not touch the terminals on the battery pack. The battery pack may
no longer function properly if the contacts are dirty or damaged.
l Do not expose the battery pack to water, or allow it to become wet.
l If the battery pack will not be used for a long period of time (a month
or more), charge or discharge (use) the battery pack until the remaining battery level becomes 30% to 40% and store it in a cool, dry place.
l This computer prevents overcharging of the battery by recharging only
when the remaining power is less than approx. 95% of capacity.
l The battery pack is not charged when the computer is first purchased.
Be sure to charge it before using it for the first time. When the AC
adaptor is connected to the computer, charging begins automatically.
l Should the battery leak and the fluid get into your eyes, do not rub
your eyes. Immediately flush your eyes with clear water and see a
doctor for medical treatment as soon as possible.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS
PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC
CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT
EQUIPMENT/SYSTEMS*1, MEDICAL DEVICES OR ACCESSORIES*2, LIFE SUPPORT SYSTEMS OR OTHER EQUIPMENTS/DEVICES/SYSTEMS THAT ARE INVOLVED WITH
ENSURING HUMAN LIFE OR SAFETY. PANASONIC WILL
NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING
FROM THE USE OF THIS PRODUCT ARISING OUT OF THE
FOREGOING USES.
*1
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during takeoff and landing) and/or mounted on to the aircraft. Class1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No.36.
*2
As defined by the European Medical Device Directive (MDD)
93/42/EEC.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc.) requirements related to aviation
standards and medical equipment standards that differ from
the specifications of our COTS (Commercial-Off-The-Shelf)
products.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc.) requirements related to aviation
standards that exceed the specifications of our COTS (Commercial-Off-The-Shelf) products.
This computer is not intended for use in medical equipment including life-support systems, air traffic control systems, or other
equipment, devices or systems that are involved with ensuring
human life or safety. Panasonic cannot be held responsible in
any way for any damages or loss resulting from the use of this
unit in these types of equipment, devices or systems, etc.
This computer has been designed so as to minimize shock to
the LCD and hard disk drive, the leakage of liquid (e.g., water)
on to the keyboard, etc., but no warranty is provided against
such trouble. Therefore, as a precision instrument, be extremely
careful in the handling.
4
CF-53mk4(DFQW5997ZAT)_OI_US.indb
4
2014/06/13
10:13:14
Read Me First
NOTE
l The battery pack may become warm during recharging or
normal use. This is completely normal.
l Recharging will not commence if internal temperature of the
battery pack is outside of the allowable temperature range
(0 °C to 50 °C {32 °F to 122 °F}).
(è
Reference Manual “Battery Power”) Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the
usage conditions. (Recharging takes longer than usual when
the temperature is 10 °C {50 °F} or below.)
l If the temperature is low, the operating time is shortened.
Only use the computer within the allowable temperature
range.
l This computer has a high temperature mode function that
prevents the degradation of the battery in high temperature
environments. (è
Reference Manual “Battery Power”) A
level corresponding to a 100% charge for high temperature
mode is approximately equivalent to an 80% charge level for
normal temperature mode.
l The battery pack is a consumable item. If the amount of
time the computer can be run by using a particular battery
pack becomes dramatically shorter and repeated recharging
does not restore its performance, the battery pack should be
replaced with a new one.
l When transporting a spare battery inside a package, briefcase, etc., it is recommended that it be placed in a plastic
bag so that its contacts are protected.
l Always power off the computer when it is not in use. Leaving
the computer on when the AC adaptor is not connected will
exhaust the remaining battery capacity.
5
CF-53mk4(DFQW5997ZAT)_OI_US.indb
5
2014/06/13
10:13:14
Regulatory Information
Important Safety Instructions /
Importantes Mesures De Sécurité
Read Me First
<Only for model with modem>
When using your telephone equipment, basic safety precautions
should always be followed to reduce the risk of fire, electric
shock and injury to persons, including the following:
1. Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type) during
an electrical storm. There may be a remote risk of electric
shock from lightning.
3. Do not use the telephone to report a gas leak in the vicinity
of the leak.
4. Use only the power cord and batteries indicated in this manual.
Do not dispose of batteries in a fire. They may explode. Check
with local codes for possible special disposal instructions.
SAVE THESE INSTRUCTIONS
19-E-1
<Pour modèles avec modem uniquement>
Certaines mesures de sécurité doivent être prises pendant l’utilisation
de matérial téléphonique afin de réduire les risques d’incendie, de
choc électrique et de blessures. En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à laver,
dans un sous-sol humide ou près d’une piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter
un risque de choc électrique causé par la foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler une fuite
de gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type de piles
indiqués dans ce manual. Ne pas jeter les piles dans le feu:
elles peuvent exploser. Se conformer aux règlements pertinents quant à l’élimination des piles.
CONSERVER CES INSTRUCTIONS
19-F-1
Information to the User /
Informations destinées aux utilisateurs
<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio frequency
electromagnetic energy. The level of energy emitted by this
product however is far much less than the electromagnetic energy emitted by wireless devices like for example mobile phones.
Because this product operates within the guidelines found in
radio frequency safety standards and recommendations, we
believe this product is safe for use by consumers. These standards and recommendations reflect the consensus of the scientific community and result from deliberations of panels and
committees of scientists who continually review and interpret
the extensive research literature.
In some situations or environments, the use of this product may be
restricted by the proprietor of the building or responsible representatives of the organization. These situations may for example include:
l Using this product on board of airplanes, or
l In any other environment where the risk of interference to
other devices or services is perceived or identified as harmful.
If you are uncertain of the policy that applies on the use of
wireless devices in a specific organization or environment (e.g.
airports), you are encouraged to ask for authorization to use this
product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference
caused by unauthorized modification of this product. The correction
of interference caused by such unauthorized modification will be the
responsibility of the user. We and its authorized resellers or distributors are not liable for damage or violation of government regulations
that may arise from failing to comply with these guidelines.
26-M-1
6
CF-53mk4(DFQW5997ZAT)_OI_US.indb
6
<Uniquement les modèles avec réseau local sans fil et/ou Bluetooth>
Ce produit et votre santé
Ce produit, comme tout autre appareil radio, émet de l’énergie
radioélectrique. Toutefois, la quantité d’énergie émise par ce produit
est beaucoup moins importante que l’énergie radioélectrique émise
par des appareils sans fil tels que les téléphones portables. L’utilisation de ce produit ne comporte aucun risque pour le consommateur du fait que cet appareil opère dans les limites des directives
concernant les normes et les recommandations de sécurité sur
les fréquences radio. Ces normes et recommandations reflètent le
consensus de la communauté scientifique et résultent de délibérations de jurys et comités de scientifiques qui examinent et interprètent continuellement les nouveautés de la vaste littérature sur les recherches effectuées. Dans certaines situations ou environnements,
l’utilisation de ce produit peut être restreinte par le propriétaire du
bâtiment ou par les représentants responsables de l’organisation.
Ces situations peuvent être les suivantes par exemple :
l A bord d’un avion, ou
l Dans tout autre environnement où les risques d’interférence
sur d’autres appareils ou services sont perçus ou identifiables comme dangereux.
Si vous n’êtes pas sûr de la réglementation applicable à l’utilisation d’appareils sans fil dans une organisation ou un environnement spécifique, (par exemple dans un aéroport) nous vous
invitons àdemander l’autorisation d’utiliser ce produit avant sa
mise en marche.
Informations concernant la réglementation
Nous déclinons toute responsabilité pour toute interférence
radio ou télévision causée par des modifications non autorisées
apportées à ce produit. La correction d’interférences causées
par de telles modifications non autorisées sera la seule responsabilité de son utilisateur. Nousmêmes, les revendeurs officiels
et les distributeurs ne sommes pas responsable de tout dégât
ou de toute violation des règlements de l’État pouvant découler
du non-respect de ces directives.
26-F-1
Lithium Battery / Pile au lithium
Lithium Battery!
This computer contains a lithium battery to enable the date,
time, and other data to be stored. The battery should only be
exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or misapplication
may possibly occur.
15-E-1
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines données, notamment la date et l’heure.
La pile ne doit être remplacée que par un technicien qualifié.
Danger ! Risque d’explosion en cas de non respect de cette
mise en garde!
15-F-1
CD/DVD Drive Caution
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
12-E-1
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU
L’EXÉCUTION DE PROCÉDURES AUTRES QUE CELLES
SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION
À DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOIMÊME.
2014/06/13
10:13:14
The following label is put on the bottom of the computer.
L’étiquette suivante se trouve en-dessous de l’ordinateur.
12-F-1
12-1-1
Battery Pack / Batterie
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
58-E-1
ATTENTION:
Il y a risque d’explosion si la batterie est remplacée par une batterie
de type incorrect.
Mettre au rebut les batteries usagées conformément aux instructions.
58-F-1
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols are only valid in the
European Union.
If you wish to discard this product,
please contact your local authorities or dealer and ask for the correct method of disposal.
53-M-1
Safety Precautions
<Only for model with wireless WAN>
The following safety precautions must be observed during all
phases of the operation, usage, service or repair of any Personal Computer or Handheld Computer incorporating wireless WAN
modem. Manufacturers of the cellular terminal are advised to
convey the following safety information to users and operating
personnel and to incorporate these guidelines into all manuals
supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and
intended use of the product. Panasonic assumes no liability for
customer failure to comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch
Personal Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so
by the guidelines posted in sensitive areas. Medical
equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be
affected by interference from Personal Computer
or Handheld Computer incorporating wireless WAN
modem placed close to the device. If in doubt about
potential danger, contact the physician or the manufacturer of the device to verify that the equipment is
properly shielded. Pacemaker patients are advised to
keep their Personal Computer or Handheld Computer
incorporating wireless WAN modem away from the
pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer
incorporating wireless WAN modem before boarding an aircraft. Make sure it cannot be switched on
inadvertently. The operation of wireless appliances
in an aircraft is forbidden to prevent interference with
communications systems. Failure to observe these
instructions may lead to the suspension or denial of
cellular services to the offender, legal action, or both.
For details on usage of this unit in aircrafts please
consult and follow instruction provided by the airline.
Do not operate Personal Computer or Handheld
Computer incorporating wireless WAN modem in the
presence of flammable gases or fumes. Switch off
the cellular terminal when you are near petrol stations, fuel depots, chemical plants or where blasting
operations are in progress. Operation of any electrical equipment in potentially explosive atmospheres
can constitute a safety hazard.
Your Personal Computer or Handheld Computer
incorporating wireless WAN modem receives and
transmits radio frequency energy while switched on.
Remember that interference can occur if it is used
close to TV sets, radios, computers or inadequately
shielded equipment. Follow any special regulations
and always switch off Personal Computer or Handheld Computer incorporating wireless WAN modem
wherever forbidden, or when you suspect that it may
cause interference or danger.
Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating wireless
WAN modem while driving a vehicle. Do not place
the computer with wireless WAN modem in an area
where it could cause personal injury to the driver or
passengers. It is recommended to stow the unit in the
boot or secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity
where an air bag may deploy.
Air bags inflate with great force and if the computer
with wireless WAN modem is placed in the air bag
deployment area may be propelled with great force
and cause serious injury to occupants of the vehicle.
IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio
signals and cellular networks cannot be guaranteed
to connect in all conditions. Therefore, you should
never rely solely upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating
wireless WAN modem must be switched on and in a
service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if
certain network services or phone features are in use
(e.g. lock functions, fixed dialing etc.). You may need
to deactivate those features before you can make an
emergency call.
Some networks require that a valid SIM card be
properly inserted in Personal Computer or Handheld
Computer incorporating wireless WAN modem.
Read Me First
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL
QUALIFIÉ.
7
CF-53mk4(DFQW5997ZAT)_OI_US.indb
7
2014/06/13
10:13:15
Regulatory Information
For U.S.A.
Read Me First
Federal Communications Commission Radio Frequency
Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one
or more of the following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
l Consult the Panasonic Service Center or an experienced
radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including
interference that may cause undesired operation.
FCC RF Exposure Warning:
l This equipment is provided with PC Card slot that could be
used with wireless transmitters, which will be specifically
recommended when they become available.
Other third-party wireless transmitters have not been RF
exposure evaluated for use with this computer and may not
comply with FCC RF exposure requirements.
<Only for model with wireless LAN/wireless WAN/Bluetooth>
l This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
l This equipment may not be co-located or operated with any
other antenna or transmitter.
25-M-6
<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation in
the 5.15 to 5.25 GHz frequency range. FCC requires this product to be used indoors for the frequency range 5.15 to 5.25 GHz
to reduce the potential for harmful interference to co-channel
Mobile Satellite systems. High power radars are allocated as
primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz
bands. These radar stations can cause interference with and/or
damage this product.
Responsible Party:
Support Contact:
25-M-W
Panasonic Corporation of North America
Two Riverfront Plaza
Newark, NJ 07102
Tel No:1-800-LAPTOP5 (1-800-527-8675)
http://www.panasonic.com/contactinfo
<Only for model with modem>
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
6-M-1
1. This equipment complies with CFR47 Part 68 rules.
On the computer is a label that contains, among other information, the FCC registration number and ringer equivalence
number (REN) for this equipment. If required, this information must be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is designed to
be connected to the telephone network or premises wiring
using a compatible modular jack which is Part 68 compliant.
See Installation Instructions for details.
3. The REN is used to determine the quantity of devices which
may be connected to the telephone line. Excessive RENs
on the telephone line may result in the devices not ringing in
response to an incoming call. In most, but not all area, the
sum of RENs should not exceed five (5.0). To be certain of
the number of devices that may be connected to a line, as
determined by the total RENs, contact the local telephone
company.
4. If your telephone equipment cause harm to the telephone
network, the telephone company will notify you in advice that
temporary discontinuance of service may be required. But
if advice notice isn’t practical, the telephone company will
notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you
believe it is necessary.
5. The telephone company may take changes in its facilities,
equipment, operations or procedures that could affect the
operation of the equipment. If this happens the telephone
company will provide advance notice in order for you to
make necessary modifications to maintain uninterrupted
service.
6. If trouble is experienced with this equipment, for repair or
warranty information, please contact Panasonic Corporation of North America at DIAL TOLL FREE 1-800-LAPTOP5
(1-800-527-8675). If the equipment is causing harm to the
telephone network, the telephone company may request that
you disconnect the equipment until the problem is resolved.
7. There are no user serviceable parts contained in this equipment.
8. This equipment may not be used on coin service provided
by the telephone company. Connection to party lines is subject to state tariffs.
9. The Telephone Consumer Protection Act of 1991 makes it
unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine
unless such message clearly contains in a margin at the top
or bottom of each transmitted page or on the first page of the
transmission, the date and time it is sent and an identification of the business or other entry, or other individual sending the message and the telephone number of the sending
machine or such business, other entity, or individual. In
order to program this information into your fax software, you
should refer to the manual of the Fax software being used.
10.According to the FCC’s electrical safety advisory, we recommend that you may install an AC surge arrestor in the
AC outlet to which this equipment is connected. Telephone
companies report that electrical surges, typically lightning
transients, are very destructive to customer terminal equipment connected to AC power sources and that this is a
major nationwide problem.
“Caution : To reduce the risk of fire, use only No.26 AWG or
larger (e.g., 24 AWG) UL listed or CSA certified telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser uniquement des conducteurs de télécommunications 26 AWG ou de
section supérieure (p.ex. 24 AWG) UL énumérés ou CSA certifié.”
16-M-1
8
CF-53mk4(DFQW5997ZAT)_OI_US.indb
8
2014/06/13
10:13:15
65-M-2
<For USA and Canada>
A lithium ion battery that is recyclable
powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré
est alimenté par une batterie au lithiumion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer
le 1-800-8-BATTERY.
48-M-1
External Antenna
FCC RF Exposure Warning:
Ÿ This equipment is provided with external antenna connector(s)
for connection to optional Car Mounter or Port Replicator for
mobile external mounted antenna(s). External antenna(s)
must be professionally installed and cannot exceed recommended maximum antenna gain as described in individual
provided supplement instructions for wireless transmitters.
The Car Mounter is provided with Radiall/Larsen WLAN whip
antenna, type NMO5E2400BKTNC with 5dBi antenna gain.
The maximum allowable antenna gain for the external WWAN
base whip antenna for the 800 MHz and/or 850 MHz bands
are 4 dBi, 3 dBi at 1700 MHz band and 1900 MHz band and
9 dBi at 700 MHz band. Also, user must maintain minimum
20 cm spacing between external antenna(s) and all person’s
body (excluding extremities of hands, wrist and feet) during
wireless modes of operation.
32-M-1
This product contains a Coin Cell Lithium Battery
which contains Perchlorate Material - special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/
38-M-1
For Canada
<Only for model with modem>
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved modem
unit.
The Industry Canada label is affixed on the modem unit.
EQUIPMENT ATTACHMENT LIMITATIONS
“NOTICE: The Industry Canada label identifies certified equipment. This certification means that the equipment meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment
Technical Requirements document(s). The Department does not
guarantee the equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is
permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should
be aware that compliance with the above conditions may not
prevent degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by the supplier. Any repairs or alterations
made by the user to this equipment, or equipment malfunctions,
may give the telecommunications company cause to request
the user to disconnect the equipment.
Users should ensure for their own protection that the electrical
ground connections of the power utility, telephone lines and
internal metallic water pipe system, if present, are connected
together. This precaution may be particularly important in rural
areas. Caution: Users should not attempt to make such connections themselves, but should contact the appropriate electric
inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned to
each terminal device provides an indication of the maximum
number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any
combination of devices subject only to the requirement that the
sum of the Ringer Equivalence Numbers of all the devices does
not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT DE
MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifie le matériel homologué. Cette étiquette certifie que le matériel est conforme aux
normes de protection, d’exploitation et de sécurité des réseaux
de télécommunications, comme le prescrivent les documents
concernant les exigences techniques relatives au matériel
terminal. Le Ministère n’assure toutefois pas que le matériel
fonctionnera à la satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer qu’il est
permis de le raccorder aux installations de l’entreprise locale
de télécommunication. Le matériel doit également être installé
en suivant une méthode acceptée de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la conformité
aux conditions énoncées ci-dessus n’empêche pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à l’utilisateur de débrancher un appareil à la suite de réparations ou de
modifications effectuées par l’utilisateur ou à cause de mauvais
fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que tous
les fils de mise à la terre de la source d’énergie électrique, des
lignes téléphoniques et des canalisations d’eau métalliques,
s’il y en a, sont raccordés ensemble. Cette précaution est particulièrement importante dans les régions rurales. Avertissement:
L’utilisateur ne doit pas tenter de faire ces raccordements luimême; il doit avoir recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à
chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d’une interface téléphonique peut consister en une
combinaison de quelques dispositifs, à la seule condition que
la somme d’indices d’équivalence de la sonnerie de touts les
dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
Read Me First
USA Only: Disposal may be regulated in your community
due to environmental considerations. For disposal or recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental or call
1‑888‑769‑0149
17-Ca-1
Canadian ICES-003
CAN ICES-3(B)/NMB-3(B)
7-M-2
<Only for model with wireless LAN/Bluetooth>
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1)this device may not cause interference, and
(2)this device must accept any interference, including interference that may cause undesired operation of the device.
9
CF-53mk4(DFQW5997ZAT)_OI_US.indb
9
2014/06/13
10:13:15
Regulatory Information
<Ne s’applique qu’aux modèes avec technologie Bluetooth/LAN
sans fil/WAN sans fil>
Industrie Canada
Cet équipement est conforme à la norme CNR-210 d’ndustrie
Canada. Son fonctionnement est
soumis aux deux conditions suivantes :
(1)ce dispositif ne peut produire de brouillage, et
(2)ce dispositif doit accepter le brouillage, y compris le
brouillage pouvant entraîner le fonctionnement non désiré
de l’appareil.
Read Me First
30-Ca-1-1
<Only for model with wireless LAN>
This product (local network devices) for the band 51505250 MHz is only indoor usage to reduce potential for harmful
interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and 5650-5850 MHz and
these radars could cause interference and/or damage to LELAN
devices.
<Ne s’applique qu’aux modèes avec technologie LAN sans fil>
Cet appareil (pour réseaux locaux radioélectriques) dans les
bandes de fréquences 5150-5250 MHz est réervéàune utilisation àl’intéieur afin de réuire le risque d’interféence avec les
systèmes satellites mobiles bicanaux.
Les radars forte puissance sont désignés comme étant les premiers utilisateurs (c’st-à-dire qu’ls ont la priorité) des bandes de
fréquences 5250-5350 MHz et 5650-5850 MHz. Ces stations radars peuvent provoquer des interférences et/ou des dommages
à ce périphérique.
30-Ca-2-1
This device has been designed to operate with the Radiall/
Larsen whip antenna, type NMO5E2400BKTNC WLAN antenna
having a maximum gain of 5dB. A WLAN Antenna having a
higher gain is strictly prohibited per regulations of Industry
Canada. The Required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required for successful communication.
Cet appareil est conçu pour opérer avec l’antenne-fouet Radiall/
Larsen, type WLAN NMO5E2400BKTNC, ayant un gain maximum de 5 dB. Les règlements d’Industrie Canada interdisent
l’utilisation d’une antenne WLAN dont le gain serait supérieur à
cette limite. L’antenne doit avoir une impédance de 50 ohms.
Afin de réduire le risque d’interférence radioélectrique aux
autres utilisateurs des bandes de fréquences, le type d’antenne
et son gain doivent être tels que la puissance isotrope rayonnée
équivalente (PIRE) n’est pas plus élevée que le niveau requis
pour assurer la communication.
25-Ca-1-1
<Only for model with wireless LAN/wireless WAN/Bluetooth>
lThis computer complies with Industry Canada radiation
exposure limits set forth for an uncontrolled environment.
lThis equipment has been approved for mobile operation,
and unless otherwise advised in separate supplemental
instructions for individual wireless transmitter(s), requires
minimum 20 cm spacing be provided between antenna(s)
and all person’s body (excluding extremities of hands, wrist
and feet) during wireless modes of operation.
<Ne s’applique qu’aux modèles avec technologie Bluetooth/
LAN sans fil/WAN sans fil>
l Cet équipement est conforme aux limites d’exposition aux
rayonnements d’Industrie Canada établies pour un environnement non contrôlé.
lCet équipement a été approuvé à des fins d’opération
mobile et, sauf indication contraire, dans une notice supplémentaire concernant les émetteurs sans fil individuels, doit
être utilisé en veillant qu’il y ait une distance d’au moins 20
cm entre son(ses) antenne(s) et le corps de l’utilisateur (sauf
les extrémités : mains, poignets et pieds) dans les modes
d’opération sans fil.
FOR USE WITH MODEL NO. : CF-AA5713A
POUR UTILISER AVEC MODÈLE : CF-AA5713A
20-Ca-1
External Antenna
This device has been designed to operate with the WWAN
antenna having a maximum gain of 4dBi for the 850MHz band,
3dBi for the 1700MHz band and 3dBi for the 1900MHz band.
WWAN Antenna having a higher gain is strictly prohibited per
regulations of Industry Canada. The Required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (EIRP) is not more than that required for successful communication.
Ce dispositif a été conçu pour fonctionner avec l’antenne de réseau étendu sans fil (WWAN) avec un gain maximum de 4 dBi
dans la bande de 850 MHz, 3 dBi dans la bande de 1 700 MHz
et 3 dBi dans la bande de 1 900 MHz. Les règlements d’Industrie
Canada interdisent l’utilisation d’une antenne WWAN dont le
gain serait supérieur à cette limite. L’antenne doit avoir une
impédance de 50 ohms.
Afin de réduire le risque d’interférence radioélectrique aux
autres utilisateurs des bandes de fréquences, le type d’antenne
et son gain doivent être tels que la puissance isotrope rayonnée
équivalente (PIRE) n’est pas plus élevée que le niveau requis
pour assurer la communication.
32-Ca-1-1
For Europe
<Only for model with a “CE” mark on the bottom of the
computer>
Declaration of Conformity (DoC)
“Hereby, Panasonic declares that this Personal
Computer is in compliance with the essential
requirements and other relevant provisions of the
Directive 1999/5/EC.”
Hint:
If you want to get a copy of the original DoC of our above mentioned products, please contact our web address:
http://www.doc.panasonic.de
Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Network connection of Wired Modem.
The terminal equipment is intended for connection to the following public network;
In all the countries of European Economical Area and Turkey;
- Public Switched Telephony Networks
Technical Features of Wired Modem.
The terminal equipment includes the following features;
- DTMF dialing
- Maximum bitrate receiving mode: 56 kbit/s
- Maximum bitrate sending mode: 33.6 kbit/s
18-E-1
10
CF-53mk4(DFQW5997ZAT)_OI_US.indb
10
2014/06/13
10:13:15
For Australia
Read Me First
For Used in Motor Vehicle
Warning: Notebook Computer may be installed in a motor
vehicle and visible to the driver only if used to support vehicle
related functions such as vehicle information, system control,
rear or side observation and navigation. If the Notebook Computer is to be used for work or entertainment purposes, such as
television reception, video play or other work programs, it must
be installed in a position where it will NOT:
(a) be visible, directly or indirectly, to the operator of the motor
vehicle; or
(b) cause distraction to drivers of other motor vehicles.
Check with individual state laws to determine lawful use of this
product while operating within a motor vehicle. If the visual
display unit is, or is part of, a driver’s aid, above rule is not applied. “Driver’s aid” includes closed-circuit television security
cameras, dispatch systems, navigational or intelligent highway
and vehicle system equipment, rear view screens, ticket-issuing
machines and vehicle monitoring devices.
35-A-1
For India Only
Declaration of Conformity with the requirements of the e-waste
(Management and Handling) Rules, 2011. (adopted by Notification S.O.1035(E) of Ministry of Environment and Forests)
The Product is in conformity with the requirements of Rule 13 of
the e-waste Rules.
The content of hazardous substance with the exemption of the
applications listed in SCHEDULE II of the e-waste Rules:
1. Lead (Pb) - not over 0.1% by weight;
2. Cadmium (Cd) - not over 0.01% by weight;
3. Mercury (Hg) - not over 0.1% by weight;
4. Hexavalent chromium (Cr6+) - not over 0.1% by weight;
5. Polybrominated biphenyls (PBBs) - not over 0.1% by weight;
6. Polybrominated diphenyl ethers (PBDEs) - not over 0.1% by
weight.
For the purpose of recycling to facilitate effective
utilization of resources, please return this product
to a nearby authorized collection center, registered
dismantler or recycler, or Panasonic service center
when disposing of this product.
Please see the Panasonic website for further information on collection centers, etc.
http://www.panasonic.com/in/corporate/sustainability/panasonicindia-i-recycle-program.html
68-M-1
11
CF-53mk4(DFQW5997ZAT)_OI_US.indb
11
2014/06/13
10:13:15
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
In these instructions, the names are referred as follows.
indicates Windows® 8.1 Operating System.
indicates Windows® 7 Operating System.
n Terms and illustrations in these instructions
CAUTION :
NOTE
Conditions that may result in minor or moderate injury.
:
Useful and helpful information.
Enter :
Press [Enter] key.
Fn + F5 :
Press and hold [Fn] key, and then press [F5] key.
Getting Started
l Display “Charm”: Align the pointer to the top right (or bottom right) corner of the screen to display Charm
menu. Alternatively, flick toward the center of the screen from the right edge.
:
Click
(Settings) and then click
(Power).
l
(Start) - [All Programs] : Click
cases.
è :
Page in these Operating Instructions or in the Reference Manual.
:
l
l
l
l
l
(Start), and then click [All Programs]. You may need to double-click in some
Reference to the on-screen manuals.
Some illustrations are simplified to help your understanding and may look different from the actual unit.
If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
Refer for the latest information about optional products to the catalogs, etc.
In these instructions, the names and terms are referred as follows.
®
Ÿ “Windows 8.1 Pro 64-bit” as “Windows” or “Windows 8.1”
®
®
Ÿ “Windows 7 Professional 32-bit Service Pack 1” and “Windows 7 Professional 64-bit Service Pack 1” as “Windows” or “Windows 7”
Ÿ DVD MULTI drive as “CD/DVD drive”
Ÿ Circular media including DVD-ROM and CD-ROM as “discs”
Screen messages are explained in [English (United States)].
(Depending on the language preference, some screen messages in these instructions are different from the actual
screen messages. For example, [Flight mode] may be displayed instead of [Airplane mode] in some language preference.)
n Disclaimer
Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the
manuals.
12
CF-53mk4(DFQW5997ZAT)_OI_US.indb
12
2014/06/13
10:13:16
n Trademarks
Microsoft®, Windows®, the Windows logo, and IntelliMouse are registered trademarks of Microsoft Corporation of the
United States and/or other countries.
Intel, Core and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDXC Logo is a trademark of SD-3C, LLC.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
Getting Started
n On-screen Manual
For further information about the computer, you can refer to the on-screen manual.
l Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
l Important Battery Tips
The Important Battery Tips will provide you with the battery information so that you can use the battery in the optimum condition to obtain longer operation time.
To access the on-screen manuals, follow the steps below.
On the Start screen, click the [Manual Selector] tile, and select the on-screen manual.
Double-click [Manual Selector] on the desktop, and select the on-screen manual.
NOTE
Ÿ [Contents] tab or [Search] tab is displayed on the left side of the window.
Select tab and display the desired item.
13
CF-53mk4(DFQW5997ZAT)_OI_US.indb
13
2014/06/13
10:13:16
Description of Parts
A
F
G
A
H
I
J
B
C
Getting Started
D
E
A:Wireless WAN antenna
<Only for model with wireless WAN>
Reference Manual “Wireless LAN”
è
B:Wireless LAN antenna/Bluetooth antenna
<Only for model with Bluetooth>
Reference Manual “Bluetooth”
è
C:Speaker
Reference Manual “Key Combinations”
è
D:Smart Card slot
<Only for model with Smart Card slot>
Reference Manual “Smart Card”
è
E: CD/DVD Drive
Reference Manual “CD/DVD Drive”
è
F: Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
è
G:Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN and without GPS>
Reference Manual “Wireless LAN”
è
GPS antenna
<Only for model with GPS>
H:Camera
<Only for model with Camera>
Reference Manual “Camera”
è
I: LCD
<Only for model with touchscreen>
Reference Manual “Screen Input Operation”
è
J: Power switch
K:Function key
Reference Manual “Key Combinations”
è
L: Wireless LAN antenna/Bluetooth antenna
<Only for model with wireless LAN and GPS>
Reference Manual “Wireless LAN”
è
M:Fingerprint Reader
<Only for model with Fingerprint Reader>
Reference Manual “Fingerprint Reader”
è
N:Keyboard
K
C
L
M
N
O
P
Q
R
S
T
R
U
O:LED indicator
:Caps lock
:Numeric key (NumLk)
:Scroll lock (ScrLk)
: Drive status
:SD Memory Card status
(Blinking: During access or a password is requested)
Reference Manual “SD Memory Card”
è
:Wireless ready
This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Disabling/Enabling
è
Wireless Communication” “Wireless LAN”
“Bluetooth” “Wireless WAN”
: Battery status
Reference Manual “Battery Power”
è
: Power status
(Off: Power off/Hibernation, Green: Power on,
Blinking green: Sleep, Blinking green rapidly:
Cannot power on or resume due to low temperature.)
P: Microphone jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be possible, or malfunctions may occur as a result.
Q:Headphone jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
R:Stylus Holder
<Only for model with touchscreen>
S: RFID Reader
<Only for model with RFID Reader>
Reference Manual “RFID Reader”
è
T: Carrying handle
U:Touch pad
14
CF-53mk4(DFQW5997ZAT)_OI_US.indb
14
2014/06/13
10:13:17
Right side
A
B
C
D
E
Rear side
F
G
Bottom
Q
R
S
T
I
J
K
L
MN O
P
A:Battery pack
Specified Battery pack: CF-VZSU71U/CF-VZSU72U
B:ExpressCard slot*1 / PC Card slot*2
Reference Manual “PC Card / ExpressCard”
è
*1 Only for model with ExpressCard slot
*2 Only for model without ExpressCard slot
O:2nd LAN Port*3 / Modem Port*4 / IEEE 1394 Interface
Connector*5 / Rugged USB 2.0 Port*6 / Dual Pass
through Antenna’s Connector*7
*3
Only for model with 2nd LAN
Reference Manual “LAN”
è
Only for model with Modem
*4
C:PC Card slot
Reference Manual “PC Card / ExpressCard”
è
*5
D:SD Memory Card slot
Keep SD Memory Cards Away from Infants and Small
Children.
Reference Manual “SD Memory Card”
è
E: Wireless switch
Reference Manual “Disabling/Enabling Wireless
è
Communication” “Wireless LAN” “Bluetooth” “Wireless WAN”
F: USB 3.0 port
Reference Manual “USB Devices”
è
G:DC-IN jack
H:LAN port
Reference Manual “LAN”
è
I: USB 2.0 port
Reference Manual “USB Devices”
è
J: HDMI Port
Reference Manual “External Display”
è
K:VGA port
Reference Manual “External Display”
è
L: Ventilation hole (Exhaust)
M:Security lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
N:SIM Card slot
<Only for model with Wireless WAN>
Reference Manual “Wireless WAN”
è
Reference Manual “Modem”
è
Only for model with IEEE 1394
Reference Manual “IEEE 1394 Devices”
è
Only for model with Rugged USB 2.0 Port
*7
Only for model with Dual Pass through Antenna’s
Connector
P: Serial port
Q:Expansion bus connector
Reference Manual “Port Replicator”
è
R:RAM module slot
Reference Manual “RAM Module”
è
S: Battery latch
T: Hard disk drive
Reference Manual “Hard Disk Drive”
è
Getting Started
H
*6
NOTE
(Example: rear side)
l When you open the covers
on the right side or the rear
side, push down and pull the
covers.
l This computer contains a
magnet and magnetic products at the locations circled
in the illustration at right.
Avoid leaving metallic object
or magnetic media in contact
with these areas.
15
CF-53mk4(DFQW5997ZAT)_OI_US.indb
15
2014/06/13
10:13:17
First-time Operation
n Preparation
ACheck and identify the supplied accessories.
If you do not find the described accessories, contact Panasonic Technical Support (è pages 38 - 42).
• AC Adaptor. . . . . . . . . . . . . . . . . 1 • AC Cord. . . . . . . . . . . . . . . . . . . 1 • Battery Pack . . . . . . . . . . . . . . . 1
Model No: CF-AA5713A
Model No: CF-VZSU71U or
CF-VZSU72U
• OPERATING INSTRUCTIONS (This book). . . . . . . . . . . . . . . 1
<Only for model with touchscreen>
• Soft Cloth. . . . . . . . . . . . . . . . . . 1 • Stylus. . . . . . . . . . . . . . . . . . . . . 1 • Tether. . . . . . . . . . . . . . . . . . . . . 1
(è Reference Manual “Screen Input Operation”)
BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
(è page 32).
Getting Started
n Inserting the Battery Pack
mark part (A).
AReverse the computer, then press and hold the
BSlide and remove the cover.
CInsert the battery pack (B) until it securely fits the connector.
DSlide the cover back.
A
n To remove the battery pack
In step C above, slide and hold the latch (C), and pull the tab (D) of the battery
pack.
2
1
CAUTION
B
3
4
C
D
l Make sure the cover is securely attached. Otherwise the battery pack may fall
when you carry the computer.
NOTE
l Note that the computer consumes electricity even when the computer power is
off. If the battery pack is fully charged, the battery will fully discharge in the following period of time:
•When power is off: Approx. 9 weeks (with CF-VZSU71U) /
Approx. 6 weeks (with CF-VZSU72U)
• In sleep: Approx. 3.5 days (with CF-VZSU71U) /
Approx. 2 days (with CF-VZSU72U)
• In hibernation: Approx. 9 days (with CF-VZSU71U) /
Approx. 6 days (with CF-VZSU72U)
l When the DC plug is not connected to the computer, disconnect the AC cord
from your electrical outlet. Power is consumed simply by having the AC adaptor
plugged into an electrical outlet.
n Attaching the stylus to the computer
<Only for model with touchscreen>
Use the tether to attach the stylus to the computer so you will not lose it.
There are holes (A) to attach it.
A
1
2
3
4
CAUTION
l Do not pull the tether with excessive force. The digitizer pen may hit the computer, person’s body or other objects when released.
16
CF-53mk4(DFQW5997ZAT)_OI_US.indb
16
2014/06/13
10:13:18
n Opening the Display
A
2
A Push the top of the latch (A) to release it.
B Lift up the display to open.
1
n Setting up the computer
1
Insert the battery pack. ( page 16)
l Do not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
l Be sure to attach the cover for use.
Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
l Do not disconnect the AC adaptor and do not switch the wireless switch to on
until the first-time operation procedure is completed.
l When using the computer for the first time, do not connect any peripheral device
except the battery pack and AC adaptor.
l Handling the AC adaptor
Problems such as sudden voltage drops may arise during periods of thunder
and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery
pack alone.
3
Getting Started
2
Turn on the computer.
A Confirm the wireless switch (è page 15) is OFF.
B Press and hold the power switch (è page 14) until the power indicator
page 14) lights.
(è
CAUTION
l Do not press the power switch repeatedly.
l The computer will be forcibly turned off if you press and hold the power switch
for four seconds or longer.
l Once you turn off the computer, wait for ten seconds or more before you turn on
the computer again.
turns off.
l Do not perform the following operation until the drive indicator
Ÿ Connecting or disconnecting the AC adaptor
Ÿ Pressing the power switch
Ÿ Touching the keyboard, touch pad, touchscreen <only for model with touchscreen> or external mouse
Ÿ Closing the display
Ÿ Turn on/off the wireless switch
l When the CPU temperature is high, the computer may not start up to prevent
overheating of the CPU. Wait until the computer cools down, and then turn the
power on again. If the computer does not power on even after cooling down,
contact Panasonic Technical Support (è pages 38 - 42).
l Any changes from the default setting of the Setup Utility must not be made until
the First-time Operation is completed.
17
CF-53mk4(DFQW5997ZAT)_OI_US.indb
17
2014/06/13
10:13:19
First-time Operation
4
Setup Windows.
Follow the on-screen instructions.
lThe computer restarts several times. Do not touch the keyboard or touch pad,
has turned off.
and wait until the drive indicator
lAfter the computer is turned on, the screen remains black or unchanged for a
while, but this is not a malfunction. Wait for a moment until the Windows setup
screen appears.
lDuring setup of Windows, use the touch pad and clicking to move the pointer
and to click an item.
5 minutes /
lSetup of Windows will take approximately
20 minutes.
Go to the next step, confirming each message on the display.
lYou can set the Wireless Network after the setup of Windows is complete.
If “Get online” is displayed, select “Skip this step”.
“Join a wireless network” screen may not appear.
CAUTION
Getting Started
l You can change the user name, password, image and security setting after
setup of Windows.
l Remember your password. If you forget the password, you cannot use Windows.
Creating a password reset disk beforehand is recommended.
l Do not use the following words and characters for user name: CON, PRN, AUX,
CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9, @, &, space. In particular, if
you create a user name (account name) that includes the “@” mark, a password will be requested at the log-on screen, even if no password has been set.
If you try to log on without entering a password, “The user name or password
is incorrect.” may be displayed and you will not be able to
sign in /
log on to Windows (è page 29).
5Create the recovery disc.
A recovery disc allows you to install OS and restore its factory default condition, in
case, for example, the recovery partition of the HDD is damaged.
We recommend creating a recovery disc before you begin using the computer.
Reference Manual “Recovery Disc Creation Utility” about creating
Refer to è
the disc.
NOTE
l PC Information Viewer
This computer periodically records the management information of the hard disk, etc. The maximum data volume for each
record is 1024 bytes.
This information is only used for estimating the cause in the case when the hard disk goes down by any possibility. They
are never sent to outside via network nor used for any other purpose except for the purpose described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information history]
in [Hard Disk Status] of PC Information Viewer, and click [OK].
Reference Manual “Checking the Computer’s Usage Status”)
(è
n Before using wireless function
A Slide the wireless switch to ON.
- [Change PC Settings] - [Network] - [Airplane mode].
B Display “Charm” and click
Set [Wi-Fi] to [On] (for wireless LAN).
set [Mobile broadband] to [On] (for wireless WAN).
set [GPS] to [On] (for wireless WAN).
set [Bluetooth] to [On] (for Bluetooth).
set [GPS\GNSS] to [On] (for GPS).
18
CF-53mk4(DFQW5997ZAT)_OI_US.indb
18
2014/06/13
10:13:19
n To change the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new partition.
In the default setting, you can use a single partition.
A
Right-click
at the bottom left corner of the Desktop screen.
Click
(Start) and right-click [Computer], then click [Manage].
l A standard user needs to enter an administrator password.
B Click [Disk Management].
C Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].
l The partition size depends on the computer specifications.
D Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].
l You cannot input a larger number than the displayed size.
70 GB /
l To select [Reinstall to the OS related partitions.] in installing OS (è page 24),
60 GB or more is necessary for [Total size after shrink in MB].
E Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
F Follow the on-screen instructions to make the settings, and click [Finish].
Wait until formatting is completed.
NOTE
Getting Started
l You can create an additional partition using remaining unallocated space or newly creating unallocated space.
l To delete a partition, right-click the partition and click [Delete Volume] in the step C.
19
CF-53mk4(DFQW5997ZAT)_OI_US.indb
19
2014/06/13
10:13:19
Turning On / Turning Off
Turning On
Press and hold the power switch
(è page 14) until the power indicator
(èpage 14) lights.
NOTE
l
l
l
l
Do not press the power switch repeatedly.
The computer will forcibly be turned off if you press and hold the power switch for four seconds or longer.
Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.
Do not perform the following operation until the drive indicator
turns off.
• Connecting or disconnecting the AC adaptor
• Pressing the power switch
• Touching the keyboard, touch pad, screen or external mouse
• Closing the display
• Turn on/off the wireless switch
Turning Off
Getting Started
You can shut down the computer by using either of the following steps.
• From the Start screen:
- [Shut down].
AClick
• From the Desktop screen:
at the bottom left corner of the Desktop screen.
ARight-click
BClick [Shut down or sign out] - [Shut down].
A Click
(Start) - [Shutdown].
NOTE
l
To turn off the computer completely, proceed as follows.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm” and click
B Click [Restart now] under “Advanced startup”
C Click [Turn off your PC].
Precautions against Starting Up/Shutting Down
l Do not do the following
• Connecting or disconnecting the AC adaptor
• Pressing the power switch
• Touching the keyboard, touch pad, screen or external mouse
• Closing the display
• Turn on/off the wireless switch
NOTE
l To conserve power, the following power saving methods are set at the time of purchase.
• The screen automatically turns off after :
10 minutes (when AC adaptor is connected) of inactivity
5 minutes (when operating on battery power) of inactivity
• The computer automatically enters sleep*1 after :
20 minutes (when AC adaptor is connected) of inactivity
15 minutes (when operating on battery power) of inactivity
*1
Refer to
Reference Manual “Sleep or Hibernation Functions” about resuming from sleep.
20
CF-53mk4(DFQW5997ZAT)_OI_US.indb
20
2014/06/13
10:13:19
Handling and Maintenance
Operation environment
l Place the computer on a flat stable surface not subject to shock, vibration, and danger of dropping. Do not place
the computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become damaged.
l Operating environment
Temperature:Operation :<Model without HDD heater> 0 °C to 50 °C {32 °F to 122 °F} (IEC60068-2-1, 2)*1
<Model with HDD heater> -10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*1
Storage
:-20 °C to 60 °C {- 4 °F to 140 °F}
Humidity:
Operation :30% to 80% RH (No condensation)
Storage :30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, operation for a long time in extreme environments, smoking
nearby, or operation in places where oil is used or where there is a lot of dust will result in the product deterioration
and will shorten the product life.
*1
Do not expose the skin to this product when using the product in a hot or cold environment. ( page 4)
If the computer is wet in temperatures of 0 °C {32 °F} or below, freeze damage may occur. Make sure to dry off the computer in
such temperatures.
l Do not place the computer in the following areas, otherwise the computer may be damaged.
Ÿ Near electronic equipment. Image distortion or noise may occur.
Ÿ In extremely high or low temperature.
l As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Handling cautions
Useful Information
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a
drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling the computer.
l When carrying the computer:
Ÿ Turn off the computer.
Ÿ Remove all external devices, cables, PC Cards and other protruding objects.
Ÿ Remove a disc in the CD/DVD drive.
Ÿ Do not drop or hit the computer against solid objects.
Ÿ Do not leave the display open.
Ÿ Do not grip the display part.
l Do not put anything (e.g., a piece of paper) between the display and keyboard.
l When you board an airplane, take the computer with you and never put it in your checked luggage. When using the
computer on airplane, follow the airline’s instructions.
l When carrying a spare battery, put it in a plastic bag to protect its terminals.
l The touch pad is designed to be used by finger tip. Do not place any object on its surface and do not press down
strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
l Avoid any harmful substances such as oil from getting into the touch pad. The pointer may not work correctly.
l Be careful not to get injured by dropping or getting hit when carrying the computer.
<Only for model with touchscreen>
l Use only the included stylus to touch the touchscreen. Do not place any object on its surface and do not press
down strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
l Do not use the touchscreen when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/
stylus can scratch the screen surface or obstruct the stylus operation.
l Use the stylus only for touching the screen. Using it for any other purpose may damage the stylus and result in
scratches on the screen.
n When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
l Use the peripheral devices conforming to the computer’s specifications.
l Connect to the connectors in the correct direction.
l If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
l If screws are included, fasten them securely.
l Remove the cables when you carry the computer. Do not pull the cables forcibly.
21
CF-53mk4(DFQW5997ZAT)_OI_US.indb
21
2014/06/13
10:13:19
Handling and Maintenance
n Preventing your computer from unauthorized use via wireless LAN/Bluetooth/wireless WAN
<Only for model with wireless LAN/Bluetooth/wireless WAN>
l Before using wireless LAN/Bluetooth/wireless WAN, make the appropriate security settings such as data encryption.
n Battery Recalibration
l The battery recalibration may take a long time due to the large battery capacity. This is not a malfunction.
<When performing “Battery Recalibration” after shutting down Windows>
Ÿ Full charge: Approximately 2 hours
Ÿ Complete discharge: Approximately 4 hours (with CF-VZSU71U) / Approx. 3 hours (with CF-VZSU72U)
When performing “Battery Recalibration” without shutting down Windows, it may take more time to charge / discharge.
Maintenance
To clean the LCD panel
If drops of water or other stains get on the surface of the LCD panel, wipe them off immediately. Failure to do so may
result in staining.
<Only for model with touchscreen>
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface”. 
Reference Manual “Screen Input Operation”)
<Only for model without touchscreen>
Wipe with a soft dry cloth such as gauze.
Useful Information
To clean areas other than the LCD panel
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.
CAUTION
l Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.
Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.
l Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
22
CF-53mk4(DFQW5997ZAT)_OI_US.indb
22
2014/06/13
10:13:19
Installing Software
Installing software will return the computer to the default condition. When you install the software, the hard disk data
will be erased.
Back up important data to other media or an external hard disk before installation.
CAUTION
l Do not delete the Recovery Partition on the hard disk. The disk space in the partition is not available to store data.
To check the Recovery Partition, perform the following methods.
A
Right-click
at the bottom left corner of the Desktop screen.
Click
(Start) and right-click [Computer], then click [Manage].
l A standard user needs to enter an administrator password.
Click [Disk Management].
Remove everything and reinstall Windows
n
Preparation
l Remove all peripherals.
l Connect the AC adaptor and do not remove it until installation is complete.
2
Perform “Remove everything and reinstall Windows”.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm” and click
B Click [Get Started] under “Remove everything and reinstall Windows”.
C Click [Next].
D Select the option.
l Just remove my files
Perform the reinstallation of the Windows in a few moments (Approximately 20 minutes).
l Fully clean the drive
By fully cleaning, the deleted files can not be recovered easily and the security level will be increased.
The processing time will be longer (Approximately 140 minutes).
Follow the on-screen instructions.
After the reinstallation, the computer will restart.
l Do not interrupt installation, for example by turning off the computer or performing other operation.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
Useful Information
1
Perform the “First-time Operation” ( page 18).
NOTE
l The date and time, and the time zone may not be correct. Be sure to set them correctly.
3
4
Perform Windows Update.
<Only for model with TPM> Clear TPM.
A Perform either of the following procedures.
at the bottom left corner of the Desktop screen.
l Right-click
on the Start screen.
l Click
B Click [Run], then input [tpm.msc] and click [OK].
C Click [Clear TPM…] under “Actions” on the right of the “TPM Manager on Local Computer” screen.
D Click [Restart] of the “Manage the TPM security hardware” screen.
The computer will restart.
E When “TPM configuration change was requested to ...” is displayed, press F12 .
F Click the Desktop tile, and when “TPM is ready” appears, click [Close].
23
CF-53mk4(DFQW5997ZAT)_OI_US.indb
23
2014/06/13
10:13:19
Installing Software
n Hard disk recovery
You can reinstall the OS that was pre-installed at the time of purchase (Windows 8.1 or Windows 7).
If reinstallation using the method described in “Remove everything and reinstall Windows” is not successful, follow the steps below.
Preparation
l Remove all peripherals.
l Connect the AC adaptor and do not remove it until installation is complete.
1
Start the Setup Utility.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Restart now] under “Advanced startup”.
C Click [Troubleshoot] - [Advanced options] - [UEFI Firmware Settings] - [Restart].
Useful Information
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
l If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del.
l If the password is requested, enter the Supervisor Password.
2
Write down all of the contents of the Setup Utility and press F9.
3
Check the [UEFI Boot] setting of the Setup Utility.
4
Press F10 .
5
Press F2 or Del while [Panasonic] boot screen is displayed.
6
7
Select the [Exit] menu, then select [Recovery Partition] and press Enter .
8
9
At the confirmation message, select [Yes] and press Enter.
Check the [UEFI Boot] setting of the Setup Utility.
[UEFI Boot] should be set to as follows.
When installing Windows 8.1: [Enabled]
When installing Windows 7 : [Disabled]
At the confirmation message, select [Yes] and press Enter.
Computer will restart.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
Click [Next] and click [YES].
Click [Reinstall Windows] and click [Next].
At the License Agreement screen, click [Yes, I agree to the provisions above and wish
to continue!] and click [Next].
Click [Next].
If the option is displayed, select the setting and click [Next].
l [Reinstall Windows to the whole Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” ( page 19)
l [Reinstall to the OS related partitions.]*1
Select this option when the hard disk has already been divided into several partitions and you want to keep
the partition structure. For how to create a new partition, refer to “To change the partition structure” ( page 19).
*1
This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
10
At the confirmation message, click [YES].
Select OS (32bit or 64bit) and click [OK].
11
12 At the confirmation message, click [YES].
Installation starts according to the instructions on the screen. (It will take approximately 20 minutes.)
l Do not interrupt installation, for example by turning off the computer or performing other operation.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
13 When Ending process screen is displayed, click [OK] to turn off the computer.
14 Turn on the computer.
l If the password is requested, enter the Supervisor Password.
24
CF-53mk4(DFQW5997ZAT)_OI_US.indb
24
2014/06/13
10:13:20
15 Perform the “First-time Operation” ( page 18).
NOTE
The date and time, and the time zone may not be correct. Be sure to set them correctly.
l
16 Start the Setup Utility and change the settings as necessary.
17 Perform Windows Update.
<Only for model with TPM> Clear TPM ( page 23).
18
n Using Recovery Disc
Use the Recovery Disc in the following conditions.
Ÿ You have forgotten the administrator password.
Ÿ Installation is not complete. The recovery partition in the hard disk may be broken.
<Only for Windows 7 downgrade model>
Ÿ
To change OS from Windows 7 to Windows 8.1, or vice versa.
NOTE
Ÿ
To change OS from 32 bit to 64 bit, or vice versa, install OS using the recovery partition in the hard disk.
Preparation
l Prepare the following items:
Reference Manual “Recovery Disc Creation Utility”)
Ÿ Recovery Disc (
l Remove all peripherals (except for the USB DVD drive).
l Connect the AC adaptor and do not remove it until installation is complete.
1
Start the Setup Utility.
Useful Information
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Restart now] under “Advanced startup”.
C Click [Troubleshoot] - [Advanced options] - [UEFI Firmware Settings] - [Restart].
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
l If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del .
l If the password is requested, enter the Supervisor Password.
2
Write down all of the contents of the Setup Utility and press F9.
3
Check the [UEFI Boot] setting of the Setup Utility.
4
5
Set the Recovery Disc into the DVD drive.
Press F10 .
6
Press F2 or Del while [Panasonic] boot screen is displayed.
7
Select the [Exit] menu, then select your DVD drive in [Boot Override] and press Enter .
At the confirmation message, select [Yes] and press Enter.
[UEFI Boot] should be set to as follows.
When the recovery disc for Windows 8.1 is used: [Enabled]
When the recovery disc for Windows 7 is used : [Disabled]
At the confirmation message, select [Yes] and press Enter.
Computer will restart.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
The computer will restart.
8
Click [Reinstall Windows] and click [Next].
At the confirmation message, click [YES].
9
10 At the License Agreement screen, click [Yes, I agree to the provisions above and wish
to continue!] and click [Next].
25
CF-53mk4(DFQW5997ZAT)_OI_US.indb
25
2014/06/13
10:13:20
Installing Software
11
Click [Next].
If the option is displayed, select the setting and click [Next].
l [Reinstall Windows to the whole Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” ( page 19)
l [Reinstall to the OS related partitions.]*2
Select this option when the hard disk has already been divided into several partitions and you want to keep
the partition structure. For how to create a new partition, refer to “To change the partition structure” ( page 19).
*2
This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
12 At the confirmation message, click [YES].
Installation starts according to the instructions on the screen. (It will take approximately 30 - 45 minutes.)
l Do not interrupt installation, for example by turning off the computer or pressing Ctrl + Alt + Del .
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
13 When Ending process screen is displayed, remove the Recovery Disc and DVD Drive
and then click [OK].
Follow the on-screen instructions.
Some models may take approximately 40 minutes.
14 Perform the “First-time Operation” ( page 18).
15 Start the Setup Utility and change the settings as necessary.
16 Perform Windows Update.
<Only for model with TPM> Clear TPM ( page 23).
Useful Information
17
26
CF-53mk4(DFQW5997ZAT)_OI_US.indb
26
2014/06/13
10:13:20
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support (è pages 38 - 42). You can also check the computer’s status in the PC Information Viewer (è
Reference Manual “Troubleshooting (Advanced)”).
n Starting Up
Cannot start up.
The power indicator or battery indicator is not lit.
l
l
l
l
Connect the AC adaptor.
Insert a fully charged battery.
Remove the battery pack and the AC adaptor, then connect them again.
Even if the AC adaptor and battery pack are correctly connected, if the battery indicator
is not lit, the AC adaptor protection function may be operating. Disconnect the AC cord,
wait three minutes or more, and reconnect the AC cord.
l If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disable] in the [Advanced] menu of the Setup Utility.
l If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.
l Press Fn + F8 to turn off the concealed mode.
l Check the [UEFI Boot] setting of the Setup Utility. [UEFI Boot] should be set to
[Enabled] /
[Disabled].
The power is turned on but l The computer is warming up before start up. Wait for the computer to start up (takes
up to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed
“Warming up the system (up
to warm up and does not start. In this case, turn off the computer, leave it in an envito 30 minutes)” appears.
ronment of 5 °C {41 °F} or higher temperature for about an hour, and then turn on the
power once more.
Cannot turn on the computer. l Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then
turn on the power again.
The computer does not resume from sleep.
(The power indicator blinks
quickly in green.)
l Turn off the computer and remove the RAM module, then confirm whether the RAM
After adding or changing
module has compliant to specification. When the RAM module has conformed to specifithe RAM module, the power
cation,
install it again.
is turned on but nothing is
displayed on the screen.
It takes time for the power
indicator to light up.
Troubleshooting
l Press and hold the power switch for 4 seconds or longer to shut down the computer
The computer does not
forcibly. (Data not saved will be lost.) Then disable the screen saver.
enter sleep mode while the
screen saver is running. (The
screen stays black.)
l If the power switch is pressed immediately after the battery pack has been mounted on
the computer, and while the AC adaptor is not connected, it may take about five seconds
before the power indicator lights up and the computer turns on. This is because the
computer is checking the remaining battery charge; it is not a malfunction.
You have forgotten the pass- l Supervisor Password or User Password: Contact Panasonic Technical Support
(è pages 38 - 42).
word.
l Administrator password:
Ÿ If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
Ÿ If you do not have a password reset disk, reinstall (è page 23) and set up Windows,
and then set a new password.
l A floppy disk is in the drive (optional) and it does not contain system startup information.
“Remove disks or other
Remove the floppy disk and press any key.
media. Press any key to
restart” or a similar message l If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.
appears.
l <Only for model with ExpressCard slot>
If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disable] in the [Advanced] menu of the Setup Utility.
l If the problem persists after removing the disk, it may be a hard disk failure. Contact
Panasonic Technical Support (è pages 38 - 42).
l Set [UEFI Boot] to [Disabled] in the [Boot] menu of the Setup Utility.
27
CF-53mk4(DFQW5997ZAT)_OI_US.indb
27
2014/06/13
10:13:20
Troubleshooting (Basic)
n Starting Up
Windows startup and opera- l Press F9 in the Setup Utility (è
Reference Manual “Setup Utility”) to return the
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
tion is slow.
Utility and make the settings again. (Note that the processing speed depends on the application software, so this procedure may not make Windows faster.)
l If you installed a resident software after purchase, turn off the residence.
The date and time are incor- l Make the correct settings.
A Open the Control Panel.
rect.
1. Perform either of the following procedures.
at the bottom left corner of the Desktop screen.
Ÿ Right-click
on the Start screen.
Ÿ Click
2. Click [Control Panel].
Click
(Start) - [Control Panel].
B Click [Clock, Language, and Region] - [Date and Time].
l If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support (è pages 38 - 42).
l When the computer is connected to LAN, check the date and time of the server.
l The 2100 A.D. or later year will not be correctly recognized on this computer.
[Executing Battery Recalibration] screen appears.
l The Battery Recalibration was cancelled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
l Select [Enabled] in [Password On Resume] in the [Security] menu of the Setup Utility
[Enter Password] does not
Reference Manual “Setup Utility”).
(è
appear when resuming from
l The Windows password can be used instead of the password set in the Setup Utility.
sleep/hibernation.
Troubleshooting
A Add a password.
1. Display “Charm” and click
- [Change PC settings] - [Accounts].
2. Click [Sign-in options], and click [Add] under “Password”.
1. Click
(Start) - [Control Panel].
2. Click [User Accounts and Family Safety] - [Add or remove user accounts].
B Set up the following.
1. Open the Control Panel, click [System and Security] - [Power Options] - [Require
a password on wakeup].
2. Add a check mark for [Require a password].
1. Click [Control Panel] - [System and Security] - [Power Option] - [Require a password when the computer wakes] and add a check mark for [Require a password].
Cannot resume.
l One of the following operations may have been carried out. Press the power switch turn
on the computer. Data not saved will be lost.
Ÿ In sleep mode, the AC adaptor or battery pack was disconnected, or a peripheral was
connected or disconnected.
Ÿ The power switch was slid for four seconds or longer to forcibly turn off the computer.
l An error may occur when the computer automatically enters the sleep or hibernation
mode while the screensaver is active. In this case, turn off the screensaver or change
the pattern of the screensaver.
28
CF-53mk4(DFQW5997ZAT)_OI_US.indb
28
2014/06/13
10:13:20
n Starting Up
Other startup problems.
Reference Manual “Setup Utility”) to return the
l Press F9 in the Setup Utility (è
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again.
l Remove all peripheral devices.
l Check to see if there was a disk error.
A Remove all peripheral devices including an external display.
B
Perform either of the following procedures.
at the bottom left corner of the Desktop screen.
Ÿ Right-click
l
on the Start screen.
Ÿ Click
(Start) - [Computer].
Click
C Click [File Explorer].
[Windows (C:)] /
[Local Disk (C:)], and click
D Right-click
[Properties].
[Check] /
[Check Now...].
E Click [Tools] Ÿ A standard user needs to enter an administrator password.
F Follow the on-screen instructions.
Start the computer in Safe Mode and check the error details. When the [Panasonic] boot
screen disappears*1 at startup, press and hold F8 until the Windows Advanced Options
Menu is displayed. Select the Safe Mode and press Enter .
*1
When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
enter the password and press Enter , press and hold F8.
n Entering Password
Even after entering the pass- l The computer may be in ten-key mode.
If the NumLk indicator
lights, press NumLk to disable the ten-key mode, and then
word, password input screen
input.
is displayed again.
l The computer may be in Caps Lock mode.
lights, press Caps Lock to disable the Caps Lock
If the Caps Lock indicator
mode, and then input.
l The user name (account name) includes the “@” mark.
- If another user account name exists:
Log on to Windows using another user account name, and delete the account name
that includes “@”. Then create a new account name.
- If no other account name exists:
You need to reinstall Windows (è page 23).
Troubleshooting
Cannot log on to Windows.
(“The user name or password is incorrect.” is displayed.)
n Shutting down
Windows does not shut
down.
l Remove the USB device and the ExpressCard.
l Wait 1 or 2 minutes. It is not a malfunction.
n Display
No display.
l The external display is selected. Press Fn + F3 or
+ P to switch the display.
Wait until the display has been switched completely before pressing Fn + F3 or
P again.
+
Then click the display mode.
l When using an external display,
Ÿ Check the cable connection.
Ÿ Turn on the display.
Ÿ Check the settings of external display.
l The display is turned off by the power-saving function. The screen returns to the original
state when you operate keyboard, or screen. When operating the keyboard, press a key
that does not affect the computer operation, such as Ctrl .
l The computer entered sleep or hibernation by the power-saving function. To resume,
press the power switch.
29
CF-53mk4(DFQW5997ZAT)_OI_US.indb
29
2014/06/13
10:13:21
Troubleshooting (Basic)
„ Display
The screen is dark.
l The screen is darker when the AC adaptor is not connected. Press Fn + F2 and adjust
the brightness. As you increase the brightness, battery consumption increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.
l Press Fn + F8 to turn off the concealed mode.
The screen is disordered.
l Changing the number of display colors and resolution may affect the screen. Restart the
computer.
l Connecting/disconnecting an external display may affect the screen. Restart the computer.
l Resuming from sleep or hibernation may affect the screen of the external display.
Restart the computer.
During Simultaneous display, l When using the Extended Desktop, use the same display colors for the external display
as those used by the LCD. If you continue to experience problems, try changing the
one of the screens becomes
display.
disordered.
Right-click on the desktop, and click [Graphics Properties...] - [Display].
l Simultaneous display cannot be used until Windows startup is complete (during Setup
Utility, etc.).
The external display does
not work normally.
l If the external display does not support the power saving function, it may not work normally when the computer enters the power saving mode. Turn off the external display.
„ Touch Pad / Touchscreen (only for model with touchscreen)
The pointer does not work.
l When using the external mouse, connect it correctly.
l Restart the computer using the keyboard.
l If the computer does not respond to keyboard commands, read “No response”
(è page 31).
Cannot input using the touch l Set [Touch Pad] to [Enabled] in the [Main] menu of the Setup Utility.
l The drivers for some mice may disable the touch pad. Check your mouse’s operating
pad.
instructions.
<Only for model with touch
screen>
Cannot input using the
touchscreen.
l Set [Touchscreen Mode] to [Auto] or [Tablet] in the [Main] menu of the Setup Utility.
l Set [Touchscreen] to [Enabled] in the [Advanced] menu of the Setup Utility.
Troubleshooting
Cannot point the correct posi- l Perform the touchscreen calibration (è
tion”).
tion using the included stylus.
Reference Manual “Screen Input Opera-
l Flick toward the center of the screen from the right edge.
<Only for model with touch- l Use the included pen.
screen>
“Charm” does not always appear.
„ On-screen Document
The document of PDF format is not displayed.
l Install Adobe Reader.
A Log on to Windows as an administrator.
B Click
(Start) and input “c:\util\reader\en\Pinstall.bat” in [Search programs and
files] then press Enter .
C Update Adobe Reader to its latest version.
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for Updates...].
30
CF-53mk4(DFQW5997ZAT)_OI_US.indb
30
2014/06/13
10:13:21
n CD/DVD Drive
The tray does not come out
although inserting a pointed
object to the emergency
hole.
l A pin of 1.3 mm in diameter is recommended to remove
a disc using the emergency hole (A). When the diameter of the pin is smaller than this, insert the pin slightly
downward.
A
n Others
l Press Ctrl + Shift +Esc to open Task Manager and close the software application
that is not responding.
l An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press Alt + Tab to check.
l Press the power switch for 4 seconds or longer to shut down the computer, and then
press the power switch to turn it on. If the application program does not work normally,
uninstall and reinstall the program. To uninstall,
A Open the Control Panel.
1. Perform either of the following procedures.
at the bottom left corner of the Desktop screen.
Ÿ Right-click
on the Start screen.
Ÿ Click
2. Click [Control Panel].
Click
(Start) - [Control Panel].
B Click [Program] - [Uninstall a program].
Troubleshooting
No response.
31
CF-53mk4(DFQW5997ZAT)_OI_US.indb
31
2014/06/13
10:13:21
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You
assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.
LICENSE
A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use
the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are
receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain
no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of Panasonic Corporation.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for
any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your
use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single
Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also
transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,
to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you
must reproduce and include any such notice or product identification on any copy of any Program.
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
Appendix
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
TERM
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with
all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon
any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all
copies thereof in any form.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.
GOVERNMENT RESTRICTED RIGHTS.
The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject
to restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.
Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.
Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.
32
CF-53mk4(DFQW5997ZAT)_OI_US.indb
32
2014/06/13
10:13:21
Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions
des présentes.
Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous
assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats
escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.
Licence
A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne
recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à n’
obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés dans
les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à Panasonic
Corporation ou à leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de
temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les
Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du
Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez
céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels
ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification
de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur
toutes les copies des Logiciels.
Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies, de façon électronique ou mécanique, en tout ou en partie.
Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à
l’exception de ce qui est expressément stipulé dans ce contrat.
Termes, clauses et conditions
Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez
de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque
forme que ce soit.
Appendix
Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.
Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication entre nous, relativement à l’objet du présent contrat.
33
CF-53mk4(DFQW5997ZAT)_OI_US.indb
33
2014/06/13
10:13:21
Specifications
This page provides the specifications for the basic model.
The model number is different according to the unit configuration.
l To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
l To check CPU speed, memory size and the hard disk drive (HDD) size:
Run the Setup Utility (è
Reference Manual “Setup Utility”) and select [Information] menu.
[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size
n Main Specifications
Model No.
CF-532ALDYBM
CPU/Secondary cache memory
Intel® Core™ i5-4310U Processor (3 MB*1 cache, 2.0 GHz up to 3.0 GHz) with Intel® Turbo
Boost Technology
Chip Set
Built-in CPU
Video controller
Intel® HD Graphics 4400 (Built-in CPU)
Main Memory*2
4 GB*1, DDR3L SDRAM (16 GB*1 Max.)
Video Memory*3
CF-532SLDYBM
UMA 1664 MB*1 Max.
UMA <32-bit> 1416 MB*1 Max., <64-bit> 1696 MB*1 Max.
500 GB*4
Hard Disk Drive
Approx. 15 GB*4 is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 1 GB*4 is used as a partition with system tools. (Users cannot use this partition.)
Approx. 25 GB*4 is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 300 MB*4 is used as a partition with system tools. (Users cannot use this partition.)
CD/DVD Drive
Continuous Data
Transfer
Speed*5*6
DVD MULTI Drive built-in, Buffer underrun error prevention function: Supported
Reading
*7
Writing*10
Supported Reading
Discs/
Format
Writing
Appendix
Display Method
*8
*9
Ÿ DVD-RAM : 5X (Max.) Ÿ DVD-R : 8X (Max.) Ÿ DVD-R DL: 8X (Max.) Ÿ DVD-RW: 8X (Max.)
Ÿ DVD-ROM: 8X (Max.) Ÿ +R: 8X (Max.) Ÿ +R DL: 8X (Max.) Ÿ +RW: 8X (Max.)
Ÿ High Speed +RW: 8X (Max.) Ÿ CD-ROM: 24X (Max.) Ÿ CD-R: 24X (Max.) Ÿ CD-RW: 24X (Max.)
Ÿ High-Speed CD-RW: 24X (Max.) Ÿ Ultra-Speed CD-RW: 24X (Max.)
*8
*9
Ÿ DVD-RAM : 5X (Max.) Ÿ DVD-R : 8X (Max.) Ÿ DVD-R DL: 6X (Max.) Ÿ DVD-RW: 6X (Max.)
Ÿ +R: 8X (Max.) Ÿ +R DL: 6X (Max.) Ÿ +RW: 4X (Max.) Ÿ High Speed +RW: 8X (Max.)
Ÿ CD-R: 24X (Max.) Ÿ CD-RW: 4X Ÿ High-Speed CD-RW: 10X Ÿ Ultra-Speed CD-RW: 24X (Max.)
*9
*4
Ÿ DVD-ROM (Single Layer, Dual Layer) Ÿ DVD-Video Ÿ DVD-R (1.4 GB, 3.95 GB, 4.7 GB)
*4
*4
*8
Ÿ DVD-R DL (8.5 GB) Ÿ DVD-RW (Ver.1.1/1.2 1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB) Ÿ DVD-RAM
*4
*4
*4
(1.4 GB, 2.6 GB, 2.8 GB, 4.7 GB, 5.2 GB, 9.4 GB) Ÿ +R (4.7 GB) Ÿ +R DL (8.5 GB)
*4
*4
Ÿ +RW (4.7 GB) Ÿ High Speed +RW (4.7 GB) Ÿ CD-Audio Ÿ CD-ROM (XA compatible) Ÿ CD-R
Ÿ Photo CD (multiple session compatible) Ÿ Video CD Ÿ CD-EXTRA Ÿ CD-RW Ÿ CD-TEXT
Ÿ High-Speed CD-RW Ÿ Ultra-Speed CD-RW
*8
*4
*4
Ÿ DVD-RAM (1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB) Ÿ DVD-R (1.4 GB, 4.7 GB for General)
*4
*4
*4
Ÿ DVD-R DL (8.5 GB) Ÿ DVD-RW (Ver.1.1/1.2 1.4 GB, 2.8 GB, 4.7 GB, 9.4 GB) Ÿ +R (4.7 GB)
*4
*4
*4
Ÿ +R DL (8.5 GB) Ÿ +RW (4.7 GB) Ÿ High Speed +RW (4.7 GB) Ÿ CD-R Ÿ Photo CD (multiple
session compatible) Ÿ Video CD Ÿ CD-EXTRA Ÿ CD-RW Ÿ CD-TEXT Ÿ High-Speed CD-RW
Ÿ Ultra-Speed CD-RW, CD-Audio
14 type (TFT) (1366 × 768 dots)
14 type with Touchscreen (TFT)
(1366 × 768 dots)
Internal LCD
65,536/16,777,216 colors (800 × 600 dots / 1024 × 768 dots / 1280 × 600 dots /
1280 × 720 dots / 1280 × 768 dots /1360 × 768 dots / 1366 × 768 dots)*11
External Display*12
65,536 / 16,777,216 colors (800 × 600 dots / 1024 × 768 dots / 1280 × 768 dots /
1600 × 1200 dots / 1920 × 1080 dots / 1920 × 1200 dots)
Wireless LAN*13
Bluetooth
Intel® Dual Band Wireless AC7260(a/b/g/n/ac)
è page 36
*14
è page 36
Wireless WAN*15
GPS
Sierra Wireless™ High-speed module
*16
Chip: u-blox M8
Accuracy: 10m (2DRMS), 5m (2DRMS, SBAS)
Protocol message: GGA, GSA, GSV, RMC, VTG
LAN
IEEE 802.3 10Base-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T
(2nd LAN*17: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX)
34
CF-53mk4(DFQW5997ZAT)_OI_US.indb
34
2014/06/13
10:13:22
n Main Specifications
Model No.
Modem
CF-532ALDYBM
*18
CF-532SLDYBM
Data: 56 kbps (V.92) FAX: 14.4 kbps
Sound
WAVE and MIDI playback, Intel® High Definition Audio subsystem support
Security Chip
TPM (TCG V1.2 compliant)*19
Card Slots
PC Card Slot
x 1*20 or x 2*21, Type I or Type II, Allowable current 3.3 V: 400 mA, 5 V: 400 mA
ExpressCard
Slot*22
x 1, ExpressCard/34 or ExpressCard/54
SD Memory Card x 1
Slot*23
Contact Smart
Card Slot*24
x1
RAM Module Slot
x 1, DDR3L SDRAM, 204-pin, 1.35 V, SO-DIMM, PC3L-12800 Compliant
Interface
USB Ports x 4 (USB 2.0 x 2 + USB 3.0 x 2)*25/ Serial Port (Dsub 9-pin male) / Modem Port (RJ11)*18 / LAN Port (RJ-45) x 1*26 or 2*17 / VGA Port (Mini Dsub 15-pin female) / HDMI Port (Type
A)*27 / IEEE1394a Interface Connector (4-pin)*28 / Microphone Jack (Miniature jack, 3.5 DIA) /
Headphone Jack (Miniature jack, 3.5 DIA, Impedance 32 Ω, Output Power 4 mW × 2, Stereo) /
Expansion Bus Connector (Dedicated 100-pin female) / Rugged USB 2.0 Port*29
Keyboard / Pointing Device
87 keys / Touch Pad
Fingerprint Reader*30
Array Size : -, Image Size : 200 pixels, Image Resolution : 508 DPI
RFID Reader*31
RF frequency: 13.56 MHz, compatible with ISO14443 Type-A, ISO14443 Type-B
Camera
*32
1280 × 720 dots, 30 fps (Video), Monaural Microphone
Power Supply
AC Adaptor
87 keys / Touch Pad, Touchscreen
AC adaptor or Battery pack
*33
Input: 100 V - 240 V AC, 50 Hz/60 Hz, Output: 15.6 V DC, 7.05 A
Li-ion 10.8 V, Typical 6750 mAh / Minimum 6300 mAh (with CF-VZSU71U)
Li-ion 10.8 V, Typical 4500 mAh / Minimum 4200 mAh (with CF-VZSU72U)
Battery Pack
Operating Time*34 Approx. 15 hours (with CF-VZSU71U)
Approx. 10 hours (with CF-VZSU72U)
Charging Time*35
Power Consumption
*36
Approx. 2 hours
Approx. 25 W*37/ Approx. 100 W (maximum when recharging in the ON state)
Physical Dimensions (W × D × H)
340 mm × 281 mm × 46 - 55 mm {13.4" × 11.1" × 1.9 " - 2.2 "}
(including the carrying handle)
Environment
Weight (including the hand strap) Approx. 2.65 kg {Approx. 5.84 lb.}
(with CF-VZSU71U)
Approx. 2.55 kg {Approx. 5.62 lb.}
(with CF-VZSU72U)"
Operating Temperature
Storage
Approx. 2.95 kg {6.50 lb}
<Model without HDD heater> 0 °C to 50 °C {32 °F to 122 °F} (IEC60068-2-1, 2)*38
<Model with HDD heater> -10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*38
Humidity
30 % to 80 % RH (No condensation)
Temperature
- 20 °C to 60 °C {-4 °F to 140 °F}
Humidity
30 % to 90 % RH (No condensation)
Appendix
n Software
Windows® 8.1 Update Pro 64-bit
Base OS
Installed OS*39
Windows® 8.1 Update Pro 64-bit
Windows7® Professional 32-bit Service Pack 1 (downgraded to Windows® 7)*40 / Windows7®
Professional 64-bit Service Pack 1 (downgraded to Windows® 7)*40
35
CF-53mk4(DFQW5997ZAT)_OI_US.indb
35
2014/06/13
10:13:22
Specifications
n Software
Pre-installed Software
Adobe Reader, PC Information Viewer, Intel® PROSet/Wireless Software*13, Intel® PROSet/
Wireless Software for Bluetooth® Technology*14, Hotkey Settings, Battery Recalibration Utility,
Infineon TPM Professional Package*19 *41, Aptio Setup Utility, PC-Diagnostic Utility, Roxio Creator LJB, CyberLink PowerDVD 10, Display Selector, Hard Disk Data Erase Utility*42, Recovery
Disc Creation Utility, Dashboard for Panasonic PC, Power Plan Extension Utility, Camera Utility*32, GPS Viewer*16, Manual Selector, Microsoft Office Trial*43, Wireless Manager Mobile Edition
6.0*41 *44
Wireless Toolbox
Wireless Switch Utility, Wireless Connection Disable Utility*13 *15 *41, Quick Boot Manager
*13
n Wireless LAN
Data Transfer Rates
IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*45
IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)*45
IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*45
IEEE802.11n*46 :(HT20)GI*47 =400ns: 150/130/115/86/72/65/57/43/39/28/21/14/7 Mbps (automatically switched)*45
*47
GI =800ns: 130/117/104/78/65/58/52/39/26/19/13/6 Mbps (automatically switched)*45
*47
(HT40)GI =400ns: 300/270/240/180/150/135/120/90/60/45/30/15 Mbps
(automatically switched)*45
*47
GI =800ns: 270/243/216/162/135/121/108/81/54/40/27/13 Mbps
(automatically switched)*45
IEEE802.11ac :VHT80 : 866.7 Mbps
VHT40 : 433.3 Mbps
Standard Supported
IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n / IEEE802.11ac
Transmission Method
OFDM system, DS-SS system
Wireless Channels Used
IEEE802.11ac/IEEE802.11a :Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124
/128/132/136/140/149/153/157/161/165
IEEE802.11b/IEEE802.11g : Channels 1 to 11
IEEE802.11n :Channels 1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/
136/140/149/153/157/161/165
RF Frequency Band
IEEE802.11ac/IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz - 5.825 GHz
IEEE802.11b/IEEE802.11g : 2.412 GHz - 2.462 GHz
IEEE802.11n :2.412 GHz - 2.462 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz,
5.745 GHz - 5.825 GHz
*14
n Bluetooth®
Bluetooth Version
4.0
Classic mode / Low Energy mode
Transmission method
FHSS system
Wireless Channels Used
Channel 1 to 79 / Channel 0 to 39
RF Frequency Band
2.402 GHz - 2.480 GHz
*1
1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes
Memory size of the factory default depends on the model. You can physically expand the memory up to 8 GB, but the total
amount of usable memory available will be less depending on the actual system configuration.
*3
A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user. The size of Video memory is allotted depending on the operating system.
*4
1 MB = 1,000,000 bytes / 1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer
GB.
*5
Data transfer speeds indicate values measured by Panasonic Corporation. The data transfer rate of DVD per 1X speed is
1,350 KB/s. The data transfer rate of CD per 1X speed is 150 KB/s.
*6
Performance of CD-R, CD-RW, DVD-RAM, DVD-R, DVD-R DL, DVD-RW, +R, +R DL, and +RW cannot be guaranteed depending on writing status and recording format.
Also, some data cannot be played back depending on the disc, settings, and environment being used. Does not support writing
to DVD-R DL/+R DL (dual layer discs) and Ultra-Speed CD-RW.
*7
If an unbalanced disc (e.g., a disc with which the balance has been displaced from the center) is inserted, the speed may become slower if there are large vibrations while the disc is rotating.
*8
Only non-cartridge type or removable cartridge type can be used.
*9
DVD-R is compatible with 4.7 GB (for General) playback. DVD-R (for Authoring) playback is compatible with discs recorded using Disc-at-Once recording.
*10
Depending on the disc, the writing speed may become slower.
*11
A 16,777,216 color display is achieved by using the dithering function.
Appendix
*2
36
CF-53mk4(DFQW5997ZAT)_OI_US.indb
36
2014/06/13
10:13:22
*12
*14
*15
*13
Display may be impossible using some connected external displays.
Only for model with wireless LAN.
Only for model with Bluetooth.
Only for model with wireless WAN. The specifications may differ depending on the model.
A SIM card (15 mm {0.59"} x 25 {0.98"} mm) must be inserted in the SIM card slot.
*19
*20
*21
*22
*23
*17
*18
*24
*26
*27
*28
*29
*30
*31
*32
*33
*25
*34
*35
*36
*37
*38
*39
*40
*41
*42
Only for model with GPS.
Only for model with 2nd LAN.
Only for model with modem.
Only for model with TPM.
For information on TPM, refer to the Installation Manual of “Trusted Platform Module (TPM)” by the following procedure.
On the Start screen, click the [Manual Selector] tile, and select “Installation Manual for Trusted Platform Module (TPM)”
Double-click [Manual Selector] on the desktop, and select “Installation Manual for Trusted Platform Module (TPM)”.
Only for model with 1 PC card slot.
Only for model with 2 PC card slots.
Only for model with ExpressCard slot.
This slot is compatible with High-Speed Mode. Operation has been tested and confirmed using Panasonic SD/SDHC/SDXC
Memory Cards with a capacity of up to 64 GB. Operation on other SD equipment is not guaranteed.
Only for model with Smart Card slot.
Does not guarantee operation of all USB-compatible peripherals.
Only for model without 2nd LAN.
Does not guarantee operation of all HDMI-compatible peripherals.
Only for model with IEEE 1394a interface.
Only for model with rugged USB 2.0 port.
Only for model with Fingerprint reader.
Only for model with RFID reader.
Only for model with Camera. The specifications may differ depending on the model.
<Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor. This computer is supplied with a 125 V AC compatible AC cord. 20-M-2-1
Measured with LCD brightness : 60 cd/m2
Varies depending on the usage conditions, or when an optional device is attached.
Varies depending on the usage conditions, CPU speed, etc.
Approx. 0.5 W when the battery pack is fully charged (or not being charged) and the computer is off.
<When using with 115 V AC>
Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.2 W) simply by having the AC adaptor
plugged into an AC outlet.
23-E-1
Rated power consumption. Do not expose the skin to this product when using the product in a hot or cold environment. (è page 4) When using in hot or
cold environment, some peripherals may fail to work properly. Check the operation environment of the peripherals.
Using this product continuously in a hot environment will shorten the product life. Avoid use in these types of environments.
When using in low temperature environment, startup may become slow or battery operation time may become short.
The computer consumes power when the hard disk is warming up during startup. Therefore, if you are using battery power and
the remaining power is low, the computer may not start up.
Operations of this computer are not guaranteed except for the pre-installed OS and the OS which is installed by using the Recovery disc provided by Panasonic. Some parts of the software in the Recovery disc may not be installed depending on a model.
This system is preinstalled with Windows® 7 Professional software and also comes with a license for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version.
Must be installed before use.
Perform on the recovery disc.
Alternatively perform on the hard disk recovery partition.
To continue using this software after the end of the trial, purchase a license by following the on-screen instructions.
*44
For information on Wireless Manager, refer to the “Supplementary Instructions for Wireless Manager mobile edition” by the following procedure.
A Perform either of the following procedures.
at the bottom left corner of the Desktop screen.
Ÿ Right-click
on the Start screen.
Ÿ Click
B Click [Run], input “c:\util\wlprjct\Supplementary Instructions.pdf” then click [OK].
A Click
(Start) and input “c:\util\wlprjct\Supplementary Instructions.pdf” in [Search programs and files] and press Enter .
*43
Appendix
*16
*45
These are speeds specified in IEEE802.11a+b+g+n standards. Actual speeds may differ.
Available when set to “WPA-PSK”, “WPA2-PSK” or “none”.
*47
Only available when HT40 enabled by the computer.
*46
37
CF-53mk4(DFQW5997ZAT)_OI_US.indb
37
2014/06/13
10:13:22
LIMITED WARRANTY
For U.S.A.
Panasonic System Communications Company of North America (PSCNA)
Computer Products - Worldwide Warranties
Section 1: Limited Warranty - Hardware
PSCNA, referred hereafter as “Panasonic” will repair the products listed below with new or rebuilt parts, free of charge in a Global
Panasonic designated service location for the period specified below from the date of original purchase in the event of a defect in
materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or other proof of date
of original purchase will be required before warranty performance is rendered.
• Laptop PC (CF-##) – 3 Years
• Tablet PC (FZ-##) – 3 Years
• Ultra-Mobile (CF-U#/CF-H# Series) – 3 Years
• PDRC - LCD & Keyboard Assembly – 3 Years
Battery Warranty
Batteries supplied with the product are covered under the warranty for one (1) year from date of purchase, except as excluded
in Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A
replacement battery furnished under the product warranty is covered for the remaining period of the one year warranty on the
original or purchased battery.
Optional: Panasonic “Protection Plus” Warranty
Any unit for which the Panasonic “Protection Plus” warranty has been purchased will receive additional coverage for any failure
that occurs due to accidental damage. All other terms and conditions of the standard warranty apply and this additional coverage
will exist for the duration of the standard warranty period of the unit. If an extended Protection Plus warranty program is purchased,
coverage is extended to the end of the last year of extended coverage purchased.
This warranty does not cover failures or defects that are caused by fire, intentional acts, loss, theft, improper maintenance,
modification or service by anyone other than the Panasonic National Service Center or a Panasonic Authorized Service Provider,
or damage that is attributable to acts of God. Cosmetic damage that does not affect functionality is not covered. Cosmetic damage
on units with hardware failures will be repaired in accordance with the warranty terms. This warranty is extended solely to the
original purchaser on the unit serial number for which it was purchased. Complete unit replacement fulfills the full obligation and is
at the discretion of Panasonic and is limited to once during the coverage term. Maximum benefit is limited to one replacement per
coverage year of the Motherboard, LCD, Storage Drive, and Keyboard.
Wireless Module Warranty
Panasonic approved wireless modems installed in Panasonic brand computers and integrated by Panasonic or an Authorized
Panasonic Wireless Integrator are covered under the warranty for the remaining warranty period of the device in which the modem
is installed. For devices with less than three (3) months remaining on the unit warranty, the wireless modem will be covered for a
period of three (3) months from the date of installation of the modem, covering only modem replacement or modem installation
related issues.
All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved
and activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and
may result in legal action. In addition, all modems must be approved by Panasonic as compatible with the device hardware before
installation or use.
Panasonic’s sole responsibility for the warranty or technical support of the software required to install or operate the modem is
defined in Section 2 (Limited Software Warranty). Any attempted software installation by anyone other than a Panasonic Authorized
Wireless Integrator is not covered under warranty and may result in service charges to re-image or replace the hard drive.
Installation or attempted installation by any party other than Panasonic or an Authorized Panasonic Wireless Integrator is strictly not
covered under the warranty and may void the computer warranty if damage results.
Appendix
Options and Accessories Warranties
The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period
specified from the date of purchase or as specifically stated:
•
•
•
•
•
•
•
38
•
•
•
•
•
•
AC Adaptor / Power Cord – 3 Years
Memory Expansion Card (Panasonic Brand) – 3 Years
Car Mount - Docking Station PCB or Vehicle Docking Station – 3 Years
Desktop Port Replicator, I-O Box, Docking Cradle (like CF-U1) – 3 Years
Antenna Pass-through Cable – 3 Years
Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed
Integrated Panasonic supplied options and kits including, but not limited to Wireless Modems, Media Bay Drives (Floppy,
CD, DVD, Combo), Camera, GPS, Bluetooth, Smartcard Reader, Magnetic Card Reader, Barcode Scanner, and Fingerprint
Reader - 3 Years or assumes warranty period of the unit in which it is installed provided the integration was performed by
Panasonic or an Authorized Integrator.
Hard Drive / Solid State Drive (Internal) - 3 Years
Separately purchased 2nd Hard Drive – 1 Year
External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year
Optional Battery – 1 Year
Battery Charger / Multi-Bay Battery Charger – 1 Year
Stylus Pens, Digitizer & Standard - 90 Days (physical damage excluded)
CF-53mk4(DFQW5997ZAT)_OI_US.indb
38
2014/06/13
10:13:22
Section 2 - Limited Warranty - Software
Panasonic warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in
material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by
your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will
meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation
for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects
that have been caused by operation of the disk(s) or other media
Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States
or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service
Center, together with a copy of the purchase receipt, within the aforesaid warranty period.
Section 3 - Limited Warranty Exclusions - Specifically excluded from the warranty are:
• All consumable items; such as screen protection films, logo badges, labels, cleaning cloths, carry cases, manuals, cables,
straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a
separate warranty.
• Failures related to the product operating system, hard drive or solid state drive image, software setup, software program,
virus, other program(s) or file(s) on any drive or in any computer memory location.
• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.
• Any unit or device with a missing or altered model number or serial number label
• Cosmetic damage or any damage which occurs in shipment
• Failures which are caused by products not supplied by Panasonic
• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse,
neglect, installation, maladjustment of consumer controls, improper maintenance or modification, use not in accordance with
product use instructions
• Failures due to service by anyone other than a Panasonic Authorized Service Provider
• Failures caused by improper installation of options or accessories or due to integration by any company other than Panasonic
or a Panasonic Authorized Integrator
• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser
• Damage that is attributable to acts of God
This limited warranty only covers failures due to defects in materials or workmanship which occur during normal use. If a unit is
sent to a Panasonic Authorized Service Center and no hardware failure is found, the customer will be billed for labor to correct a
software issue or reimage the hard drive plus shipping and applicable administrative fees at the current rates set by the service
provider.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No. 36.
Other Limits and Exclusions: There are no other express warranties except as listed above.
Appendix
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-855-PSC-TECH
(855-772-8324).
DIAL TOLL FREE: 1-855-PSC-TECH (855-772-8324)
Web Site : www.panasonic.com/toughbook
39
CF-53mk4(DFQW5997ZAT)_OI_US.indb
39
2014/06/13
10:13:22
LIMITED WARRANTY
For Canada
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software
media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under
normal use, subject to the terms set forth below, during the period of warranty coverage specified.
Scope of Coverage
Period of Coverage
• Laptop Computers (except Battery) and AC Adaptor
Three (3) Years from Date of
• Factory/PCI installed options including Wireless WAN, GPS, Original End User Customer
Bluetooth, Finger print reader, Backlit keyboard, Memory Card Purchase
and Media Bay Drives (Floppy, CD/DVD)
• Mobile Wireless Display
• PDRC – LCD and Keyboard Assemblies
• Port Replicator
•
•
•
•
•
Hand-held Computers
Battery
Battery charger
Auto Adaptor
External USB Drives
• Stylus
One (1) Year from Date of
Original End User Customer
Purchase
Type of Failure Coverage
Defective Materials or Workmanship
Defective Materials or Workmanship
Ninety (90) Days from Date of Defective Materials or WorkOriginal End User Customer
manship
Purchase
• All consumable items including protection film, cleaning cloth, No Coverage
carry case, tether and harness
Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the
nature of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding
holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable
rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance
of the original period of warranty coverage.
No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure
of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE
FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*2
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)
No.36
IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE
Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.
Appendix
SOFTWARE MEDIA LIMITED WARRANTY
Coverage – PCI warrants to you, the first end user customer, that the disk(s) or other media on which software program(s) is/are
supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from
date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.
THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.
Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.
Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) days warranty period, and
you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Mississauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the suspected
defect, PCI will replace in Canada the defective disk(s) or other media.
Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the
media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other claims, whether or not of similar character.
No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,
or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for
damage to or loss of any program, data or removable storage media.
GENERAL
NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,
OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.
IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU
FOR THE COMPUTER PRODUCT.
NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE
OF ACTION AROSE.
Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
40
CF-53mk4(DFQW5997ZAT)_OI_US.indb
40
2014/06/13
10:13:22
LIMITED WARRANTY (GARANTIE LIMITÉE)
Pour le Canada
GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des
logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les
conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.
Éléments couverts
Durée de couverture
• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur Trois (3) ans à partir de la
• Options installées en usine/par PCI incluant : WAN sans fil,
date d’achat original.
GPS, Bluetooth, lecteur d’empreintes digitales, clavier rétroéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)
• Écran mobile sans fil
• Ensembles PDRC – ACL et clavier
• Duplicateur de port
•
•
•
•
•
Ordinateurs de poche
Batterie
Chargeur de batterie
Adaptateur pour voiture
Périphériques USB
Un (1) an à partir de la date
d’achat original.
• Stylo pointeur standard ou pour numériseur graphique
Type de couverture
Défauts de pièces et de fabrication
Défauts de pièces et de fabrication
Quatre-vingt-dix (90) jours à
Défauts de pièces et de fabricapartir de la date d’achat original. tion
• Tous les articles consommables incluant les pellicules protectrices, Aucune couverture
chiffons de nettoyage, étuis de transport, longes et sangles
Recours – Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait
nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi
au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifier la nature de la défaillance.
Un reçu ou toute autre pièce justificative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte
par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation
sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.
Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre
pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation,
une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modification, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.
CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE, SYSTÈME/
ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION*3. PANASONIC
DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.
*3
Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique
de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage et l’atterrissage) et(ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont définis par le circulaire
d’information FAA: AC (Advisory Circular) 120-76A ou le feuilet n° 36 JAA: JAA TGL (Temporary Guidance Leaflets) No 36.
EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE
Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de
même qu’une pièce justificative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou
perte subi pendant le transport si vous avez choisi le transporteur.
Appendix
GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur
lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit
pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du
logiciel) pour toute réclamation en vertu de la garantie.
Réclamation – marche à suivre – Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est
retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soixante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justificative de votre achat et une description du problème.
Recours – La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de
logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la perte
d’usage ou de profits, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.
Produits non couverts – La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans un
produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifiées par PCI ou le fabricant,
ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été modifié ou subi une
tentative de modification ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume aucune responsabilité
pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.
GÉNÉRALITÉS
PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES
GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,
SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.
SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS
OU CONSÉCUTIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCUMENT OU À L’UTILISATION DU PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES,
D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.
DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE
PRIX DE VENTE DU PRODUIT INFORMATIQUE.
AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS
APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.
Garantie statutaires – Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.
41
CF-53mk4(DFQW5997ZAT)_OI_US.indb
41
2014/06/13
10:13:23
LIMITED WARRANTY (GARANTIE LIMITÉE)
For Australia
Personal / Notebook Computers - 36 Month Warranty from Date of Purchase
1.Subject to the conditions of this warranty Panasonic or it’s Authorised Service Centre will perform necessary service on the product
without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2.This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3.This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations
(as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers
normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect
installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems,
thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised
alterations), exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4.This warranty does not cover the following items unless the fault or defect existed at the time of purchase: Software
5.Warranty on Toughbook accessories (stylus, pens, AC charger, combo drive, etc) is 12 Months from the date of purchase &
3 months for batteries.
6.To claim warranty service, when required, you should:
Check the Panasonic web site for latest warranty contact http://www.panasonic.com.au/toughbook, use the Service Centre
Locator and call the National Service Centre number indicated.
Prepare purchase receipt as proof of purchase date and system serial number which will be required by the Authorised Service
Centre.
7.The Warranty excludes 3 or less faulty pixels on screen.
8.The Warranty includes the repair or exchange of faulty parts within the product with items that are functionally equivalent to that
as originally supplied or better – including new or refurbished parts or units – solely at Panasonic’s discretion.
9.It is the customer’s responsibility to backup all data from the hard disk drive before sending equipment for repair. If a problem
is related to the hard disk drive, or the hard disk drive has to be replaced, Panasonic will only reload the factory pre-installed
software for the product onto the replacement drive.
10.Panasonic will arrange free pick up and return for approved warranty repairs within 50 km of capital city locations. Please
ensure your unit is properly packed for return to the service location.
11.The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, demounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement
of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such
installation, de-installation, re-installation or transit.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under
the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to
have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods.
You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not
amount to a major failure.
Appendix
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to
repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR AS PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*4. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*4
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au/toughbook or
contact by phone on 1300 132 463
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
PRO-031-F05 Issue: 4.0
1 Innovation Road, Macquarie Park NSW 2113
www.panasonic.com.au
11-11-2011
42
CF-53mk4(DFQW5997ZAT)_OI_US.indb
42
2014/06/13
10:13:23
MEMO
43
CF-53mk4(DFQW5997ZAT)_OI_US.indb
43
2014/06/13
10:13:23
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency. By enabling
available power management settings, Panasonic computers enter a low-power sleep
mode after a period of inactivity, saving the user energy.
<For U.S.A.>
To learn more about power management, please visit the web site:
www.energystar.gov/index.cfm?c=power_mgt.pr_power_management
Outline of the International ENERGY STAR® Office Equipment Program
The international ENERGY STAR® Office Equipment Program is an international program that promotes energy
saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which
business proprietors can participate voluntarily. The targeted products are office equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.
<For U.S.A.>
For information about ENERGY STAR®, refer to the following web site:
Web Site: www.energystar.gov
22-E-1
Panasonic Corporation
Osaka, Japan
Panasonic System Communications Company of North America
Two Riverfront Plaza
Newark, NJ 07102
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
Importer’s name & address pursuant to the EU legislation
Panasonic System Communications Company Europe, Panasonic Marketing Europe GmbH
Hagenauer Straße 43
65203 Wiesbaden
Germany
Web Site : http://panasonic.net/
© Panasonic Corporation 2014
Printed in Taiwan
CF-53mk4(DFQW5997ZAT)_OI_US.indb
44
TA0614-0
DFQW5997ZAT
2014/06/13
10:13:23
Download PDF

advertising
