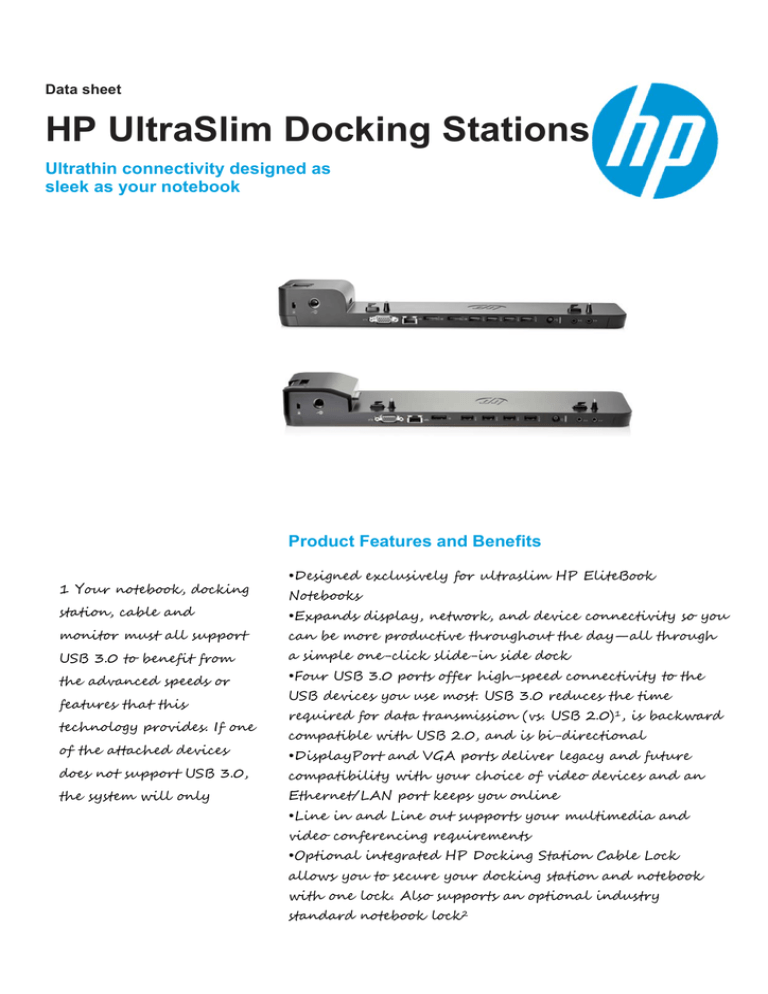

Data sheet
HP UltraSlim Docking Stations
Ultrathin connectivity designed as
sleek as your notebook
Product Features and Benefits
1 Your notebook, docking
station, cable and
monitor must all support
USB 3.0 to benefit from
the advanced speeds or
features that this
technology provides. If one
of the attached devices
does not support USB 3.0,
the system will only
•Designed exclusively for ultraslim HP EliteBook
Notebooks
•Expands display, network, and device connectivity so you
can be more productive throughout the day—all through
a simple one-click slide-in side dock
•Four USB 3.0 ports offer high-speed connectivity to the
USB devices you use most. USB 3.0 reduces the time
required for data transmission (vs. USB 2.0)1, is backward
compatible with USB 2.0, and is bi-directional
•DisplayPort and VGA ports deliver legacy and future
compatibility with your choice of video devices and an
Ethernet/LAN port keeps you online
•Line in and Line out supports your multimedia and
video conferencing requirements
•Optional integrated HP Docking Station Cable Lock
allows you to secure your docking station and notebook
with one lock. Also supports an optional industry
standard notebook lock2
Data sheet | HP UltraSlim Docking Stations
2013 HP UltraSlim Docking Station
Part number
D9Y32AA
Dimensions
(H x W x D)
1.7 x 14.5 x 4.2 in
Product weight
Total USB
(4.4 x 36.8x 10.7 cm)
1.69 lb (0.76 kg)
3 USB 3.0 ports
HP UltraSlim Docking Station
B9C87AA
1.7 x 14.5 x 4.2 in
(4.4 x 36.8x 10.7 cm)
1.69 lb (0.76 kg)
3 USB 3.0 ports
1 USB 3.0 charging port
1 USB 3.0 charging port
DisplayPort
2
1
DVI
0
0
VGA
1
1
Audio
2
2
Parallel
0
0
Serial
0
0
PS2
0
0
Monitor stand
0
0
LAN
1
1
Upgrade bay
No
No
eSATA
No
No
Lock slot
Yes
Yes
HP Docking Station Cable
Lock Slot
Yes
Yes
© Copyright 2013 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are
set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
September 2013
