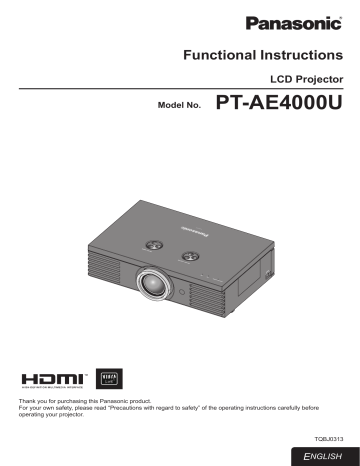

PT-AE4000U

Functional Instructions

Model No.

LCD Projector

PT-AE4000U

I I I I I I I

Thank you for purchasing this Panasonic product.

For your own safety, please read “Precautions with regard to safety” of the operating instructions carefully before operating your projector.

TQBJ0313

E

NGLISH

Contents

J

Quick steps

1.

Set up your projector

See “Setting up” on page 4.

2.

Connect with other devices

See “Connections” on page 8.

3.

Prepare the remote control

See “Remote control” of the operating instructions.

4.

Start projecting

See “Switching the projector

on/off” on page 9.

5.

Adjust the image

See “Menu Navigation” on

page 16.

Getting Started

Setting up ................................................. 4

Screen size and throw distance .................. 4

Projection method ....................................... 5

Front leg adjusters and throwing angle ....... 5

Lens shift and positioning ............................ 6

Connections ............................................ 8

Before connecting to the projector .............. 8

Connecting example: COMPONENT IN/

S-VIDEO IN/VIDEO IN .................................... 8

Connecting example: HDMI IN/

COMPUTER IN ........................................... 8

Basic Operation

Switching the projector on/off ............... 9

Power cord .................................................. 9

Power indicator ......................................... 10

Switching on the projector ......................... 11

Switching off the projector ......................... 11

Projecting an image .............................. 12

Selecting the input signal .......................... 12

Positioning the image ................................ 12

Remote control operation .................... 13

Operating range ........................................ 13

Managing the lens control settings ............ 13

Switching the picture mode ....................... 13

Adjusting the image ................................... 13

Loading a saved setting ............................ 14

VIERA Link ................................................ 14

Adjusting the signal condition with a waveform ........................................ 14

Capturing an image ................................... 14

Resetting to the factory default settings .... 14

SUB MENU ............................................... 15

Switching the input signal .......................... 15

Using the assigned function as a shortcut .............................................. 15

2 -

E

NGLISH

Settings

Menu Navigation ................................... 16

Navigating through the MENU .................. 16

Menu list .................................................... 17

PICTURE menu ...................................... 20

PICTURE MODE ....................................... 20

CONTRAST............................................... 20

BRIGHTNESS ........................................... 20

COLOR ..................................................... 20

TINT .......................................................... 20

SHARPNESS ............................................ 20

COLOR TEMPERATURE .......................... 21

DYNAMIC IRIS .......................................... 21

WAVEFORM MONITOR ............................ 21

SPLIT ADJUST .......................................... 22

ADVANCED MENU ................................... 23

MEMORY SAVE ........................................ 30

MEMORY LOAD ....................................... 31

MEMORY EDIT ......................................... 31

SIGNAL MODE ......................................... 31

POSITION menu .................................... 32

H-POSITION ............................................. 32

V-POSITION .............................................. 32

DOT CLOCK ............................................. 32

CLOCK PHASE ......................................... 32

ASPECT .................................................... 32

WSS .......................................................... 34

OVER SCAN ............................................. 34

KEYSTONE ............................................... 34

AUTO SETUP ........................................... 34

LENS CONTROL .................................... 35

ZOOM/FOCUS .......................................... 35

LENS MEMORY LOAD ............................. 35

LENS MEMORY SAVE ............................. 35

LENS MEMORY EDIT ............................... 36

AUTO SWITCHING ................................... 36

H-AREA POSITION ................................... 37

V-AREA POSITION ................................... 37

LEFT MASKING AREA.............................. 37

RIGHT MASKING AREA ........................... 37

UPPER MASKING AREA .......................... 37

LOWER MASKING AREA ......................... 37

FUNCTION BUTTON .............................. 38

OPTION menu ........................................ 39

INPUT GUIDE ........................................... 39

OSD DESIGN ............................................ 39

OSD POSITION ........................................ 39

BACK COLOR ........................................... 39

STARTUP LOGO ...................................... 39

AUTO SEARCH ........................................ 39

HDMI SIGNAL LEVEL ............................... 39

FRAME RESPONSE ................................. 39

INSTALLATION ......................................... 39

TRIGGER 1/2 SETTING ........................... 40

SLEEP ....................................................... 41

HIGH ALTITUDE MODE............................ 41

LAMP POWER .......................................... 41

VIERA LINK SETTINGS ............................ 41

TEST PATTERN ........................................ 41

LAMP RUNTIME ....................................... 41

Appendix

Technical Information ........................... 42

Serial terminal ........................................... 42

VIERA Link

Connection ...................... 45

Summary of VIERA Link features .............. 45

VIERA Link “HDAVI Control™” .................. 46

Option menu .............................................. 47

Index ....................................................... 48

Trademark acknowledgements ............ 50

E

NGLISH - 3

Getting Started

Screen size and throw distance

You can adjust the projection size with 2 × zoom lens. Calculate and define the throw distance as follows.

SD

Projected image

SW

Screen

All measurements and the calculation results below are approximate and may differ from the actual measurements.

Screen Diagonal

(SD)

1.02 m

1.27 m

1.52 m

1.78 m

2.03 m

2.29 m

2.54 m

3.05 m

3.81 m

5.08 m

6.35 m

7.62 m

(40")

(50")

(60")

(70")

(80")

(90")

(100")

(120")

(150")

(200")

(250")

(300")

Throw distance (16:9)

Minimum distance

(LW)

1.2 m

1.5 m

1.8 m

2.1 m

2.4 m

2.7 m

3.0 m

3.6 m

4.5 m

6.0 m

(3'11")

(4'11")

(5'10")

(6'10")

(7'10")

(8'10")

(9'10")

(11'9")

(14'9")

(19'8")

7.6 m (24'11")

9.1 m (29'10")

Maximum distance

(LT)

2.3 m

2.9 m

(7'6")

(9'6")

3.5 m (11'5")

4.1 m (13'5")

4.7 m (15'5")

5.3 m (17'4")

5.9 m (19'4")

7.2 m (23'7")

9.0 m (29'6")

12.0 m (39'4")

15.0 m (49'2")

18.0 m (59')

1.3 m

1.6 m

1.9 m

2.2 m

2.6 m

2.9 m

3.2 m

3.8 m

4.8 m

6.4 m

8.0 m

9.6 m

Throw distance (2.35:1)

Minimum distance

(LW)

*1. When using both 2.35:1 and 16:9 aspect images onto a 2.35:1 sized screen.

*1

(4'3")

(5'3")

(6'2")

(7'2")

(8'6")

(9'6")

(10'6")

(12'5")

(15'9")

(21'0")

(26'3")

(31'6")

Maximum distance

(LT)

2.3 m

2.8 m

3.3 m

3.8 m

4.2 m

4.7 m

5.7 m

7.1 m

9.6 m

12.0 m

14.4 m

(7'6")

(9'2")

(10'9")

(12'5")

(13'9")

(15'5")

(18'8")

(23'3")

(31'6")

(39'4")

(47'2")

J

Calculation methods for screen dimensions

You can calculate more detailed screen dimensions from the screen diagonal.

Screen height (SH)

Screen width (SW)

Minimum distance (LW)

Maximum distance (LT)

16:9 size

= SD (m) × 0.490

= SD (m) × 0.872

= SD (m) × 1.189 − 0.04

= SD (m) × 2.378 − 0.05

2.35:1 size

= SD (m) × 0.392

= SD (m) × 0.920

= SD (m) × 1.256 − 0.04

= SD (m) × 1.899 − 0.05

NOTE:

• You can tilt the projector body less than approximately ±30 ° vertically and ±10 ° horizontally.

Overtilting may result in shortening the component’s life.

Do not cover the air exhaust/intake ports or place anything within 50 cm (19 5/8") of them.

+30 °

−30 °

4 -

E

NGLISH

Setting up

Projection method

You can use the projector with any of the following 4 projection methods. To set the projector in the desired

method, see “INSTALLATION” on page 39.

J

Setting on a desk/floor and projecting from front

J

Setting on a desk/floor and projecting from rear

J

INSTALLATION:

FRONT/DESK

Mounting on the ceiling and projecting from front

J

INSTALLATION:

REAR/DESK

Mounting on the ceiling and projecting from rear

INSTALLATION:

FRONT/CEILING

INSTALLATION:

REAR/CEILING

NOTE:

A translucent screen is required for rear projection.

When mounting the projector on the ceiling, the optional ceiling mount bracket (ET-PKE2000, ET-PKE1000S) is required.

See “Ceiling mount bracket safeguards” in “Technical Information” of the operating instructions.

Front leg adjusters and throwing angle

You can screw up/down the front leg adjusters to control the angle of the projector for adjusting the throwing angle.

See “Positioning the image” on page 12.

NOTE:

Heated air comes out of the air exhaust port. Do not touch the air exhaust port directly.

If keystone distortion occurs, see “KEYSTONE” on page 34.

Screw up the front leg adjusters, and an audible click will be heard as the limit.

E

NGLISH - 5

Setting up

Lens shift and positioning

If the projector is not positioned right in front of the center of the screen, you can adjust the projected image position by moving the lens shift dials within the shift range of the lens.

J

Q

Adjusting the lens shift dials

Horizontal shift

You can place the projector where the projector lens is up to 40 % horizontally off-center from the screen and then adjust the image position with the

Lens shift dial • Horizontal

.

Up to about 40 % of the projection

Up to about 40 % of the projection

Turning the dial clockwise:

Image moves to the right

Turning the dial counterclockwise:

Image moves to the left

Q

Vertical shift

You can place the projector where the projector lens is up to 100 % vertically off-center from the screen and then adjust the image position with the

Lens shift dial • Vertical

.

Turning the dial counterclockwise:

Image moves to the bottom

Up to about 100 % of the projection

Up to about 100 % of the projection

Turning the dial clockwise:

Image moves to the top

6 -

E

NGLISH

Setting up

J

Q

Projector location range

You can determine where to locate the screen and the projector by considering the lens shift possibilities.

When the screen position is fixed

H

Projector

Vertical center of screen

V

Placement

SH

Center of lens

Screen

SW

Q

When the projector position is fixed

100 %

Shift range

100 %

40 % 40 %

Projector

NOTE:

• When the projector is located right in front of the center of the screen and the lens shift dials is centered, you will get the best quality of the projection image.

When the

Lens shift dial • Vertical

is at the vertical limit of the shift range, you cannot turn the dial to the horizontal limit, likewise when the

Lens shift dial • Horizontal

is at the horizontal limit of the shift range, you cannot turn the dial to the vertical limit.

When the projector is tilted and adjusting

KEYSTONE

, the center of the screen and the lens need to be realigned.

Do not force the lens shift dials to turn as this may damage the projector. Turning the dials maximum limit is 3 or 4 times from the default position.

E

NGLISH - 7

Before connecting to the projector

Read and follow the operating and connecting instructions of each peripheral device.

The peripheral devices must be turned off.

Use cables that match each peripheral device to be connected.

Confirm the type of video signals. See “List of compatible signals” in “Technical Information” of the operating instructions.

Audio cables must be connected from each peripheral device directly to the audio reproduction system.

Connecting example: COMPONENT IN/S-VIDEO IN/VIDEO IN

To COMPONENT video output To VIDEO output To S-VIDEO output

DVD player Video player DVD player

Connecting example: HDMI IN/COMPUTER IN

HDMI cable

(Commercial item)

To HDMI output

RGB signal cable

(Commercial item)

Blu-ray player

Computer

NOTE:

Make sure the HDMI cable is adapted to your HDMI device for proper performance.

A compatible cable is required for an HDMI 1 080p signal.

It is possible to connect with DVI devices via a HDMI/DVI conversion adapter, but some equipment may not project the image properly or other problems could be encountered.

Please tighten securely, fixing the screws on the connectors (D-SUB 15-pin) of the RGB signal cable.

For more information about the serial terminals, see “Serial terminal” on page

42.

8 -

E

NGLISH

Basic Operation

Power cord

J

1.

Connecting

Make sure the shape of the power plug and the

AC IN

terminal on the back of the projector match, then push the plug all the way in.

J

1.

2.

Disconnecting

Unplug the power cord from the wall outlet.

Depress the latch and slide the cover off.

2. Align the side of the power cord secure lock with the side guide rail of the

AC IN

terminal of the projector and slide it in.

Rail guide

Latch

3. Slide the power cord secure lock up along the side guide rail.

Rail guide

3. Place the latch to the latch catcher and press until it clicks.

4. Hold the plug and unplug it from the

AC IN

terminal on the back of the projector.

Latch

4. Connect the power cord to a wall outlet.

NOTE:

• Do not use other than the provided power cord.

Ensure all the input devices are connected and turned off before connecting the power cord.

Do not force the connector as this may damage the projector and/or the power cord.

Dirt or dust build-up around plugs may cause fire or electrical hazards.

Switch off the power to the projector when not in use.

E

NGLISH - 9

Switching the projector on/off

Power indicator

Power indicator informs you of the status of the power.

When the

TEMP

indicator is flashing, the power indicator will turn red, and you cannot switch on the power.

Power indicator

Indicator status

No illumination or flashing

Lit

Red

Flashing

Green

Orange

Flashing

Lit

Lit

Flashing

Status

MAIN POWER

is switched off.

MAIN POWER

is switched on and the projector is in standby mode.

MAIN POWER

is switched on (standby mode) and the

POWER ON LINK

is set to

YES

.

The power consumption is not much different when it is lit.

(See “VIERA Link™ Connection” on page 45)

The power button is switched on and the projector is getting ready to project.

Projecting.

The power button is switched off and the projector is cooling the lamp.

The power button is switched on again when cooling the lamp and recovering to projection mode. Recovery may take a while.

NOTE:

See “TEMP indicator” in “TEMP and LAMP Indicators” of the operating instructions.

While the projector is cooling the lamp, do not switch

MAIN POWER

off or unplug the power cord.

The electric consumption in standby mode is 0.08 W.

10 -

E

NGLISH

Switching on the projector

Power indicator

(2)

Switching the projector on/off

(3)

(1)

1.

2.

Remove the lens cover from the lens.

Switch

MAIN POWER

on.

The power indicator lights up in red.

3. Press the power button.

The power indicator lights up in green after flashing for a while.

The

STARTUP LOGO

is displayed on the screen.

See “STARTUP LOGO” on page 39.

NOTE:

• When the internal cooling fan is operating, some operational sound may be heard. The loudness of the operational sound depends on the external temperature.

You can reduce the operational sound by setting the

LAMP POWER

in

OPTION menu

to the

ECO-MODE

. See “LAMP

POWER” on page 41.

When starting up the projector, some small rattling or tinkling sound may be heard, or the display may flicker for the characteristics of the lamp. Those are normal and will not affect the performance of the projector.

Do not attempt to modify the lens cover which may cause burns, fire or damage to the projector.

Switching off the projector

Power indicator

(3)

(1)

(2)

1. Press the power button.

The confirmation screen is displayed.

To return to the projection, press the

RETURN

button.

MENU

or

2.

3.

4.

Press the power or

ENTER

button.

The power indicator lights up in orange while cooling the lamp, then illuminates red when it is ready to switch off

MAIN POWER

.

Switch off

MAIN POWER

on the left side of the projector.

Attach the lens cover.

NOTE:

• Press the power button twice or for a long duration to switch the power off.

E

NGLISH - 11

Selecting the input signal

1.

2.

Switch on the connected devices.

Press the play button of the required device.

Press the

INPUT SELECT

button to select the required input method if needed. See “Switching

the input signal” on page 15.

The image will be projected on the screen.

Positioning the image

1. Adjust the projected image with the lens shift dials.

See “Lens shift and positioning” on page 6.

NOTE:

AUTO SEARCH

is

ON

as default and the signal from the connected devices is detected automatically. See

“AUTO SEARCH” on page 39.

3. Adjust the focus and the projected image size.

Press +/− of the

FOCUS

and

ZOOM

buttons to adjust.

Press the

page 35.

LENS

button to adjust the focus and zoom by the remote control. See “LENS CONTROL” on

2. Adjust the angle of the projector.

Screw the front leg adjusters up/down and adjust the angle vertically.

See “Front leg adjusters and throwing angle” on

page 5.

NOTE:

• Do not touch the air exhaust port as this may cause burns or injury.

If keystone distortion occurs, see “KEYSTONE” on

page 34.

If you adjust the focus, you may need to adjust the size of the image by pressing the

ZOOM

button again.

12 -

E

NGLISH

Remote control operation

Operating range

Remote control operation

You can operate the projector with the remote control within the remote range of 7 m (22'11").

Q

Facing to the projector

Ensure the remote control emitter is facing the remote control signal receptor on the front of the projector and press the required buttons to operate.

Q

Facing to the screen

Ensure the remote control emitter is facing the screen and press the required buttons to operate the projector. The signal will be reflected off the screen. The operating range may differ due to the screen material. This function may not be effective with a translucent screen.

NOTE:

• Do not let strong light shine onto the signal receptor.

The remote control may malfunction under strong light such as fluorescent light.

If there are any obstacles between the remote control and the remote control signal receptor, the remote control may not operate correctly.

Managing the lens control settings

You can adjust the focus and zoom of the projected image, and save the settings.

Press the

LENS

button once to display the

LENS CONTROL

menu.

If you have saved Lens Memories, press the

LENS

button twice to load the saved memories instantly. And press the

LENS

button three times to go back to the

LENS CONTROL

menu.

See “LENS CONTROL” on page 35.

Switching the picture mode

You can switch the preset picture mode settings by pressing the

PICTURE MODE

button. Press the button until the required setting is selected.

See “PICTURE MODE” on page 20.

NORMAL

DYNAMIC

CINEMA3

CINEMA2

COLOR1

COLOR2 CINEMA1

Adjusting the image

You can display the


and

ADVANCED

MENU

menu items by pressing the


ADJUSTMENT

button. Press the button to switch between


and

ADVANCED

MENU

menu.

Press ▲ ▼ to select the required menu item and ◄ ► to adjust.

Q

PICTURE menu items

PICTURE MODE

,

CONTRAST

,

BRIGHTNESS

,

COLOR

,

TINT

,

SHARPNESS

,

COLOR

TEMPERATURE

and

DYNAMIC IRIS

Q

ADVANCED MENU items

GAMMA ADJUSTMENT

,

CONTRAST R

/

G

/

B

,

BRIGHTNESS R

/

G

/

B

,

NR

,

MPEG NR

,

FRAME CREATION

,

COLOR MANAGEMENT

,

x.v.Color

,

DETAIL CLARITY

,

CINEMA REALITY

,

TV-SYSTEM

and

RGB

/

YPbPr

.

NOTE:

• For each menu item description, see “PICTURE menu”

on page 20.

The screen will be cleared after 7 seconds without any operation.

The

GAMMA

setting is only available when the

GAMMA ADJUSTMENT

is set to

SIMPLE

.

E

NGLISH - 13

Remote control operation

Loading a saved setting

You can access saved settings instantly. See

“MEMORY LOAD” on page 31.

1.

2.

Select the required setting from

MEMORY 1 - 16

.

Undefined setting will not be displayed.

Press the setting.

ENTER

button to activate the selected

NOTE:

• If you have not saved any settings,

MEMORY 1 - 16

will not be displayed.

VIERA Link

You can control some functions of the connected equipment with this projector remote control.

See the operating instructions for more details.

Adjusting the signal condition with a waveform

You can display the image brightness and contrast level of the input signal with a waveform. See “WAVEFORM MONITOR” on

page 21.

FULL SCAN

SINGLE LINE SCAN

Monitoring the waveform of brightness and contrast of the whole image.

Monitoring the waveform of brightness and contrast in each horizontal line of the image.

2. Press the

ENTER

button until the required waveform option is displayed.

In

FULL SCAN

mode, press ▲ ▼ ◄ ► to change the waveform position.

In

SINGLE LINE SCAN

mode, press ▲ ▼ to select the required line position.

FULL SCAN(Y)

FULL SCAN(R)

SINGLE LINE SCAN(B)

SINGLE LINE SCAN(G)

J

1.

Displaying the waveform

Press the

WAVEFORM MONITOR

button and display the waveform monitor.

Press the

WAVEFORM MONITOR

button again to escape from the waveform mode.

FULL SCAN(G)

FULL SCAN(B)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(Y)

NOTE:

• In

SINGLE LINE SCAN

mode, the position of the waveform monitor depends on the position of the selected line.

You can display the main menu by pressing the

MENU

button and adjust the menu items.

The called up menu items displayed position depends on the position of the waveform monitor.

You can activate

AUTO ADJUST

of the

WAVEFORM MONITOR

menu by pressing the

DEFAULT

button.

The signal which is lower than 0 % in the waveform will be displayed as same as 0 % on the projected image.

While the waveform is displayed, you can not adjust the

COLOR MANAGEMENT

settings.

Capturing an image

Press the

FREEZE

button to capture the image, and you can see it as a still picture while the AV equipment are still running. Press the

FREEZE

button again to escape and return to the continuing image.

While displaying the frozen image, you can enter the

AREA SELECT

mode of the

SPLIT ADJUST

menu by pressing the

ENTER

button. See “SPLIT ADJUST” on

page 22.

Resetting to the factory default settings

You can reset most of the customized settings to the factory defaults by pressing the

DEFAULT

button. Display the required sub-menu or the menu items and press the button.

NOTE:

• Some menu items are not available to reset by pressing the

DEFAULT

button. Adjust each menu item manually.

14 -

E

NGLISH

Remote control operation

SUB MENU

You can command the connected equipment to display their sub menu.

It is used with the Link function (VIERA Link).

Switching the input signal

You can switch the input method manually by pressing the

INPUT SELECT

button.

Press the button several times or press

▲ ▼ ◄ ► to cycle through the input methods as follows. The actual projected image will be changed in a while.

The graphical guidance will be displayed on the upper right of the projected image and you can confirm the selected input method which is highlighted in yellow. See

“INPUT GUIDE” on page 39.

COMPONENT IN

S-VIDEO IN

VIDEO IN

HDMI 1 IN

HDMI 2 IN

HDMI 3 IN

COMPONENT IN S-VIDEO IN

COMPUTER IN

COMPUTER IN

VIDEO IN

HDMI 3 IN

HDMI 2 IN HDMI 1 IN

COMPONENT

(YP

B

P

R

) signals from the equipment connected to

COMPONENT IN

.

S-VIDEO

signal from the equipment connected to

S-VIDEO IN

.

VIDEO

signal from the equipment connected to

VIDEO IN

.

HDMI

signal from the equipment connected to

HDMI IN 1

/

HDMI IN 2

/

HDMI IN 3

.

RGB

/

YP

B

P

R

signal from the equipment connected to

COMPUTER IN

.

NOTE:

• If you select an unplugged input method, the guidance will blink on and off.

See “List of compatible signals” in “Technical

Information” of the operating instructions.

See “Connections” on page

8.

Using the assigned function as a shortcut

You can access the assigned function in

FUNCTION BUTTON

menu as a shortcut. See “FUNCTION

BUTTON” on page 38.

COLOR MANAGEMENT

GAMMA ADJUSTMENT

SPLIT ADJUST

WAVEFORM AUTO ADJUST

FRAME CREATION

NORMAL

DYNAMIC

COLOR1

COLOR2

CINEMA1

CINEMA2

CINEMA3

TEST PATTERN

page 27

page 23

page 22

page 21

page 26

page 20

page 41

OPERATE OTHER DEVICE

ASPECT

AUTO SETUP

CONTRAST

BRIGHTNESS

BLANK

HDMI 1 IN

HDMI 2 IN

HDMI 3 IN

COMPUTER IN

COMPONENT IN

S-VIDEO IN

VIDEO IN

Booklet

page 32

page 34

page 20

page 38

page 15

E

NGLISH - 15

Settings

Menu Navigation

Navigating through the MENU

J

Displaying the main menu

Press the

MENU

button to display the main menu and the operating guidance.

J

1.

Operating procedure

Press ▲ ▼ to scroll to the required main menu item and press the

ENTER

button to select.

The selected item is highlighted in orange and the sub-menu is displayed on the right.

See “Menu list” on page

17.

Main menu Sub-menu

Current settings


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

VIERA LINK

OPTION

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMPERATURE

DYNAMIC IRIS

WAVEFORM MONITOR

SPLIT ADJUST

ADVANCED MENU

MEMORY SAVE

0

NORMAL

-

0

-

0

-

0

-

0

-

0

-

ON

+

+

+

+

+

+


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

VIERA LINK

OPTION

ENTER

SELECT

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

+7

0

0

0

-

-

-

ON

-

16:9

+

+

+

+

ENTER

MEMORY LOAD

MEMORY EDIT

SELECT

RETURN

J

RETURN

Operating guidance

Contains the required buttons to adjust the settings.

Adjusting with the bar scale items

The triangle mark under the bar indicates factory default setting and the square indicates the current setting

.

Current setting

2. Press ▲ ▼ to scroll to the required sub-menu item and press ◄ ► or the

ENTER

button to adjust.

The selected item is called up and the other menu items disappear from the screen. The Called up item will disappear after 5 seconds without any operation and return to the menu mode.

If there is a lower level to the sub-menu item, the next level will be displayed.


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

H-POSITION

V-POSITION

ASPECT

WSS

OVER SCAN

KEYSTONE

+7

0

0

0

-

-

-

ON

-

16:9

+

+

+

+

BRIGHTNESS 0

-

+

VIERA LINK

OPTION

Default

J

Returning to the previous menu

Press the

MENU

or

RETURN

button to return to the previous menu. Press repeatedly to escape from the menu mode and return to the projection.

ENTER

DEFAULT

SELECT

RETURN

3. Press ◄ ► to adjust or set the selected item.

For items using a bar scale, the current settings are displayed on the left of the bar scale.

You can cycle through the options of an item by pressing ▲ ▼.

BRIGHTNESS 0

-

+

4. Press the

MENU

or

RETURN

button to return to the previous menu.

16 -

E

NGLISH

Menu Navigation

Menu list

The menu options are structured and categorized. You can navigate through the menu with ▲ ▼ ◄ ► buttons.

NOTE:

• The underlined items are factory default settings.

Some default settings vary by the selected input signal.

Sub-menu items vary according to the selected input signal.

Some settings are adjustable without any signals.


It is possible to adjust the picture quality.

PICTURE MODE

NORMAL

COLOR1

CINEMA1

CINEMA3

CONTRAST

(Default: 0)

BRIGHTNESS

(Default: 0)

DYNAMIC

COLOR2

CINEMA2

COLOR

(Default: 0)

TINT

(Default: 0)

SHARPNESS

(Default: 0)

COLOR TEMPERATURE

(Default: 0)

DYNAMIC IRIS

ON OFF

WAVEFORM MONITOR

page 20 page 20 page 20 page 20 page 20 page 20

page 21 page 21

OFF

FULL SCAN(Y)

FULL SCAN(G)

SINGLE LINE SCAN(Y)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(G)

SINGLE LINE SCAN(B)

MONITOR POSITION

FULL SCAN(R)

FULL SCAN(B)

UPPER LEFT

UPPER RIGHT

LOWER CENTER

AUTO ADJUST

START AUTO ADJUST

BLACK LEVEL ADJUST

WHITE LEVEL ADJUST

RGB ADJUST (BLACK)

RGB ADJUST (WHITE)

UPPER CENTER

LOWER LEFT

LOWER RIGHT

SPLIT ADJUST

AREA SELECT

SPLIT ADJUST MODE

NORMAL REVERSE

page 21

page 22

ADVANCED MENU

MEMORY SAVE

MEMORY 1 - 16

MEMORY LOAD

MEMORY 1 - 16

MEMORY EDIT

MEMORY DELETE

MEMORY 1 - 16

MEMORY 1 - 16

ALL DELETE

MEMORY NAME CHANGE

SIGNAL MODE

page 23

GAMMA ADJUSTMENT

SIMPLE

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

NR

MPEG NR

FRAME CREATION

OFF

MODE2

COLOR MANAGEMENT

MODE1

MODE3

ADVANCED

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

(Default: 0)

PROFILE ADJUSTMENT MODE

START ADJUSTMENT LOG

PROFILE SAVE PROFILE DELETE

PROFILE NAME CHANGE x.v.Color

ON OFF

(Default: 3)

DETAIL CLARITY

CINEMA REALITY

ON

TV-SYSTEM

AUTO

NTSC

PAL

PAL-N

RGB/YPbPr

AUTO RGB

OFF

NTSC 4.43

PAL-M

SECAM

YPbPr

page 30

page 31 page 31 page 31

E

NGLISH - 17

Menu Navigation

POSITION

It is possible to adjust the image size and position.

H-POSITION

(Default: 0)

V-POSITION

(Default: 0)

DOT CLOCK

(Default: 0)

CLOCK PHASE

(Default: 0)

ASPECT

4:3 16:9 s16:9

ZOOM ZOOM1 ZOOM2

AUTO H-FIT V-FIT

WSS

ON

OVER SCAN

KEYSTONE

(Default: 0)

AUTO SETUP

OFF

page 32 page 32 page 32 page 32 page 32

14:9

JUST

page 34 page 34 page 34 page 34

LANGUAGE

It is possible to change the display language.

H-AREA POSITION

(Default: 0)

V-AREA POSITION

(Default: 0)

LEFT MASKING AREA

(Default: 0)

RIGHT MASKING AREA

(Default: 0)

UPPER MASKING AREA

(Default: 0)

LOWER MASKING AREA

(Default: 0)

FUNCTION BUTTON

page 38

It is possible to assign a useful function to the

FUNCTION

button.

COLOR MANAGEMENT

GAMMA ADJUSTMENT

SPLIT ADJUST

WAVEFORM AUTO ADJUST

FRAME CREATION

NORMAL

COLOR1

CINEMA1

CINEMA3

OPERATE OTHER DEVICE

ASPECT

CONTRAST

BLANK

HDMI 2 IN

COMPUTER IN

S-VIDEO IN

DYNAMIC

COLOR2

CINEMA2

TEST PATTERN

AUTO SETUP

BRIGHTNESS

HDMI 1 IN

HDMI 3 IN

COMPONENT IN

VIDEO IN

page 37 page 37 page 37 page 37 page 37 page 37

LENS CONTROL

It is possible to adjust the lens position.

ZOOM/FOCUS

LENS MEMORY LOAD

LENS MEMORY 1 - 6

LENS MEMORY SAVE

LENS MEMORY 1 - 6

LENS MEMORY EDIT

LENS MEMORY DELETE

LENS MEMORY 1 - 6 ALL DELETE

LENS MEMORY NAME CHANGE

LENS MEMORY 1 - 6

AUTO SWITCHING

page 35 page 35 page 35

page 36 page 36

2.35:1 IMAGE DETECTION

OFF

16:9 IMAGE DETECTION

OFF

LENS MEMORY 1 - 6

LENS MEMORY 1 - 6

VIERA LINK

It is possible to link with the connected equipment.

VIERA LINK CONTROL

RECORDER 1 - 3

PLAYER 1 - 3

HOME THEATER 1 - 3

CAMCORDER 1 - 3

LUMIX 1 - 3

OTHER 1 - 4

Booklet

HOME THEATER VOLUME

Booklet

HOME THEATER MUTE

Booklet

OPERATE OTHER DEVICE

Booklet

18 -

E

NGLISH

Menu Navigation

OPTION

It is possible to change the option settings.

INPUT GUIDE

page 39

DETAILED

SIMPLE

OSD DESIGN

TYPE1

TYPE3

OSD POSITION

OFF

TYPE2

page 39 page 39

LOWER LEFT

LOWER RIGHT

UPPER CENTER

CENTER

LOWER CENTER

UPPER LEFT

UPPER RIGHT

BACK COLOR

BLUE

STARTUP LOGO

ON

AUTO SEARCH

ON

BLACK

NORMAL

INSTALLATION

FRONT/DESK

REAR/DESK

TRIGGER 1/2 SETTING

OFF

OUTPUT

POWER ON

SELECT LENS MEMORY 1 - 6

BLANK

SELECT 4:3 ASPECT

SELECT 16:9 ASPECT

SELECT S16:9 ASPECT

SELECT JUST ASPECT

SELECT ZOOM ASPECT

SELECT H-FIT ASPECT

SELECT V-FIT ASPECT

RS-232C COMMAND LINK

page 39 page 39

OFF

OFF

HDMI SIGNAL LEVEL

NORMAL

FRAME RESPONSE

EXPAND

FAST

page 39 page 39 page 39 page 39

FRONT/CEILING

REAR/CEILING

page 40

DELAY TIME

0 SEC.

8 SEC.

2 SEC.

10 SEC.

INPUT

POWER ON/OFF

SLEEP

OFF 60 MIN.

150 MIN. 180 MIN.

4 SEC.

20 SEC.

BLANK

90 MIN.

210 MIN.

HIGH ALTITUDE MODE

OFF ON

6 SEC.

30 SEC.

page 41

120 MIN.

240 MIN.

page 41

LAMP POWER

NORMAL ECO-MODE

VIERA LINK SETTINGS

page 41

VIERA LINK

ON

POWER ON LINK

NO

OFF

YES

POWER OFF LINK

YES NO

STAND-BY POWER SAVE

NO YES

AUTO POWER STAND-BY

NO

YES (NO REMINDER)

VERSION

YES (WITH REMINDER)

TEST PATTERN

LAMP RUNTIME

page 41 page 41 page 41

E

NGLISH - 19

PICTURE menu

Remote control Control panel

CONTRAST

You can adjust the contrast of the projected image.

Adjust the

BRIGHTNESS

in advance if necessary.

Lower Higher

See “Navigating through the MENU” on page

See “Menu list” on page

17.

16.

PICTURE MODE

Depending on the projection environment, you can use these preset parameter settings to optimise image projection. Press ◄ ► to cycle through the options.

NORMAL CINEMA3

DYNAMIC

CINEMA2

COLOR1

COLOR2 CINEMA1

NORMAL

DYNAMIC

COLOR1

COLOR2

CINEMA1

CINEMA2

CINEMA3

Setting for a general image, such as sports programme or TV games.

Bright and sharp setting.

Setting for HDTV standard in ITU-R BT. 709 and color temperature 6 500 K at the default setting of the


menu items.

Setting for DCDM standard

(SMPTE431-2) and color temperature 6 300 K at the default setting of the


menu items.

Setting tuned by top Hollywood colorists.

Deeper and more rich color setting

Vivid and crisp color setting.

NOTE:

• It may take a while until the selected mode is stabilized.

Setting range: −64 to +64

BRIGHTNESS

You can adjust the brightness of the projected image.

Darker

Setting range: −32 to +32

COLOR

You can adjust the color saturation of the projected image.

Lighter

Brighter

Darker

Setting range: −32 to +32

When

RGB

/

YP

B

P

R

signal is connected, only available with the following signals.

1 125 (1 080)/60i

1 125 (1 080)/60p

1 125 (1 080)/50i

1 125 (1 080)/50i

TINT

You can adjust the skin tone in the projected image.

More reddish

More greenish

Setting range: −32 to +32

When

COMPUTER

signal is connected, only available with the following signals.

1 125 (1 080)/60i

1 125 (1 080)/60p

1 125 (1 080)/50i

1 125 (1 080)/50i

SHARPNESS

You can adjust the sharpness of the projected image.

Less sharp

More sharp

Setting range will vary according to the selected input signal.

20 -

E

NGLISH

COLOR TEMPERATURE

You can adjust the white balance of the projected image.

Less bluish

More bluish

Setting range: −6 to +6

DYNAMIC IRIS

You can switch automatic adjustment of the lamp and the lens iris on/off.

ON:

OFF:

Automatic adjustment

No adjustment

WAVEFORM MONITOR

You can monitor whether or not the luminance level of the input signal is in the recommended range by displaying it in the waveform monitor. If the waveform is not in the recommended range, adjust it for the best quality. See “Adjusting the signal condition with a

waveform” on page 14.

OFF

FULL SCAN(Y)

FULL SCAN(R)

FULL SCAN(G)

FULL SCAN(B)

SINGLE LINE SCAN(Y)

SINGLE LINE SCAN(R)

SINGLE LINE SCAN(G)

SINGLE LINE SCAN(B)

MONITOR POSITION

AUTO ADJUST

UPPER LEFT

1.

2.

Press ▲ ▼ to move to the required waveform style.

Press the

ENTER

button to select.

The

WAVEFORM MONITOR

will be displayed.

NOTE:

• When the

WAVEFORM MONITOR

is set to

OFF

, the

AUTO ADJUST

is not displayed.

The waveform of the source.

The

WAVEFORM MONITOR

will not be displayed correctly with a noisy equipment or

WAVEFORM MONITOR

adjusts the signal level based on the reference signal which consists of 0 % and 100 %. The over scanned reference signal which runs off the edge of the screen, below 0 % or over

100 % signal level will not be adjusted correctly.

J

MONITOR POSITION

When the

FULL SCAN

is selected, press ▲ ▼ ◄

► to adjust the position of the monitor.

See “Adjusting the signal condition with a waveform”

on page 14.

PICTURE menu

J

AUTO ADJUST

You can switch on/off the automatic adjustment system in each item.

BLACK LEVEL ADJUST

Adjust the black level of luminance (Y) to 0 %.

WHITE LEVEL ADJUST

Adjust the white level of luminance (Y) to

100 %.

RGB ADJUST (BLACK)

Adjust the black level of colors (R/G/B) to 0 %.

RGB ADJUST (WHITE)

Adjust the white level of colors (R/G/B) to

100 %.

1.

2.

3.

4.

5.

Press ▲ ▼ and select the required item.

Press ◄ ► and switch on/off.

Press ▲ ▼ and select

ON

ON

OFF

OFF

START AUTO ADJUST

and press the

ENTER

button.

The confirmation screen will be displayed.

Press ◄ ► and select

OK

.

Press the

ENTER

button.

J

Adjustment example

Project a commercial test signal for picture adjustment on the screen and press the

WAVEFORM MONITOR

button.

100%

50%

0%

ENTER

ENTER

100%

Adjust to 100 %

50%

Image displayable area

0%

Adjust to 0 %

Monitor position

With

COMPUTER

(except HD) or

HDMI

(Expand)

Adjust to 100 %

100%

50%

Image displayable area

0%

Adjust to 0 %

Monitor position

E

NGLISH - 21

PICTURE menu

Q

1.

2.

3.

4.

5.

Adjusting with luminance options

Press the

ENTER

button several times to display

FULL SCAN(Y)/SINGLE LINE SCAN(Y)

.

In

SINGLE LINE SCAN

mode, select the required adjusting point by pressing ▲ ▼.

Press the

PICTURE ADJUSTMENT

button and display the

BRIGHTNESS

by pressing ▲ ▼.

When

ADVANCED MENU

is displayed, press the button again to switch to the


menu.

Adjust by pressing ◄ ►.

Adjust the bottom line of the waveform to 0 % (0 or

7.5 IRE).

Setting range: −32 to +32

Press ▲ ▼ to display the

CONTRAST

.

Adjust by pressing ◄ ►.

Adjust the up line of the waveform to 100 %

(100 IRE).

Setting range: −64 to +64

FULL SCAN(Y)/SINGLE LINE SCAN(Y)

BRIGHTNESS

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

CONTRAST

Adjust the top line of the waveform to 100 % (100 IRE)

Q

1.

2.

3.

4.

5.

Adjusting with RGB options

Press the

ENTER

button several times to display the required R/G/B waveform option.

In

SINGLE LINE SCAN

mode, select the required adjusting point by pressing ▲ ▼.

Press the

PICTURE ADJUSTMENT

button and display the

BRIGHTNESS R/BRIGHTNESS G/

BRIGHTNESS B

by pressing ▲ ▼.

When


menu is displayed, press the button again to switch to the

ADVANCED MENU

.

Adjust by pressing ◄ ►.

Adjust the bottom line of the waveform to 0 % (0 or

7.5 IRE).

Setting range: −16 to +16

Press ▲ ▼ to display the

CONTRAST R/

CONTRAST G/CONTRAST B

.

Adjust by pressing ◄ ►.

Adjust the up line of the waveform to 100 %

(100 IRE).

Setting range: −32 to +32

FULL SCAN(R)/SINGLE LINE SCAN(R)

BRIGHTNESS R

CONTRAST R

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

Adjust the top line of the waveform to 100 % (100 IRE)

FULL SCAN(G)/SINGLE LINE SCAN(G)

BRIGHTNESS G

CONTRAST G

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

Adjust the top line of the waveform to 100 % (100 IRE)

FULL SCAN(B)/SINGLE LINE SCAN(B)

BRIGHTNESS B

CONTRAST B

Adjust the bottom line of the waveform to 0 % (0 or 7.5 IRE)

Adjust the top line of the waveform to 100 % (100 IRE)

SPLIT ADJUST

You can perform image adjustment for some


menu items while displaying a certain area of the frozen image in a split window.

Q

SPLIT ADJUST MODE

Select the required split style from

NORMAL

and

REVERSE

in the

SPLIT ADJUST MODE

menu.

NORMAL

MOVE AREA ENTER GO TO SPLIT ADJUST

REVERSE

MOVE AREA ENTER GO TO SPLIT ADJUST

RETURN GO TO FREEZE SCREEN

RETURN GO TO FREEZE SCREEN

Q

1.

Adjusting the image in a split window

Select

AREA SELECT

and press the

ENTER

button.

The image will be frozen and the area cursor will be displayed.

MOVE AREA ENTER GO TO SPLIT ADJUST RETURN GO TO FREEZE SCREEN

2. Press ◄ ► to move the area cursor to select the area of interest and press the

ENTER

button.

The selected frozen image will be displayed in a split window.

22 -

E

NGLISH

3. Press the

MENU

button to display the


menu on the right.

PT-AE4000U


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

VIERA LINK

OPTION

ENTER

SELECT

RETURN

PICTURE MODE

CONTRAST

BRIGHTNESS

COLOR

TINT

SHARPNESS

COLOR TEMPERATURE

DYNAMIC IRIS

WAVEFORM MONITOR

SPLIT ADJUST

ADVANCED MENU

MEMORY SAVE

MEMORY LOAD

MEMORY EDIT

0

NORMAL

-

0

-

0

-

0

-

0

-

0

-

ON

+

+

+

+

+

+

MOVE AREA ENTER GO TO SPLIT ADJUST RETURN GO TO FREEZE SCREEN

4.

5.

6.

7.

Adjust the required


menu items.

Only the highlighted menu items are adjustable.

Sub-menu items vary according to the selected input

signal. See “Menu list” on page 17.

Press the

MENU

or

RETURN

button several times to escape from the menu.

Press the

ENTER

button.

The confirmation screen will be displayed. Select

YES

to finish the adjustment.

Press the

ENTER

button.

Press the

ENTER

button again to return to the

AREA SELECT

.

Press the

RETURN

ADJUST

mode.

button to escape from the

SPLIT

ADVANCED MENU

You can perform more detailed image adjustment manually.

J

GAMMA

You can make detailed adjustments to the light intensity of each input signal level by using the

ADVANCED

mode or using the

SIMPLE

mode to adjust at 3 levels (high, mid, low).

NOTE:

• You can only adjust the

GAMMA

settings through either the

ADVANCED

or

SIMPLE

mode.

Both settings cannot be used at the same time.

Select

GAMMA ADJUSTMENT

in

ADVANCED

MENU

, and press ◄ ► or the

ENTER

button.

ADVANCED MENU

GAMMA ADJUSTMENT

CONTRAST R

CONTRAST G

CONTRAST B

BRIGHTNESS R

BRIGHTNESS G

BRIGHTNESS B

NR

0

0

0

0

0

0

0

ADVANCED

PICTURE menu

Q

1.

Setting the GAMMA with the

ADVANCED mode

The

GAMMA ADJUSTMENT

menu will be displayed and press ◄ ► to select

ADVANCED

.

GAMMA ADJUSTMENT

SELECT

RETURN

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

B ADJUST

INITIALIZE

ADVANCED

5

2. To open the

Y ADJUST

menu, press ▲ ▼ to select

Y ADJUST

and then press the

ENTER

button.

In the graph below

Maximum 9 points are adjustable.

The point counts from lower input signal, 1 to 9.

Y ADJUST

0% 50% 100%

Presents selected point

INPUT

POINT 5

CHANGE MODE

INPUT 50%

RESET

OUTPUT

0

OUTPUT ADJ.

INTPUT ADJ.

CHANGE POINT RETURN

Information about the present selected point.

The factory default setting:

POINT [5] INPUT [50 %] OUTPUT [0]

POINT

INPUT

OUTPUT

Display the present selected point number.

Your selected point is indicated in yellow on the graph.

(The factory default setting: point 5)

Display the input level of the present selected point.

Setting range: from 1 to 99 % in increments of 1 %

(The factory default setting: 10, 20, 30, 40,

50, 60, 70, 80, 90 %)

Display the output level of the present selected point.

Adjustable range depends on the input level.

(The factory default setting: 0)

E

NGLISH - 23

PICTURE menu

3.

1)

Adjusting the linear intensity.

Changing the selected point.

(Using the remote control)

To select another point, press the

SUB MENU

button. Selected point will be moved each time the

SUB MENU

button is pressed.

Ex. 5 6 ··· 9 1 …

Y ADJUST

0% 50% 100%

2) Adjusting the

INPUT

level.

To adjust the

INPUT

level from the present setting, press ◄ ► continuously until it reaches your desired level.

It can move from left to right but cannot be set beyond the adjacent points.

Only available to adjust the

INPUT

level in the

Y ADJUST

menu and not other menus (

R

/

G

/

B

ADJUST

).

Ex. Press ◄ in the

Y ADJUST

menu and move the selected point leftward.

Y ADJUST

0% 50% 100%

POINT

5

INPUT

INPUT 50%

RESET

OUTPUT +10

POINT

5

INPUT

INPUT

50%

RESET

OUTPUT

0

Y ADJUST

0% 50% 100%

Y ADJUST

0% 50%

MOVE LEFT

100%

POINT

6

INPUT

INPUT

60%

RESET

OUTPUT

0

(Using the control panel/remote control)

You can also change the

POINT

from the

GAMMA

ADJUSTMENT

menu directly. Press the

RETURN

button to display the

GAMMA ADJUSTMENT

menu if you are in the

Y

/

R

/

G

/

B ADJUST

menu.

Use ▲ ▼ to select

POINT

and ◄ ► to change the point from 1 to 9.

Ex. Press ► to change the point from 5 to 6.

GAMMA ADJUSTMENT

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

ADVANCED

5

POINT 5

INPUT

INPUT 44%

RESET

OUTPUT

0

GAMMA ADJUSTMENT

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

ADVANCED

6

24 -

E

NGLISH

3) Adjusting the

OUTPUT

level.

To adjust the

OUTPUT

level from the present setting, press ▲ ▼ continuously until it reaches to your desired level.

It can move up and down but cannot be set beyond the adjacent points.

Ex. Press ▲ in the

Y ADJUST

menu and move the selected point upward.

Y ADJUST

0% 50% 100%

POINT

5

INPUT

INPUT

50%

RESET

OUTPUT

+10

PICTURE menu

4) Changing the adjustment by different color types.

To switch to a different color

ADJUST

menu, press the

ENTER

button continuously until it reaches your desired color

ADJUST

menu.

Y ADJUST R ADJUST

B ADJUST G ADJUST

You can also switch each different color

ADJUST

menu through the

GAMMA ADJUSTMENT

menu.

Select your required color

ADJUST

(

Y ADJUST

,

R ADJUST

,

G ADJUST

,

B ADJUST

) with ▲ ▼ in the

GAMMA ADJUSTMENT

menu and press the

ENTER

button.

GAMMA ADJUSTMENT

ENTER

SELECT

RETURN

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

B ADJUST

INITIALIZE

ADVANCED

5

Y ADJUST

0% 50% 100%

MOVE

UP

R ADJUST

0% 50% 100%

POINT 5

INPUT

INPUT 50%

RESET

OUTPUT

+30

INPUT

POINT 5 INPUT 50%

RESET

OUTPUT

+10

5) Setting the

OUTPUT

levels back to the default setting.

To set the

OUTPUT

level on the selected point back to the default setting “0”, press the

DEFAULT

button on the remote control.

NOTE:

• Individual

INPUT

levels cannot be set back to their default settings by pressing the

DEFAULT

button.

Please press ◄ ► to move back themselves if needed.

In the

Y ADJUST

menu, if you press the

DEFAULT

button, all

Y

/

R

/

G

/

B

output settings will go back to the default setting “0”.

Adjustable range depends on the input signal.

E

NGLISH - 25

PICTURE menu

4.

1)

Initialize the mode.

GAMMA

settings in the

ADVANCED

Press ▲ ▼ to select

INITIALIZE

in the

GAMMA

ADJUSTMENT

menu, and press the

ENTER

button.

GAMMA ADJUSTMENT

ADVANCED

ENTER

SELECT

RETURN

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

B ADJUST

INITIALIZE

5

2) The confirmation screen will be displayed for the

GAMMA

initialization.

GAMMA ADJUSTMENT

INITIALIZE GAMMA ADJUSTMENT.

OK CANCEL

3) Press ◄ ► to select

OK

and press the

ENTER

button.

Your

GAMMA

settings in the

ADVANCED

mode will go back to the factory default setting.

NOTE:

• It is not available to initialize in the

SIMPLE

mode.

Q

1.

Setting the GAMMA with the SIMPLE mode

In the

GAMMA ADJUSTMENT

menu, press ◄ ► to select

SIMPLE

in

ADJUSTMENT MODE

.

GAMMA ADJUSTMENT

ADJUSTMENT MODE

GAMMA HIGH

GAMMA MID

GAMMA LOW

POINT

Y ADJUST

R ADJUST

G ADJUST

0

0

0

SIMPLE

2. You can adjust linear intensity at 3 levels (high, mid, low).

Press ▲ ▼ to select your required

GAMMA

levels.

Levels

GAMMA HIGH

GAMMA MID

GAMMA LOW

Setting range: −8 to +8

Default setting

0

0

0

Press ◄ ► to increase/decrease 1 point.

GAMMA HIGH

0

+

J

CONTRAST

You can adjust the amount of contrast of individual

RGB colors. Press ◄ ► to increase/decrease

1 point.

RGB

CONTRAST R

Default setting

0

CONTRAST G

CONTRAST B

Setting range: −32 to +32

0

0

J

BRIGHTNESS

You can adjust the brightness of individual RGB colors. Press ◄ ► to increase/decrease 1 point.

RGB

BRIGHTNESS R

Default setting

0

BRIGHTNESS G

BRIGHTNESS B

0

0

Setting range: −16 to +16

J

NR (Noise Reduction)

You can adjust the automatic noise reduction system level. Press ◄ ► to change the level.

Setting range: 0 to +3

J

MPEG NR

You can adjust the automatic noise reduction system level for MPEG format images. The system minimise block noise and mosquito noise to eliminate jagged edges, and provides an overall smoother image. Press ◄ ► to change the level.

Setting range: 0 to +3

NOTE:

MPEG NR

system is not available with

COMPUTER

/

HDMI

(VGA60) signals.

J

FRAME CREATION

You can activate the rendering system for fast motion frames with fewer afterimage. Press ◄ ► to select the required option.

OFF

MODE1

MODE2

MODE3

Deactivate

Setting for a cinema image

Setting for a moving image

Setting for a fast moving image

NOTE:

• With some of the images, it might be difficult to see a difference in result.

The image might look delayed with the

MODE2

/

MODE3

setting. When the result does not meet your requirement, select

MODE1

or deactivate the system.

GAMMA MID

0

+

GAMMA LOW

0

+

26 -

E

NGLISH

J

COLOR MANAGEMENT

You can adjust a selected color individually by using

CURSOR

or adjust the six color components

(Red, Green, Blue, Cyan, Magenta, Yellow) by using

RGBCMY

.

To open the

COLOR MANAGEMENT

menu, select from the

ADVANCED MENU

in the


menu, or press the

FUNCTION

button as a shortcut.

In the factory default setting,

COLOR MANAGEMENT

is set as a default for the

FUNCTION

button.

COLOR MANAGEMENT

NORMAL

CURSOR

SELECT

RETURN

PROFILE

ADJUSTMENT MODE

START ADJUSTMENT

LOG

PROFILE SAVE

PROFILE DELETE

PROFILE NAME CHANGE

PICTURE menu

4. Press ▲ ▼ to select a menu item and the ◄ ► to adjust each item level.

The result box is displayed on the right of the cursor and shows the adjusted color.

CURSOR

ENTER

DEFAULT

SELECT

RETURN

COLOR

TINT

BRIGHTNESS

+10

+10

+10

-

-

-

+

+

+

Adjusted color

Q

1.

2.

Create a new profile

Adjusting the selected color with the

CURSOR mode.

Select a color and adjust

COLOR

,

TINT

and

BRIGHTNESS

.

Press ◄ ► to select

CURSOR

in

ADJUSTMENT

MODE

.

Press ▲ ▼ press the

ENTER

button.

to select

START ADJUSTMENT

and

The projected image is captured, and the target cursor is displayed.

When the

LOG

is fully stored, the target cursor will not be displayed.

Target cursor

3. Move the cursor with ▲ ▼ ◄ ► to the required place to select a color and press the

ENTER

button.

The color at the center of the target cursor is sampled and the sample box is displayed in the left of the cursor.

The menu items are displayed on the screen.

You may fail to adjust when the very edge point of the projection area is selected as sample.

You can create a profile only when

ADJUSTMENT

MODE

is set to either

CURSOR

or

RGBCMY

.

CURSOR

ENTER

DEFAULT

SELECT

RETURN

COLOR

TINT

BRIGHTNESS

0

0

0

-

-

-

+

+

+

COLOR

TINT

BRIGHTNESS

Adjust the vividness of the color.

Setting range: −30 to +30

Adjust the color tone.

Setting range: −30 to +30

Adjust the brightness of the color.

Setting range: −20 to +20

5.

6.

Press the

ENTER

button to store the adjusted result.

PROCESSING

” is displayed for a few seconds and the result is stored in

LOG

.

You can store up to 8 logs under

PICTURE MODE

setting.

LOG

for each

Press the

MENU

or

RETURN

button to return to the previous menu.

Repeat the steps above to store more adjustment.

When the

LOG

is fully stored, the screen will be switched automatically to the

COLOR

MANAGEMENT

menu.

Adjusting the selected color with the

RGBCMY mode.

Select the color from 6 different color types (

RED

,

GREEN

,

BLUE

,

CYAN

,

MAGENTA

,

YELLOW

) and adjust

COLOR

,

TINT

and

BRIGHTNESS

.

PROFILE

ADJUSTMENT MODE

START ADJUSTMENT

LOG

NORMAL

RGBCMY

1.

2.

Press ◄ ► to select

RGBCMY

in

ADJUSTMENT

MODE

.

Press ▲ ▼ to select

START ADJUSTMENT

press the

ENTER

button.

and

Sampled color

E

NGLISH - 27

PICTURE menu

3. Press ▲ ▼ to select your desired color and press the

ENTER

button.

RED

GREEN

BLUE

CYAN

MAGENTA

YELLOW

The sample box and the menu items are displayed on the screen.

RED

ENTER

DEFAULT

SELECT

RETURN

COLOR

TINT

BRIGHTNESS

0

0

0

-

-

-

+

+

+

Sampled color

1.

Managing the stored logs which are created through the CURSOR mode.

You can edit or delete the stored logs of the selected

PICTURE MODE

.

Press ▲ ▼ to select

LOG

and press the

ENTER

button.

The

LOG

menu is displayed.

ADJUSTMENT MODE

PICTURE MODE

: CURSOR

: NORMAL

POINT1

POINT2

POINT3

POINT4

POINT5

POINT6

POINT7

POINT8

ALL DELETE

COLOR

+10

+10

+10

+10

+10

+10

+10

+10

TINT

+10

+10

+10

+10

+10

+10

+10

+10

Sampled color

BRIGHTNESS

+10

+10

+10

+10

+10

+10

+10

+10

Adjusted color

4. Press ▲ ▼ to select a menu item and the ◄ ► to adjust each item level.

The result box is displayed on the right of the sample box and shows the adjusted color.

Both the sampled and adjusted color indicated in the

RGBCMY

mode are shown only as a guide.

RED

ENTER

DEFAULT

SELECT

RETURN

COLOR

TINT

BRIGHTNESS

+10

+10

+10

-

-

-

+

+

+

Sampled color

Adjusted color

COLOR

TINT

BRIGHTNESS

Adjust the vividness of the color.

Setting range: −30 to +30

Adjust the color tone.

Setting range: −30 to +30

Adjust the brightness of the color.

Setting range: −20 to +20

5.

6.

Press the

ENTER

button to store the adjusted result.

PROCESSING

” is displayed for a few seconds and the result is stored in

LOG

.

You can store up to 6 different color adjusted images under

LOG

for each

PICTURE MODE

setting.

Press the

MENU

or

RETURN

button to return to the previous menu.

Repeat the steps above to store more adjustments.

2. Press ▲ ▼ to select the required log from 1 - 8 or

ALL DELETE

, and press the

ENTER

button.

Select

CHANGE

to edit the log.

The

CURSOR

mode is displayed and you can readjust the color.

Select

DELETE

to delete the log.

The confirmation screen will be displayed. Select

OK

to delete.

When you select

ALL DELETE

, the “

DELETE ALL

LOG.

” screen is displayed. Select

OK

to delete all logs. The

PROFILE

setting will be set to

NORMAL

.

Managing the stored logs which are created through the RGBCMY mode.

ADJUSTMENT MODE

PICTURE MODE

: RGBCMY

: NORMAL

RED

GREEN

BLUE

CYAN

MAGENTA

YELLOW

ALL DELETE

COLOR

+10

+10

+10

+10

+10

+10

TINT

+10

+10

+10

+10

+10

+10

BRIGHTNESS

+10

+10

+10

+10

+10

+10

Sampled color Adjusted color

1.

2.

Press ▲ ▼ to select

LOG

and press the

ENTER

button.

The

LOG

menu is displayed.

Select the required log from 6 different colors (

G

,

B

,

C

,

M

,

Y

) or

ALL DELETE

, and press the

R

,

ENTER

button.

Select

CHANGE

to edit the log.

The

RGBCMY

mode is displayed and you can readjust the color.

Select

DELETE

to delete the log.

The confirmation screen will be displayed. Select

OK

to delete.

When you select

ALL DELETE

, the “

DELETE ALL

LOG.

” screen is displayed. Select

OK

to delete all logs. The

PROFILE

setting will be set to

NORMAL

.

28 -

E

NGLISH

1.

Saving a log setting as a profile

Return to the

COLOR MANAGEMENT

menu and save the stored log as a profile. Make sure that the

PICTURE MODE

is not switched.

Select the

PROFILE SAVE

menu and press the

ENTER

button.

The

PROFILE SAVE

menu is displayed. You can save the profile as

USER1

,

USER2

and

USER3

.

USER1

USER2

USER3

Indicated with is in use, and is empty.

2.

3.

Press the

ENTER

button to save the profile.

Name the profile.

The confirmation screen is displayed. Press the

ENTER

button again to save.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

You can enter up to 14 characters.

PROFILE NAME INPUT

ALL DELETE

OK CANCEL

4.

5.

Repeat step 3 until you finish the text line.

Move cursor to

ALL DELETE

and press the

ENTER

button to delete all the entered text line.

Press the

DEFAULT

button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press ▼ then perform step 3.

Select

OK

and press the

ENTER

button to set the entered text as a name.

Press the

ENTER

button without entering any text to keep the default name.

1.

2.

3.

Deleting the saved profiles

You can delete the profiles from

PROFILE

DELETE

menu.

Select

PROFILE DELETE

and press the

ENTER

button.

Press ▲ ▼ to select the required profile or

ALL DELETE

and press the

ENTER

button.

PROFILE

The confirmation screen will be displayed and select

OK

.

Press the

ENTER

button.

PICTURE menu

1.

2.

3.

4.

Changing the profile names

You can change the name of the profiles from the

PROFILE NAME CHANGE

menu.

Press ▲ ▼ to select

PROFILE NAME CHANGE

and press the

ENTER

button.

Press ▲ ▼ to select the required profile and press the

ENTER

button.

Rename the profile.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

Select

OK

and press the

ENTER

button to set the entered text as a name.

1.

2.

3.

Loading saved profiles

When profiles are loaded under the


MODE

setting, you can keep them as you defined until the

PROFILE

is set to

NORMAL

.

Select the required

PICTURE MODE

and press the

ENTER

button.

Press the select the

PROFILE

menu.

COLOR MANAGEMENT

button and

The profile settings of the selected

PICTURE MODE

will be displayed.

Select the required profile and press the

ENTER

button.

NORMAL

Return to the default setting of the

PICTURE MODE

menu.

USER1

USER2

USER3

Defined profile settings.

NOTE:

• In the

CURSOR

mode, you can adjust the colors except white, gray and black.

In the

CURSOR

mode, if you adjust the exact same color differently, both will affect each other and you might get unexpected results.

COLOR MANAGEMENT

will be unable to adjust with the setting of

COLOR1

in

PICTURE MODE

, when

HDMI signal is selected.

If there is another area, which has an exact same or similar color with your target in the same screen, all colors will be adjusted as well.

If you switch the input signal before you save the profile, the setting will be cancelled without notice.

J

x.v.Color

You can switch on/off the automatic adjustment system for signals which comply with International

Standard xvYCC.

ON:

OFF:

Active

Deactive

NOTE:

x.v.Color

adjustment system is available only with

HDMI

signals in

COLOR1

of

PICTURE MODE

menu.

E

NGLISH - 29

PICTURE menu

J

DETAIL CLARITY

You can adjust the detail clarity system levels.

Setting range: 0 to +7

J

CINEMA REALITY

You can switch the automatic image synchronizer on/off for 24 frames a second images, such as movies. Press ◄ ► to select the required setting.

ON:

OFF:

Active

Deactive

NOTE:

CINEMA REALITY

is effective only with interlace signals.

J

TV-SYSTEM

When the video signal is changed, the setting switches automatically.

You can switch the setting manually to match the video data. Press ◄ ► to cycle through the options.

AUTO NTSC

SECAM

PAL-N

NTSC 4.43

PAL-M PAL

NOTE:

AUTO

setting will select from

NTSC/NTSC 4.43/PAL/

PAL60/PAL-M/PAL-N/SECAM

.

J

RGB/YP

B

P

R

The projector will detect the signal from the

COMPUTER

terminals if the signal is

RGB

or

YP

B

P

R

. You can turn off the automatic detecting system and switch between

RGB

and

YP

B

P

R

manually.

AUTO:

RGB:

YP

B

P

R

:

Automatic detecting system

Project as

RGB

signal

Project as

YP

B

P

R

signal

NOTE:

• Available with VGA60, 480i, 576i, 480p, 576p,

1 080/60i, 1 080/50i, 720/60p, 720/50p, 1 080/60p,

1 080/50p only.

When the input signal is not selected correctly with

AUTO

setting, select

RGB

or

YP

B

P

R

manually.

MEMORY SAVE

You can save and name the adjusted


menu settings for instant access from

MEMORY LOAD

menu.

1.

2.

Adjust the items in


menu.

3.

4.

Select

MEMORY SAVE

and press the

ENTER

button.

Select the required memory setting and press the

ENTER

button.

The confirmation screen will be displayed. Select

OK

and press the

ENTER

button.

Indicated with is in use, and is empty.

Name the memory setting.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

You can enter up to 16 characters.

MEMORY NAME INPUT

ALL DELETE

OK CANCEL

5.

6.

Repeat step 4 until you finish the text line.

Move the cursor to

ALL DELETE

and press the

ENTER

button to delete all the entered text line.

Press the

DEFAULT

button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press ▼ then perform step 4.

Select

OK

and press the

ENTER

button to set the entered text as a name.

NOTE:

• If you leave the text box empty and save, the default memory number will stay as a name.

30 -

E

NGLISH

MEMORY LOAD

You can access the saved settings instantly. See

“Loading a saved setting” on page 14.

1. Select a setting from

MEMORY 1 - 16

.

2.

Undefined settings will not be selectable.

Press the

ENTER

button to activate.

NOTE:

• If you have not saved any settings,

MEMORY 1 - 16

will not be displayed.

MEMORY EDIT

You can edit the named memory settings.

Q

1.

2.

3.

Deleting a memory setting

Select

MEMORY DELETE

and press the

ENTER

button.

Select the required memory setting and press the

ENTER

button.

If you select

ALL DELETE

, you can delete all of the saved memory settings.

Select

OK

in the confirmation screen and press the

ENTER

button.

Q

1.

2.

3.

Changing the name of the memory setting

Select

MEMORY NAME CHANGE

and press the

ENTER

button.

Select the required memory setting and press the

ENTER

button.

Rename the memory setting.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

You can enter up to 16 characters.

MEMORY NAME INPUT

PICTURE menu

SIGNAL MODE

The current selected signal will be displayed. This is available with signals from

COMPUTER IN

/

COMPONENT IN

/

HDMI IN

only.

NOTE:

• See “List of compatible signals” in “Technical

Information” of the operating instructions.

ALL DELETE

OK CANCEL

4.

5.

Repeat step 3 until you finish the text line.

Move the cursor to

ALL DELETE

and press the

ENTER

button to delete all the entered text line.

Press the

DEFAULT

button to delete the last entered character or indicated with cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press ▼ then perform step 3.

Select

OK

and press the

ENTER

button to set the entered text as a name.

NOTE:

• If you have not saved any settings,

MEMORY 1 - 16

will not be displayed.

E

NGLISH - 31

POSITION menu

Remote control Control panel

See “Navigating through the MENU” on page

See “Menu list” on page

17.

16.

H-POSITION

You can move the projected image horizontally for fine adjustment.

Move left

Move right

V-POSITION

You can move the projected image vertically for fine adjustment.

Move down

DOT CLOCK

Move up

If you have interference patterns of the projected image, which is sometimes referred to as moire or noise, you can minimize it by pressing ◄ ► to adjust the clock frequency. (Available with

RGB

signal from

COMPUTER IN

only)

NOTE:

• If the projecting signal’s dot clock frequency is higher than 150 MHz, the adjustment may not make a difference.

DOT CLOCK

needs to be adjusted before adjusting the

CLOCK PHASE

.

CLOCK PHASE

If you require further adjustment for the same reason as the

DOT CLOCK

adjustment, you can fine adjust the timing of the clock. Press ◄ ► to adjust. (Available with signals from

COMPUTER IN

/

COMPONENT IN

only)

NOTE:

• If the projecting signal’s dot clock frequency is higher than

150 MHz, the adjustment may not make a difference.

Available signals from

YP

B

P

R

:

1 125 (1 080)/60i, 1 125 (1 080)/50i, 1 125 (1 080)/60p,

1 125 (1 080)/50p, 1 125 (1 080)/24p, 750 (720)/60p,

750 (720)/50p.

ASPECT

You can switch the aspect ratio manually when needed.

J

Aspect ratio depend on signals

Press ◄ ► to cycle through the aspect ratio options. The cycle pattern depends on the connected signals.

VIDEO/

S-VIDEO

HDMI

COMPUTER

(RGB)/

COMPONENT

(YP

B

P

R

)

4:3

\

16:9

\

s16:9

\

JUST

\

ZOOM

\

AUTO

NTSC, NTSC 4.43, PAL-M, PAL60 signals

4:3

\

16:9

\

s16:9

\

14:9

\

ZOOM1

\

ZOOM2

\

JUST

PAL, PAL-N, SECAM signals

4:3

\

16:9

\

s16:9

\

H-FIT

\

V-FIT

\

ZOOM

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p and

750 (720)/60p signals

4:3

\

16:9

\

s16:9

\

JUST

\

ZOOM

525p (480p) signal

4:3

\

16:9

\

s16:9

\

14:9

\

ZOOM1

\

ZOOM2

\

JUST

625p (576p) signal

4:3

\

16:9

\

s16:9

\

14:9

\

ZOOM1

\

ZOOM2

\

JUST

625i (576i), 625p (576p) signals

4:3

\

16:9

\

s16:9

\

JUST

\

ZOOM

525i (480i), 525p (480p) signals

4:3

\

16:9

\

s16:9

\

H-FIT

\

V-FIT

\

ZOOM

1 125 (1 080)/50i, 1 125 (1 080)/60i,

1 125 (1 080)/50p, 1 125 (1 080)/60p,

1 125 (1 080)/24p, 750 (720)/50p,

750 (720)/60p signals

32 -

E

NGLISH

POSITION menu

J

Q

Aspect ratio options and projection example

If you apply the aspect ratio options to the projected image, the result will be as follows. The result may differ due to the input signals.

VIDEO/S-VIDEO/COMPUTER/COMPONENT/HDMI

Not available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/

24p, 750 (720)/50p and 750 (720)/60p signals.

4:3

Squeeze signal

16:9

Letter box

14:9

Letter Box

2.35:1

Cinescope

Original size

4:3

Projects at 4:3.

16:9

Adjusts horizontally to 16:9.

JUST

ZOOM/

ZOOM1

ZOOM2

Adjusts horizontally to fit 16:9. Closer to edge, more enlarged. Not available with

COMPUTER

signals.

Adjusts to 16:9 size while preserving original ratio. Escape the menu mode and press ▲ ▼ to adjust vertically.

(Not available with HDMI signal.)

Adjusts to cinescope size not including letter box. Escape the menu mode and press ▲ ▼ to adjust vertically.

(Not available with HDMI signal.)

14:9

Adjusts to 14:9.

Q

COMPUTER/COMPONENT/HDMI

Available with 1 125 (1 080)/50i, 1 125 (1 080)/60i, 1 125 (1 080)/50p, 1 125 (1 080)/60p, 1 125 (1 080)/24p,

750 (720)/50p and 750 (720)/60p signals.

4:3 16:9 Cinescope

Original size

H-FIT

V-FIT

ZOOM

Adjusts horizontally to 16:9.

Adjusts to 16:9 vertically. Escape and press ▲ ▼ to scroll the image to adjust the edge vertically.

(Not available with HDMI signal.)

Adjusts to 16:9 size with preserving original ratio. Escape the menu mode and press ▲ ▼ to adjust vertically.

NOTE:

• If you project an image with an unmatched aspect ratio, the image may distort or some portions may be cropped. Select an aspect ratio which preserves the intention of the image creator.

The order of aspect type is defined not only by the input method but also by the input signals. See “List of compatible signals” in “Technical Information” of the operating instructions.

If you project a copyrighted image enlarged or distorted by using

ASPECT

function in commercial use in a public place, such as a restaurant or hotel, you might infringe on the copyright of the creator which is protected by copyright law.

E

NGLISH - 33

POSITION menu

WSS

WSS

(Wide Screen Signalling) detects if a

PAL

/

625p (576p)/625i (576i) signal is input and that signal has an identification signal, and switch the aspect ratio to required setting automatically. You can switch the system off manually. (Available with

VIDEO

/

S-VIDEO

/

COMPONENT

signals only)

OVER SCAN

If the 4 edges of an image is partly dropped, you can use this function to adjust and project it properly.

Setting range: 0 to +10

OVER SCAN

is not available with

COMPUTER

signals.

KEYSTONE

If the projector is aligned non-perpendicularly to the screen, or if the projection screen has an angled surface, you can correct the keystone vertically.

Image Operation

Shrink Enlarge

Setting range: −32 to +32

NOTE:

• You can correct the distortion ± 30 degrees from the vertical plane. For a better quality image, installing the projector with minimum distortion is recommended.

Some distortion may be retained for the lens shift adjustment.

The distortion of the main menu screen is not correctable.

The result of the keystone correction will affect the aspect ratio and the size of the image.

AUTO SETUP

You can adjust

V-POSITION

,

H-POSITION

,

DOT

CLOCK

and

CLOCK PHASE

automatically when the computer signal is detected. Press the

ENTER

button to adjust these at the same time.

34 -

E

NGLISH

LENS CONTROL

Remote control Control panel

See “Navigating through the MENU” on page

See “Menu list” on page

17.

16.

NOTE:

• The saved lens memory adjustment accuracy is not guaranteed.

If the memorised

ZOOM/FOCUS

adjustment is not accurate enough, adjust the

ZOOM/FOCUS

menu again.

If the power supply is stopped while loading or saving the lens memory, saved adjusted settings may differ from the original after restarting the projector. Adjust the

ZOOM/FOCUS

menu again.

ZOOM/FOCUS

You can use the 2 different test patterns to adjust the focus and zoom of the image.

1. Press the

ENTER

button to display test pattern 1.

Press ▲ ▼ to adjust the focus and ◄ ► to adjust the zoom.

PATTERN CHANGE

RETURN

FOCUS

ZOOM

2. Press the

ENTER

button to display test pattern 2.

Press ▲ ▼ to adjust the focus and ◄ ► to adjust the zoom.

PATTERN CHANGE

RETURN

FOCUS ZOOM

3.

4.

Press the

ENTER

button to display the projected image.

You can confirm the adjustment is fit to the projected image.

Press the

MENU

or

RETURN

button to return to the previous menu, or press repeatedly to escape the menu mode.

NOTE:

• When the projector and/or the screen is tilted, adjust the focus at the center of the image. The upper and lower edge might be out of focus.

When the image is distorted in keystone, adjust the

KEYSTONE

in

POSITION

menu. See “KEYSTONE” on

page 34.

LENS MEMORY LOAD

You can access the saved lens control settings (

ZOOM

/

FOCUS

,

H

/

V

-

AREA POSITION

, and

MASKING AREA

) instantly.

1.

2.

Select a setting from

Press the

ENTER

LENS MEMORY 1 - 6

button to activate.

.

LENS MEMORY1

LENS MEMORY2

LENS MEMORY3

LENS MEMORY4

LENS MEMORY5

LENS MEMORY6

NOTE:

• The option that contains no saved adjustment will not be displayed.

If there is no saved setting, the

LENS MEMORY LOAD

menu will not be selectable.

LENS MEMORY SAVE

You can save and name the adjusted lens control settings in the

LENS MEMORY

.

LENS MEMORY1

LENS MEMORY2

LENS MEMORY3

LENS MEMORY4

LENS MEMORY5

LENS MEMORY6

1.

2.

3.

4.

5.

Indicated with is in use, and is empty.

Adjust

ZOOM/FOCUS

,

H

/

V-AREA POSITION

and

MASKING AREA

.

Select the

LENS MEMORY SAVE

and press the

ENTER

button.

Select the required memory setting and press the

ENTER

button.

The confirmation screen will be displayed. Select

OK

and press the

ENTER

button.

Name the lens memory setting.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

LENS MEMORY NAME INPUT

OK CANCEL

ALL DELETE

E

NGLISH - 35

LENS CONTROL

6.

7.

Repeat step 5 until you finish the text line.

You can enter up to 16 characters.

Move the cursor to

ALL DELETE

and press the

ENTER

button to delete all the entered text line.

Press the

DEFAULT

button to delete the last entered character or indicted with the cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press ▼ then perform step 5.

Select

OK

and press the

ENTER

button to set the entered text as a name.

NOTE:

• If you leave the text box empty and save, the default memory number will stay as a name.

LENS MEMORY EDIT

You can edit saved lens memory settings.

Q

1.

2.

3.

4.

Deleting a memory setting

Select

LENS MEMORY DELETE

and press the

ENTER

button.

Select the required lens memory setting and press the

ENTER

button.

If you select

ALL DELETE

, you can delete all of the saved lens memory settings.

Select

OK

in the confirmation screen and press the

ENTER

button.

Q

1.

2.

3.

4.

5.

Changing the name of the memory setting

Select

LENS MEMORY NAME CHANGE

and press the

ENTER

button.

Select the required lens memory setting and press the

ENTER

button.

Rename the lens memory setting.

Use ▲ ▼ ◄ ► to specify the location of the required character to enter and press the

ENTER

button.

Repeat step 3 until you finish the text line.

You can enter up to 16 characters.

Move the cursor to

ALL DELETE

and press the

ENTER

button to delete all the entered text line.

Press the

DEFAULT

button to delete the last entered character or indicted with the cursor in the text box.

To insert a character in the entered text line, move the cursor to the text box to select the required place and press ▼ then perform step 3.

Select

OK

and press the

ENTER

button to set the entered text as a name.

NOTE:

• The option that contains no saved adjustment will not be displayed

If you leave the text box empty and save, the default memory name will stay as a name.

AUTO SWITCHING

You can automatically load the saved lens memory settings which are set for each screen size.

This function is able to identify the wide signal* or 16:9/4:3 and recalls the lens memory settings automatically.

*

Wide signal includes: 2.35:1, 2.40:1, 2.50:1, 2.55:1

Press the

ENTER

button to display the

AUTO SWITCH

menu.

AUTO SWITCHING

2.35:1 IMAGE DETECTION

16:9 IMAGE DETECTION

OFF

OFF

SELECT

RETURN

1.

2.

Press ▲ ▼ to select the

IMAGE DETECTION

in the

AUTO SWITCH

menu.

Press ◄ ► to select your required

LENS

MEMORY

for

AUTO SWITCHING

.

The

LENS MEMORY

setting which has been selected for

2.35:1 IMAGE DETECTION

is loaded after a given period of time once the input signal switches from 16:9/4:3 to 2.35:1.

The

LENS MEMORY

setting which has been selected for

16:9 IMAGE DETECTION

is loaded after a given period of time once the input signal switches from 2.35:1 to 16:9/4:3.

Only saved

LENS MEMORY

data will appear in the

IMAGE DETECTION

item.

OFF

, the auto-identify will not be performed.

If

When selecting the

When displaying the menu or test pattern, also when performing the


menu, auto-identify will be invalid.

ZOOM

/

ZOOM1

/

ZOOM2

/

V-HIT

in the

ASPECT

setting, this function will be invalid.

NOTE:

In the following conditions, it might take longer to identify or it might be unable to identify the correct image.

• If there is noise in the picture or external equipment generate noise, or depends on the picture images.

If the input signal level from the external equipment is not set to the suggested value range. Please adjust the

WAVEFORM MONITOR

settings. See page 21.

If the screen position is not adjusted well. Please adjust the

POSITION

settings. See page 32.

36 -

E

NGLISH

H-AREA POSITION

You can move the frame area horizontally, such as aligning the right or left frame edge to the screen edge.

Press ◄ ► to move the frame.

LENS CONTROL

UPPER MASKING AREA

You can place a blank (mask) area in the upper side edge on the screen.

Less More

Setting range: −63 to +63

V-AREA POSITION

You can move the frame area vertically, such as aligning the top or bottom frame edge to the screen edge. Press ◄ ► to move the frame.

Setting range: 0 to +70

LOWER MASKING AREA

You can place a blank (mask) area in the lower side edge on the screen.

Less More

Setting range: −63 to +63

LEFT MASKING AREA

You can place a blank (mask) area in the left side edge on the screen.

Setting range: 0 to +70

NOTE:

• If it is set to 0, each

MASKING

will be invalid.

The

MASKING AREA

function will be invalid when adjusting the

COLOR MANAGEMENT

or

SPLIT

ADJUST

settings and displaying the

TEST PATTERN

or

WAVEFORM MONITOR

, and no signal is detected.

You can not adjust the

MASKING

if keystone correction is performed.

Less More

Setting range: 0 to +70

RIGHT MASKING AREA

You can place a blank (mask) area in the right side edge on the screen.

Less More

Setting range: 0 to +70

E

NGLISH - 37

FUNCTION BUTTON

Remote control Control panel

See “Navigating through the MENU” on page

See “Menu list” on page

17.

16.

FUNCTION BUTTON

You can assign certain menu option to the

FUNCTION

button as a shortcut. Press ▲ ▼ ◄ ► to select the required menu options and press the

ENTER

button.

Q

Assignable functions

Functions Reference page

COLOR MANAGEMENT *1

GAMMA ADJUSTMENT

SPLIT ADJUST

WAVEFORM AUTO ADJUST

FRAME CREATION

NORMAL

DYNAMIC

COLOR1

COLOR2

CINEMA1

CINEMA2

CINEMA3

TEST PATTERN

OPERATE OTHER DEVICE

ASPECT

AUTO SETUP

CONTRAST

BRIGHTNESS

BLANK

HDMI 1 IN

HDMI 2 IN

HDMI 3 IN

COMPUTER IN

COMPONENT IN

S-VIDEO IN

VIDEO IN

page 27

page 23

page 22

page 21

page 26

page 20

page 41

Booklet

page 32

page 34

page 20

page 38

page 15

*1. The underlined item is factory default setting.

BLANK function

You can stop the projection temporarily for electrical power save while the input source is stopped. Press any button to escape from the blank mode.

38 -

E

NGLISH

OPTION menu

Remote control Control panel

See “Navigating through the MENU” on page

See “Menu list” on page

17.

16.

INPUT GUIDE

When you change the input method, the guidance appears in the upper right corner of the screen. The following display methods are available. Press ◄ ► to cycle through the options.

Options

DETAILED

SIMPLE

OFF

Function

Display the input method graphically.

The

INPUT GUIDE

will disappear after 3 seconds without any operation.

Display the input method by text. The

INPUT GUIDE

will disappear after 3 seconds without any operation.

Turn off the guidance.

OSD DESIGN

You can change the background color of the menu.

Press ◄ ► to cycle through the options.

TYPE1

TYPE2

TYPE3

Semi transparent black

Solid blue

Semi transparent dark blue

OSD POSITION

You can change the displaying position of the menu.

Press ◄ ► to cycle through the options.

UPPER

LEFT

UPPER

CENTER

UPPER

RIGHT

CENTER

LOWER

LEFT

LOWER

CENTER

LOWER

RIGHT

BACK COLOR

You can choose a screen color from

BLUE

or

BLACK

for when the projector is in idle. Press ◄ ► to select.

STARTUP LOGO

You can switch the logo on/off that is displayed when starting up the projector. Press ◄ ► to select the required option.

STARTUP LOGO

Panasonic

” will be displayed for 15 seconds.

ON:

OFF:

Active

Deactive

AUTO SEARCH

When the projector is turned on, the input terminals are detected and an input signal is selected automatically.

You can switch the system on/off. Press ◄ ► to cycle through the options.

ON:

OFF:

Active

Deactive

NOTE:

• When no signal is detected, the last used input will be selected.

HDMI SIGNAL LEVEL

When an

HDMI IN

is selected, you can switch the

HDMI

signal

NORMAL

or

EXPAND

to display the image.

Press ◄ ► to select an option.

NORMAL

EXPAND

For general HDMI equipment

For HDMI equipment with expanded signals.

NOTE:

HDMI SIGNAL LEVEL

is not available with some equipment.

FRAME RESPONSE

You can minimise the time delay of image displayed for the progressive signals.

NORMAL

FAST

Prioritise the image quality

Prioritise the frame response

INSTALLATION

When installing the projector, select the projection method according to the projector position. Press ◄ ► to cycle through the options. See “Projection method”

on page 5.

FRONT/DESK

FRONT/CEILING

REAR/DESK

REAR/CEILING

Setting on a desk/floor and projecting from front

Mounting on the ceiling and projecting from front

Setting on a desk/floor and projecting from rear

Mounting on the ceiling and projecting from rear

E

NGLISH - 39

OPTION menu

TRIGGER 1/2 SETTING

You can set the input/output function for each

TRIGGER

terminal.

There are 2 functions,

INPUT

and

OUTPUT

.

OUTPUT function

It is possible to control the external equipment which have trigger terminals by transmitting the trigger output signal.

INPUT function

It is possible to control the projector from external equipment by receiving the trigger input signal.


POSITION

LANGUAGE

LENS CONTROL

FUNCTION BUTTON

VIERA LINK

OPTION

ENTER

SELECT

RETURN

INPUT GUIDE

OSD DESIGN

OSD POSITION

BACK COLOR

STARTUP LOGO

AUTO SEARCH

HDMI SIGNAL LEVEL

FRAME RESPONSE

INSTALLATION

TRIGGER 1 SETTING

TRIGGER 2 SETTING

SLEEP

HIGH ALTITUDE MODE

LAMP POWER

VIERA LINK SETTINGS

TEST PATTERN

LAMP RUNTIME

DETAILED

TYPE1

CENTER

BLUE

ON

ON

NORMAL

NORMAL

FRONT/DESK

OFF

OFF

OFF

OFF

NORMAL

0H

1. Select

TRIGGER 1

or

TRIGGER 2 SETTING

in the

OPTION

menu and press the

ENTER

button.

OFF

OUTPUT

POWER ON

SELECT LENS MEMORY 1

SELECT LENS MEMORY 2

SELECT LENS MEMORY 3

SELECT LENS MEMORY 4

SELECT LENS MEMORY 5

SELECT LENS MEMORY 6

BLANK

DELAY TIME

SELECT 4:3 ASPECT

SELECT 16:9 ASPECT

SELECT S16:9 ASPECT

SELECT JUST ASPECT

SELECT ZOOM ASPECT

SELECT H-FIT ASPECT

SELECT V-FIT ASPECT

RS-232C COMMAND LINK

INPUT

POWER ON/OFF BLANK

2. Press ▲ ▼ ◄ ► to select your required input/ output function and press the

ENTER

button.

OFF

Unable to transmit the trigger output signal.

It does not work even if trigger input signal is received.

(Enable to receive the trigger input signal)

OUTPUT

OPTIONS

POWER ON SELECT 4:3 ASPECT*

SELECT LENS MEMORY 1 SELECT 16:9 ASPECT

SELECT LENS MEMORY 2 SELECT S16:9 ASPECT*

SELECT LENS MEMORY 3 SELECT JUST ASPECT

SELECT LENS MEMORY 4 SELECT ZOOM ASPECT*

SELECT LENS MEMORY 5 SELECT H-FIT ASPECT

SELECT LENS MEMORY 6 SELECT V-FIT ASPECT

BLANK RS-232C COMMAND LINK

When the selected trigger item is chosen in the projector menu, 12 V is outputted.

BLANK

When

BLANK

is activated, output is 12 V, but if the setting is released, output is 0 V.

RS-232C COMMAND LINK

By receiving the command from external equipment, it conforms and outputs 12 V.

When

AUTO

is selected in the

ASPECT

menu, it may automatically select

4:3

/

16:9

/

ZOOM ASPECT

depending on the input signal. When this matches the aspect selected in the trigger menu, 12 V is automatically output from the trigger terminal, but if other aspects are selected, output is 0 V.

INPUT

OPTIONS

POWER ON/OFF BLANK

POWER ON/OFF

If the trigger input signal from the external equipment is changed from 0 V to 12 V, the projector power will be switched on. And if it is changed from 12 V to 0 V, the power will be switched off.

BLANK

If the trigger input signal from the external equipment is changed from 0 V to 12 V, the screen will go blank. And if it is changed from 12 V to 0 V, the

BLANK

setting will be released.

40 -

E

NGLISH

3. Press ▲ ▼ ◄ ► to move the cursor to

DELAY

TIME

and press ◄ ► to set the delay time for the trigger output signal.

It is possible to delay the trigger output signal (12 V).

(Only available if Trigger

OUTPUT

item is selected.)

NOTE:

• This trigger terminal output is used for control from external equipment only.

You should not use it as the power source for external equipment.

During start up and cooling off period, projector will not accept the trigger input signal.

Please input the trigger signal only after it is in the projection or standby mode.

The trigger control is not available to use for the

RS-232C command during the standby mode.

OPTION menu

LAMP POWER

You can adjust the power of the lamp to save on electricity, prolong the lamp life and reduce the fun noise.

Options

NORMAL

ECO-MODE

Function

When higher luminance is required.

When lower luminance is sufficient.

NOTE:

• When no input signal is detected, the function is disabled.

SLEEP

You can select the required duration of time and set the off timer to turn off the power of the projector automatically. 3 minutes before turn-off, the countdown of minutes will be displayed in the lower right corner.

Press ◄ ► to cycle through the options.

OFF

60 MIN.

90 MIN.

120 MIN.

240 MIN.

210 MIN.

180 MIN.

150 MIN.

HIGH ALTITUDE MODE

If you use the projector at high elevation, the

HIGH

ALTITUDE MODE

setting need to be

ON

to set the fan speed high. Press ◄ ► to select the required option.

OFF

ON

The fan speed is low.

The fan speed is high.

NOTE:

• At 1 400 - 2 700 m (4 593 - 8 858 ft) above sea level, the setting must be

ON

.

The loudness of fan noise depends on the

ALTITUDE MODE setting

.

HIGH

VIERA LINK SETTINGS

You can set the VIERA Link settings. See “VIERA

Link™ Connection” on page 45.

TEST PATTERN

You can display the 5 different

TEST PATTERN

images for your setting confirmation.

Press the

ENTER

button to switch to the other patterns.

LAMP RUNTIME

You can check how long the lamp has been used.

NOTE:

• When

LAMP POWER

is set to

NORMAL

; and

LAMP

RUNTIME

has reached 1 800 hours,

LAMP RUNTIME

menu will inform the replacing time by flashing the red and gray color.

LAMP RUNTIME

is a relevant matter for lamp unit replacement timing. See “Replacing the lamp unit” in

“Care and Replacement” of the operating instructions.

E

NGLISH - 41

Appendix

Technical Information

Serial terminal

The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connecter.

J

Connection

D-sub 9 pin (male)

Serial terminal (female)

Computer

J

Pin assignments and signal names

Pin No.

Signal name

TXD

RXD

GND

RTS

CTS

Contents

NC

Transmitted data

Received data

NC

Earth

NC

Connected internally

NC

J

Communication settings

Signal level

Sync. method

Baud rate

Parity

RS-232C

Asynchronous

9 600 bps

None

J

Basic format

Character length

Stop bit

X parameter

S parameter

8 bits

1 bit

None

None

STX

Start byte

(02h)

Command :

3 bytes 1 bytes

Parameter

1 byte -

4 bytes

ETX

End

(03h)

The data streaming from the computer will start with STX, and proceed to Command,

Parameter and end with ETX. You can add the required parameter.

The projector can not receive any command for 10 seconds after the lamp is switched on. Wait 10 seconds before sending the command.

If sending multiple commands, check that a response has been received from the projector for one command before sending the next command.

When a command which does not require parameters to be sent, the colon (:) is not required.

If an incorrect command is sent from the personal computer, the ER401 command will be sent from the projector to the personal computer.

42 -

E

NGLISH

Technical Information

NC

J

Cable specifications

(When connected to a personal computer)

NC

Projector

NC

NC

NC

NC

PC (DTE)

NC NC

J

Control commands

Command Control contents

PON

POF

IIS

OMN

OEN

OBK

OCU/OCD/

OCL/OCR

OLE

OST

OFZ

FC1

OOT

OSH

OVM

OWM

VS1

VPM

OMM

DPA

DCM

OVL

OSM

POWER ON

POWER OFF

INPUT

Remarks

In standby mode, all commands other than the PON command are ignored.

The PON command is ignored during lamp ON control.

If a PON command is received while the cooling fan is operating after the lamp has switched off, the lamp is not turned back on again straight away in order to protect the lamp.

CP1 = COMPONENT IN

SVD = S-VIDEO IN

HD1 = HDMI1 IN

HD3 = HDMI3 IN

VID = VIDEO IN

HD2 = HDMI2 IN

RG1 = COMPUTER IN

Displays the main menu.

MENU

ENTER

RETURN

Navigation buttons

Activates the selected items in the menu mode.

Returns to the previous menu or escaping from the menu mode.

OCU = ▲ cursor

OCD = ▼ cursor

OCL = ◄ cursor

OCR = ► cursor

Same function as the LENS button on the remote control.

LENS

DEFAULT

SLEEP

BLANK

Resets to the factory default setting. (page 14)

FREEZE

Freezes the projected screen.

0 = OFF 1 = ON

FUNCTION BUTTON Activates the function that is assigned to the FUNCTION button of the remote control.

Sets the duration of time to turn off the power automatically. (See “SLEEP” on page 41.)

0 = OFF 1 = 60 min.

2 = 90 min.

3 = 120 min.

4 = 150 min.

5 = 180 min.

6 = 210 min.

7 = 240 min.

Turns off the projection temporarily.

Sends the command to switch between ON and OFF.

Do not send the command consecutively.


WAVEFORM

ASPECT

PICTURE MODE

MEMORY LOAD

Activates the PICTURE menu. Send the command to switch menu items. (page 13)

Activates the WAVEFORM. (page 14)

0 = OFF

1 = FULL SCAN (Y)

2 = FULL SCAN (R)

3 = FULL SCAN (G)

4 = FULL SCAN (B)

Switches the aspect ratio. (page 32)

5 = SINGLE LINE SCAN (Y)

6 = SINGLE LINE SCAN (R)

7 = SINGLE LINE SCAN (G)

8 = SINGLE LINE SCAN (B)

Switches the PICTURE MODE. (page 13)

NOR = NORMAL

CN1 = CINEMA1

DYN = DYNAMIC

CN2 = CINEMA2

CL1 = COLOR1

CN3 = CINEMA3

Same function as the MEMORY LOAD button on the remote control.

CL2 = COLOR2

PICTURE ADJUSTMENT Same function as the PICTURE ADJUSTMENT button on the remote control.

COLOR MANAGEMENT Displays the COLOR MANAGEMENT menu.

VIERA LINK

Same function as the VIERA Link button on the remote control.

SUB MENU

Same function as the SUB MENU button on the remote control.

E

NGLISH - 43

Technical Information

Command Control contents

VXX

LENS MEMORY LOAD

GAMMA ADJUSTMENT

TRIGGER 1 (OUTPUT)

TRIGGER 2 (OUTPUT)

Remarks

Loads LENS MEMORY.

LMLI0 = +00000 = LENS MEMORY 1

LMLI0 = +00002 = LENS MEMORY 3

LMLI0 = +00004 = LENS MEMORY 5

Sets Y ADJUST. (OUTPUT)

AGOS0 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

Sets R ADJUST. (OUTPUT)

AGOS1 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

Sets G ADJUST. (OUTPUT)

AGOS2 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

LMLI0 = +00001 = LENS MEMORY 2

LMLI0 = +00003 = LENS MEMORY 4

LMLI0 = +00005 = LENS MEMORY 6 d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3d4 = OUTPUT (0000 - 0255)

Sets B ADJUST. (OUTPUT)

AGOS3 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

Sets GAMMA ADJUSTMENT. (INPUT)

AGIS0 = p1p2d1d2d3 p1p2 = POINT (01 - 09) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3 = IN PUT (001 - 099)

Switches TRIGGER 1 (OUTPUT) when RS-232C COMMAND LINK is set in the

TRIGGER 1 SETTING menu.

TROI0 = +00000 = LOW TROI0 = +00001 = HIGH

Switches TRIGGER 2 (OUTPUT) when RS-232C COMMAND LINK is set in the

TRIGGER 2 SETTING menu.

TROI1 = +00000 = LOW TROI1 = +00001 = HIGH

J

Inquiry commands

Command Control contents

QPW

QFZ

Power status

FREEZE status

QIN

QOT

QPM

QSH

QWM

QVX

INPUT signal status

OFF TIMER status

PICTURE MODE status

BLANK status

WAVEFORM status

GAMMA ADJUSTMENT status

000 = OFF

Parameter

001 = ON

0 = OFF 1 = ON

CP1 = COMPONENT IN

SVD = S-VIDEO IN

HD1 = HDMI1 IN

HD3 = HDMI3 IN

0 = OFF

5 = 180 min.

NOR = NORMAL

CN1 = CINEMA1

1 = 60 min.

6 = 210 min.

DYN = DYNAMIC

CN2 = CINEMA2

VID = VIDEO IN

HD2 = HDMI2 IN

RG1 = COMPUTER IN

2 = 90 min.

7 = 240 min.

3 = 120 min.

CL1 = COLOR1

CN3 = CINEMA3

4 = 150 min.

CL2 = COLOR2

0 = OFF 1 = ON

0 = OFF

1 = FULL SCAN (Y)

2 = FULL SCAN (R)

3 = FULL SCAN (G)

4 = FULL SCAN (B)

AGOS0 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

AGOS1 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

AGOS2 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

AGOS3 = p1p2d1d2d3d4 p1p2 = POINT (01 - 09)

AGIS0 = p1p2d1d2d3 p1p2 = POINT (01 - 09)

5 = SINGLE LINE SCAN (Y)

6 = SINGLE LINE SCAN (R)

7 = SINGLE LINE SCAN (G)

8 = SINGLE LINE SCAN (B) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3d4 = OUTPUT (0000 - 0255) d1d2d3 = IN PUT (001 - 099)

44 -

E

NGLISH

VIERA Link™ Connection

VIERA Link (HDAVI Control™) connects projector and the equipment with VIERA Link function, and enables easy control of the home theater equipment using the projector remote control.

This projector supports “HDAVI Control 4” function. But available features depends on the connected equipment’s version of HDAVI Control. Please refer to the manual of the equipment to confirm the version.

Summary of VIERA Link features

J

VIERA Link (HDMI connection only)

Feature

Connected equipment

DIGA Recorder with VIERA link funtion

DVD Player/

Blu-ray Disk Player with

VIERA Link function

Easy playback

Power on link

Power off link

Reduce unnecessary power consumption in standby

Auto standby for unnecessary equipment

Control the menu of the connected equipment by projector remote control

Speaker control

*2

*1

*1

*2

*1

*1

*1.

*2.

Available with equipment which has “HDAVI Control 2 or later” function.

Available with equipment which has “HDAVI Control 4” function.

HD Camcorder/

LUMIX Camera with

VIERA Link function

*1

Connection To use Amplifier

Speaker system

DIGA Recorder/DVD Player/

Blu-ray Disc theater/

HD Camcorder/

LUMIX Camera/ with VIERA Link function

NOTE:

• VIERA Link can only be used with one display (projector,

TV, etc).

VIERA Link function features may be available even with other manufacturers’ equipment supporting

HDMI CEC.

Some operations may not be available depending on the equipment. In this case, use its own remote control to operate the equipment.

( The colored buttons operations, such as changing the date of TV program for Blu-ray Disc Recorder cannot be controlled by the projector remote control.)

HDMI Cable

HDMI Cable

HD Camcorder/

LUMIX Camera with VIERA Link function

Amplifier with

VIERA link function

HDMI Cable

DIGA Recorder with

VIERA Link function

E

NGLISH - 45

VIERA Link™ Connection

VIERA Link “HDAVI Control™”

Connections to the equipment (DIGA Recorder, HD Camcorder, Player theater, Amplifier, etc.) with HDMI cables allow you to interface them automatically.

These features are limited to models incorporating “HDAVI Control” and “VIERA Link”.

Some functions are not available depending on the equipment’s version of HDAVI Control.

Please confirm the connected equipment’s version of HDAVI Control.

But some functions will not be able to perform even if the versions are the same.

VIERA Link “HDAVI Control”, based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer Electronics Control), is a unique function that we have developed and added.

As such, its operation with other manufacturers’ equipment that supports HDMI CEC cannot be guaranteed.

Please refer to individual manuals for other manufacturers’ equipment supporting Link function.

About applicable Panasonic equipment, consult your local Panasonic dealer.

J

Preparations

Use fully wired HDMI compliant cable. Non-HDMI-compliant cables cannot be utilized.

Set up the connected equipment.

Switch the connected equipment ON.

Set VIERA LINK ON in the Setup Menu.

(Please read the manual of the equipment for these setup.)

Set up the projector

Switch the projector ON.

Select the input mode to HDMI1, HDMI2 or HDMI3, and make sure that an image is displayed correctly.

Select VIERA LINK SETTINGS in the OPTION menu.

If the VIERA LINK is set to ON, you need to select OFF first, and then switch to ON again to activate the ON setting.

NOTE:

This setup should be done each time when the following conditions occur:

When using for the first time

When adding or reconnecting equipment

When changing setup

46 -

E

NGLISH

VIERA Link™ Connection

Option menu

Select

VIERA LINK SETTINGS

in the

OPTION

menu for the

VIERA LINK

settings.

VIERA LINK SETTINGS

SELECT

RETURN

VIERA LINK

POWER ON LINK

POWER OFF LINK

STAND-BY POWER SAVE

AUTO POWER STAND-BY

VERSION : HDAVI Control 4

NO

ON

NO

YES

NO

J

Q

Available Features

Easy playback

Automatic Input Switching - When the connected equipment is operated, input mode is switched automatically.

Q

Q

Q

Q

POWER ON LINK

Set POWER ON LINK “YES” in the Setup Menu to use this function.

When the connected equipment is turned ON, the projector which has been linked with the connected equipment is automatically turned ON.

POWER OFF LINK

Set POWER OFF LINK “YES” in the Setup Menu to use this function.

When the projector is turned OFF and it is in standby mode, the connected equipment is also automatically set to Standby.

This function will work even if the projector enters standby mode automatically by

SLEEP

function.

Reduce unnecessary power consumption in standby (STAND-BY POWER SAVE)

Set STAND-BY POWER SAVE “YES” in the Setup Menu to use this function.

The power consumption in standby mode of the connected equipment is lowered in synchronization when the projector is turned OFF to reduce power consumption.

This function will work when

POWER OFF LINK

is set to

YES

.

Auto standby for unnecessary equipment (AUTO POWER STAND-BY)

Set AUTO POWER STAND-BY “YES (WITH REMINDER)” or “YES (NO REMINDER)” in the Setup Menu to use this function.

When the projector is ON, non-input selected connected equipment goes into standby mode automatically to reduce the power consumption.

If you select

YES (WITH REMINDER)

function is activated.

, the on screen message will be displayed to be noticed before this

NOTE:

POWER ON LINK

• Depending on the connected equipment, the projector might automatically turn ON when some functions of the

• connected equipment are performed. (Only when the projector is in standby mode.)

Due to the projector’s characteristics, warm up time is needed before starting the projection, so please be aware that the movie might have already started by the time the projector is fully lit.

POWER OFF LINK

• Depending on the condition of the connected equipment, such as during recording, not all power of the connected equipment will be switched off.

STAND-BY POWER SAVE

• Depending on the connected equipment, when the projector is turned on, even if the power consumption setting of the connected equipment is set to the eco-standby mode, it’s power consumption is increased so it can startup faster.

AUTO POWER STAND-BY

• This function may not work properly depending on the connected equipment. If required, set to

NO

.

E

NGLISH - 47

Index

A

ADVANCED MENU .............................................. 23

ASPECT ............................................................... 32

AUTO SEARCH .................................................... 39

AUTO SETUP ....................................................... 34

AUTO SWITCHING .............................................. 36

B

BACK COLOR ...................................................... 39

BLANK .................................................................. 38

BRIGHTNESS

ADVANCED MENU ........................................ 26

PICTURE menu .............................................. 20

C

CINEMA REALITY ................................................ 30

CLOCK PHASE .................................................... 32

COLOR ................................................................. 20

COLOR MANAGEMENT ...................................... 27

COLOR TEMPERATURE ..................................... 21

COMPONENT IN

Connection ....................................................... 8

COMPUTER IN

Connection ....................................................... 8

Connections ........................................................... 8

CONTRAST

ADVANCED MENU ........................................ 26

PICTURE menu .............................................. 20

D

DEFAULT

Remote control operation ............................... 14

DETAIL CLARITY ................................................. 30

DOT CLOCK ......................................................... 32

DYNAMIC IRIS ..................................................... 21

F

FOCUS

LENS CONTROL menu ................................. 35

FRAME CREATION .............................................. 26

FRAME RESPONSE ............................................ 39

FREEZE

Remote control operation ............................... 14

Front leg adjusters .................................................. 5

FUNCTION

Remote control operation ............................... 15

FUNCTION BUTTON

Main menu ...................................................... 38

Remote control operation ............................... 15

G

GAMMA ................................................................ 23

H

H-AREA POSITION .............................................. 37

HDMI IN

Connection ....................................................... 8

HDMI SIGNAL LEVEL .......................................... 39

H-FIT .................................................................... 33

HIGH ALTITUDE MODE ....................................... 41

H-POSITION ........................................................ 32

I

INPUT GUIDE ...................................................... 39

INPUT SELECT

Remote control operation ............................... 15

INSTALLATION

OPTION menu ................................................ 39

Projection method ............................................ 5

J

JUST ..................................................................... 33

K

KEYSTONE .......................................................... 34

L

LAMP POWER ..................................................... 41

LAMP RUNTIME .................................................. 41

LEFT MASKING AREA ......................................... 37

LENS

Remote control operation ............................... 13

LENS CONTROL

Main menu ...................................................... 35

LENS MEMORY

EDIT ............................................................... 36

LOAD .............................................................. 35

SAVE .............................................................. 35

LOWER MASKING AREA .................................... 37

M

MASKING AREA .................................................. 37

MEMORY EDIT .................................................... 31

MEMORY LOAD ................................................... 31

Remote control operation ............................... 14

MEMORY SAVE ................................................... 30

Menu

Menu list ......................................................... 17

Navigation ...................................................... 16

MENU

Remote control operation ............................... 16

MPEG NR ............................................................. 26

N

NR (Noise Reduction) .......................................... 26

48 -

E

NGLISH

O

OPTION menu ...................................................... 39

OSD DESIGN ....................................................... 39

OSD POSITION ................................................... 39

OVER SCAN ........................................................ 34

P

PICTURE .............................................................. 20

Remote control operation ............................... 13

PICTURE ADJUSTMENT

Remote control operation ............................... 13

PICTURE MODE .................................................. 20

Remote control operation ............................... 13

POSITION menu .................................................. 32

Power

Indicator status ............................................... 10

Power cord

Connecting ....................................................... 9

Power cord secure lock .......................................... 9

R

Remote control

Operating range ............................................. 13

Operation ........................................................ 13

RETURN

Remote control function ................................. 16

RGB/YP

B

P

R

.......................................................... 30

RIGHT MASKING AREA ...................................... 37

S

Screen size ............................................................. 4

Calculation methods ......................................... 4

SERIAL

Basic format ................................................... 42

Cable specifications ....................................... 43

Communication settings ................................. 42

Connection ..................................................... 42

Control commands ......................................... 43

Inquiry commands .......................................... 44

Pin assignments ............................................. 42

SHARPNESS ....................................................... 20

SIGNAL MODE ..................................................... 31

SLEEP .................................................................. 41

SPLIT ADJUST ..................................................... 22

STARTUP LOGO .................................................. 39

S-VIDEO IN

Connection ....................................................... 8

Index

T

Technical Information ........................................... 42

TEST PATTERN ................................................... 41

Throw distance ....................................................... 4

Throwing angle ....................................................... 5

TINT ...................................................................... 20

TRIGGER

OPTION menu ................................................ 40

TV-SYSTEM ......................................................... 30

U

UPPER MASKING AREA ..................................... 37

V

V-AREA POSITION .............................................. 37

V-FIT ..................................................................... 33

VIDEO IN

Connection ....................................................... 8

VIERA Link

Connection ..................................................... 45

Remote control operation ............................... 14

V-POSITION ......................................................... 32

W

WAVEFORM MONITOR ....................................... 21

Remote control operation ............................... 14

WSS ..................................................................... 34

X

x.v.Color ................................................................ 29

Z

ZOOM

ASPECT menu ............................................... 33

LENS CONTROL menu ................................. 35

ZOOM1 ................................................................. 33

ZOOM2 ................................................................. 33

ZOOM/FOCUS ..................................................... 35

E

NGLISH - 49

Trademark acknowledgements

Trademark acknowledgements

HDAVI Control™ and VIERA Link™ are trademarks.

VGA and XGA are trademarks of International Business Machines Corporation.

S-VGA is a registered trademark of the Video Electronics Standards Association.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC.

The font used in the on-screen displays is a Ricoh bitmap font, which is manufactured and sold by Ricoh

Company, Ltd.

All other trademarks are the property of the various trademark owners.

P1009-1109B

TQBJ0313

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
