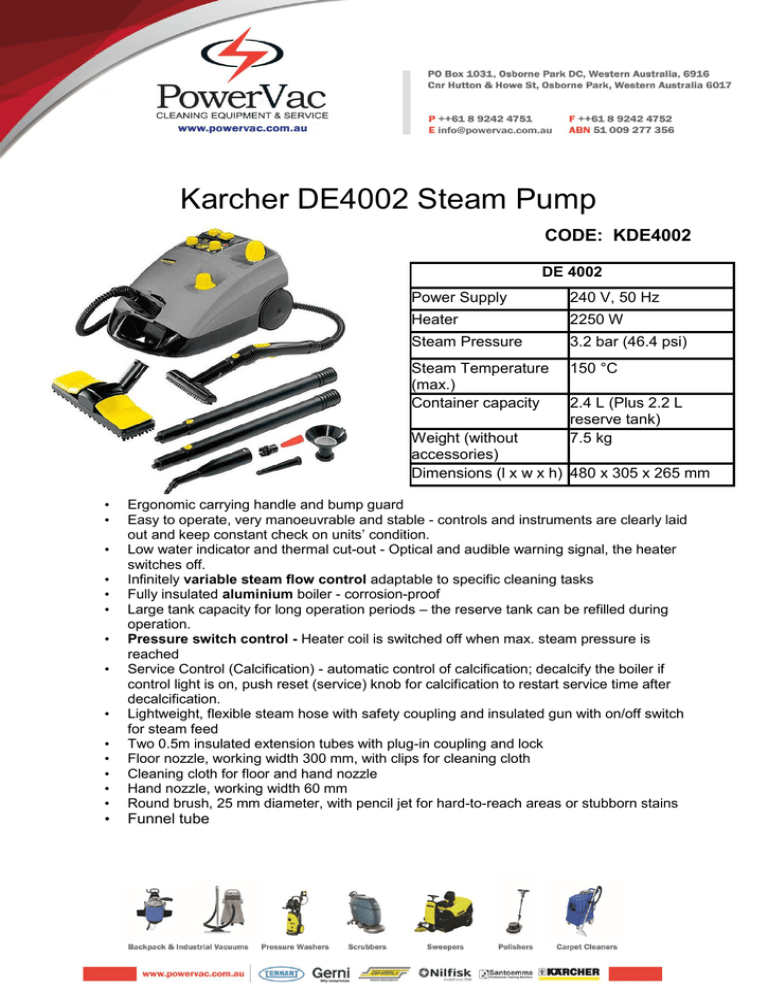

Karcher DE4002 Steam Pump

Karcher DE4002 Steam Pump
Karcher DE4002 Steam Pump
DE 4002
Power Supply
240 V, 50 Hz
2250 W
Steam Pressure
3.2 bar (46.4 psi)
Steam Temperature
Container capacity
150 °C
2.4 L (Plus 2.2 L
reserve tank)
7.5 kg
Weight (without
Dimensions (l x w x h) 480 x 305 x 265 mm
Ergonomic carrying handle and bump guard
Easy to operate, very manoeuvrable and stable - controls and instruments are clearly laid
out and keep constant check on units’ condition.
Low water indicator and thermal cut-out - Optical and audible warning signal, the heater
switches off.
Infinitely variable steam flow control adaptable to specific cleaning tasks
Fully insulated aluminium boiler - corrosion-proof
Large tank capacity for long operation periods – the reserve tank can be refilled during
Pressure switch control - Heater coil is switched off when max. steam pressure is
Service Control (Calcification) - automatic control of calcification; decalcify the boiler if
control light is on, push reset (service) knob for calcification to restart service time after
Lightweight, flexible steam hose with safety coupling and insulated gun with on/off switch
for steam feed
Two 0.5m insulated extension tubes with plug-in coupling and lock
Floor nozzle, working width 300 mm, with clips for cleaning cloth
Cleaning cloth for floor and hand nozzle
Hand nozzle, working width 60 mm
Round brush, 25 mm diameter, with pencil jet for hard-to-reach areas or stubborn stains
Funnel tube
Safety features
 Patented safety machine cap with pressure relief valve - Child-proof, cannot be
opened while unit is under pressure
 Solenoid valve control - Steam feed by on/off switch on gun
 Splash proof tested
 Compact and easy to operate
 Hygienic cleaning without the use of chemicals
 Variable pressure control from steam to hot
water jet
 Safety pressure cap which cannot be
when in operation
Low water indicator and thermal cut-out
Pressure switch turns off the heating coil
reached maximum pressure
Wide range of accessories
Ideal for many applications
Commercial Quality – Full Commercial
Warranty – Never Stop Work To Refill
