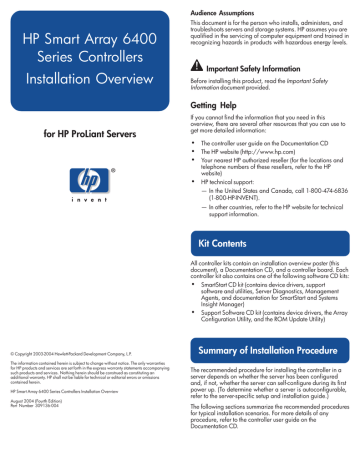

HP Smart Array 6400 Series Controllers Installation Overview
Audience Assumptions
HP Smart Array 6400
Series Controllers
Installation Overview
This document is for the person who installs, administers, and
troubleshoots servers and storage systems. HP assumes you are
qualified in the servicing of computer equipment and trained in
recognizing hazards in products with hazardous energy levels.
Important Safety Information
Before installing this product, read the Important Safety
Information document provided.
Getting Help
for HP ProLiant Servers
If you cannot find the information that you need in this
overview, there are several other resources that you can use to
get more detailed information:
• The controller user guide on the Documentation CD
• The HP website (http://www.hp.com)
• Your nearest HP authorized reseller (for the locations and
•
telephone numbers of these resellers, refer to the HP
website)
HP technical support:
— In the United States and Canada, call 1-800-474-6836
(1-800-HP-INVENT).
— In other countries, refer to the HP website for technical
support information.
Kit Contents
All controller kits contain an installation overview poster (this
document), a Documentation CD, and a controller board. Each
controller kit also contains one of the following software CD kits:
• SmartStart CD kit (contains device drivers, support
software and utilities, Server Diagnostics, Management
Agents, and documentation for SmartStart and Systems
Insight Manager)
• Support Software CD kit (contains device drivers, the Array
Configuration Utility, and the ROM Update Utility)
© Copyright 2003-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties
for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
HP Smart Array 6400 Series Controllers Installation Overview
August 2004 (Fourth Edition)
Part Number 309136-004
Summary of Installation Procedure
The recommended procedure for installing the controller in a
server depends on whether the server has been configured
and, if not, whether the server can self-configure during its first
power up. (To determine whether a server is autoconfigurable,
refer to the server-specific setup and installation guide.)
The following sections summarize the recommended procedures
for typical installation scenarios. For more details of any
procedure, refer to the controller user guide on the
Documentation CD.
Unused Autoconfigurable Server
Previously Configured Server
1. Install the controller hardware.
1. Back up any data on the system. (This step is required if
you are moving drives from a non-array controller to a
Smart Array controller.)
2. Install physical drives, if necessary.
The number of drives in the server determines the RAID
level that is autoconfigured when the server is powered up
(next step). For details, refer to the server-specific setup
and installation guide or the HP ROM-Based Setup Utility
User Guide.
2. Update the system firmware.
3. If the new controller is to be the boot device, install the
device drivers for the operating system. Otherwise,
continue with step 4.
IMPORTANT: The expansion module on the SA6404
controller cannot be used as a boot device.
3. Power up the server. The autoconfiguration process runs.
IMPORTANT: The expansion module on the SA6404
controller cannot be used as a boot device.
4. Install the controller hardware.
4. Update the system firmware.
5. Set the controller order.
5. Update the controller firmware.
6. Update the controller firmware.
6. Install the operating system and device drivers.
Instructions are provided with the CD that is supplied in the
controller kit.
7.
7.
8. Update the Management Agents, if new versions
are available.
Create and format additional logical drives if desired.
If the controller is not going to be the boot device, install
the device drivers for the operating system. Otherwise,
continue with the next step.
Unused Non-Autoconfigurable Server
9. Create and format additional logical drives if desired.
1. Install the controller hardware.
10. If migrating from a non-array controller, restore data from
the backup.
2. Update the system firmware.
3. Update the controller firmware.
4. Configure the server.
IMPORTANT: The expansion module on the SA6404
controller cannot be used as a boot device.
5. Create and format at least one logical drive.
6. Install the operating system and device drivers.
Instructions are provided with the CD that is supplied in
the controller kit.
7. Create and format additional logical drives if desired.
