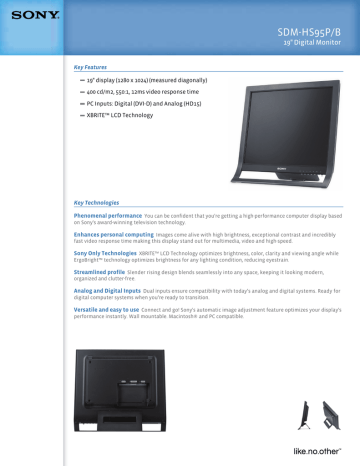

SDM-HS95P/B

SDM-HS95P/B
SDM-HS95P/B
19" Digital Monitor
Key Features
19" display (1280 x 1024) (measured diagonally)
400 cd/m2, 550:1, 12ms video response time
PC Inputs: Digital (DVI-D) and Analog (HD15)
XBRITE™ LCD Technology
Key Technologies
Phenomenal performance You can be confident that you're getting a high-performance computer display based
on Sony's award-winning television technology.
Enhances personal computing Images come alive with high brightness, exceptional contrast and incredibly
fast video response time making this display stand out for multimedia, video and high-speed.
Sony Only Technologies XBRITE™ LCD Technology optimizes brightness, color, clarity and viewing angle while
ErgoBright™ technology optimizes brightness for any lighting condition, reducing eyestrain.
Streamlined profile Slender rising design blends seamlessly into any space, keeping it looking modern,
organized and clutter-free.
Analog and Digital Inputs Dual inputs ensure compatibility with today’s analog and digital systems. Ready for
digital computer systems when you’re ready to transition.
Versatile and easy to use Connect and go! Sony's automatic image adjustment feature optimizes your display's
performance instantly. Wall mountable. Macintosh® and PC compatible.
SDM-HS95P/B
19" Digital Monitor
Features
Video
Picture Modes: PC, Movie, Game, Auto
Color Temperature: 9300k, 6500k, 5000k
Panel Type: a-Si-TFT Active Matrix LCD Panel
Video Processing: N/A
XBRITE™ LCD Technology: Yes
Display Technology: LCD
Convenience
Multiple Language Display: English, French,
Spanish, Italian, German, Japanese, Dutch,
Swedish, Russian, Chinese
Specifications
General
Screen Size: 19.0"
Video
Horizontal Scan (KHz) for PC: 28k-80KHz
Closed Caption Decoder: N/A
Contrast Ratio: 550:1
Display Resolution: 1280 x 1024
Display Response Time: 12ms
Image Retention Protection: N/A
Viewing Angle: Horizontal: 160°, Vertical: 160°
Convenience
Cable Management System: Yes
ErgoStand™ Design: Ergonomic Fixed Height
On Screen Controls: Power, Menu, Contrast,
Brightness, Eco Modes, Color Temp, R/B Adj,
Auto Input Sense, Backlight, Auto Adjust, H/V
Adjust, Phase, Pitch, Reset, Gamma,
Sharpness, Menu Lock, OSD Position
Stand Tilt Range: 0°to 20°
Wall/Arm Mount: 75mm
Kensington® Lock: Yes
Energy Star® Compliant: Yes
Plug & Play: DDC2B
Safety Regulations: UL, cUL, CB, FCC, IC, Eco
Info
Service and Warranty Information
Extended Warranty: 4th and 5th year available
Limited Warranty: 3 years parts, 3 years labor,
3 years backlight
Dimensions
Weight: 13.2 lbs (6 Kg)
Measurements: 17 1/10 x 16 1/2
Operating Conditions
Colors: 16.2 million
Luminance: 400 cd/m²
Pixel Pitch: 0.294mm
Screen Treatment: Anti-Glare, Protective
Coating
Vertical Refresh Range: 48-75Hz
Software
Operating System Compatibility: Windows
Logo Compliance, Windows XP®,
Macintosh®
Hardware
Auto-Sensing Input: Yes
Color Systems: N/A
Mount Design: N/A
Remote Control: N/A
Supplied Accessories
CD-ROM User Manual
AC Power Cord
Quick Setup Guide
Windows® & Macintosh® Utility Files
HD15 Video Signal Cable
Warranty Card
DVI Digital Cable
Inputs and Outputs
Analog Video Input(s): 1 (Rear) - Analog (HD-15)
DVI Connection Input(s): 1 (Rear) - Digital (DVID)
PC Video Input(s): 2 (1-DVI-D, 1-HD15)
Power
Internal Power Supply: Yes
Power Consumption: Normal Operation: 60W
(max), Standard Operation: 36W (typical),
Active Off: 1W (max), Main Switch Off: 1W
Power Requirements: 100V - 240V AC, 50-60Hz
Color: Black Chassis with Black Control Panel
Strip
UPC Code: 027242669376
©2005 Sony Electronics Inc.
All rights reserved. Sony, ErgoBright, ErgoStand and XBRITE are
trademarks of Sony. All other trademarks are property of their respective
owners.
Features and specifications are subject to change without notice. Nonmetric weights and measures are approximate.
Regulation and Standard Compliance
Emissions/Ergonomics: N/A
Please visit the Dealer Network for current
information at www.sony.com/dn
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 800.222.7669 • www.sony.com
Last Updated: 07/25/2006
