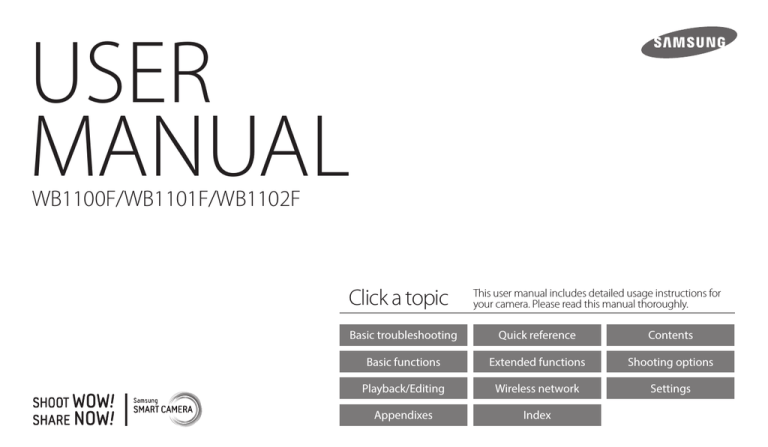

USER
MANUAL
WB1100F/WB1101F/WB1102F
Click a topic
This user manual includes detailed usage instructions for
your camera. Please read this manual thoroughly.
Basic troubleshooting
Quick reference
Contents
Basic functions
Extended functions
Shooting options
Playback/Editing
Wireless network
Settings
Appendixes
Index
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals.
If you use the flash too close to your subject’s eyes, this can cause temporary or
permanent eyesight damage.
Warning—situations that could cause injury to yourself or others
Do not disassemble or attempt to repair your camera.
You can damage the camera and expose yourself to the risk of an electric shock.
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small children and animals.
Small parts may cause choking or serious injury if swallowed. Moving parts and
accessories may present physical dangers as well.
Do not use your camera near flammable or explosive gases and liquids.
This may cause a fire or explosion.
Do not insert flammable materials into the camera or store these materials
near the camera.
This may cause a fire or electric shock.
Do not expose the camera to direct sunlight or high temperatures for an
extended period of time.
Prolonged exposure to sunlight or extreme temperatures can cause permanent
damage to your camera’s internal components.
Do not handle your camera with wet hands.
This may result in an electric shock.
1
Health and safety information
Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or cause a fire.
Avoid interference with pacemakers.
Maintain a safe distance between this camera and all pacemakers to avoid potential
interference, as recommended by the manufacturer and research groups. If you
have any reason to suspect that your camera is interfering with a pacemaker
or other medical device, turn off the camera immediately and contact the
manufacturer of the pacemaker or medical device for guidance.
Do not handle the power supply cord or the charger during a thunderstorm.
This may result in electric shock.
If liquid or foreign objects enter your camera, immediately disconnect all
power sources, such as the battery or charger, and then contact a Samsung
service center.
Comply with any regulations that restrict the use of a camera in a certain area.
• Avoid interference with other electronic devices.
• Turn off the camera when in an aircraft. Your camera can cause interference with
aircraft equipment. Follow all airline regulations and turn off your camera when
directed by airline personnel.
• Turn off the camera near medical equipment. Your camera can interfere with
medical equipment in hospitals or health care facilities. Follow all regulations,
posted warnings, and directions from medical personnel.
2
Health and safety information
When you use the AC charger, turn off the camera before you disconnect the
power to the AC charger.
Failing to do so may result in fire or electric shock.
Caution—situations that could cause damage to your camera or other
equipment
Remove the batteries from your camera when storing it for an extended period
of time.
Installed batteries may leak or corrode over time and cause serious damage to your
camera.
Disconnect the charger from the wall socket when not in use.
Failing to do so may result in fire or electric shock.
Do not use a damaged power supply cord, plug, or loose outlet when you
charge batteries.
This may cause a fire or electric shock.
Use only authentic, manufacturer-recommended, Lithium-ion replacement
batteries. Do not damage or heat the battery.
Inauthentic, damaged, or heated batteries may cause a fire or personal injury.
Do not allow the AC charger to come in contact with the +/- terminals on the
battery.
This may cause a fire or electric shock.
Use only Samsung-approved batteries, chargers, cables and accessories.
• Using unauthorized batteries, chargers, cables or accessories can cause batteries
to explode, damage your camera, or cause injury.
• Samsung is not responsible for damage or injuries caused by unapproved
batteries, chargers, cables or accessories.
Do not drop or subject the camera to strong impacts.
Doing so may damage the screen or external or internal components.
Exercise caution when you connect cables or adapters and install batteries and
memory cards.
If you force the connectors, improperly connect cables, or improperly install
batteries and memory cards, you can damage ports, connectors, and accessories.
Use the battery only for its intended purpose.
Misusing the battery may cause a fire or electric shock.
Do not touch the flash while it fires.
The flash is very hot when fired and may burn your skin.
3
Health and safety information
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Avoid interference with other electronic devices.
Your camera emits radio frequency (RF) signals that may interfere with unshielded
or improperly shielded electronic equipment, such as pacemakers, hearing aids,
medical devices, and other electronic devices in homes or vehicles. Consult the
manufacturers of your electronic devices to solve any interference problems you
experience. To prevent unwanted interference, use only Samsung-approved devices
or accessories.
Never use a damaged charger, battery, or memory card.
This may result in electric shock or camera malfunction or cause a fire.
Do not place the camera in or near magnetic fields.
Doing so may cause the camera to malfunction.
Use your camera in the normal position.
Avoid contact with your camera’s internal antenna.
Do not use the camera if the screen is damaged.
If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to
have the camera repaired.
Data transference and your responsibilities
• Data transferred via WLAN could be leaked, so avoid transferring sensitive data in
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of files or damage that may
result from camera malfunction or improper use.
public areas or on open networks.
• The camera manufacturer is not liable for any data transfers that infringe on
copyrights, trademarks, intellectual property laws, or public decency ordinances.
You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your files.
The manufacturer is not responsible for any loss of data.
4
Outline of the User Manual
Copyright information
• Microsoft Windows and the Windows logo are registered trademarks of the
Microsoft Corporation.
• Mac and Apple App Store are registered trademarks of the Apple
Corporation.
• Google Play Store is a registered trademark of Google, Inc.
• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered
trademarks of the Wi-Fi Alliance.
• Trademarks and trade names used in this manual are the property of their
respective owners.
Basic functions
19
Learn about your camera’s layout, icons, and basic functions for
shooting.
Extended functions
43
Learn how to capture a photo and record a video by selecting
a mode.
Shooting options
53
Learn how to set the options in Shooting mode.
Playback/Editing
• Camera specifications or contents of this manual may be changed
74
Learn how to play back photos or videos, and edit photos or videos.
Also, learn how to connect your camera to your computer or TV.
without prior notice due to upgrade of camera functions.
• We recommend using your camera within the country where you
Wireless network
purchased.
• Use this camera responsibly and adhere to all laws and regulations
concerning its use.
• You are not allowed to reuse or distribute any part of this manual
without prior permission.
92
Learn to connect to wireless local area networks (WLANs) and use
functions.
Settings
109
Refer to options to configure your camera’s settings.
Appendixes
Get information about error messages, specifications, and
maintenance.
5
115
Indicators used in this manual
Icons used in this manual
Shooting mode
Indicator
Icon
Smart Auto
Additional information
Program
Safety warnings and precautions
Smart
Panorama
Magic Plus
Settings
Movie
Wi-Fi
Shooting mode icons
These icons appear in the text when a function is available in a mode. See the
example below.
Note: The or mode may not support functions for all scenes or modes.
Adjusting
brightness and color
For
example:
Learn how to adjust the brightness and color for better image quality.
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos may be too bright or
dark. In these cases, you can adjust the exposure to get a better photo.
Press [F/t] toin
adjust
the exposure.
3Available
Program
• The photo will be brighter as the exposure value increases.
and Movie modes
EV : +1
Back
 Darker (-)
1
2
 Neutral (0)
In Shooting mode, press [m].
Select EV.
Function
 Brighter (+)
4
Set
Press [o] to save your settings.
• Once you adjust the exposure, the setting will be stored automatically. You
may need to change the exposure value later to avoid overexposure or
underexposure.
• If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure
Bracket) option. The camera will capture 3 consecutive photos, each with a
different exposure: normal, underexposed, and overexposed. (p. 72)
6
[]
Camera buttons. For example, [Shutter] represents the shutter button.
()
Page number of related information
→
The order of options or menus you must select to perform a step; for
example: Select Face Detection → Normal (represents Select Face
Detection, and then select Normal).
*
Annotation
Expressions used in this manual
Pressing the shutter
• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down
Half-press [Shutter]
Exposure (Brightness)
The amount of light that enters your camera determines the exposure. You can alter
the exposure by changing the shutter speed, aperture value, or ISO sensitivity. By
altering the exposure, your photos will be darker or lighter.
Press [Shutter]
 Normal exposure
Subject, background, and composition
• Subject: The main object in a scene, such as a person, animal, or still life
• Background: The objects around the subject
• Composition: The combination of a subject and background
Background
Subject
Composition
7
 Overexposure (too bright)
Special features of your camera
Using the DIRECT LINK button
Reading NFC tag information (Tag & Go)
Install the Samsung SMART CAMERA App on an NFC-enabled device, and then
place the device’s NFC antenna near the camera’s NFC tag. The Samsung SMART
CAMERA App launches automatically. If the app is not installed, a prompt to install
the app will appear.
Press the DIRECT LINK button to activate the Wi-Fi function that you have
designated.
Setting a DIRECT LINK button option
You can select a Wi-Fi function to launch when you press the DIRECT LINK button.
1 Access Settings.
2 Access the DIRECT LINK button option.
3 Select a Wi-Fi feature from the list.
8
Special
features of your camera

Using AutoShare
When you capture a photo with your camera, the photo is saved to a smart phone automatically. The camera connects to the smart phone wirelessly.
1 Install Samsung SMART CAMERA
4 Select the camera from the list and
App on the smart phone.
connect the smart phone to the
camera.
• If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
2 Turn on the AutoShare feature on
the camera.
5 Capture a photo.
• The captured photo is saved to the camera, and then transferred to the
smart phone.
3 Launch Samsung SMART CAMERA
App on the smart phone.
9
Special
features of your camera

Using MobileLink
You can send files easily from your camera to a smart phone. The camera connects wirelessly to smart phones that support the MobileLink feature.
1 Install the Samsung SMART
4 Select the camera from the list and
CAMERA App on the smart phone.
connect the smart phone to the
camera.
• If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
5 On the smart phone or camera,
2 Access the MobileLink mode on the
select files to transfer from the
camera.
camera.
• If a pop-up message appears, select an
option.
6 On the smart phone, touch the copy
3 Launch the Samsung SMART
button or on the camera, select
Send.
CAMERA App on the smart phone.
 10
Special
features of your camera

Using Remote Viewfinder
You can remotely control your camera from a smart phone. The camera connects to the smart phone wirelessly. Use the smart phone as a remote shutter release with the
Remote Viewfinder feature. The captured photo will appear on the smart phone.
1 Install the Samsung SMART
4 Select the camera from the list and
CAMERA App on the smart phone.
connect the smart phone to the
camera.
• If a pop-up message appears on your
camera, allow the smart phone to
connect to your camera.
5 Touch and hold
to focus, and
then release it to capture a photo.
2 Access the Remote Viewfinder
mode on the camera.
3 Launch the Samsung SMART
CAMERA App on the smart phone.
6 Touch the thumbnail to view the
photo.
 11
Special
features of your camera

1 Select the macro option (
Shooting samples – Macro
You can capture close up shots of a subject or small subjects, such as flowers or
insects.
2 Capture a photo.
The example image may differ from the actual photo that you capture.
 12
).
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
Red eye occurs when the subject's eyes reflect light from the camera flash.
• Set the flash option to Red-eye or Red-eye Fix. (p. 57)
• If the photo has already been captured, select Red-eye Fix in the edit menu. (p. 86)
Photos have dust spots.
If dust particles are present in the air, you may capture them in photos when you use the flash.
• Turn off the flash or avoid capturing photos in a dusty place.
• Set ISO sensitivity options. (p. 59)
Photos are blurred.
Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
Use the OIS function or half-press [Shutter] to ensure the subject is in focus. (p. 41)
Photos are blurred when
shooting at night.
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the camera steady long
enough to capture a clear photo and may result in camera shake.
• Select Night in
mode. (p. 47)
• Turn on the flash. (p. 58)
• Set ISO sensitivity options. (p. 59)
• Use a tripod to prevent your camera from shaking.
When the light source is behind the subject or when there is a high contrast between light and dark areas, the subject may
appear too dark.
• Avoid shooting toward the sun.
• Set the flash option to Fill in. (p. 58)
• Adjust the exposure. (p. 67)
• Set the Auto Contrast Balance (ACB) option. (p. 68)
• Set the metering option to Spot if a subject is in the center of the frame. (p. 68)
Subjects come out
too dark because of
backlighting.
 13
Quick reference
Capturing photos of people
• mode > Beauty Face  47
• Red-eye/Red-eye Fix (to prevent or correct red-eye)
 57
• Face Detection, Self-Portrait  64
• Smile Shot  65
Capturing photos at night or in the dark
•
Adjusting the exposure (brightness)
• ISO sensitivity (to adjust the sensitivity to light)  59
• EV (to adjust exposure)  67
• ACB (to compensate for subjects against bright
backgrounds)  68
• Metering  68
• AEB (to capture 3 photos of the same scene with
different exposures)  71
Capturing photos of scenery
mode > Sunset, Silhouette, Fireworks, Light Trace
 47
• Flash options  58
• ISO sensitivity (to adjust the sensitivity to light)  59
•
•
• mode > Photo Filter  50
• Image Adjust (to adjust Sharpness, Contrast, or
Saturation)  72
Capturing photos of text, insects, or
flowers
• mode > Macro  47
• Macro  60
Applying effects to videos
•
• Optical Image Stabilization (OIS)  40
• Dual Image Stabilization (Dual IS)  40
Sending and sharing files
• Using the NFC Feature (Tag & Go)  97
• Sending photos or videos to a smart phone  99
• Sending photos or videos via email  102
• Using photo or video sharing services  105
• Viewing photos or videos on devices that support
Samsung Link  107
mode  48
Applying effects to photos
Capturing action photos
• mode > Action Freeze  47
• Continuous, Motion Capture  71
mode > Landscape  47
Reducing camera shake
mode > Movie Filter  51
 14
• Viewing files as thumbnails  76
• Viewing files by category  77
• Deleting all files on the memory  79
• Viewing files as a slide show  81
• Viewing files on a TV  88
• Connecting your camera to a computer  89
• Adjusting sound and volume  111
• Adjusting the brightness of the display  112
• Changing the display language  113
• Setting the date and time  113
• Before contacting a service center  128
Contents
Using the Mode screen ............................................................................................ 31
Basic functions.................................................................................................................. 19
Selecting a Mode Screen ........................................................................................ 31
Icons on the Mode screen ...................................................................................... 32
Unpacking .................................................................................................................... 20
Camera layout ............................................................................................................ 21
Selecting options or menus .................................................................................. 33
Using the DIRECT LINK button .............................................................................. 23
Attaching a strap ..................................................................................................... 24
Attaching a lens cap ................................................................................................ 24
Setting the display and sound ............................................................................. 35
Setting the display type ......................................................................................... 35
Setting the sound .................................................................................................... 36
Inserting the battery and memory card ........................................................... 25
Capturing photos ...................................................................................................... 37
Charging the battery and turning on your camera ...................................... 26
Zooming ................................................................................................................... 38
Changing the zoom speed .................................................................................... 39
Reducing camera shake (OIS) ............................................................................... 40
Charging the battery .............................................................................................. 26
Turning on your camera ......................................................................................... 26
Performing the initial setup .................................................................................. 27
Tips for getting a clearer photo ............................................................................ 41
Learning icons ............................................................................................................ 29
 15

Contents
Extended functions........................................................................................................ 43
Shooting in the dark ................................................................................................ 57
Preventing red-eye ..................................................................................................
How to use the flash ...............................................................................................
Using the flash .........................................................................................................
Adjusting the ISO sensitivity ..................................................................................
Using the Smart Auto mode .................................................................................. 44
Using the Program mode ....................................................................................... 46
Using the Smart mode ............................................................................................ 47
Using the Panorama mode .................................................................................... 48
57
57
58
59
Changing the camera’s focus ............................................................................... 60
Using the Magic Plus mode .................................................................................. 50
Using the Photo Filter mode ................................................................................. 50
Using the Movie Filter mode ................................................................................. 51
Using macro ............................................................................................................. 60
Changing the focus option .................................................................................... 60
Adjusting the focus area ........................................................................................ 61
Using the Movie mode ............................................................................................ 52
Using Face Detection ............................................................................................... 64
Detecting faces ........................................................................................................
Capturing a self portrait shot ................................................................................
Capturing a smile shot ...........................................................................................
Detecting eye blinking ...........................................................................................
Tips for detecting faces ..........................................................................................
Shooting options............................................................................................................. 53
Selecting a resolution and quality ...................................................................... 54
Selecting a resolution ............................................................................................. 54
Setting the photo quality ....................................................................................... 55
Using the timer ........................................................................................................... 56
 16
64
64
65
65
66
 ontents
C
Adjusting brightness and color ............................................................................ 67
Adjusting the exposure manually (EV) ................................................................
Compensating for backlighting (ACB) .................................................................
Changing the metering option .............................................................................
Selecting a White Balance setting ........................................................................
Editing a video ............................................................................................................ 87
67
68
68
69
Trimming a video .................................................................................................... 87
Capturing an image from video ............................................................................ 87
Viewing files on a TV ................................................................................................ 88
Transferring files to a computer ........................................................................... 89
Using burst modes (continuous, motion capture, AEB) .............................. 71
Adjusting images ...................................................................................................... 72
Transferring files to your Windows OS computer .............................................. 89
Transferring files to your Mac OS computer ....................................................... 90
Reducing the sound of the zoom ........................................................................ 73
System Requirements .............................................................................................. 91
Playback/Editing.............................................................................................................. 74
Wireless network............................................................................................................. 92
Viewing photos or videos in Playback mode .................................................. 75
Connecting to a WLAN and configuring network settings ........................ 93
Starting Playback mode ......................................................................................... 75
Viewing photos ........................................................................................................ 79
Playing a video ......................................................................................................... 82
Connecting to a WLAN ...........................................................................................
Using the login browser .........................................................................................
Network connection tips .......................................................................................
Entering text .............................................................................................................
Editing a photo ........................................................................................................... 83
Resizing photos .......................................................................................................
Rotating a photo .....................................................................................................
Applying Smart Filter effects .................................................................................
Adjusting your photos ............................................................................................
93
94
95
96
Using the NFC Feature (Tag & Go) ....................................................................... 97
83
83
84
85
Using NFC features in Shooting mode ................................................................ 97
Using NFC features in Playback mode (Photo Beam) ........................................ 97
Using NFC features in Wi-Fi mode ........................................................................ 97
 17
 ontents
C
Saving files to a smart phone automatically ................................................... 98
Appendixes......................................................................................................................115
Sending photos or videos to a smart phone ................................................... 99
Error messages ......................................................................................................... 116
Using a smart phone as a remote shutter release ....................................... 100
Camera maintenance ............................................................................................. 117
Sending photos or videos via email ................................................................. 102
Cleaning your camera ...........................................................................................
Using or storing the camera ................................................................................
About memory cards ............................................................................................
About the battery ..................................................................................................
Upgrading Firmware .............................................................................................
Changing email settings ...................................................................................... 102
Sending photos or videos via email .................................................................. 104
Using photo or video sharing services ........................................................... 105
117
118
120
123
127
Accessing a sharing service ................................................................................. 105
Uploading photos or videos ............................................................................... 105
Before contacting a service center .................................................................... 128
Using Samsung Link to send files ...................................................................... 107
Camera specifications ............................................................................................ 131
Viewing photos or videos on devices that support Samsung Link ............... 107
Glossary ...................................................................................................................... 135
Index ............................................................................................................................ 142
Settings.............................................................................................................................. 109
Settings menu .......................................................................................................... 110
Accessing the settings menu ..............................................................................
Sound ......................................................................................................................
Display .....................................................................................................................
Connectivity ...........................................................................................................
General ....................................................................................................................
110
111
111
112
113
 18
Basic functions
Learn about your camera’s layout, icons, and basic functions for shooting.
Unpacking ………………………………………… 20
Camera layout ……………………………………… 21
Using the DIRECT LINK button …………………… 23
Attaching a strap ………………………………… 24
Attaching a lens cap ……………………………… 24
Inserting the battery and memory card ………… 25
Charging the battery and turning
on your camera …………………………………… 26
Charging the battery ……………………………… 26
Turning on your camera ………………………… 26
Performing the initial setup ……………………… 27
Learning icons ……………………………………… 29
Using the Mode screen …………………………… 31
Selecting a Mode Screen ………………………… 31
Icons on the Mode screen ………………………… 32
Selecting options or menus ……………………… 33
Setting the display and sound …………………… 35
Setting the display type …………………………… 35
Setting the sound ………………………………… 36
Capturing photos ………………………………… 37
Zooming ………………………………………… 38
Changing the zoom speed ……………………… 39
Reducing camera shake (OIS) …………………… 40
Tips for getting a clearer photo …………………… 41
Unpacking
The following items are included in your product box.
Optional accessories
Camera
Rechargeable battery
Lens cap/Lens cap strap
AC adapter/USB cable
Camera case
A/V cable
Battery charger
Memory card
Memory card/Memory card adapter
Strap
Quick Start Guide
• The illustrations may differ slightly from the items shipped with your product.
• The items included in the box may differ depending on the model.
• You can purchase optional accessories at a retailer or a Samsung service center.
Samsung is not responsible for any problems caused by using unauthorized
accessories.
Basic functions 20
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
Mode dial
Flash*
* While not in use, keep the flash unit closed to
prevent damage. Forcing the flash unit open may
cause damage to your camera.
POWER button
DIRECT LINK button
Start a preset Wi-Fi function.
Flash pop-up button
Internal antenna*
* Avoid contact with the internal antenna while using
a wireless network.
Shutter button
SPEED CONTROL button (p. 39)
AF-assist light/Timer lamp
NFC Tag
Launch an NFC feature by reading a tag from
an NFC-enabled device. (p. 97)
Lens
USB and A/V port
Accepts USB cable and A/V cable.
Basic functions 21
Camera layout
Microphone
Status lamp
• Blinking: When the camera is saving
a photo or video, being read by
a computer, when the image is out
of focus, or when the camera is
connecting to WLAN or sending
a photo.
• Steady: When the camera is
connected to a computer, charging
the battery, or when the image is in
focus.
Zoom button
• In Shooting mode: Zoom in or out.
• In Playback mode: Zoom in on part of a photo or
view files as thumbnails, or adjust the volume.
Eyelet for camera strap
Buttons (p. 23)
Display
Battery chamber cover
Insert a memory card and battery.
Tripod mount
Speaker
Basic functions 22
Camera layout
Using the DIRECT LINK button
Buttons
Button
Description
You can turn on the Wi-Fi feature conveniently with [DIRECT LINK].
Press [DIRECT LINK] to activate the Wi-Fi function that you have designated.
Press [DIRECT LINK] again to return to the previous mode.
Start recording a video.
Access options or menus.
Go back.
Basic functions
D
c
F
t
Change the display option.
Change the macro option.
Change the flash option.
Change the timer option.
Other functions
Move up
Move down
Move left
Move right
Confirm the highlighted option or menu.
Enter Playback mode.
Delete files in Playback mode.
Setting a DIRECT LINK button option
You can select a Wi-Fi function to launch when you press [DIRECT LINK].
1 Rotate the mode dial to .
2 Select General → DIRECT LINK (Wi-Fi Button).
3 Select a Wi-Fi feature. (p. 114)
Basic functions 23
Camera layout
Attaching a strap
Attaching a lens cap
Attach a strap to carry your camera conveniently.
Attach a lens cap with a lens cap strap to protect the camera lens.
Basic functions 24
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Removing the battery and memory card
Rechargeable battery
Insert a memory card with the goldcolored contacts facing up.
Battery lock
Slide the lock down to release
the battery.
Push the card gently until it disengages
from the camera, and then pull it out of
the slot.
Memory card
Insert the battery with the Samsung logo
facing up.
Memory card
Using the memory card adapter
To use micro memory cards with this product, a PC,
or a memory card reader, insert the card into an adapter.
Rechargeable battery
You can use the internal memory for temporary storage if a memory card is not
inserted.
Basic functions 25
Charging the battery and turning on your camera
Charging the battery
Turning on your camera
Before you use the camera for the first time, you must charge the battery. Plug the
small end of the USB cable into your camera, and then plug the other end of the
USB cable into the AC adapter.
Press [X] to turn your camera on or off.
• The initial setup screen appears when you turn on the camera for the first time.
(p. 27)
Status lamp
• Red light on: Charging
• Red light off: Fully charged
Turning on your camera in Playback mode
Press [P]. The camera turns on and immediately accesses Playback mode.
Use only the AC adapter and USB cable supplied with your camera. If you use
another AC adapter (such as AD5055), the camera battery may not charge or work
properly.
Basic functions 26
If you turn on your camera by pressing and holding [P], the camera does not
emit any sounds.
Performing the initial setup
When the initial setup screen appears, follow the steps below to configure the camera’s basic settings. The default language is preset for the country or region where the camera
is sold. You can change the language as desired by selecting Language.
1 Press [c] to select Time Zone, and then press [t] or [o].
2 Press [F/t] to select a time zone, and then press [o].
3 Press [c] to select Date/Time Set, and then press [t] or [o].
Date/Time Set
Home
Year Month Day Hour Min
Cancel
London
Cancel
Set
DST
Set
4 Press [F/t] to select an item.
5 Press [D/c] to set the date, time, and daylight-saving time, and
then press [o].
Basic functions 27
Performing the initial setup
6 Press [c] to select Date Type, and then press [t] or [o].
7 Press [D/c] to select a date type, and then press [o].
9 Press [D/c] to select a time type, and then press [o].
10 Press [r] to finish the initial setup.
Date Type
The screen may differ depending on the language you selected.
YYYY/MM/DD
MM/DD/YYYY
DD/MM/YYYY
Back
Set
8 Press [c] to select Time Type, and then press [t] or [o].
Basic functions 28
Learning icons
The camera displays icons for the mode and options you set. The icons flash yellow for a while if you change options.
1
1 Shooting information
Icon
Description
Icon
Description
Aperture value
Current date
Shutter speed
Current time
Available recording time
Exposure value
Available number of photos
Memory card inserted
•
•
•
: Fully charged
: Partially charged
: Empty (Recharge)
Basic functions 29
Auto focus frame
Camera shake
Zoom indicator
Photo resolution when the Intelli
zoom is on
Zoom ratio
Histogram
Learning icons
2
3
2 Shooting options (left)
3 Shooting options (right)
Icon
Icon
Description
Description
Shooting mode
ISO sensitivity
White Balance
Video resolution
Image Adjust
(Sharpness, Contrast, and Saturation)
Flash
Focus Area
Focus
Face Detection
Burst option
AutoShare On
Frame Rate (per second)
Photo resolution
Zoom Mute
Intelli zoom on
Optical Image Stabilization (OIS)
Metering
Timer
Basic functions 30
Using the Mode screen
Use the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes.
Selecting a Mode Screen
No.
In Shooting or Playback mode, rotate the mode dial to display a Mode Screen.
You can select an icon on the Mode screen in Magic Plus mode.
1
1
2
Mode icons
• Press [D/c/F/t] to scroll to a desired mode, and then press [o]
to access the mode.
2
Filter
Movie
Filter
Description
Current Mode screen
• Rotate the mode dial to go to another mode screen.
Editor
▲ For example: When you select Photo Filter in Magic Plus mode.
Basic functions 31
Using the Mode screen
Icons on the Mode screen
Mode
Icon
Description
Mode
Icon
Description
Smart Auto: Capture a photo with a scene mode selected
automatically by the camera. (p. 44)
Movie: Customize settings to record a video. (p. 52)
Program: Capture a photo with settings you have adjusted
manually. (p. 46)
MobileLink: Send photos or videos to a smart phone. (p. 99)
Smart: Capture a photo with options preset for a specific
scene. (p. 47)
Remote Viewfinder: Use a smart phone as a remote shutter
release and see a preview of an image from your camera on
your smart phone. (p. 100)
Panorama: Capture and combine a series of photos to create a
panoramic image. (p. 48)
Email: Send photos or videos stored on the camera via email.
(p. 102)
Photo Filter: Capture a photo with various filter effects. (p. 50)
SNS & Cloud: Upload photos or videos to file sharing services.
(p. 105)
Movie Filter: Record a video with various filter effects. (p. 51)
Samsung Link: View files on devices that support Sansung
Link. (p. 107)
Photo Editor: Edit photos with various effects. (p. 83)
Settings: Adjust settings to match your preferences. (p. 110)
Basic functions 32
Selecting options or menus
To select an option or a menu, press [m], and then press [D/c/F/t] or [o].
1 In Shooting or Playback mode, press [m].
2 Select an option or a menu.
• To move up or down, press [D] or [c].
• To move left or right, press [F] or [t].
Going back to the previous menu
Press [r] to go back to the previous menu.
Half-press [Shutter] to return to Shooting mode.
3 Press [o] to confirm the highlighted option or menu.
Basic functions 33
Selecting options or menus
For example, to select a White Balance option in Program mode:
1 Rotate the mode dial to
.
3 Press [D/c] to select White Balance, and then press [t] or
[o].
4 Press [F/t] to select a White Balance option.
White Balance : Daylight
Back
2 Press [m].
5 Press [o] to save your settings.
AutoShare
EV
White Balance
ISO
Flash
Focus
Exit
Set
Select
Basic functions 34
Setting the display and sound
Learn how to change the basic display information and sound settings.
Setting the display type
About histograms
You can select a display type for the Shooting or Playback mode. Each type displays
different shooting or playback information. See the table below.
A histogram is a graph that illustrates how light is distributed in your photo. If the
histogram has a high peak on the left, the photo is underexposed and will appear
dark. A peak on the right of the graph means that the photo is overexposed and
will appear washed out. The height of the peaks is related to color information. The
more of a particular color, the taller the peak.
 Under-exposed
Press [D] repeatedly to change the display type.
Mode
Shooting
Playback
Display type
• Hide all information about shooting options.
• Show all information about shooting options.
• Show all information about shooting options and a histogram.
• Hide all information about the current file.
• Hide all information about the current file except basic
information.
• Show all information about the current file.
Basic functions 35
 Well-exposed
 Over-exposed
Setting the display and sound
Setting the sound
Setting the option display view
You can hide or show the option display appearing in some modes.
Turn the sound your camera emits when you perform functions on or off.
Press [o] repeatedly.
1 Rotate the mode dial to .
2 Select Sound → Beep Sound.
3 Select an option.
• Hide the option display.
• Show the option display.
Smart : Beauty Face
Option display
Set
▲ For example, in
mode
Basic functions 36
Option
Off
Description
The camera does not emit any sounds.
On
The camera emits sounds.
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
1 Rotate the mode dial to
.
3 Half-press [Shutter] to focus.
• A green frame means the subject is in focus.
• A red frame means the subject is out of focus.
2 Align your subject in the frame.
4 Press [Shutter] to capture a photo.
5 Press [P] to view the captured photo.
• To delete the photo, press [f], and then select Yes.
6 Press [P] to return to Shooting mode.
See page 41 for tips to get clearer photos.
Basic functions 37
Capturing photos
Zooming
Digital zoom
You can capture close-up photos by adjusting the zoom.
Digital zoom is supported by default in Shooting mode. If you zoom in on a subject
in Shooting mode and the zoom indicator is in the digital range, your camera is
using Digital zoom. By using both the 35X Optical zoom and 2X Digital zoom, you
can zoom in up to 70 times.
Optical range
Zoom indicator
Digital range
Zoom ratio
• Digital zoom is not available with the Tracking AF option or Face Detection
options.
Zoom out
• If you capture a photo with Digital zoom, the photo quality may be lower than
Zoom in
normal.
When you rotate the zoom button, the zoom ratio shown on the screen may
change inconsistently.
Basic functions 38
Capturing photos
Intelli zoom
Setting Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using Intelli zoom. Photo
resolution varies according to the zoom rate if you use Intelli zoom. By using both
Optical zoom and Intelli zoom, you can zoom in up to 70 times.
Photo resolution
when Intelli zoom
is on
Optical range
1 In Shooting mode, press [m].
2 Select Intelli Zoom.
3 Select an option.
Icon
Description
Off: The Intelli zoom is deactivated.
Zoom indicator
On: The Intelli zoom is activated.
Intelli range
• Depending on the shooting options you selected, Intelli zoom is not available.
• Intelli zoom helps you capture a photo with less quality deterioration than
Digital zoom. However, the photo quality may be lower than when you use
Optical zoom.
• Intelli zoom is available only when you set a 4:3 resolution ratio.
If you set another resolution ratio with Intelli zoom on, Intelli zoom will be
turned off automatically.
• Intelli zoom is always on in
mode.
Changing the zoom speed
When you use the zoom button with [SPEED CONTROL], the speed of the zoom is
changed.
• Photo recording mode: the zoom
function works faster.
• Video recording mode: the zoom
function works slower.
Basic functions 39
Capturing photos
Reducing camera shake (OIS)
In Shooting mode, you can set either the Optical Image Stabilizer (OIS) or the Dual
Image Stabilizer (Dual IS) to reduce or eliminate picture blurriness from camera
shake.
• OIS may not function properly when:
-- you move your camera to follow a moving subject
-- you use Digital zoom
-- there is too much camera shake
-- the shutter speed is slow (for example, when you capture night scenes)
-- you capture a close-up shot
• If you use the OIS function with a tripod, your images may be blurred by the
vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.
• If the camera is hit or dropped, the display will be blurry. If this occurs, turn off
the camera, and then turn it on again.
 Before correction
 After correction
1 In Shooting mode, press [m].
2 Select OIS.
3 Select an option.
Icon
Description
Off: OIS is deactivated.
On: OIS is activated.
Dual IS: The Dual Image Stabilizer (Dual IS) is activated.
Basic functions 40
Tips for getting a clearer photo
    Holding your camera correctly
    Reducing camera shake
• Set the Optical Image Stabilization option to reduce camera
Ensure nothing is blocking the lens, flash,
or microphone.
shake digitally. (p. 40)
• Set the Dual IS option to reduce camera shake both optically
and digitally. (p. 40)
    Half-pressing the shutter button
   When
is displayed
Half-press [Shutter] and adjust the focus. The camera
adjusts the focus and exposure automatically.
Camera shake
The camera sets the aperture value and shutter
speed automatically.
Focus frame
• Press [Shutter] to capture the photo if the
focus frame appears in green.
• Change the composition and half-press
[Shutter] again if the focus frame appears in
red.
When you shoot in the dark, avoid setting the flash option to Slow Sync or Off. The
aperture remains open longer and it may be harder to hold the camera steady long
enough to capture a clear photo.
• Use a tripod or set the flash option to Fill in. (p. 58)
• Set ISO sensitivity options. (p. 59)
Basic functions 41
    Preventing your subject from being out of focus
It may be difficult to get your subject in focus when:
--there is little contrast between the subject and background (for example, when
your subject is wearing clothing that is similar in color to the background)
--the light source behind the subject is too bright
--the subject is shiny or reflective
--the subject includes horizontal patterns, such as blinds
--the subject is not positioned in the center of the frame
• When you capture photos in low light
Turn on the flash.
(p. 58)
• When subjects are moving rapidly
Use the Continuous
or Motion Capture
function. (p. 71)
Using the focus lock
Half-press [Shutter] to focus. When the subject is in focus, you can
reposition the frame to change the composition. When you are ready,
press [Shutter] to capture your photo.
Basic functions 42
Extended functions
Learn how to capture a photo and record a video by selecting a mode.
Using the Smart Auto mode ………………………
Using the Program mode …………………………
Using the Smart mode ……………………………
Using the Panorama mode ………………………
44
Using the Magic Plus mode ……………………… 50
46
Using the Photo Filter mode ……………………… 50
Using the Movie Filter mode ……………………… 51
47
48
Using the Movie mode …………………………… 52
Using the Smart Auto mode
In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not
familiar with the camera settings for various scenes.
.
1 Rotate the mode dial to
2 Align your subject in the frame.
Icon
Description
Landscapes
• The camera automatically selects a scene. An appropriate scene icon appears
at the top left of the screen. The icons are listed below.
Scenes with bright white backgrounds
Landscapes at night
Portraits at night
Landscapes with backlighting
Portraits with backlighting
Portraits
Close-up photos of objects
Close-up photos of text
3 Half-press [Shutter] to focus.
4 Press [Shutter] to capture the photo.
Sunsets
Indoors, dark
Partially lit
Close-up with spot lighting
Portraits with spot lighting
Extended functions 44
Using the Smart Auto mode
Icon
Description
Blue skies
Forested areas
Close-up photos of colorful subjects
Camera is stabilized on a tripod and the subject is not moving for a
certain period of time. (when shooting in the dark)*
Actively moving subjects*
* This icon appears next to the scene icon.
• If the camera does not recognize an appropriate scene mode, it uses the default
settings for
mode.
• Even if it detects a face, the camera may not select a portrait mode depending on
the subject's position or lighting.
• The camera may not select the correct scene depending on the shooting
conditions, such as camera shake, lighting, or distance to the subject.
mode if the subject is
moving.
• The camera consumes more battery power, because it changes settings often to
select appropriate scenes.
• Even if you use a tripod, the camera may not detect the
Extended functions 45
Using the Program mode
In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.
1 Rotate the mode dial to
2 Set the desired options.
.
• For a list of options, refer to "Shooting options". (p. 53)
3 Align your subject in the frame, and then half-press [Shutter] to
focus.
4 Press [Shutter] to capture the photo.
Extended functions 46
Using the Smart mode
In Smart mode, you can capture a photo with options that are preset for a specific scene.
1 Rotate the mode dial to
2 Select a scene.
.
Option
Night
Smart : Beauty Face
Macro
Light Trace
Description
Capture multiple photos in low light conditions without a
flash. The camera combines them to create a single image
that is brighter and has less blurring.
Capture small or close-up subjects.
Capture scenes with the light trailing in low-light conditions.
3 Align your subject in the frame, and then half-press [Shutter] to
focus.
4 Press [Shutter] to capture the photo.
Set
Option
Beauty Face
Description
Capture a portrait with options to hide facial imperfections.
Action Freeze
Capture subjects moving at high speed.
Capture scenes at sunset, with natural-looking reds and
yellows.
Capture still-life scenes and landscapes.
Capture subjects as dark shapes against a light background.
Capture scenes with fireworks.
Sunset
Landscape
Silhouette
Fireworks
Extended functions 47
Using the Panorama mode
In Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image.
4 With [Shutter] pressed, slowly move the camera in the direction that
will let it capture the rest of the panorama.
• Arrows pointing in the direction of motion are displayed, and the entire
shooting image is displayed in the preview box.
• When the viewfinder is aligned with the next scene, the camera captures the
 Shooting example
next photo automatically.
1 Rotate the mode dial to .
2 Align your subject in the frame, and then half-press [Shutter] to
focus.
• Align the camera with the far left or the far right, or very top or bottom, of the
scene you want to capture.
3 Press and hold [Shutter] to start shooting.
Shakiness: A flatter line
represents less camera shake.
5 When you are finished, release [Shutter].
• When you have captured all the necessary shots, the camera combines them
into one panoramic photo.
Extended functions 48
Using the Panorama mode
• For best results when capturing panoramic photos, avoid the following:
-- moving the camera too quickly or too slowly
-- moving the camera too little to capture the next image
-- moving the camera at irregular speeds
-- shaking the camera
-- shooting in dark places
-- capturing moving subjects nearby
-- shooting conditions where the brightness or color of light is changing
• Photos taken are automatically saved, and shooting is stopped under the
following conditions:
-- if you change the shooting direction while shooting
-- if you move the camera too rapidly
-- if you don't move the camera
• Selecting Panorama mode will disable the digital and optical zoom functions.
If you select Panorama mode while the lens is zoomed in, the camera
automatically zooms out to the default position.
• Some shooting options are not available.
• The camera may stop shooting due to the shooting composition or movement
within the scene.
• Your camera may not capture the last scene in its entirety if you stop moving the
camera exactly where you want the scene to end. To capture the entire scene,
move your camera slightly beyond the point where you want the scene to end.
Extended functions 49
Using the Magic Plus mode
Capture a photo or record a video with various effects.
Using the Photo Filter mode
Option
Apply various filter effects to your photos to create unique images.
Miniature
Vignetting
Fish-eye
Classic
Miniature
Vignetting
Retro
Cross Filter
Description
Apply a tilt-shift effect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Distort close objects to imitate the visual effect of a fisheye
lens.
Apply a black and white effect.
Apply a sepia tone effect.
Add lines that radiate outward from bright objects to
imitate the visual effect of a cross filter.
4 Align your subject in the frame, and then half-press [Shutter] to
focus.
5 Press [Shutter] to capture a photo.
Fish-eye
1 Rotate the mode dial to
2 Select .
3 Select an effect.
Classic
• Depending on the option you select, the resolution may change to
or less
automatically.
• To apply filter effects to saved photos, press [m], and then select Open
Image → a desired image. The camera will save edited photos as new files.
.
Extended functions 50
Using the Magic Plus mode
4 Press
5 Press
Using the Movie Filter mode
Apply various filter effects to your videos to create unique images.
1 Rotate the mode dial to
2 Select .
3 Select an effect.
Option
Miniature
Vignetting
Fish-eye
Classic
Retro
Palette Effect 1
Palette Effect 2
Palette Effect 3
Palette Effect 4
.
(Video recording) or [Shutter] to start recording.
(Video recording) or [Shutter] again to stop recording.
• If you select Miniature, playback speed will increase.
• If you select Miniature, you cannot record sound in the video.
• Depending on the option you select, the recording resolution may change to
or less automatically.
Description
Apply a tilt-shift effect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Distort close objects to imitate the visual effect of a
fisheye lens.
Apply a black and white effect.
Apply a sepia tone effect.
Create a vivid look with sharp contrast and strong color.
Make scenes clean and clear.
Apply a soft brown tone.
Create a cold and monotone effect.
Extended functions 51
Using the Movie mode
In Movie mode, you can customize settings to record HD (1280 X 720) videos of up to 20 minutes in length. The camera saves recorded videos as MP4 (H.264) files.
• MP4 (H.264) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.
• If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly.
• Memory cards with slow write speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.
• If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. Use the Zoom Mute function not to record zoom noise. (p. 73)
1 Rotate the mode dial to
2 Set desired options.
Pause recording
.
The camera allows you to temporarily pause a video while recording. With this
function, you can record separate scenes as a single video.
• For a list of options, refer to "Shooting options". (p. 53)
3 Press
4 Press
(Video recording) or [Shutter] to start recording.
(Video recording) or [Shutter] again to stop recording.
You can start recording a video in some modes by pressing
without having to rotate the mode dial to .
(Video recording)
• Press [o] to pause while recording.
• Press [o] to resume.
Extended functions 52
Shooting options
Learn how to set the options in Shooting mode.
Selecting a resolution and quality ……………… 54
Selecting a resolution …………………………… 54
Setting the photo quality ………………………… 55
Using the timer …………………………………… 56
Shooting in the dark ……………………………… 57
Preventing red-eye ………………………………
How to use the flash ………………………………
Using the flash ……………………………………
Adjusting the ISO sensitivity ………………………
57
57
58
59
Changing the camera’s focus …………………… 60
Using macro ……………………………………… 60
Changing the focus option ……………………… 60
Adjusting the focus area ………………………… 61
Using Face Detection ……………………………… 64
Detecting faces …………………………………… 64
Capturing a self portrait shot ……………………
Capturing a smile shot ……………………………
Detecting eye blinking ……………………………
Tips for detecting faces ……………………………
64
65
65
66
Adjusting brightness and color …………………… 67
Adjusting the exposure manually (EV) ……………
Compensating for backlighting (ACB) ……………
Changing the metering option ……………………
Selecting a White Balance setting …………………
67
68
68
69
Using burst modes
(continuous, motion capture, AEB) ……………… 71
Adjusting images ………………………………… 72
Reducing the sound of the zoom ………………… 73
Selecting a resolution and quality
Learn how to change the image resolution and quality settings.
Selecting a resolution
Setting the video resolution
As you increase the resolution, your photo or video will include more pixels, so it
can be printed on larger paper or displayed on a larger screen. When you use a high
resolution, the file size will also increase.
Setting the photo resolution
Icon
1 In Shooting mode, press [m].
2 Select Photo Size.
3 Select an option.
Icon
1 In Shooting mode, press [m].
2 Select Movie Size.
3 Select an option.
Description
1280 X 720: HD files to play back on an HDTV.
640 X 480: SD files to play back on an analog TV.
320 X 240: Post on a web page.
Description
For Sharing: Post on a website using the wireless network
(30 seconds maximum).
4608 X 3456: Print on A1 paper.
4608 X 3072: Print on A1 paper in wide ratio (3:2).
4608 X 2592: Print on A1 paper in panorama ratio (16:9) or play
back on an HDTV.
3648 X 2736: Print on A2 paper.
2832 X 2832: Print on A3 paper in 1:1 ratio.
2592 X 1944: Print on A4 paper.
1984 X 1488: Print on A5 paper.
1920 X 1080: Print on A5 paper in panorama ratio (16:9) or play
back on an HDTV.
1024 X 768: Attach to an email.
Shooting options 54
Selecting a resolution and quality
Setting the photo quality
Set the photo quality settings. Higher image quality settings will result in larger file
sizes. The camera compresses and saves the photos you capture in the JPEG format.
1 In Shooting mode, press [m].
2 Select Quality.
3 Select an option.
Icon
Description
Super Fine: Capture photos in super high quality.
Fine: Capture photos in high quality.
Normal: Capture photos in normal quality.
Shooting options 55
Using the timer
Learn how to set the timer to delay shooting.
1 In Shooting mode, press [t].
3 Press [Shutter] to start the timer.
• The AF-assist light/timer lamp blinks. The camera will automatically capture a
photo after the specified time has elapsed.
• Press [Shutter] or [t] to cancel the timer.
• Depending on the Face Detection options you selected, the timer function may
not be available.
Timer : Off
• Timer options are not available if you set burst options.
• In some modes, you can also set the timer option by pressing [m], and then
selecting Timer.
Exit
Set
2 Select an option.
Icon
Description
Off: The timer is not active.
10 Sec: Capture a photo after a 10-second delay.
2 Sec: Capture a photo after a 2-second delay.
Double: Capture one photo after a 10-second delay and another
photo after a 2-second delay.
Available options may differ depending on the shooting conditions.
Shooting options 56
Shooting in the dark
Learn how to capture photos at night or in low light conditions.
Preventing red-eye
How to use the flash
If the flash fires when you capture a photo of a person in the dark, a red glow may
appear in the person’s eyes. To prevent this, select Red-eye or Red-eye Fix. Refer to
flash options in "Using the flash." (p. 58)
 Before correction
Press the flash pop-up button to pop the
flash up. When the flash unit pops up, the
flash fires in accordance with the option
you have selected. If you select Off, the
flash does not fire even when it is popped
up.
• While not in use, keep the flash unit closed to prevent damage.
• Forcing open the flash unit may cause damage to your camera.
 After correction
Shooting options 57
Shooting in the dark
Using the flash
Use the flash when you capture photos in the dark or when you need more light in
your photos.
3 Select an option.
Icon
1 Press [F] to pop the flash up when it is need.
2 In Shooting mode, press [F].
Flash : Auto
Exit
Set
Shooting options 58
Description
Off:
• The flash will not fire.
• The camera will display the shake warning
when you are
shooting in low light.
Auto: The flash will fire automatically when the subject or
background is dark.
Red-eye:
• The flash will fire twice when the subject or background is dark to
reduce the red-eye effect.
• There is an interval between the 2 bursts of the flash. Do not move
until the flash fires a second time.
Fill in:
• The flash always fires.
• The camera automatically adjusts the intensity of the flash.
Slow Sync:
• The flash fires and the shutter stays open longer.
• This option is recommended when you want to capture more
ambient light to reveal more details in the background.
• Use a tripod to prevent your photos from blurring.
• The camera will display the shake warning
when you are
shooting in low light.
Shooting in the dark
Icon
Description
Adjusting the ISO sensitivity
Red-eye Fix:
• The flash fires twice when the subject or background is dark. The
camera corrects red-eye through its advanced software analysis.
• There is an interval between the 2 bursts of the flash. Do not move
until the flash fires a second time.
The ISO sensitivity is the measure of a film’s sensitivity to light as defined by the
International Organization for Standardization (ISO). The higher ISO sensitivity you
select, the more sensitive to light your camera becomes. Use a higher ISO sensitivity
to capture better photos and reduce camera shake when not using the flash.
Available options may differ depending on the shooting conditions.
• Flash options are not available if you set burst options or select Self-Portrait or
Blink Detection.
• Make sure that your subjects are within the recommended distance from the
1 In Shooting mode, press [m].
2 Select ISO.
3 Select an option.
• Select
flash. (p. 132)
• If light from the flash is reflected or there is a substantial amount of dust in the
air, tiny spots may appear in your photo.
• In some modes, you can also set the flash option by pressing [m], and then
selecting Flash.
Shooting options 59
to use an appropriate ISO sensitivity based on the brightness of
the subject and lighting.
• Higher ISO sensitivities may result in more image noise.
• If you set the ISO option to , the resolution may change to
or smaller.
Changing the camera’s focus
Learn how to adjust the camera’s focus to suit the subject and the shooting conditions.
Using macro
Changing the focus option
Use macro to capture close-up photos of subjects, such as flowers or insects.
(Refer to "Changing the focus option".)
You can get clearer photos by selecting an appropriate focus option according to
the distance between the camera and subjects.
1 In Shooting mode, press [c].
Focus : Normal (AF)
Exit
• Try to hold the camera firmly to prevent blurry photos.
• Turn off the flash if the distance to the subject is less than 40 cm.
Shooting options 60
Set
Changing the camera’s focus
2 Select an option.
Icon
Adjusting the focus area
Description
Normal (AF): Focus on a subject farther than 31 in. (80 cm) away.
Farther than 59 in. (150 cm) away when you use the zoom.
Macro: Focus on a subject that is 4-31 in. (10-80 cm) from the
camera. 59-138 in. (150-350 cm) when you use the zoom.
Auto Macro:
• Focus on a subject farther than 0.4 in. (1 cm) away.
Farther than 59 in. (150 cm) away when you use the zoom.
• It is set automatically in some shooting modes.
Super Macro: Focus on a subject that is 0.4 in. (1 cm) from the
camera.
You can get clearer photos by selecting an appropriate focus area according to your
subject's location in the scene.
1 In Shooting mode, press [m].
2 Select Focus Area.
3 Select an option.
Icon
Description
Center AF: Focus on the center of the frame (suitable when subjects
are located at or near the center).
Multi AF: Focus on one or more of 9 possible areas.
Selection AF: Focus on the area that you select. (p. 62)
Available options may differ depending on the shooting conditions.
In some modes, you can also set the focus option by pressing [m], and then
selecting Focus.
Tracking AF: Focus on and track the subject. (p. 62)
Available shooting options may differ depending on the shooting conditions.
Shooting options 61
Changing the camera’s focus
Focusing on a selected area
Using tracking auto focus
You can focus on an area that you have selected.
1 In Shooting mode, press [m].
2 Select Focus Area → Selection AF.
3 Press [o], and then press [D/c/F/t] to move the frame to
a desired area.
Tracking AF allows you to track and auto focus on your subject, even when you are
moving.
1 In Shooting mode, press [m].
2 Select Focus Area → Tracking AF.
3 Focus on the subject you want to track, and then press [o].
• A focus frame appears on the subject and follows the subject as you move
the camera.
Move
Set
4 Press [o].
5 Press [Shutter] to capture the photo.
• The white frame means that your camera is tracking the subject.
• When you half-press [Shutter], the green frame means that your subject is in
• Press [o] to change the focus area.
focus.
If you use this function, you cannot set Face Detection options, Timer options, and
Intelli zoom.
• The red frame means that your camera failed to focus.
4 Press [Shutter] to capture the photo.
Shooting options 62
Changing the camera’s focus
• If you do not select a focus area, the focus frame will appear in the center of the
screen.
• Tracking a subject may fail when:
-- the subject is too small
-- the subject moves excessively
-- the subject is backlit or you are shooting in a dark place
-- colors or patterns on the subject and the background are the same
-- the subject includes horizontal patterns, such as blinds
-- the camera shakes excessively
• When tracking fails, the feature will be reset.
• If the camera fails to track the subject, you must reselect the subject to track.
• If the camera fails to focus, the focus frame will change to red and the focus will
be reset.
• If you use this function, you cannot set Face Detection options, Timer options,
Drive options and Intelli zoom.
Shooting options 63
Using Face Detection
If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera adjusts the exposure automatically. Use
Blink Detection to detect closed eyes or Smile Shot to capture a smiling face.
Detecting faces
Capturing a self portrait shot
Your camera automatically detects up to 10 human faces in one scene.
Capture photos of yourself. The camera sets the focus distance to close-up, and then
emits a beep when ready.
1 In Shooting mode, press [m].
2 Select Face Detection → Normal.
The face nearest the camera or nearest
the center of the scene appears in a
white focus frame and the rest of the
faces appear in gray focus frames.
1 In Shooting mode, press [m].
2 Select Face Detection → Self-Portrait.
3 Compose your shot with the lens facing you.
4 When you hear a quick beep, press [Shutter].
When faces are located in the center,
the camera beeps rapidly.
The closer you are to the subjects, the quicker your camera will detect faces.
If you turn Volume off in the sound settings, the camera will not emit a beep.
(p. 111)
Shooting options 64
Using Face Detection
Capturing a smile shot
Detecting eye blinking
The camera automatically releases the shutter when it detects a smiling face.
If your camera detects closed eyes, it will automatically capture 2 photos in
succession.
1 In Shooting mode, press [m].
2 Select Face Detection → Smile Shot.
3 Compose your shot.
1 In Shooting mode, press [m].
2 Select Face Detection → Blink Detection.
• The camera automatically releases the shutter when it detects a smiling face.
When your subject smiles
broadly, your camera can detect
the smile more easily.
Shooting options 65
Using Face Detection
Tips for detecting faces
• When your camera detects a face, it tracks the detected face automatically.
• Face Detection may not be effective when:
--the subject is far from the camera
--it is too bright or too dark
--the subject is not facing the camera
--the subject is wearing sunglasses or a mask
--the subject’s facial expression changes drastically
--the subject is backlit or the lighting conditions are unstable
• Face Detection is not available when you set the Selection AF or Tracking AF.
• When you set Face Detection options, the AF area is automatically set to Multi AF.
• Depending on the Face Detection options you selected, some shooting options
may not be available.
• Depending on the shooting options you selected, Face Detection options may
not be available.
Shooting options 66
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
Adjusting the exposure manually (EV)
Depending on the intensity of the ambient light, your photos may be too bright or
dark. In these cases, you can adjust the exposure to get a better photo.
3 Press [F/t] to adjust the exposure.
• The photo will be brighter as the exposure value increases.
EV : +1
Back
 Darker (-)
 Neutral (0)
1 In Shooting mode, press [m].
2 Select EV.
 Brighter (+)
Set
4 Press [o] to save your settings.
• Once you adjust the exposure, the setting will be stored automatically. You
may need to change the exposure value later to avoid overexposure or
underexposure.
• If you cannot decide on an appropriate exposure, select the AEB (Auto Exposure
Bracket) option. The camera will capture 3 consecutive photos, each with a
different exposure: normal, underexposed, and overexposed. (p. 71)
Shooting options 67
Adjusting brightness and color
Compensating for backlighting (ACB)
Changing the metering option
When the light source is behind your subject or there is high contrast between your
subject and the background, your subject is likely to appear dark in the photo. In
this case, set the Auto Contrast Balance (ACB) option.
The metering mode refers to the way in which a camera measures the quantity
of light. The brightness and lighting of your photos will vary depending on the
metering mode you select.
1 In Shooting mode, press [m].
2 Select Metering.
3 Select an option.
Icon
▲ Without ACB
▲ With ACB
1 In Shooting mode, press [m].
2 Select ACB.
3 Select an option.
Icon
Description
Off: ACB (Auto Contrast Balance) is deactivated.
On: ACB (Auto Contrast Balance) is activated.
• The ACB feature is always on in
mode.
• The ACB feature is not available when you set burst options.
Shooting options 68
Description
Multi:
• Your camera divides the frame into several areas, and then
measures the light intensity of each area.
• Suitable for general photos.
Spot:
• Your camera measures only the light intensity at the very center
of the frame.
• If a subject is not in the center of the frame, your photo may be
improperly exposed.
• Suitable for a subject with backlighting.
Center-weighted:
• Your camera averages the meter reading of the entire frame with
emphasis placed on the center.
• Suitable for photos with subjects in the center of the frame.
Adjusting brightness and color
Selecting a White Balance setting
The color of your photo depends on the type and quality of the light source. If you
want the color of your photo to be realistic, select a White Balance setting that
is appropriate for the lighting conditions, such as Auto WB, Daylight, Cloudy, or
Tungsten.
1 In Shooting mode, press [m].
2 Select White Balance.
3 Select an option.
Icon
Description
Auto WB: Automatically set the White Balance based on the
lighting conditions.
Daylight: For outdoor photos on a sunny day.
Cloudy: For outdoor photos on a cloudy day or in shadows.
Auto WB
Fluorescent_H: For shooting under a daylight fluorescent or 3-way
fluorescent light.
Daylight
Fluorescent_L: For shooting under white fluorescent light.
Tungsten: For shooting indoor photos under incandescent bulbs
or halogen lamps.
Custom Set: To use White Balance settings that you define. (p. 70)
Color Temp.: To adjust the color temperature of the light source.
(p. 70)
Cloudy
Tungsten
Shooting options 69
Adjusting brightness and color
Defining your own White Balance
Adjusting color temperature
You can customize the White Balance by capturing a photo of a white surface, such
as a piece of paper, under the lighting conditions in which you intend to capture a
photo. The White Balance feature will help you to match the colors in your photo
with the actual scene.
1 In Shooting mode, press [m].
2 Select White Balance → Custom Set.
3 Aim the lens at a piece of white paper, and then press [Shutter].
1 In Shooting mode, press [m].
2 Select White Balance → Color Temp..
3 Press [F/t] to adjust the color temperature to match your light
source.
• You can get a warmer photo with a higher value, and a cooler photo with a
lower value.
Color Temp. : 6500K
Back
Set
4 Press [o] to save your settings.
Shooting options 70
Using burst modes (continuous, motion capture, AEB)
It can be difficult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos. Also, it can be difficult to adjust the
exposure correctly and select a proper light source. In these cases, select one of the burst modes.
Icon
1 In Shooting mode, press [m].
2 Select Drive.
3 Select an option.
Icon
Description
Motion Capture: While you are pressing [Shutter], the camera
photos (5 photos per second; maximum of 30 photos).
captures
AEB:
• Capture 3 consecutive photos, each with a different exposure:
normal, underexposed, and overexposed.
• Use a tripod to prevent blurry photos.
• You can use the flash, timer, OIS, and ACB only when you select Single.
• When you select Motion Capture, your camera will set the resolution to
and set the ISO sensitivity to Auto.
• Depending on the Face Detection option you selected, some Burst options may
not be available.
Description
Single: Capture a single photo.
Continuous:
• While you are pressing [Shutter], the camera continuously
captures photos.
• The maximum number of photos depends on the capacity of
your memory card.
Shooting options 71
Adjusting images
Adjust the sharpness, contrast, or saturation of your photos.
1 In Shooting mode, press [m].
2 Select Image Adjust.
3 Select an option.
4 Press [F/t] to adjust each value.
Sharpness
-
• Sharpness
• Contrast
• Saturation
+
Contrast
+
Description
Soften the edges on your photos (suitable for editing the
photos on your computer).
Sharpen the edges to improve the clarity of your photos. This
may also increase the noise in your photos.
Description
Decrease the color and brightness.
Increase the color and brightness.
Image Adjust
Saturation
-
Sharpness
Contrast
+
Saturation
Back
Set
Description
Decrease the saturation.
Increase the saturation.
5 Press [o] to save your settings.
Select 0 if you do not want to apply any effects (suitable for printing).
Shooting options 72
Reducing the sound of the zoom
When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Zoom Mute function not to record zoom noise.
1 In Shooting mode, press [m].
2 Select Voice.
3 Select an option.
Icon
Description
Zoom Mute: The camera stops recording sound temporarily when
you use the zoom.
Off: Record a video without sound.
On: Record a video with sound.
• Do not block the microphone when you use the Voice function.
• Recordings made with Voice may differ from actual sounds.
Shooting options 73
Playback/Editing
Learn how to play back photos or videos, and edit photos or videos. Also, learn how to connect your camera to
your computer or TV.
Viewing photos or videos in Playback mode …… 75
Editing a video ……………………………………… 87
Starting Playback mode ………………………… 75
Viewing photos …………………………………… 79
Playing a video …………………………………… 82
Trimming a video ………………………………… 87
Capturing an image from video ………………… 87
Editing a photo …………………………………… 83
Resizing photos ……………………………………
Rotating a photo …………………………………
Applying Smart Filter effects ………………………
Adjusting your photos ……………………………
83
83
84
85
Viewing files on a TV ……………………………… 88
Transferring files to a computer ………………… 89
Transferring files to your Windows OS
computer ………………………………………… 89
Transferring files to your Mac OS computer ……… 90
System Requirements ……………………………… 91
Viewing photos or videos in Playback mode
Learn how to play back photos or videos and how to manage files.
Starting Playback mode
Photo file information
View photos or play videos stored in your camera.
Memory in use
1 Press [P].
• The most recent file will be displayed.
• If the camera is off, it will turn on and display the most recent file.
File Information
2 Press [F/t] to scroll through files.
Histogram
• Press and hold [F/t] to scroll through files quickly.
• If you want to view files stored in the internal memory, remove your memory
card.
• You may not be able to edit or play back files that were captured with other
cameras, due to unsupported sizes (image size, etc) or codecs. Use a computer
or another device to edit or play back these files.
• Photos or videos captured in portrait orientation do not rotate automatically and
are displayed in landscape orientation by the camera and other devices.
Album/Zoom In
Icon
Description
Current file/Total files
Folder name–File name
Protected file
To display file information on the screen, press [D].
Playback/Editing 75
Viewing photos or videos in Playback mode
Video file information
Viewing files as thumbnails
Scan thumbnails of files.
In Playback mode, rotate [Zoom] to the left to view thumbnails
(12 at a time). Rotate [Zoom] to the left once more to display
more thumbnails (24 at a time). Rotate [Zoom] to the right to
return to the previous view.
File Information
Album
Play
Icon
Capture
Move to the desired file, and
then press [o] to display it
in full screen view.
Description
Current file/Total files
Folder name-File name
Current playback time
Menu
Video length
Protected file
Press [D/c/F/t] to scroll through files.
To display file information on the screen, press [D].
Playback/Editing 76
Viewing photos or videos in Playback mode
Viewing files by category
View files by category, such as date or file type.
1 In Playback mode, rotate [Zoom] to the left.
2 Press [m].
3 Select Filter → a category.
4 Scroll to a desired list, and then press [o] to open the list.
5 Scroll to a desired file, and then press [o] to view the file.
6 Rotate [Zoom] to the left to return to the previous view, and then
press [r].
• If you change the category, it may take some time for the camera to reorganize
files depending on the number of files.
Filter
• If you delete a category classified by Date or File Type, all files in the category
will be deleted.
All
Date
File Type
Back
Icon
Set
Description
All: View files normally.
Date: View files by the date they were saved.
File Type: View files by the file type.
Playback/Editing 77
Viewing photos or videos in Playback mode
Deleting multiple files
You can select multiple files, and then delete them at once.
Protecting files
Protect a file from accidental deletion.
1 In Playback mode, press [f].
1 In Playback mode, select a file to protect.
2 Press [m], and then select Protect → On.
3 Repeat steps 1 and 2 to protect additional files.
• When in thumbnails view, press [m], select Delete → Select, and then
skip to step 3, or press [f], select Select, and then skip to step 3.
2 When the pop-up message appears, select Multiple Delete.
3 Scroll to each file you want to delete, and then press [o].
You cannot delete, resize, or rotate a protected file.
• Press [o] again to cancel your selection.
4 Press [f].
5 When the pop-up message appears, select Yes.
Deleting files
Select files to delete in Playback mode.
Deleting a single file
You can select one file, and then delete it.
1 In Playback mode, select a file, and then press [f].
2 When the pop-up message appears, select Yes.
You can also delete files in Playback mode by pressing [m], and then selecting
Delete → Delete → Yes.
Playback/Editing 78
Viewing photos or videos in Playback mode
Viewing photos
Deleting all files
You can select all files, and then delete them at once.
1
In Playback mode, press [m].
Enlarge part of a photo or view photos as a slide show.
• When in thumbnails view, press [m], select Delete → Delete All, and then
Enlarging a photo
skip to step 3, or press [f], select Delete All, and then skip to step 3.
2 Select Delete → Delete All.
3 When the pop-up message appears, select Yes.
In Playback mode, rotate [Zoom] to the right to enlarge a portion
of the photo. Rotate [Zoom] to the left to zoom out.
• All unprotected files are deleted.
Copying files to a memory card
Enlarged area
Copy files from the internal memory to a memory card.
1 In Playback mode, press [m].
2 Select Copy to Card.
Back
Playback/Editing 79
Crop
Viewing photos or videos in Playback mode
Viewing panoramic photos
To
Move the enlarged area
Description
Press [D/c/F/t].
Trim the enlarged photo
Press [o], and then select Yes.
(The trimmed photo will be saved as a new file. The
original photo is retained in its original form.)
View photos captured in Panorama mode.
When you view photos that were captured by another camera, the zoom ratio may
differ.
1 In Playback mode, press [F/t] to scroll to a desired panoramic
photo.
• The entire panoramic photo appears on the screen.
2 Press [o].
• The camera automatically scrolls through the photo from left to right for a
horizontal panoramic photo and from top to bottom for a vertical panoramic
photo. The camera then switches to Playback mode.
• While playing back a panoramic photo, press [o] to pause or resume from
pausing.
• After you have paused the playback of a panoramic photo, press
[D/c/F/t] to move the photo horizontally or vertically, depending on
the direction you moved when capturing the photo.
3 Press [r] to return to Playback mode.
The camera automatically scrolls through the panoramic photo only if the longest
side of the photo is two or more times longer than the shortest side.
Playback/Editing 80
Viewing photos or videos in Playback mode
Playing a slide show
Apply effects and audio to a slide show of your photos. The slide show function
does not work for videos.
1 In Playback mode, press [m].
2 Select Slide Show Options.
• Press [o] to pause the slide show.
• Press [o] again to resume the slide show.
• Skip to step 5 to start a slide show with no effects.
3
4 Press [m] or [r].
5 Select Start Slide Show.
6 View the slide show.
• Press [r] to stop the slide show and return to Playback mode.
• Rotate [Zoom] to the left or right to adjust the volume level.
Select a slide show effect option.
* Default
Option
Description
Play Mode Set whether or not to repeat the slide show. (One Play*, Repeat)
Interval
Music
Effect
• Set the interval between photos. (1 sec*, 3 sec, 5 sec, 10 sec)
• You must set the Effect option to Off to set the interval.
Set background audio.
• Set a scene change effect between photos. (Off, Calm*, Relax,
Lively, Sweet, Shine)
• Select Off to cancel effects.
• When you use the Effect option, the interval between photos
will be set to 1 second.
Playback/Editing 81
Viewing photos or videos in Playback mode
Playing a video
To
In Playback mode, you can view a video, and then capture or trim parts of the
playing video. You can save the captured or trimmed segments as new files.
Scan backward
1 In Playback mode, select a video, and then press [o].
2 View the video.
Current playback time/
Video length
Pause or resume playback
Scan forward
Adjust the volume level
Description
Press [F]. Each time you press [F], you
change the scan speed in this order: 2X, 4X,
8X.
Press [o].
Press [t]. Each time you press [t], you
change the scan speed in this order: 2X, 4X,
8X.
Rotate [Zoom] to the left or right.
You can scan backwards or forwards or pause the video after at least 2 seconds
have elapsed from the starting point.
Stop
Pause
Playback/Editing 82
Editing a photo
Learn how to edit photos.
• The camera will save edited photos as new files.
• When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to a lower
resolution.
Resizing photos
Rotating a photo
Change the size of a photo and save it as a new file.
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Rotate → an option.
1 In Playback mode, select a photo, and then press [m].
2 Select Resize.
3 Select an option.
Resize
2592 X 1944
1984 X 1488
1024 X 768
Rotate : Right 90˚
Back
Set
Available resize options differ depending on the original size of the photo.
Cancel
Save
5 Press [c] to save.
• The camera will overwrite the original file.
• In Playback mode, press [m], and then select Rotate to rotate a photo.
Playback/Editing 83
Editing a photo
Applying Smart Filter effects
Option
Apply special effects to your photos.
Normal
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Smart Filter → an option.
Miniature
Vignetting
Fish-eye
Classic
Retro
Cross Filter
Smart Filter : Miniature
Description
No effect
Apply a tilt-shift effect to make the subject appear in
miniature. (The top and bottom of the photo will be
blurred.)
Apply the retro-looking colors, high contrast, and strong
vignette effect of Lomo cameras.
Distort close objects to imitate the visual effect of a fisheye
lens.
Apply a black and white effect.
Apply a sepia tone effect.
Add lines that radiate outward from bright objects to
imitate the visual effect of a cross filter.
5 Press [c] to save.
Cancel
Set
Playback/Editing 84
Editing a photo
Adjusting your photos
Learn how to adjust the brightness, contrast, or saturation or how to correct the
red-eye effect. If the center of a photo is dark, you can adjust it to be brighter.
The camera will save an edited photo as a new file, but may convert it to a lower
resolution.
• You can adjust brightness, contrast, and saturation and apply Smart Filter effects
at the same time.
• You cannot apply the ACB, Face Retouch, and Red-eye Fix effects at the same
time.
Adjusting brightness, contrast, or saturation
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select an adjusting option.
Icon
5 Press [F/t] to adjust the option.
6 Press [o].
7 Press [c] to save.
Adjusting dark subjects (ACB)
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select ACB.
5 Press [c] to save.
Description
Brightness
Contrast
Saturation
Playback/Editing 85
Editing a photo
Retouching faces
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Face Retouch.
5 Press [F/t] to adjust the option.
• As the number increases, the skin tone becomes brighter and smoother.
Removing red-eye
1 Rotate the mode dial to .
2 Select .
3 Rotate [Zoom] to the left, and then select a photo.
4 Select Red-eye Fix.
5 Press [c] to save.
6 Press [c] to save.
Playback/Editing 86
Editing a video
While playing back a video, you can trim the video or capture an image from the video.
Trimming a video
Capturing an image from video
1 In Playback mode, select a video, and then press [m].
2 Select Trim Movie.
3 Press [o] to start playing the video.
4 Press [o] → [c] at the point where you want the trimming to
1 While viewing a video, press [o] at the point where you want to
capture an image.
2 Press [c].
• The resolution of the captured image will be the same as the original video.
• The captured image is saved as a new file.
begin.
5 Press [o] to resume playing the video.
6 Press [o] → [c] at the point where you want the trimming to end.
7 Press [c] to trim.
8 When the pop-up message appears, select Yes.
• The original video should be at least 10 seconds long.
• The camera will save the edited video as a new file and leave the original video
intact.
Playback/Editing 87
Viewing files on a TV
Play back photos or videos by connecting your camera to a TV with the A/V cable.
1 Rotate the mode dial to .
2 Select Connectivity → Video Out.
3 Select the video signal output for your country or region. (p. 112)
4 Turn off your camera and TV.
5 Connect your camera to your TV with the A/V cable.
Audio
6 Turn on your TV, and then select the A/V video source.
7 Turn on your camera.
• The camera automatically enters Playback mode when you connect it to a TV.
8 View photos or play videos using the camera buttons.
Video
Playback/Editing 88
• Depending on the TV model, you may see some digital noise or part of an image
may not appear.
• Images may not be centered on the TV screen depending on your TV settings.
Transferring files to a computer
Connect the camera to the computer, to transfer files from the camera's memory card to the computer.
5 Turn on the camera.
Transferring files to your Windows OS computer
• The computer recognizes the camera automatically.
Connect the camera to your computer as a removable disk.
6 On your computer, select My Computer → Removable Disk →
Your computer must be running Windows XP, Windows Vista, Windows 7, or
Windows 8 for you to connect the camera as a removable disk.
DCIM → 100PHOTO.
7 Drag or save files to your computer.
1
2 Select Connectivity → i-Launcher → Off.
3 Turn off the camera.
4 Connect the camera to your computer with the USB cable.
Rotate the mode dial to
.
Disconnecting the camera (for Windows XP)
With Windows Vista , Windows 7 and Windows 8 the methods for disconnecting the
camera are similar.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
1 If the status lamp on your camera is blinking, wait until it stops.
2 Click on the tool bar at the bottom right of your computer screen.
3 Click the pop-up message.
4 Click the message box that indicates the camera can be removed
safely.
5 Remove the USB cable.
Playback/Editing 89
Transferring files to a computer
Transferring files to your Mac OS computer
When you connect the camera to your Mac OS computer, the computer will
automatically recognize the device. You can transfer files directly from the camera to
the computer without installing any programs.
Mac OS 10.5 or later (except PowerPC) is supported.
3 Turn on the camera.
• The computer recognizes the camera automatically and displays a removable
disk icon.
4 On your computer, open the removable disk.
5 Drag or save files to your computer.
1 Turn off the camera.
2 Connect your camera to your Mac OS computer with the USB cable.
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
Playback/Editing 90
System Requirements
Recommended system requirements to play videos on a PC or run the i-Launcher application.
Windows OS Requirements
Mac OS requirements
Item
Requirements
Intel® Pentium®4 3.2 GHz or higher/
AMD Athlon™ FX 2.6 GHz or higher
Item
OS
Minimum 512 MB RAM (1 GB or more recommended)
Windows 7 or Windows 8
250 MB or more (1 GB and above recommended)
• 1024 X 768 pixels, 16-bit color display compatible
monitor (1280 X 1024 pixels, 32-bit color display
recommended)
• USB 2.0 port
• nVIDIA Geforce 7600GT or higher/
ATI X1600 series or higher
Hard disk capacity
CPU
RAM
OS*
Hard disk capacity
Others
Requirements
RAM
Others
Mac OS 10.5 or higher (except PowerPC)
Minimum 256 MB RAM (512 MB or more recommended)
Minimum 110 MB
USB 2.0 port
• The requirements are recommendations only. It may not work properly even
when the computer meets the requirements, depending on the condition of
your computer.
• The manufacturer is not responsible for any damage that results from using
unqualified computers such as a computer you assembled yourself.
* A 32-bit version of i-Launcher will be installed—even on 64-bit editions of Windows 7 and
Windows 8.
Playback/Editing 91
Wireless network
Learn to connect to wireless local area networks (WLANs) and use functions.
Connecting to a WLAN and configuring network
settings ……………………………………………… 93
Connecting to a WLAN ……………………………
Using the login browser …………………………
Network connection tips …………………………
Entering text ………………………………………
93
94
95
96
Using the NFC Feature (Tag & Go) ………………… 97
Using NFC features in Shooting mode …………… 97
Using NFC features in Playback mode
(Photo Beam) ……………………………………… 97
Using NFC features in Wi-Fi mode ………………… 97
Saving files to a smart phone automatically …… 98
Sending photos or videos to a smart phone …… 99
Using a smart phone as a remote shutter
release ……………………………………………… 100
Sending photos or videos via email ……………… 102
Changing email settings ………………………… 102
Sending photos or videos via email ……………… 104
Using photo or video sharing services ………… 105
Accessing a sharing service ……………………… 105
Uploading photos or videos ……………………… 105
Using Samsung Link to send files ………………… 107
Viewing photos or videos on devices that support
Samsung Link ……………………………………… 107
Connecting to a WLAN and configuring network settings
Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.
Connecting to a WLAN
Icon
.
1 Rotate the mode dial to
2 Select , , or .
3 Follow the on-screen instructions until the Wi-Fi Setting screen
Secured AP
WPS AP
Signal strength
Press [t] to open network setting options.
appears.
• The camera automatically searches for available AP devices.
• In some modes, press [m], and then select Wi-Fi Setting.
• When you select a secured AP, a pop-up window appears. Enter the required
passwords to connect to the WLAN. For information about entering text, refer
to "Entering text". (p. 96)
• When a login page appears, refer to "Using the login browser". (p. 94)
• When you select an unsecured AP, the camera will connect to the WLAN.
• If you select a WPS profile supported AP, select → WPS PIN connection,
and then enter a PIN on the AP device. You can also connect to a WPS profile
supported AP by selecting → WPS button connection on the camera, and
then pushing the WPS button on the AP device.
• If a pop-up message about data collection regulations appears, read and
agree to it.
4 Select an AP.
Wi-Fi Setting
Refresh
Samsung 1
Samsung 2
Samsung 3
Samsung 4
Back
Description
Ad hoc AP
Manual
• Select Refresh to refresh the list of connectable APs.
• Select Add wireless network to add an AP manually. The AP name must be
in English to add the AP manually.
Wireless network 93
Connecting to a WLAN and configuring network settings
Using the login browser
Setting network options
1 In the Wi-Fi Setting screen, move to an AP, and then press [t].
2 Select each option, and then enter the required information.
Option
Network Password
IP Setting
You can enter your login information via the login browser when connecting to
some APs, sharing sites, or cloud servers.
Button
Description
[D/c/F/t]
Enter the network password.
Set the IP address automatically or manually.
[o]
[m]
Manually setting the IP address
1 In the Wi-Fi Setting screen, move to an AP, and then press [t].
2 Select IP Setting → Manual.
3 Select each option, and then enter the required information.
Option
IP
Description
Enter the static IP address.
Subnet Mask
Enter the subnet mask.
Enter the gateway.
Enter the DNS address.
Gateway
DNS Server
[r]
Description
Move to an item or scroll the page.
Select an item.
Access the following options:
• Previous Page: Move to the previous page.
• Next Page: Move to the next page.
• Reload: Reload the page.
• Stop: Stop loading the page.
• Exit: Close the login browser.
Close the login browser.
• You may not be able to select some items depending on the page you
connected to. This does not indicate a malfunction.
• The login browser may not close automatically after you log into some pages. If
this occurs, close the login browser by pressing [r], and then proceed with the
desired operation.
• It may take longer to load the login page due to the page size or network speed.
If this occurs, wait until the login information input window appears.
Wireless network 94
Connecting to a WLAN and configuring network settings
Network connection tips
• Some Wi-Fi features are not available if you do not insert a memory card.
• The quality of the network connection will be determined by the AP.
• The further the distance between your camera and the AP, the longer it will take
to connect to the network.
• If a nearby device is using the same radio frequency signal as your camera, it may
interrupt your connection.
• If your AP name is not in English, the camera may not be able to locate the device
or the name may appear incorrectly.
• For network settings or a password, contact your network administrator or
network service provider.
• If a WLAN requires authentication from the service provider, you may not be able
to connect to it. To connect to the WLAN, contact your network service provider.
• Depending on the encryption type, the number of digits in the password may
differ.
• A WLAN connection may not be possible in all surroundings.
• The camera may display a WLAN enabled printer on the AP List. You cannot
connect to a network via a printer.
• You cannot connect your camera to a network and a TV simultaneously.
• Connecting to a network may incur additional charges. Costs will vary based on
• If you cannot connect to a WLAN, try another AP from the available AP list.
• A login page may appear when you select free WLANs provided by some
network service providers. Enter your ID and password to connect to the WLAN.
For information about registering or the service, contact the network service
providers.
• Be cautious when you enter personal information for an AP connection. Do not
enter any payment or credit card information on your camera. The manufacturer
is not liable for any problem caused by entering such information.
• Available network connections may differ by country.
• The WLAN feature of your camera must comply with radio transmission laws in
your region. To ensure compliance, use the WLAN feature only in the country
where you purchased the camera.
• The process for adjusting network settings may differ, depending on network
conditions.
• Do not access a network that you are not authorized to use.
• Before you connect to a network, ensure your battery is fully charged.
• You cannot upload or send files captured in some modes.
• Files that you transfer to another device may not be supported by the device. In
this case, use a computer to playback the files.
the conditions of your contract.
Wireless network 95
Connecting to a WLAN and configuring network settings
Entering text
Icon
Description
Learn how to enter text. The icons in the table below let you move the cursor,
change the case, etc. Press [D/c/F/t] to move to a desired key, and then
press [o] to enter the key.
Delete the last letter.
Move the cursor.
In ABC mode, change the case.
Enter ".com".
Switch between Symbol mode and ABC mode.
Enter a space.
Done
View the entering text guide.
Done
Cancel
Save the displayed text.
Backspace
• You can use only the English alphabets in some modes, regardless of the display
language.
• To move to Done directly, press [P].
• You can enter up to 64 characters.
• The screen may differ depending on the input mode.
Wireless network 96
Using the NFC Feature (Tag & Go)
Place a smart phone's NFC tag near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a
remote shutter. You can also transfer files to an NFC-enabled device in Playback mode.
• This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices.
• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps or the Google Play Store.
Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds.
• Do not modify the tag information in any way.
Using NFC features in Shooting mode
Using NFC features in Wi-Fi mode
Launch AutoShare or Remote Viewfinder by reading a tag from an NFC-enabled
device. (p. 98, 100) Preset to launch the Wi-Fi function by reading a tag on an NFCenabled device. (p. 114)
Select MobileLink or Remote Viewfinder from the pop-up window that appears by
reading a tag from an NFC-enabled device. (p. 99, 100)
Using NFC features in Playback mode (Photo Beam)
In Playback mode, the camera transfers the current file to the smart phone
automatically when you read a tag from an NFC-enabled device.
• To transfer multiple files, read a tag from an NFC-enabled device in the thumbnail
view, and then select files.
Wireless network 97
Saving files to a smart phone automatically
The camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone
automatically.
• The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• This feature is not available with the internal memory in some Shooting modes.
• If you set this function, the setting is maintained even when you change the Shooting mode.
• This feature may not be supported in some modes.
1 On the camera, in Shooting mode, press [m].
2 On the camera, select AutoShare → On.
5 On the camera, allow the smart phone to connect to your camera.
• If the smart phone has been connected to your camera before, it is connected
automatically.
• If the pop-up message that prompts you to download the application
• An icon that shows the connection status (
appears, select Next.
3 On the smart phone, turn on the Samsung SMART CAMERA App.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
screen.
6 On the camera, capture a photo.
) will appear on the camera’s
• The captured photo is saved to the camera, and then transferred to the smart
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
4 Select the camera from the list and connect the smart phone to the
camera.
• The smart phone can connect to only one camera at a time.
Wireless network 98
phone.
Sending photos or videos to a smart phone
The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.
• The MobileLink feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update
the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• When there are no files in the camera memory, you cannot use this feature.
• If you select files from the smart phone, you can view up to 1,000 recent files and send up to 1,000 files at a time. If you select files from the camera, you can view files that were
selected from the camera and the maximum number of files you can send varies depending on the storage space of the smart phone.
• When using this feature on an iOS device, the device may lose its Wi-Fi connection.
1 On the camera, rotate the mode dial to
2 On the camera, select .
5 Select the camera from the list and connect the smart phone to the
.
camera.
• The smart phone can connect to only one camera at a time.
• If the pop-up message that prompts you to download the application
6 On the camera, allow the smart phone to connect to your camera.
appears, select Next.
• If the smart phone has been connected to your camera before, it is connected
3 On the camera, select a sending option.
• If you select Select Files from Smartphone, you can use your smart phone
to view and share files stored on the camera.
• If you select Select Files from Camera, you can select files to send on the
camera.
4 On the smart phone, turn on the Samsung SMART CAMERA App.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
automatically.
• The application on the smart phone can be closed if no operations are
performed on the camera for 30 seconds.
7 On the smart phone or camera, select files to transfer from the
camera.
8 On the smart phone, touch the copy button or on the camera, select
Send.
• The camera will send the files.
The camera screen turns off if you perform no operations on the camera for
30 seconds.
Wireless network 99
Using a smart phone as a remote shutter release
The camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder feature. The captured photo will display on the
smart phone.
• The Remote Viewfinder feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature,
update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store,
or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
1 On the camera, rotate the mode dial to
2 On the camera, select .
5 On the camera, allow the smart phone to connect to your camera.
.
• If the smart phone has been connected to your camera before, it is connected
automatically.
• If the pop-up message that prompts you to download the application
6 On the smart phone, set the following shooting options.
appears, select Next.
3 On the smart phone, turn on the Samsung SMART CAMERA App.
• For iOS devices, turn on the Wi-Fi feature before turning on the application.
• To start the application automatically on an NFC-enabled smart phone, turn
on the function and place the smart phone near the NFC tag (p. 21) on the
camera.
• While using this feature, some buttons are not available on your camera.
• With the smart phone, you can operate the camera only by touching the
screen.
• Remote Viewfinder mode supports the 10M or 3M photo sizes only.
4 Select the camera from the list and connect the smart phone to the
camera.
• The smart phone can connect to only one camera at a time.
Wireless network 100
Using a smart phone as a remote shutter release
7 On the smart phone, touch and hold
• The focus is automatically set to Multi AF.
8 Release
to focus.
to capture the photo.
• The photo will be resized to 1024 X 768 when it is stored to the smart phone.
• When you use this feature, the ideal distance between the camera and the smart
phone may vary, depending on your surroundings.
• The smart phone must be within 23 feet (7 m) when you use this feature.
• It will take some time to capture the photo after you release on the smart
phone.
• The Remote Viewfinder function will deactivate when:
-- either the camera or the smart phone turn off
-- either device loses its connection to the WLAN
-- the Wi-Fi connection is poor or unstable
-- you perform no operations for approximately 3 minutes while connected
• The camera screen turns off if you perform no operations on the camera for
30 seconds.
Wireless network 101
Sending photos or videos via email
You can change settings in the email menu and send photos or videos stored on the camera via email.
Changing email settings
In the email menu, you can change settings for storing your information. You can
also set or change the email password. For information about entering text, refer to
"Entering text". (p. 96)
6 Select the Name box, enter your name, and then select Done.
Sender Setting
Name
Storing your information
1 Rotate the mode dial to
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [m].
5 Select Sender Setting.
Email
.
Save
Reset
Back
7 Select the Email box, enter your email address, and then select
Done.
8 Select Save to save your changes.
• To delete your information, select Reset.
Wireless network 102
Sending photos or videos via email
Setting an email password
Changing the email password
.
1 Rotate the mode dial to
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [m].
5 Select Setting Password → On.
.
1 Rotate the mode dial to
2 Select .
3 Connect to a WLAN. (p. 93)
4 Press [m].
5 Select Change Password.
6 Enter your current 4-digit password.
7 Enter a new 4-digit password.
8 Enter the new password again.
9 When the pop-up appears, select OK.
• To deactivate the password, select Off.
6 When the pop-up appears, select OK.
7 Enter a 4-digit password.
8 Enter the password again.
9 When the pop-up appears, select OK.
If you forget your password, you can reset it by selecting Reset on the password
setting screen. When you reset the information the previously saved user’s setting
information, email address, and recently sent email list will be deleted.
Wireless network 103
Sending photos or videos via email
Sending photos or videos via email
You can send photos or videos stored on the camera via email. For information
about entering text, refer to "Entering text". (p. 96)
.
1 Rotate the mode dial to
2 Select .
3 Connect to a WLAN. (p. 93)
4 Select the Sender box, enter your email address, and then select
7 Scroll to files to send, and then press [o].
• You can select up to 20 files. The total size must be 7 MB or less.
8 Select Next.
9 Select the comment box, enter your comments, and then select
Done.
10 Select Send.
• The camera will send the email.
Done.
• Even if a photo appears to have transferred successfully, errors with the
• If you have previously saved your information, it will be inserted
automatically. (p. 102)
• To use an address from the list of previous senders, select
→ an address.
5 Select the Receiver box, enter an email address, and then select
Done.
• To use an address from the list of previous recipients, select → an address.
• Select to add additional recipients. You can input up to 30 recipients.
• Select to delete an address from the list.
6 Select Next.
Wireless network 104
recipient’s email account may cause the photo to be rejected or recognized as
spam.
• You may not be able to send an email if no network connection is available or if
your email account settings are incorrect.
• You cannot send an email if the combined file sizes exceed the 7MB. The
maximum resolution of photos you can send is 2M. The maximum resolution of
videos you can send is . If the selected photo has a resolution higher than 2M,
it will be automatically resized to a lower resolution.
• If you cannot send an email because of firewall or user authentication settings,
contact your network administrator or network service provider.
• When there are no files in the camera memory, you cannot use this feature.
• You can also send an email in Playback mode by pressing [m], and then
selecting Share(Wi-Fi) → Email.
Using photo or video sharing services
Upload your photos or videos to file sharing services. Available sharing services will be displayed on your camera. To upload files to some sharing services, you must visit the
services and register before connecting your camera.
Accessing a sharing service
1 Rotate the mode dial to
2 Select .
3 Select a sharing service.
Uploading photos or videos
1 Access the sharing service with your camera.
2 Select files to upload.
.
• You can select up to 20 files. The total size must be 10 MB or less.
• If the pop-up message that prompts you to create an account appears, select
OK.
(On some sharing services, the total size or number of files may vary.)
3 Select Upload.
• The camera will upload photos or videos.
• On some sharing services, you can enter your comments by selecting the
4 Connect to a WLAN. (p. 93)
5 Enter your ID and password to log in.
• For information about entering text, refer to "Entering text". (p. 96)
• To select an ID from the list, select → an ID.
• If you have previously logged in to the sharing service, you may be logged in
automatically.
You must have an existing account on the file sharing services to use this feature.
Wireless network 105
comment box. For information about entering text, refer to "Entering text".
(p. 96)
Using photo or video sharing services
• You can set an upload folder for Facebook by pressing [m], and then selecting Upload Folder (Facebook) on the sharing service's list screen.
• You cannot upload files if the file size exceeds the limit. The maximum resolution of photos you can upload is 2M. The maximum resolution of videos you can upload is
. If the
selected photo has a resolution higher than 2M, it will be automatically resized to a lower resolution. (On some sharing services, the maximum photo resolution may vary.)
• The method of uploading photos or videos may differ depending on the selected sharing service.
• If you cannot access a sharing service because of firewall or user authentication settings, contact your network administrator or network service provider.
• Uploaded photos or videos may be automatically titled with the date they were captured.
• The speed of your internet connection may affect how quickly photos upload or web pages open.
• When there are no files in the camera memory, you cannot use this feature.
• You can also upload photos or videos to file sharing services in Playback mode by pressing [m], and then selecting Share(Wi-Fi) → a sharing service.
• You cannot upload videos to some sharing services.
Wireless network 106
Using Samsung Link to send files
You can view files on a Samsung Link device connected to the same AP.
Viewing photos or videos on devices that support Samsung
Link
1
2 Select
Rotate the mode dial to
6 On the Samsung Link device, browse the shared photos or videos.
• For information about searching for the camera and browsing the photos or
videos on the Samsung Link device, refer to the device's user manual.
• Videos may not play smoothly depending on the type of Samsung Link
.
device or the network condition. If this happens, re-record the video in
(640 X 480) or smaller quality and play it again. If videos do not play
smoothly on your device over the wireless connection, try connecting the
camera to the device with an A/V cable.
→ Nearby devices.
• If the guide message appears, select OK.
• The camera will automatically attempt to connect to a WLAN via the most
recently connected AP device.
• If the camera has not previously been connected to a WLAN, it will search for
available AP devices. (p. 93)
• You can set to allow only selected devices or all devices to connect by
pressing [m], and then selecting DLNA Access Control on the screen.
• A sharing file list is created. Wait until other devices can find your camera.
3 Connect the Samsung Link device to a network, and then turn on
AP
the Samsung Link feature.
• Refer to your device's user manual for more information.
4 On the camera, allow the Samsung Link device to connect to your
camera.
5 On the Samsung Link device, select a camera to connect to.
 The camera is connected to a TV that supports Samsung Link via WLAN.
Wireless network 107
Using Samsung Link to send files
• You can share up to 1,000 recent files.
• On a Samsung Link device, you can view only photos or videos captured with your camera.
• The range of the wireless connection between your camera and a Samsung Link device may vary depending on the specifications of the AP.
• If the camera is connected to 2 Samsung Link devices, playback may be slower.
• Photos or videos will be shared in their original sizes.
• You can use this feature only with devices that support Samsung Link.
• Shared photos or videos will not be stored on the Samsung Link device, but they can be stored in the camera to meet the device's specifications.
• Transferring photos or videos to the Samsung Link device may take some time depending on the network connection, the number of files to be shared, or the sizes of the files.
• If you power off the camera abnormally while viewing photos or videos on a Samsung Link device (for example, by removing the battery), the device considers the camera to still be
connected.
• The order of photos or videos on the camera may be different than on the Samsung Link device.
• Depending on the number of photos or videos you want to share, it may take some time to load your photos or videos and complete the initial set-up process.
• While viewing photos or videos on the Samsung Link device, continuously using the device's remote or performing additional operations on the device may prevent this feature from
working properly.
• If you reorder or sort files on the camera while viewing them on a Samsung Link device, you must repeat the initial set-up process to update the list of files on the device.
• When there are no files in the camera memory, you cannot use this feature.
• We recommend you use a network cable to connect your Samsung Link device to your AP. This will minimize any video ‘Stuttering’ you may experience when streaming content.
• To view files on a Samsung Link device using the Nearby devices feature, enable multicast mode on your AP.
Wireless network 108
Settings
Refer to options to configure your camera’s settings.
Settings menu ………………………………………… 110
Accessing the settings menu ……………………… 110
Sound ………………………………………………… 111
Display ……………………………………………… 111
Connectivity ………………………………………… 112
General ……………………………………………… 113
Settings menu
Learn to configure your camera's settings.
Accessing the settings menu
1 Rotate the mode dial to
2 Select a menu.
3 Select an item.
.
Sound
On
Beep Sound
Settings
Sound 1
Shutter Sound
Sound
Off
Start Sound
Display
On
AF Sound
Connectivity
General
Medium
Volume
Back
Select
4 Select an option.
Volume
Icon
Description
Off
Sound: Set various camera sounds and the volume. (p. 111)
Low
Display: Customize the display settings. (p. 111)
Medium
High
Connectivity: Set the connection options. (p. 112)
General: Change the settings for the camera system such as
memory format and default file name. (p. 113)
Back
Set
5 Press [r] to return to the previous screen.
Settings 110
Settings menu
Sound
Display
* Default
Item
Volume
Description
Set the volume of all sounds. (Off, Low, Medium*, High)
Set the sound the camera emits when you press the buttons or
switch modes. (Off, On*)
Set the sound the camera emits when you press the shutter
Shutter Sound
button. (Off, Sound 1*, Sound 2, Sound 3)
Set the sound the camera emits when you turn on your camera.
Start Sound
(Off*, Star Flight, Laser Show, Cloud)
Set the sound the camera emits when you half-press the shutter
AF Sound
button. (Off, On*)
* Default
Item
Beep Sound
Start Image
Description
Set a start image to display when the camera turns on.
• Off*: Display no start image.
• Logo: Display a default image stored in the internal memory.
• User Image : Select User Image from the photos you captured
in the memory.
• The camera will save only one User Image in the internal
memory at a time.
• If you select a new photo as a User Image or reset your
camera, the camera will delete the current image.
Guide Line
Date/Time
Display
Help Display
Settings 111
Select a guide to help you compose a scene.
(Off*, 3 X 3, 2 X 2, Cross, Diagonal)
Set whether or not to display the date and time on the camera's
display. (Off*, On)
Display a brief description of an option or menu. (Off, On*)
Settings menu
Connectivity
* Default
* Default
Item
Display
Brightness
Quick View
Auto Display
Off
Description
Item
Adjust the brightness of the screen. (Auto*, Dark, Normal,
Bright)
Normal is fixed in Playback mode even if you have selected
Auto.
Video Out
Set whether or not to review a captured image before returning
to the Shooting mode. (Off, On*)
This feature does not work in some modes.
i-Launcher
If you perform no operations for 30 seconds, the camera
automatically switches to Auto Display Off mode. (Off*, On)
In Auto Display Off mode, press any button other than [X] to
resume using the camera.
Settings 112
Description
Set the video signal output for your region.
• NTSC: USA, Canada, Japan, Korea, Taiwan, Mexico, etc
• PAL (supports only BDGHI): Australia, Austria, Belgium, China,
Denmark, England, Finland, France, Germany, Italy, Kuwait,
Malaysia, Netherlands, New Zealand, Norway, Singapore, Spain,
Sweden, Switzerland, Thailand, etc
Set i-Launcher to launch automatically when you connect your
camera to your computer. (Off, On*)
Settings menu
General
* Default
Item
Network Information
Language
Time Zone
Date/Time Set
Date Type
Description
View the Mac address and network certification number
of your camera.
Set a language for the display text.
Set the time zone for your location. When you travel
to another country, select Visit, and then select the
appropriate time zone. (Home*, Visit)
Set the date and time.
Set a date format. (YYYY/MM/DD, MM/DD/YYYY,
DD/MM/YYYY)
* Default
Item
Specify how to name files.
• Reset: Set the file number to start from 0001 when you
insert a new memory card, format a memory card, or
delete all files.
• Series*: Set the file number to resume from the
previous file number when you insert a new memory
card, format a memory card, or delete all files.
• The default name of the first folder is 100PHOTO and
File No.
the default name of the first file is SAM_0001.
• The file number increases by one, from SAM_0001 to
SAM_9999, each time you take a picture.
The default date type may differ depending on the
language selected.
• The folder number increases by one, from 100PHOTO
to 999PHOTO, each time a folder is full.
Set the time format. (12 Hr, 24 Hr)
Time Type
Description
• The maximum number of files that can be stored in
The default time type may differ depending on the
language selected.
one folder is 9,999.
• The camera defines file names according to the Design
rule for Camera File system (DCF) standard. If you
intentionally change file names, the camera may not
play back the files.
Settings 113
Settings menu
* Default
Item
* Default
Description
Item
Set whether or not to display the date and time on
captured photos. (Off*, Date, Date & Time)
Live view NFC
• The date and time will be displayed on the bottom
Imprint
right corner of the photo.
• Some printer models may not print the date and time
AF Lamp
properly.
• The photo will not display the date and time if:
-- you select mode
Format
Set the camera to turn off automatically when you
perform no operations for a specified period.
(Off, 1 min, 3 min*, 5 min, 10 min)
Auto Power Off
• Your settings will not change when you replace the
battery.
• The camera will not turn off automatically when the
DIRECT LINK (Wi-Fi
Button)
Set a Wi-Fi function to launch by reading a tag from an
NFC-enabled device in Shooting mode.
(AutoShare, Remote Viewfinder*)
Set a light to turn off automatically in dark places to help
you focus. (Off, On*)
Format the memory. Formatting will delete all files,
including protected files. (Yes, No*)
Errors can occur if you use a memory card formatted by
another brand of camera, a memory card reader, or a
computer. Please format memory cards in the camera
before using them to capture photos.
Reset menus and shooting options. Date and time,
language, and video output settings will not be reset.
(Yes, No*)
Open Source Licenses Show the Open source licenses information.
Reset
camera is connected to a computer or WLAN or when
you are playing a slide show or videos.
Description
Start a preset Wi-Fi function by pressing [DIRECT LINK].
(AutoShare, MobileLink*, Remote Viewfinder, Email,
SNS & Cloud, Samsung Link)
Settings 114
Appendixes
Get information about error messages, specifications, and maintenance.
Error messages ………………………………………… 116
Camera maintenance ………………………………… 117
Cleaning your camera ……………………………… 117
Using or storing the camera ………………………… 118
About memory cards ………………………………… 120
About the battery …………………………………… 123
Upgrading Firmware ………………………………… 127
Before contacting a service center …………………
Camera specifications …………………………………
Glossary ………………………………………………
Index ……………………………………………………
128
131
135
142
Error messages
When the following error messages appear, try these remedies.
Error message
Suggested remedies
Cannot read file content Delete the damaged file or contact a service center.
Card Error
• Turn off your camera, and then turn it on again.
• Remove your memory card, and then insert it again.
• Format your memory card.
You can lock an SD, SDHC, or SDXC card to prevent files
from being deleted. Unlock the card when shooting.
Card Locked
Card not supported.
The inserted memory card is not supported by your
camera. Insert a SD, SDHC, or SDXC memory card.
• The camera cannot connect to the network using the
Error message
Suggested remedies
File system not
supported.
Your camera does not support the FAT file structure of
the inserted memory card. Format the memory card on
the camera.
Initialization failed.
The camera has failed to locate a device that supports
Samsung Link. Turn on devices on the network that
support Samsung Link.
Low Battery
Insert a charged battery or recharge the battery.
Memory Full
Delete unnecessary files or insert a new memory card.
No Image File
Capture photos or insert a memory card that contains
some photos.
Password Incorrect
The password for transferring files to another camera is
wrong. Enter the correct password.
selected access point. Select another AP and try again.
• The camera has failed to connect to the other devices.
Try connecting again.
Transfer failed.
Device disconnected.
Network connection disconnected while photos are
being transferred to supported devices. Re-select a
supported device.
DCF Full Error
File Error
Delete the damaged file or contact a service center.
Connection failed.
Appendixes 116
• The camera has failed to send e-mails or files to the
other devices. Try sending again.
• Check the network connection and try again.
File names do not match the DCF standard. Transfer
the files from the memory card to your computer and
format the card. Then, open the Settings menu and
select General → File No. → Reset. (p. 113)
Camera maintenance
Cleaning your camera
Camera body
Wipe gently with a soft, dry cloth.
Camera lens and display
Use a blower brush to remove dust and wipe the lens gently with a soft cloth. If any
dust remains, apply lens cleaning liquid to a piece of lens cleaning paper and wipe
gently.
• Never use benzene, thinners, or alcohol to clean the device. These solutions can
damage the camera or cause it to malfunction.
• Do not press on the lens cover or use a blower brush on the lens cover.
Appendixes 117
Camera maintenance
Using or storing the camera
Storing for extended period of time
• When you store the camera for an extended period, place it in a sealed container
with an absorbent material, such as silica gel.
Inappropriate places to use or store the camera
• Avoid exposing the camera to very cold or very hot temperatures.
• Avoid using your camera in areas with extremely high humidity, or where the
• Over time, unused batteries will discharge and must be recharged before use.
• The present date and time can be initialized when the camera is turned on after
the camera and battery have been separated for a prolonged period.
humidity changes drastically.
• Avoid exposing the camera to direct sunlight and storing it in hot, poorlyventilated areas, such as in a car during summer time.
• Protect your camera and the display from impact, rough handling, and excessive
vibration to avoid serious damage.
• Avoid using or storing your camera in dusty, dirty, humid, or poorly-ventilated
areas to prevent damage to moving parts and internal components.
• Do not use your camera near fuels, combustibles, or flammable chemicals. Do
not store or carry flammable liquids, gases, or explosive materials in the same
compartment as the camera or its accessories.
• Do not store the camera where there are mothballs.
Using the camera with caution in humid environments
When you transfer the camera from a cold environment to a warm one,
condensation can form on the lens or internal components of the camera. In this
situation, turn off the camera and wait for at least 1 hour. If condensation forms
on the memory card, remove the memory card from the camera and wait until all
moisture has evaporated before reinserting it.
Other cautions
• Do not swing your camera by the strap. This may cause injury to yourself or others
Using on beaches or shores
• Protect your camera from sand and dirt when you use it on beaches or in similar
areas.
• Your camera is not waterproof. Do not handle the battery, adapter, or memory
card with wet hands. Operating the camera with wet hands may cause damage to
your camera.
or damage to your camera.
• Do not paint your camera, as paint can clog moving parts and prevent proper
operation.
• Turn off the camera when not using it.
• Your camera contains delicate parts. Avoid impacts to the camera.
Appendixes 118
Camera maintenance
• Protect the display from external force by keeping it in the case when not in
use. Protect the camera from scratches by keeping it away from sand, sharp
implements, or loose change.
• Do not use the camera if the screen is cracked or broken. Broken glass or acrylic
could cause injury to your hands and face. Take the camera to a Samsung service
center to have it repaired.
• Never place cameras, batteries, chargers, or accessories near, on, or in heating
devices, such as microwave ovens, stoves, or radiators. Heat can deform or
overheat these devices, which can cause a fire or explosion.
• Do not expose the lens to direct sunlight, as this may discolor the image sensor or
cause it to malfunction.
• Protect the lens from fingerprints and scratches. Clean the lens with a soft, clean,
debris-free lens cloth.
• The camera may turn off if struck or dropped. This is to protect the memory card.
Turn on the camera to use it again.
• While you use the camera, it may heat up. This is normal and should not affect
your camera’s lifespan or performance.
• When you use the camera in low temperatures, it may take some time to turn on,
the color of the display may be changed temporarily, or after-images may appear.
These conditions are not malfunctions and they will correct themselves when the
camera is returned to milder temperatures.
• Paint or metal on the outside of the camera may cause allergies, itchy skin,
eczema, or swelling for people with sensitive skin. If you experience any of these
symptoms, stop using the camera immediately and consult a doctor.
• Do not insert foreign objects into any of your camera’s compartments, slots, or
access points. Damage due to improper use may not be covered by your warranty.
• Do not allow unqualified personnel to service the camera or attempt to service
the camera yourself. Any damage that results from unqualified service is not
covered by your warranty.
Appendixes 119
Camera maintenance
About memory cards
Memory card adapter
Supported memory cards
This product supports SD (Secure Digital), SDHC (Secure Digital High Capacity),
SDXC (Secure Digital eXtended Capacity), microSD, microSDHC, or microSDXC
memory cards.
Memory card
Terminal
To use micro memory cards with this product, a PC, or a memory card reader, insert
the card into an adapter.
Write-protect switch
Label (front)
You can prevent files from being deleted by using the write protect switch on an SD,
SDHC, or SDXC card. Slide the switch down to lock or slide it up to unlock. Unlock
the card when capturing photos and videos.
Appendixes 120
Camera maintenance
Video
Memory card capacity
The memory capacity may differ depending on shooting scenes or shooting
conditions. These capacities are based on a 2 GB SD card:
Size
Size
30fps
1280 X 720
Approx. 15' 45"
640 X 480
Approx. 30' 45"
Super Fine
Fine
Normal
325
488
673
320 X 240
Approx. 90' 06"
264
525
697
For Sharing
Approx. 90' 06"
407
610
813
360
723
943
592
849
1,146
673
1139
1,463
957
1,619
1,928
1,382
2,263
2,740
2,645
3,147
3,682
The figures above are measured without using the zoom function. Available recording time
may vary if you use the zoom. Several videos were recorded in succession to determine the
total recording time.
Appendixes 121
Camera maintenance
Cautions when using memory cards
• Avoid exposing memory cards to very cold or very hot temperatures (below
• Prevent memory cards from making contact with liquids, dirt, or foreign
0 °C/32 °F or above 40 °C/104 °F). Extreme temperatures can cause memory cards
to malfunction.
• Insert a memory card in the correct direction. Inserting a memory card in the
wrong direction may damage your camera and memory card.
• Do not use memory cards that have been formatted by other cameras or by a
computer. Reformat the memory card with your camera.
• Turn off the camera before you insert or remove the memory card.
• Do not remove the memory card or turn off your camera while the lamp is
blinking, as this may damage your data.
• When the lifespan of a memory card has expired, you cannot store any more
photos on the card. Use a new memory card.
• Do not bend, drop, or subject memory cards to heavy impact or pressure.
• Avoid using or storing memory cards near strong magnetic fields.
• Avoid using or keeping memory cards in areas with high temperature, high
humidity, or corrosive substances.
substances. If dirty, wipe the memory card clean with a soft cloth before you
insert the memory card into your camera.
• Do not allow liquids, dirt, or foreign substances to come in contact with memory
cards or the memory card slot. Doing so may cause memory cards or the camera
to malfunction.
• When you carry a memory card, use a case to protect the card from electrostatic
discharges.
• Transfer important data to other media, such as a hard disk, CD, or DVD.
• When you use the camera for an extended period, the memory card may become
warm. This is normal and does not indicate a malfunction.
Appendixes 122
The manufacturer is not responsible for any loss of data.
Camera maintenance
About the battery
Battery life
Use only Samsung-approved batteries.
Average shooting time/
Number of photos
Battery specifications
Specification
Model
Description
SLB-10A
Type
Lithium-ion battery
1030 mAh
3.7 V
Cell capacity
Voltage
Charging time* (when the camera is
switched off)
Test conditions (when the battery is fully charged)
The battery life was measured under the following
conditions: in Program mode, in darkness,
resolution, Fine quality, OIS on.
Photos
Approximately
100 min/
Approximately
200 photos
Videos
Approximately
70 min
Approximately 240 min
* Charging the battery by connecting it to a computer may take longer.
1. Set the flash option to Fill in, take a single shot,
and zoom in or out.
2. Set the flash option to Off, take a single shot, and
zoom in or out.
3. Perform steps 1 and 2, waiting 30 seconds
between each step. Repeat the process for
5 minutes, and then turn off the camera for
1 minute.
4. Repeat steps 1 to 3.
Record videos at
resolution and 30 FPS.
• The figures above are based on the CIPA test standards. Your results may differ depending
on your actual usage.
• Several videos were recorded in succession to determine the total recording time.
• When using network functions, the battery will be depleted more quickly.
Appendixes 123
Camera maintenance
Low battery message
Cautions about using the battery
When the battery has fully discharged, the battery icon will turn red and the "Low
Battery" message will appear.
Notes about using the battery
• Avoid exposing batteries to very cold or very hot temperatures (below 0 °C/32 °F
or above 40 °C/104 °F). Extreme temperatures can reduce the charging capacity of
your batteries.
• When you use the camera for an extended period, the area around the battery
chamber may become warm. This does not affect the normal use of the camera.
• Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a fire or electric shock.
• In temperatures below 0 °C/32 °F, battery capacity and battery life may decrease.
• Battery capacity may decrease in low temperatures but will return to normal in
milder temperatures.
• Remove the batteries from your camera when storing it for an extended period.
Installed batteries may leak or corrode over time and cause serious damage
to your camera. Storing the camera for extended periods with the battery
installed causes the battery to discharge. You may not be able to recharge a fully
discharged battery.
• When you do not use the camera for an extended period (3 months or more),
check the battery and recharge it regularly. If you let the battery discharge
continually, its capacity and life may decrease, which can lead to a malfunction,
fire, or explosion.
Protect batteries, chargers, and memory cards from damage
Prevent batteries from making contact with metal objects, as this can create a
connection between the + and – terminals of your battery and lead to temporary or
permanent battery damage and may cause a fire or electric shock.
Notes about charging the battery
• If the status lamp is off, make sure that the battery is inserted correctly.
• If the camera is on while charging, the battery may not fully charge. Turn off the
camera before charging the battery.
• Do not use your camera when you are charging the battery. This may cause a fire
or electric shock.
• Do not pull the power supply cord to disconnect the plug from the power outlet,
as this may cause a fire or electric shock.
• Let the battery charge for at least 10 minutes before turning on the camera.
• If you connect the camera to an external power source when the battery is
depleted, using high energy-consuming functions will cause the camera to turn
off. To use the camera normally, recharge the battery.
Appendixes 124
Camera maintenance
• If you reconnect the power cable when the battery is fully charged, the status
lamp turns on for approximately 30 minutes.
• Using the flash or recording videos depletes the battery quickly. Charge the
battery until the red status lamp turns off.
• If the indicator light does not illuminate, reconnect the cable, or remove the
battery and insert it again.
• Overcharging batteries may shorten battery life. After charging is finished,
disconnect the cable from your camera.
• Do not bend or place heavy objects on the AC cable. Doing so may damage the
cable.
Handling and disposing of batteries and chargers with care
• Never dispose of batteries in a fire. Follow all local regulations when you dispose
of used batteries.
• Never place batteries or cameras on or in heating devices, such as microwave
ovens, stoves, or radiators. Batteries may explode when they are overheated.
Notes about charging with a computer connected
• Use only the provided USB cable.
• The battery may not charge when:
--you use a USB hub
--other USB devices are connected to your computer
--you connect the cable to the port on the front side of your computer
--the USB port of your computer does not support the power output standard
(5 V, 500 mA)
Appendixes 125
Camera maintenance
Personal injury or death can occur if the battery is handled carelessly
or improperly. For your safety, follow these instructions for proper
battery handling:
• The battery can ignite or explode if not handled properly.
If you notice any deformities, cracks, or other abnormalities in the battery,
immediately discontinue use of the battery and contact a service center.
• Use only authentic, manufacturer-recommend battery chargers and
adapters and charge the battery only by the methods described in this
user manual.
• Do not place the battery near heating devices or expose it to excessively
warm environments, such as the inside of an enclosed car in the
summertime.
• Do not place the battery in a microwave oven.
• Avoid storing or using the battery in hot, humid places, such as spas or
shower enclosures.
• Do not rest the device on flammable surfaces, such as bedding, carpets,
or electric blankets for a prolonged period.
• When the device is switched on, do not leave it in any confined space for
a prolonged period.
• Do not allow battery terminals to come in contact with metallic objects,
such as necklaces, coins, keys, or watches.
• Use only authentic, manufacturer-recommended, Lithium-ion
replacement batteries.
Appendixes 126
• Do not disassemble or puncture the battery with any sharp object.
• Avoid exposing the battery to high pressure or crushing forces.
• Avoid exposing the battery to major impacts, such as dropping it from
high places.
• Do not expose the battery to temperatures of 60 °C (140 °F) or above.
• Do not allow the battery to come in contact with moisture or liquids.
• Do not expose the battery to sources of excessive heat such as sunshine,
fire, or the like.
Disposal guidelines
• Dispose of the battery with care.
• Do not dispose of the battery in a fire.
• Disposal regulations may differ by country or region. Dispose of the
battery in accordance with all local and federal regulations.
Guidelines for charging the battery
Charge the battery only by the method described in this user manual.
The battery can ignite or explode if not charged properly.
Camera maintenance
6 Install i-Launcher on the PC.
Upgrading Firmware
i-Launcher allows you to upgrade the firmware of your camera.
OS
1 Rotate the mode dial to .
2 Select Connectivity → i-Launcher → On.
3 Turn off the camera.
4 Connect the camera to your computer with the USB cable.
Windows
You must plug the small end of the USB cable into your camera. If the cable is
reversed, it may damage your files. The manufacturer is not responsible for any
loss of data.
Mac
How to install
When the pop-up window prompting you to install i-Launcher
appears, select Yes.
• If a pop-up window prompting you to run iLinker.exe
appears, run it first.
• If the pop-up window prompting does not appear,
click My Computer → i-Launcher → iLinker.exe.
• When you connect the camera to a computer with i-Launcher
installed, the program will launch automatically.
Click Devices → i-Launcher → Mac → iLinker.
7 Upgrade the firmware to the latest version following the on-screen
instructions.
• Select Firmware Upgrader on the screen of i-Launcher.
• Before upgrading the firmware, ensure that the PC is connected to a network.
• Do not turn the camera off until the firmware upgrading is finished.
5 Turn on the camera.
Appendixes 127
Before contacting a service center
If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted the suggested remedy and are still
having problems with your device, contact your local dealer or service center.
When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.
Situation
Cannot turn on the
camera
The power turns off
suddenly
Suggested remedies
• Ensure that the battery is inserted.
• Ensure that the battery is inserted correctly. (p. 25)
• Charge the battery.
Situation
Suggested remedies
• There is no space on the memory card. Delete
unnecessary files or insert a new card.
• Charge the battery.
• Your camera may be in Auto Power Off mode. (p. 114)
• The camera may turn off to prevent the memory card
from being damaged due to an impact. Turn on your
camera again.
• The battery may lose power more quickly in low
temperatures (below 0 °C/32 °F). Keep the battery warm
by putting it into your pocket.
• Using the flash or recording videos depletes the battery
The camera is losing
battery power quickly
quickly. Recharge if needed.
• Batteries are consumable parts that must be replaced
over time. Get a new battery if the battery life is
diminishing quickly.
Cannot capture
photos
The camera freezes
The camera heats up
The flash does not
work
Appendixes 128
• Format the memory card.
• The memory card is defective. Get a new memory card.
• Make sure that the camera is switched on.
• Charge the battery.
• Make sure that the battery is inserted correctly.
Remove the battery and insert it again.
While you use the camera, it may heat up. This is
normal and should not affect your camera’s lifespan or
performance.
• The flash option may be set to Off. (p. 58)
• You cannot use the flash in some modes.
Before contacting a service center
Situation
Suggested remedies
Situation
The flash fires
unexpectedly
The flash may fire due to static electricity. The camera is
not malfunctioning.
If you change the name of a file, your camera may not
play the file (the name of the file should meet the DCF
Cannot play back files
standard). If you encounter this situation, play back the
files on your computer.
• Make sure that the focus option you set is suitable for
close-up shots. (p. 60)
• Make sure that the lens is clean. If not, clean the lens.
The photo is blurry
(p. 117)
• Make sure that the subject is within range of the flash.
(p. 132)
An incorrect White Balance can create unrealistic color.
The colors in the
photo do not match
Select the proper White Balance option to suit the light
the actual scene
source. (p. 69)
Your photo is overexposed or underexposed.
• Turn the flash off or on. (p. 58)
The photo is too
bright or dark
• Adjust the ISO sensitivity. (p. 59)
• Adjust the exposure value. (p. 67)
The date and time are
Set the date and time in the display settings. (p. 113)
incorrect
The display or
Remove the battery, and then insert it again.
buttons do not work
The camera display
responds poorly
The memory card has
an error
If you use your camera at very low temperatures, it may
cause the camera screen to malfunction or discolor. For
better performance of your camera screen, use your
camera in moderate temperatures.
• Turn off your camera, and then turn it on again.
• Remove your memory card, and then insert it again.
• Format your memory card.
See "Cautions when using memory cards" for more detail.
(p. 122)
Appendixes 129
Suggested remedies
Before contacting a service center
Situation
The TV does not
display your photos
Your computer does
not recognize your
camera
Your computer
disconnects the
camera while
transferring files
Suggested remedies
TV with the A/V cable.
Situation
Your TV or computer
cannot display photos
and videos that are
stored on a SDXC
memory card.
system.
Your computer does
not recognize a SDXC
memory card.
• Make sure that the camera is correctly connected to the
• Make sure that your memory card contains photos.
• Make sure that the USB cable is connected correctly.
• Make sure that your camera is switched on.
• Make sure that you are using a supported operating
The file transmission may be interrupted by static
electricity. Disconnect the USB cable and connect it again.
• End i-Launcher and restart the program.
• Make sure that i-Launcher is set to On in the settings
menu. (p. 112)
i-Launcher is not
functioning properly
• Depending on your computer's specifications
and environment, the program may not launch
automatically. In this case, click Start → All Programs
→ Samsung → i-Launcher → Samsung i-Launcher on
your computer. (For Windows 8, click Start → All apps
→ Samsung i-Launcher.)
Appendixes 130
Suggested remedies
SDXC memory cards use the exFAT file system. Ensure
that the external device is compatible with the exFAT file
system before connecting the camera to the device.
SDXC memory cards use the exFAT file system. To use
SDXC memory cards on a Windows XP computer,
download and update the exFAT file system driver from
the Microsoft website.
Camera specifications
Image sensor
Type
1/2.3" (Approximately 7.73 mm) CCD
Effective pixels
Approximately 16.20 mega-pixels
Total pixels
Approximately 16.50 mega-pixels
Normal (AF)
Range
Auto Macro
Lens
Focal length
Samsung Lens 35x Zoom Lens f = 4.5–157.5 mm
(35 mm film equivalent: 25–875 mm)
F-stop range
F3.0 (W)–F5.9 (T)
Digital zoom
• Still image mode: 1.0~35.0X(Optical)/1.0~2.0X(Digital)
• Playback mode: 1.0–14.4X (depending on image size)
• Intelli zoom: 2.0X
Macro
Super Macro
Wide (W)
Tele (T)
31 in. (80 cm)–
59 in. (150 cm)–infinity
infinity
4-31 in. (10-80 cm) 59-138 in. (150-350 cm)
0.4 in. (1 cm)–
59 in. (150 cm)–infinity
infinity
0.4 in. (1 cm)
–
Shutter speed
• Auto: 1/8–1/2,000 sec.
• Program: 1–1/2,000 sec.
• Night: 8–1/2,000 sec.
Exposure
Display
Control
Program AE
Type
TFT LCD
Metering
Multi, Spot, Center-weighted, Face Detection
Feature
3.0" (75.0 mm) 460K
Metering range
EV 1–17 (Wide, ISO Auto), EV 3–17 (Tele, ISO Auto)
Compensation
±2EV (1/3 EV Step)
ISO equivalent
Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800,
ISO 1600, ISO 3200 (3M)
Focusing
Type
TTL Auto Focus (Center AF, Multi AF, Selection AF, Tracking AF,
Face Detection AF)
Appendixes 131
Camera specifications
Flash
Shooting
Mode
Off, Auto, Red-eye, Fill in, Slow Sync, Red-eye Fix
Range
• Wide: 31-236 in. (0.8–6 m) (ISO Auto)
• Tele: 59-118 in. (1.5 –3 m) (ISO Auto)
Recharging time
Approximately 5 sec.
• Modes: Smart Auto (Portrait, Night Portrait, Night, Backlight
Photos
Shake reduction
Dual IS [OIS(Optical Image Stabilization) + DIS(Digital Image Stabilization)]
Effect
Photo Shooting
mode
Video Shooting
mode
• Photo Filter (Smart Filter): Miniature, Vignetting, Fish-eye,
Classic, Retro, Cross Filter
• Image Adjust: Sharpness, Contrast, Saturation
Videos
Movie Filter: Miniature, Vignetting, Fish-eye, Classic, Retro,
Palette Effect 1, Palette Effect 2, Palette Effect 3, Palette Effect 4
White Balance
Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten, Custom Set,
Color Temp.
Date Imprinting
Date & Time, Date, Off
Appendixes 132
Portrait, Backlight, Landscape, White, Macro, Macro Text,
Tripod, Action, Macro Color, Natural Green, Blue Sky, Sunset,
Low Light, Spot Light, Spot Light Macro, Spot Light Portrait),
Program, Smart (Beauty Face, Action Freeze, Sunset,
Landscape, Silhouette, Fireworks, Night, Macro, Light Trace),
Panorama, Magic Plus (Photo Filter)
• Burst: S ingle, Continuous, AEB, Motion Capture
• Timer: Off, 10 Sec, 2 Sec, Double
• Modes: Movie, Magic Plus (Movie Filter)
• Format: MP4 (H.264) (Max recording time: 20 min)
• Size: 1280 X 720, 640 X 480, 320 X 240, 240 Web
• Frame Rate : 30fps
• Voice: On, Off, Zoom Mute
Camera specifications
Playback
Icon
• Type: Single image, Thumbnails, Multi Slide Show with Music
and Effect, Movie clip
Photos
4608 X 3072
• Edit: Resize, Rotate, Smart Filter, Crop
• Effect: Image Adjust (Brightness, Contrast, Saturation, ACB,
4608 X 2592
Face Retouch, Red-eye Fix), Smart Filter (Normal, Miniature,
Vignetting, Fish-eye, Classic, Retro, Cross Filter)
Videos
3648 X 2736
Image size
Video editing: Still image capture, Time trimming
Storage
File format
1984 X 1488
SD card (2 GB guaranteed),
SDHC card (up to 32 GB guaranteed),
SDXC card (up to 64 GB guaranteed)
--Class 6 and above recommended
Internal memory capacity may not match these specifications.
• Still Image: JPEG (DCF), EXIF 2.3
• Movie Clip: MP4 (Video: MPEG4, AVC/H.264, Audio: AAC)
2832 X 2832
2592 X 1944
• Internal memory: Approximately 21MB
• External memory (Optional):
Media
Size
4608 X 3456
1920 X 1080
1024 X 768
Wireless network
MobileLink, Remote Viewfinder, SNS & Cloud, Email, S/W Upgrade Notifier,
Samsung Link, AutoShare
NFC
Yes
Appendixes 133
Camera specifications
Interface
Dimensions (W X H X D)
Digital output
connector
USB 2.0
Audio input/
output
Internal speaker (Mono), Microphone (Mono)
Video output
A/V: NTSC, PAL (selectable)
DC power input
connector
5.0 V
4.9 X 3.4 X 3.6 in. (124.5 X 86.5 X 92.0 mm) (without protrusions)
Weight
16.4 oz. (464 g) (without battery and memory card)
Operating Temperature
0–40 °C (32–104 °F)
Operating Humidity
5–85 %
Power source
Software
Rechargeable
battery
Lithium-ion battery (SLB-10A, 1030 mAh)
Connector type
Micro USB (5 pin)
i-Launcher
Specifications may change without notice to improve performance.
The power source may differ depending on your region.
Appendixes 134
Glossary
ACB (Auto Contrast Balance)
This feature automatically improves the contrast of your images when the subject is
backlit or when there is a high contrast between your subject and the background.
Composition
Composition in photography means arranging objects in a photo. Usually, abiding
by the rule of thirds leads to a good composition.
AEB (Auto Exposure Bracket)
This feature automatically captures several images at different exposures to help
you capture a properly-exposed image.
DCF (Design rule for Camera File system)
A specification to define a file format and file system for digital cameras created by
the Japan Electronics and Information Technology Industries Association (JEITA).
AF (Auto Focus)
A system that automatically focuses the camera lens on the subject. Your camera
uses the contrast to focus automatically.
Depth of field
The distance between the nearest and farthest points that can be acceptably
focused in a photograph. Depth of field varies with lens aperture, focal length, and
distance from the camera to the subject. For example, using a smaller f-number will
increase the size of the aperture. This will create a large depth of field and blur the
background in the composition.
Aperture
The aperture controls the amount of light that reaches the camera’s sensor.
Camera shake (Blur)
If the camera is moved while the shutter is open, the entire image may appear
blurred. This occurs more often when the shutter speed is slow. Prevent camera
shake by raising the sensitivity, using the flash, or using a faster shutter speed.
Alternately, use a tripod, the DIS or OIS function to stabilize the camera.
Digital zoom
A feature that artificially increases the amount of zoom available with a zoom lens
(Optical zoom). When using the Digital zoom, the image quality will deteriorate as
the magnification increases.
Appendixes 135
Glossary
Exposure
The amount of light allowed to reach the camera’s sensor. Exposure is controlled by
a combination of the shutter speed, the aperture value, and ISO sensitivity.
DIS (Digital Image Stabilization)
This feature compensates in real-time for shaking and vibrating while shooting.
There can be a certain amount of image degradation compare to Optical Image
Stabilization.
EV (Exposure Value)
All the combinations of the camera’s shutter speed and lens aperture that result in
the same exposure.
EV Compensation
This feature allows you to quickly adjust the exposure value measured by the
camera, in limited increments, to improve the exposure of your photos. Set the EV
compensation to -1.0 EV to adjust the value one step darker and 1.0 EV to one step
brighter.
Exif (Exchangeable Image File Format)
A specification to define an image file format for digital cameras created by the
Japan Electronic Industries Development Association (JEIDA).
Flash
A speed light that helps to create adequate exposure in low-light conditions.
Focal length
The distance from the middle of the lens to its focal point (in millimeters). Longer
focal lengths result in narrower angles of view and the subject is magnified. Shorter
focal lengths result in wider angles of view.
Histogram
A graphical representation of the brightness of an image. The horizontal axis
represents the brightness and the vertical axis represents the number of pixels. High
points at the left (too dark) and right (too bright) on the histogram indicate a photo
that is improperly exposed.
H.264/MPEG-4
A high-compression video format established by international standard
organizations ISO-IEC and ITU-T and developed by the Joint Video Team (JVT). This
codec is capable of providing good video quality at low bit rates.
Appendixes 136
Glossary
Image sensor
The physical part of a digital camera that contains a photosite for each pixel in
the image. Each photosite records the brightness of the light that strikes it during
an exposure. Common sensor types are CCD (Charge-coupled Device) and CMOS
(Complementary Metal Oxide Semiconductor).
ISO sensitivity
The sensitivity of the camera to light, based on the equivalent film speed used in
a film camera. At higher ISO sensitivity settings, the camera uses a higher shutter
speed, which can reduce blur caused by camera shake and low light. However,
images with high sensitivity are more susceptible to noise.
Macro
This feature allows you to capture close-up photos of very small objects. When
using the macro feature, the camera can maintain a sharp focus on small objects at
a near life-size ratio (1:1).
Metering
The metering refers to the way in which the camera measures the quantity of light
to set the exposure.
MJPEG (Motion JPEG)
A video format which is compressed as a JPEG image.
JPEG (Joint Photographic Experts Group)
A lossy method of compression for digital images. JPEG images are compressed to
reduce their overall file size with minimal deterioration of the image resolution.
NFC (Near Field Communication)
NFC is a set of standards for radio communication at very close proximity. You can
use NFC-enabled devices to activate features or exchange data with other devices.
LCD (Liquid Crystal Display)
A visual display commonly used in consumer electronics. This display needs a
separate backlight, such as CCFL or LED, to reproduce colors.
Noise
Misinterpreted pixels in a digital image that may appear as misplaced or random,
bright pixels. Noise usually occurs when photos are shot with a high sensitivity or
when a sensitivity is automatically set in a dark place.
Appendixes 137
Glossary
Optical zoom
This is a general zoom which can enlarge images with a lens and does not
deteriorate quality of images.
Quality
An expression of the rate of compression used in a digital image. Higher quality
images have a lower rate of compression, which usually results in a larger file size.
Resolution
The number of pixels present in a digital image. High resolution images contain
more pixels and typically show more detail than low resolution images.
Vignetting
A reduction of an image’s brightness or saturation at the periphery (outer edges)
compared to the center of the image. Vignetting can draw interest to subjects
positioned in the center of an image.
White balance (color balance)
An adjustment of the intensities of colors (typically the primary colors red, green,
and blue) in an image. The goal of adjusting the white balance, or color balance, is
to correctly render the colors in an image.
Shutter speed
Shutter speed refers to the amount of time it takes to open and close the shutter,
and it is an important factor in the brightness of a photo, as it controls the amount
of light which passes through the aperture before it reaches the image sensor. A
fast shutter speed allows less time to let light in and the photo becomes darker and
more easily freezes subjects in motion.
Appendixes 138
Correct disposal of batteries in this product
(Applicable in countries with separate collection systems)
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in countries with separate collection systems)
This marking on the product, accessories, or literature indicates that the product
and its electronic accessories (e.g. charger, headset, USB cable) should not be
disposed of with other household waste at the end of their working life. To prevent
possible harm to the environment or human health from uncontrolled waste
disposal, please separate these items from other types of waste and recycle them
responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this
product or their local government office for details of where and how they can take
these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract. This product and its electronic accessories should not be
mixed with other commercial wastes for disposal.
PlanetFirst represents Samsung Electronics' commitment to
sustainable development and social responsibility through
eco-driven business and management activities.
This marking on the battery, manual, or packaging indicates that the batteries in
this product should not be disposed of with other household waste at the end of
their working life. Where marked, the chemical symbols Hg, Cd, or Pb indicate that
the battery contains mercury, cadmium, or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can
cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please separate
batteries from other types of waste and recycle them through your local, free
battery return system.
CAN ICES-3 (B)/NMB-3(B)
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278 - 0799
Appendixes 139
FCC notice
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
FCC ID:A3LWB1100F
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the
user body or set the device to lower output power if such function is available.
IC: 649E-WB1100F
Appendixes 140
FCC notice
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an uncontrolled
environment and are safe for intended operation as described in this manual. The further RF
exposure reduction can be achieved if the product can be kept as far as possible from the
user body or set the device to lower output power if such function is available.
This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils
radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1)
le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter
tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement
indésirable.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les
Etats-Unis et le Canada établies pour un environnement non contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La réduction aux
expositions RF peut être augmentée si l'appareil peut être conservé aussi loin que possible
du corps de l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si
une telle fonction est disponible.
FOR PORTABLE DEVICE USAGE (<20m from body/SAR needed)
IC: 649E-WB1100F
• Declaration of Conformity
Trade Name
Model No.
Responsible Party
Address
Telephone No.
: Samsung Electronics America, Inc.
: Samsung WB1100F
: Samsung Electronics America, Inc.
: 85 Challenger Road, Ridgefield Park, NJ 07660
: 1-800-SAMSUNG (726-7864)
T his device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause
undesired operation.
Appendixes 141
Index
A
B
C
D
AF-assist light
Battery
Camera maintenance 117
Camera specifications 131
Capturing an image from video 87
Charging 26
Cleaning
Date/Time Set 113
Deleting files 78
Digital zoom 38
DIRECT LINK button 21
Disconnecting the camera 89
Display brightness 112
Display type 35
location 21
Settings 114
AF Lamp 114
AF Sound 111
Auto Contrast Balance (ACB)
Playback mode 85
Shooting mode 68
Auto Display Off 112
Auto Exposure Bracket (AEB) 71
AutoShare 98
A/V port 21
Caution 124
Charging 26
Inserting 25
Beauty Face 47
Blink Detection 65
Brightness
Playback mode 85
Shooting mode 67
Burst modes
Auto Exposure Bracket (AEB) 71
Continuous 71
Motion Capture 71
Camera body 117
Display 117
Lens 117
Connecting to a computer
Mac 90
Windows 89
Contrast
Playback mode 85
Shooting mode 72
Appendixes 142
E
Editing photos 83
Editing videos
Capturing 87
Trimming 87
Index
Email 102
Enlarging 79
Error messages 116
Exposure 67
Focus area
Center AF 61
Multi AF 61
Selection AF 61
Tracking AF 61
Formatting 114
F
Face Detection 64
Flash
Auto 58
Fill in 58
Off 58
Red-eye 58
Red-eye Fix 59
Slow Sync 58
G
Guide Line 111
H
Half-press shutter 41
I
Icons
Playback mode 75
Shooting mode 29
i-Launcher 127
Image Adjustment
ACB 85
Brightness
Playback mode 85
Shooting mode 67
Contrast
Playback mode 85
Shooting mode 72
Red-eye 86
Saturation
Playback mode 85
Shooting mode 72
Sharpness 72
Appendixes 143
Image quality 55
Imprint 114
Intelli zoom 39
ISO sensitivity 59
L
Language settings 113
M
Macro
Auto Macro 61
Macro 61
Super Macro 61
Magic Plus mode
Movie Filter 51
Photo Filter 50
Index
Memory card
Caution 122
Insert 25
Menu button 23
Metering
Center-weighted 68
Multi 68
Spot 68
MobileLink 99
Movie mode 52
N
NFC 97
O
Q
S
Open source licenses 114
Optical Image Stabilization (OIS) 40
Optional accessories 20
Quick view 112
Samsung Link 107
Saturation
R
Red-eye
P
Panorama mode 48
Playback button 23
Playback mode 75
POWER button 21
Program mode 46
Protecting files 78
Playback mode 86
Shooting mode 57
Remote Viewfinder 100
Reset 114
Resolution
Playback mode 83
Shooting mode 54
Retouching faces 86
Rotating 83
Appendixes 144
Playback mode 85
Shooting mode 72
Self portrait 64
Service center 128
Settings 113
Sharing service
Accessing 105
Uploading photos or videos 105
Sharpness 72
Shooting portraits
Blink Detection 65
Face Detection 64
Red-eye 58
Red-eye fix 59
Self portrait 64
Smile Shot 65
Index
Shutter button 21
Slide show 81
Smart Auto mode 44
Smart Filter
Photo shooting mode 50
Playback mode 84
Video recording mode 51
Smart mode 47
Smile Shot 65
Sound settings 36
Start Image 111
Status lamp 22
T
U
W
Thumbnails 76
Timer
Unpacking 20
USB port 21
White Balance 69
Wireless network 93
V
Z
Shooting mode 56
Timer lamp 21
Time settings 27
Time zone settings 27, 113
Transferring files
Email 102
Mac 90
Windows 89
Tripod mount 22
Video
Playback mode 82
Shooting mode 52
Video out 112
Viewing files
Category 77
Panoramic photos 80
Slide show 81
Thumbnails 76
TV 88
Appendixes 145
Zoom
Using the zoom 38
Zoom button 22
Zoom sound settings 73
Please refer to the warranty that came with your product or
visit our website www.samsung.com for after-sales service or
inquiries.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
