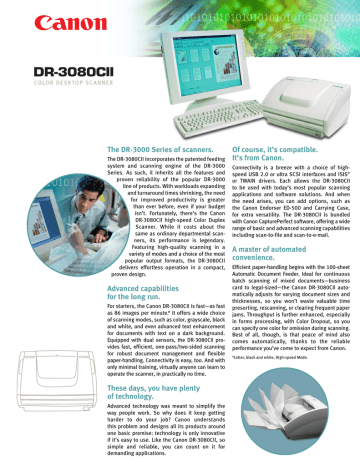

Spec Sheet
CO LO R D E S K T O P S C A N N E R
The DR-3000 Series of scanners.
The DR-3080CII incorporates the patented feeding
system and scanning engine of the DR-3000
Series. As such, it inherits all the features and
proven reliability of the popular DR-3000
line of products. With workloads expanding
and turnaround times shrinking, the need
for improved productivity is greater
than ever before, even if your budget
isn’t. Fortunately, there’s the Canon
DR-3080CII high-speed Color Duplex
Scanner. While it costs about the
same as ordinary departmental scanners, its performance is legendary.
Featuring high-quality scanning in a
variety of modes and a choice of the most
popular output formats, the DR-3080CII
delivers effortless operation in a compact,
proven design.
Advanced capabilities
for the long run.
For starters, the Canon DR-3080CII is fast—as fast
as 86 images per minute.* It offers a wide choice
of scanning modes, such as color, grayscale, black
and white, and even advanced text enhancement
for documents with text on a dark background.
Equipped with dual sensors, the DR-3080CII provides fast, efficient, one-pass/two-sided scanning
for robust document management and flexible
paper-handling. Connectivity is easy, too. And with
only minimal training, virtually anyone can learn to
operate the scanner, in practically no time.
These days, you have plenty
of technology.
Advanced technology was meant to simplify the
way people work. So why does it keep getting
harder to do your job? Canon understands
this problem and designs all its products around
one basic premise: technology is only innovative
if it’s easy to use. Like the Canon DR-3080CII, so
simple and reliable, you can count on it for
demanding applications.
Of course, it’s compatible.
It’s from Canon.
Connectivity is a breeze with a choice of highspeed USB 2.0 or ultra SCSI interfaces and ISIS®
or TWAIN drivers. Each allows the DR-3080CII
to be used with today’s most popular scanning
applications and software solutions. And when
the need arises, you can add options, such as
the Canon Endorser ED-500 and Carrying Case,
for extra versatility. The DR-3080CII is bundled
with Canon CapturePerfect software, offering a wide
range of basic and advanced scanning capabilities
including scan-to-file and scan-to-e-mail.
A master of automated
convenience.
Efficient paper-handling begins with the 100-sheet
Automatic Document Feeder. Ideal for continuous
batch scanning of mixed documents—business
card to legal-sized—the Canon DR-3080CII automatically adjusts for varying document sizes and
thicknesses, so you won’t waste valuable time
presorting, rescanning, or clearing frequent paper
jams. Throughput is further enhanced, especially
in forms processing, with Color Dropout, so you
can specify one color for omission during scanning.
Best of all, though, is that peace of mind also
comes automatically, thanks to the reliable
performance you’ve come to expect from Canon.
*Letter, black and white, High-speed Mode.
ED-500
SPECIFICATIONS
Type:
Item Number:
Document-feeding:
Document Size*
Width:
Length:
Thickness
Automatic-feeding:
Manual-feeding:
Grayscale:
Color:
Scanning Element:
Light Source:
Scanning Modes:
Color Desktop Scanner
9673A002AA
Automatic or Manual
2.2" – 10.1"
2.8" – 14.3"
0.06mm – 0.15mm
0.06mm – 0.20mm
8-bit, 256 levels
24-bit
Contact Image Sensor
RGB LED
Simplex/Duplex/Black and White/
Grayscale/Color/Advanced Text Enhanced
Dropout Color:
RGB
Optical Resolution:
100**/200/300 dpi
High-speed Mode (Interpolated):
300 x 150 dpi (300 dpi)
Simplex Duplex
Scanning Speeds†
Black and White:
32 ipm
64 ipm
Black and White/Grayscale (High Speed): 43 ipm
86 ipm
Grayscale:
32 ipm
64 ipm
Color (24-bit):
10 ipm
20 ipm
Stacker Capacity:
100 Sheets (80 g/m2, LTR)
Interface:
USB 2.0 and SCSI-III
Scanner Drivers:
For Windows® 98/2000/Me/XP
Windows NT ® 4.0, ISIS, TWAIN
Bundled Software:
CapturePerfect 2.2
Dimensions (H x W x D):
7.5" x 13.5" x 11"
Weight:
17.8 lb.
Power Consumption:
Max. 42W
Options:
Endorser ED-500 (3649A001AB)
Carrying Cases
* Up to 11" x 17" in Folio mode.
** Color Mode only.
† Examples based on typical settings, rated in images per minute with letter-sized documents at 200 dpi.
Actual processing speeds may vary based on PC performance and application software.
© 2004 Canon U.S.A., Inc. All rights reserved.
As an ENERGY STAR® Partner, Canon U.S.A., Inc. has determined that this product
meets the ENERGY STAR® guidelines for energy efficiency. ENERGY STAR and the ENERGY
STAR certification mark are registered U.S. marks. The USB-IF logos are trademarks of
Universal Serial Bus Implementers Forum, Inc. ISIS is a trademark of Captiva Software
Corporation. Windows and Windows NT are registered trademarks of Microsoft
Corporation in the United States and/or other countries. Canon and Canon Know
How are registered trademarks of Canon Inc. in the United States and may also be
registered trademarks in other countries. IMAGEANYWARE is a service mark of Canon
U.S.A., Inc. All other terms and product names may be trademarks or registered
trademarks of their respective owners and are hereby acknowledged.
All specifications are subject to change without notice.
0046W492
0804-DR3080CII-30M
PRINTED ON RECYCLED
PAPER IN THE U.S.A.
DR-3000 Series Soft Case
Item Number:
Materials
Bag:
Padding:
Webbing:
Dimensions (H x W x D):
Weight:
0134V880
PVC Synthetic #1680D
PE Foam
PVC
13" x 9" x 14"
Approx. 4 lb.
DR-3000 Series Hard Case
Item Number:
Materials
Case:
Latches:
Foam:
Dimensions (H x W x D):
Weight:
0134V882
Polyethylene with Aluminum Valence
Powder-coated Stainless Steel
ELE (Ether-like Ester) Foam
17-7/8" x 14-1/2" x 12"
Approx. 19 lb.
CO LO R D E S K T O P S C A N N E R
River City Data
1-800-OK-CANON
212 North Smith
Avenue
www.usa.canon.com
Saint Paul, MN
55102
(651) 292-0929
Canon U.S.A., Inc.
Sales: [email protected]
One Canon Plaza
Web: www.rivercitydata.com
Lake Success, NY
11042
