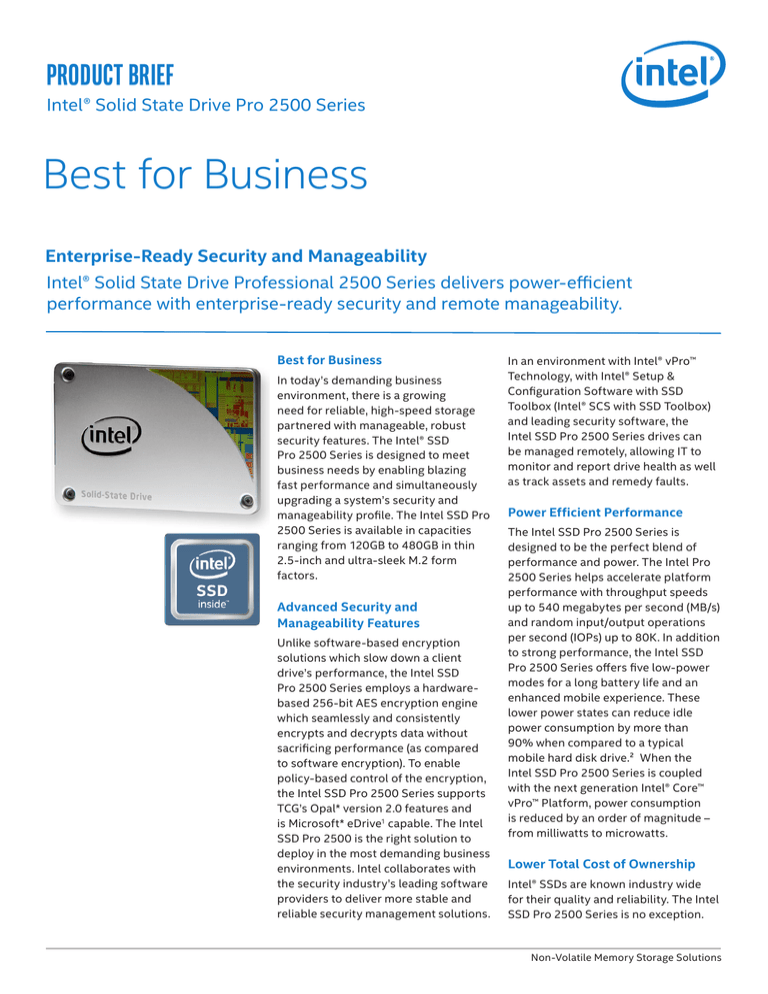

product brief
Intel® Solid State Drive Pro 2500 Series
Best for Business
Enterprise-Ready Security and Manageability
Intel® Solid State Drive Professional 2500 Series delivers power-efficient
performance with enterprise-ready security and remote manageability.
Best for Business
In today’s demanding business
environment, there is a growing
need for reliable, high-speed storage
partnered with manageable, robust
security features. The Intel® SSD
Pro 2500 Series is designed to meet
business needs by enabling blazing
fast performance and simultaneously
upgrading a system’s security and
manageability profile. The Intel SSD Pro
2500 Series is available in capacities
ranging from 120GB to 480GB in thin
2.5-inch and ultra-sleek M.2 form
factors.
Advanced Security and
Manageability Features
Unlike software-based encryption
solutions which slow down a client
drive’s performance, the Intel SSD
Pro 2500 Series employs a hardwarebased 256-bit AES encryption engine
which seamlessly and consistently
encrypts and decrypts data without
sacrificing performance (as compared
to software encryption). To enable
policy-based control of the encryption,
the Intel SSD Pro 2500 Series supports
TCG’s Opal* version 2.0 features and
is Microsoft* eDrive1 capable. The Intel
SSD Pro 2500 is the right solution to
deploy in the most demanding business
environments. Intel collaborates with
the security industry’s leading software
providers to deliver more stable and
reliable security management solutions.
In an environment with Intel® vPro™
Technology, with Intel® Setup &
Configuration Software with SSD
Toolbox (Intel® SCS with SSD Toolbox)
and leading security software, the
Intel SSD Pro 2500 Series drives can
be managed remotely, allowing IT to
monitor and report drive health as well
as track assets and remedy faults.
Power Efficient Performance
The Intel SSD Pro 2500 Series is
designed to be the perfect blend of
performance and power. The Intel Pro
2500 Series helps accelerate platform
performance with throughput speeds
up to 540 megabytes per second (MB/s)
and random input/output operations
per second (IOPs) up to 80K. In addition
to strong performance, the Intel SSD
Pro 2500 Series offers five low-power
modes for a long battery life and an
enhanced mobile experience. These
lower power states can reduce idle
power consumption by more than
90% when compared to a typical
mobile hard disk drive.² When the
Intel SSD Pro 2500 Series is coupled
with the next generation Intel® Core™
vPro™ Platform, power consumption
is reduced by an order of magnitude –
from milliwatts to microwatts.
Lower Total Cost of Ownership
Intel® SSDs are known industry wide
for their quality and reliability. The Intel
SSD Pro 2500 Series is no exception.
Non-Volatile Memory Storage Solutions
Intel® Solid State Drive Pro 2500 Series
The Intel SSD Pro 2500 Series is
engineered to reduce employee
downtime as a result of storage-related
failures.³ The Intel SSD Pro 2500 Series
is designed to meet an Annualized
Failure Rate (AFR) of well below 1%,
resulting in a significant reduction in
Total Cost of Ownership (TCO).
For further peace of mind, the
Intel SSD Pro 2500 Series is supported
with Intel’s 5 year limited warranty and
customer support.
Extended Management Tool Set
In addition to the Intel® SSD Toolbox,
a new Intel® SSD Pro Administrator
Tool is introduced. With the ability to
manage security features unique to the
Intel® SSD Professional Family, such as
Microsoft* eDrive enablement and SSD
reset, the Intel SSD Pro Administrator
Tool can help IT Administrators spend
less time worrying and more time
enabling productivity when using the
Intel SSD Professional family.
TECHNICAL SPECIFICATIONS4
Model Name
Capacity (GB)6
NAND Flash Memory
Intel® Solid State Drive Pro 2500 Series
M.2 – 180, 240, 360
2.5” – 120, 180, 240, 360, 480
20nm NAND Flash Memory Multi-Level Cell (MLC)
SUSTAINED SEQUENTIAL READS / WRITES
Bandwidth6,7
M.2
2.5”
up to 540 / 490 MB/s
up to 540 / 490 MB/s
M.2
2.5”
up to 45K / 80K IOPs
up to 48K / 80K IOPs
4KB READS / WRITES
Random I/O Operations per Second6,7
Interface
Form Factor, Height and Weight
Life Expectancy
SATA 6Gb/s, compatible with SATA 3Gb/s
M.2 (80mm, 60mm)
2.5”
Up to 3.7mm / up to 10 grams
Up to 7mm / up to 78 grams
1.2 million hours Mean Time Between Failures (MTBF)
M.2
Power Consumption
2.5”
Active:
140 mW Typical8
Active:
165 mW Typical8
Idle:
55mW Typical
Idle:
55mW Typical9
DevSleep:
200µW
DevSleep:
5mW
9
Operating Temperature
0° C to 70° C
RoHS Compliance
Meets the requirements of European Union (EU) RoHS Compliance Directives
Product Ordering Information
To order, visit intel.com/go/ssd
Software Tools
Intel® Solid State Drive Toolbox with Intel® SSD Optimizer at www.intel.com/go/ssdtoolbox
Intel® Data Migration Software at www.intel.com/go/ssdinstallation
Solid State Drive Computing Starts with Intel Inside®. For more information, visit www.intel.com/ssd
Microsoft eDrive is turned “OFF” as Out-of-the –box factory default setting
Based on product specification comparison between an Intel® SSD and an HDD
J. Gold Associates White Paper, Investing in Solid State Drive Offers Significant Cost Advantage
4
Based on the Intel® Solid-State Drive Pro 2500 Series Product Specification.
5
All capacities and form factors will not be available at launch.
6
Performance measured using Iometer with Queue Depth 32. Measurements are performed on 8GB of logical block address (LBA) range on a full SSD.
7
Random 4KB writes measured using out-of-box SSD
8
Active power measured during execution of MobileMark* 2007 Workload with SATA Link Power Management (LPM) enabled.
9
Idle power defined as SSD at idle with SATA Link Power Management (LPM) enabled.
1
2
3
Intel may make changes to specifications and product descriptions at any time, without notice. Designers must not rely on the absence or characteristics of any features or instructions marked “reserved” or
“undefined.” Intel reserves these for future definition and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to them. The information here is subject to change
without notice. Do not finalize a design with this information.
Performance tests and ratings are measured using specific computer systems and/or components and reflect the approximate performance of Intel products as measured by those tests. Any difference in system
hardware or software design or configuration may affect actual performance. Buyers should consult other sources of information to evaluate the performance of systems or components they are considering
purchasing. For more information on performance tests and on the performance of Intel products, go to: http://www.intel.com/performance/resources/benchmark_limitations.htm.
The products described in this document may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are available on
request. Contact your local Intel sales office or your distributor to obtain the latest specifications and before placing your product order. Copies of documents which have an order number and are referenced in
this document, or other Intel literature, may be obtained by calling 1-800-548-4725, or by visiting Intel’s Web site at www.intel.com.
Copyright © 2015 Intel Corporation. All rights reserved. Intel, the Intel logo, and Intel Inside are trademarks of Intel Corporation in the U.S. and other countries.
*Other names and brands may be claimed as the property of others.
Printed in the USA 20151204/jm/ ra
330709-003US
