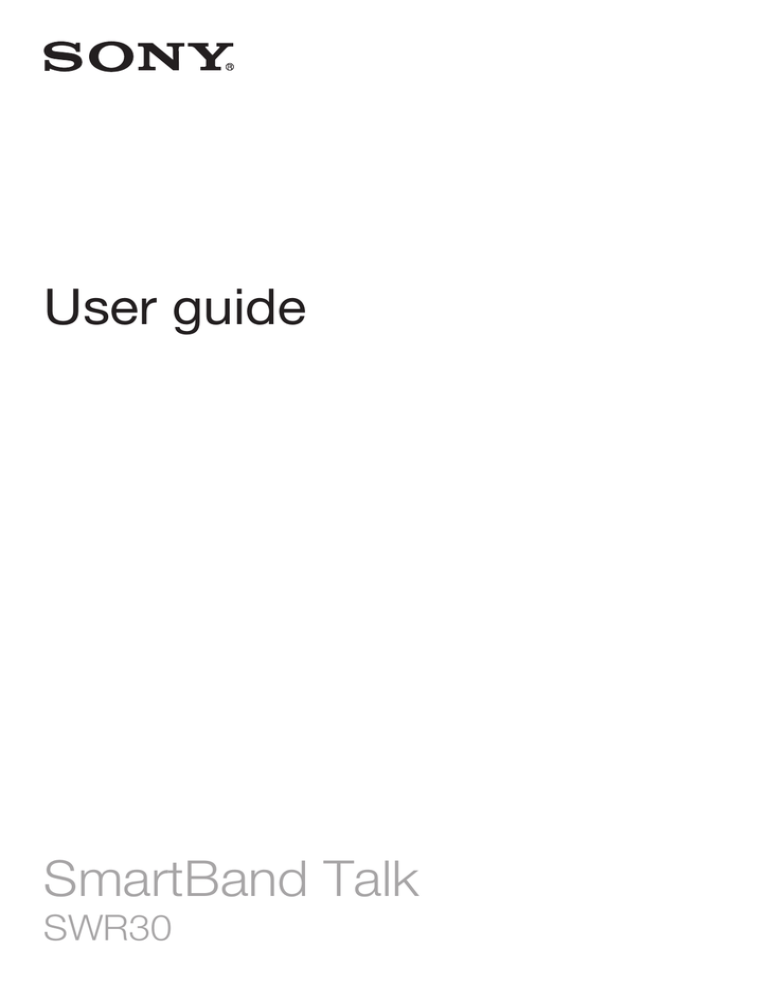

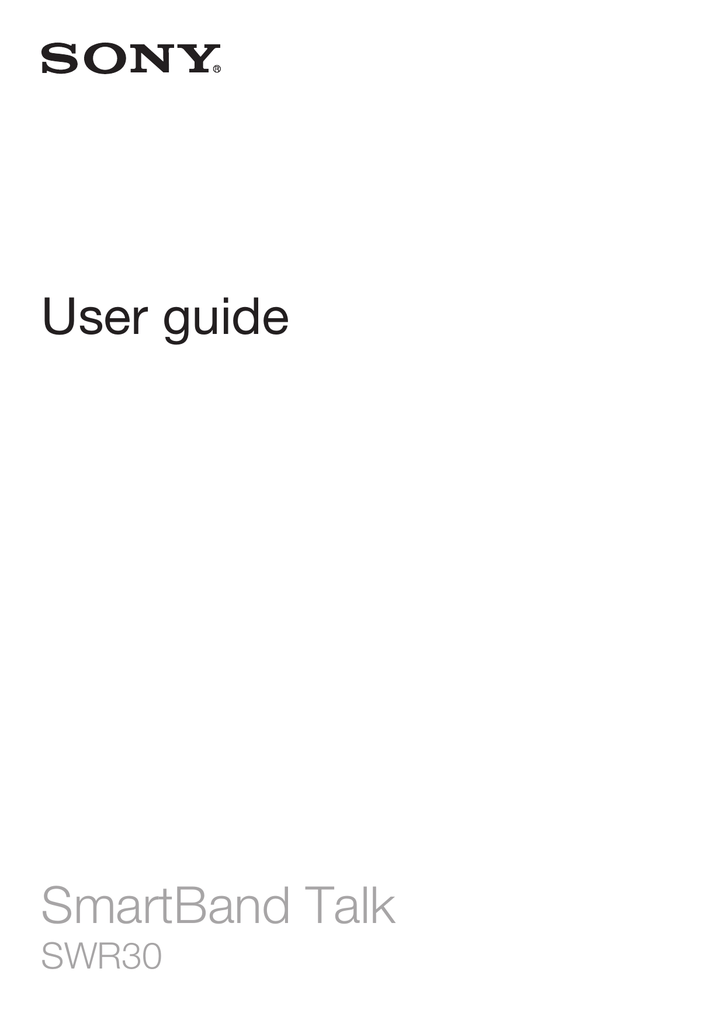

Sony SmartBand Talk SWR30 User guide

User guide

SmartBand Talk

SWR30

Contents

Basics.............................................................................................3

Introduction........................................................................................3

Hardware overview............................................................................3

Understanding the display.................................................................4

Interacting with the SmartBand Talk.................................................4

Charging your SmartBand Talk..........................................................4

Assembly...........................................................................................5

Turning on and off..............................................................................6

Setting up your SmartBand Talk....................................................7

Preparing to use your SmartBand Talk..............................................7

Reconnecting your SmartBand Talk..................................................8

Resetting your SmartBand Talk.........................................................8

Settings for your SmartBand Talk..................................................9

Using the SmartBand Talk application..............................................9

SmartBand Talk alarm.......................................................................9

Notifications.....................................................................................11

Handling calls...................................................................................11

Do not disturb..................................................................................12

Text orientation................................................................................12

Display colour..................................................................................12

Locating your SmartBand Talk........................................................12

Controlling applications with your SmartBand Talk.........................13

Logging your activities using the Lifelog application...................14

Using the Lifelog application...........................................................14

Setting goals....................................................................................16

Creating life bookmarks...................................................................16

Synchronising data with the Lifelog application..............................17

Important information...................................................................18

Using your SmartBand Talk in wet and dusty conditions................18

Legal information.............................................................................19

2

This is an Internet version of this publication. © Print only for private use.

Basics

Introduction

The SmartBand Talk is both a standalone device as well as a companion product that connects wirelessly via Bluetooth® with Android™ smartphones and tablets. Worn on your dominant wrist, it can monitor your body movements and interact with your

Android™ device to generate data about your daily life and habits. For example, the

SmartBand Talk counts your steps and records data about your physical state while you walk or run. Together with the Lifelog application, you can set personal goals and then track your progress in a comprehensive and easily viewable format.

The accessory also helps you to stay organised and manage common day-to-day tasks. For example, you can use it to handle alarms, phone calls and text messages, and to record voice notes. And with dozens of applications available for your

SmartBand Talk on Google Play™, you can add new features regularly.

Before you can get started using your SmartBand Talk, you must download the

SmartBand Talk application and set up the accessory to work with your phone or tablet. Refer to the relevant setup information for more details. Also, remember that your Android™ device must run the Android™ software version 4.4 or higher and support the Bluetooth® version 3.0 profile.

Hardware overview

8

9

6

7

10

11

3

4

5

1

2

Screen

Wristband strap 1

Volume key

NFC detection area

Power key/Function key

Wristband strap 2

Microphone

Micro USB port

Core unit

Speakers

Attachment clips

3

This is an Internet version of this publication. © Print only for private use.

Understanding the display

Your SmartBand Talk features an E Ink® display that uses electronic ink technology to reproduce the appearance of ordinary ink on paper. In an E Ink® display, no backlight is used. Instead, ambient light from the environment is reflected from the surface of the display, making it more comfortable to read. The image on your E Ink® screen is retained even when power to the screen is turned off. Also note that when the content displayed on the screen changes, there is a brief transition time. This is normal E Ink® display behavior.

Interacting with the SmartBand Talk

You can control applications by firmly tapping the SmartBand Talk and you can navigate from screen to screen by pressing the function key. If the screen is idle for

30 seconds, the idle mode screen becomes active.

Tapping

•

Handle installed applications, for example, add bookmarks.

The display of the SmartBand Talk is not touch sensitive. Remember to firmly tap the

SmartBand Talk in order for the device to register a command. Also note that the screen does not recognise swiping movements.

Function key

You can use the function key to navigate between different screens and applications.

To navigate from one screen to another

•

Short press the function key.

To exit an application

•

Long press the function key. After the application closes, the idle mode screen becomes active.

Charging your SmartBand Talk

Before using your SmartBand Talk for the first time, you need to charge it for approximately 30 minutes. Sony chargers are recommended.

If your SmartBand Talk is not used during charging, it takes 45 to 70 minutes to fully charge it depending on the type of charger used.

4

This is an Internet version of this publication. © Print only for private use.

To charge your SmartBand Talk

1

Plug one end of the USB cable into the charger or into the USB port of a computer.

2

Plug the other end of the cable into the Micro USB port of your SmartBand

Talk.

If you are charging the device for the first time, make sure you charge it for at least 30 minutes.

To check the battery level of your SmartBand Talk

•

From the main application screen of your Android™ device, find and tap

SmartBand Talk > STATUS.

Low battery level notification

When your SmartBand Talk is on and the battery level goes below 15 percent, it emits one short vibration and a warning notification appears on the screen to indicate that the battery is low. The warning gets repeated when the battery reaches charge levels of 10 and 5 percent, respectively. displays permanently on your SmartBand

Talk when the battery runs out of power, indicating that you need to charge it.

To dismiss a battery warning notification

•

Short press the function key.

Assembly

To personalise your SmartBand Talk, you can replace the wristband with bands of different colour and length, which can be purchased separately.

When you change the wristband, you may also have to replace the attachment clips with clips of a suitable size or type.

5

This is an Internet version of this publication. © Print only for private use.

To remove the wristband

1

Insert a fingernail, or a similar object, into the gap near each attachment clip, then drag out and fully remove the clips.

2

Remove the wristband straps from the core unit of the accessory.

Turning on and off

To turn on your SmartBand Talk

•

Press and hold down the power key until the device vibrates.

To turn off your SmartBand Talk

•

Press and hold down the power key for about 5 seconds, then release it.

6

This is an Internet version of this publication. © Print only for private use.

Setting up your SmartBand Talk

Preparing to use your SmartBand Talk

For your SmartBand Talk to work properly, you must install the latest version of the

SmartBand Talk application on the Android™ device, and then pair and connect it with your Android™ device. You also need to install the Lifelog application, which adds extra features and functions that allow you to, for example, see more detailed information about your daily activities.

You can set up your SmartBand Talk using NFC, which launches the pairing, connection and setup procedures automatically, or you can use the manual

Bluetooth® option which requires some extra steps, for example, to download and install some necessary applications.

A setup wizard in the SmartBand Talk application guides you through the process of setting up your SmartBand Talk for the first time.

All applications required for the SmartBand Talk to work are available on Google Play™.

To set up your SmartBand Talk using NFC

1

Make sure that your SmartBand Talk has been charged for at least 30 minutes.

2

Make sure that the NFC function is turned on and that the screen is active and unlocked.

3

Place the Android™ device over your SmartBand Talk so that the NFC area of each device touches the other. appears briefly in the status bar and permanently in the Notification panel when a connection with the SmartBand

Talk is active.

You can set up your SmartBand Talk using NFC even when the SmartBand Talk is turned off.

You can drag down the status bar to open the Notification panel and get quick access to the

SmartBand application and the Lifelog application.

7

This is an Internet version of this publication. © Print only for private use.

To set up your SmartBand Talk using Bluetooth®

1

Make sure that your SmartBand Talk has been charged for at least 30 minutes.

2

Android™ device: Make sure that you have installed or updated the SmartBand

Talk application to the latest version.

3

Turn on your SmartBand Talk.

4 Android™ device: Turn on the Bluetooth® function, then scan for Bluetooth® devices and select

SWR30 in the list of available devices.

5 Android™ device: Follow the instructions that appear on the screen. appears briefly in the status bar and permanently in the Notification panel when a connection with the SmartBand Talk is active.

You can drag down the status bar to open the Notification panel and get quick access to the

SmartBand application and the Lifelog application.

To install the SmartBand Talk application

1

From the main application screen of your Android™ device, find and tap

Play

Store to open the Google Play™ application.

2

Tap the search icon, then search for “SmartBand Talk”.

3

After the search results appear, tap

SmartBand Talk, then follow the relevant instructions to download and install the application.

You can only install the

SmartBand Talk application on an Android™ device, for example, an

Android™ smartphone or tablet.

Reconnecting your SmartBand Talk

In cases where a connection gets lost, for example, when the connected Android™ device goes out of range, your SmartBand Talk automatically performs a series of reconnection attempts. If no connection is found after a certain period, your

SmartBand Talk stops trying to reconnect. When this happens, you can use the function key to force the accessory to try reconnecting, or you can use NFC to reconnect the two devices.

To force the SmartBand Talk to try reconnecting

•

Press the power key.

To reconnect your SmartBand Talk using NFC

1 Android™ device: Make sure that the NFC function is turned on and that the screen is active and unlocked.

2

Place the Android™ device over your SmartBand Talk so that the NFC detection area of each device touches the other.

Resetting your SmartBand Talk

Reset your SmartBand Talk if it behaves unexpectedly or if you want to connect it to a new device.

To perform a factory data reset

1

Turn off your SmartBand Talk.

2

Press and hold down both the power key and the volume up and down keys simultaneously until you feel three short vibrations followed by one longer vibration, then release the keys.

You need to pair the SmartBand Talk with your Android™ device again.

To force your SmartBand Talk to shut down

•

Long press the power key.

8

This is an Internet version of this publication. © Print only for private use.

Settings for your SmartBand Talk

Using the SmartBand Talk application

You can view and change settings for your SmartBand Talk by using the SmartBand

Talk application on your Android™ device.

1 Turn the smart wake up function on or off.

Add, edit or delete smart wake up alarms.

2 Turn the notifications function on or off.

Select which notifications to forward to your SmartBand Talk.

3 Turn incoming calls on or off.

Select whether you want to handle calls directly using your SmartBand Talk.

4 Turn the “do not disturb” function on or off, or change the interval time.

5 Enable Xperia™ phone alarm notifications.

6 Set the text orientation.

7 Select the display background colour.

You can tap or drag the relevant slider to the on or off position depending on whether you want to receive notifications and incoming calls and activate the “do not disturb” and other functions. You can also tap on the name of each function to view more information about how to adjust its settings.

SmartBand Talk alarm

Your SmartBand Talk has two different alarm functions. One is the Xperia™ phone alarm function, which only works when your SmartBand Talk is connected to an

Xperia™ device. The other is the smart wake up function, which wakes you up within a selected time frame after you have reached a state of light sleep so that you wake up feeling refreshed. The smart wake up function works whether an Android™ device is connected or not.

Alarm notifications from an Xperia™ device

Your SmartBand vibrates when pre-set alarms go off on a connected Xperia™ device.

To enable alarm notifications from an Xperia™ device

1

From the main application screen of your Xperia™ device, find and tap

SmartBand Talk > SETTINGS.

2

Mark the

Xperia™ phone alarm checkbox.

9

This is an Internet version of this publication. © Print only for private use.

To hide sender’s name from notification message on your SmartBand Talk

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS > Notifications.

2

Mark the

Privacy checkbox.

To snooze an alarm on your Xperia™ device when your SmartBand Talk vibrates

•

Short press the function key.

To turn off an alarm when your SmartBand Talk vibrates

•

Long press the function key.

Smart wake up alarms

You can set one or several smart wake up alarms in the SmartBand Talk SWR30 application. The smart wake up alarm wakes you up at the best time based on your sleep cycle. The alarm notifies you with a continuous vibration. After you set a time frame for when you would like to be awoken by the alarm, your SmartBand Talk registers when you have reached a state of light sleep (after a period of deep sleep) and then wakes you up.

For example, if you set a smart wake up alarm for between 06:30 and 07:00 AM, the alarm wakes you up sometime between 06:30 and 07:00 AM when you reach a state of light sleep. If you do not reach a state of light sleep during this period, the smart wake up alarm wakes you up at 07:00 AM.

If you want to add, remove or change a smart wake up alarm, your SmartBand Talk must be connected to the Android™ device.

To add a smart wake up alarm

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Smart wake up alarm, then tap .

3

Tap

Time, then scroll up or down to adjust the time and tap Set.

4

Tap

Repeat, then mark the days on which you want the alarm to recur and tap

OK.

5

Tap

Alarm window and select an option.

6

Mark the

Alarm sound checkbox if you want a sound alert.

7

When you’re finished, tap

Done.

To edit an existing smart wake up alarm

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Smart wake up alarm, then tap the alarm that you want to edit.

3

Edit the options as desired.

4

When you’re finished, tap

Done.

To delete a smart wake up alarm

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Smart wake up alarm, then touch and hold the alarm that you want to delete.

3

Tap , then tap

Yes.

To turn on a smart wake up alarm

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Smart wake up alarm.

3

Scroll to the alarm that you want to turn on, then drag the relevant slider switch to the right.

10

This is an Internet version of this publication. © Print only for private use.

Notifications

All notifications that appear in the status bar on a connected Android™ device can be forwarded to your SmartBand Talk. You can use the SmartBand Talk application to select which notifications to forward. Your SmartBand Talk vibrates once when a notification comes in.

You can firmly tap your SmartBand Talk application to read a preview of a message.

But you need to use your Android™ device to read the full message.

To turn on the notification function

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Drag the slider beside

Notifications to the right.

3

If you are turning on the notifications function for the first time, follow the instructions that appear on the screen to give the SmartBand Talk application access to your notifications.

To hide sender’s name from notification message on your SmartBand Talk

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS > Notifications.

2

Mark the

Privacy checkbox.

To select which notifications to forward to your SmartBand Talk

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS > Notifications.

2

Tap

Add application.

3

Tap

Downloaded or All apps.

4

In the list that appears, mark or unmark the desired options.

5

Tap

Done.

Handling calls

Your SmartBand Talk notifies you with continuous vibrations when a call comes in.

You can choose to answer the call on your Android™ device or to answer and handle it directly on your SmartBand Talk by speaking into the microphone of the device.

You can also use your SmartBand Talk to reject an incoming call and hang up on an ongoing call. To handle calls and receive call notifications directly on your SmartBand

Talk, you must first enable the relevant settings in the SmartBand Talk application.

To enable your SmartBand Talk to receive incoming call

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Drag the slider beside

Incoming calls to the right.

To answer an incoming call using your SmartBand Talk

1

When the call comes in, short press the function key. The voice of the caller can be heard through the speakers on your SmartBand Talk.

2

To talk to the caller, hold the accessory with a 20 cm range of your mouth and speak into the microphone.

If you want to answer the incoming call using your handset, you can select the option on the ongoing call screen of your Android™ device, then the call is in the device you chose to answer with.

To reject an incoming call using your SmartBand Talk

•

Long press the function key.

To silence an incoming call using your SmartBand Talk

•

Long press the volume key up or down.

11

This is an Internet version of this publication. © Print only for private use.

To hang up on an ongoing call using your SmartBand Talk

•

Short press the function key.

To mute or unmute an ongoing call using your SmartBand Talk

•

During the call, long press the function key.

Do not disturb

You can turn off the notifications and events sounds by turning on the “do not disturb” function. But when this function is on, the alerting functions, such as the smart wake up alarm, the Xperia™ phone alarm and locating SmartBand Talk function, remain activated.

To turn on the “do not disturb” function

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Drag the slider beside

Do not disturb to the right.

To set the “do not disturb” interval

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS >Do not disturb.

2

Drag the slider beside

Repeat to the right.

3

Tap

Repeat.

4

Tap the start time, then scroll up or down to edit accordingly and tap

Set.

5

Tap the end time, then scroll up or down to edit accordingly and tap

Set.

6

Tap

Done.

Text orientation

You can set the text orientation of your SmartBand Talk according to the arm on which you wear it.

To select the display orientation

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Text orientation, then select an option.

3

Tap

OK.

Display colour

You can change the display colour for your SmartBand Talk from black to white, or vice versa.

To change the display colour

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > SETTINGS.

2

Tap

Display colour, then select an option.

3

Tap

OK.

Locating your SmartBand Talk

In case you forget where you left it, you can locate your SmartBand Talk by activating the ringer remotely.

12

This is an Internet version of this publication. © Print only for private use.

To use the remote ring function

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > STATUS.

2

Tap

Locate SmartBand™. Your SmartBand Talk starts to ring loudly.

3

To mute the ringer, press any key on your SmartBand Talk.

Controlling applications with your SmartBand Talk

You can add up to nine applications at a time for use with your SmartBand Talk. You can then use your SmartBand Talk to control how the selected applications function on the connected Android™ device. For example, if you add the relevant media player application, you can use the SmartBand Talk to control the playback of media files on the connected Android™ device. For each added application, you can edit the settings at any time.

To select an application for use with your SmartBand Talk

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > MY APPS.

2

Tap

Add apps, then select an application and follow the on-screen instructions.

3

To download more applications, tap

Get more apps, then follow the download instructions.

To rearrange the list of selected applications

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > MY APPS.

2

Touch and hold the application that you want to move, then drag it to the desired position.

To edit settings for a selected application

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > MY APPS.

2

Select an application, then edit the settings as desired.

To remove a selected application

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > MY APPS.

2

Touch and hold the application that you want to delete, then drag it to .

13

This is an Internet version of this publication. © Print only for private use.

Logging your activities using the Lifelog application

Using the Lifelog application

The Lifelog application records your physical, social and entertainment activities. For example, you can see if you’ve been walking or running and how you communicate with your friends. You can also see what pictures you took and what music you listened to. To start using the Lifelog application, you need to download it from

Google Play™ and then set up an account.

The statistics that the Lifelog application generates from your physical activities, for example, walking distance and calorie count, are based on the height and weight data you provide.

Results may vary from user to user. Also, remember that you need an active Internet connection to synchronise data to the Lifelog application on your Android™ device.

1 Show all logged activities and life bookmarks

2 View detailed information about a life bookmark

3 View information about application usage

4 View all logged activities since the start of the day

5 Add a life bookmark

6 View menu options

7 Physical activities log

8 View all logged activities for the selected day

9 Switch between dashboard and map view

10 Activities dashboard

To set up an account for the Lifelog application

1

From the

Home screen of your Android™ device, tap , then find and tap

Lifelog.

2

Follow the instructions that appear on the screen and accept the terms and conditions.

3

Create a new account or select to use an existing one. Sony PlayStation®

Network accounts can also be used.

4

Follow the instructions that appear on the screen to create a Lifelog account.

14

This is an Internet version of this publication. © Print only for private use.

To log in to the Lifelog application

1

From the

Home screen of your Android™ device, tap , then find and tap

Lifelog.

2

Follow the instructions that appear on the screen and accept the terms and conditions.

Adjusting the stride length for walking and running

The Lifelog application uses the number of steps you have taken and your stride length to calculate the distance you have walked or run. The automatic stride length used by default is based on your gender and height. If you feel that the distances measured by the Lifelog application are not accurate enough, you can adjust your stride length.

To adjust the stride length for walking

1

From the

Home screen of your Android™ device, tap , then find and tap

Lifelog.

2

Tap >

Settings > Profile.

3

Find and tap

Stride length.

4

Unmark the

Automatic checkbox if it is marked, then scroll up or down to adjust the setting and tap

Set.

To adjust the stride length for running

1

From the

Home screen of your Android™ device, tap , then find and tap

Lifelog.

2

Tap >

Settings > Profile.

3

Find and tap

Running stride length.

4

Unmark the

Automatic checkbox if it is marked, then scroll up or down to adjust the setting and tap

Set.

Activity box overview

1 View all logged life bookmarks

2 View the time you have spent using communication applications from Google Play™ and some other applications such as the Phone and the Messaging applications from Sony

3 View the amount of active calories that you have burned while exercising and the passive calories that you have burned while not exercising

4 View how many photos you have taken

5 View the number of steps you have taken and logged in the Lifelog application

6 View the time you have spent listening to music using applications from Google Play™ and some other applications such as the "WALKMAN" application

7 View the total time you have spent walking for longer than just a few steps

8 View your total time spent watching movies, TV shows and other video content using applications from Google Play™ and some other applications

9 View the total time you have spent running with a high steps-per-minute ratio for longer than just a few steps

15

This is an Internet version of this publication. © Print only for private use.

10 View your total time spent playing games using applications from Google Play™ and PlayStation®

Store

11 View your total time spent browsing while using applications from Google Play™ and some other web browsers

12 View your total time spent reading books or comics using applications from Google Play™ and some other applications

Activity overview

1 Show data in a day, week, month or year view

2 Show your current goal status

3 Show the current activity in different units

4 Show the amount of activity using the chosen unit type

5 Details about your activity

Setting goals

Set goals for activities in your daily life, for example, the number of steps to take, the distance you want to walk, or the amount of calories you want to burn.

To set a goal

1

In the Lifelog application, tap the activity that you want to set a goal for.

2

Tap

Day, then tap the goal dashboard.

3

Scroll up or down to adjust the value for your goal, then tap

Set.

Creating life bookmarks

Use your SmartBand Talk to create life bookmarks. Life bookmarks save information about time, location and audio notes, and help you remember special occasions. For location data to be gathered, you must have an active Internet connection.

To use the audio note feature, you must select the Life bookmark application for use with your accessory.

To create a life bookmark on an Android™ device using the Lifelog application

1 Android™ device: In the Lifelog application, tap .

2

Follow the on-screen instructions.

3

If necessary, add text notes, then tap

OK.

To select the Life bookmark application for use with your SmartBand Talk

1

From the main application screen of your Android™ device, find and tap

SmartBand Talk > MY APPS.

2

Tap

Add apps and select Life Bookmark.

16

This is an Internet version of this publication. © Print only for private use.

To create a life bookmark using your SmartBand Talk

1

Make sure that your SmartBand Talk is turned on and the Life bookmark application is enabled in the SmartBand Talk application on your Android™ device.

2

Using the function key, navigate to the Life bookmark screen.

3

To log the place and time, and to record an audio note, firmly tap on the

SmartBand Talk and speak into the SmartBand Talk. You can record 10 seconds of audio.

Synchronising data with the Lifelog application

When your SmartBand Talk is connected to your Android™ device, data gets synchronised automatically to the Lifelog application. When the SmartBand Talk gets disconnected from the Android™ device, it can continue to collect data until the memory becomes full. It’s therefore recommended to synchronise data between the two devices regularly to free up memory on your SmartBand Talk.

17

This is an Internet version of this publication. © Print only for private use.

Important information

Using your SmartBand Talk in wet and dusty conditions

Your SmartBand Talk is waterproof and dust tight in compliance with the Ingress

Protection (IP) ratings IP65 and IP68, as explained in the table below.

These specific IP ratings mean that your SmartBand Talk is dust resistant and is protected against low pressure water stream as well as against the effects of immersion for 30 minutes in fresh (non-saline) water up to 1.5 metres deep.

You can use your SmartBand Talk:

• in dusty environments, for example, on a windy beach.

• when your fingers are wet.

• in some extreme weather conditions, for example, when it’s snowing or raining.

• in fresh (non-saline) water depths of 1.5 metres or less, for example, in a fresh water lake or river.

• in a chlorinated swimming pool.

The unit should be rinsed with fresh water after use in chlorinated water.

After exposure to water, the acoustic performance of the device may be reduced until the sound output ports have dried out.

Even if your SmartBand Talk is resistant to dust and water, you should avoid exposing it unnecessarily to environments with excessive dust, sand and mud or to moist environments with extreme high or low temperatures. The waterproof ability of the micro USB port cannot be guaranteed in all environments or conditions.

Never immerse your SmartBand Talk in salt water or let the micro USB port come in contact with salt water. For example, if you’re at the beach, remember to keep your

SmartBand Talk away from the sea water. Also, never expose the SmartBand Talk to any liquid chemicals. For example, if you’re washing dishes by hand using liquid detergent, avoid bringing your SmartBand Talk in contact with the detergent. After exposure to non-fresh water, rinse your SmartBand Talk using fresh water.

Normal wear and tear along with damage to your SmartBand Talk can reduce its ability to resist dust or moisture. After using the SmartBand Talk in water, dry off the areas around the micro USB port.

All compatible accessories, including batteries, chargers and micro USB cables, are not waterproof and dust resistant on their own.

Your warranty does not cover damage or defects caused by abuse or improper use of your SmartBand Talk (including use in environments where the relevant IP rating limitations are exceeded). If you have any further questions about the use of your products, refer to our Customer support service for help. To view more specific information about water resistance, go to http://www.sonymobile.com/global-en/ support/discover-more/water-and-dust-resistance/.

Ingress Protection Rating

Your SmartBand Talk has an IP rating, which means it has undergone certified tests to measure its resistance levels to both dust and water. The first digit in the two-digit

IP rating indicates the level of protection against solid objects, including dust. The second digit indicates how resistant the device is to water.

Resistance to solid objects and dust Resistance to water

IP0X: No special protection IPX0. No special protection

IPX1. Protected against dripping water IP1X. Protected against solid objects

> 50 mm in diameter

IP2X. Protected against solid objects >

12.5 mm in diameter

IPX2. Protected against dripping water when tilted up to 15 degrees from normal position

18

This is an Internet version of this publication. © Print only for private use.

IP3X. Protected against solid objects >

2.5 mm in diameter

IP4X. Protected against solid objects > 1 mm in diameter

IP5X. Protected against dust; limited ingress (no harmful deposit)

IP6X. Dust tight

IPX3. Protected against spraying water

IPX4. Protected against splashing water

IPX5. Protected against water jet spray for at least 3 minutes

IPX6. Protected against heavy jet spray for at least 3 minutes

IPX7. Protected against the effects of immersion in up to 1 metre of water for 30 minutes

IPX8. Protected against the effects of continued immersion in water depths greater than 1 metre. The exact conditions are specified for each device by the manufacturer.

Legal information

Sony SWR30

Prior to use, please read the

Important information leaflet separately provided.

This User guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this User guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile

Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new editions of this User guide.

All rights reserved.

©2014 Sony Mobile Communications Inc.

Interoperability and compatibility among Bluetooth® devices varies. Device generally supports products utilizing Bluetooth spec. 1.2 or higher, and Headset or Handsfree profile.

Sony is the trademark or registered trademark of Sony Corporation. Bluetooth is the trademark of the

Bluetooth (SIG) Inc. and is used under license. All other marks are the property of their respective owners. All rights reserved.

All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. All other trademarks are property of their respective owners.

Visit www.sonymobile.com for more information.

All illustrations are for illustration only and may not accurately depict the actual accessory.

19

This is an Internet version of this publication. © Print only for private use.

Declaration of Conformity

We,

Sony Mobile Communications AB of

Nya Vattentornet

SE-221 88 Lund, Sweden declare under our sole responsibility that our product

Sony type RD-0140 and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards

EN 300 328:V1.8.1, EN 301 489-17:V2.2.1,

EN 301 489-3:V1.6.1 and EN 60 950-1:2006 +A11:2009

+A1:2010+A12:2011+A12:2011 following the provisions of, Radio Equipment and

Telecommunication Terminal Equipment directive

1999/5/EC.

Lund, July 2014

Pär Thuresson,

Quality Officer, SVP, Quality & Customer Services

•

•

•

•

FCC Statement

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

AVISO IMPORTANTE PARA MÉXICO

La operación de este equipo está sujeta a las siguientes dos condiciones: (1) es posible que este equipo o dispositivo no cause interferencia perjudicial y (2) este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su operación no deseada.

Para consultar la información relacionada al número del certificado, refiérase a la etiqueta del empaque y/o del producto.

Alimentación: 5,0 Vcc

Industry Canada Statement

This device complies with RSS-210 of Industry Canada.

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Avis d’industrie Canada

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.

L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et, and (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

20

This is an Internet version of this publication. © Print only for private use.
