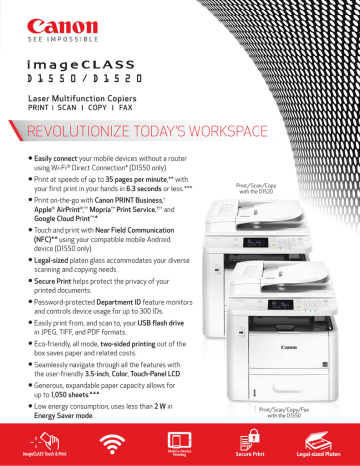

Laser Multifunction Copiers
Print SCAN Copy Fax
REVOLUTIONIZE TODAY’S WORKSPACE
• Easily connect your mobile devices without a router
using Wi-Fi ® Direct Connection* (D1550 only).
• Print at speeds of up to 35 pages per minute,** with
your first print in your hands in 6.3 seconds or less.***
• Print on-the-go with Canon PRINT Business,
Print/Scan/Copy
with the D1520
†
Apple® AirPrint®,†† Mopria™ Print Service,††† and
Google Cloud Print™.▲
• Touch and print with Near Field Communication
(NFC)▲▲ using your compatible mobile Android
device (D1550 only).
• Legal-sized platen glass accommodates your diverse
scanning and copying needs.
• Secure Print helps protect the privacy of your
printed documents.
• Password-protected Department ID feature monitors
and controls device usage for up to 300 IDs.
• Easily print from, and scan to, your USB flash drive
in JPEG, TIFF, and PDF formats.
• Eco-friendly, all mode, two-sided printing out of the
box saves paper and related costs.
• Seamlessly navigate through all the features with
the user-friendly 3.5-inch, Color, Touch-Panel LCD.
• Generous, expandable paper capacity allows for
up to 1,050 sheets.▲▲▲
• Low energy consumption; uses less than 2 W in
Energy Saver mode.
Print/Scan/Copy/Fax
with the D1550
ADVANCED TECHNOLOGIES
FOR YOUR OFFICE
Print On-the-Go
Department ID Management
Print a variety of file types, Web pages, and images on†
the-go with Canon PRINT Business, Apple AirPrint,
††
The imageCLASS D1500 Series features password-protected
Department ID Management. To help reduce costs, device
Mopria Print Service,††† and Google Cloud Print using
usage can be
your compatible mobile device. You can also scan hard-
monitored and
copy originals using Canon PRINT Business. For more
controlled for
information on Canon supported apps and compatibility,
up to 300 IDs.
▲
please visit https://www.usa.canon.com/mobile-app.
Environmentally Conscious
Help decrease power consumption and
energy costs with Canon’s efficient Energy
Saving mode. In this mode, the D1500
Series uses less than two watts of energy
and meets ENERGY STAR ® guidelines.
Generation Green
Secure Print
The D1500 Series is part of Canon’s
The imageCLASS D1500 Series features
Generation Green Program, which
Secure Print to help protect the privacy
highlights the company’s commitment
of your printed documents and keep
to sustainability. Learn more at
them in the right hands.
www.usa.canon.com/green.
Color, Touch-Panel LCD
Touch and Print
▲▲
Near Field Communication (NFC)
allows
The intuitive, 3.5-inch, color,
you to easily "touch-and-print" to the
touch-panel LCD allows you to
D1550 using your compatible mobile
navigate through the menu
Android device.
seamlessly.
D1550 shown
*Wi-Fi® is a registered trademark of the Wi-Fi Alliance®. The Wi-Fi CERTIFIED™ Logo is a
certification mark of the Wi-Fi Alliance®.
**Print speed is based on internal testing. Print speed may vary depending on the number of
copies selected as well as the settings for size, type, and orientation of paper.
***May vary depending on the output environment.
†Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more
information, including compatibility, please visit https://www.usa.canon.com/mobile-app. Users
of Canon Mobile Printing can simply update the app to use Canon PRINT Business; users who
have installed Canon Mobile Scanning for Business should install Canon PRINT Business on their
compatible device. After Canon PRINT Business is installed, users can re-register their Canon
Mobile Scanning for Business device list and local documents.
††
Apple AirPrint functionality requires an iPad, iPad Mini, iPad 2, the new iPad, iPhone 3GS or later,
or iPod touch 3rd generation or later device running iOS 7.0 - 8.0 or later, and an AirPrint-enabled
printer connected to the same network as your iOS device. A printer connected to the USB port
of your Mac, PC, AirPort Base Station, or Time Capsule is not supported.
2
†††Mopria Print Service, available free at the Google Play Store, requires a compatible Android 4.0 or
later smartphone or tablet. The printer must be either wirelessly connected to the network router
or with an Ethernet cable. The mobile device and printer must be connected to the same network.
▲
Google Cloud Print requires an Internet connection and Google Account. Printer firmware update
may be necessary for Google Cloud Print™ function. Certain exceptions may apply. A PC running
Windows XP or later or a Mac running OS 10.4.11 or later and USB cable are required to perform
firmware update.
▲▲Requires an Android mobile device with NFC hardware running Android 4.0 or later and the Canon
PRINT Business app, available for free at Google Play. Canon PRINT Business app must be open to
use tap and print functionality.
▲▲▲
Based on 20 lb. Bond paper.
FEATURES
imageCLASS D1550
imageCLASS D1520
BASIC SPECIFICATIONS
Functions
Replaces
Print Speeds (default print mode: 2-sided)
Connectivity
Print/Scan/Copy/Fax
Print/Scan/Copy
D1350
D1320
Up to 17 ppm** (2-sided, plain paper, Letter); Up to 35 ppm** (1-sided, plain paper, Letter)
USB Device 2.0 Hi-Speed, 10/100/1000Base-T Ethernet (Network)
USB Device 2.0 Hi-Speed, 10/100/1000Base-T Ethernet (Network),
Wi-Fi 802.11 b/g/n (Infrastructure Mode, WPS easy setup)•
Operating Systems
Windows® 10/8.1/8/7, Windows Vista®, Windows Server® 2012 R2/2012/2008 R2/2008/2003 R2/2003; Mac OS 10.6 and Up;
Drivers Available For Download From www.usa.canon.com/support
Standard Cassette
500 Sheets;▲▲▲ 16 to 34 lb. Bond (plain paper); Letter, Legal, A4, A5,•• B5, Statement, Executive
PAPER HANDLING
Multipurpose Tray
Optional Cassette
Platen Glass Size
Duplex Automatic Document Feeder
Output Tray
Duplex
Duty Cycle
Security
50 Sheets;▲▲▲ 16 to 43 lb. Bond (plain paper); Letter, Legal, A4, A5,•• B5, Statement, Executive
500 Sheets;▲▲▲ 16 to 34 lb. Bond (plain paper); Letter, Legal, A4, A5,•• B5, Statement, Executive
Up to 8.5'' x 14'' (Legal-sized)
50 Sheets
150 Sheets (face-down)
Print/Scan/Copy/Fax
Print/Scan/Copy
Up to 50,000 Pages per Month
IP/MAC Address Filtering, HTTPS, SNMPv3, IEEE 802.1x, Department ID Management (up to 300 IDs)
PRINTER SPECIFICATIONS
First-Print Time
Printer Language
Print Resolution
Print Features
Print Memory
Mobile Print
6.3 Seconds or Less (Letter)***
UFR II
Up to 600 x 600 dpi; 1200 x 1200 dpi Quality
Print from USB Flash Drive (JPEG, TIFF, PDF), Print Modes (Poster, Booklet, Watermark, Toner Saver, Page Composer)
1 GB (Shared)
Canon PRINT Business,† Apple AirPrint,†† Mopria Print Service,††† Google Cloud Print▲
COPIER SPECIFICATIONS
First-Copy Time
Copy Speeds
Copy Resolution
Halftones
Max. Number of Copies
Copy Features
10 Seconds or Less (Letter)■
Up to 17 ppm** (2-sided, plain paper, Letter); Up to 35 ppm** (1-sided, plain paper, Letter)
Up to 600 x 600 dpi
256 Levels
Up to 999 Copies
Zoom 25%-400%, Collate, 2-on-1, 4-on-1, ID Card Copy, Frame Erase, Copy Modes: Text, Photo, Text/Photo
SCANNER SPECIFICATIONS
Scan Type
Scan Speed
Scan Resolution
Output File Formats
Scan Features
Scan-to-E-mail
Scan-to-Folder
Color Contact Image Sensor (CIS); 24-bit Color Depth; TWAIN and WIA Compatible
Color/Black: Approx. 7/3 Seconds Per Sheet ■ ■
Up to 600 x 600 dpi (optical); Up to 9600 x 9600 (software interpolated resolution)
Compact/Text Searchable PDF, PDF, JPEG, TIFF
Push (Scan-to-PC) and Pull-Scan, Scan-to-USB Flash Drive (PDF, JPEG, TIFF)
Yes
Yes (SMB, FTP)
FAX SPECIFICATIONS
Modem Speed
Fax Resolution
Fax Memory
Speed Dialing
Group Dialing
Sequential Broadcasting
PC Fax
Fax Features
Up to 33.6 Kbps (Super G3)■ ■ ■
Up to 406 x 391 dpi (ultra fine)
Up to 512 Sheets♦
19 One-Touch Speed Dials; 262 Coded Dials
199 Destinations
310 Destinations
Yes (sending only)
Fax-Forwarding, Dual Access, Remote Reception,
Distinctive Ring Pattern Detection, Error Detection Mode,
Auto Redial, Fax Activity/Result Management Reports
N/A
GENERAL SPECIFICATIONS
Dimensions
Weight (without/with cartridge)
Package Weight
Warranty
17.8" (W) x 18.6" (D) x 18.4" (H)
45.4/47.2 lb.
61.1 lb.
45/46.7 lb.
60 lb.
Warranty: One-Year Limited Exchange/Carry-inuu (Extended warranty available)
ENVIRONMENTAL SPECIFICATIONS
Typical Energy Consumption (TEC)
Power Consumption
Noise Level♦♦♦
1.2 kWh
Operation: Approx.600 W; Standby: Approx. 9 W; Energy Saver: 1.2 W (USB), 1.4 W (wired), 1.9 W (wireless)
Operation: 53 dB (sound pressure); 70.6 dB or Less (sound power)
Standby: Inaudible (sound pressure); 52 dB or Less (sound power)
Yes
ENERGY STAR ®
Silver
EPEAT
WHAT COMES IN THE BOX
D1500 Series Product, Starter Cartridge 120 (starter yield: 2,300 sheets, ISO/IEC), Power Cord (USB not included), Phone Cable (D1550 only),
Starter Guide, User Software DVD-ROM, Warranty Card, Canon Drivers
**Print speed is based on internal testing. Print speed may vary depending on the number of copies
selected as well as the settings for size, type, and orientation of paper.
***May vary depending on the output environment.
•
Wireless performance may vary based on terrain/distance between printer and wireless network clients.
••
A5 paper is supported in Simplex mode only.
†Canon PRINT Business is a free app available on the App Store® and Google Play™ Store. For more information,
including compatibility, please visit https://www.usa.canon.com/mobile-app. Users of Canon Mobile Printing
can simply update the app to use Canon PRINT Business; users who have installed Canon Mobile Scanning for
Business should install Canon PRINT Business on their compatible device. After Canon PRINT Business is
installed, users can re-register their Canon Mobile Scanning for Business device list and local documents.
††
Apple AirPrint functionality requires an iPad, iPad Mini, iPad 2, the new iPad, iPhone 3GS or later, or
iPod touch 3rd generation or later device running iOS 7.0 - 8.0 or later, and an AirPrint-enabled printer
connected to the same network as your iOS device. A printer connected to the USB port of your Mac,
PC, AirPort Base Station, or Time Capsule is not supported.
Mopria Print Service, available free at the Google Play Store, requires a compatible Android 4.0 or later
smartphone or tablet. The printer must be either wirelessly connected to the network router or with
an Ethernet cable. The mobile device and printer must be connected to the same network.
▲Google Cloud Print requires an Internet connection and Google Account. Printer firmware update may
be necessary for Google Cloud Print™ function. Certain exceptions may apply. A PC running Windows XP
or later or a Mac running OS 10.4.11 or later and USB cable are required to perform firmware update.
▲▲▲Based on 20 lb. Bond paper.
■ Letter-sized, after being restored from Energy Saver mode.
■ ■Based on Letter-sized scanning at 300 x 300 dpi.
■ ■ ■The Public Switched Telephone Network currently supports fax modem speeds of 28.8 Kbps
or lower, depending on telephone line conditions. Sending and receiving fax machines need to
conform to ITU-T v.34 guidelines.
uBased on ITU-T #1 Chart (standard mode).
u uWarranty program is subject to certain conditions and restrictions. See warranty card for details.
3
u u uDeclared noise emission in accordance with ISO 9296.
†††
50-Sheet Automatic Document Feeder
3.5-Inch, Color,
Touch-Panel LCD
NFC Function
Easy, Front-Loading
Cartridge System
50-Sheet
Multipurpose Tray
Standard 500-Sheet Cassette
D1550 shown
imageCLASS D1500 Series and Accessories
imageCLASS D1550
0291C009
imageCLASS D1520
0291C0 1 1
Cartridge 120 (full-yield cartridge; 5,000 sheets; ISO/IEC Standard)
2617B001
Optional Cassette Feeding Unit-U1 (500-sheet cassette)
0732A023
D1550
Tier 4E One-Year eCarePAK, One-Year Exchange/Carry-in
5707B050
Tier 4E Two-Year eCarePAK, Two-Year Exchange/Carry-in
5707B051
Tier 4E Three-Year eCarePAK, Three-Year Exchange/Carry-in
5707B052
Tier 4E Four-Year eCarePAK, Four-Year Exchange/Carry-in
5707B053
D1520
Tier 3E One-Year eCarePAK, One-Year Exchange/Carry-in
5707B046
Tier 3E Two-Year eCarePAK, Two-Year Exchange/Carry-in
5707B047
Tier 3E Three-Year eCarePAK, Three-Year Exchange/Carry-in
5707B048
Tier 3E Four-Year eCarePAK, Four-Year Exchange/Carry-in
5707B049
USA.CANON.COM /IMAGECLASS
As an ENERGY STAR partner, Canon U.S.A., Inc. has qualified these models as meeting the ENERGY STAR
energy efficiency criteria through an EPA recognized certification body. ENERGY STAR and the ENERGY STAR
mark are registered U.S. marks. Android is a trademark of Google Inc. App Store is a service mark of Apple Inc.
iPhone, iPad Air, iPad, iPad mini are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a
trademark or registered trademark of Cisco in the United States and other countries and is used under license.
Canon, imageCLASS, and the Super G3 logo are registered trademarks and the GENUINE logo is a trademark
of Canon Inc. in the United States and may also be registered trademarks or trademarks in other countries.
All other referenced product names and marks are trademarks of their respective owners. Specifications
and availability subject to change without notice. Not responsible for typographical errors.
©2016 Canon U.S.A., Inc. All rights reserved.
0199W777
0416-D1550/D1520-7.5M-DSP
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
