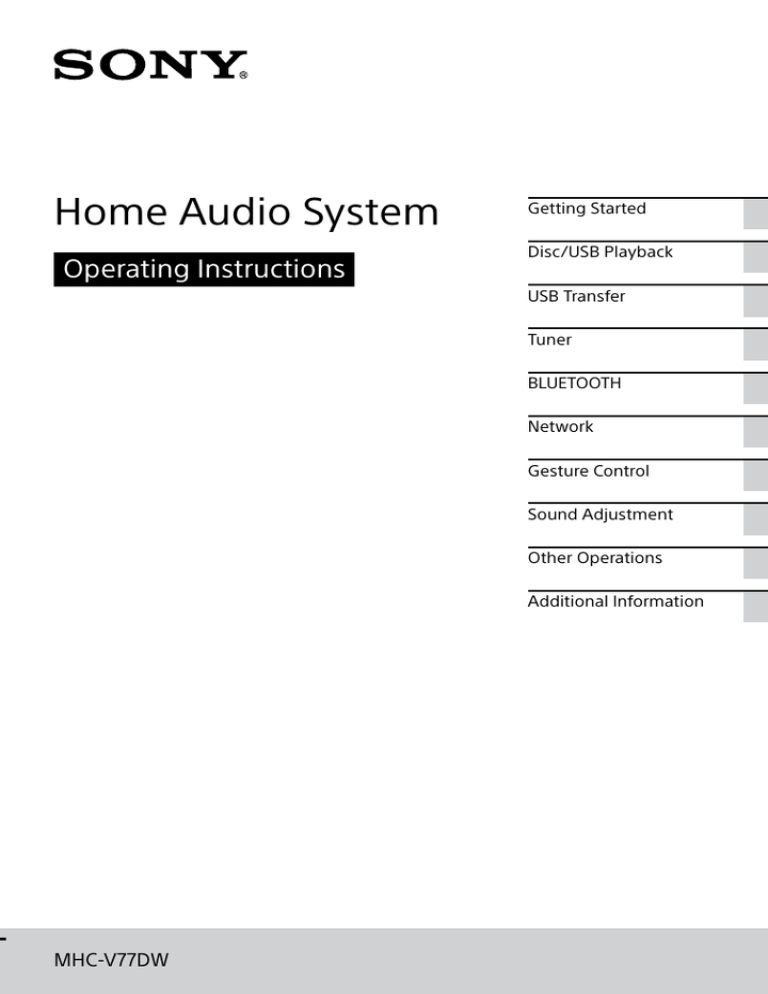

Home Audio System
Operating Instructions
Getting Started
Disc/USB Playback
USB Transfer
Tuner
BLUETOOTH
Network
Gesture Control
Sound Adjustment
Other Operations
Additional Information
MHC-V77DW
MHC-V77DW.GB.4-596-07613(1)
2
GB
WARNING
To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.
Do not expose the appliance to naked flame sources (for example, lighted candles).
To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.
As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.
The unit is not disconnected from the mains as long as it is connected to the
AC outlet, even if the unit itself has been turned off.
Indoor use only.
For product with CE marking
The validity of the CE marking is restricted to only those countries where it is legally enforced, mainly in the countries EEA (European Economic
Area).
CAUTION
The use of optical instruments with this product will increase eye hazard.
For customers in Europe
This appliance is classified as a CLASS
1 LASER product under IEC 60825-
1:2007. This marking is located on the rear exterior.
Disposal of waste batteries and electrical and electronic equipment (applicable in the
European Union and other
European countries with separate collection systems)
This symbol on the product, the battery or on the packaging indicates that the product and the battery shall not be treated as household waste. On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead (Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring these products and batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling. The recycling of the materials will help to conserve natural resources.
MHC-V77DW.GB.4-596-07613(1)
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only. To ensure that the battery and the electrical and electronic equipment will be treated properly, hand over these products at end-oflife to the applicable collection point for the recycling of electrical and electronic equipment. For all other batteries, please view the section on how to remove the battery from the product safely. Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product or battery.
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.
This product has been manufactured by or on behalf of Sony Corporation,
1-7-1 Konan Minato-ku Tokyo, 108-0075
Japan. Inquiries related to product compliance based on European
Union legislation shall be addressed to the authorized representative,
Sony Belgium, bijkantoor van Sony
Europe Limited, Da Vincilaan 7-D1, 1935
Zaventem, Belgium. For any service or guarantee matters, please refer to the addresses provided in the separate service or guarantee documents.
Hereby, Sony Corp., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
For details, please access the following
URL: http://www.compliance.sony.de/
This product is intended to be used in the following countries.
AT, BE, BG, HR, CY, CZ, DK, EE, FI, FR, DE,
GR, HU, IS, IE, IT, LV, LI, LT, LU, MT, NL,
NO, PL, PT, RO, SK, SI, ES, SE, CH, GB, AL,
BA, MK, MD, RS, ME, TR, Kosovo
5,150 MHz – 5,350 MHz band is restricted to indoor operations only.
This equipment has been tested and found to comply with the limits set out in the EMC regulation using a connection cable shorter than
3 meters.
This system is designed to be used for the following purposes:
• Playing back music/video sources on discs or USB devices
• Transferring music to USB devices
• Listening to radio stations
• Listening to TV sound
• Playing back music sources on
BLUETOOTH devices
• Enjoying social gatherings with the
“Party Chain” function
• Streaming music through network connection
For customers in Australia and
New Zealand
This equipment should be installed and operated with at least 20 cm and more between the radiator and person’s body (excluding extremities: hands, wrists, feet and ankles).
3
GB
MHC-V77DW.GB.4-596-07613(1)
4
GB
For customers in Australia and
India
Disposal of Old
Electrical & Electronic
Equipment
(Applicable in the
European Union and other European countries with separate collection systems)
For customers in Singapore
For customers in the United
Arab Emirates
This appliance is classified as a CLASS 1
LASER product under IEC 60825-1:2007.
This marking is located on the rear exterior.
License and Trademark Notice
• is a trademark of DVD Format/
Logo Licensing Corporation.
• “DVD+RW”, “DVD-RW”, “DVD+R”,
“DVD-R”, “DVD VIDEO”, and the “CD” logos are trademarks.
• WALKMAN® and WALKMAN® logo are registered trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• This product is protected by certain intellectual property rights of Microsoft Corporation. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft or an authorized Microsoft subsidiary.
• This system incorporates Dolby*
Digital.
* Manufactured under license from
Dolby Laboratories. Dolby, Dolby
Audio, and the double-D symbol are trademarks of Dolby Laboratories.
• This system incorporates High-
Definition Multimedia Interface
(HDMI™) technology. The terms
HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
• “BRAVIA” is a trademark of Sony
Corporation.
• LDAC™ and LDAC logo are trademarks of Sony Corporation.
MHC-V77DW.GB.4-596-07613(1)
• The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Sony
Corporation is under license. Other trademarks and trade names are those of their respective owners.
• The N-Mark is a trademark or registered trademark of NFC Forum,
Inc. in the United States and in other countries.
• Android™ is a trademark of Google
Inc.
• Google Play™ is a trademark of
Google Inc.
• Google Cast™ is a trademark of
Google Inc.
• Apple, the Apple logo, iPhone, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• Wi-Fi®, Wi-Fi Protected Access® and Wi-Fi Alliance® are registered trademarks of Wi-Fi Alliance®.
• Wi-Fi CERTIFIED™, WPA™, WPA2™ and Wi-Fi Protected Setup™ are trademarks of Wi-Fi Alliance®.
• DLNA™, the DLNA Logo and DLNA
CERTIFIED™ are trademarks, service marks, or certification marks of the
Digital Living Network Alliance.
• AOSS is a trademark of BUFFALO
INC.
• This product incorporates Spotify software which is subject to 3rd party licenses found here: https://developer.spotify.com/ esdk-third-party-licenses/
• Spotify and Spotify logos are trademarks of the Spotify Group.
• ClearAudio+ and trademarks of Sony Corporation.
are
• “Xperia” and “Xperia Tablet” are trademarks of Sony Mobile
Communications AB.
• THIS PRODUCT IS LICENSED UNDER
THE MPEG-4 VISUAL PATENT
PORTFOLIO LICENSE FOR THE
PERSONAL AND NON-COMMERCIAL
USE OF A CONSUMER FOR
(i) ENCODING VIDEO IN
COMPLIANCE WITH THE MPEG-4
VISUAL STANDARD (“MPEG-4
VIDEO”)
AND/OR
(ii) DECODING MPEG-4 VIDEO THAT
WAS ENCODED BY A CONSUMER
ENGAGED IN A PERSONAL AND
NON-COMMERCIAL ACTIVITY
AND/OR WAS OBTAINED FROM
A VIDEO PROVIDER LICENSED TO
PROVIDE MPEG-4 VIDEO.
NO LICENSE IS GRANTED OR SHALL
BE IMPLIED FOR ANY OTHER
USE. ADDITIONAL INFORMATION
INCLUDING THAT RELATING TO
PROMOTIONAL, INTERNAL AND
COMMERCIAL USES AND LICENSING
MAY BE OBTAINED FROM MPEG LA,
L.L.C.
HTTP://WWW.MPEGLA.COM
• All other trademarks are trademarks of their respective owners.
• In this manual, ™ and ® marks are not specified.
5
GB
MHC-V77DW.GB.4-596-07613(1)
6
GB
About this manual
•
• This manual mainly explains operations using the remote control, but the same operations
•
• can also be performed using the keys on the touch panel of the unit having the same or similar names.
Icons, such as , listed at the
•
• top of each explanation indicate the type of media that can be used with the function being explained.
Some illustrations are presented
•
• as conceptual drawings, and may be different from the actual products.
The items displayed on the TV
•
•
•
• screen may vary depending on the area.
The default setting is underlined.
The text enclosed in bracket ([--]) appears on the TV screen, and the text enclosed in double quotation mark (“--”) appears on the display.
MHC-V77DW.GB.4-596-07613(1)
Table of Contents
About this manual .................6
Unpacking ..............................9
Playable discs or files on discs/USB device ...................9
Websites for compatible devices ..................................12
Guide to parts and controls .................................13
Getting Started
Hooking up the system securely .................................19
Deactivating the demonstration ......................21
Inserting batteries ................21
Connecting the TV ............... 22
Carrying the unit .................. 24
Changing the color system .................................. 24
Performing the quick setup .................................... 24
Changing the display mode .................................... 25
Disc/USB Playback
Before using the USB device ................................... 26
Basic playback ..................... 26
Other playback operations ............................ 27
Using play mode ..................30
Restricting playback of the disc (Parental Control) ...........31
Viewing information of a disc and USB device ............. 32
Using the Setup Menu ......... 33
USB Transfer
Before using the USB device ................................... 37
Transferring music ............... 37
Tuner
Listening to the radio ...........40
BLUETOOTH
About the BLUETOOTH wireless technology ..............41
BLUETOOTH device ...............41
BLUETOOTH device .............. 42
Connection by NFC .............. 43
Setting the BLUETOOTH audio codecs ........................44
7
GB
MHC-V77DW.GB.4-596-07613(1)
8
GB
Network
Selecting the method of network connection ............. 45
Connecting with a computer ............................. 45
Listening to the same music from the multiple speakers
(SongPal Link function) ........ 47
Listening to an Internet music service (Google
Cast) ..................................... 47
Listening to an Internet music service (Spotify) .........48
Gesture Control
Control .................................49
Using the Gesture Control during playback ...................50
Creating a party atmosphere (DJ Effect) .........50
Using the Gesture Control during Karaoke function .......51
Sound Adjustment
Adjusting the sound ............ 52
Football mode ...................... 52
Creating your own sound effect .................................... 53
Other Operations
Controlling the system using a smartphone or tablet
(SongPal) .............................. 53
Getting frenzied parties with the “Fiestable” app ....... 54
Using the Control for HDMI function ................................ 54
Using the Party Chain function ................................ 57
Singing along: Karaoke ........60
Light ......................................61
Using the Sleep Timer ...........61
Using optional equipment ....61
Deactivating the touch panel on the unit (Child
Lock) ..................................... 62
Deactivating the touch panel on the unit for a short time (Party Lock) .................. 62
Setting the automatic standby function.................. 62
Network standby mode ....... 63
BLUETOOTH/Wi-Fi signal ..... 63
Updating the software .........64
Additional Information
Troubleshooting .................. 65
Precautions .......................... 76
Specifications ....................... 79
Language code list .............. 82
MHC-V77DW.GB.4-596-07613(1)
Unpacking
•
•
•
•
•
•
•
•
•
•
This unit (MHC-V77DW) (1)
Remote control (1)
R03 (size AAA) batteries (2)
FM lead antenna (1)
AC power cord (mains lead) (1)
•
• AC plug adaptor* (1) (supplied only for certain areas)
* This plug adaptor is not for the use in
Chile, Paraguay and Uruguay. Use this plug adaptor in the countries where it is necessary.
Note
When unpacking the carton, be sure that two people handle the unit. Dropping the unit may cause personal injury and/or property damage.
Playable discs or files on discs/USB device
Playable discs
•
•
•
•
•
•
DVD VIDEO
DVD-R/DVD-RW in DVD VIDEO format or video mode
DVD+R/DVD+RW in DVD VIDEO format
•
•
•
•
•
•
• •
•
•
VIDEO CD (Ver. 1.0, 1.1, and 2.0 discs)
Super VCD
CD-R/CD-RW/CD-ROM in VIDEO
CD format or super VCD format
AUDIO CD
CD-R/CD-RW in AUDIO CD format
Playable files on discs
•
•
•
•
Music:
MP3 files (.mp3)* 1 * 2
Video:
MPEG4 files (.mp4/.m4v)* files (.avi)
2
*
3
, Xvid
Playable files on USB device
•
•
•
•
Music:
MP3 files (.mp3)*
(.wma)*
2
.3gp)* 2 files (.aiff)* 2
ALAC files (.alac)*
.dsdiff)*
2
1
2
*
2
, WMA files
, AAC files (.m4a/.mp4/
, WAV files (.wav)* 2
Video:
MPEG4 files (.mp4/.m4v)*
, AIFF
, FLAC files (.flac)*
, DSD (.dsf/
2 * 3
2 ,
, Xvid files (.avi)
Note
•
• The discs must be in the following format:
— CD-ROM/-R/-RW in DATA CD format that contains the MP3* 1 * 2 , MPEG4* 2 * 3 and Xvid files, and conforms to
ISO 9660*
4
Level 1/Level 2 or Joliet
(extended format).
— DVD-ROM/-R/-RW/+R/+RW in
DATA DVD format that contains the
MP3*
1
*
2
, MPEG4*
2
*
3
and Xvid files, and conforms to UDF (Universal Disk
Format).
•
• The system will attempt to play back any data with the extensions above, even if it is not in the supported format.
Playing this data may generate a loud noise which could damage your speaker system.
* 1 MP3 (MPEG 1 Audio Layer 3) is a standard format defined by ISO/
MPEG for compressed audio data. MP3 files must be in MPEG 1 Audio Layer 3 format.
* 2 Files with copyright protection (Digital
Rights Management) cannot be played
* 3 back by the system.
MPEG4 files must be recorded in MP4 file format. Supported video codec and audio codec are as follows:
— Video codec: MPEG4 Simple Profile
(AVC is not supported.)
— Audio codec: AAC-LC (HE-AAC is not supported.)
* 4
A logical format of files and folders on CD-ROMs, defined by ISO
(International Organization for
Standardization).
9
GB
MHC-V77DW.GB.4-596-07613(1)
10
GB
Discs/files that cannot be played back
•
•
You cannot play back the following discs
—BDs (Blu-ray Discs)
•
—CD-ROMs recorded in PHOTO CD format
—Data part of CD-Extra or Mixed
Mode CDs*
—CD Graphics disc
•
•
• created in Packet Write format
—DVD-RAM
• not been correctly finalized
—CPRM (Content Protection for
Recordable Media) compatible
DVD-R/-RW recorded in Copy-
Once programs
—A disc that has a non-standard shape (e.g., heart, square, star)
—A disc that has adhesive tape, paper, or a sticker attached to it
•
• You cannot play back the following files
—The video files which is larger than 720 (width) × 576 (height) pixels.
• to length ratio.
—A WMA file in WMA DRM, WMA
Lossless, or WMA PRO format.
—An AAC file in AAC DRM or AAC
Lossless format.
—The AAC files which is encoded at 96 kHz.
—Files that are encrypted or protected by passwords.
—Files with DRM (Digital Rights
Management) copyright protection.
—Some Xvid files that are longer than 2 hours.
•
•
•
•
The MP3 PRO audio file can be played back as MP3 file.
The system may not play back an
Xvid file when the file has been combined from two or more Xvid files.
* Mixed Mode CD: This format records data on the first track and audio (AUDIO
CD data) on the second and subsequent tracks of a session.
Notes on CD-R/-RW and
DVD-R/-RW/+R/+RW
•
•
In some cases, a CD-R/-RW and
DVD-R/-RW/+R/+RW cannot be played back on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording
•
• device and authoring software.
For more information, refer to the operating instructions of the recording device.
Some playback functions may not work with some DVD+Rs/+RWs, even if they have been correctly finalized. In this case, view the disc by normal playback.
Notes on discs
•
•
•
•
This product is designed to play back discs that conform to the
Compact Disc (CD) standard.
DualDisc and some music discs encoded with copyright protection technologies do not conform to the CD standard. Therefore, these discs may not be compatible with this product.
Note on multisession disc
This system can play back continuous sessions on a disc when they are recorded in the same format as the first session. However, the playback is not guaranteed.
MHC-V77DW.GB.4-596-07613(1)
Note on DVD VIDEO and VIDEO
CD playback operations
Some playback operations for a DVD VIDEO or VIDEO CD may be intentionally restricted by software producers. Therefore, some playback features may not be available. Be sure to read the operating instructions of the DVD
VIDEO or VIDEO CD.
Notes on playable files
•
• Playback may take a longer time to start when:
—a DATA CD/DATA DVD/USB device is recorded with a complicated tree structure.
• another folder have just been played back.
•
• The system can play back a DATA
CD/DATA DVD or video files on a USB device in the following conditions:
—up to a depth of 8 folders
•
•
—up to 999 files in a disc
•
•
The system can play back audio files on a USB device in the following conditions:
—up to a depth of 8 folders
• in a folder
These numbers may vary
•
•
•
• depending on the file or folder configuration.
Folders that have no audio files or video files are skipped.
Files transferred by a device such as a computer may not be played back in the order in which they were transferred.
•
•
The playback order may not be
•
• applicable depending on the software used for creating the audio file or video file.
Compatibility with all encoding/
•
• writing software of the supported formats, recording devices, and recording media cannot be guaranteed.
Depending on the Xvid file, the picture may be unclear or the sound may skip.
Notes about USB devices
•
•
This system is not guaranteed to operate with all USB devices.
•
• Although there are a variety of complex functions for USB devices, the playable contents of USB devices connected to the system are music and video
•
• contents only. For details, refer to the operating instructions of the
USB device.
When a USB device is inserted, the system reads all the files on the USB device. If there are many folders or files on the USB device, it may take a long time to finish
•
• reading the USB device.
Do not connect the system and the USB device through a USB hub.
•
• With some connected USB devices, there may be a delay before an operation is performed by this system.
•
•
•
•
The playback order for the system may differ from the playback order of the connected USB device.
Before using a USB device, make sure that no virus-ridden files are on the USB device.
11
GB
MHC-V77DW.GB.4-596-07613(1)
12
GB
Region code
Your system has a region code and will only play back a DVD VIDEO labeled with an identical region code or .
Websites for compatible devices
Check the websites below for the latest information about compatible
USB and BLUETOOTH devices.
For customers in Latin America:
<http://esupport.sony.com/LA>
For customers in Europe and
Russia:
<http://www.sony.eu/support>
For customers in other countries/ regions:
<http://www.sony-asia.com/ support>
Compatible iPhone/iPod models
The compatible iPhone/iPod models are as follows. Update your iPhone/ iPod with the latest software before using with the system.
BLUETOOTH technology works with:
•
• iPhone SE
•
•
•
•
•
•
•
• iPhone 6s Plus iPhone 6s iPhone 6 Plus iPhone 6
•
•
•
•
•
•
•
• iPhone 5s iPhone 5c iPhone 5 iPhone 4s
•
•
•
• iPod touch (6th generation) iPod touch (5th generation)
MHC-V77DW.GB.4-596-07613(1)
Guide to parts and controls
You can lock the keys except
(power) on the unit to prevent them from
being operated by mistake (page 62).
Unit
Top
Slot
Side
Front
13
GB
MHC-V77DW.GB.4-596-07613(1)
14
GB
Power indicator
•
Indicates the current status of the system:
•
Lights off: The system
•
•
•
• is in standby mode and
BLUETOOTH/Network standby mode is set to off.
Lights up:
— Orange: The system is in standby mode and
BLUETOOTH/Network standby mode is set to on.
— Green: The system is turned on.
Flashes:
— Green: The system is in the midst of turning on or entering standby mode.
— Red: The system detects an abnormality that cannot be displayed with an error message.
(power) button
Press to turn on the system, or set it to standby mode.
(play) key
Touch to start playback.
Touch and hold
for more than 2 seconds, the built-in sound demonstration will be played back.
Touch
to stop the demonstration.
• (stop) key
— Touch to stop playback.
When touched twice, resume playback can be canceled.
— Touch to stop transfer during music transfer.
— Touch to stop the built-in sound demonstration.
GESTURE ON/OFF key
BLUETOOTH indicator
BLUETOOTH key
Touch to select the BLUETOOTH function.
PAIRING key
Touch and hold to activate
BLUETOOTH pairing during the
BLUETOOTH function.
NETWORK indicator
•
Indicates the current status of the system:
•
Lights off: The system is in standby mode.
•
• Lights up:
— White: The network connection is established.
— Green: The system is connected to a music service via Spotify.
— Blue: The system is connected to a music
•
• service via Google Cast.
Flashes in white: While connecting to network.
NETWORK key
Touch to select NETWORK function.
WPS (Wi-Fi Protected
Touch and hold to set up a Wi-Fi network.
STEREO PAIR key
Touch to use the Wireless
Stereo* function for combining two systems.
MHC-V77DW.GB.4-596-07613(1)
SET UP key
Touch and hold to use the
Wireless Stereo* function for two speaker systems.
* Wireless Stereo can be used after you update the software of the system. For information about updating, refer to the URL below. http://sony.net/nasite/
Display
Do not look directly at the light- emitting part when the Party
Light is turned on.
GESTURE CONTROL sensor
FUNCTION key
Touch to select a function.
Lights up when FIESTA sound effect is selected.
SOUND FIELD key (page
PARTY CHAIN key (page
MIC LEVEL +/– key
VOLUME +/– key
Touch to adjust the volume.
+/– (select folder) key
Touch to select a folder on a data disc or a USB device.
/ (go backward/go forward) key
Touch to select a track or file.
(open/close) key
Touch to open or close the disc tray.
Direct function key (DVD/CD,
USB, FM, AUDIO IN, TV)
To use this button, touch
PLAYBACK (
), then the function key you want.
VOCAL FADER key (page
VOICE CHANGER +/– key
Disc tray
Remote control sensor
15
GB
MHC-V77DW.GB.4-596-07613(1)
16
GB
MIC1 jack, MIC2 jack (inside the MIC1 MIC2 cover)
Place your fingernail in the slot to open the cover.
Use to connect the microphone(s).
(USB) port (inside the USB
REC/PLAY cover)
Open the cover according to the arrow direction.
Use to connect a USB device.
This port can be used for both playback and music transfer.
Remote control
(power) button
Press to turn on the system, or sets it to standby mode.
PLAY MODE button (page
REPEAT/FM MODE button
Numeric (0 – 9) buttons*
1
*
2
— Press to select a track, chapter or file with its item number.
— Press to enter numbers or values.
AUDIO*
2
DVD SETUP button (page
MEDIA MODE button (page
Press to select the media to be played back on a data disc or
USB device.
REC TO USB button (page
Press to transfer music to the
USB device connected to the
(USB) port.
MHC-V77DW.GB.4-596-07613(1)
+/– (select folder)
Press to select a folder on a data disc or a USB device.
KEY CONTROL
/ button
DVD TOP MENU button
Press to display the DVD title on the TV screen.
DVD/TUNER MENU button
OPTIONS button
Press to enter or exit options menu.
/ / / button
Press to select the menu items.
button
Press to enter/confirm the settings.
(volume) +/–* 2
button
Press to adjust the volume.
SHIFT* 1
button
Hold down to activate the buttons printed in pink.
/ (fast reverse/fast
Press to find a point in a track or file during playback.
/
(slow back/slow
Press to play in slow-motion.
TUNING+/– button (page
(play)*
2 button
Press to start playback.
/ (go backward/go
Press to select a track or file.
PRESET+/– button (page
(pause) button
Press to pause playback. To resume playback, press
.
(stop) button
— Press to stop playback.
When pressed twice, resume playback can be canceled.
— Press to stop transfer during music transfer.
— Press to stop the built-in sound demonstration.
FUNCTION +/– button
Press to select a function.
MEGA BASS button (page
SOUND FIELD button (page
MUSIC ARENA button (page
PARTY LIGHT button (page
LIGHT MODE button (page
17
GB
MHC-V77DW.GB.4-596-07613(1)
Press to change the information on the display.
DISPLAY* 1 button (page
Press to view or hide the onscreen display.
* 1 This button is printed in pink. To use this button, hold down SHIFT (
)
*
2 button, then press this button.
The numeric button 2/AUDIO,
+ and
buttons have a tactile dot. Use the tactile dot as a reference when operating the system.
18
GB
MHC-V77DW.GB.4-596-07613(1)
Getting Started
Hooking up the system securely
Unit (Rear)
Note
The jacks/terminal/port at the rear panel have cover, open the cover then make the connection.
HDMI OUT (TV) jack
Use an HDMI cable (not supplied) to connect to the HDMI IN jack of
VIDEO OUT jack
Use a video cable (not supplied) to connect to the video input jack
of a TV or projector (page 22).
Note
Do not connect this system to the TV through the video deck.
19
GB
MHC-V77DW.GB.4-596-07613(1)
20
GB
Audio input and output jacks
Use an audio cable (not supplied) to make either connection as follows:
•
•
AUDIO/PARTY CHAIN OUT
L/R jacks
—Connect to the audio input jacks of an optional
•
• equipment.
• system to enjoy the Party
AUDIO/PARTY CHAIN IN (TV)
L/R jacks
—Connect to the audio output jacks of a TV or an audio/ video equipment. The sound is output through this system.
• system to enjoy the Party
Wireless LAN antenna
If you use the wireless network function, set the antenna as shown in the illustration.
FM ANTENNA terminal
Find a location and an orientation that provide good reception when you set up the antennas.
Keep the antenna away from the
AC power cord (mains lead) and the USB cable to avoid picking up noise.
Extend the FM lead antenna horizontally
LAN (100) port
Use a LAN cable (not supplied) to connect to a network equipment
AC power cord (mains lead)
Connect the AC power cord
(mains lead) (supplied) to the unit, then to the wall outlet.
To wall outlet
Note
If a network (LAN) cable is connected to the system, the system automatically operates to establish a wired LAN connection. If you wish to use a wireless LAN connection, do not connect a network (LAN) cable to the system.
Hint
We recommend you to adjust the wireless LAN antenna to 90 degrees as in the illustration above for maximum reception.
When the AC power cord (mains lead) is connected, the system is performing initialization. During system initialization, “WELCOME” appears on the display. While the initializing is in progress, you cannot turn on the system.
After initialization completes,
starts automatically. If you press
to turn on the system, the demonstration ends.
MHC-V77DW.GB.4-596-07613(1)
Deactivating the demonstration
To deactivate the demonstration while the system is turned off, press
DISPLAY repeatedly to select the no display mode (Power Saving Mode)
Inserting batteries
Insert the two supplied R03 (size
AAA) batteries, matching the polarities shown below.
To operate the unit using the remote control
Point the remote control at the unit’s remote control sensor.
Note
•
•
Do not mix an old battery with a new one or mix different types of batteries.
•
• If you do not use the remote control for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion.
MHC-V77DW.GB.4-596-07613(1)
21
GB
22
GB
Connecting the TV
Connecting the TV
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
To watch video
Select the connection methods according to the jacks on your TV.
High quality
HDMI cable* 1 (not supplied)
HDMI IN (ARC) *2
or
HDMI IN
Video cable (not supplied)
VIDEO IN
Standard quality
Recommended connection
Alternative connection
* 1 High Speed HDMI Cable with Ethernet
* 2 You can listen to TV sound via the system if you connect the system to the TV’s HDMI
IN (ARC) jack. The Audio Return Channel (ARC) function enables the TV to output sound through the system with an HDMI connection, without performing an audio connection (connection
below). To set the ARC function on this system, see [AUDIO
RETURN CHANNEL] (page 36). To check the compatibility of your TV’s ARC function,
refer to the operating instructions supplied with your TV.
MHC-V77DW.GB.4-596-07613(1)
To listen to TV sound via the system
If you do not connect the system to the TV’s HDMI IN (ARC) jack, make this connection.
Audio cable (not supplied)
AUDIO OUT
To listen to TV sound, press FUNCTION +/– repeatedly to select “TV”.
Hint
•
•
You can also enjoy the sound of external equipment (DVD players, etc.) via the system by connecting to the AUDIO IN (TV) jack as connection
above. For details, refer to the operating instructions of your equipment.
•
• If the audio output level from the system is low when connecting the external equipment, try adjusting the audio output settings on the connected equipment. It may improve the audio output level. For details, refer to the operating instructions of your equipment.
If “CODE 01” and “SGNL ERR” appear on the display of the unit
When the audio input signals to the system are other than 2-channel
Linear PCM signals, the messages “CODE 01” and “SGNL ERR” (indicate that the input audio signals are unsupported) appear on the display of the unit.
In this case, select the proper audio output mode on the TV in order to output 2-channel Linear PCM audio signals.
MHC-V77DW.GB.4-596-07613(1)
23
GB
24
GB
Carrying the unit
The unit has caster wheels so that you can roll it easily. Normally, carrying the unit by this method is recommended on flat surfaces.
Before carrying the unit, disconnect all the cables.
Note
•
• The caster wheels can be used only on flat surfaces. Lift the unit by two people on uneven surfaces. Correct hand placement while carrying the unit is very important to avoid personal injury and/or property damage. Be sure to use the handle when lifting the unit.
Changing the color system
(Except for Latin American,
European, and Russian models)
Set the color system to PAL or NTSC depending on the color system of your TV.
Each time you perform the procedure below, the color system changes as follows:
NTSC
PAL
Use the keys on the touch panel of the unit to perform this operation.
1
Press
to turn on the system.
2
Touch FUNCTION repeatedly to select “DVD/CD”.
3
Touch and hold DJ and TUNING + for more than 2 seconds.
“NTSC” or “PAL” appears on the display.
Handle
•
•
Exercise extreme caution when carrying the unit on a slope.
•
• Do not carry the unit with a person,
•
• luggage, etc. on it.
Do not let children or infants be near when carrying the unit.
Performing the quick setup
Before using the system, you can make the minimum basic adjustments in the quick setup.
1
Turn on your TV and select the video input.
2
Press
to turn on the system.
3
Press FUNCTION +/– repeatedly to select “DVD/CD”.
The guide message [Press ENTER to run QUICK SETUP.] appears at the bottom of the TV screen.
MHC-V77DW.GB.4-596-07613(1)
4
Press without loading a disc.
[LANGUAGE SETUP] appears on the
TV screen. Displayed items may vary depending on country or region.
LANGUAGE SETUP
OSD :
MENU
AUDIO
:
:
S U B T I T L E
:
ENGLISH
ENGLISH
CHINESE 1
CHINESE 2
THAI
5
Press / repeatedly to select a language, then press .
[VIDEO SETUP] appears on the TV screen.
6
Press / repeatedly to select the setting that matches your
TV type, then press .
After [QUICK SETUP is complete.] appears on the TV screen, the system is ready for playback.
To change the setting manually
To quit the quick setup
Press DVD SETUP.
Note
The guide message appears when you turn on the system for the first time or
after performing [RESET] (see “Returning the setup menu settings to the default” on page 75).
Changing the display mode
Press DISPLAY repeatedly while the system is turned off.
Each time you press the button, the display mode changes as follows.
Demonstration
The messages about the main features of this system scrolls across the display and the illumination turns on.
To turn off the illumination, press
PARTY LIGHT.
No display (Power Saving Mode)
The display is turned off to conserve power.
MHC-V77DW.GB.4-596-07613(1)
25
GB
26
GB
Disc/USB Playback
Before using the USB device
For compatible USB devices, see
“Websites for compatible devices”
(You can use your Apple devices with this system via BLUETOOTH connection only.)
Touch
on the unit again to close the disc tray.
Do not forcibly push the disc tray to close it as this may cause a malfunction.
For USB function:
Open the USB REC/PLAY cover according to the arrow direction, then connect a USB device to the
(USB) port.
Basic playback
1
Press FUNCTION +/– repeatedly to select “DVD/CD” or “USB”.
Alternatively, touch PLAYBACK, then touch DVD/CD or USB on the unit.
2
Prepare the playback source.
For DVD/CD function:
Touch
on the unit to open the disc tray and load a disc with the label facing up on the disc tray.
Note
You can use a USB adaptor (not supplied) to connect the USB device to the unit if the USB device cannot be plugged into the (USB) port.
3
( only)
Press MEDIA MODE repeatedly to select the media type
([MUSIC]/[VIDEO]) you want.
4
Press
to start playback.
When you play back an 8 cm disc such as a CD single, place it on the inner circle of the tray.
MHC-V77DW.GB.4-596-07613(1)
Other operations
To Do this
Stop playback Press
.
Pause playback
Press
.
Press
.
Resume playback or return to normal playback
Cancel the resume point
Press
twice.
Select a track, file, chapter or scene
Press
or during playback.
Or, hold down SHIFT, press the numeric buttons, then press .*
(Operation might be prohibited by disc or
USB device.)
* This operation is not available for audio file playback of USB device.
To use the Gesture Control during playback
To play from a specific video file on the disc or USB device
1
Press MEDIA MODE repeatedly to select [VIDEO].
2
Press SEARCH to display the folder list.
3
Press / repeatedly to select the folder you want.
4
Press to display the file list.
5
Press / repeatedly to select the file you want, then press .
Other playback operations
Depending on the type of disc or file, the function may not work.
To
View DVD menu
Do this
Press DVD/TUNER
MENU.
View folder list or file list
Press SEARCH.
Press SEARCH again to turn off the folder list or file list.
Return to folder list when in file list
Press RETURN.
Find a point in an audio file of
USB device
Hold down
or during playback.
Locate a point quickly in fast forward or fast reverse (Lock
Search)
Press
or during playback.
Each time you press
or , the playback speed changes.
Watch frame by frame
(Slow-motion
Play)
Press
, then press or
.
Each time you press or
, the playback speed changes.
27
GB
MHC-V77DW.GB.4-596-07613(1)
28
GB
Searching a specific title/ chapter/scene/track/index
1
Press SEARCH repeatedly during playback to select the search mode.
2
Hold down SHIFT, press the numeric buttons to enter the title, chapter, scene, track, or index number you want, then press .
Playback starts.
Note
•
• For VIDEO CD with PBC playback, press
SEARCH to search the scene.
•
• For VIDEO CD without PBC playback, press SEARCH to search the track and index.
To search for a particular point using the time code
2
Press / / / , or hold down
SHIFT and press the numeric buttons, to select the title or item you want to play back, then press .
Changing the camera angles
Press ANGLE repeatedly during playback to select the camera angle you want.
Selecting the subtitle setting
1
Press SEARCH repeatedly during playback to select the time search mode.
2
Hold down SHIFT, press the numeric buttons to enter the time code, then press .
Example: To find a scene at 2 hours,
10 minutes, and 20 seconds after the beginning, hold down SHIFT, then press 2, 1, 0, 2, 0 ([2:10:20]).
If you make a mistake, press CLEAR to cancel the number.
To search using the DVD menu
1
Press DVD/TUNER MENU.
Press SUBTITLE repeatedly during playback to select the subtitle language you want or turn off the subtitle.
Changing the language/sound
Press AUDIO repeatedly during playback to select the audio format or mode you want.
DVD VIDEO
You can select audio format or language when the source contains multiple audio formats or multilingual audio.
When 4 digits are displayed, they indicate a language code. See
“Language code list” (page 82)
to confirm which language the code represents. When the same language is displayed two or more times, the DVD VIDEO is recorded in multiple audio formats.
MHC-V77DW.GB.4-596-07613(1)
VIDEO CD/AUDIO CD/DATA CD/
DATA DVD (MP3 file)
•
You can change the sound output.
•
[STEREO]: The standard stereo
•
• sound.
[1/L]/[2/R]: The monaural sound of the left or right channel.
SUPER VIDEO CD
•
•
• •
[1:STEREO]: The stereo sound of audio track 1.
[1:1/L]/[1:2/R]: The monaural sound of the left or right channel of audio track 1.
•
•
•
•
[2:STEREO]: The stereo sound of audio track 2.
[2:1/L]/[2:2/R]: The monaural sound of the left or right channel of audio track 2.
Playing a VIDEO CD with PBC functions
You can use the PBC (Playback
Control) menu to enjoy the interactive features of VIDEO CD
(VIDEO CD Version 2.0 and Super
VCD).
1
Press
to play a VIDEO CD
with PBC functions.
The PBC menu appears on the TV screen.
2
Hold down SHIFT, press the numeric buttons to select the item number you want, then press .
3
Continue playback according to the instructions on the menu.
Note
PBC playback is canceled when Repeat
Play is activated.
To cancel PBC playback
1
Press
or , or hold down
SHIFT and press the numeric buttons, to select a track when playback is stopped.
2
Press
or .
Playback starts from the selected track.
To return to PBC playback
Press
twice, then press .
Multi-disc resume play
This system can store playback resume points for up to 6 discs and resumes playback when you insert the same disc again. If you store a playback resume point for the 7th disc, the resume point for the first disc will be deleted.
To activate this function, set [MULTI-DISC RESUME] in [SYSTEM SETUP] to [ON]
Note
To play back from the beginning of the disc, press
twice, then press .
29
GB
MHC-V77DW.GB.4-596-07613(1)
Using play mode
Playing in sequential order
(Normal Play)
When playback is stopped, press
PLAY MODE repeatedly.
When playing a disc
•
•
[DISC]: plays the disc.
•
• [FOLDER]*: plays all playable files in the specified folder on the disc.
* Cannot be selected for AUDIO CD.
When playing a USB device
•
•
•
•
[ONE USB DEVICE]: plays the USB device.
[FOLDER]: plays all playable files in the specified folder on the USB device.
Note
•
• “FLDR” and “SHUF” light off on the display when Normal Play is set to
[DISC] or [ONE USB DEVICE].
• •
“FLDR” lights up on the display when
Normal Play is set to [FOLDER].
•
• When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the display.
Playing in random order
(Shuffle Play)
30
GB
When playback is stopped, press
PLAY MODE repeatedly.
When playing a disc
•
•
[DISC (SHUFFLE)]: shuffles all audio files on the disc.
•
•
[FOLDER (SHUFFLE)]*: shuffles all audio files in the specified folder on the disc.
* Cannot be selected for AUDIO CD.
When playing a USB device
•
•
•
•
[ONE USB DEVICE (SHUFFLE)]: shuffles all audio files on the USB device.
[FOLDER (SHUFFLE)]: shuffles all audio files in the specified folder on the USB device.
Note
• •
“SHUF” lights up on the display when
Shuffle Play is set to [DISC (SHUFFLE)] or
•
•
[ONE USB DEVICE (SHUFFLE)].
“FLDR” and “SHUF” lights up on the display when Shuffle Play is set to
[FOLDER (SHUFFLE)].
•
• When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the display.
•
• Shuffle Play cannot be performed for video files.
• •
Shuffle Play is canceled when you:
— open the disc tray.
— perform Synchronized Transfer.
— change MEDIA MODE.
• •
Shuffle Play may be canceled when you select a folder or a track to play back.
Playing repeatedly (Repeat
Play)
•
Press REPEAT repeatedly.
Depending on the type of disc or file, some settings may not be available.
•
[OFF]: does not play back
• •
•
• repeatedly.
[ALL]: repeats all tracks or files in the selected play mode.
[DISC]: repeats all contents (DVD
VIDEO and VIDEO CD only).
MHC-V77DW.GB.4-596-07613(1)
•
•
•
•
•
•
•
•
[TITLE]: repeats the current title
(DVD VIDEO only).
[CHAPTER]: repeats the current chapter (DVD VIDEO only).
[TRACK]: repeats the current track.
[FILE]: repeats the current video file.
To cancel Repeat Play
Press REPEAT repeatedly to select
[OFF].
Note
• •
“ ” lights up on the display when
Repeat Play is set to [ALL] or [DISC].
•
• “ ” lights up on the display when
Repeat Play is set to [TITLE], [CHAPTER],
•
•
[TRACK] or [FILE].
When USB function and [MUSIC] mode are selected, select the play mode you want by viewing the indicators on the
•
• display.
You cannot perform Repeat Play with
•
•
VIDEO CD during PBC playback.
Depending on the DVD VIDEO, you
•
• cannot perform Repeat Play.
Repeat Play is canceled when you
— open the disc tray.
— turn off the system (DVD VIDEO and
VIDEO CD only).
— change the function (DVD VIDEO and
VIDEO CD only).
— perform Synchronized Transfer.
— change MEDIA MODE.
Restricting playback of the disc (Parental
Control)
You can restrict playback of
DVD VIDEOs according to a predetermined level. Scenes may be skipped or replaced with different scenes.
1
When playback is stopped, press DVD SETUP.
2
Press / repeatedly to select
[SYSTEM SETUP], then press .
3
Press / repeatedly to select
[PARENTAL CONTROL], then press .
4
Hold down SHIFT, press the numeric buttons to enter or re-enter your 4-digit password, then press .
5
Press / repeatedly to select
[STANDARD], then press .
6
Press / repeatedly to select a geographic area as the playback limitation level, then press .
The area is selected.
When you select [OTHERS
], enter the area code for the geographic area you want according to the
“Parental Control area code list”
(page 83) by holding down SHIFT,
then press the numeric buttons.
7
Press / repeatedly to select
[LEVEL], then press .
8
Press / repeatedly to select the level you want, then press
.
The lower the value, the stricter the limitation.
To turn off the parental control function
Set [LEVEL] to [OFF] in step 8.
To play back a disc for which the parental control is set
1
Load the disc and press .
The display for entering your password appears on the TV screen.
31
GB
MHC-V77DW.GB.4-596-07613(1)
2
Hold down SHIFT, press the numeric buttons to enter or re-enter your 4-digit password, then press .
The system starts playback.
If you forget your password
Remove the disc and repeat steps 1
to 3 of “Restricting playback of the disc (Parental Control)” (page 31).
Hold down SHIFT, press the numeric buttons to enter a password
“199703”, then press .
Follow the on-screen instructions and enter a new 4-digit password.
Then, reload the disc and press
.
You need to enter your new password again.
Viewing information of a disc and USB device
Information on the TV screen
Hold down SHIFT, then press
DISPLAY repeatedly during playback.
32
GB
Playback information
Playing time and remaining time
Bit rate
File type
Playback status
Title* 1
/track/file name*
2
Album*
1 /folder name* 2
/ chapter/index number
Artist name*
1 * 2
Appears when playing an audio file.
*
1
If an audio file has an ID3 tag, the system will display an album name/ title name/artist name from the ID3 tag information. The system can support
* 2
ID3 ver 1.0/1.1/2.2/2.3.
If the file or folder contains characters which cannot be displayed, those characters will be displayed as “_”.
Note
•
• Depending on the source being played,
— some information may not be displayed.
— some characters cannot be
•
• displayed.
Depending on the play mode, the
•
• information displayed may be different.
When USB function is selected, you can view the information on the TV screen only if MEDIA MODE is set to [VIDEO].
Displaying the audio format information in DVD VIDEOs and video files
Press AUDIO repeatedly during playback.
Information on the display
Press DISPLAY repeatedly when the system is on.
You can view the information as follows:
—playing time, remaining time of track, title, chapter
—scene number
—file name, folder name
•
MHC-V77DW.GB.4-596-07613(1)
Note
•
•
The disc name or track name may not be displayed depending on the
•
• characters.
Playing time of audio files and video files may not be displayed correctly.
• •
The elapsed playing time for an audio file encoded using a VBR (variable bit rate) is not displayed correctly.
Using the Setup Menu
You can make various adjustments to items such as picture and sound.
Displayed items vary depending on the country or region.
Note
Playback settings stored in the disc take priority over the setup menu settings.
Therefore, some of the setup menu settings may not be performed.
1
When playback is stopped in
DVD/CD function, press DVD
SETUP.
The setup menu appears on the TV screen.
2
Press / repeatedly to select
[LANGUAGE SETUP],
[VIDEO SETUP], [AUDIO SETUP],
[SYSTEM SETUP] or
[HDMI SETUP], then press .
3
Press / repeatedly to select the item you want, then press
.
4
Press / repeatedly to select the setting you want, then press
.
The setting is selected and setup is completed.
To exit the menu
Press DVD SETUP.
Setting the language
– [LANGUAGE SETUP]
[OSD]
Sets the language of the on-screen display.
[MENU]
Sets the language for the DVD menu.
[AUDIO]
Switches the language of the sound track.
When you select [ORIGINAL], the language given priority in the disc is selected.
[SUBTITLE]
Switches the language of the subtitle recorded in the DVD VIDEO.
When you select [AUDIO FOLLOW], the language for the subtitles changes according to the language you selected for the sound track.
Note
If you select [OTHERS
] in [MENU],
[AUDIO], and [SUBTITLE], enter a
language code from the “Language code list” (page 82) using the numeric
buttons.
33
GB
MHC-V77DW.GB.4-596-07613(1)
Setting the TV screen
– [VIDEO SETUP]
[TV TYPE]
[16:9]: Selects this when you connect a wide-screen TV or a TV with a wide-mode function.
[NORMAL]: Changes the picture size to fit the screen size with the original picture aspect ratio. This setting displays black bands on the left and right side if you display a 4:3 screen picture.
34
GB
[4:3 LETTER BOX]: Selects this when you connect a 4:3 screen TV that does not have a wide-mode function. This setting displays a wide picture with black bands on the top and bottom.
[4:3 PAN SCAN]: Selects this when you connect a 4:3 screen TV that does not have a wide-mode function. This setting displays a fullheight picture on the entire screen, with trimmed sides.
[4:3 OUTPUT]
[FULL]: Selects this when you connect a TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.
[COLOR SYSTEM(VIDEO CD)]
(Except for Latin American,
European, and Russian models)
Sets the color system (PAL or NTSC).
[AUTO]: Outputs the video signal according to the color system of the disc. Select this setting if your TV uses a DUAL system.
[PAL]: Changes the video signal of an NTSC disc and output it in PAL system.
[NTSC]: Changes the video signal of a PAL disc and output it in NTSC system.
For details, see “Changing the color system” (page 24).
[BLACK LEVEL]
(Latin American model only)
Selects the black level (setup level) for the video signals output from the
VIDEO OUT jack.
[ON]: Sets the black level of the output signal to the standard level.
[OFF]: Lowers the standard black level. Use this when the picture becomes too white.
[PAUSE MODE]
[AUTO]: The picture, including subjects that move dynamically, is output with no jitter. Normally select this setting.
MHC-V77DW.GB.4-596-07613(1)
[FRAME]: The picture, including subjects that do not move dynamically, is output in high resolution.
Note
This function only works for the HDMI
OUT (TV) jack. To use this function, be sure to set [HDMI SETUP] – [AUDIO(HDMI)] to
[PCM].
Setting the audio options
– [AUDIO SETUP]
[TRACK SELECTION]
Gives priority to the sound track which contains the highest number of channels when you play back a
DVD VIDEO on which multiple audio formats (PCM, MPEG audio, or Dolby
Digital) are recorded.
[OFF]: No priority given.
[AUTO]: Priority given.
[A/V SYNC]
(Video files only)
[OFF]: Does not adjust.
[ON]: Adjusts the delay between picture and sound when the sound does not synchronize with the displayed picture.
Note
• •
Depending on the playback contents, this function may not work.
•
• When you use HDMI connection, this function is only effective if you set
[HDMI SETUP] – [AUDIO(HDMI)] to
[PCM].
[DOWNMIX]
Selects the audio output signal for playing a multi-channel audio.
[NORMAL]: Outputs multi-channel audio into a 2-channel stereo signal.
[DOLBY SURROUND]: Outputs multi-channel audio into a
2-channel surround signal.
Setting the system
– [SYSTEM SETUP]
[SCREEN SAVER]
The screen saver will help prevent your display device from becoming damaged (ghosting). Press
+/– to exit the screen saver.
[ON]: The screen saver image appears if you do not operate the system for about 15 minutes.
[OFF]: Turns off the function. The screen saver image does not appear.
[BACKGROUND]
Selects the background color or picture to be displayed on the TV screen.
[JACKET PICTURE]: The jacket picture (still picture) recorded on the disc appears in the background.
[GRAPHICS]: A preset picture stored in the system appears in the background.
[BLUE]: The background color is blue.
[BLACK]: The background color is black.
[PARENTAL CONTROL]
Sets the playback restrictions. For
details, see “Restricting playback of the disc (Parental Control)”
[MULTI-DISC RESUME]
[ON]: Stores the resume playback point in the memory for up to
6 discs.
35
GB
MHC-V77DW.GB.4-596-07613(1)
36
GB
[OFF]: Playback starts at the resume playback point only for the current disc in the system.
[RESET]
Returns the setup menu settings to the default settings. For details, see
“Returning the setup menu settings to the default” (page 75).
Setting the HDMI options
– [HDMI SETUP]
[HDMI RESOLUTION]
Selects the TV output resolution when the TV is connected via HDMI cable.
[AUTO(1920×1080p)]: Outputs video signals according to the resolution of the TV.
[1920×1080i]/[1280×720p]/
[720×480p]*
1
/[720×480/576p]*
2 the selected resolution setting.
:
Outputs video signals according to
* 1 For Latin American models only.
* 2 For other models.
[YC
B
C
R
/RGB(HDMI)]
[YC
B
C
R
]: Outputs YC
B
C
R
video signals.
[RGB]: Outputs RGB video signals.
[AUDIO(HDMI)]
[AUTO]: Outputs audio signals in original format from HDMI OUT (TV) jack.
[PCM]: Outputs 2-channel Linear
PCM signals from HDMI OUT (TV) jack.
[CONTROL FOR HDMI]
[ON]: The Control for HDMI function is enabled. You can operate mutually between system and TV connected with an HDMI cable.
[OFF]: Off.
[AUDIO RETURN CHANNEL]
Set this function when the system is connected to a TV’s HDMI IN jack that is compatible with Audio Return
Channel. This function is available when you set [CONTROL FOR HDMI] to [ON].
[ON]: You can listen to TV sound from the speakers of the system.
[OFF]: Off.
[STANDBY LINKED TO TV]
This function is available when you set [CONTROL FOR HDMI] to [ON].
[AUTO]: When you turn off the TV, the system turns off automatically in the following conditions:
• loaded in DVD/CD function
—a DATA CD or DATA DVD is loaded and [VIDEO] mode is selected
—USB function and [VIDEO] mode are selected
—TV function is selected
[ON]: The system turns off automatically when you turn off the
TV regardless of the function.
[OFF]: The system does not turn off when you turn off the TV.
MHC-V77DW.GB.4-596-07613(1)
USB Transfer
Before using the USB device
For compatible USB devices, see
“Websites for compatible devices”
(You can use your Apple devices with this system via BLUETOOTH connection only.)
Transferring music
You can transfer music from a disc (AUDIO CD or MP3 disc only) to a USB device connected to the
(USB) port.
The audio format of files transferred by this system is MP3.
Note
•
• Do not remove the USB device during transfer or erase operations. Doing so may corrupt the data on the USB device or damage the USB device itself.
•
• MP3 files are transferred with the same bit rate as the original files.
•
• When transferring from AUDIO CD, you may select the bit rate before
•
• transferring.
USB transfer and erase operations are prohibited when the disc tray is opened.
Note on copyright-protected content
The transferred music is limited to private use only. Use of the music beyond this limit requires permission of the copyright holders.
To select the bit rate
You can select a higher bit rate to transfer music with better quality.
1
Press OPTIONS.
2
Press / repeatedly to select
“BIT RATE”, then press .
3
Press / repeatedly to select the bit rate you want, then press
.
• •
“128 KBPS”: encoded MP3 files have smaller file size and lower audio quality.
•
• “256 KBPS”: encoded MP3 files have bigger file size but higher audio quality.
To exit the options menu, press
OPTIONS.
Transferring music from a disc
You can transfer music to a USB device connected to (USB) port as follows:
•
•
Synchronized Transfer: Transfer all
•
•
MP3 files from a disc to USB.
REC1 Transfer: Transfer a single track or MP3 file during playback.
1
Connect a transferable USB device to the (USB) port.
Note
You can use a USB adaptor (not supplied) to connect the USB device to the unit if the USB device cannot be plugged into the (USB) port.
37
GB
MHC-V77DW.GB.4-596-07613(1)
38
GB
2
Press FUNCTION +/– repeatedly to select “DVD/CD”, then load a disc.
3
Prepare the sound source.
Synchronized Transfer:
If the system starts playback automatically, press
twice to stop the playback fully.
When playback is stopped, press
PLAY MODE repeatedly to select the play mode you want.
Note
If you start transferring in Shuffle Play or Repeat Play, the selected play mode changes to Normal Play automatically.
REC1 Transfer:
Select the track or MP3 file you want to transfer, then start playback.
4
Press REC TO USB.
“PUSH ENTER” appears on the display.
5
Press .
The transfer starts, then “DO NOT
REMOVE” appears on the display.
Do not remove the USB device until the transfer is complete.
When the transfer is complete, the system performs as follows:
Synchronized Transfer:
When the transfer is complete, the disc stops automatically.
REC1 Transfer:
The transfer is completed automatically, but the disc continues to play the next track or file.
To stop transfer
Press
.
Notes on transfer
• •
You cannot transfer MP3 files on a UDF
(Universal Disk Format) formatted disc
•
• to the USB device.
While transferring, no sound is output.
• •
CD-TEXT information is not transferred to the created MP3 files.
•
• The transfer stops automatically if:
— the USB device runs out of space during transfer.
— the number of audio files or folders on the USB device reaches the limit that the system can recognize.
• •
If a folder or file that you are trying to transfer already exists on the
USB device with the same name, a sequential number is added after the name without overwriting the original folder or file.
•
• You cannot perform the following operations during transfer:
— Eject the disc.
— Select another track or file.
— Pause playback or find a point in the track or file.
•
•
— Change the function.
When transferring music to a
WALKMAN® using “Media Manager for
WALKMAN”, be sure to transfer in MP3
•
• format.
When connecting a WALKMAN® to the system, be sure to connect after the display “Creating Library” or
“Creating Database” on the WALKMAN® has disappeared.
Folder and file generation rules
Maximum number of MP3 files that can be generated
•
•
298 folders
•
•
•
•
650 files in a folder
650 files in REC1-CD or REC1-MP3 folder.
These numbers may vary depending on the file or folder configuration.
MHC-V77DW.GB.4-596-07613(1)
When transferring to a USB device, a “MUSIC” folder is created directly below “ROOT”. Folders and files are generated within this “MUSIC” folder according to the transfer method and source as follows:
Synchronized Transfer
When transferring CD-DA tracks
from an AUDIO CD
Folder name: “CDDA0001”*
File name: “TRACK001”*
When transferring MP3 files
from a disc
Folder name: Same as the source
File name: Same as the source
REC1 Transfer
When transferring a CD-DA track
from an AUDIO CD
Folder name: “REC1-CD”
File name: “TRACK001”*
When transferring an MP3 file
from a disc
Folder name: “REC1-MP3”
File name: Same as the source
* Folder and file numbers are assigned serially thereafter.
Erasing audio files or folders on the USB device
1
Press FUNCTION +/– repeatedly to select “USB”.
Alternatively, touch PLAYBACK, then touch USB on the unit.
2
Press MEDIA MODE repeatedly to select [MUSIC].
3
When playback is stopped, press OPTIONS.
4
Press / repeatedly to select
“ERASE”, then press .
The folder list is displayed on the TV screen.
5
Press / repeatedly to select a folder, then press .
The file list is displayed on the TV screen.
6
Press / repeatedly to select an audio file you want to erase, then press .
If you want to delete all the audio files in the folder, select
[ALL TRACKS] on the list.
“FOLDER ERASE” or “TRACK ERASE” and “PUSH ENTER” appear on the display.
To cancel erase operations, press
.
7
Press .
“COMPLETE” appears on the display.
To exit the options menu, press
.
Note
•
• You can erase MP3/WMA/AAC/WAV
•
• format file only.
A folder that contains non-MP3/WMA/
AAC/WAV format audio files or sub folders cannot be erased.
•
• Erase operation is prohibited when the disc tray is opened.
39
GB
MHC-V77DW.GB.4-596-07613(1)
40
GB
Tuner
Listening to the radio
1
Press FUNCTION +/– repeatedly to select “TUNER FM”.
Alternatively, touch PLAYBACK, then touch FM on the unit.
2
Tune to a station.
For automatic scanning:
Hold down TUNING+/– until the frequency begins to change on the display.
Scanning stops automatically when a station is tuned in. “ST” (for FM stereo programs only) lights up on the display.
If scanning does not stop, press
to stop scanning. Then, perform manual tuning (below).
For manual tuning:
Press TUNING+/– repeatedly to tune to the station you want.
Note
When you tune to an FM station that provides RDS services, information such as the service name or station name is provided by broadcasts. You can check the RDS information by pressing DISPLAY repeatedly.
Hint
To reduce static noise on a weak FM stereo station, press FM MODE repeatedly until “ST” disappears from the display. You will lose the stereo effect, but reception will improve.
Presetting radio stations
You can store up to 20 FM stations as your favorite stations.
1
Tune to the station you want.
2
Press DVD/TUNER MENU.
3
Press / repeatedly to select the preset number you want, then press .
“COMPLETE” appears on the display and the station is stored.
If another station is already assigned to the selected preset number, that station is replaced by the new one.
To listen to the preset station
Press PRESET+/– repeatedly to select the preset number you want.
MHC-V77DW.GB.4-596-07613(1)
BLUETOOTH
About the BLUETOOTH wireless technology
BLUETOOTH wireless technology is a short-range wireless technology that enables wireless data communication between digital devices.
Supported BLUETOOTH version, profiles and codecs
For details, see “BLUETOOTH section” (page 80).
Compatible BLUETOOTH devices
For details, see “Websites for compatible devices” (page 12).
About the BLUETOOTH indicator
The BLUETOOTH indicator on the unit lights up or flashes in blue to show the BLUETOOTH status.
System status
BLUETOOTH standby
BLUETOOTH pairing
BLUETOOTH connection is established
Indicator status
Flashes slowly
Flashes quickly
Lights up
Pairing this system with a BLUETOOTH device
Pairing is an operation where
BLUETOOTH devices register with each other beforehand. Once a pairing operation is performed, it does not need to be performed again.
If your device is an NFC-compatible smartphone, the manual pairing procedure is not necessary. (See
“One Touch BLUETOOTH Connection by NFC” (page 43).)
1
Place the BLUETOOTH device within 1 meter from the unit.
2
Touch BLUETOOTH on the unit to select the BLUETOOTH function.
“BT AUDIO” appears on the display.
Hint
•
• When there is no pairing information on the system (for example, when you use the BLUETOOTH function for the first time after purchase),
“PAIRING” flashes on the display and the system enters the pairing mode.
•
•
Proceed to step 4.
If the system is connected to a BLUETOOTH device, touch
BLUETOOTH on the unit to disconnect the BLUETOOTH device.
3
Touch and hold PAIRING on the unit for 2 seconds or more.
“PAIRING” flashes on the display.
4
Perform the pairing procedure on the BLUETOOTH device.
For details, refer to the operating instructions of your BLUETOOTH device.
41
GB
MHC-V77DW.GB.4-596-07613(1)
42
GB
5
Select “MHC-V77DW” on the display of the BLUETOOTH device.
Perform this step within 5 minutes, otherwise pairing will be canceled.
In this case, repeat from step 3.
Note
If passkey is required on the
BLUETOOTH device, enter “0000”.
“Passkey” may be called “Passcode”,
“PIN code”, “PIN number”, or
“Password”.
6
Establish connection with the
BLUETOOTH device.
When pairing is completed and the
BLUETOOTH connection is established, BLUETOOTH device name appears on the display.
Depending on the BLUETOOTH device, connection may start automatically after pairing is completed.
You can check the BLUETOOTH device address by pressing DISPLAY repeatedly.
Note
•
•
You can pair up to 9 BLUETOOTH devices. If the 10th BLUETOOTH device is paired, the oldest paired device will
•
• be deleted.
If you want to pair with another
BLUETOOTH device, repeat steps 1 to 6.
To cancel the pairing operation
Touch and hold PAIRING on the unit for 2 seconds or more until “BT
AUDIO” appears on the display.
Listening to music on a
BLUETOOTH device
You can operate a BLUETOOTH device by connecting the system and the BLUETOOTH device using
AVRCP.
Check the following before playing music:
—The BLUETOOTH function of the
BLUETOOTH device is turned on.
—Pairing has been completed
Once the system and the
BLUETOOTH device are connected, you can control playback by pressing
, , , / and
/.
1
Touch BLUETOOTH on the unit to select the BLUETOOTH function.
“BT AUDIO” appears on the display.
2
Perform a BLUETOOTH connection with the BLUETOOTH device.
Touch BLUETOOTH on the unit to connect to the last connected
BLUETOOTH device.
Perform the BLUETOOTH connection from the BLUETOOTH device if the device is not connected.
Once the connection is established, the BLUETOOTH device name appears on the display.
3
Touch
to start playback.
Depending on the BLUETOOTH device,
— you may need to touch
twice.
— you may need to start playing an audio source on the BLUETOOTH device.
MHC-V77DW.GB.4-596-07613(1)
4
Adjust the volume.
Adjust the volume of the
BLUETOOTH device first. If the volume level is still too low, adjust the volume level on the system.
Note
•
• When the system is not connected to any BLUETOOTH device, the system will connect to the last connected
BLUETOOTH device automatically when you touch BLUETOOTH on the unit or
.
• •
If you try to connect another
BLUETOOTH device to the system, the current connected BLUETOOTH device will be disconnected.
To use the Gesture Control during playback
To terminate the BLUETOOTH connection
Touch BLUETOOTH on the unit. “BT
AUDIO” appears on the display.
Depending on the BLUETOOTH device, the BLUETOOTH connection may be terminated automatically when you stop playback.
One Touch BLUETOOTH
Connection by NFC
NFC (Near Field Communication) is a technology enabling shortrange wireless communication between various devices, such as smartphones and IC tags.
When you touch the system with an
NFC-compatible smartphone, the system automatically:
—turns on in the BLUETOOTH function.
—completes the pairing and
BLUETOOTH connection.
Compatible smartphones
Smartphones with a built-in NFC function (OS: Android 2.3.3 or later, excluding Android 3.x)
Note
•
•
The system can only recognizes and connects to one NFC-compatible smartphone at a time. If you try to connect another NFC-compatible smartphone to the system, the currently connected NFC-compatible smartphone will be disconnected.
•
• Depending on your NFC-compatible smartphone, you may need to perform the following steps on your NFCcompatible smartphone in advance.
— Turn on the NFC function. For details, refer to the operating instructions of the NFC-compatible smartphone.
— If your NFC-compatible smartphone has an OS version that is older than
Android 4.1.x, download and start the “NFC Easy Connect” application.
“NFC Easy Connect” is a free application for Android smartphones that can be obtained from Google
Play. (The application may not be available in some countries/regions.)
1
Touch the smartphone to the
N-Mark on the unit until the smartphone vibrates.
Complete the connection by following the instructions displayed on the smartphone.
When the BLUETOOTH connection is established, the BLUETOOTH device name appears on the display.
43
GB
MHC-V77DW.GB.4-596-07613(1)
44
GB
2
Start playback of an audio source on the smartphone.
For details, refer to the operating instructions of your BLUETOOTH device.
Hint
If pairing and the BLUETOOTH connection fail, do the following.
— Remove the case from the smartphone if using a commercially available smartphone case.
— Touch the smartphone to the N-Mark on the unit again.
— Relaunch the “NFC Easy Connect” application.
To terminate the BLUETOOTH connection
Touch the smartphone to the
N-Mark on the unit again.
Setting the BLUETOOTH audio codecs
You can enable AAC, LDAC or SBC codec from BLUETOOTH device.
AAC/LDAC can be selected only when the BLUETOOTH device supports AAC/LDAC.
1
Press OPTIONS.
2
Press / repeatedly to select
“BT CODEC”, then press .
3
Press / repeatedly to select the setting, then press .
•
• “AUTO”: Enable reception in AAC or LDAC codec format depending on the BLUETOOTH device’s capabilities.
•
• “SBC”: Receive in SBC codec format.
To exit the options menu, press
OPTIONS.
Note
•
•
You can enjoy high quality sound if AAC or LDAC is selected. If you cannot listen
•
• to AAC or LDAC sound from your device or the sound is interrupted, select “SBC”.
If you change this setting while the system is connected to a BLUETOOTH device, the BLUETOOTH device will be disconnected. To connect to the
BLUETOOTH device, perform the
BLUETOOTH connection again.
Hint
LDAC is an audio coding technology developed by Sony that enables the transmission of High-Resolution (Hi-Res)
Audio content, even over a BLUETOOTH connection. Unlike other BLUETOOTH compatible coding technologies such as SBC, it operates without any down-conversion of the Hi-Res Audio content*
1
, and allows approximately three times more data*
2
than those other technologies to be transmitted over a BLUETOOTH wireless network with unprecedented sound quality, by means of efficient coding and optimized packetization.
*
*
1
2
Excluding DSD format contents.
In comparison with SBC (Subband
Coding) when the bitrate of 990 kbps
(96/48 kHz) or 909 kbps (88.2/44.1 kHz) is selected.
MHC-V77DW.GB.4-596-07613(1)
Network
Selecting the method of network connection
If you connect this system to a network, you can enjoy this system in various ways. Depending on your network environment, setting up methods are different. Select the appropriate connecting method for your network environment from below.
Note
•
• Connecting to a Wi-Fi network and a wired network simultaneously is not possible. When you connect to a Wi-Fi network, be sure to disconnect the LAN
•
• cable from the unit.
Depending on the function, the system may need to be updated.
Hint
For setting the fixed IP address, use the screen in step 6 of “Connecting with a
Method for using a smartphone/ iPhone
Installing the “SongPal” application to your smartphone/iPhone is required.
Before making the connection, be sure to turn on the BLUETOOTH feature on your smartphone/ iPhone, then operate the “SongPal” application to connect your smartphone or iPhone to this system via BLUETOOTH.
For details, refer to the Wi-Fi Startup
Guide (separate document).
Method for using a wireless router with a WPS (AOSS) button
Touch and hold WPS on the unit, then press the Wi-Fi Protected
Setup™ (WPS) button of the wireless router. For details, refer to the Wi-Fi
Startup Guide (separate document).
Method for using computer
See “Connecting with a computer”
Method for using wired network
Refer to Help Guide for details.
http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/
Connecting with a computer
If your wireless router does not have a WPS (AOSS) button, configure
Wi-Fi settings by connecting the unit to your computer with a LAN cable
(not supplied).
Hint
When setting up a Wi-Fi network, the
SSID (Wi-Fi Network Name) and security key (WEP or WPA key) may be required.
The security key (or network key) uses encryption to limit the devices with which communication can occur. It is used to provide higher security for devices communicating via a wireless router/ access point.
45
GB
MHC-V77DW.GB.4-596-07613(1)
46
GB
1
Record the SSID and password of your router.
For details, refer to the operating instructions of your router.
SSID (Wi-Fi Network Name):
Password (Security Key):
2
Connect the unit to the computer with a LAN cable (not supplied) directly.
4
Access the [Sony Network
Device Settings] screen.
Start the browser and input the following URL into the browser’s address bar.
http://169.254.1.1
The above URL is only for when the
PC and unit are connected with a
LAN cable.
5
Select [Network Settings] from the menu.
3
Press
to turn on the system.
Wait until lights up on the display. It takes about 2 minutes (in some cases, 4 or 5 minutes).
Network Settings
6
Select the SSID of your wireless router and enter the password.
SSID
See the recorded password in step 1.
MHC-V77DW.GB.4-596-07613(1)
7
Select [Apply].
8
When prompted, unplug the
LAN cable from the unit.
When the LAN cable is unplugged from the unit, on the display turns off. When the Wi-Fi connection is established, lights up on the display.
It may take more than 2 minutes to light up.
For information on how to listen to music with this system, refer to the Wi-Fi Startup Guide (separate document).
Note
This procedure needs to be completed within 10 minutes. If uncompleted, reset
2
Connect the system and smartphone/iPhone to your
Wi-Fi network.
Connect the system and smartphone/iPhone to the same
SSID (network) of your router.
3
When connecting multiple devices, connect the multi-room compatible devices to your
Wi-Fi network.
Refer to Help Guide for detailed operation.
http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/
Listening to the same music from the multiple speakers (SongPal Link function)
Enjoying the Wireless Party
Chain
If you connect the multi-room compatible speakers to your Wi-Fi network and set them in the same room, you can enjoy high pressure sound like the Party Chain function via Wi-Fi.
You can enjoy your favorite music stored in your PCs or mobile phones, furthermore, music from streaming services with ultimate sound quality in any rooms via Wi-Fi.
1
Install the “SongPal” application on your smartphone/iPhone.
Listening to an Internet music service (Google
Cast)
Google Cast allows you to select music content from the Google
Cast™-enabled app and play back on the system.
Google Cast requires the initial setup using SongPal.
47
GB
MHC-V77DW.GB.4-596-07613(1)
48
GB
1
Install the “SongPal” application on your smartphone/iPhone.
2
Connect the system and smartphone/iPhone to your
Wi-Fi network.
Connect the system and smartphone/iPhone to the same
SSID (network) of your router.
3
Launch “SongPal” and download a Google Castenabled app.
Launch “SongPal” then tap
[MHC-V77DW]
[Settings]
[Google Cast]
[Learn how to
Cast].
See the instructions, then find and install a Google Castenabled app on your smartphone/iPhone.
4
Launch the Google Castenabled app, then tap the Cast button ( ) to select
“MHC-V77DW”.
5
Select music to listen to on your
Google Cast-enabled app.
The music is played on the system.
Refer to Help Guide for detailed operation.
http://rd1.sony.net/help/has/ mhc-v77dw/h_zz/
Listening to an Internet music service (Spotify)
“Spotify” gives you instant access to millions of songs. The “Spotify
Connect” feature lets you select music on the Spotify App and stream it on the system. To use
“Spotify Connect” feature, you need a Premium account.
For details, visit www.spotify.com/ connect
1
Connect the system and smartphone/iPhone to your
Wi-Fi network.
Connect the system and smartphone/iPhone to the same
SSID (network) of your router.
2
Download the Spotify App to your smartphone/iPhone from
Google Play or the App Store.
3
Launch the Spotify App and log in to a Spotify Premium account.
4
Select and start playing the music.
5
Tap the Connect icon ( ) and select the system as the audio output device.
Note
Depending on the country and region, music services and their periods of availability may differ.
MHC-V77DW.GB.4-596-07613(1)
Hint
When “Spotify Connect” is activated, the
Connect icon ( ) lights up.
Gesture Control
Enjoying the Gesture
Control
You can control the operations for PLAYBACK, DJ, SAMPLER and
KARAOKE mode by swiping your hand over the GESTURE CONTROL sensor on the unit.
Note
Do not touch or contact to the GESTURE
CONTROL sensor when you perform the swiping motion.
Swipe your hand over the GESTURE
CONTROL sensor in 6 directions as follows.
Swiping motion Swipe in this direction
Right to left
Left to right
Bottom to top
Top to bottom
Clockwise
Anticlockwise
To activate the Gesture Control
Touch GESTURE ON/OFF, then touch the mode you want (PLAYBACK, DJ,
SAMPLER, KARAOKE).
The GESTURE CONTROL lights up.
To deactivate the Gesture
Control
Touch GESTURE ON/OFF.
The GESTURE CONTROL lights off.
49
GB
MHC-V77DW.GB.4-596-07613(1)
50
GB
Using the Gesture
Control during playback
You can use the Gesture Control to control basic playback when playing music from a disc, USB device or
BLUETOOTH device.
Use the keys and GESTURE
CONTROL sensor on the touch panel of the unit to perform this operation.
1
Touch GESTURE ON/OFF.
The GESTURE CONTROL lights up.
2
Touch PLAYBACK.
The PLAYBACK mode is activated.
3
Touch DVD/CD, USB, FM, AUDIO
IN, or TV to select the function you want.
4
Swipe your hand over the
GESTURE CONTROL sensor.
To Swipe in this direction
Go backward
Go forward
Play
Stop
Increase volume
Reduce volume
Creating a party atmosphere (DJ Effect)
Use the keys and GESTURE
CONTROL sensor on the touch panel of the unit to perform this operation.
1
Touch GESTURE ON/OFF.
The GESTURE CONTROL lights up.
2
Touch DJ or SAMPLER.
The DJ or SAMPLER mode is activated.
3
Swipe your hand over the
GESTURE CONTROL sensor.
For DJ mode:
To Swipe in this direction
Select FLANGER*
1
Select ISOLATOR*
2
Select WAH*
3
Select PAN*
4
Increase the level of the selected effect
Reduce the level of the selected effect
*
1
Creates a deep flanging effect that is similar to the roar of a jet plane.
* 2 Isolates a specific frequency band by adjusting the other frequency bands. For example, when you want to focus on vocals.
* 3 Create a special effect of “Wahwah” sound by moving the frequency of a filter up and down automatically.
* 4 Create a feeling that the sound is moving around the speakers between left and right channels.
MHC-V77DW.GB.4-596-07613(1)
For SAMPLER mode:
To Swipe in this direction
Output “Come
On!”
Output “Let’s Go!”
Output Reggae
Horn sound effect
Output Phaser sound effect
Output Scratch sound effect
Output Audience sound effect
To output the SAMPLER mode sound effect
Touch SAMPLER, then touch one of the direct function key (DVD/CD,
USB, FM, AUDIO IN, TV) to output the sound effect you want.
To turn off the DJ mode
Swipe your hand over the GESTURE
CONTROL sensor in the same direction as in step 3 above.
Note
•
• The DJ Effect is automatically turned off when you:
— turn off the system
— change the function
— change sound field
— change the mode to PLAYBACK/
•
•
SAMPLER/KARAOKE
If you activate the DJ Effect during transferring, the sound effect will not be transferred onto the USB device.
Using the Gesture
Control during Karaoke function
Use the keys and GESTURE
CONTROL sensor on the touch panel of the unit to perform this operation.
1
Touch GESTURE ON/OFF.
The GESTURE CONTROL lights up.
2
Touch KARAOKE.
The KARAOKE mode is activated.
3
Swipe your hand over the
GESTURE CONTROL sensor.
To
Reduce the pitch of music (
)
Increase the pitch of music (
)
Increase the microphone volume
Decrease the microphone volume
Output hand clapping sound effect
Output booing sound effect
Swipe in this direction
MHC-V77DW.GB.4-596-07613(1)
51
GB
52
GB
Sound Adjustment
Adjusting the sound
To Do this
Reinforce bass sound and create more powerful sound (MEGA
BASS)
Press MEGA BASS repeatedly to select
“BASS ON”. To cancel, press MEGA
BASS repeatedly to select “BASS OFF”.
Reproduce the sound effect of a party hall (Fiesta)
Reproduce the sound effect of a concert hall
(Digital Music
Arena)
Select a preset sound effect
(Preset sound effect)
Touch FIESTA on the unit. The FIESTA indicator lights up.
To cancel, press
SOUND FIELD repeatedly to select
“FLAT”.
Press MUSIC ARENA to select “ON”. To cancel, press MUSIC
ARENA again.
Press SOUND FIELD repeatedly to select the sound effect you want. To cancel, press SOUND FIELD repeatedly to select
“FLAT”.
Selecting the Virtual
Football mode
You can experience the feeling of being in the stadium when watching a football match broadcast.
Note that you can only select Virtual
Football mode during AUDIO IN and
TV functions.
Press SOUND FIELD repeatedly while watching a football match broadcast.
•
•
ON NARRATION: You can enjoy an immersive feeling of being in a football stadium through enhanced stadium cheers.
•
•
OFF NARRATION: You can enjoy a more immersive feeling of being in a football stadium by minimizing the volume level of narration in addition to the enhancement of cheers.
To cancel the Virtual Football mode
Press SOUND FIELD repeatedly to select “FLAT”.
Note
•
• We recommend that you select the
Virtual Football mode when watching a
•
• football match broadcast.
If you hear unnatural sounds in the content when “OFF NARRATION” is selected, “ON NARRATION” is
•
• recommended.
This feature does not support monaural sound.
MHC-V77DW.GB.4-596-07613(1)
Creating your own sound effect
You can raise or lower the levels of specific frequency bands, then store the setting in the memory as
“CUSTOM EQ”.
1
Press OPTIONS.
2
Press / repeatedly to select
“CUSTOM EQ”, then press .
3
Press / repeatedly to adjust the equalizer level, then press
.
4
Repeat step 3 to adjust the level of other frequency bands and surround effect.
To exit the options menu, press
OPTIONS.
To select the custom equalizer setting
Press MUSIC repeatedly to select
“CUSTOM EQ”.
Other Operations
Controlling the system using a smartphone or tablet (SongPal)
“SongPal” is a dedicated app for operating “SongPal”-compatible audio devices manufactured by
Sony using a smartphone or tablet.
Search for “SongPal” on Google Play or App Store and download it using your smartphone or tablet.
“SongPal” allows you to:
—change the function of the system, control the playback of the disc/
USB device and tune to an FM station.
—browse the music content of disc/
USB device.
—view the information of disc/USB such as playing time and title.
—adjust the volume and change sound setting.
1
Search for “SongPal” or scan the two-dimensional code below.
2
Download “SongPal” app on your remote device.
3
Connect the system and device by BLUETOOTH connection
53
GB
MHC-V77DW.GB.4-596-07613(1)
54
GB
Hint
If you connect the system and remote device by network connection, connect the device by Wi-Fi to the same network as that of the system.
4
Launch “SongPal” and follow the on-screen instructions.
Note
•
• We recommend you to use the latest
•
•
“SongPal” version.
If the “SongPal” application does not work properly, touch BLUETOOTH on the unit to terminate the BLUETOOTH connection, then perform the
BLUETOOTH connection again so that the BLUETOOTH connection functions normally.
•
• Available operations via “SongPal” may differ depending on the audio devices.
• •
For more details on “SongPal”, refer to the following URL.
•
• http://info.songpal.sony.net/help/
Specifications and display design of “SongPal” are subject to change without notice.
1
Search and download “SongPal” app on your remote device
2
Search and download
“Fiestable” app from Google
Play or App Store using your remote device.
3
Connect the system and remote device by BLUETOOTH
4
Launch “SongPal” and touch the
“Fiestable” icon at the top left corner.
Getting frenzied parties with the
“Fiestable” app
You can control the party features of Sony’s Home Audio System with intuitive and fancy user interface with the “Fiestable” app. “Fiestable” allows you to control features such as DJ Effect, illumination and
Karaoke.
Even if “Fiestable” is installed, the
“Fiestable” icon is not displayed on the remote device home screen. It is embedded in the “SongPal” app as a plug-in.
Note
•
• For notes on using “Fiestable”, refer
•
• to the “Notes on using the “Fiestable” application” (separate document) for details.
For more details on “SongPal”, refer to the following URL. http://info.songpal.sony.net/help/
Using the Control for
HDMI function
Connecting a TV compatible with the Control for HDMI function* by
HDMI cable (High Speed HDMI Cable with Ethernet, not supplied) enables you to easily operate the device by a
TV remote control.
The following functions can be used with the Control for HDMI function.
MHC-V77DW.GB.4-596-07613(1)
•
•
•
•
•
•
•
•
•
•
•
•
System Power Off function
System Audio Control function
Audio Return Channel
One-Touch Play function
Remote Easy Control
Language Follow
* Control for HDMI is a standard used by CEC (Consumer Electronics Control) for allowing HDMI (High-Definition
Multimedia Interface) devices to control each other.
Note
These functions may work with devices other than those manufactured by Sony, but operation is not guaranteed.
Preparing to use the Control for
HDMI function
Press DVD SETUP, then set [HDMI
SETUP] – [CONTROL FOR HDMI] on
the system to [ON] (page 36). The
default setting is [ON].
Enable the Control for HDMI function settings for the TV connected to the system.
Hint
If you enable the Control for HDMI
(“BRAVIA” sync) function when using a
TV manufactured by Sony, the Control for HDMI function of the system is also enabled automatically. When settings are completed, “COMPLETE” appears on the display.
System Power Off function
When you turn off the TV, the system will turn off automatically.
Press DVD SETUP, then set
[HDMI SETUP] – [STANDBY LINKED
TO TV] on the system to [ON] or
setting is [AUTO].
Note
The connected device may not turn off depending on the status of the device.
System Audio Control function
If you turn on the system while you are watching the TV, the TV sound will be output from the speakers of the system. The volume of the system can be adjusted using the
TV’s remote control.
If the TV sound was output from the speakers of the system the previous time you watched the TV, the system will be turned on automatically when you turn on the TV again.
Operations can also be made by the
TV’s menu. For details, refer to the operating instructions of your TV.
Note
•
• The system’s volume level is displayed on the TV screen depending on the TV.
It may differ from the volume level on the display.
•
• Depending on the settings of the TV, the System Audio Control function may not be available. For details, refer to the operating instructions of your TV.
Audio Return Channel
If the system is connected to a TV’s
HDMI IN jack compatible with Audio
Return Channel, you can listen to
TV sound from the speakers of the system without connecting an audio cable (not supplied).
On the system, press DVD SETUP, then set [HDMI SETUP] –
[AUDIO RETURN CHANNEL] to [ON]
(page 36). The default setting is
[ON].
Note
If the TV is not compatible with Audio
Return Channel, an audio cable (not supplied) needs to be connected
55
GB
MHC-V77DW.GB.4-596-07613(1)
56
GB
One-Touch Play function
When you play video content on disc or USB device on the system, the TV is turned on automatically.
The TV’s input is switched to the
HDMI input which the system is connected.
Note
Depending on the TV, the beginning part of content being played may not play correctly.
Remote Easy Control
You can select the system by the
SYNC MENU button on the TV remote control and operate the system.
This function can be used if the TV supports the link menu. For details, refer to the operating instructions of your TV.
Note
•
• In the TV’s link menu, the system is recognized by the TV as “Player”.
• •
Some operations may not be available with some TVs.
Language Follow
When you change the language for the on-screen display of the
TV, the system’s on-screen display language is also changed.
MHC-V77DW.GB.4-596-07613(1)
Using the Party Chain function
You can connect multiple audio systems in a chain to create a more interesting party environment and to produce higher sound output.
An activated system in the chain will be the “Party Host” and share the music.
Other systems will become “Party Guests” and play the same music as that being played by the “Party Host”.
Setting up the Party Chain
Set up a Party Chain by connecting all the systems using audio cables (not supplied).
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
If all the systems are equipped with Party Chain function
Example: When connecting using this system as the first system
First system
Continue the connection until the last system
Second system
Last system
•
•
•
•
•
•
The last system must be connected to the first system.
Any system can become a Party Host.
You can change the Party Host to another system in the chain. For details,
see “To select a new Party Host (when all the systems are equipped with
Party Chain function)” (page 59).
57
GB
MHC-V77DW.GB.4-596-07613(1)
58
GB
If one of the systems is not equipped with Party Chain function
Example: When connecting using this system as the first system
First system
Continue the connection until the last system
Second system
Last system*
* Connect the system which is not equipped with Party Chain function at the last system, otherwise the chain will stop at that system. Be sure to select the Audio In function on this last system.
• •
•
•
The last system is not connected to the first system.
You must select the first system as Party Host so that all systems are playing the same music when Party Chain function is activated.
MHC-V77DW.GB.4-596-07613(1)
Enjoying the Party Chain
1
Plug in the AC power cord
(mains lead) and turn on all the systems.
2
Adjust the volume on each system.
3
Activate the Party Chain function on the system to be used as the Party Host.
Example: When using this system as the Party Host
Touch FUNCTION repeatedly on the unit to select the function you want
(except when the AUDIO IN function is used in connection
music, then touch PARTY CHAIN on the unit.
“PARTY CHAIN” appears on the display. The Party Host starts the
Party Chain, and other systems become Party Guests automatically.
All systems play the same music as that being played by the Party Host.
To enjoy the Wireless Party
Chain
Note
•
•
Depending on the total unit of systems you have connected, Party Guests may
•
• take some time to start playing the music.
Changing the volume level and sound effect on the Party Host will not affect the output on the Party Guests.
•
• When you use the microphone on Party
Host, the sound will not be output from
•
•
Party Guests.
When one of the systems in the chain is performing USB transfer, wait for the system to complete or stop the transfer before you activate the Party Chain function.
•
• For detailed operation on other systems, refer to the operating instructions of the systems.
To select a new Party Host (when all the systems are equipped with Party Chain function)
Repeat step 3 of “Enjoying the Party
Chain” on the system to be used
as a new Party Host. The current
Party Host becomes Party Guest automatically. All systems play the same music as that being played by the new Party Host.
Note
•
• You can select another system as the new Party Host only after the Party
Chain function of all the systems in the
Chain has been activated.
•
• If the selected system does not become a new Party Host after a few seconds,
repeat step 3 under “Enjoying the Party
To deactivate the Party Chain
Touch PARTY CHAIN on the Party
Host.
Note
If the Party Chain function is not deactivated after a few seconds, touch
PARTY CHAIN on the Party Host again.
Setting the Party Chain sound mode
You can set the sound mode when the Party Chain function is activated.
1
Press OPTIONS.
2
Press / repeatedly to select
“P CHAIN MODE”, then press .
59
GB
MHC-V77DW.GB.4-596-07613(1)
60
GB
3
Press / repeatedly to select the mode you want, then press
.
•
• “STEREO”: outputs the stereo sound.
•
• “RIGHT CH”: outputs the monaural sound of the right channel.
•
•
“LEFT CH”: outputs the monaural sound of the left channel.
To exit the options menu, press
OPTIONS.
Singing along: Karaoke
Preparing for Karaoke
1
Touch MIC LEVEL – on the unit repeatedly to reduce the microphone volume level.
2
Connect an optional microphone to MIC1 or MIC2 jack on the unit.
Connect another optional microphone if you want to sing in duet.
3
Start playing the music and adjust the microphone volume.
Press MIC ECHO repeatedly to adjust the echo effect.
4
Start singing along with the music.
To use the Gesture Control during karaoke
Note
If howling occurs:
— move the microphone away from the system.
— change the direction of the microphone.
— lower the microphone volume level.
— press
– to reduce the volume level or press MIC ECHO repeatedly to adjust the echo level.
• •
Microphone sound will not be transferred to the USB device during
USB transfer.
Using Vocal Fader
You can reduce the sound of the vocal in stereo source.
Touch KARAOKE, then touch
VOCAL FADER on the unit repeatedly to select “ON V FADER”.
To cancel Vocal Fader effect, touch
VOCAL FADER repeatedly to select
“OFF”.
Changing the key (Key Control)
Press KEY CONTROL
/•to suit
your vocal range.
Selecting the scoring mode
(Score Mode)
You only can use scoring function when the microphone is connected.
Your score is calculated from a scale of 0 to 99 by comparing your voice with the music source.
1
Start playing the music.
2
Press SCORE before singing a song.
MHC-V77DW.GB.4-596-07613(1)
3
After singing for more than a minute, press SCORE again to view your score.
Using Voice Changer
You can change your voice when you talk or sing into microphone.
There are 7 different patterns.
Touch KARAOKE, then touch VOICE
CHANGER +/– on the unit repeatedly to change your voice effect.
Using the Sleep Timer
The system turns off automatically after the preset time.
Press SLEEP repeatedly to select the time you want.
To cancel Sleep Timer, press SLEEP repeatedly to select “OFF”.
Hint
To check the remaining time before the system turns off, press SLEEP.
Enjoying music with the
Party Light and Speaker
Light
1
Press PARTY LIGHT repeatedly to select “LED ON”.
2
Press LIGHT MODE repeatedly to select “SYNC ON”.
To turn off Party Light and
Speaker Light
Press PARTY LIGHT repeatedly to select “LED OFF”.
Note
• •
Do not look directly at the light-emitting part when the Party Light is turned on.
•
• If the illumination brightness is glaring, switch on the room lights or turn off the
•
• illumination.
You can turn on or off the Party Light and Speaker Light when demonstration is turned on.
Using optional equipment
1
Press
– repeatedly until “VOL
MIN” appears on the display.
2
Connect an optional equipment
3
Press FUNCTION +/– repeatedly to select “AUDIO IN”.
4
Start playing the connected equipment.
5
Press
+ repeatedly to adjust
the volume.
Note
The system may enter standby mode automatically if the volume level of the connected equipment is too low. Adjust the volume level of the equipment.
If you turn off automatic standby
function, see “Setting the automatic standby function” (page 62).
61
GB
MHC-V77DW.GB.4-596-07613(1)
62
GB
Deactivating the touch panel on the unit (Child
Lock)
You can deactivate the keys (except
) on the touch panel of the unit to prevent misoperation, such as child mischief.
Touch and hold
on the unit for
more than 5 seconds.
“CHILD LOCK ON” appears on the display.
You can only operate the system using the buttons on the remote control.
To turn off the Child Lock function, touch and hold
on the unit for more than 5 seconds until “CHILD LOCK OFF” appears on the display.
Note
•
• Child Lock function will be turned off automatically when you disconnect the
AC power cord (mains lead).
•
• Child Lock function cannot be activated when you open the disc tray.
Deactivating the touch panel on the unit for a short time (Party Lock)
When you accidentally splash liquid on the touch panel of the unit during party, you can deactivate the keys
(except
) on the touch panel of the unit for 30 seconds and wipe off the liquid with a cloth.
Hold your hand above GESTURE
CONTROL sensor on the unit for more than 5 seconds.
“PARTY LOCK ON” appears on the display.
To turn off the Party Lock function, hold your hand above GESTURE
CONTROL sensor on the unit for more than 5 seconds until “PARTY
LOCK OFF” appears on the display.
Note
•
• The party lock being applied cancels automatically in 30 seconds.
•
• While the party lock is applied, the touch panel indications of the unit are turned off.
Setting the automatic standby function
The system enters standby mode automatically in about 15 minutes when there is no operation or audio signal output.
By default, the automatic standby function is turned on.
1
Press OPTIONS.
2
Press / repeatedly to select
“AutoSTBY”, then press .
3
Press / repeatedly to select
“ON” or “OFF”, then press .
To exit the options menu, press
OPTIONS.
Note
• •
“AutoSTBY” flashes on the display about
2 minutes before entering standby mode.
MHC-V77DW.GB.4-596-07613(1)
•
• The automatic standby function does not work in the following cases:
— during tuner function.
— when the Sleep Timer is activated.
— when microphone is connected.
Setting the
BLUETOOTH/Network standby mode
The BLUETOOTH/Network standby mode enables the system to turn on automatically when you establish a BLUETOOTH connection, a Wi-Fi connection, or a wired LAN connection.
1
Press OPTIONS.
2
Press / repeatedly to select
“NW STBY”, then press .
3
Press / repeatedly to select the setting, then press .
•
•
“ON”: The system turns on automatically even when the system is in standby mode.
• •
“OFF”: Turns off this function.
To exit the options menu, press
OPTIONS.
Turning on or off the
BLUETOOTH/Wi-Fi signal
You can connect to the system from a linked network device or a paired
BLUETOOTH device in all functions when the system’s BLUETOOTH/
Wi-Fi signal is set to on. The
BLUETOOTH/Wi-Fi signal is turned on by default.
1
Press OPTIONS.
2
Press / repeatedly to select
“RF”, then press .
3
Press / repeatedly to select the setting you want, then press
.
•
• “RF ON”: Wi-Fi signal is on/
BLUETOOTH signal is on
•
• “WIFI OFF”: Wi-Fi signal is off/
BLUETOOTH signal is on
•
• “RF OFF”: Wi-Fi signal is off/
BLUETOOTH signal is off
To exit the options menu, press
OPTIONS.
Note
•
• You cannot perform the following operations when BLUETOOTH/Wi-Fi signal is set to off:
— Pairing and/or connecting with
BLUETOOTH device
— Using “SongPal”
— Change the BLUETOOTH audio codecs
•
• If you touch the N-Mark on the unit with an NFC-compatible smartphone or set the BLUETOOTH/Network standby mode to on, the BLUETOOTH/Wi-Fi signal will be set to on automatically.
63
GB
MHC-V77DW.GB.4-596-07613(1)
64
GB
Updating the software
The software of this system may be updated in the future.
You can update your system’s preinstalled software by using one of the following 3 methods:
Automatic update via the
Internet
When the system is connected to the Internet, the system updates the software automatically if a new update file is detected. This feature requires the settings to be made by using a smartphone/iPhone installed with “SongPal”.
Launch “SongPal” on your smartphone/iPhone, and set [Auto
Update] in the [Settings] menu.
Refer to SongPal Help for more details.
http://info.songpal.sony.net/help/
Hint
Automatic update will start updating the software after downloading all the update files. So, data corruption and loss do not occur even if the network connection is unintentionally disconnected. If the error message persists, perform the manual update via a USB device.
Manual update via the Internet
When the system is connected to the Internet, “UPDATE” lights up on the display if the system detects a new update file.
1
Press OPTIONS.
2
Press / repeatedly to select
“SYSTEM”, then press .
3
Press / repeatedly to select
“UPDATE”, then press .
4
Press / repeatedly to select
“VIA NW”, then press .
5
Press / repeatedly to select
“EXEC”, then press .
6
Press / repeatedly to select
“YES”, then press .
To exit the options menu, press
OPTIONS.
Manual update via a USB device
Use a computer or another device to download the update file from the websites below, then store it in a USB device. Follow the online instructions to update the software.
For customers in Latin America:
<http://esupport.sony.com/LA>
For customers in Europe and
Russia:
<http://www.sony.eu/support>
For customers in other countries/ regions:
<http://www.sony-asia.com/ support>
MHC-V77DW.GB.4-596-07613(1)
Additional Information
Troubleshooting
Should you encounter a problem with your system, find your problem in the troubleshooting checklist below and take the corrective action.
If the problem persists, consult your nearest Sony dealer.
Note that if the service personnel changes some parts during repair, these parts may be retained.
If “PROTECTX” (X is a number) appears on the display
Immediately unplug the AC power cord (mains lead), and check if anything is blocking the ventilation openings of the unit.
After you have checked and found no problems, reconnect the AC power cord (mains lead), and turn on the system. If the issue persists, contact your nearest Sony dealer.
General
The power does not turn on.
•
• Check that the AC power cord
(mains lead) is connected securely.
The system cannot be turned off even though
is pressed.
•
•
You may have set the display mode to the demonstration mode unintentionally. Press DISPLAY repeatedly to select Power Saving
The system has entered standby mode.
•
•
This is not a malfunction. The system enters standby mode automatically in about 15 minutes when there is no operation or
audio signal output (page 62).
There is no sound.
•
•
•
•
Adjust the volume.
Check the connection of the
•
•
•
• optional equipment, if any
Turn on the connected equipment.
Unplug the AC power cord (mains lead), then plug in the AC power cord (mains lead) again and turn on the system.
There is no picture/sound when connected to the HDMI OUT (TV) jack.
•
• Change the setting in [HDMI
SETUP] – [HDMI RESOLUTION]. The problem may be solved.
•
• The equipment connected to the HDMI OUT (TV) jack does not conform to the audio signal format. In this case, set [HDMI
SETUP] – [AUDIO (HDMI)] to [PCM]
•
•
Try the following:
—Turn the system off and on again.
—Turn the connected equipment off and on again.
—Disconnect then connect the
HDMI cable again.
There is no microphone sound.
•
•
•
•
Adjust the microphone volume level.
Make sure the microphone is connected to the MIC1 or MIC2 jack
• • on the unit correctly.
Make sure the microphone is turned on.
65
GB
MHC-V77DW.GB.4-596-07613(1)
66
GB
No TV sound is heard from the system.
“CODE 01” and “SGNL ERR” appear on the display.
•
• This system supports 2-channel
Linear PCM formats only. Check the audio output setting on the
TV and change it to PCM output mode if automatic mode is
•
• selected.
Check that the speaker output setting on the TV is set to use external speakers.
There is severe hum or noise.
•
•
•
•
Move the system away from sources of noise.
Connect the system to a different wall outlet.
•
•
•
•
Install a noise filter (not supplied) to the AC power cord (mains lead).
Turn off surrounding electrical equipment.
•
• The noise generated by the cooling fans of the system may be heard when the system is turned on. This is not a malfunction.
The remote control does not function.
•
•
•
•
Remove the obstacles between the remote control and the unit.
Move the remote control closer to
•
•
•
• the unit.
Point the remote control at the unit’s sensor.
Replace the batteries (R03/size
•
•
AAA).
Move the unit away from the fluorescent light.
There is acoustic feedback.
•
•
•
•
Reduce the volume.
Move the microphone away from the system or change the direction of the microphone.
The color irregularity on a TV screen persists.
•
•
Turn off the TV at once, then turn it on after 15 to 30 minutes. If the color irregularity still persists, place the system farther away from the TV.
“CHILD LOCK” appears when you touch any key on the unit.
•
•
Set the Child Lock function to off
A clicking sound is heard when turning the power on.
•
•
This is the operating sound and it occurs when the power is turned on or off, for example. This is not a malfunction.
Disc player
The disc tray does not open and
“LOCKED” appears on the display.
•
• Consult your nearest Sony dealer or local authorized Sony service facility.
The disc tray does not close.
•
•
Load the disc correctly.
The disc does not eject.
•
•
•
•
You cannot eject the disc during
CD-USB Synchronized Transfer or
REC1 Transfer. Press
to cancel the transfer, then touch
on the unit to eject the disc.
Consult your nearest Sony dealer.
Playback does not start.
•
•
• •
•
•
•
•
Wipe the disc clean (page 77).
Reload the disc.
Load the disc that this system can
Remove the disc and wipe away the moisture on the disc, then leave the system turned on for a few hours until the moisture evaporates.
MHC-V77DW.GB.4-596-07613(1)
•
•
The region code on the DVD VIDEO does not match the system.
The sound skips.
•
•
•
•
•
•
Wipe the disc clean (page 77).
Reload the disc.
Move the unit to a place with no vibration.
Playback does not start from the first track.
• •
•
•
Set the play mode to Normal Play
Resume Play has been selected.
Press
twice. Then, press to start playback.
You cannot perform some functions such as Stop, Lock
Search, Slow-motion Play, Repeat
Play, or Shuffle Play.
•
• Depending on the disc, you may not be able to do some of the operations above. Refer to the operating instructions supplied with the disc.
The DATA CD/DATA DVD (MP3,
MPEG4, or Xvid) cannot be played back.
•
•
• •
The data is not stored in the supported format.
Make sure you have selected the correct Media Mode before playback.
The folder name, track name, file name and ID3 tag characters do not appear properly.
•
•
The ID3 version is not in Version 1
(1.0/1.1) or Version 2 (2.2/2.3).
•
• The character codes that can be displayed by this system are as follows:
•
—Upper cases (A to Z)
•
—Symbols (< > * +, [ ] \ _)
Other characters appear as “_”.
The sound loses stereo effect when you play back an AUDIO CD,
VIDEO CD, audio file, video file, or
DVD VIDEO.
•
•
•
•
Turn off the Vocal Fader
Make sure the system is connected properly.
USB device
Transferring results in an error.
•
• You are using an unsupported USB device. Check the information on the website about compatible USB
•
•
The USB device is not formatted correctly. Refer to the operating instructions of the USB device on
•
• how to format.
Turn off the system and remove the USB device. If the USB device has a power switch, turn the USB
•
• device off and on again after removing it from the system. Then, perform the transfer again.
If the transfer and erase
•
• operations are repeated multiple times, the file structure within the
USB device becomes fragmented.
Refer to the operating instructions of the USB device on how to deal with this problem.
The USB device was disconnected or the power was turned off during transfer. Delete the partially-transferred file, and perform the transfer again. If this does not fix the problem, the USB device may be broken. Refer to the operating instructions of the USB device on how to deal with this problem.
67
GB
MHC-V77DW.GB.4-596-07613(1)
68
GB
Audio files or folders on the USB device cannot be erased.
•
•
Check if the USB device is writeprotected.
•
• The USB device was disconnected or the power was turned off during the erase operation. Delete the partially-erased file. If this does not fix the problem, the USB device may be broken. Refer to the operating instructions of the USB device on how to deal with this problem.
There is no sound.
•
• The USB device is not connected correctly. Turn off the system and reconnect the USB device, then turn on the system and check if
“USB” appears on the display.
There is noise, skipping, or distorted sound.
•
•
You are using an unsupported USB device. Check the information on
•
• the website about compatible USB
Turn off the system and reconnect the USB device, then turn on the
•
• system.
The music data itself contains noise, or the sound is distorted.
Noise may have entered during
•
• the transfer process. Delete the file, and try transfer again.
The bit rate used in encoding an audio file was low. Send an audio file with higher bit rate to the USB device.
“READING” is displayed for an extended time, or it takes a long time before playback starts.
•
•
The reading process can take a long time in the following cases.
•
—The file structure is extremely complex.
—The memory capacity is excessive.
—The internal memory is fragmented.
“NO FILE” appears on the display.
•
• The system has entered the software update mode, and all keys (except
) are deactivated.
Press
on the unit to cancel the software update.
“OVER CURRENT” appears on the display.
•
•
A problem has been detected with the level of electrical current from the (USB) port. Unplug the AC power cord (mains lead) and remove the USB device from the port. Make sure there is no problem with the USB device.
If this display pattern persists, contact your nearest Sony dealer.
Erroneous display.
•
•
•
•
The data stored in the USB device may have been corrupted, perform the transfer again.
The character codes that can be displayed by this system are as follows:
•
•
•
Other characters appear as “_”.
The USB device is not recognized.
•
•
•
•
Turn off the system and reconnect the USB device, then turn on the system.
Check the information on the website about compatible USB
MHC-V77DW.GB.4-596-07613(1)
•
•
The USB device is not working properly. Refer to the operating instructions of the USB device on how to deal with this problem.
Playback does not start.
•
•
•
•
Turn off the system and reconnect the USB device, then turn on the system.
Check the information on the website about compatible USB
Playback does not start from the first file.
• •
Set the play mode to Normal Play
Files cannot be played back.
•
•
•
•
Make sure you have selected the correct Media Mode before playback.
USB devices formatted with file systems other than FAT16 or FAT32
•
• are unsupported.*
If you use a partitioned USB device, only files on the first partition can be played back.
* This system supports FAT16 and FAT32, but some USB devices may not support all of these FAT. For details, refer to the operating instructions of each USB device or contact the manufacturer.
There is no picture.
•
•
•
•
•
•
Check that the system is connected securely.
If the video cable or HDMI cable is damaged, replace it with a new one.
Make sure you connect the unit to the HDMI input jack or the video
•
•
input jack of your TV (page 22).
Make sure you turn on the TV and operate the TV correctly.
•
•
Make sure you select the video
•
• input on the TV so that you can view the pictures from the system.
(Except for Latin American,
European, and Russian models)
Make sure you set the color system correctly, according to your
TV’s color system.
Picture noise appears.
•
•
Wipe the disc clean (page 77).
•
• If video signal from your system has to go through your VCR to your TV, the copy-protection applied to some DVD VIDEO programs could affect the picture
•
• quality.
(Except for Latin American,
European, and Russian models)
•
•
When you play back a VIDEO CD recorded in a different color system from the one you set to the system, the picture image may be
(Except for Latin American,
European, and Russian models)
Set the color system to match your
The aspect ratio of the TV screen cannot be changed.
• •
•
•
The aspect ratio is fixed on your
DVD VIDEO and video file.
Depending on the TV, you may not change the aspect ratio.
The language for the sound track cannot be changed.
•
•
Multilingual tracks are not recorded on the DVD VIDEO being
•
• played back.
The DVD VIDEO prohibits changing the language for the sound track.
69
GB
MHC-V77DW.GB.4-596-07613(1)
70
GB
The subtitles language cannot be changed.
•
•
Multilingual subtitles are not recorded on the DVD VIDEO being played back.
•
• The DVD VIDEO prohibits changing the subtitles.
The subtitles cannot be turned off.
•
•
The DVD VIDEO prohibits turning off subtitles.
The camera angles cannot be changed.
•
•
•
•
Multi-angles are not recorded on the DVD VIDEO being played back.
The DVD VIDEO prohibits changing the angles.
Tuner*
There is severe hum or noise, or stations cannot be received.
•
•
Connect the antenna properly.
•
•
•
•
Change antenna location and its orientation to obtain good reception.
Turn off nearby electrical equipment.
* Radio may not be received depending on the radio wave conditions or the housing environment in your area.
BLUETOOTH device
Pairing cannot be performed.
•
•
•
•
Move the BLUETOOTH device closer to the system.
Pairing may not be possible if
•
• other BLUETOOTH devices are present around the system.
In this case, turn off the other
BLUETOOTH devices.
Make sure to enter the correct passkey when selecting the system’s name (this system) on the BLUETOOTH device.
The BLUETOOTH device cannot detect the system, or “RF OFF” appears on the display.
•
•
Set the BLUETOOTH/Wi-Fi signal to “WIFI OFF” or “RF ON”
Connection is not possible.
• •
•
•
The BLUETOOTH device you attempted to connect does not support the A2DP profile, and cannot be connected with the system.
Enable the BLUETOOTH function of the BLUETOOTH device.
•
•
•
•
Establish a connection from the
BLUETOOTH device.
The pairing registration information has been erased.
Perform the pairing operation again.
The sound skips or fluctuates, or the connection is lost.
•
•
•
•
The system and the BLUETOOTH device are too far apart.
If there are obstacles between the system and your BLUETOOTH device, remove or avoid the
•
• obstacles.
If there is equipment that generates electromagnetic radiation, such as a wireless LAN, other BLUETOOTH device, or a microwave oven nearby, move them away.
The sound of your BLUETOOTH device cannot be heard on this system.
•
• Increase the volume on your
BLUETOOTH device first, then adjust the volume using
+/–.
MHC-V77DW.GB.4-596-07613(1)
There is severe hum, noise, or distorted sound.
•
•
•
•
If there are obstacles between the system and your BLUETOOTH device, remove or avoid the obstacles.
If there is equipment that generates electromagnetic radiation, such as a wireless LAN,
•
• other BLUETOOTH device, or a microwave oven nearby, move them away.
Turn down the volume of the connected BLUETOOTH device.
Network connection
The system cannot connect to the network. (Other equipment on the network cannot find or recognize the system.)
•
•
•
•
Check that is lit on the display.
It takes about 2 minutes for the system to acquire an IP address when the system is turned on in a communication environment without a router.
•
• When you use a fixed IP address, the same IP address may be used by other equipment. Use a different IP address.
The system cannot connect to the network via a wireless LAN connection.
• •
If a network (LAN) cable is connected to the system, the system automatically operates to establish a wired LAN connection.
If you wish to use a wireless LAN connection, do not connect a network (LAN) cable to the system.
•
•
Check the settings of the wireless
•
•
LAN router/access point. If the
SSID stealth mode is set to “On” on the access point, set it to “Off”.
For details on the settings of the access point of the wireless router, refer to the operating manual of the access point.
Set the BLUETOOTH/Wi-Fi signal
The system cannot connect to the network using WPS.
•
•
Set up your network after searching the access point using
•
• the access point scan.
You cannot connect to a network using WPS when your access point is set to WEP.
•
• Update the firmware of the wireless LAN router/access point to the latest version.
Music Services
The system cannot connect to
Music Services.
•
•
•
•
Make sure the wireless LAN router/access point is turned on.
Check that is lit on the display.
•
•
If not, set up a wireless network again. For details, see Wi-Fi
Startup Guide.
When the system is connected
•
•
•
• to a wireless network, place the wireless LAN/access point and the system closer together and perform the setup again.
Depending on the providers, only one connection to Internet is allowed.
When you turn on your mobile phone (Android device, Xperia device, or iPhone/iPod touch) after a moment of power off, try to restart the “SongPal” application.
71
GB
MHC-V77DW.GB.4-596-07613(1)
72
GB
Home Network
The controller (the operating device) cannot find this system.
(The controller cannot browse the contents of this system.)
• •
•
•
Make sure that the controller is connected to the home network.
The multicast control on the access point is enabled.
Music started automatically.
•
• This system may be controlled by another equipment. To block such control, set the BLUETOOTH/
Network standby mode to off
The sound is interrupted.
•
•
•
•
The DLNA server is overloaded.
Quit all running applications.
The wireless signal has
•
• interference. Turn off other devices such as your microwave oven.
The communications speed of the wireless LAN may become slower for IEEE802.11n-compliant wireless
LAN routers/access points if the security method is set to WEP or WPA/WPA2-PSK (TKIP). If the speed becomes slower, change the security method to
WPA/WPA2-PSK (AES).
The encryption (security) scheme varies depending on the device.
For details, refer to the operating instructions of your router/access point.
Tuning or playback cannot be performed.
•
•
Confirm that the audio file is improper or has been deleted from the server. Refer to the operating instructions of the server.
•
•
The server tries to play the audio file in an audio format that the system does not support. Check the audio format information on the server.
•
•
•
•
Disable the multicast control on the wireless LAN router/access point. If it is enabled, it may take several minutes to output the audio. For details, refer to the operating instructions of the wireless LAN router/access point.
The access from this system is not permitted by the server. Change the settings on the server to allow access from this system.
For details, refer to the operating instructions of the server.
Gesture Control
The Gesture Control cannot be activated.
•
•
•
•
Touch GESTURE ON/OFF repeatedly until GESTURE
CONTROL lights up.
Make sure the Child Lock function
The Gesture Control does not operate properly.
•
•
•
•
•
•
Move your hand closer to
GESTURE CONTROL sensor (page
swiping motion.
Perform the swiping motion at a slower speed.
Select the correct mode
•
•
•
•
(PLAYBACK, DJ, SAMPLER or
KARAOKE) before you start using
Install a noise filter (not supplied) to the AC power cord (mains lead).
Turn off surrounding electrical equipment.
MHC-V77DW.GB.4-596-07613(1)
“PARTY LOCK” appears when you touch any key on the unit.
•
•
Set the Party Lock function to off
Control for HDMI (“BRAVIA”
Sync)
The system does not turn on even when the TV is turned on.
•
• Press DVD SETUP, then set [HDMI
SETUP] – [CONTROL FOR HDMI]
to [ON] (page 36). The TV must
support the Control for HDMI
function (page 54). For details,
refer to the operating instructions of your TV.
•
•
•
•
Check the speaker settings of the
TV. The system power syncs with the speaker settings of the TV.
For details, refer to the operating instructions of your TV.
If the sound was output from the
TV’s speakers the previous time, the system does not turn on even when the TV is turned on.
The system turns off when the TV is turned off.
• •
Check the setting of [HDMI
SETUP] – [STANDBY LINKED TO
LINKED TO TV] is set to [ON], the system turns off automatically when you turn off the TV regardless of the input.
The system does not turn off even when the TV is turned off.
•
•
Check the setting of [HDMI
SETUP] – [STANDBY LINKED TO TV]
To turn the system off automatically regardless of the input when you turn off the TV, set
[STANDBY LINKED TO TV] to [ON].
The TV must support the Control
For details, refer to the operating instructions of your TV.
No TV sound is output from the system.
• •
Check the type and connection of the HDMI cable or audio cable that is connected to the system and
• •
If your TV is compatible with Audio
Return Channel, make sure the system is connected to an ARCcompatible HDMI IN jack of the TV
(page 22). If sound is still not
output or if sound is interrupted, connect an audio cable (not supplied) and press DVD
SETUP, then set [HDMI SETUP] –
[AUDIO RETURN CHANNEL] to
•
• If your TV is not compatible with
Audio Return Channel, TV sound will not be output from the system even if the system is connected to
•
•
•
• the TV’s HDMI IN jack. To output TV sound from the system, connect an audio cable (not supplied)
Switch input of the system to “TV”
Increase the volume on the system.
73
GB
MHC-V77DW.GB.4-596-07613(1)
74
GB
•
•
Depending on the order in
•
• which you connect the TV and the system, the system may be muted and “MUTING” lights up in display panel of the system. If this happens, turn on the TV first, then the system.
Set the speakers setting of the TV
(BRAVIA) to Audio System. Refer to the operating instructions of your
TV on how to set the TV.
The sound is output from both the system and the TV.
•
•
Mute the sound of the system or
•
• the TV.
Change the speaker output on the
TV to TV speaker or Audio System.
The Control for HDMI function does not work properly.
•
•
Check the connection with the
• •
Enable the Control for HDMI function on the TV. For details, refer to the operating instructions
• • of your TV.
Wait a while, then try again. If you unplug the system, it will take a while before operations can
•
• be made. Wait for 15 seconds or longer, then try again.
Make sure the TV connected to the system support the Control for
• •
HDMI function.
The type and number of devices that can be controlled by the
Control for HDMI function is restricted by the HDMI CEC standard as follows:
—Recording devices (Blu-ray Disc recorder, DVD recorder, etc.): up to 3 devices
•
Player, DVD player, etc.): up to
3 devices (this system uses one of them)
—Tuner-related devices: up to
4 devices
—Audio system (receiver/ headphone): up to 1 device
(used by this system)
Party Chain
Party Chain function cannot be activated.
•
•
•
•
Check the connections
Make sure the audio cables are connected correctly.
Party Chain function does not work properly.
•
•
Turn off the system. Then, turn it back on again to activate the Party
Chain function.
Resetting the system
If the system still does not operate properly, reset the system to factory default settings.
1
Unplug the AC power cord (mains lead), then plug it back in.
2
Press
to turn on the system.
3
Press OPTIONS.
4
Press / repeatedly to select
“SYSTEM”, then press .
5
Press / repeatedly to select
“RESET”, then press .
6
Press / repeatedly to select
“YES”, then press .
“RESET” appears on the display.
After the reset completes, the system automatically reboots. Press
to turn on the system.
All user-configured settings, such as preset radio stations and Sleep
Timer are reset to factory default setting.
MHC-V77DW.GB.4-596-07613(1)
Returning the setup menu settings to the default
You can return the setup menu settings (except for
[PARENTAL CONTROL] settings) to the default settings.
1
Press DVD SETUP.
The setup menu appears on the TV screen.
2
Press / repeatedly to select
[SYSTEM SETUP], then press .
3
Press / repeatedly to select
[RESET], then press .
4
Press / repeatedly to select
[YES], then press .
It takes a few seconds to complete.
Do not press
while resetting the system.
Self-diagnosis Function
When letters/numbers appear on the TV screen or the display
When the self-diagnosis function is activated to prevent the system from malfunctioning, a service number appears. The service number consists of an alphabet and numerals (e.g. C 13 50). See the following table for the cause and corrective action.
First 3 characters of the service number
Cause and corrective action
C 13
C 31
This disc is dirty.
•
• Clean the disc with a
The disc is not inserted correctly.
•
• Turn off the system, then turn it back on again. Then re-insert the disc correctly.
E XX
(XX is a number)
To prevent a malfunction, the system has performed the self-diagnosis function.
•
•
Contact your nearest
Sony dealer or local authorized Sony service facility and give the
5-character service number.
Example: E 61 10
Messages
One of the following messages may appear or flash on the display during operation.
CANNOT PLAY
•
•
•
•
A disc that cannot be played back was inserted.
A DVD VIDEO with unsupported region code was inserted.
CODE 01/SGNL ERR
An unsupported audio signal is input from the connected TV’s HDMI
DATA ERROR
• •
The file is created in unsupported
•
• format.
The file extensions does not match the file format.
75
GB
MHC-V77DW.GB.4-596-07613(1)
76
GB
DEVICE ERROR
The USB device could not be recognized or an unknown device is connected.
DEVICE FULL
The memory of the USB device is full.
ERASE ERROR
Erase of audio files or folders on the
USB device failed.
FATAL ERROR
The USB device was removed during transfer or erase operation, and may have been damaged.
FOLDER FULL
You cannot transfer onto the USB device because the number of folders has reached its maximum.
GUEST
The system has become a Party
Guest as the Party Chain function has been activated by a Party Host.
HOST
The system activated the Party
Chain function and has become a
Party Host.
NoDEVICE
No USB device is connected or unsupported device is connected.
NO DISC
There is no disc in the player.
NO MUSIC
No supported audio files exist in the playback source.
NO SUPPORT
An unsupported USB device is connected, or the USB device is connected through a USB hub.
NO VIDEO
No supported video files exist in the playback source.
NOT USE
You tried to perform a specific operation under conditions where that operation is prohibited.
OVER CURRENT
An over current from the (USB) port was detected.
PROTECT
The USB device is write-protected.
PUSH STOP
You tried to perform an operation that can be performed only when the playback is stopped.
READING
The system is reading information of the disc or USB device. Some operations are not available.
REC ERROR
The transfer did not start, stopped partway, or otherwise could not be performed.
TRACK FULL
You cannot transfer onto the USB device because the number of files has reached its maximum.
Precautions
When carrying the unit
To avoid damaging the disc mechanism, perform the following procedure before carrying the unit.
Use the keys on the touch panel of the unit to perform this operation.
1
Press
to turn on the system.
MHC-V77DW.GB.4-596-07613(1)
2
Touch FUNCTION repeatedly to select “DVD/CD”.
3
Remove the disc.
Touch
to open and close the disc tray.
Wait until “NO DISC” appears on the display.
4
Unplug the AC power cord (mains lead).
Notes on discs
•
•
Before playing, wipe the disc with a cleaning cloth from the center outward
•
• to the edge.
Do not clean discs with solvents, such as benzine, thinner, or commercially available cleaners or anti-static spray intended for vinyl LPs.
•
• Do not expose discs to direct sunlight or heat sources such as hot air ducts, nor leave them in a car parked in direct sunlight.
On safety
•
• Completely disconnect the AC power cord (mains lead) from the wall outlet
(mains) if it is not going to be used for an extended period of time. When unplugging the system, always grip the plug. Never pull the cord itself.
• •
Should any solid object or liquid get into the system, unplug the system, and have it checked by qualified personnel before operating it again.
• •
AC power cord (mains lead) must be changed only at the qualified service shop.
On handling the unit
• •
Do not splash water on the unit on purpose. Dust and drip proof performance is improved by the flat top structure of the unit, but this is not guaranteed for all the situations. If you accidentally splash liquid on the unit,
•
• wipe off immediately.
To maintain the dust and drip proof performance, make sure all the covers of the jacks/port/terminal are securely closed.
On placement
• •
Do not place the system in an inclined position or in locations that are extremely hot, cold, dusty, dirty, or humid or lacking adequate ventilation, or subject to vibration, direct sunlight or a bright light.
•
• Be careful when placing the system on surfaces that have been specially treated (for example, wax, oil, polish) as staining or discoloration of the surface
•
• may result.
If the system is brought directly from a cold to a warm location or is placed in a very damp room, moisture may condense on the lens inside the unit, and cause the system to malfunction.
In this situation, remove the disc, and leave the system turned on for about an hour until the moisture evaporates.
On heat buildup
• •
Heat buildup on the unit during operation is normal and is not a cause
•
• for alarm.
Do not touch the cabinet if it has been used continuously at a high volume because the cabinet may have become
•
• hot.
Do not obstruct the ventilation holes.
On the speaker system
The built-in speaker system is not magnetically shielded, and the picture on nearby TV sets may become magnetically distorted. In this situation, turn off the
TV, wait 15 to 30 minutes, and turn it back on. If there is no improvement, move the system far away from the TV.
IMPORTANT NOTICE
Caution: If you leave a still video image or on-screen display image displayed on your TV for an extended period of time via this system, you risk permanent damage to your TV screen. Projection TVs are especially susceptible to this.
77
GB
MHC-V77DW.GB.4-596-07613(1)
78
GB
Cleaning the cabinet
Clean this system with a soft cloth slightly moistened with a mild detergent solution.
Do not use any type of abrasive pad, scouring powder, or solvent, such as thinner, benzine, or alcohol.
Notes on updating
This system allows you to update the software automatically when connected to the Internet via a wired or wireless network.
You can add new features and use the system with more convenience and safety by updating the system.
If you do not want to update automatically, you can disable the function by using SongPal installed on your smartphone/iPhone. However, the system may update the software automatically for reasons such as safety, even if this function is disabled.
You can also update the software using the settings menu when this function is disabled. See “Updating the software”
You may not use the system while the software is being updated.
Disclaimer regarding services offered by third parties
Services offered by third parties may be changed, suspended, or terminated without prior notice. Sony shall not be held responsible in these situations.
On BLUETOOTH communication
•
• BLUETOOTH devices should be used within approximately 10 meters
(unobstructed distance) of each other. The effective communication range may become shorter under the following conditions.
— When a person, metal object, wall or other obstruction is between the devices with a BLUETOOTH connection
— Locations where a wireless LAN is installed
— Around microwave ovens that are in use
•
•
— Locations where other electromagnetic waves are generated
BLUETOOTH devices and wireless LAN
(IEEE 802.11b/g/n) equipment use the same frequency band (2.4 GHz). When using your BLUETOOTH device near a device with wireless LAN capability, electromagnetic interference may occur. This could result in lower data transfer rates, noise, or inability to connect. If this happens, try the following remedies:
— Use this system at least 10 meters away from the wireless LAN equipment.
— Turn off the power of the wireless
LAN equipment when using your
BLUETOOTH device within 10 meters.
— Use this system and BLUETOOTH device as closer to each other as possible.
• •
The radio waves broadcast by this system may interfere with the operation of some medical devices. Since this interference may result in malfunction, always turn off the power on this system and BLUETOOTH device in the following locations:
— In hospitals, on trains, in airplanes, at gas stations, and any place where flammable gases may be present
•
•
— Near automatic doors or fire alarms
This system supports security functions that comply with BLUETOOTH specifications to ensure secure connections during communication using BLUETOOTH technology. However, this security may be insufficient depending on the setting contents and other factors, so always be careful when performing communication using
•
•
BLUETOOTH technology.
Sony cannot be held liable in any way for damages or other loss resulting from information leaks during communication using BLUETOOTH technology.
•
• BLUETOOTH communication is not necessarily guaranteed with all
BLUETOOTH devices that have the same profile as this system.
MHC-V77DW.GB.4-596-07613(1)
•
• BLUETOOTH devices connected with this system must comply with the
BLUETOOTH specification prescribed by the Bluetooth SIG, Inc., and must be certified to comply. However, even when a device complies with the
BLUETOOTH specification, there may be cases where the characteristics or specifications of the BLUETOOTH device make it impossible to connect, or may result in different control methods, display or operation.
•
• Noise may occur or the audio may cut off depending on the BLUETOOTH device connected with this system, the communications environment, or surrounding conditions.
Specifications
Speaker section
Speaker system:
Tweeter + Midrange speaker +
Woofer
Speaker unit:
Tweeter L/R: 40 mm, cone type
Midrange L/R: 120 mm, cone type
Woofer: 250 mm, cone type
Rated impedance:
Tweeter L/R: 4 ohms
Midrange L/R: 4 ohms
Woofer: 8 ohms
Inputs
AUDIO/PARTY CHAIN IN (TV) L/R:
Voltage 2 V, impedance
47 kilohms
TV (ARC):
Supported audio signal:
2-channel Linear PCM
MIC1, MIC2:
Sensitivity 1 mV, impedance
10 kilohms
Outputs
AUDIO/PARTY CHAIN OUT L/R:
Voltage 2 V, impedance 1 kilohm
VIDEO OUT:
Max. output level 1 Vp-p, unbalanced, Sync. negative load impedance 75 ohms
HDMI OUT (TV):
Supported audio signal:
2-channel Linear PCM (up to
48 kHz), Dolby Digital
HDMI section
Connector:
Type A (19 pin)
Disc player section
System:
Compact disc and digital audio and video system
Laser Diode Properties
Emission Duration: Continuous
Laser Output*: Less than 44.6 μW
* This output is the value measurement at a distance of
200 mm from the objective lens surface on the Optical Pick-up
Block with 7 mm aperture.
Frequency response:
20 Hz – 20 kHz
Video color system format:
Latin American model:
NTSC
Other models:
NTSC and PAL
USB section
Supported USB device:
Mass Storage Class
Maximum current:
1 A
(USB) port:
Type A
FM tuner section
FM stereo, FM superheterodyne tuner
Antenna:
FM lead antenna
Tuning range:
87.5 MHz – 108.0 MHz (50 kHz step)
79
GB
MHC-V77DW.GB.4-596-07613(1)
80
GB
BLUETOOTH section
Communication system:
BLUETOOTH Standard version 4.2
Output:
BLUETOOTH Standard Power
Class 1
Maximum communication range:
Line of sight approx. 30 m* 1
Frequency band:
2.4 GHz band (2.4000 GHz –
2.4835 GHz)
Modulation method:
FHSS (Freq Hopping Spread
Spectrum)
Compatible BLUETOOTH profiles*
2
:
A2DP (Advanced Audio
Distribution Profile)
AVRCP (Audio Video Remote
Control Profile)
SPP (Serial Port Profile)
Supported codecs:
SBC (Subband Codec)
AAC (Advanced Audio Coding)
LDAC
* 1 The actual range will vary depending on factors such as obstacles between devices, magnetic fields around a microwave oven, static electricity, reception sensitivity, antenna’s performance, operating system, software application, etc.
*
2
BLUETOOTH standard profiles indicate the purpose of BLUETOOTH communication between devices.
Network section
Ethernet LAN
100BASE-TX
Wireless LAN
Compatible standards:
IEEE 802.11 a/b/g/n
Security:
WPA/WPA2-PSK, WEP
Radio frequency:
2.4 GHz, 5 GHz
Supported audio formats
Supported bit rate and sampling frequencies:
MP3:
16/22.05/24/32/44.1/48 kHz,
16 kbps – 320 kbps (CBR/VBR)
AAC:
16/22.05/24/32/44.1/48/88.2/
96 kHz, 16 kbps – 320 kbps (CBR/
VBR)
WMA:
32/44.1/48 kHz, 16 kbps –
320 kbps (CBR/VBR)
WAV:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
AIFF:
32/44.1/48/88.2/96/176.4/
192 kHz (16/24 bit)
FLAC:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
ALAC:
16/22.05/24/32/44.1/48/88.2/
96/176.4/192 kHz (16/24 bit)
DSD (DSF/DSDIFF):
2.8 MHz (1 bit)
Supported video formats
Xvid:
Video codec: Xvid video
Bit rate: 4.854 Mbps (MAX)
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
Audio codec: MP3
MPEG4:
File format: MP4 File Format
Video codec: MPEG4 Simple
Profile (AVC is not compatible.)
Bit rate: 4 Mbps
Resolution/Frame rate:
720 × 480, 30 fps
720 × 576, 25 fps (except for Latin
American model)
MHC-V77DW.GB.4-596-07613(1)
Audio codec: AAC-LC (HE-AAC is not compatible.)
DRM: Not compatible
General
Power requirements:
AC 120 V – 240 V, 50/60 Hz
Power consumption:
220 W
Power consumption (at the Power
Saving mode):
0.5 W (When “NW STBY” is set to
“OFF” and [CONTROL FOR HDMI] is set to [OFF].)
3 W* (When “NW STBY” is set to
“ON” and [CONTROL FOR HDMI] is set to [ON].)
Dimensions (W/H/D) (Approx.):
340 mm × 924 mm × 378 mm
Mass (Approx.):
22 kg
* The power consumption of the system will be less than 0.5 W when there is no
HDMI connection and “NW STBY” is set to “OFF”.
Design and specifications are subject to change without notice.
MHC-V77DW.GB.4-596-07613(1)
81
GB
82
GB
Language code list
The language spellings conform to the ISO 639:1988 (E/F) standard.
Code Language
1027 Afar
Code Language
1186 Scots Gaelic
Code Language
1350 Malayalam
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1235
1239
1245
1248
Interlingua
Interlingue
Inupiak
Indonesian
1066 Bengali; Bangla 1253 Icelandic
1067 Tibetan
1070 Breton
1254
1257
Italian
Hebrew
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151
1157
Basque
Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian
1183 Irish
1352
1353
1356
1357
1358
1363
1365
1369
1376
1379
1393
1403
1408
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Occitan
(Afan) Oromo
Oriya
1417 Punjabi
1428 Polish
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1435 Pashto; Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-Croatian
1503 Singhalese
1505 Slovak
1327 Laothian
1332 Lithuanian
1506 Slovenian
1507 Samoan
1334 Latvian; Lettish 1508 Shona
1345 Malagasy 1509 Somali
1347 Maori
1349 Macedonian
1511 Albanian
1512 Serbian
Code Language
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1534 Setswana
1535 Tonga
1538 Turkish
1539 Tsonga
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu
1703 Not specified
MHC-V77DW.GB.4-596-07613(1)
Parental Control area code list
Code Area
2044 Argentina
2047 Australia
2046 Austria
2057 Belgium
2070 Brazil
2079 Canada
2090 Chile
2092 China
2115 Denmark
Code Area
2165 Finland
2174 France
2109 Germany
2248 India
2238 Indonesia
2254 Italy
2276 Japan
2304 Korea
2363 Malaysia
Code Area
2362 Mexico
2376 Netherlands
2390 New Zealand
2379 Norway
2427 Pakistan
2424 Philippines
2436 Portugal
2489 Russia
2501 Singapore
Code Area
2149 Spain
2499 Sweden
2086 Switzerland
2528 Thailand
2184 United Kingdom
MHC-V77DW.GB.4-596-07613(1)
83
GB
©2016 Sony Corporation Printed in Malaysia 4-596-07613(1)
MHC-V77DW.GB.4-596-07613(1)
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Related manuals
advertisement
Table of contents
- 6 About this manual
- 9 Unpacking
- 9 Playable discs or files on discs/USB device
- 12 Websites for compatible devices
- 13 Guide to parts and controls
- 19 Getting Started
- 19 Hooking up the system securely
- 21 Deactivating the demonstration
- 21 Inserting batteries
- 22 Connecting the TV
- 24 Carrying the unit
- 24 Changing the color system
- 24 Performing the quick setup
- 25 Changing the display mode
- 26 Disc/USB Playback
- 26 Before using the USB device
- 26 Basic playback
- 27 Other playback operations
- 30 Using play mode
- 31 Restricting playback of the disc (Parental Control)
- 32 Viewing information of a disc and USB device
- 33 Using the Setup Menu
- 37 USB Transfer
- 37 Before using the USB device
- 37 Transferring music
- 40 Tuner
- 40 Listening to the radio
- 41 BLUETOOTH
- 41 About the BLUETOOTH wireless technology
- 41 Pairing this system with a BLUETOOTH device
- 42 Listening to music on a BLUETOOTH device
- 43 One Touch BLUETOOTH Connection by NFC
- 44 Setting the BLUETOOTH audio codecs
- 45 Network
- 45 Selecting the method of network connection
- 45 Connecting with a computer
- 47 Listening to the same music from the multiple speakers (SongPal Link function)
- 47 Listening to an Internet music service (Google Cast)
- 48 Listening to an Internet music service (Spotify)
- 49 Gesture Control
- 49 Enjoying the Gesture Control
- 50 Using the Gesture Control during playback
- 50 Creating a party atmosphere (DJ Effect)
- 51 Using the Gesture Control during Karaoke function
- 52 Sound Adjustment
- 52 Adjusting the sound
- 52 Selecting the Virtual Football mode
- 53 Creating your own sound effect
- 53 Other Operations
- 53 Controlling the system using a smartphone or tablet (SongPal)
- 54 Getting frenzied parties with the “Fiestable” app
- 54 Using the Control for HDMI function
- 57 Using the Party Chain function
- 60 Singing along: Karaoke
- 61 Enjoying music with the Party Light and Speaker Light
- 61 Using the Sleep Timer
- 61 Using optional equipment
- 62 Deactivating the touch panel on the unit (Child Lock)
- 62 Deactivating the touch panel on the unit for a short time (Party Lock)
- 62 Setting the automatic standby function
- 63 Setting the BLUETOOTH/Network standby mode
- 63 Turning on or off the BLUETOOTH/Wi-Fi signal
- 64 Updating the software
- 65 Additional Information
- 65 Troubleshooting
- 76 Precautions
- 79 Specifications
- 82 Language code list
