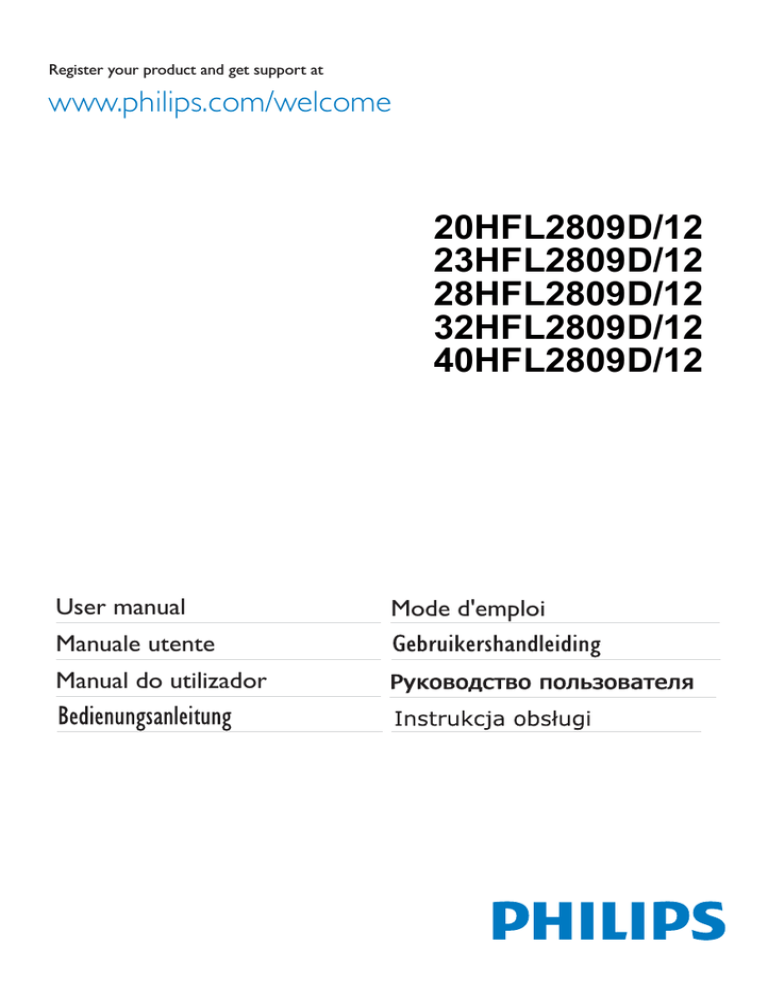

Register your product and get support at
www.philips.com/welcome
20HFL2809D/12
23HFL2809D/12
28HFL2809D/12
32HFL2809D/12
40HFL2809D/12
User manual
Mode d'emploi
Manuale utente
Manual del usuario
Manual do utilizador
Contents
Important.................................................................1
Use your TV ............................................................2
Remote control .......................................................2
Teletext................................................................2
Digital teletext (for UK only).................................2
Notifications, features and accessories...................3
Energy efficiency.....................................................3
TV scroll button.......................................................3
Connecting power...................................................3
Switching on/off.......................................................3
To switch the TV on.............................................3
Important
‘Read and understand all information in the
accompanying Safety booklet before you install and
use your TV. If damage is caused by failure to follow
these instructions, the warranty does not apply.’
Disposal of old Equipment and Batteries
Please do not disposed this TV or battery as general
household waste. If you want to dispose this product
or battery, please consider the collection systems
or facilities for appropriate recycling.
Notice: The sign Pb below the symbol for batteries indicates
that this battery contains lead.
To switch the TV off.............................................3
First time installation................................................3
Aerial installation.................................................3
Cable installation.................................................3
Media browser menu...............................................4
Play media files from a USB drive...........................4
Change TV settings.................................................4
Display options........................................................4
Sound options.........................................................4
Configuring parental settings...................................4
Electronic program guide (EPG).............................4
Program options..................................................5
Update your TV.......................................................5
Automatic update from digital broadcast.............5
Troubleshooting ......................................................5
TV will not turn on................................................5
Poor picture.........................................................5
No picture............................................................5
No sound.............................................................5
Remote control - does not operate......................5
Input sources - can not be selected.....................5
Specifications..........................................................6
PC input typical display modes ..............................6
AV and HDMI signal compatibility............................6
English - 1 -
Products Battery
Use your TV
Remote control
1. Standby
2. Teletext / Mix (in TXT mode)
3. Stop(in Media Browser mode)
4. Image Size
5. AV/ Source selection
6. Menu on-off/ Exit (in Media Browser mode)
7. Channel swap
8. Cursor up
9. Cursor left
10. Cursor down
SWAP
P=P
11. Program Down / Page up (in TXT mode)
12. Volume Down
13. Green Button
14. Red Button
15. Numeric Buttons
16. Subtitle on-off / Subtitle (in Media Browser
mode)
17. Mono-Stereo Dual I-II/ Audio Subtitle Language
18. Blue Button
19. Yellow Button
20. Volume Up
21. Mute
22. Program Up / Page down (in TXT mode)
23. Back / Return / Index page (in TXT mode)
24. Cursor Right
25. Okay (Confirm) / Hold (in TXT mode) / Channel
List
26. Info / Reveal (in TXT mode)
27. Play / (in Media Browser Mode)
28. Pause (in Media Browser mode)
29. Set Sleep Timer
NOTE: The Remote Control range is approximately 7m
/ 23ft.
30. Electronic program guide (in DVB Channels)
Teletext
Press the TEXT button to enter. Press again to
activate mix mode. Press once more to exit. Follow
the instructions displayed on the teletext screen.
Digital teletext (for UK only)
Press the TEXT button to view digital teletext
information. Operate it with the colored buttons,
cursor buttons and the OK button. The operation
method may differ depending on the contents of the
digital teletext. Follow the instructions displayed on
the digital teletext screen.
English - 2 -
Notifications, features and accessories
Connecting power
Energy efficiency
This TV is designed with energy efficieny features:
• Power save mode (ECO): You can apply a
combination of energy saving picture settings. While
you watch TV, press the Menu button and, the Power
Save Mode settings can be found in the ‘Picture’
section of the Main Menu.
•Picture off mode: If you only want to listen to audio
from the TV, you can switch off the display. Other
functions continue to operate normally. While you
watch TV, press Menu and select Picture, and from
there select ‘Picture off’ under the Power Save
Mode option.
Note: Disconnect your TV from the mains plug in
case your TV is going to be inactive for a long time.
The TV set is designed to operate on 220-240V AC, 50
Hz socket. After unpacking, allow the TV set to reach
the ambient room temperature before you connect the
set to the mains. Plug the power cable to the mains
socket outlet.
Switching on/off
To switch the TV on
To switch on the TV from standby mode either:
•Press the “ ” button, CH- or CH+ or a numeric
button on the remote control.
•Press the side function switch until the TV comes
on from standby.
Note: If the TV has been left on and not been operated for a
while, the TV will go into standby. When you next switch-on,
the following message will be displayed: “Standby Cause
No Operation”. Press OK to continue.
To switch the TV off
TV scroll button
The TV Scroll button on the side of the TV allows you
to control the volume, change channels and put the
TV into standby.
•Press the “ ” button on the remote control or
press the side function switch until the TV switches
into standby mode.
Note: To power down the TV completely, unplug the power
cord from the mains socket.
First time installation
You will see the language selection screen when you
first turn on your TV. Select your preferred language
and press OK followed by the selection Home Mode/
Shop Mode.
You can set up your TV by following the First Time
Installation (FTI) screen with the following selections.
Aerial installation
Select the AERIAL option from the Search Type
screen to search for terrestrial digital TV broadcasts.
To change volume: Increase the volume by scrolling
up. Decrease the volume by scrolling down.
Optional a channel list, which is generated by LCN (*),
will be displayed on screen when the search is over.
Select “Yes” and press OK to store this list.
To change channel:
Press “
1. Press the middle of the scroll button, the channel
information banner will appear on the screen.
(*) LCN is the Logical Channel Number system that
organizes available broadcasts in accordance with a
recognizable channel sequence (if available).
2. Scroll through the stored channels by pushing the
button up or down.
To change source:
1. Press the middle of the button twice, the source list
will appear on the screen.
2. Scroll through the available sources by pushing the
button up or down.
To switch the TV to standby: Press the middle of
the button down and hold it down for a few seconds,
the TV will turn into standby mode.
” button to quit channel list and watch TV.
Cable installation
Select CABLE option and press OK on the remote
control. For automatic installation in case your Cable
network supplier supports a Network-ID based
installation (e.g. Unitymedia), select YES in following
screen and press OK.
In case your Cable network supplier does not support
a Network-ID based installation please select “NO”,
press OK and follow the instruction on the screen.
You can also select frequency ranges from this screen.
English - 3 -
Media browser menu
Loop/Shuffle Mode Operation
Start playback with
and activate
TV plays next file and loop the list.
Start playback with OK
and activate
File will be played in a loop (repeat).
Start playback with OK/
File will be played in a shuffle.
and activate
Start playback with OK/
File playback will continue randomly and random playback will continue.
and activate
Enter the frequency range manually by using the
numeric button.
Note: Searching duration will change depending
on the selected search step.
Play media files from a USB drive
You can play photo, music, and movie files stored
on a USB disk by connecting it to your TV. Connect
a USB disk to one of the USB inputs located on
the side of the TV. Pressing the “ ” button while
in the Media Browser mode will access the Picture,
Sound and Settings menu options. Pressing the
” button again will exit from this screen. You can
“
set your Media Browser preferences by using the
Settings Menu.
IMPORTANT! Back up your files before making
any connections to the TV. The manufacturer will
not be responsible for any file damage or data
loss. Certain types of USB devices, for example,
MP3 players or USB hard disk drives/memory
sticks may not be compatible with this TV.
Change TV settings
To access the options listed below;
Sound options
Volume: Adjusts volume level.
Equalizer: Changes the equalizer mode.
Balance: Adjusts whether the sound is coming mainly
from the right or left speakers.
Headphone: Sets headphone volume.
Sound mode: Sets the preferred sound mode.
AVL: Sets a limit to maximum volume output.
Digital Out: Sets digital out audio type.
Configuring parental settings
This feature is for restricting access to selected
content. It is controlled by a pin number defined by
you. Factory default is “0000”.
Menu lock (optional): Menu lock setting enables or
disables the menu access.
Maturity lock (optional): When set, this option gets
the maturity information from the broadcast and if
this maturity level is disabled, disables access to the
broadcast.
2- Highlight your selection
Child lock (optional): When Child Lock is set, the TV
can only be controlled by the remote control. In this
case the control panel buttons will not work.
3- Press OK to confirm
Set PIN: Defines a new PIN number.
1- Press the Menu button
Display options
Mode: Changes the picture mode to one of the
following: Cinema, Game, Sports, Dynamic and
Natural.
Contrast: Sets the light and dark values of the image.
Brightness: Sets the brightness value of the image.
Note: If the Country option is set to France, you can use 4725
as the default code.
Electronic program guide (EPG)
Some, but not all channels send information about the
current and next programs. Press the “GUIDE” button
to view the EPG menu.
Sharpness: Sets the sharpness value. A high
sharpness value may result in a clearer, crisper image
depending on the content.
NOTE: You can enable/disable EPG using the
relevant function in Hotel TV menu.
Color: Sets the color value.
OK: Displays program options.
Backlight: Controls the brightness of the backlight.
INFO: Displays, in detailed, information on the
program selected.
Noise reduction: Reduces the noise level in the
image.
Up/Down/Left/Right: Navigate EPG.
GREEN: Switches to List Schedule EPG.
English - 4 -
YELLOW: Switches to Timeline Schedule EPG.
BLUE: Displays filtering options.
Program options
In EPG menu, press the OK button to enter the
Event Options menu.
Select Channel
In EPG menu, using this option, you can switch
to the selected channel.
Set Timer / Delete timer
(Disabled when Hotel Mode is set to ON)
After you have selected a program in the EPG
menu, press OK. Select the Set Timer on Event
option and press OK. You can set a timer for future
programs.
Update your TV
• Low signal level can cause picture distortion.Please
check antenna access.
• Check if you have entered the correct channel
frequency if you have done manual tuning.
• The picture quality may degrade when two devices
are connected to the TV at the same time. In such
a case, disconnect one of the devices.
No picture
• No Picture means that your TV is not receiving a
transmission. Have you selected the correct button on
the remote control? Try once more. Also make sure
the correct input source has been selected.
• Is the antenna connected properly?
• Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.
Navigate on your main menu, choose settings, the
version of the current software is displayed.
Caution: Do not install a lower version of software
than the current version installed on your product. TP
Vision cannot be held liable or be made responsible
for problems caused by a software downgrade.
Update with USB
Before you update the software, make sure that you
have:
• A USB storage device that has at least 256
megabytes of storage space, is FAT or DOS formatted
and has its write protection disabled.
• Access to a computer with a USB connector and
Internet access
N a v i g a t e t o w w w. p h i l i p s . c o m / s u p p o r t , a n d
follow the software update instructions.
No sound
• Has the TV been set to mute? To cancel mute, press the
“
” button, or increase the volume level.
• Sound is coming from only one speaker. Is the balance
set to one extreme? See Sound Menu section.
Remote control - does not operate
•The batteries may be exhausted. Replace the
bateries.
Input sources - can not be selected
• If you cannot select an input source, it is possible that
no device is connected. if not
•Check the AV cables and connections if you have tried
to connect a device.
Automatic update from digital broadcast
While the TV is connected to an aerial signal. If
Automatic scanning in the Upgrade Options menu
is enabled, the TV wakes up at 03:00 and searches
broadcast channels for new software upgrades. If
new software is found and downloaded successfully,
the next time the TV powers up , it will have the new
software version.
Note: If the TV fails to come on after the upgrade unplug the
TV for 2 minutes and plug in again.
Troubleshooting
TV will not turn on
Make sure the power cord is plugged in securely to
wall outlet. The batteries in the remote control may be
exhausted. Press the Power button on the TV.
Poor picture
• Have you selected the correct TV system?
English - 5 -
Specifications
PC input typical display modes
The following table is an illustration of some of the typical video display modes.
Index
Resolution
Frequency
1
800x600
56 Hz
2
800x600
60 Hz
3
1024x768
60 Hz
4
1024x768
66 Hz
5
1280x768
60 Hz
6
1360x768
60 Hz
7
1280x960
60 Hz
8
1280x1024
60 Hz
9
1400x1050
60 Hz
10
1600x1200
60 Hz
11
1920x1080
60 Hz
AV and HDMI signal compatibility
Source
Supported Signals
Available
PAL 50/60
O
EXT
NTSC 60
O
(SCART)
RGB 50
O
RGB 60
O
PAL 50/60
O
NTSC 60
O
Side AV
PC/
YPbPr
HDMI1
480I, 480P
60Hz
O
576I, 576P
50Hz
O
O
720P
50Hz,60Hz
1080I
50Hz,60Hz
O
1080P
50Hz,60Hz
O
480I
60Hz
O
480P
60Hz
O
576I, 576P
50Hz
O
720P
50Hz,60Hz
O
50Hz,60Hz
O
1080I
24Hz, 25Hz
1080P
30Hz, 50Hz,
60Hz
O
English - 6 -
Supported file formats in USB mode
Media
File Extension
Video
mpg, mpeg
Movie
Format
Remarks
(Maximum resolution/Bit rate etc.)
Audio
MPEG1: 768x576 @30P
MPEG1, MPEG2
MPEG2:1920x1080 @ 30P
vob
MPEG2
mp4
MPEG4, Xvid , H.264
mkv
H.264, MPEG4,VC-1
avi
MPEG2, MPEG4, Xvid , H.264
flv
H.264/VP6/Sorenson
3gp
MPEG4 , H.264
1920x1080 @ 30P
H.264/VP6:1920x1080 @ 30P
Sorenson: 352x288 @30P
1920x1080 @ 30P
MPEG 1 Layer 2
Music
.mp3
-
32Kbps ~ 448Kbps(Bit rate)
32K, 44.1k, 48k Hz,16K, 22.05K, 24K Hz (Sampling
rate)
32Kbps ~ 320Kbps(Bit rate)
MPEG 1 Layer 3 32K, 44.1k, 48k Hz,16K, 22.05K, 24K Hz,8K, 11.025K,
12K Hz (Sampling rate)
.jpg .jpeg
Baseline JPEG
-
max WxH = 17000x10000 4147200bytes
.
Progressive JPEG
-
max WxH = 4000x4000 3840000bytes
.bmp
-
-
max WxH = 5760x4096 3840000bytes
.sub .srt
-
-
-
Subtitle
Specificaties
TV Broadcasting
PAL B/G D/K K I/I’
Receiving Channels
VHF (BAND I/III) - UHF
(BAND U) - HYPERBAND
Number of Preset
Channels
1000
Channel Indicator
On Screen Display
RF Aerial Input
75 Ohm (unbalanced)
Operating Voltage
220-240V AC, 50Hz
Audio
German+Nicam Stereo
Operation
temperature and
operation humidity:
0ºC up to 40ºC, 85%
humidity max
Model
Panel
Audio out
VESA mounting
20”, HD
Power
Consumption
xxW
20HFL2809D
2 x 2.5W
75mm x 75mm, M4
23HFL2809D
23”, HD
xxW
2 x 2.5W
75mm x 75mm, M4
28HFL2809D
28”, HD
33W
2 x 6W
75mm x 75mm, M4
32HFL2809D
32”, HD
xxW
2 x 6W
200mm x 100mm, M4
40HFL2809D
40”, HD
xxW
2 x 6W
200mm x 200mm, M6
English - 7 -
Dimension
W x H x D [mm]
472x296x40
472x334x135
542x330x35/61
542x363x135
640x387x38/65
640x427x185
735x438x77/97
735x476x185
923x544x79/98
923x587x217
HOTEL MODE
The hotel mode is a special mode which restricts some operations of TV. This allows the customer to use
the TV in special places such as hotels, prisons or hospitals. These restrictions are basically given below.
•Theusercannotincreasethevolumeaboveaspecifiedlimit.Andcansetfixedvolumevalue.
•The user can enable headphone direct volume control.
•The user cannot reach some menus.
•The user cannot use the buttons on the TV.
•The user can limit the start-up source position.
•Last status can/cannot be used.
•Teletextcanbedisabledorenabled.
•NVRAMdata(likeservicelistanduserpreferences,etc.)canbecopiedtoorfromaUSBdevice.
•Pin8 can/cannot be used.
•The user cannot set timely events in EPG.
To enter hotel menu, press the 3-1-9- 7-5-3-mutebuttonsconsecutively.
HOTEL MENU ITEMS
Hotel Mode
Setas‘On’toactivatehotelmode.Inhotelmode,channellistandinstallmenuareblocked.
Last Status
Setas‘On’ to enable the TV to reopen with the closing status.
Panel Lock
Setas‘On’ to prohibit the use of the buttons on the TV.
RCU Inhibit
Setas‘On’ to inhibit the use of the remote. To turn this option off, repeat the steps to open hotel menu. Remote
controlwillfunctioninStand-Bymodeindependentlyfromthesettingofthisoption.
Startup Position
You can specify the opening settings of the TV. Choose the channel and/or source to be opened when the
TVisswitchedonnexttime.Theavailableoptionsareasthefollowing:
Auto: TheTVwillopenwiththelastchannel(ifTVwasthelastsource)orlastsource.
TV: TheTVwillopenwiththechannelthatisspecifiedin“Startup Channel” menu item.
Other external sources (EXT1, HDMI2, PC, FAV, SVHS etc.):TheTVwillopenwiththespecifiedsource.
Startup Channel
YoucanspecifyachanneltobedisplayedwhentheTVisturnedonnexttime,if ‘Startup Position’ is set as ‘TV’.
Volume Limit
Setthemaximumvalueofthevolume.
Fixed Volume Enable
Setas‘On’toenabletheuseoffixedvolumevaluewhichissetin“Fixed Volume Value” menu item.
Fixed Volume Value
Setthevalueofthevolumetobefixed.
Headphone Direct Volume
Setas‘Enabled’ to control the headphone volume through remote control. When this feature is enabled,
volume control buttons will not change the TV’s main sound. You can change the sound of the TV from the
‘Sound’ menu.
English - 8 -
OSD Disable
Thedefaultvalueissetas‘Disable Setup Menus’forhotelmode.Youcanblockallmenusbysettingthis
itemas‘Disable All Menus’.
InvisibleSetupMenusare:
Mainmenu: Installation, Channel list
Settingsmenu:Language,Parental,Sources,Othersettings
Teletext
Youcanenableorprohibittheteletextservices(orMHEGifavailable)bysettingthisitemas‘On’or‘Off’.
WakeUp Time Channel
Set the channel, whose time information is to be used for wakeup timer. If this option is set as “0”, time
information of the channel which is being watched will be used.
Note:Ifhotelmodeisactive,‘Add wake up timer’functionwillbeavailablein‘Settings/Timers’menu.After
thenewtimerissaved,theTVwillwakeupautomaticallyondesiredtime.
Wakeup Time Volume
SetthewakeupvolumevalueoftheTV.Thisvaluecan’tbesetasgreaterthanthevaluein‘Volume Limit’
menu item.
Copy To USB (USB cloning)
YoucancopytheNVRAMdata(servicelist,preferences,etc.)toaUSBdeviceusingthisoption.PressOK
tocopythosefilesfromTVtoUSB.
Copy From USB (USB cloning)
YoucancopytheNVRAMdata(servicelist,preferences,etc.)fromaUSBdeviceusingthisoption.Press
OKtocopythosefilesfromUSBtoTV.
Note:USBdevice,whichwillbeusedforUSBcloningfunctions,mustbeFAT32formatted.
USB Option
Setas‘Off’todisabletheUSBportsontheTV.
Fixed Pic. Mode
Setas‘On’ to disable picture setting menus.
Digital Tuner
Setas‘Off’todisabledigitalchannels.Whenadigitalchannelisopenedfromthechannellist,“nosignal”
message will be displayed and digital channels will not be listed when manual or auto searches are performed.
Multiple RC Support
Youcanchooseoneofthepredefinedremotesorsetas‘Off’.YoucansettheRCUtypefrom‘RCUprogram
menu’.TheshortcutofthismenuisRETURN-1-2-3-4.
YoushouldsettheRCandTVseparately.YoucansettheRCvalueoftheTVbypressingRETURN+1+2+3+4.
SettheRCtotheselectedTVbypressingthe‘Home’and‘Digit’buttonssimultaneouslyfor5seconds.The
digitcanbe1,2,3,4.
Welcome Screen
You can set a welcome screen image using this option. If this option is enabled a welcome screen message will
bedisplayedafterturningtheTVon.Theimagewillstayonthescreenuntilyoupressanykeyontheremote.
NIT Update
If this option is enabled LCN informations will be updated automatically. This option is available only for Nordic
countries.
High Security
If you set this option as ON,theHotelTVmenuwillbeaccessibleonlyviathePhilipshospitalityremote.
(Onlythe“RCsetup+Home/Menu”keycombinationcanbeusedtoopentheHotelModemenu.Otherkeys
arenotrecognizedbytheTV)
English - 9 -
Reset to Default Values
HighlightthisoptionandpresstheOK button on the remote to return the TV to default settings.
EPG Enabled/Disable
IfyouenablethisoptiontheEPGmenuwillbeaccessiblewhiletheTVisinHotelmode.
English - 10 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
