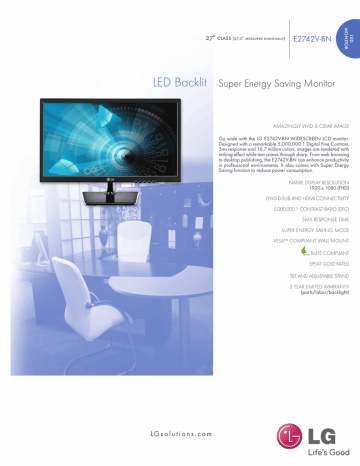

LED Backlit
E2742V-BN
led
monitor
27" class (27.0” measured diagonally)
Super Energy Saving Monitor
AMAZINGLY VIVID & CLEAR IMAGE
Go wide with the LG E2742V-BN WIDESCREEN LCD monitor.
Designed with a remarkable 5,000,000:1 Digital Fine Contrast,
5ms response and 16.7 million colors, images are rendered with
striking effect while text comes through sharp. From web browsing
to desktop publishing, the E2742V-BN can enhance productivity
in professional environments. It also comes with Super Energy
Saving function to reduce power consumption.
NATIVE DISPLAY RESOLUTION
1920 x 1080 (FHD)
DVI-D D-SUB AND HDMI CONNECTIVITY
5,000,000:1 CONTRAST RATIO (DFC)
5MS RESPONSE TIME
SUPER ENERGY SAVING MODE
VESA™ COMPLIANT WALL MOUNT
RoHS COMPLIANT
EPEAT GOLD RATED
TILT AND ADJUSTABLE STAND
3 YEAR LIMITED WARRANTY
(parts/labor/backlight)
LG s o l u t i o n s . c o m
25.2”
1.9”
15.4”
18.1”
11.2”
100mm
100mm
8.0”
specifications
dimensions
led
monitor
E2742V-BN 27" class (27.0” measured diagonally)
DISPLAY
LCD Panel Type
27" Class (27.0" measured diagonally) Widescreen
Color
Black
Color Gamut
72%
Color Depth
16.7 Million Colors
Pixel Pitch
0.3114mm
Aspect Ratio
16:09
Maximum Resolution
1920 x 1080
Brightness
250 cd/m2
Contrast Ratio
1000:1, 5,000,000:1(DFC)
Response Time
5ms
Viewing Angle (HxV)
170˚/160˚
LED Channel Q’ty
4
Surface Treatment
Non-Glare, 3H
SIGNAL INPUT
D-Sub
Yes
DVI-D
Yes
HDMI
Yes
AUDIO OUTPUT
Headphone Out
Yes
POWER
Input
100~240V
Normal On (Typ.)
30W
Power Save/Sleep Mode (Max) 0.3W
DC Off (Max)
0.3W
FREQUENCY
Analog/Digital
30~83kHz (H-Frequency)
56~75Hz (V-Frequency)
LANGUAGE
Set-up
English, Germanic, French, Spanish, Italian, Swedish,
Finnish, Portuguese, Polish, Russian, Greek, Chinese,
Japanese, Korean, Ukrainian, Portuguese, Brazilian,
Hindi
DIMENSIONS
Set w/Stand (W x D x H)
25.2” x 8.0” x 18.1”
Set w/o Stand (W x D x H)
25.2” x 1.9” x 15.4”
Box
30.0” x 18.5” x 6.0”
WEIGHT
Set w/Stand
9.96 lbs
Set w/o Stand
8.68 lbs
Box
14.99 lbs
STAND
Base Detachable
Tilt (-5° Front ~ 22° Rear)
CERTIFICATIONS
Safety
TCO 5.2, UL (cUL), TUV-GS (TUV-Type)
EPEAT Gold
Yes
EMC
FCC-B, CE
Environment
RoHS
ENERGY STAR (EPA) 5.0
Yes
VESA Mounting
100mm x 100mm
MS Logo
Window 7
SPECIAL FEATURES
Picture Mode
PC
Video
sRGB
USB
Plug & Play - DDC2B, DDC/CI
HDCP
Intelligent Auto (Auto Resolution)
Super Energy Saving
ACCESSORIES
Power Cord
D-Sub Cable
DVI-D (Option)
LIMITED WARRANTY
3 Years (parts/labor/backlight)
Swap Program available
Call Toll-Free 1-800-243-0000
UPC CODE
E2742V-BN
7 19192 18969 0
LGsolutions.com
LG Electronics U.S.A., Inc.
HE B2B Division
2000 Millbrook Drive
Lincolnshire, IL 60069
Customer Service: 888.865.3026
www.LGsolutions.com/support
Contact your LG Regional Sales Representative:
Hospitality: 800.228.1236
Channel: 800.897.8871
E-mail: [email protected]
SPEC_E2742V_BN_081212_PR
All screen images are simulated. Dimensions and weights are approximate. Design,
features and specifications subject to change without notice.
© Copyright 2012 LG Electronics USA, Inc. All Rights Reserved. “LG Life’s Good”
is a registered trademark of LG Corp.
Windows and Windows Vista are either trademarks or registered trademarks of
Microsoft Corporation in the United States and/or other countries. VESA is a
trademark of Video Electronics Standards Association. Environmental Protection
Agency. All other product and brand names are trademarks or registered trademarks
of their respective companies.
Printed in the USA. September 2012
