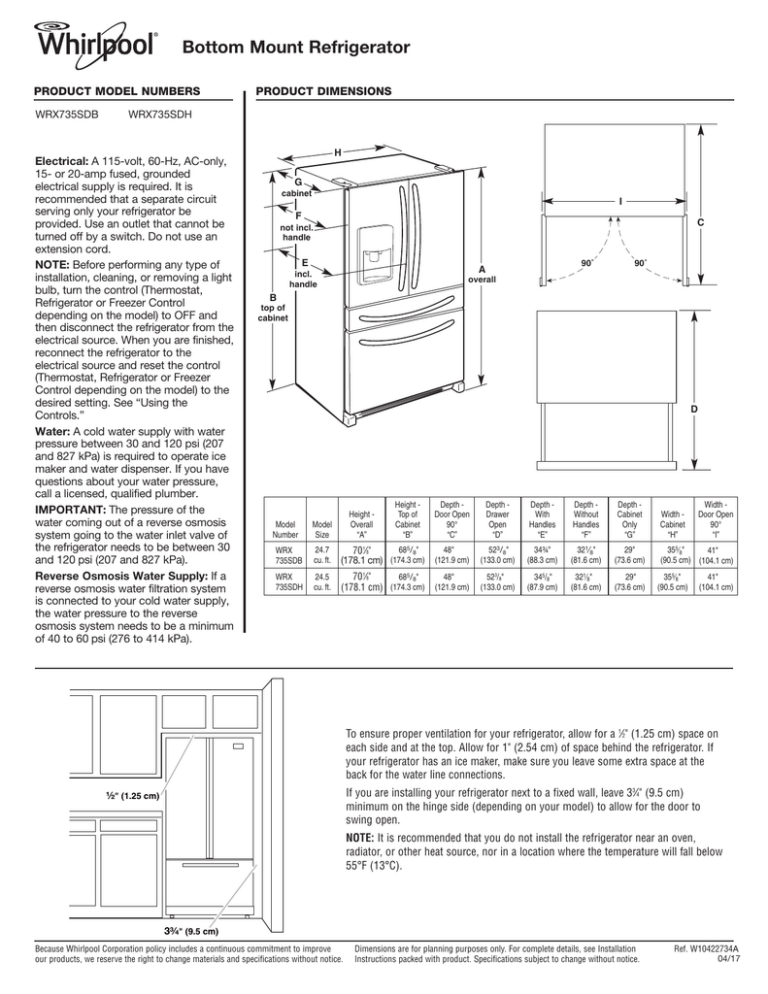

Bottom Mount Refrigerator
PRODUCT MODEL NUMBERS
WRX735SDB
PRODUCT DIMENSIONS
WRX735SDH
Electrical: A 115-volt, 60-Hz, AC-only,
15- or 20-amp fused, grounded
electrical supply is required. It is
recommended that a separate circuit
serving only your refrigerator be
provided. Use an outlet that cannot be
turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of
installation, cleaning, or removing a light
bulb, turn the control (Thermostat,
Refrigerator or Freezer Control
depending on the model) to OFF and
then disconnect the refrigerator from the
electrical source. When you are finished,
reconnect the refrigerator to the
electrical source and reset the control
(Thermostat, Refrigerator or Freezer
Control depending on the model) to the
desired setting. See “Using the
Controls.”
Water: A cold water supply with water
pressure between 30 and 120 psi (207
and 827 kPa) is required to operate ice
maker and water dispenser. If you have
questions about your water pressure,
call a licensed, qualified plumber.
IMPORTANT: The pressure of the
water coming out of a reverse osmosis
system going to the water inlet valve of
the refrigerator needs to be between 30
and 120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a
reverse osmosis water filtration system
is connected to your cold water supply,
the water pressure to the reverse
osmosis system needs to be a minimum
of 40 to 60 psi (276 to 414 kPa).
H
G
cabinet
I
F
C
not incl.
handle
E
90˚
A
incl.
handle
90˚
overall
B
top of
cabinet
D
Model
Number
Height Overall
“A”
Model
Size
Height Top of
Cabinet
“B”
Depth Door Open
90°
“C”
Depth Drawer
Open
“D”
Depth With
Handles
“E”
Depth Without
Handles
“F”
Depth Cabinet
Only
“G”
WRX
735SDB
24.7
cu. ft.
685/8"
70 1⁄8"
(178.1 cm) (174.3 cm)
48"
(121.9 cm)
523/8"
(133.0 cm)
34¾"
(88.3 cm)
321⁄8"
(81.6 cm)
29"
(73.6 cm)
WRX
735SDH
24.5
cu. ft.
70 1⁄8"
685/8"
(178.1 cm) (174.3 cm)
48"
(121.9 cm)
523/8"
(133.0 cm)
345/8"
(87.9 cm)
321⁄8"
(81.6 cm)
29"
(73.6 cm)
Width Cabinet
“H”
Width Door Open
90°
“I”
355⁄8"
41"
(90.5 cm) (104.1 cm)
355⁄8"
(90.5 cm)
41"
(104.1 cm)
LOCATION REQUIREMENTS
To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (1.25 cm) space on
each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If
your refrigerator has an ice maker, make sure you leave some extra space at the
back for the water line connections.
If you are installing your refrigerator next to a fixed wall, leave 33⁄4" (9.5 cm)
minimum on the hinge side (depending on your model) to allow for the door to
swing open.
¹⁄₂" (1.25 cm)
NOTE: It is recommended that you do not install the refrigerator near an oven,
radiator, or other heat source, nor in a location where the temperature will fall below
55°F (13°C).
3³⁄₄" (9.5 cm)
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10422734A
04/17
