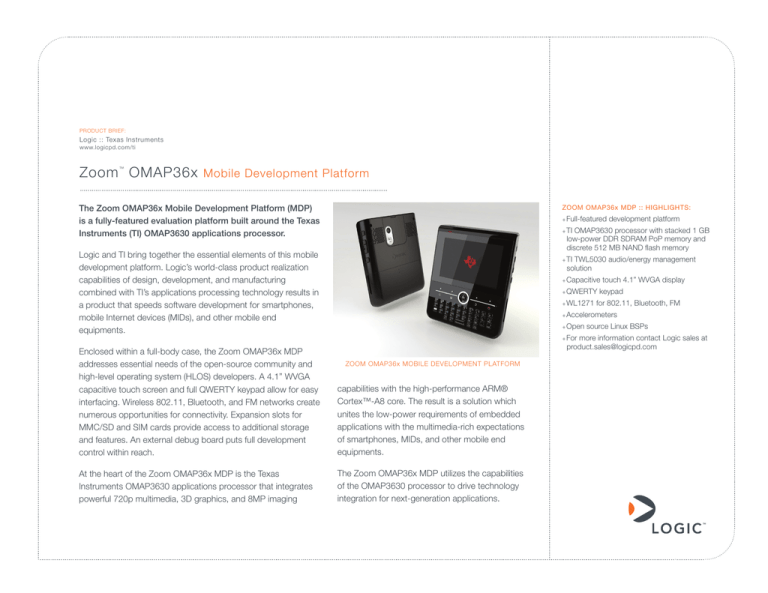

PRODUCT BRIEF:
Logic :: Texas Instruments
www.logicpd.com/ti
Zoom OMAP36x Mobile Development Platform
™
The Zoom OMAP36x Mobile Development Platform (MDP)
is a fully-featured evaluation platform built around the Texas
Instruments (TI) OMAP3630 applications processor.
ZOOM OMAP36x MDP :: HIGHLIGHTS:
+ Full-featured
development platform
+ TI
OMAP3630 processor with stacked 1 GB
low-power DDR SDRAM PoP memory and
discrete 512 MB NAND flash memory
Logic and TI bring together the essential elements of this mobile
development platform. Logic’s world-class product realization
capabilities of design, development, and manufacturing
combined with TI’s applications processing technology results in
a product that speeds software development for smartphones,
mobile Internet devices (MIDs), and other mobile end
equipments.
+ TI
TWL5030 audio/energy management
solution
+ Capacitive
+ QWERTY
+ WL1271
touch 4.1” WVGA display
keypad
for 802.11, Bluetooth, FM
+ Accelerometers
+ Open
source Linux BSPs
+ For
more information contact Logic sales at
[email protected]
Enclosed within a full-body case, the Zoom OMAP36x MDP
addresses essential needs of the open-source community and
high-level operating system (HLOS) developers. A 4.1” WVGA
capacitive touch screen and full QWERTY keypad allow for easy
interfacing. Wireless 802.11, Bluetooth, and FM networks create
numerous opportunities for connectivity. Expansion slots for
MMC/SD and SIM cards provide access to additional storage
and features. An external debug board puts full development
control within reach.
capabilities with the high-performance ARM®
Cortex™‑A8 core. The result is a solution which
unites the low‑power requirements of embedded
applications with the multimedia-rich expectations
of smartphones, MIDs, and other mobile end
equipments.
At the heart of the Zoom OMAP36x MDP is the Texas
Instruments OMAP3630 applications processor that integrates
powerful 720p multimedia, 3D graphics, and 8MP imaging
The Zoom OMAP36x MDP utilizes the capabilities
of the OMAP3630 processor to drive technology
integration for next-generation applications.
ZOOM OMAP36x MOBILE DEVELOPMENT PLATFORM
™
Zoom™ OMAP36x Mobile Development Platform Ordering Information
Model Number
Recommended Resale
MDP-XOMAP3630-10-1024512R
$1499
OMAP3630 SOM to upgrade existing Zoom OMAP34x-II MDPs
Model Number
Recommended Resale
SOMXOMAP3630-10-1980AFCR
$347
Product Features
System on Module (SOM)
+ SOM-LV Type III featuring the TI
OMAP3630 processor
+ 1 GB low-power DDR SDRAM PoP
memory / discrete 512 MB NAND
flash memory
+ TWL5030 audio/power management
companion chip
Display
+ 4.1” TFT WVGA LCD
+ Capacitive touch screen with
Synaptics solution
+ HDMI port
(transmitter TI TPD12S521)
+ Video out jack
Audio
+ Built-in stereo speakers
+ Volume toggle
+ Dual microphone inputs
+ Audio in/out jack (2.5 mm connector)
+ Audio CODEC (TI TLV320AIC3254)
Network
+ 802.11b/g/n wireless Ethernet
+ Bluetooth 2.0 + EDR
+ FM Transmit & Receive module
Accelerometers
+ Two accelerometers for differential
detection
Memory
+ 6-in-1 SD/MMC card slot
+ 16 GB SanDisk eMMC device
Camera
+ 8 megapixel camera
Battery
+ 1100 mAhr Li-Ion battery
User Interface
+ QWERTY keypad with integrated
NAV
+ 5-position navigation button
Cables
+ USB A to mini-B cable
+ Power supply and adapters
Expansion
+ 200-pin expansion connector
+ Socket connector to interface with
debug board
Debug Board
+ 10/100 BASE-T Ethernet (RJ45
connector)
+ Five USB mini-AB ports
+ JTAG connectors
+ UART
Mechanical
+ 121 x 140 x 21 mm
+ RoHS compliant
Software
+ Open source Linux BSP available
from TI and the open source
community
+ www.omapzoom.org
+ opensource.ti.com
USB
+ One USB high-speed On-the-Go
port (mini-AB connector)
