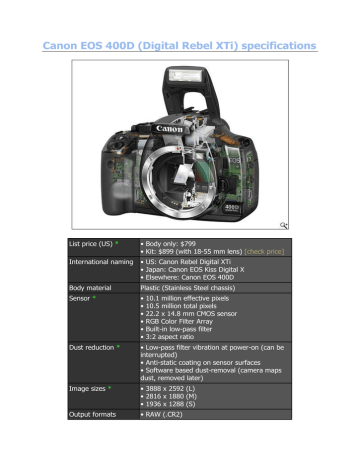

Canon EOS 400D (Digital Rebel XTi) specifications

Canon EOS 400D (Digital Rebel XTi) specifications
Canon EOS 400D (Digital Rebel XTi) specifications
List price (US) *
• Body only: $799
• Kit: $899 (with 18-55 mm lens) [check price]
International naming
• US: Canon Rebel Digital XTi
• Japan: Canon EOS Kiss Digital X
• Elsewhere: Canon EOS 400D
Body material
Plastic (Stainless Steel chassis)
Sensor *
•
•
•
•
•
•
Dust reduction *
• Low-pass filter vibration at power-on (can be
interrupted)
• Anti-static coating on sensor surfaces
• Software based dust-removal (camera maps
dust, removed later)
Image sizes *
• 3888 x 2592 (L)
• 2816 x 1880 (M)
• 1936 x 1288 (S)
Output formats
• RAW (.CR2)
10.1 million effective pixels
10.5 million total pixels
22.2 x 14.8 mm CMOS sensor
RGB Color Filter Array
Built-in low-pass filter
3:2 aspect ratio
• RAW (.CR2) + JPEG Large/Fine
• JPEG (EXIF 2.21) - Fine, Normal
Image processor
DIGIC II
Lenses
• Canon EF / EF-S lens mount
• 1.6x field of view crop
Focus modes
• Auto Focus
• Manual Focus (switch on lens)
Auto Focus
• 9-point CMOS sensor *
• AF working range: -0.5 to 18 EV (at 23°C, ISO
100) *
AF modes
• AI Focus
• One shot
• AI Servo
AF point selection
• Auto
• Manual
AF assist
Flash strobe
Shooting modes
•
•
•
•
•
•
•
•
•
•
•
•
Metering
• TTL 35-zone SPC
• Metering range: EV 1.0 - 20 EV (at 23°C, ISO
100, 50 mm F1.4)
Metering modes
• Evaluative 35-zone
• Partial 9% at center
• Center-weighted average
AE Lock
AE lock button
AE Bracketing
• +/- 2.0 EV
• 0.5 or 0.3 EV increments
Exposure compen.
• +/- 2.0 EV
• 0.5 or 0.3 EV increments
Sensitivity
•
•
•
•
•
Auto
Program AE (P)
Shutter priority AE (Tv)
Aperture priority AE (Av)
Manual (M)
Auto depth-of-field
Portrait
Landscape
Close-up
Sports
Night portrait
Flash off
Auto (100 - 400)
ISO 100
ISO 200
ISO 400
ISO 800
• ISO 1600
Shutter
•
•
•
•
Aperture values
• F1.0 - F91 (0.3 EV steps)
• Actual aperture range depends on lens used
White balance
•
•
•
•
•
•
•
•
Focal-plane shutter
30 - 1/4000 sec (0.5 or 0.3 EV steps)
Flash X-Sync: 1/200 sec
Bulb
Auto
Daylight
Shade
Cloudy
Tungsten
Fluorescent
Flash
Custom
WB Bracketing
• +/-3 levels
• 3 images
• Selectable Blue/Amber or Magenta/Green
bias *
WB fine-tuning
• Blue (-9) To Amber (+9)
• Magenta (-9) to Green (+9)
Color space
• sRGB
• Adobe RGB
Picture style *
•
•
•
•
•
•
•
•
•
Standard
Portrait
Landscape
Neutral
Faithful
Monochrome
User 1
User 2
User 3
Custom image
parameters *
•
•
•
•
•
•
Sharpness: 0 to 7
Contrast: -4 to +4
Saturation: -4 to +4
Color tone: -4 to +4
B&W filter: N, Ye, Or, R, G
B&W tone: N, S, B, P, G
Drive modes
• Single
• Continuous: 3.0 fps up to 27 JPEG / 10 RAW
frames *
• Self-timer 10 secs (2 sec with mirror lock-up)
Mirror lockup
Yes (custom function)
Viewfinder
• Pentamirror
• 95% frame coverage
• Magnification: 0.8x (-1 diopter with 50 mm
lens at infinity)
• Eyepoint: 21 mm
• Dioptric adjustment: -3.0 to +1.0 diopter
• Fixed precision matte
• Proximity sensor disables LCD shooting mode
information *
Viewfinder info
•
•
•
•
•
•
•
•
•
AF points
AF/FE lock
AEB
Shutter Speed
Aperture
Exposure Level / Compensation
Max. burst
AF/MF focus confirmation
CF warning
DOF preview
Yes, button
LCD monitor *
• 2.5" TFT LCD
• 230,000 pixels
• Wide viewing angle (160° horizontal and
vertical)
• 7 brightness levels
• Up to 10x zoom playback
Camera settings
display
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Record review
• Uses last play mode *
• Magnification possible *
• 2 / 4 / 8 sec / Hold
Flash
• Auto pop-up E-TTL II auto flash
• Guide number approx 13
Shutter speed
Aperture
Sensitivity (ISO)
Exposure mode
Meter / Exposure compenation
Bracketing
Flash compensation
White balance & fine tuning
Metering mode
Custom function set
Auto focus mode
Drive mode
Auto focus areas
Black & white mode
Beep
Red-eye reduction
Image size / quality
Battery status
Frames remaining
• Modes: Auto, Manual Flash On/ Off, Red-Eye
Reduction
• X-Sync: 1/200 sec
• Flash exposure compensation: +/-2.0 EV (0.3
or 0.5 EV steps)
• Coverage up to 17 mm focal length (27 mm
FOV equiv.)
External flash
• E-TTL II auto flash with EX-series Speedlites
• Hot-shoe
Other features
• Orientation sensor
• Automatically writes FAT16/FAT32 depending
on capacity
Auto rotation
• On (playback uses orientation data in file
header)
• Off
Playback mode
• Single image
• Single image with info (histogram brightness /
RGB *)
• Magnified view (1.5 - 10x in 15 steps,
browsable)
• 9 image index
• Auto play
• Image rotation
• Jump (by 10, 100 or date)
Custom functions
11 custom functions with 29 settings *
Menu languages
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Firmware
User upgradable
Connectivity
• USB 2.0 (Hi-Speed)
• Video out
• E3 type wired remote control
Storage
• Compact Flash Type I or II
• Microdrive supported
English
German
French
Dutch
Danish
Finnish
Italian
Norwegian
Swedish
Spanish
Russian
Simplified Chinese
Traditional Chinese *
Korean
Japanese
• FAT 12/16 and FAT 32 support
• No CF card supplied
• Up to 9999 images per folder *
Power
• Lithium-Ion NB-2LH rechargeable battery
(supplied & charger)
• CR2016 Lithium battery (date/time backup)
• Optional ACK-DC20/ACK-700 AC adapter kit
Direct printing
• Canon Selphy Printers
• Canon Bubble Jet Printers with direct print
function
• Canon PIXMA Printers supporting PictBridge
• PictBridge
Dimensions *
127 x 94 x 65 mm (5.0 x 3.7 x 2.5 in)
Weight *
• Body (no battery): 514 g (1.1 lb)
• Body (inc battery): 556 g (1.2 lb)
Software *
• Zoom Browser EX / ImageBrowser
• PhotoStitch
• EOS Utility (inc. Remote Capture; Windows &
Mac except Mac Intel)
• Digital Photo Professional (Windows / Mac)
* New or changed compared to the EOS 350D / Digital Rebel XT, see next page for
details
