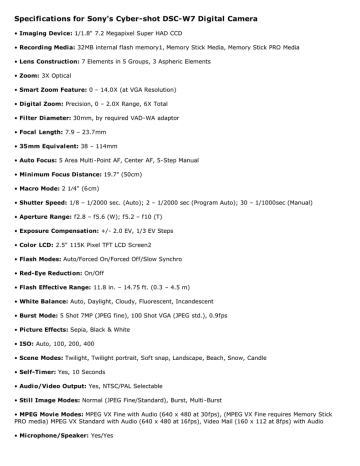

Specifications for Sony's Cyber-shot DSC-W7 Digital Camera
• Imaging Device: 1/1.8" 7.2 Megapixel Super HAD CCD
• Recording Media: 32MB internal flash memory1, Memory Stick Media, Memory Stick PRO Media
• Lens Construction: 7 Elements in 5 Groups, 3 Aspheric Elements
• Zoom: 3X Optical
• Smart Zoom Feature: 0 – 14.0X (at VGA Resolution)
• Digital Zoom: Precision, 0 – 2.0X Range, 6X Total
• Filter Diameter: 30mm, by required VAD-WA adaptor
• Focal Length: 7.9 – 23.7mm
• 35mm Equivalent: 38 – 114mm
• Auto Focus: 5 Area Multi-Point AF, Center AF, 5-Step Manual
• Minimum Focus Distance: 19.7" (50cm)
• Macro Mode: 2 1⁄4" (6cm)
• Shutter Speed: 1/8 – 1/2000 sec. (Auto); 2 – 1/2000 sec (Program Auto); 30 – 1/1000sec (Manual)
• Aperture Range: f2.8 – f5.6 (W); f5.2 – f10 (T)
• Exposure Compensation: +/- 2.0 EV, 1/3 EV Steps
• Color LCD: 2.5" 115K Pixel TFT LCD Screen2
• Flash Modes: Auto/Forced On/Forced Off/Slow Synchro
• Red-Eye Reduction: On/Off
• Flash Effective Range: 11.8 in. – 14.75 ft. (0.3 – 4.5 m)
• White Balance: Auto, Daylight, Cloudy, Fluorescent, Incandescent
• Burst Mode: 5 Shot 7MP (JPEG fine), 100 Shot VGA (JPEG std.), 0.9fps
• Picture Effects: Sepia, Black & White
• ISO: Auto, 100, 200, 400
• Scene Modes: Twilight, Twilight portrait, Soft snap, Landscape, Beach, Snow, Candle
• Self-Timer: Yes, 10 Seconds
• Audio/Video Output: Yes, NTSC/PAL Selectable
• Still Image Modes: Normal (JPEG Fine/Standard), Burst, Multi-Burst
• MPEG Movie Modes: MPEG VX Fine with Audio (640 x 480 at 30fps), (MPEG VX Fine requires Memory Stick
PRO media) MPEG VX Standard with Audio (640 x 480 at 16fps), Video Mail (160 x 112 at 8fps) with Audio
• Microphone/Speaker: Yes/Yes
• USB Terminal: Yes, Supports USB 2.03
• Memory Stick PRO Media Compatibility: Tested to support up to 2GB media capacity4; does not support
Access Control security function
• Compatible Battery: "AA" NiMH, "AA" Alkaline, "AA" Nickel-Metal Manganese
• Supplied Software: Picture Package for Sony v1.6 (Windows), Pixela ImageMixer VCD2 (Macintosh), USB
Driver, Cyber-shot Life tutorial (Windows)
• OS Compatibility: Microsoft Windows 98/98SE/Me/ 2000/XP Home/XP Pro; Macintosh OS 9.1/9.2/OS X (10.0 10.3)
• Supplied Accessories: NH-AA-DA Rechargeable AA Batteries, BC-CS2 Battery Charger and Cord, A/V and USB
Cables, Wrist Strap, Software CD-ROM
• Dimensions: 3 9⁄16" x 2 3⁄8" x 1 7⁄16" (91 x 60 x 37.1mm)
• Weight: 6.9 oz (197g) Body; 8.9 oz. (253g) Body w/Battery, Media, Wrist Strap
