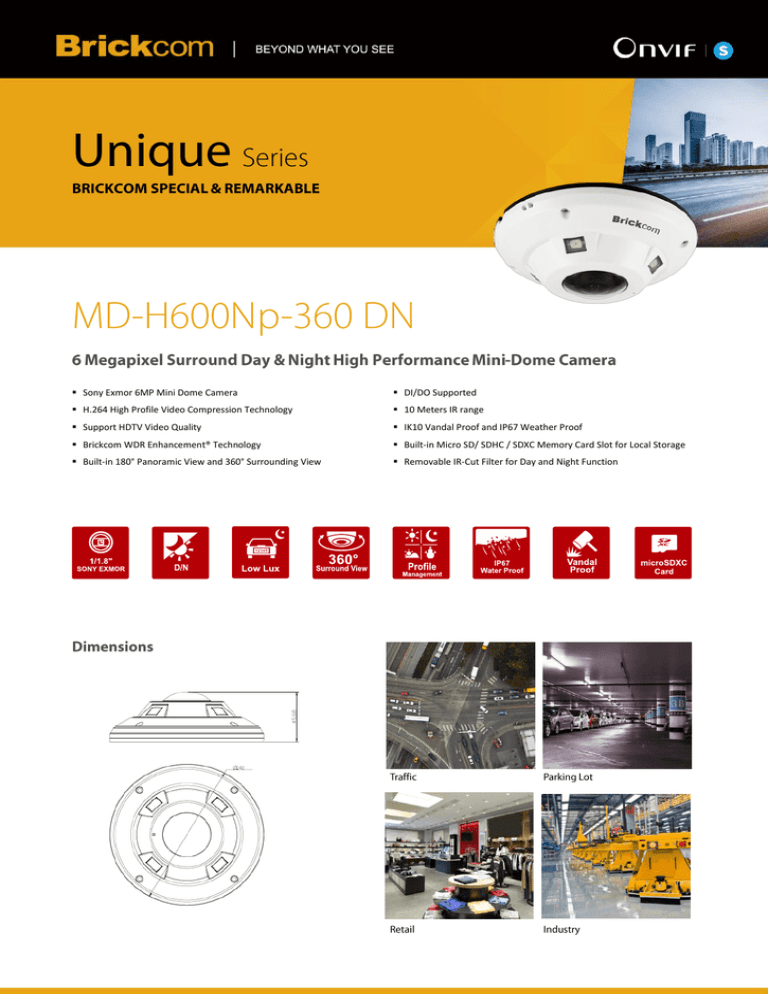

Sony Exmor 6MP Mini Dome Camera H.264 High Profile Video

Sony Exmor 6MP Mini Dome Camera H.264 High Profile Video

 Sony Exmor 6MP Mini Dome Camera
 DI/DO Supported
 H.264 High Profile Video Compression Technology
 10 Meters IR range
 Support HDTV Video Quality
 IK10 Vandal Proof and IP67 Weather Proof
 Brickcom WDR Enhancement® Technology
 Built-in Micro SD/ SDHC / SDXC Memory Card Slot for Local Storage
 Built-in 180° Panoramic View and 360° Surrounding View
 Removable IR-Cut Filter for Day and Night Function
V1.0
Brickcom
|
BEYOND WHAT YOU SEE
Camera
Models
Events and Alarm Management
MD-H600Np-360 DN
Events
Motion Detection/ Schedule/ Audio Detection/ Digital
Input/ Temperature Alarm
Stream/Snapshot to FTP/Email/Samba/SD-Card
HTTP/Email Notification/ Digital Output
Hardware System
Flash: 32MB
RAM: 512MB DDR
Alarm
Image Sensor
Sensor Type : 1/1.8" Sony Exmor CMOS Sensor
Sensor Resolution : 6MP (3096 x 2094)
Audio
Audio Streaming
2-way Audio Support
Lens Spec
Lens Type: Board Lens
Focal Length:1.05mm
F=2.8
Iris: Fixed Iris
View Angle:(H)182°±2°
Audio Compression
G.711/AMR
Audio
Input/ Output
Built-in MIC
Local Storage
Built-in Micro SD / SDHC / SDXC Max.128G Memory Card
Slot
Communication
Day & Night ICR
Triggered by Light sensor, Scheduling,
Digital Input
Ethernet : one 10/100Mbps RJ-45
Supported Protocols : TCP/IP, UDP, ICMP, DHCP, NTP, DNS,
DDNS, SMTP, FTP, HTTP, Samba, PPPoE, UPnP, RTP, RTSP,
RTCP, IPv6
Power Input
Minimum
Illumination
0 Lux(IR On, B/W)
0.005 Lux(F1.6,B/W)
0.006Lux(F1.6,Color)
DC12V* / DC24V* / DC48* (*)with PB-03
802.3af PoE
Temperature/
Environment
IR Illuminators
Built –In IR Illuminators
Distance: 10 meters
IR LED: 4 pcs
Operating Temperature:
-40°C ~ 50°C (-40°F ~ 122°F)
Start-up Temperature:
-20°C ~ 50°C (-4°F ~ 122°F)
Video
Compression
Streaming
Video Setting
H.264 / MJPEG
Simultaneous multiple streams
Multi-Profile Image Management:
Day/ Night/ Sunset/ User 1/ User 2
S/N Ratio
Above 50 dB
Image Resolution
5.5MP (2720 x 2040) ● (15fps)
WDR
60 dB
Camera Accessories Options
L-WM-01
Camera Bracket
CI-802A
Camera Stand
General
Operating Humidity: 10% ~ 90%
Max. Power
Consumption
6 watts
Dimension
140(L) X140(W) X 49.68(H) mm
Weight
460g/1.02lb
Housing
Weather-proof (IP67)
Vandal-proof (IK10)
Certification
FCC/CE / IK10 / IP67
Viewing System
Requirements
OS: Microsoft Windows 8.1/8/7/Vista/XP/2000
Browser: Mozilla Firefox, Internet Explorer 6/7 or above,
Safari, Google Chrome
Cell Phone: 3GPP player
Real Player: 10.5 or above
Quick Time: 6.6 or above
VLC
Warranty
Limited 36 months warranty
Network Equipment Options
PS-588I V2
9 port 10/100M PoE Fast Ethernet Switch
POE16U
PoE Injector
© 2016 Brickcom Corporation, All rights reserved. This document is for the planning purposes only, and is subject to change without notice.
