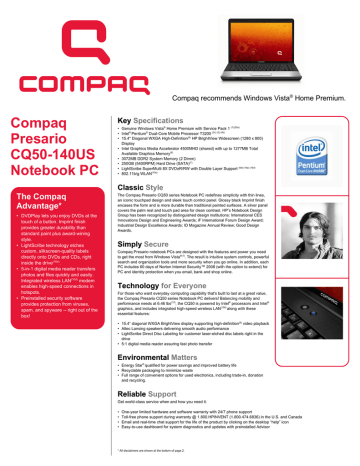

Compaq Presario Data Sheet

Compaq Presario Data Sheet
Compaq recommends Windows Vista® Home Premium.
Notebook PC
Key Specifications
• Genuine Windows Vista® Home Premium with Service Pack 1 (1)(20a)
• Intel® Pentium® Dual-Core Mobile Processor T3200 (2c) (3) (4b)
• 15.4" Diagonal WXGA High-Definition(8) HP BrightView Widescreen (1280 x 800)
• Intel Graphics Media Accelerator 4500MHD (shared) with up to 1277MB Total
Available Graphics Memory(6)
• 3072MB DDR2 System Memory (2 Dimm)
• 250GB (5400RPM) Hard Drive (SATA)(7)
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support (6d) (16a) (16d)
• 802.11b/g WLAN(10a)
Classic Style
The Compaq
• DVDPlay lets you enjoy DVDs at the
touch of a button. Imprint finish
provides greater durability than
standard paint plus award-wining
• LightScribe technology etches
custom, silkscreen-quality labels
directly onto DVDs and CDs, right
inside the drive(16a).
• 5-in-1 digital media reader transfers
photos and files quickly and easily.
Integrated wireless LAN(10d) modem
enables high-speed connections in
• Preinstalled security software
provides protection from viruses,
spam, and spyware -- right out of the
The Compaq Presario CQ50 series Notebook PC redefines simplicity with thin lines,
an iconic touchpad design and sleek touch control panel. Glossy black Imprint finish
encases the form and is more durable than traditional painted surfaces. A silver panel
covers the palm rest and touch pad area for clean contrast. HP’s Notebook Design
Group has been recognized by distinguished design institutions: International CES
Innovations Design and Engineering Awards; iF International Forum Design Award;
Industrial Design Excellence Awards; ID Magazine Annual Review; Good Design
Simply Secure
Compaq Presario notebook PCs are designed with the features and power you need
to get the most from Windows Vista®(1). The result is intuitive system controls, powerful
search and organization tools and more security when you go online. In addition, each
PC includes 60 days of Norton Internet Security™ 2008 (with the option to extend) for
PC and identity protection when you email, bank and shop online.
Technology for Everyone
For those who want everyday computing capability that's built to last at a great value,
the Compaq Presario CQ50 series Notebook PC delivers! Balancing mobility and
performance needs at 6.46 lbs(12), the CQ50 is powered by Intel® processors and Intel®
graphics, and includes integrated high-speed wireless LAN(10d) along with these
essential features:
• 15.4” diagonal WXGA BrightView display supporting high-definition(8) video playback
• Altec Lansing speakers delivering smooth audio performance
• LightScribe Direct Disc Labeling for customer laser-etched disc labels right in the
• 5:1 digital media reader assuring fast photo transfer
Environmental Matters
• Energy Star® qualified for power savings and improved battery life
• Recyclable packaging to minimize waste
• Full range of convenient options for used electronics, including trade-in, donation
and recycling.
Reliable Support
Get world-class service when and how you need it.
One-year limited hardware and software warranty with 24/7 phone support
Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836) in the U.S. and Canada
Email and real-time chat support for the life of the product by clicking on the desktop “help” icon
Easy-to-use dashboard for system diagnostics and updates with preinstalled Advisor
* All disclaimers are shown at the bottom of page 2.
Compaq Presario CQ50-140US Notebook PC
Operating System
• Genuine Windows Vista® Home Premium with
Service Pack 1 (1)(20a)
• Intel® Pentium® Dual-Core Mobile Processor T3200
(2c) (3) (4b)
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
Processor Speed
• 2.00 GHz
Bus Speed
• 667MHz FSB(4a)
Processor Cache
• 1MB L2 Cache
• 3072MB DDR2 System Memory (2 Dimm)
• Max supported =3072MB
Security and
Accessible Memory
• 2
Video Graphics
• Intel Graphics Media Accelerator 4500MHD
(shared) with up to 1277MB Total Available
Graphics Memory(6)
• Symantec® Norton Internet Security 2008
(including 60 days complimentary live update) (15)
• HP Help & Support Center
• HP PC Recovery (Softthinks Restore Solution)
• HP Wireless Home Network Setup
• HP Total Care Advisor
Productivity and
• Microsoft® Works
• Microsoft® Office 2007 Student and Teacher
Edition: 60 Day Trial Version(19)
• HP Smart Web Printing
Internet Solutions
• HP Easy Internet Signup (part of HP Easy Setup)
Hard Drive
• 250GB (5400RPM) Hard Drive (SATA)
Finish and Features
• HP Imprint finish & Integrated Microphone
Multimedia Drive
• LightScribe SuperMulti 8X DVD±R/RW with Double
Layer Support (6d) (16a)
• 15.4" Diagonal WXGA High-Definition(8) HP
BrightView Widescreen (1280 x 800) Display
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45
connector) (9)
Wireless Option
• 802.11b/g WLAN(10a)
Digital Media
• 5-in-1 integrated Digital Media Reader for Secure
Digital cards, MultiMedia cards, Memory Stick,
Memory Stick Pro, or xD Picture cards(17a)
• Altec Lansing
• Microsoft® Internet Explorer
• AOL Instant Messaging Service
Service and Support
• High speed 56k modem
• 101-key compatible
Pointing Device
• Touch Pad with On/Off button and dedicated
vertical scroll Up/Down pad
External Notebook
3 Universal Serial Bus (USB) 2.0
1 Headphone out
1 microphone-in
1 VGA (15-pin)
1 RJ-11 (modem)
1 RJ -45 (LAN)
• Unpackaged: 14.05" (L) x 10.07" (D) x 1.37" (min
H) - 1.72" (max H)
• Packaged: 19.1" (W) x 4.2" (D) x 13.6" (H)
• Unpackaged: 6.46lbs (12)
• Packaged: 9.7 Ibs
HP PhotoSmart Essentials
HP DVD Play (14)
Muvee autoProducer
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Certain Windows Vista product features require advanced or additional hardware. See and for details. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system,
device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation)
without an Intel 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software
configurations. See for more information. Dual Core is designed to improve performance of certain
software products. Not all customers or software applications will necessarily benefit from use of this technology. (3) Intel's
numbering is not a measurement of higher performance. (4) GHz refers to internal clock speed of the processor. Other factors
besides clock speed may impact system and application performance. (4a) Actual bus speed is less. Listed bus speed
represents the equivalent effective throughput for data. (4b) Dual Core is designed to improve performance of certain software
products. Not all customers or software applications will necessarily benefit from use of this technology. (6) Shared video
memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video
performance is not available for other use by other programs. Note: this disclaimer affects system memory and graphics.(6d)
Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media (7) 1 GB = 1 billion
bytes. Actual formatted capacity is less. Up to 12GB of system disk is reserved for system recovery software. (8)
High-Definition content is required to view high-definition images. (9) Actual speeds may vary. (10a) The specifications for the
802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with other
802.11n WLAN devices (10d) Wireless access point and Internet service required and is not included. (11) Maximum achievable
download speeds are currently unknown, may not reach 56Kbps and will vary with line conditions. Upload speeds are less
and also will vary. (12) Weight will vary by configuration. (13) Internet access requires payment of additional fees or subscription
for use. Special Offers do not include local telephone company charges, if any, or applicable taxes. Any long distance
charges incurred will be the responsibility of the customer.
Warranty and
• 1-Year Limited Hardware Warranty Toll Free
Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support (1 Year*
Free Limited Software Support with Product
Registration) *from date of purchase
Compaq recommends Windows
Vista® Home Premium.
HD DVD movies will only play through QuickPlay software. (15) Internet access required and sold separately. (16a) Actual
speeds may vary. Don’t copy copyright-protected materials. Double Layer is a new technology. Double Layer media
compatibility will widely vary with some home DVD players and DVD-ROM drives. LightScribe creates a monochrome
image. LightScribe media required and sold separately. (17a) Digital Media Slot supports MS, MSP, MMC, SD, XD formats. To
avoid damaging the card or computer do not insert any type of adapter, or mini format memory card, into the Digital Media
Slot. Mini/Reduced flash memory cards require separately purchased adapter. (19) The Microsoft® Office Student and
Teacher Edition 2008 is a trial version; functionality is reduced after 60 days. The full version is sold separately. (20a) Up to
12GB of the hard drive is reserved for the system recovery software.
Actual product may vary from image shown on datasheet.
2008 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 08/19/2008 r3 rk Product Number: FR970UA#ABA
