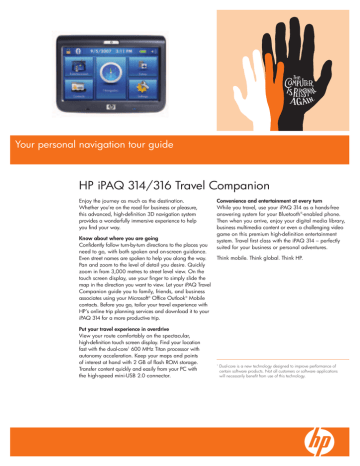

HP iPAQ 314/316 Travel Companion

HP iPAQ 314/316 Travel Companion
Your personal navigation tour guide
HP iPAQ 314/316 Travel Companion
Enjoy the journey as much as the destination.
Whether you’re on the road for business or pleasure,
this advanced, high-definition 3D navigation system
provides a wonderfully immersive experience to help
you find your way.
Know about where you are going
Confidently follow turn-by-turn directions to the places you
need to go, with both spoken and on-screen guidance.
Even street names are spoken to help you along the way.
Pan and zoom to the level of detail you desire. Quickly
zoom in from 3,000 metres to street level view. On the
touch screen display, use your finger to simply slide the
map in the direction you want to view. Let your iPAQ Travel
Companion guide you to family, friends, and business
associates using your Microsoft® Office Outlook® Mobile
contacts. Before you go, tailor your travel experience with
HP’s online trip planning services and download it to your
iPAQ 314 for a more productive trip.
Put your travel experience in overdrive
View your route comfortably on the spectacular,
high-definition touch screen display. Find your location
fast with the dual-core1 600 MHz Titan processor with
autonomy acceleration. Keep your maps and points
of interest at hand with 2 GB of flash ROM storage.
Transfer content quickly and easily from your PC with
the high-speed mini-USB 2.0 connector.
Convenience and entertainment at every turn
While you travel, use your iPAQ 314 as a hands-free
answering system for your Bluetooth®-enabled phone.
Then when you arrive, enjoy your digital media library,
business multimedia content or even a challenging video
game on this premium high-definition entertainment
system. Travel first class with the iPAQ 314 – perfectly
suited for your business or personal adventures.
Think mobile. Think global. Think HP.
Dual-core is a new technology designed to improve performance of
certain software products. Not all customers or software applications
will necessarily benefit from use of this technology.
HP iPAQ 314/316 Travel Companion
Operating system
Microsoft® Windows® CE 5.0 featuring Outlook® Mobile, with HP custom user interface
Centrality Titan Processor 600 MHz
128 MB SDRAM main memory for running applications, 2 GB flash ROM
HP Navigation software including Western-European maps (iPAQ 314) or Eastern-European maps (iPAQ 316), digital music player,
digital video player, photo viewer, games, Bluetooth® hands-free phone application, HP-designed user interface, Bluetooth® device pairing
(phone, stereo headphones)
Dimensions (w x d x h)
11.02 x 1.82 x 8.68 cm
187 g
4.3" transmissive TFT, 65K colours, WVGA 800 x 480 pixel touch screen display, antiglare, landscape orientation, 16-bit RGB depth
Integrated wireless
Integrated GPS receiver, Bluetooth® 2.0 with EDR
GPS receiver
Integrated GPS navigation
HP Navigation engine, Text to Speech, Maps, RDS/TMC traffic data support (selected countries)
Expansion slots
SD high-capacity card slot – for memory expansion
Digital music player (with Windows Media DRM), digital video player, photo viewer, games
Battery: removable/rechargeable 1700 mAh Lithium-Ion (user changeable)
AC Power – AC Input: 90 – 264 Vac, 50/60 Hz,
AC Input current: 0.15 Aac max @115V, 0.08 Aac max @230V,
Output Voltage: 5 Vdc (typical), Output current: 1 A (typical)
Pointing device
Touch Screen and Stylus
Integrated microphone with echo cancellation, 1 large speaker for navigation volume and one 3.5 mm 3 pin stereo headphone jack
1 year or 2 years pick-up and return service (depending on country), 90 days technical support for softwares, may vary by region
What’s in the box
Removable/ rechargeable Lithium-Ion 1700 mAh battery, windshield mount with device holder, dashboard mount disc, car charger,
AC charger, mini-USB cable, carrying case, HP iPAQ Companion CD, documentation kit
Design features
1 power button, 1 reset button, scroll wheel
© Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set
forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. Microsoft, Windows and Outlook are trademarks or registered trademarks of Microsoft Corporation in the U.S. or other countries. Bluetooth is
a registered trademark owned by its proprietor and used by Hewlett-Packard Company under licence.
For more information, please visit www.hp.com/eur/handhelds
4AA1-4013EEE. September 2007
HP iPAQ 314/316 Travel Companion
Recommended accessories
Car Charger
Charge your iPAQ in your car and still receive the latest traffic information.
Product number: FB055AA
HP iPAQ Bluetooth
Stereo Headphones
Turn your HP iPAQ into a wireless audio player and listen to MP3s, video or
any audio files up to 10 meters from your iPAQ.
Product number: FA303AA
HP iPAQ 300 Series
Standard Battery
1700 mAh Li-Ion
Keeping an extra source of power nearby means your iPAQ can run for longer
periods away from your home or office.
Product number: FB031AA
HP iPAQ 300 Series
Screen Protector
Protect your screen from scratches with an anti-glare coating that allows use in
direct sunlight.
Product number: FB007AA
HP iPAQ 300 Series
Sport Case
Go for a sporty look with this exclusive case for your iPAQ.
Product number: FB005AA
For more information, please visit www.hp.com/eur/hpoptions
