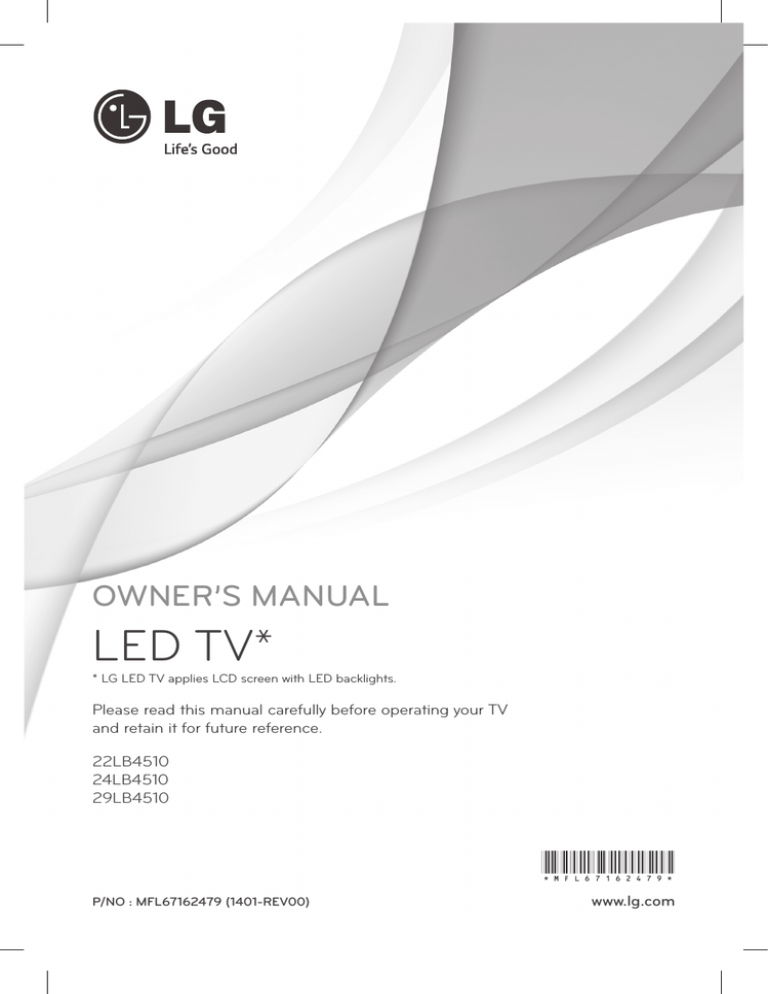

OWNER’S MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your TV
and retain it for future reference.
22LB4510
24LB4510
29LB4510
*MFL67162479*
P/NO : MFL67162479 (1401-REV00)
www.lg.com
2
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Always comply with the following precautions to avoid dangerous situations and ensure peak
performance of your product.
WARNING/CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR
BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER TO QUALIFIED SERVICE
PERSONNEL.
ENGLISH
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the presence
of uninsulated dangerous voltage within the
product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance (servicing)
instructions in the literature accompanying
the appliance.
WARNING/CAUTION
- TO REDUCE THE RISK OF FIRE AND
ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Read these instructions.
Keep these instructions.
Follow all instructions.
Heed all warnings.
••Do not allow the television to become wet.
••Clean only with a dry cloth.
••Do not block any ventilation openings. Install
in accordance with the manufacturer’s
instructions.
••Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce
heat.
WARNING
If you ignore the warning message, you
may be seriously injured or there is a
possibility of accident or death.
CAUTION
If you ignore the caution message, you may
be slightly injured or the product may be
damaged.
NOTE
The note helps you understand and use
the product safely. Please read the note
carefully before using the product.
WARNING: This product contains chemicals
known to the State of California to cause
cancer and birth defects or other reproductive
harm. Wash hands after handling.
••Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than
the other. A grounding type plug has two
blades and a third grounding prong. The
wide blade or the third prong are provided
for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet (Can differ
by country).
••Do not press strongly upon the panel with a
hand or a sharp object such as a nail, pencil
or pen, or make a scratch on it.
IMPORTANT SAFETY INSTRUCTIONS
••Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
••Only use attachments/accessories specified
by the manufacturer.
••Use only with a cart, stand, tripod, bracket,
or table specified by the manufacturer, or
sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
••Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does
not operate normally, or has been dropped.
••Do not stick metal objects or any other
conductive material into the power cord. Do
not touch the end of the power cord while it
is plugged in.
••Keep the packing anti-moisture material
or vinyl packing out of the reach of
children. Anti-moisture material is harmful
if swallowed. If swallowed by mistake,
induce vomiting and go to the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach of
children.
••CAUTION concerning the Power Cord
(Can differ by country)
It is recommended that appliances be
placed upon a dedicated circuit; that is, a
single outlet circuit which powers only that
appliance and has no additional outlets or
branch circuits. Check the specification page
of this owner’s manual to be certain. Do not
connect too many appliances to the same
AC power outlet as this could result in fire or
electric shock. Do not overload wall outlets.
Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power
cords, or damaged or cracked wire insulation
are dangerous. Any of these conditions could
result in electric shock or fire. Periodically
examine the cord of your appliance, and
if its appearance indicates damage or
deterioration, unplug it, discontinue use of
the appliance, and have the cord replaced
with an exact replacement part by an
authorized service. Protect the power cord
from physical or mechanical abuse, such as
being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance. Do not move
the TV with the power cord plugged in. Do
not use a damaged or loose power cord. Be
sure do grasp the plug when unplugging the
power cord. Do not pull on the power cord to
unplug the TV.
••Warning - To reduce the risk of fire or
electrical shock, do not expose this product
to rain, moisture or other liquids. Do not
touch the TV with wet hands. Do not install
this product near flammable objects such
as gasoline or candles, or expose the TV to
direct air conditioning.
••Do not expose to dripping or splashing and
do not place objects filled with liquids, such
as vases, cups, etc. on or over the apparatus
(e.g. on shelves above the unit).
ENGLISH
••Unplug this apparatus during lightning storms
or when unused for long periods of time.
3
4
IMPORTANT SAFETY INSTRUCTIONS
••Grounding
(Except for devices which are not grounded.)
Ensure that you connect the earth ground
wire to prevent possible electric shock
(i.e. a TV with a three-prong grounded AC
plug must be connected to a three-prong
grounded AC outlet). If grounding methods
are not possible, have a qualified electrician
install a separate circuit breaker. Do not try to
ground the unit by connecting it to telephone
wires, lightening rods, or gas pipes.
Short-circuit
Breaker
Power
Supply
ENGLISH
••As long as this unit is connected to the AC
wall outlet, it is not disconnected from the AC
power source even if the unit is turned off.
••Do not attempt to modify this product in
any way without written authorization from
LG Electronics. Unauthorized modification
could void the user’s authority to operate this
product.
••Outdoor Antenna Grounding
(Can differ by country)
If an outdoor antenna is installed, follow
the precautions below. An outdoor antenna
system should not be located in the vicinity
of overhead power lines or other electric light
or power circuits, or where it can come in
contact with such power lines or circuits as
death or serious injury can occur. Be sure the
antenna system is grounded so as to provide
some protection against voltage surges
and built-up static charges. Section 810 of
the National Electrical Code (NEC) in the
U.S.A. provides information with respect to
proper grounding of the mast and supporting
structure, grounding of the lead-in wire to
an antenna discharge unit, size of grounding
conductors, location of antenna discharge
unit, connection to grounding electrodes and
requirements for the grounding electrode.
Antenna grounding according to the National
Electrical Code, ANSI/NFPA 70
Antenna Lead in Wire
Antenna Discharge Unit
(NEC Section 810-20)
Ground Clamp
Electric Service
Equipment
Grounding Conductor
(NEC Section 810-21)
Ground Clamp
NEC: National Electrical Code
Power Service Grounding
Electrode System
(NEC Art 250, Part H)
••Cleaning
When cleaning, unplug the power cord and
wipe gently with a soft cloth to prevent
scratching. Do not spray water or other
liquids directly on the TV as electric shock
may occur. Do not clean with chemicals such
as alcohol, thinners, or benzine.
••Moving
Make sure the product is turned off,
unplugged, and all cables have been
removed. It may take 2 or more people to
carry larger TVs. Do not press or put stress
on the front panel of the TV.
••Ventilation
Install your TV where there is proper
ventilation. Do not install in a confined space
such as a bookcase. Do not cover the product
with cloth or other materials while plugged.
Do not install in excessively dusty places.
••If you smell smoke or other odors coming
from the TV, unplug the power cord and
contact an authorized service center.
••Keep the product away from direct sunlight.
••Never touch this apparatus or antenna during
a lightning storm.
••When mounting a TV on the wall, make sure
not to install the TV by hanging the power
and signal cables on the back of the TV.
••Do not allow an impact shock, any objects to
fall into the product, and do not drop anything
onto the screen.
••DISCONNECTING DEVICE FROM THE MAIN
POWER
Mains plug is the disconnecting device. The
plug must remain readily operable.
••Store the accessories (battery, etc.) in a safe
location out of the reach of children.
••This apparatus uses batteries. In your
community there might be regulations that
require you to dispose of these batteries
properly due to environmental considerations.
Please contact your local authorities for
disposal or recycling information.
••Do not dispose of batteries in a fire.
••Do not short circuit, disassemble, or allow
the batteries to overheat.
IMPORTANT SAFETY INSTRUCTIONS
Preventing image burn or burn-in on your
TV screen
••If a fixed image displays on the TV screen for
a long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is image burn or burn-in and not
covered by the warranty.
••If the aspect ratio of the TV is set to 4:3 for a
long period of time, image burn may occur on
the letterboxed area of the screen.
••Avoid displaying a fixed image on the TV
screen for a long period of time (2 or more
hours for LCD, 1 or more hours for the
Plasma TV) to prevent image burn.
ENGLISH
••Dot Defect
The panel is a high technology product with
resolution of two million to six million pixels.
In a very few cases, you could see fine dots
on the screen while you’re viewing the TV.
Those dots are deactivated pixels and do not
affect the performance and reliability of the
TV.
••Generated Sound
Cracking noise A cracking noise that occurs
when watching or turning off the TV is
generated by plastic thermal contraction
due to temperature and humidity. This noise
is common for products where thermal
deformation is required. Electrical circuit
humming/panel buzzing: A low level noise
is generated from a high-speed switching
circuit, which supplies a large amount
of current to operate a product. It varies
depending upon the product. This generated
sound does not affect the performance and
reliability of the product.
••Take care not to touch the ventilation
openings. When watching the TV for a long
period, the ventilation openings may become
hot. This does not affect the performance of
the product or cause defects in the product.
••Do not install this product on a wall if it
could be exposed to oil or oil mist. This may
damage the product and cause it to fall.
••If the TV feels cold to the touch, there may
be a small flicker when it is turned on. This
is normal; there is nothing wrong with TV.
Some minute dot defects may be visible on
the screen, appearing as tiny red, green, or
blue spots. However, they have no adverse
effect on the TV’s performance. Avoid
touching the LCD screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary
distortion effects on the screen.
5
6
IMPORTANT SAFETY INSTRUCTIONS
For USA and Canada
FCC NOTICE
ENGLISH
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation of the device. Any
changes or modifications in construction of this device which are not expressly approved by the
party responsible for compliance could void the user’s authority to operate the equipment.
NOTE TO CABLE/TV INSTALLER
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of
the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be connected to the grounding system of the
building, as close to the point of the cable entry as practical.
LICENSES / OPEN SOURCE SOFTWARE NOTICE
7
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
logo are trademarks or registered trademarks of HDMI Licensing LLC in the United
States and other countries.
OPEN SOURCE SOFTWARE NOTICE
NOTE
yyImage shown may differ from your TV.
yyYour TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
yyThe available menus and options may differ from the input source or product model that you
are using.
yyNew features may be added to this TV in the future.
yyThe TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
yyThe energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
ENGLISH
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in
this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are
available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of
performing such distribution (such as the cost of media, shipping and handling) upon email request to
[email protected] This offer is valid for three (3) years from the date on which you purchased the
product.
8
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
Remote Control,
Batteries (AAA)
Owner's Manual
Stand Base
Stand Base
(For 29LB4510)
ENGLISH
(Depending upon model)
or
Power Cord
AC/DC Adapter
AC/DC Adapter
(Depending upon model)
CAUTION
••Do not use any unapproved items to ensure the safety and product’s lifespan.
••Any damages or injuries by using unapproved items are not covered by the warranty.
••Some models appear to have a thin film on the screen. It is actually part of the screen; do not
remove it.
NOTE
••The items supplied with your product may vary depending upon the
model.
••Product specifications or contents of this manual may be changed
without prior notice due to upgrade of product functions.
••For an optimal connection, HDMI cables and USB devices should
have bezels less than 10 mm (0.39 inches) thick and 18 mm
(0.7 inches) width.
••Use an extension cable that supports USB 2.0 if the USB cable or
USB flash drive does not fit into your TV’s USB port.
B
B
A
*A 10 mm (0.39 inches)
*B 18 mm (0.7 inches)
A
ASSEMBLING AND PREPARING
9
Parts and buttons
(For 22/24LB4510)
Screen
NOTE
• Joystick button is located
below the screen of TV.
Joystick Button
Speakers
You can operate the TV by pressing the button or moving the joystick left, right, up, or down.
Basic functions
Power On
When the TV is turned off, place your finger on the joystick button, press it once
and release it.
Power Off
When the TV is turned on, place your finger on the joystick button, press it once
for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and holing the joystick
button will let you exit the Menu.)
Volume Control
If you place your finger over the joystick button, move it left or right, you can
adjust the volume level you want.
Channels Control
If you place your finger over the joystick button, move it up or down, you can
scroll through the saved channels you want.
NOTE
• With your finger over the joystick button, move it up, down, left, or right, be careful not to press the
joystick button. If you press the joystick button first, you can not adjust the volume level and/or scroll
through saved channels.
Adjusting the menu
When the TV is turned on, press the joystick button one time.
You can adjust the menu items ( , , ,
) moving the joystick button up, down, left, or right.
TV Off
Settings
Close
Input List
Turns the power off.
Accesses the main menu.
Clears on-screen displays and returns to TV viewing.
Changes the input source.
ENGLISH
Using the joystick button
Remote Control Sensor
Power Indicator
- Red When the power is turned off
- Off When the power is turned on
- Amber When the power is in power saving mode
10
ASSEMBLING AND PREPARING
(For 29LB4510)
Screen
ENGLISH
Speakers
OK
SETTINGS
INPUT
Touch Buttons
Touch Button
Description
/
Scrolls through the saved channels.
/
Adjusts the volume level.
OK
Selects the highlighted menu option or confirms an input.
SETTINGS
Accesses the main menus, or saves your input and exits the menus.
INPUT
Changes the input source.
Turns the power on or off.
NOTE
All of the buttons are touch sensitive and can be operated through simply touching with your
yy
finger.
ASSEMBLING AND PREPARING
11
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
Detaching the stand
1
1
Stand Base
Stand Base
yyLift up the latch at the bottom of the
stand base and detach the stand base
from the TV.
2
2
CAUTION
yyWhen attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
ENGLISH
NOTE
12
ASSEMBLING AND PREPARING
CAUTION
yyDo not carry the TV upside-down by
holding the stand body (or stand base) as
this may cause it to fall off, resulting in
damage or injury.
yyThe illustration shows a general example
of installation and may look different
from the actual product.
Lifting and moving the TV
When moving or lifting the TV, read the
following to prevent the TV from being
scratched or damaged and for safe
transportation regardless of its type and size.
CAUTION
••Avoid touching the screen at all times, as
this may result in damage to the screen.
••Do not place the product on the floor with its
front facing down without padding. Failure to
do so may result in damage to the screen.
••It is recommended to move the TV in the
box or packing material that the TV originally
came in.
••Before moving or lifting the TV, disconnect
the power cord and all cables.
ENGLISH
••When holding the TV, the
screen should face away from
you to avoid damage.
••Hold the top and bottom of the TV frame
firmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
••When transporting the TV, do not expose the
TV to jolts or excessive vibration.
••When transporting the TV, keep the TV
upright; never turn the TV on its side or tilt
towards the left or right.
••When handling the TV, be careful not to
damage the protruding joystick button.
(Depending upon model)
ASSEMBLING AND PREPARING
Mounting on a table
1
13
CAUTION
Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (4 inches) (minimum) space
from the wall for proper ventilation.
••Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
••Please be sure to connect the TV to the
AC/DC power adapter before connecting
the TV’s power plug to a wall power
outlet.
10 cm
(4 inches)
10 cm
10 cm
m
10 c
Cord to a wall outlet.
3
1
DC-IN
(19V
)
2
or
2
DC-IN
(19V
)
1
ENGLISH
2 Connect the AC/DC Adapter and Power
14
ASSEMBLING AND PREPARING
Using the Kensington security system(optional)
(Depending upon model)
The Kensington security system connector
is located at the back of the TV. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit http://www.kensington.com.
Connect the Kensington security system cable
between the TV and a table.
ENGLISH
NOTE
yyThe Kensington security system is optional.
You can obtain additional accessories from
most electronics stores.
ASSEMBLING AND PREPARING
Mounting on a wall
CAUTION
An optional wall mount can be used with your
LG Television. Consult with your local dealer for
a wall mount that supports the VESA standard
used by your TV model. Carefully attach the
wall mount bracket at the rear of the TV.
Install the wall mount bracket on a solid wall
perpendicular to the floor. If you are attaching
the TV to other building materials, please
contact qualified personnel to install the wall
mount. Detailed instructions will be included
with the wall mount. We recommend that you
use an LG brand wall mount.
10 cm
(4 inches)
10 cm
••Disconnect the power before moving or
installing the TV. Otherwise electric shock
may occur.
••If you install the TV on a ceiling or slanted
wall, it may fall and result in severe
injury. Use an authorized LG wall mount
and contact the local dealer or qualified
personnel. When using a third-party wall
mount, it is not covered by the warranty.
••Do not over tighten the screws as this may
cause damage to the TV and void your
warranty.
••Use the screws and wall mounts that meet
the VESA standard. Any damages or injuries
by misuse or using an improper accessory
are not covered by the warranty.
••Screw length from outer surface of back
cover should be under 8 mm.
Wall Mount Pad
Back Cover
Make sure to use screws and wall mounts that
meet the VESA standard. Standard dimensions
for the wall mount kits are described in the
following table.
22LB4510
24LB4510
29LB4510
75 x 75
100 x 100
VESA (A x B)
A
B
Standard screw
M4 x L10
Number of screws
4
Wall mount bracket
RW120
(optional)
Wall Mount Pad
Back Cover
Standard screw
: M4 x L10
Max. 8 mm
(3 inches)
NOTE
yyUse the screws that are listed on the
VESA standard screw specifications.
yyThe wall mount kit includes an
installation manual and necessary parts.
yyThe wall mount bracket is optional. You
can obtain additional accessories from
your local dealer.
yyThe length of screws may differ
depending upon the wall mount. Be
sure to use the proper length.
yyFor more information, refer to the
instructions supplied with the wall
mount.
ENGLISH
10 cm
10 cm
Model
15
16
MAKING CONNECTIONS
MAKING CONNECTIONS
You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices.
For more information on external device’s connection, refer to the manual provided with each device.
NOTE
••If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the
manual provided with the connected device.
••The external device connections shown may differ slightly from illustrations in this manual.
••Connect external devices to the TV regardless about the order of the TV port.
••If you connect a gaming device to the TV, use the cable supplied with the gaming device.
••Refer to the external equipment’s manual for operating instructions.
Connecting to an antenna or cable
Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items
and an RF cable is optional.
ENGLISH
ANTENNA
/CABLE IN
(Not Provided)
Outdoor Antenna
yyVHF Antenna
yyUHF Antenna
Wall Antenna Socket
CAUTION
••Make sure not to bend the copper wire of
the RF cable.
Copper wire
NOTE
••Complete all connections between devices,
and then connect the power cord to the
power outlet to prevent damage to your TV.
••Use a signal splitter to use 2 TVs or more.
••DTV Audio Supported Codec: MPEG, Dolby
Digital
17
Other connections
Connect your TV to external devices. For the best picture and audio quality, connect the external device
and the TV with the HDMI cable as shown. Depending upon the model, a cable may be provided.
Blu-Ray / HD Cable Box
/ HD STB / DVD / PC
PC
DVD / Blu-Ray / HD Cable Box / VCR
USB IN
0.5 A
ENGLISH
na
na
na
MAKING CONNECTIONS
5V
RGB IN (PC)
HDMI IN
COMPONENT IN
PB
Y
PR
L
USB
R
DC-IN
(19 V
)
VIDEO
L
(MONO) AUDIO
R
AV IN
COMPONENT IN
Y
VIDEO
PB
PR
L
L
R
(MONO) AUDIO
R
AV IN
DVD / Blu-Ray / HD Cable Box
18
MAKING CONNECTIONS
Connecting to a PC
NOTE
It is recommended to use the TV with an HDMI connection for the best image quality.
yy
If you do not use an optional external speaker, connect the PC to the TV with the
yy
optional audio cable.
If you turn the TV on when the set is cold, the screen may flicker. This is normal.
yy
Some red, green, or blue spots may appear on the screen. This is normal.
yy
Connect the signal input cable and tighten it by turning the screws clockwise.
yy
Do not press the screen with your finger for a long time as this may result in
yy
temporary distortion on the screen.
Avoid displaying a fixed image on the screen for a long period of time to prevent
yy
image burn. Use a screensaver if possible.
When using the HDMI/DVI cable, only single link is supported.
yy
ENGLISH
REMOTE CONTROL
19
REMOTE CONTROL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To install batteries, open
the battery cover, replace batteries (1.5 V AAA) matching the
and
ends to the label
inside the compartment, and close the battery cover. Failure to match the correct polarities
of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient
pollution. To remove the batteries, perform the installation actions in reverse.
CAUTION
••Do not mix old and new batteries, as this may damage the remote control.
This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote
sensor.
(POWER) Turns the TV on or off.
TV/PC Selects TV or PC mode.
793&
CAPTION Activates or deactivates the subtitles.
AV MODE Selects an AV mode.
RATIO Resizes an image.
LIST Accesses the saved channel list.
FLASHBK Alternates between the two last channels selected (pressing
repeatedly).
VOL
FLASHBK
Adjusts the volume level.
FAV Accesses your favorite channel list.
AUDIO Digital signal: Changes the audio language.
Analog signal: Changes the MTS sound.
AUDIO
MUTE
Mutes all sounds.
CH
Scrolls through the saved channels.
PAGE
Moves to the previous or next screen.
PICTURE Changes the image mode.
INFO
Shows information on the current program.
SOUND Changes the sound mode.
SETTINGS Accesses the main menu.
Q.MENU Accesses the quick menu.
Navigation buttons (ꔠ, ꔡ, ꔗ, ꔃ) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous screen.
EXIT Clears all on-screen displays and returns to TV viewing.
Not functional.
SLEEP Sets the length of time until the TV to turns off.
Control buttons ( ,
, , ,
) Controls the compatible devices (USB).
These access special functions in some menus.
(Backlight) Adjusts the brightness of the screen by controlling the screen
backlight.
ENGLISH
INPUT Changes the input source. Turns the TV on if it is off.
Number button Enters numbers.
20
SETTINGS
SETTINGS
To set up the channels automatically
SETTINGS  CHANNEL ➙ Auto Tuning
Memorizes automatically the channels being
broadcast.
yyThe channels will not be memorized
properly if the antenna/cable is not
installed correctly.
yyAuto Tuning memorizes the channels that
are currently being broadcast.
yyIf Lock System is turned on, a pop-up
window will appear asking for password.
To use Energy Saving feature
ENGLISH
SETTINGS  PICTURE ➙ ꕊ Energy Saving
Saves electric power by adjusting screen
brightness.
yyOff Turns off the Energy Saving.
yyMinimum/Medium/Maximum Applies the
pre-set Energy Saving.
yyScreen off Screen is turned off and only
sound is played. Press any button except
Power button on the remote control to turn
the screen back on.
To select picture mode
SETTINGS  PICTURE ➙ Picture Mode
Select the picture mode optimized for the
viewing environment or the program.
yyVivid Adjusts the video image for the retail
environment by enhancing the contrast,
brightness, color, and sharpness.
yyStandard Adjusts the image for a normal
environment.
yyEco The Energy Saver feature changes
settings on the TV to reduce power
consumption.
yyCinema The Energy Saver feature changes
settings on the TV to reduce power
consumption.
yyGame Optimizes the video image for fast
moving video such as PCs or games.
yyPhoto Displays the optimum picture for
photo (still image).
yyExpert 1, 2 Adjusts the detailed video
image settings for video experts as well as
general viewers.
yyPressing any button of the remote control
will turn on the screen again.
To set advanced control
SETTINGS  PICTURE ➙ Picture Mode ➙
Advanced Control/Expert Control
For each picture mode, screen can be
calibrated; or for a special screen, picture
settings can be adjusted.
Select the desired Picture Mode.
yyDynamic Contrast Adjusts the contrast to
the optimal level according to the image’s
brightness.
yyDynamic Color Adjusts colors to make the
image appear in more natural colors.
yySkin Color Skin color spectrum can be
separately set to implement the skin color
as defined by the user.
yyGrass Color Natural color spectrum
(meadows, hills, etc.) can be separately set.
yySky Color Sky color is set separately.
yyGamma Sets the gradation curve according
to the output of picture signal in relation to
the input signal.
yyColor Gamut Selects the range of colors
that can be expressed.
yyEdge Enhancer Shows clearer and
distinctive yet natural edges of the video.
yyColor Filter Filters a specific color
spectrum in RGB colors to fine-tune color
saturation and hue accurately.
yyColor Temperature Adjusts the overall tone
of the screen as desired. In Expert mode,
detailed fine-tuning can be set via Gamma
method, etc.
yyColor Management System This system
is used by experts to adjust color with a
test pattern. They can select from six color
areas (Red/ Green/Blue/ Cyan/Magenta/
Yellow) without affecting other colors. For
normal images, adjustments may not result
in noticeable color changes.
yyDepending upon input signal or other
picture settings, the range of detailed
items for adjustment may differ.
SETTINGS
To set additional picture options
SETTINGS  PICTURE ➙ Picture Mode ➙
Picture Option
To use TV speaker
SETTINGS  AUDIO ➙ TV Speaker
Sound is output through the TV speaker.
To set the password
SETTINGS  LOCK ➙ Set Password
Set or change the TV password.
yyThe initial password is set to 0000.
To set the caption
SETTINGS  OPTION ➙ Caption
View captions when the TV station provides
captioned programming. Program captions
work only on digital/analog broadcasts or
external input.
Change Caption to On and select caption
settings.
yyMode
CC 1-4 (Closed Captioning) / Text 1-4
Displays the audio portion of a TV program
as text on the TV screen. CC1 is the
most common mode in use. Field 1 data
channels: two Captions (CC1, CC2), two
Text (T1, T2). Field 2 data channels: two
Captions (CC3, CC4), two Text (T3, T4).
Service 1-6 This is only available for the
digital broadcasting system.
yyDigital Option Set up the size and color
of the captions on Digital Option. Please
select Set by Program or Custom. Select
Custom to adjust minute options such as
the captions’ size and color.
To return to initial settings
SETTINGS  OPTION ➙ Initial Setting
Returns to initial default mode by deleting all
optional setup. Once initialization is completed,
the TV will turn off and on by itself.
yyWhen Lock System is in place, a pop-up
window appears and asks for password.
yyDo not turn off the power during
initialization.
ENGLISH
Adjusts detailed setting for images.
yyNoise Reduction Eliminates noise in the
picture.
yyMPEG Noise Reduction Eliminates noise
generated while creating digital picture
signals.
yyBlack Level Adjusts the brightness and
contrast of the screen to suit the black
level.
yyReal Cinema Optimizes the screen for
movie viewing.
yySUPER Energy Saving (Depending upon
model) Saves power consumption by
adjusting the brightness corresponding to
the movement of the image on the screen.
yyDepending upon input signal or other
picture settings, the range of detailed
items for adjustment may differ.
21
22
SETTINGS / TO SEE THE WEB MANUAL
To remove the USB device
Q.MENU  Eject USB ➙ Eject
Once the message that the USB device was
removed is displayed, remove the device from
the TV.
yyAfter selecting to remove USB device,
the USB storage Device cannot be read.
Remove the USB storage device and then
reconnect it.
Warning when using USB storage devices
ENGLISH
yyThe TV recognizes only a USB storage
device.
yyIf you connect a USB storage device to the
TV through a USB hub, your TV may not
recognize the USB storage device.
yyThe TV may not recognize a USB storage
device that requires a special driver.
yyThe recognition speed of a USB storage
device may differ Depending upon the
device.
yyOnly use a USB storage device which has
normal music or image files.
yyUse only USB storage devices that are
formatted as a FAT 32 or NTFS file system.
yyYou may need to connect a USB storage
device to an external power supply with a
power adapter.
yyIf the TV does not recognize a connected
USB storage device, replace the cable and
try again. Do not use an excessively long
cable.
yyThe TV does not support some USB
storage devices properly.
yyYou can use a multi-partition (up to 4)
USB storage device.
yyThe file alignment method of a USB
storage device is similar to the one of
Window XP.
yyYou cannot create or delete a folder saved
in a USB storage device directly on the TV.
yyThe number of characters for a file name
is up to 100 English characters.
yyIf there are too many folders and files in
one folder, it may not operate properly.
yyThe recommended capacity for a USB
external hard disk is 1 TB or less and for a
USB storage device is 32 GB or less.
yyIf a USB external hard disk with the Energy
Saving feature does not work, turn the USB
external hard disk off and on again to make
it work properly. For more information, refer
to the user manual of the USB external
hard disk.
yyThe electrostatic can cause USB device’s
malfunction. In this case, USB Device has
to be plugged again.
Supported Photo Formats
yyCategory: 2D (jpeg, jpg)
[Available file type]
SOF0: baseline,
SOF1: Sequential,
SOF2: Progressive
[Photo size]
Minimum: 64 x 64
Maximum: Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1024 (W) x 768 (H)
Supported Audio Formats
yyFile type: mp3
[Bit rate] 32 Kbps - 320 Kbps
[Sample freq.] 16 kHz - 48 kHz
[Support] MPEG1, MPEG2, Layer2, Layer3
TO SEE THE WEB MANUAL
Web manual allows you to easily access
detailed TV information.
Go to www.lg.com.
SPECIFICATIONS
23
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
Television System
Program Coverage
External Antenna Impedance
Operating Temperature
Operating Humidity
Environment
condition
Storage Temperature
Storage Humidity
MODELS
Dimensions
(W x H x D)
Weight
With stand
Without stand
ATSC, NTSC-M, 64 & 256 QAM
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 Ω
0 °C to 40 °C (32 °F to 104 °F)
Less than 80 %
-10 °C to 60 °C (14 °F to 140 °F)
Less than 85 %
22LB4510
(22LB4510-PU)
24LB4510
(24LB4510-PU)
507.6 x 355.9 x 140.6 (mm)
556.0 x 384.3 x 140.6 (mm)
19.9 x 14.0 x 5.5 (inches)
21.8 x 15.1 x 5.5 (inches)
507.6 x 314.7 x 52.7 (mm)
556.0 x 343.1 x 52.7 (mm)
19.9 x 12.3 x 2.0 (inches)
21.8 x 13.5 x 2.0 (inches)
With stand
2.7 kg (5.9 lbs)
3.5 kg (7.7 lbs)
Without stand
2.5 kg (5.5 lbs)
3.3 kg (7.2 lbs)
19 V
1.6 A
AC/DC Adapter
In: AC 100 - 240 V ~ 50/60 Hz
Out: DC 19 V
1.7 A
In: AC 100 - 240 V ~ 50/60 Hz
Out: DC 19 V
29LB4510
(29LB4510-PU)
MODELS
Weight
1.6 A
Manufacturer: Honor
Model: ADS-40FSG-19 19032GPCU, ADS-40SG-19-2 19032G
Adapter (DC Power)
Dimensions
(W x H x D)
19 V
Manufacturer: Lien Chang
Model: LCAP16A-A, LCAP25A
668.6 x 457.0 x 182.1 (mm)
With stand
26.3 x 17.9 x 7.1 (inches)
668.6 x 410.5 x 81.9 (mm)
Without stand
26.3 x 16.1 x 3.2 (inches)
With stand
5.7 kg (12.5 lbs)
Without stand
5.4 kg (11.9 lbs)
Power rating
AC/DC Adapter
Adapter (DC Power)
19 V
2.2 A
Manufacturer: Lien Chang
Model: LCAP35
Manufacturer: APD
Model: DA-48F19
In: AC 100 - 240 V ~ 50/60 Hz
Out: DC 19 V
2.53 A
1.7 A
ENGLISH
Power rating
24
SPECIFICATIONS
RGB(PC) / HDMI(PC) supported mode
(For 22LB4510)
Resolution
720 x 400
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 720
1280 x 800
1280 x 1024
1400 x 1050
1440 x 900
1600 x 900
ENGLISH
1680 x 1050
1920 x 1080
Horizontal
Frequency (kHz)
31.468
31.469
37.500
37.879
46.875
48.363
56.476
60.023
67.500
45.000
49.702
63.981
79.976
65.317
55.935
60.000
64.674
65.290
67.500
Vertical
Frequency (Hz)
70.080
59.940
75.000
60.317
75.000
60.004
70.069
75.029
75.000
60.000
59.810
60.020
75.025
59.978
59.887
60.000
59.883
59.954
60.000
(For 24/29LB4510)
Resolution
720 x 400
640 x 480
800 x 600
1024 x 768
1280 x 800
1366 x 768
NOTE
Horizontal
Frequency (kHz)
31.468
31.469
37.500
37.879
46.875
48.363
60.023
49.702
47.717
Vertical
Frequency (Hz)
70.080
59.940
75.000
60.317
75.000
60.004
75.029
59.810
59.79
••The optimal display resolution
- 22LB4510: 1920 x 1080 @ 60 Hz.
- 24/29LB4510: 1366 x 768 @ 60 Hz.
••The optimal timing in each mode is vertical
frequency 60 Hz.
HDMI (DTV) supported mode
Resolution
720 x 480p
720 x 576p
1280 x 720p
1920 x 1080i
1920 x 1080p
Horizontal
Frequency (kHz)
31.469
31.500
31.250
37.500
44.960
45.000
28.125
33.720
33.750
27.000
33.750
56.250
67.430
67.500
Vertical
Frequency (Hz)
59.940
60.000
50.000
50.000
59.940
60.000
50.000
59.940
60.000
24.000
30.000
50.000
59.940
60.000
Component port connecting information
Component ports on the TV
Y
PB
PR
Video output ports on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
PR
R-Y
Cr
Pr
Component supported mode
Resolution
720 x 480i
720 x 480p
1280 x 720p
1920 x 1080i
1920 x 1080p
Horizontal
Frequency (kHz)
15.73
15.73
31.47
31.50
44.96
45.00
33.72
33.75
26.97
27.00
33.71
33.75
67.432
67.500
Vertical
Frequency (Hz)
59.94
60.00
59.94
60.00
59.94
60.00
59.94
60.00
23.976
24.00
29.97
30.00
59.94
60.00
MAINTENANCE
25
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan.
CAUTION
••Before cleaning, turn the power off and disconnect the power cord and all other cables.
••When the TV is left unattended or unused for a long time, disconnect the power cord from the wall
outlet to prevent possible damage from lightning or power surges.
Screen, frame, cabinet, and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild
detergent. Then wipe immediately with a dry cloth.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
ENGLISH
CAUTION
••Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in
scratches on the screen and image distortions.
••Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or
lubricants, as these may damage the screen’s finish and cause discoloration.
••Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or
malfunction.
26
TROUBLESHOOTING / EXTERNAL CONTROL DEVICE SETUP
TROUBLESHOOTING
Problem
Solution
••Check the remote control sensor on the product and try again.
Cannot control the TV
••Check if there is any obstacle between the product and the remote control.
with the remote control. ••Check if the batteries are still working and properly installed ( to ,
to ).
••Check if the product is turned on.
No image display and no
••Check if the power cord is connected to a wall outlet.
sound is produced.
••Check if there is a problem in the wall outlet by connecting other products.
ENGLISH
The TV turns off
suddenly.
••Check the power control settings. The power supply may be interrupted.
••Check if the Off Time / Sleep Timer feature is activated in the TIME
settings.
••If there is no signal while the TV is on, the TV will turn off automatically
after 15 minutes of inactivity.
Vertical and horizontal
lines with net patterns
appear on the screen
momentarily that are
shaking.
••Refrain from using electronic devices, such as cordless telephones, hair
dryers, or electrical drills near the product. The problem is a result of highfrequencies and strong electro-magnetic fields caused by these devices.
••The product may power off if you continue to use it near these devices.
CHILD SAFETY:
PROPER TELEVISION PLACEMENT MATTERS
THE CONSUMER ELECTRONICS INDUSTRY CARES
• Manufacturers, retailers and the rest of the consumer electronics industry are committed to
making home entertainment safe and enjoyable.
• As you enjoy your television, please note that all televisions – new and old- must be supported on
proper stands or installed according to the manufacturer’s recommendations. Televisions that
are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc.,
may fall over, resulting in injury.
TUNE IN TO SAFETY
• ALWAYS follow the manufacturer’s recommendations for the safe installation of your television.
• ALWAYS read and follow all instructions for proper use of your television.
• NEVER allow children to climb on or play on the television or the furniture on which the television
is placed.
• NEVER place the television on furniture that can easily be used as steps, such as a chest of
drawers.
• ALWAYS install the television where it cannot be pushed, pulled over or knocked down.
• ALWAYS route cords and cables connected to the television so that they cannot be tripped
over, pulled or grabbed.
WALL OR CEILING MOUNT YOUR TELEVISION
• ALWAYS contact your retailer about professional installation if you have any doubts about your
ability to safely mount your television.
• ALWAYS use a mount that has been recommended by the television manufacturer and has a
safety certification by an independent laboratory (such as UL, CSA, ETL).
• ALWAYS follow all instructions supplied by the television and mount manufacturers.
• ALWAYS make sure that the wall or ceiling where you are mounting the television is appropriate.
Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder
block construction. If you are unsure, contact a professional installer.
• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount
installation.
MOVING AN OLDER TELEVISION TO A NEW PLACE IN
YOUR HOME
• Many new television buyers move their older CRT televisions into a secondary room after the
purchase of a flat-panel television. Special care should be made in the placement of older CRT
televisions.
• ALWAYS place your older CRT television on furniture that is sturdy and appropriate for its size
and weight.
• NEVER place your older CRT television on a dresser where children may be tempted to use the
drawers to climb.
• ALWAYS make sure your older CRT television does not hang over the edge of your furniture.
CE.org/safety
Declaration of Conformity
Trade Name: LG
Model: 22LB4510, 24LB4510, 29LB4510
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
LG Customer Information Center
For inquires or comments, visit www.lg.com or call;
1-800-243-0000
USA, Consumer User
1-888-865-3026
USA, Commercial User
1-888-542-2623
CANADA
Register your product Online!
www.lg.com
The model and serial numbers of the TV are
located on the back and on one side of the
TV. Record them below should you ever need
service.
MODEL
SERIAL
This product qualifies for ENERGY
STAR in the factory default
(Standard) setting. Changing the
factory default settings or enabling
other features may increase power consumption
that could exceed the limits necessary to
quality for ENERGY STAR.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
