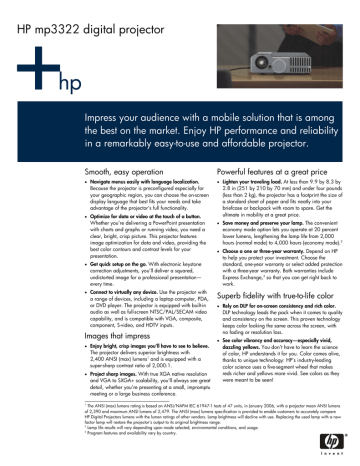

HP mp3322 digital projector
hp
Impress your audience with a mobile solution that is among
the best on the market. Enjoy HP performance and reliability
in a remarkably easy-to-use and affordable projector.
Smooth, easy operation
Powerful features at a great price
• Navigate menus easily with language localization.
• Lighten your traveling load. At less than 9.9 by 8.3 by
Because the projector is preconfigured especially for
your geographic region, you can choose the on-screen
display language that best fits your needs and take
advantage of the projector’s full functionality.
• Optimize for data or video at the touch of a button.
Whether you’re delivering a PowerPoint presentation
with charts and graphs or running video, you need a
clear, bright, crisp picture. This projector features
image optimization for data and video, providing the
best color contours and contrast levels for your
presentation.
• Get quick setup on the go. With electronic keystone
correction adjustments, you’ll deliver a squared,
undistorted image for a professional presentation—
every time.
• Connect to virtually any device. Use the projector with
a range of devices, including a laptop computer, PDA,
or DVD player. The projector is equipped with built-in
audio as well as full-screen NTSC/PAL/SECAM video
capability, and is compatible with VGA, composite,
component, S-video, and HDTV inputs.
Images that impress
• Enjoy bright, crisp images you’ll have to see to believe.
The projector delivers superior brightness with
2,400 ANSI (max) lumens1 and is equipped with a
super-sharp contrast ratio of 2,000:1.
• Project sharp images. With true XGA native resolution
and VGA to SXGA+ scalability, you’ll always see great
detail, whether you’re presenting at a small, impromptu
meeting or a large business conference.
2.8 in (251 by 210 by 70 mm) and under four pounds
(less than 2 kg), the projector has a footprint the size of
a standard sheet of paper and fits neatly into your
briefcase or backpack with room to spare. Get the
ultimate in mobility at a great price.
• Save money and preserve your lamp. The convenient
economy mode option lets you operate at 20 percent
lower lumens, lengthening the lamp life from 2,000
hours (normal mode) to 4,000 hours (economy mode).2
• Choose a one or three-year warranty. Depend on HP
to help you protect your investment. Choose the
standard, one-year warranty or select added protection
with a three-year warranty. Both warranties include
Express Exchange,3 so that you can get right back to
work.
Superb fidelity with true-to-life color
• Rely on DLP for on-screen consistency and rich color.
DLP technology leads the pack when it comes to quality
and consistency on the screen. This proven technology
keeps color looking the same across the screen, with
no fading or resolution loss.
• See color vibrancy and accuracy—especially vivid,
dazzling yellows. You don’t have to learn the science
of color, HP understands it for you. Color comes alive,
thanks to unique technology: HP’s industry-leading
color science uses a five-segment wheel that makes
reds richer and yellows more vivid. See colors as they
were meant to be seen!
The ANSI (max) lumens rating is based on ANSI/NAPM IEC 61947-1 tests of 47 units, in January 2006, with a projector mean ANSI lumens
of 2,390 and maximum ANSI lumens of 2,479. The ANSI (max) lumens specification is provided to enable customers to accurately compare
HP Digital Projectors lumens with the lumen ratings of other vendors. Lamp brightness will decline with use. Replacing the used lamp with a new
factor lamp will restore the projector’s output to its original brightness range.
2
Lamp life results will vary depending upon mode selected, environmental conditions, and usage.
3
Program features and availability vary by country.
1
HP mp3322 digital projector
1
Projection lens with swingup cover
2
IR remote control sensor
(1 of 2)
3
Venting
4
IR remote control sensor
(2 of 2)
5
USB input
6
Audio input (3.5 mm
phone jack)
7
Composite video input
(RCA jack)
8
S-video inputs (Min Din 4
pin)
9
Computer/component
input
1
4
2
3
5
6
7
8
9
10
HP mp3322 digital projector (front view)
Inputs (rear view)
10 Security slot
11 Magnesium alloy top and
bottom, high temperature
plastic sides
11
12
19
13
20
21
12 Elevator foot button
13 Zoom adjustment, focus
ring
22
29
14 Power button
14
15 Menu, directional controls,
sync and source buttons
16 Power cable input
15
17 Lamp and temperature
warning LED indicators
23
28
24
27
25
26
16
18 Image optimization
selector: data mode, video
mode
18
17
Controls (top view)
19 Hide button
Standard remote control4
20 Mouse pad
21 Power button
22 Right-click mouse button
23 Page-up button
24 Auto sync button
25 Page-down button
26 Image optimization
selector button: data
mode, video mode
Projector highlights
• Give interruption-free presentations. The projector
features a credit card-size remote control4 with mouse
functionality, and by connecting with USB, you can
control your laptop from the projector––leaving you
free to manage your presentation while staying
focused and engaged with your audience.
27 Menu buttons
28 Source button
29 Left-click mouse button
• Be flexible. Utilizing the many adjustable features is
easy, with focus, zoom, and image optimization
buttons all located on top of the projector and most of
them on the remote control as well.
• Project from nearly anywhere. The smart, stylish
design is functional in a variety of settings, with
digital and optical zoom, one-hand elevator foot
operation, and support for ceiling or tripod
mounting—making this projector truly mobile. At just
3.8 lbs (1.7 kg)—less than most notebook
computers—and with your included carrying case,
the projector is designed to keep pace with your
business lifestyle.
• Make sure audiences can hear presentations clearly.
The projector emits operating noise as low as 35 dB,5
so viewers can enjoy presentations without having to
strain to hear them.
4
5
Actual physical appearance may vary.
Operating noise is 35 dBA in economy mode and 37 dBA in standard mode.
Enjoy outstanding image quality—even in large
rooms—from a mobile, easy-to-use projector at a
price you can afford.
Always dazzling
Don’t let its size fool you: this portable digital
projector reliably gives you astonishing image quality.
You’ll rival the best projecting technology with 2,400
ANSI (max) lumens,6 plus a razor-sharp contrast ratio
of 2,000:1 for superior clarity. And when it comes to
on-screen quality and consistency, DLP technology is
the undisputed industry leader. Combined with the
projector’s high lumens rating, DLP delivers a
perceptible difference in color fidelity and depth
across the whole screen. And DLP technology protects
your investment by keeping color looking great yearafter-year, with no fading.
Small is good
In business and consulting applications, mobility is the
name of the game. While the projector’s sturdy
design and high compatibility ensure reliable
performance under demanding and unpredictable
travel conditions, it is also light and easily portable.
Depend on its agility, to adjust for an awkward
position with keystone correction, and to always tote
easily.
Now you can travel with just your projector and a
laptop or even a PDA. Walk into a room and within
minutes have your projector set up and ready, with
little clutter or fuss:
1. Plug into an AC outlet and connect to your
presentation source (laptop, VCR, etc.).
2. Adjust the picture with focus, elevation, and
keystone correction, if needed.
3. Stand back and begin!
Designed to put you in your best light
Effective communicators know not to let technology
get in the way of their ideas: so make an immediate
impression with the smooth and simple HP mp3322
digital projector. The slim design keeps you looking
professional while the light weight and easy setup
make sure you aren’t encumbered by your tools.
With its compact size and low noise level, the
projector won’t distract your audience from the
spectacular images or your voice as you command
the room. Plus, the wireless control lets you range
freely and be engaged––making the best impact for
your presentation.
Maximize your presentations with versatile accessories from HP
6-foot (1.8 meter)
component (HDTV)
VGA cable
Premium remote
control7
HP ceiling mount
HP lamp module
Deluxe
combination
travel case
HP mobile 60-inch
screen
HP presenter
50-inch screen
L1713A
L1631A
L1703A
L2152A
L1622A
L1633A
L1671A
Easily present
high definition
content from
devices with
component
outputs.
Effortlessly control
every detail of
your presentation
with a laser
pointer and
enhanced
navigation
controls.
Easily mount your
projector to the
ceiling and
enable permanent
installation.
Prevent distracting
interruptions
during your
presentation with
this back-up lamp
module.
An economical
and sturdy design
allows you to take
a notebook,
projector, and
even a mobile
printer, wherever
you need to
present.
Give your
audience the big
picture whenever
and wherever you
want with a selfcontained, easy-touse mobile screen.
Compact and
convenient for
simple transport,
this projector
screen allows
great
presentations, no
matter where you
are.
The ANSI (max) lumens rating is based on ANSI/NAPM IEC 61947-1 tests of 47 units, in January 2006, with a projector mean ANSI lumens
of 2,390 and maximum ANSI lumens of 2,479. The ANSI (max) lumens specification is provided to enable customers to accurately compare
HP Digital Projectors lumens with the lumen ratings of other vendors. Lamp brightness will decline with use. Replacing the used lamp with a new
factor lamp will restore the projector’s output to its original brightness range.
7
Actual physical appearance may vary.
6
HP mp3322 digital projector
Technical specifications
Brightness
Resolution
Image contrast
Lamp life9
Weight
Dimensions (w by d by h)
Projected image
Size
Uniformity
Throw distance
Offset
Zoom capability
Display technology
Scalable resolution
Projector lens
Keystone correction
Light source
Audio
Video capability
Video formats
Input connections
Computer signal input detection
Computer compatibility
Image synchronization
Remote control
Menus
Mounting capability
Tilt angle
What’s in the box
Warranty
2,400 ANSI (max) lumens8
True XGA (1024 by 768)
2,000:1 full on/full off
4,000 hours, economy mode; 2,000 hours, normal mode
3.8 lb (1.7 kg)
9.88 by 8.27 by 2.77 in (251 by 210 by 70 mm)
Adjustable from 24.4 to 292.5 in (0.62 to 7.4 m) diagonal
Greater than 75% typical
Approximately 3.3 to 29.4 ft (1.2 to 12 m)
115% of image above the center line
Digital and optical
Texas Instruments DLP™ (single-panel 0.7 in 12° DDR DMD XGA projection system)
Native XGA (1024 by 768), scales up from VGA (640 by 480), scales down from SXGA (1400 by 1050)
~2.4 (wide), ~2.65 (tele); 1.2x manual zoom; manual focus
±16° (32° total)
200-watt compact P-VIP projector bulb
Monaural speaker, 1-watt peak output
S-video, composite, component, HDTV (up to 1080i)
NTSC, PAL, SECAM
Computer input (VGA terminal), composite video input (RCA jack), S-video inputs (Min Din 4-pin), audio input (3.5 mm phone jack), USB input
Automatic
NTSC-M (3.58 MHz), 4.43 MHz, PAL-B, D, G, H, I , M , N, SECAM-B, D, G, K, K1, L, HDTV-480i, 480P, 576i/P, 720P, 1080i
Automatic
With power, page up/down, mouse, menu, sync, and source buttons
User-friendly multilingual On Screen Display (OSD)
Ceiling, tripod (third-party), and tabletop
8 degrees with elevator foot
HP mp3322 digital projector, 10-ft power cable, VGA cable, USB cable, 6 ft (1.8 m) RCA to RCA composite cable),10 6 ft (1.8 m) S-video
cable,11 remote control, remote control battery, carrying case, documentation kit, including Quick Setup Card, CD-ROM with User’s Guide,
Important Safety Information booklet, Worldwide Limited Warranty and Technical Support booklet, Worldwide Telephone Numbers booklet,
Program License Agreement
Device: one or three-year limited hardware warranty including Express Exchange12
Lamp: 90-day limited warranty or 500-hours (whichever comes first)
Ordering information
Environmental ranges
Operating
Storage
Noise level
Power
Requirements
Consumption
Certifications
Safety/Electromagnetic
compatibility
Temperature: 41 to 95° F (5 to 35° C)
Humidity: 35 to 80% RH max, non-condensing
Altitude: up to 10,000 ft (3048 m)
Temperature: -4 to 140° F (-20 to 60° C)
Humidity: 20 to 80% RH max, non-condensing
Altitude: up to 40,000 ft (12,192 m)
As low as 35 dBA in economy mode
Input voltage: 100 to 240 VAC, 50/60 Hz
250 watts maximum
Safety certifications cULus, TUV-GS, CCC, EN60950, PSB, NOM, Bmark, GOST, FDA DHHS, SHOAN, EMI/EMC certifications, FCC Part
15 Class B, EN55022: 1998, EN55024: 1998, VCCI, MIC, C-Tick
8
The ANSI (max) lumens rating is based on ANSI/NAPM IEC 61947-1 tests of 47 units, in January 2006, with a projector
mean ANSI lumens of 2,390 and maximum ANSI lumens of 2,479. The ANSI (max) lumens specification is provided to
enable customers to accurately compare HP Digital Projectors lumens with the lumen ratings of other vendors. Lamp
brightness will decline with use. Replacing the used lamp with a new factor lamp will restore the projector’s output to its
original brightness range.
9
Lamp life results will vary depending on mode selected, environmental conditions, and usage.
10
Included in box with the L2142A 1-year warranty bundle only.
11
Included in box with the L2143A 3-year warranty bundle only.
12
Program features and availability vary by country.
13
Included in-box with all bundles.
© 2006 Copyright Hewlett-Packard Development Company, L.P.
DLP is a trademark of Texas Instruments.
The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
Printed in [country]
For more information visit our website at www.hp.com
0000-0000ENUC, 1/2006, Rev. 1
HP product
Number
HP mp3322 digital projector, 1-year warranty
L2142A
HP mp3322 digital projector, 3-year warranty
L2143A
Accessories and supplies
HP deluxe combo carry case
L1622A
HP premium remote control
L1631A
HP mobile 60-inch screen
L1633A
HP presenter 50-inch screen
L1671A
HP soft sleeve bag (cover case)13
L1678A
HP ceiling mount
L1703A
HP replacement lamp module
L2152A
HP credit card remote control13
L2310A
Cables
HP RCA to RCA composite, 6 ft (1.8 m)10
L1527A
HP audio miniplug, 6 ft (1.8 m)
L1532A
HP VGA, 6 ft (1.8 m)
L1625A
HP S-video, 6 ft (1.8 m)11
L1635A
HP USB, 6 ft (1.8 m)
L1661A
HP component RCA to VGA, 6 ft (1.8 m)
L1713A
HP S-video, 20 ft (6 m)
L1715A
HP SCART to S-video adapter
L1717A
HP Engineered S-video, 50 ft (15.2 m)
L2144A
HP Engineered VGA, 50 ft (15.2 m)
L2145A
Service and support
Web support
www.hp.com
Phone support
1-800 HP Invent (1-800-474-6836)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
