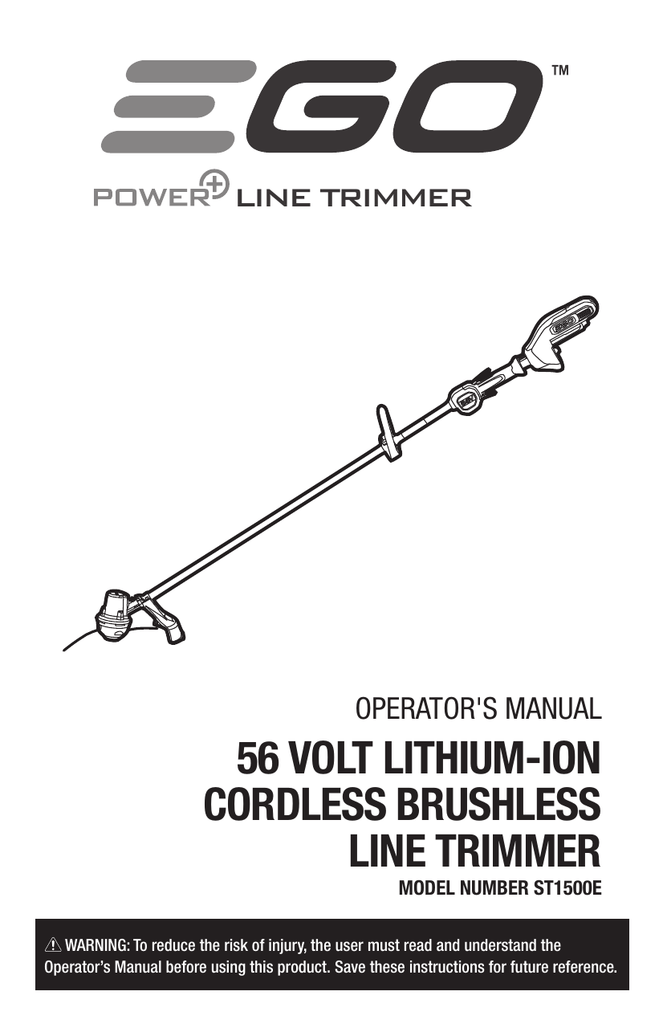

LINE TRIMMER

OPERATOR'S MANUAL

56 VOLT LITHIUM-ION

CORDLESS BRUSHLESS

LINE TRIMMER

MODEL NUMBER ST1500E

WARNING: To reduce the risk of injury, the user must read and understand the

Operator’s Manual before using this product. Save these instructions for future reference.

Read All Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Safety Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-11

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-13

Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-16

Packing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-19

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-29

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-32

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33-34

Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35-36

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

READ ALL INSTRUCTIONS!

READ & UNDERSTAND

INSTRUCTION MANUAL

This line trimmer has many features for making its use more pleasant and enjoyable.

Safety, performance, and dependability have been given top priority in the design of this product making it easy to maintain and operate.

DANGER!

People with electronic devices, such as pacemakers, should consult their physician(s) before using this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause interference or failure of the pacemaker.

WARNING:

To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

SAFETY SYMBOLS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger.

The instructions and warnings they give are no substitutes for proper accident prevention measures.

WARNING:

Be sure to read and understand all safety instructions in this

Operator’s Manual, including all safety alert symbols such as “

DANGER,” “WARNING,”

and “

CAUTION” before using this tool. Failure to following all instructions listed below

may result in electric shock, fire, and/or serious personal injury.

SYMBOL MEANING

SAFETY ALERT SYMBOL:

Indicates DANGER, WARNING, OR

CAUTION. May be used in conjunction with other symbols or pictographs.

WARNING!

The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

SAFETY INSTRUCTIONS

This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it.

Safety Alert Precautions that involve your safety.

WARNING: Read operator’s manual

To reduce the risk of injury, user must read and understand operator’s manual before using this product.

Wear eye protection!

Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.

Wear hearing protection

Always wear ear protection when operating this product.

Do not expose to rain

Do not use in the rain or leave outdoors while it is raining.

15m

Keep Bystanders Away

Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.

Keep Bystanders Away

Ensure that other people and pets remain at least 15m away from the line trimmer when it is in use.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

W min

A n

... /min

Volt

Amperes

Hertz

Watt

Minutes

Alternating Current

Direct Current

No-Load Speed

Per Minute

Voltage

Current

Frequency (cycles per second)

Power

Time

Type of current

Type or a characteristic of current

Rotational speed, at no load

Revolutions per minute

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

IMPORTANT SAFETY INSTRUCTIONS

WARNING!

When using line trimmers, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following:

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

DANGER!

Do not rely on the tool’s insulation against electric shock. To reduce the risk of electrocution, never operate the machine in the vicinity of any wires or cables (power, etc.) which may carry electric current.

CAUTION!

Wear appropriate personal hearing protection during use. Under some conditions and durations of use, noise from this product may contribute to hearing loss.

Training

◾ ◾

Read the instructions carefully. Be familiar with the controls and the proper use of

◾ the machine.

◾

Never allow people unfamiliar with these instructions or children to use the

◾ machine. Local regulations can restrict the age of the operator.

◾

Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people or their property.

Preparation

◾ ◾

Never operate the machine while people, especially children, or pets are nearby.

◾ ◾

Wear eye protection and stout shoes at all times while operating the machine.

Operation

◾ ◾

Use the machine only in daylight or good artificial light.

◾ ◾

Never operate the machine with damaged guards or shields or without guards or

◾ shields in place.

◾

Switch on the motor only when the hands and feet are away from the cutting means.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

◾ ◾

Always disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device).

◾ ◾

◾ whenever leaving the machine unattended;

◾ before clearing a blockage;

◾ ◾

◾ before checking, cleaning or working on the machine;

◾

◾ after striking a foreign object;

◾ ◾ whenever the machine starts vibrating abnormally.

◾

Take care against injury to feet and hands from the cutting means.

◾ ◾

Always ensure that the ventilation openings are kept clear of debris.

Maintenance and storage

◾ ◾

Disconnect the machine from the power supply (i.e. remove the plug from the mains or remove the disabling device) before carrying out maintenance or

◾ cleaning work.

◾

Use only the manufacturer’s recommended replacement parts and accessories.

◾ ◾

Inspect and maintain the machine regularly. Have the machine repaired only by

◾ an authorized repairer.

◾

When not in use, store the machine out of the reach of children.

Other safety warnings

◾ ◾

Avoid Dangerous Environments – Don’t use trimmers in damp or wet locations.

◾ ◾

Always turn the line trimmer off or remove the battery pack whenever leaving the

◾ trimmer unattended.

◾

Don’t Use In Rain.

◾ ◾

Keep Children Away – All visitors should be kept at a distance from work area.

◾ ◾

Dress Properly – Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber gloves and substantial footwear is recommended

◾ when working outdoors. Wear protective hair covering to contain long hair.

◾

Use Safety Glasses – Always use a face or dust mask if operation is dusty.

◾ ◾

Use the Right Tool– Do not use the tool for any job except that for which it is intended.

◾ ◾

Don’t Force the Trimmer – It will do the job better and with less likelihood of a risk of injury at the rate for which it was designed.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

◾ ◾

Don’t Overreach – Keep proper footing and balance at all times.

◾ ◾

Stay Alert – Watch what you are doing. Use common sense. Do not operate the

◾ trimmer when you are tired.

◾

Do not operate the trimmer while under the influence of alcohol or drugs.

◾ ◾

Keep guards in place and in working order.

◾ ◾

Store Trimmer Indoors – When not in use the trimmer should be stored indoors in a dry

◾ and high or locked-up place with the battery pack removed – out of reach of children.

◾

Maintain Trimmer With Care – Keep the cutting attachment clean for best performance and to reduce the risk of injury. Follow instructions for changing

◾ accessories. Keep handles dry, clean, and free from oil and grease.

◾

Check Damaged Parts – Before further use of the trimmer, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other condition that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless indicated

◾ elsewhere in this manual.

◾

Clear the area to be cut before each use. Remove all objects such as rocks, broken glass, nails, wire, or line that can be thrown or become entangled in the cutting

◾ attachment. Make sure that other persons and pets are at least 15m away.

◾

Before using the machine and after any impact, check for signs of wear or

◾ damage and repair as necessary.

◾

Always hold the trimmer firmly, with both hands on the handles while operating.

◾

Wrap your fingers and thumbs around the handles.

◾

Avoid Accidentally Starting–Don’t carry the trimmer with your finger on the trigger.

◾ ◾

Do not operate the trimmer in petrolic or explosive atmospheres. Motors in these

◾ appliances normally spark, and the sparks might ignite fumes.

◾

Damage to Trimmer – If you strike a foreign object with the trimmer or it becomes entangled, stop the tool immediately, remove the battery pack from the line trimmer, check for damage and have any damage repaired before further operation is attempted. Do not operate with a broken guard or spool.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

◾ ◾

If the equipment should start to vibrate abnormally, stop the motor , remove the battery pack from the line trimmer. and check immediately for the cause.

Vibration is generally a warning of trouble. A loose head may vibrate, crack, break or come off the trimmer, which may result in serious or fatal injury. Make sure that the cutting attachment is properly fixed in position. If the head loosens after fixing it in position, replace it immediately. Never use a trimmer with a loose

◾ cutting attachment.

◾

Replace a cracked, damaged or worn-out cutting head immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high

◾ speed and cause serious or fatal injury.

◾

Check the cutting attachment at regular short intervals during operation, or

◾ immediately if there is a noticeable change in cutting behavior.

◾

Only use EGO

authorized polymer trimmer line accessories ( 2.4 mm) and trimmer line that are designed for use with this machine. Although certain unauthorized attachments might be fitted to the EGO

line trimmer, their use

◾ may be extremely dangerous, and/or damaging to the tools.

◾

To reduce the risk of serious injury, never use wire or metal-reinforced line or other material in place of the nylon cutting lines. Pieces of wire could break off

◾ and be thrown at high speed toward the operator or bystanders.

◾

To reduce the risk of injury from loss of control, never work on a ladder or on any

◾ other insecure support. Never hold the cutting attachment above waist height.

◾

If situations occur that are not covered in this manual, use care and good

◾ judgment. Contact the EGO Service Center for assistance.

◾

Do not charge the battery pack in rain, or in wet locations.

◾ ◾

Use only with battery packs and chargers listed below:

BATTERY

BA1120E, BA2240E,

BA3360, BA1400

CHARGER

CH5500E, CH2100E

◾ ◾

The battery pack must be removed from the appliance before it is scrapped.

◾ ◾

The battery shall be disposed of safely.

◾ ◾

Do not dispose of the battery in a fire. The cells may explode. Check with local

◾ authorities for possible special disposal instructions.

◾

Do not open or mutilate the battery. Released electrolyte is corrosive and may

cause damage to the eyes or skin. It may be toxic if swallowed.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

◾ ◾

Exercise care in handling batteries in order not to short the battery with conducting materials such as rings, bracelets, and keys. The battery or conductor

◾ may overheat and cause burns.

◾

When servicing, use only identical EGO

replacement parts. Use of any other

◾ accessory or attachment may increase the risk of injury.

◾

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. Be aware of possible hazards even when the

◾ tool is not operating. Take care when performing maintenance or service.

◾

Do not wash with a hose; avoid getting water in motor and electrical connections.

◾ ◾

Save these instructions. Refer to them frequently and use them to instruct others who may use this tool. If you loan this tool to someone else, also loan these

◾ instructions to them to prevent misuse of the product and possible injury.

◾

Always wear substantial footwear and long trousers while operating the machine.

◾ ◾

Always be sure of the footing on slopes and to walk, never run.

SAVE THESE INSTRUCTIONS!

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

INTRODUCTION

Congratulations on your selection of 56-Volt Lithium-Ion Cordless Line Trimmer. It has been designed, engineered and manufactured to give you the best possible dependability and performance.

Should you experience any problem you cannot easily remedy, please contact EGO customer service center 1300 000 EGO (1300 000 346).

This manual contains important information on the safe assembly, operation and maintenance of your line trimmer. Read it carefully before using the line trimmer. Keep this manual handy so you can refer to it at any time.

SERIAL NUMBER _____________________ DATE OF PURCHASE _________________

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE

PLACE FOR FUTURE REFERENCE

SPECIFICATIONS

Voltage

No-load speed

Cutting Mechanism

Line Diameter

Cutting Width

Weight (Without battery pack)

56V

0-5800/min

Bump Head

2.4mm

38cm

3.04kg

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

ASSEMBLY

WARNING:

If any parts are damaged or missing, do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this line trimmer. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts.

UNPACKING

◾

This product requires assembly.

◾

Carefully remove the product and any accessories from the box. Make sure that

◾ all items listed in the packing list are included.

◾

Inspect the tool carefully to make sure that no breakage or damage occurred

◾ during shipping.

◾

Do not discard the packing material until you have carefully inspected and

◾ satisfactorily operated the tool.

◾

If any parts are damaged or missing, please return the product to the place of purchase.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

MOUNTING THE GUARD

WARNING:

Always wear gloves when mounting or replacing the guard. Take care of the blade on the guard and protect your hand from cutting.

WARNING:

Always remove battery the pack from the product when you are assembling parts, making adjustments, cleaning, or when the product is not in use.

1. Remove the battery pack from the trimmer.

2. Loosen the two bolts in the guard with the M5 hex wrench; remove the bolts and spring washers from the guard (Fig. 1).

3. Lift the trimmer head and face it downward; align the two mounting holes in the guard with the two assembly holes in the base of the shaft. Make sure the internal surface of the guard faces towards the trimmer head (Fig. 2).

4. Lock the guard in place with the bolts and the M5 hex wrench

(Fig. 3).

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

MOUNTING AND ADJUSTING THE FRONT-ASSIST HANDLE

WARNING:

Always remove battery the pack from the product when you are assembling parts, making adjustments, cleaning, or when the product is not in use.

1. Remove the battery pack from the trimmer.

2. Loose the wing nut by hand and remove the wing nut, lock pole, clamping block from the handle (Fig. 4).

3. Align the slot of the front-assist handle with the shaft, and push the handle in place, as shown in Fig. 5.

Lock Pole

Front-Assist Handle

Clamping

Block

Wing Nut

WARNING:

Only fix the front-assist handle in front of the soft sleeve on the shaft.

4. Insert the clamping block into the slot of the front-assist handle, and push it in place, as shown in Fig. 6.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

5. Insert the lock pole and lock it with the wing nut, turn the front-assist handle upwards to point toward the top of the handle, as shown in Fig. 7.

6. Adjust the front-assist handle position between the soft sleeve housing and warning label on the shaft (Fig.8).

Shorter users may adjust handle to a lower position (away from you) and taller users may adjust the handle to an upper position (towards you). The handle should be adjusted so that your front arm is straight when using the trimmer.

7. Lock the lever of the lock pole

(Fig.9).

WARNING:

Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user! When the guard was fixed, never attempted to remove or adjust the guard, if replace needed, it shall be performed by a qualified service technician!

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

PACKING LIST

PART NAME

Line Trimmer

Guard

Front-assist handle assembly

M5 Hex wrench

Operator’s manual

QUANTITY

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

DESCRIPTION

KNOW YOUR LINE TRIMMER (Fig. 10)

Rear Handle

Lock-Off Lever

Adjustable Front-Assist Handle

Trigger

Battery-Release

Button

Shaft

Guard

Trimmer Head (Bump Head)

Bump Knob

Line-Cutting Blade

Electric Contacts

Ejection Mechanism

Latch

WARNING:

Never operate the tool without the guard firmly in place. The guard must always be on the tool to protect the user.

WARNING:

The safe use of this product requires an understanding of the information on the tool and in this operator’s manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

ADJUSTABLE FRONT-ASSIST HANDLE

For easy control of the trimmer during cutting.

REAR HANDLE

Ergonomic handle with overmold improves comfort and grip.

TRIGGER

To turn the line trimmer On and Off and to adjust the trimmer head speed.

LOCK-OFF LEVER

Helps prevent accidental or unauthorized activation of the trigger. It must be depressed before the trigger can be activated.

SHAFT

Encloses and protects the cables between the motor and rear handle.

BUMP HEAD (CUTTING HEAD)

The cutting attachment for cutting grass.

BUMP KNOB

Lightly tap the bump knob on the ground while operating the trimmer to release the cutting line.

GUARD

Designed to reduce the risk of injury from foreign objects flung backwards toward the operator by the cutting attachment and from contact with the cutting attachment.

LINE CUTTING BLADE

Steel blade on the guard keeps the cutting line at the proper length.

BATTERY RELEASE BUTTON

Press to release the battery pack from the tool.

LATCH

Locks the battery pack when installing it on the tool.

EJECTION MECHANISM

Aids in battery removal.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

OPERATION

WARNING:

Do not allow familiarity with this product to make you careless.

Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Always wear eye protection with side shields. along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

WARNING:

Use your line trimmer equipped with the appropriate cutting line only for cutting grass and similar material.

TO INSTALL/REMOVE BATTERY PACK (Fig. 11 & 12)

WARNING:

Always remove the battery pack from the product when you are assembling parts, making adjustments, cleaning, or when not in use. Removing the battery pack will prevent accidental starting that could cause serious personal injury.

NOTE: Fully charge the battery pack before first use.

To install (Fig. 11)

◾ ◾

Align the ribs of the battery pack with the mounting slots in the line

◾ trimmer’s battery port.

◾

Press the battery pack toward the cutting head until it snaps into position.

NOTE: Make sure that the latch on the line trimmer snaps into place and the battery pack is secured to the tool before beginning operation.

Mounting Slot

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

To remove (Fig. 12)

Press to Release

WARNING:

Always take care of your feet and children or pets around you when pressing the battery release button.

Serious injury could result if the battery pack falls. NEVER remove the battery pack at a high location.

◾ ◾

Hold the battery pack in the

◾ palm of your hand.

◾

Press the battery release button with your thumb; the battery pack will disengage

◾ from the latch.

◾

Grasp the battery pack and remove it from the line trimmer.

HOLDING THE LINE TRIMMER

WARNING:

Dress properly to reduce the risk of injury when operating this tool. Do not wear loose clothing or jewelry. Wear eye and ear/hearing protection. Wear heavy duty, long trousers, boots and gloves. Do not wear short trousers, sandals or go barefoot.

Before operating the unit, stand in the operating position and check that:

◾ ◾

The operator is wearing eye

◾ protection and proper clothing.

◾

The arm of the hand holding the rear handle is slightly bent at the

◾ elbow.

◾

The other arm is straight, with that hand holding the front-assist

◾ handle.

◾

The trimmer head is parallel to the ground and easily contacts the material to be cut without the operator having to bend over (Fig. 13).

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

STARTING/STOPPING THE LINE TRIMMER

Before starting the line trimmer

◾

Make sure that the cutting line is not touching the ground or any other objects.

◾

Make sure you have a secure and balanced footing.

Stand upright and hold the line trimmer in a relaxed position.

Hold the line trimmer with both hands: One hand on the rear handle and one hand on the front-assist handle.

To start the line trimmer (Fig. 14)

1. Press down the lock-off lever and hold it in that position. Depress the trigger to turn on the line trimmer.

2. The rotational speed of the cutting line is controlled with the variable speed trigger. More pressure on the trigger results in higher cutting speed; less pressure on the trigger results in lower cutting speed.

Adjust the speed to suit the task at hand.

Lock-off Lever

Trigger

NOTICE: The motor runs only when the lock-off lever and trigger are operated simultaneously.

To stop the line trimmer

Release the lock-off lever and trigger to stop the line trimmer.

WARNING:

Always remove the battery pack from the line trimmer during work breaks and after finishing work.

USING THE LINE TRIMMER

WARNING:

To avoid serious personal injury, wear goggles or safety glasses at all times when operating this unit. Wear a face mask or dust mask in dusty locations.

Clear the area to be cut before each use. Remove all objects, such as rocks, broken glass, nails, wire, or line, that can be thrown or become entangled in the cutting attachment. Clear the area of children, bystanders, and pets. At a minimum, keep all children, bystanders and pets at least 15m away; there still may be risk to bystanders from thrown objects. Bystanders should be encouraged to wear eye protection. If you are approached, stop the motor and cutting attachment immediately.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

WARNING:

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.

Before each use check for damage/worn parts

Check the bump head, guard and front-assist handle and replace the parts that are cracked, warped, bent, or damaged in any away.

The line-cutting blade on the edge of the guard can dull over time. It is recommended that you periodically sharpen it with a file or replace it with a new blade.

WARNING:

Always wear gloves when mounting the guard or sharpen or replacing the blade. Take care of the blade on the guard and protect your hand from cutting.

After each use, clean the trimmer.

WARNING:

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.

◾ ◾

Use only mild soap and a damp cloth to clean the tool. Never let any liquid get inside the tool; never immerse

◾ any part of the tool into a liquid.

◾

Wipe off the unit with a clean, dry,

◾ soft cloth.

◾

Keep air vents in the shaft free from debris at all times (Fig. 15).

Air vents in shaft

CAUTION:

Obstructions in the vents will prevent the air from flowing into the motor housing and result in overheating or damaged of the motor.

WARNING:

Never use water for cleaning your trimmer. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean cloths to remove dirt, dust, oil, grease, etc.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

Tips for best trimming results (Fig. 16)

Direction of rotation

◾ ◾

The correct angle for the cutting

◾ attachment is parallel to the ground.

◾

This line trimmer allows you to rest the bump knob on the ground for

◾ operating more comfortably.

◾

Do not force the trimmer. Allow

Dangerous cutting area

Best cutting area the very tip of the line to do the cutting (especially along walls).

Cutting with more than the tip will reduce cutting efficiency and may overload

◾ the motor.

◾

The cutting height is determined by the distance of the cutting line from the lawn

◾ surface.

◾

Grass over 200mm should be cut by working from top to the bottom in small

◾ increments to avoid premature line wear or motor drag.

◾

Slowly move the trimmer into and out of the area being cut, maintaining the trimmer at the desired cutting height. This can be either a forward backward or

◾ side-to-side motion. Cutting shorter lengths produces best results.

◾

Trim only when grass and weeds are dry.

◾ ◾

Wire and picket fences can cause extra line wear or breakage. Stone and brick

◾ walls, curbs, and wood may wear lines rapidly.

◾

Avoid trees and shrubs. Tree bark, wood moldings, siding, and fence posts can easily be damaged by the lines.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

ADJUSTING CUTTING

LINE LENGTH

The bump head allows the operator to release more cutting line without stopping the motor. As line becomes frayed or worn, additional line can be released by lightly tapping the bump knob on the ground while operating the trimmer (Fig. 17).

NOTICE: Always keep the cutting line fully

extended. Line release becomes more difficult as the cutting line becomes shorter.

Bump Knob

WARNING:

Do not remove or alter the line cutting blade assembly. Excessive line length will cause the motor to overheat and may result in serious personal injury.

For best results, tap the bump knob on bare ground or hard soil. If line release is attempted in tall grass, the motor may overheat. Always keep the cutting line fully extended. Line release becomes more difficult as the cutting line becomes shorter.

LINE REPLACEMENT

NOTICE: Always use standard 2.4mm diameter nylon cutting line. Using line other than

that specified may cause the line trimmer to overheat or become damaged.

WARNING:

Never use metal-reinforced line, wire, rope, etc. These can break off and become dangerous projectiles.

There are two methods to replace the cutting line:

1. Wind the spool with new line.

2. Install a pre-wound spool.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

Wind the spool with new line

WARNING:

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.

1. Press the release tabs on the spool base and remove the spool retainer by pulling it straight out (Fig. 18).

2. Remove the spool. Use a clean cloth to clean the inner surface of the spool retainer and spool base.

NOTICE: Always clean the spool retainer,

spool and spool base before reassembling the trimmer head.

3. Check the spool retainer, spool and spool base for wear. If necessary, replace the worn parts.

4. Take approximately 4.5m of new cutting line. Fold the line in half and then adjust it so that one end is 11cm longer than the other end

(Fig. 19).

5. Hook the folded end of the cutting line onto either of the slots in the spool (Fig. 20).

6. Wind the line, in two even and tight layers, onto the spool. Wind the line in the direction indicated on the spool (Fig. 20).

Tab

Wind Direction

11 cm

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

NOTICE: Failure to wind the line in the direction indicated will cause the trimmer head

to operate incorrectly.

7. Place the ends of the line in two opposite notches in the spool, with approximately 15 cm protruding

(Fig. 21).

15 cm

8. Align the notches of the spool from which the lines protrude with the eyelets in the spool retainer and position the spool in the retainer

(Fig. 22).

Notch

Eyelet

Notch

Eyelet

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

9. Holding the spool and spool retainer, grasp one end of the line and pull it to release the line from the notch in the eyelet. Repeat with the other end (Fig. 23).

10. With the spool base facing downward, align the slots in the spool retainer with the tabs on the spool base and press the retainer evenly down until it snaps into place

(Fig.24).

NOTICE: Make sure that the tabs on the

spool base snap into place or the spool will come out during operation.

Tab

Slot

Install a pre-wound spool

WARNING:

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing attachments or removing material from the unit.

1. Press the release tabs on the spool base and remove the retainer by pulling it straight out (Fig. 18).

2. Remove the spool. Use a clean cloth to clean the inner surface of the spool retainer and spool base.

3. Check the spool retainer, spool and spool base for wear. If necessary, replace the wear parts.

4. Place a pre-wound spool on the spool retainer.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

5. Align the notches of the spool from which the lines protrude with the eyelets in the spool retainer and position the spool in the retainer (Fig. 22).

6. Holding the spool and spool retainer, grasp one end of the line and pull it to release the line from the notch in the eyelet. Repeat with the other end (Fig. 23).

7. With the spool base facing downward, align the slots in the spool retainer with the tabs on the spool base and press the retainer evenly down until it snaps into place (Fig. 24).

NOTICE: Make sure that the tabs on the spool base snap into place or the spool will

come out during operation.

MAINTENANCE

WARNING:

When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. Inspect and maintain the machine regularly. To ensure safety and reliability, all repairs should be performed by a qualified service technician.

WARNING:

Battery tools do not have to be plugged into an electrical outlet; therefore, they are always in operating condition. To prevent serious personal injury, take extra precautions and care when performing maintenance, service or for changing the cutting attachment or other attachments.

WARNING:

To prevent serious personal injury, remove the battery pack from the tool before servicing, cleaning, changing add-on attachments or removing material from the unit.

CLEANING THE UNIT

◾ ◾

Clean the unit using a damp cloth with a mild detergent.

◾ ◾

Do not use any strong detergents on the plastic housing or the handle. They can be damaged by certain aromatic oils, such as pine and lemon, and by solvents such as kerosene. Moisture can also cause a shock hazard. Wipe off any moisture

◾ with a soft dry cloth.

◾

Use a small brush or the air discharge of a small vacuum cleaner brush to clean

◾ the air vents on the shaft.

◾

Keep the air vents free of obstructions.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

STORING THE UNIT

◾ ◾

Remove the battery pack from the line trimmer when it is not in use.

◾ ◾

Clean the tool thoroughly before storing it.

◾ ◾

Store the unit in a dry, well-ventilated area, locked-up or up high, out of the reach of children. Do not store the unit on or adjacent to fertilizers, petrol, or other chemicals.

Protecting the environment

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact your local government for information regarding the collection systems available.

If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

TROUBLESHOOTING

PROBLEM

Line trimmer fails to start.

Line trimmer stops while cutting.

CAUSE

◾ ◾

The battery pack is not attached to the line

◾ ◾ trimmer.

No electrical contact between the trimmer and

SOLUTION

◾ ◾

Attach the battery pack to the line trimmer.

◾ ◾

Remove battery, check contacts and reinstall the battery pack.

◾ ◾ battery.

The battery pack is

◾ ◾ depleted.

The lock-off lever and trigger are not depressed

◾ ◾ simultaneously.

The guard is not mounted on the trimmer, resulting in an overly long cutting line

◾ ◾

Charge the battery pack.

◾ ◾

Press down the lock-off lever and hold it, then depress the trigger to

◾ ◾ turn on the line trimmer.

Remove the battery pack and mount the guard on the trimmer.

◾ and motor overload.

◾

Heavy cutting line is used.

◾ ◾

Use only with nylon cutting line

◾ ◾

The motor shaft or trimmer head is bound with grass.

◾ ◾

2.4mm diameter or less.

Stop the trimmer, remove the battery, and remove the grass from

◾ ◾

The motor is overloaded.

◾ ◾ the motor shaft and trimmer head.

Remove the trimmer head from the grass. The motor will recover to work as soon as the load is removed.

◾

◾ ◾

◾

The battery pack or line trimmer is too hot.

The battery pack is

◾ ◾ disconnected from the tool.

The battery pack is depleted.

When cutting, move the trimmer head in and out of the grass to be cut and remove no more than 20cm

◾ ◾ of length in a single cut.

Allow the battery pack or trimmer to cool until the temperature drops

◾ ◾ below 67°C.

Re-install the battery pack.

◾ ◾

Charge the battery pack.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

Trimmer head will not advance line.

Grass wraps around trimmer head and motor housing.

Line is not cutting well.

◾ ◾

The motor shaft or trimmer head is bound with grass.

◾ ◾

Stop the trimmer, remove the battery, and remove the grass from

◾ ◾

There is not enough line on the spool.

◾ ◾ the motor shaft and trimmer head.

Remove the battery and replace the cutting line; follow the section “LINE

◾ ◾

The trimmer head is dirty.

◾ ◾

REPLACEMENT” in this manual.

Remove the battery and clean the

◾ ◾

Line is tangled on spool.

◾ ◾ spool, spool retainer and spool base.

Remove the battery, remove the line from the spool and rewind; follow the section “LINE REPLACEMENT” in

◾

◾ ◾

◾

The line is too short.

Cutting tall grass at ground level.

The line-cutting blade on the edge of the guard has become dull.

◾ ◾ this manual.

Remove the battery and pull the lines while alternately pressing down

◾ ◾ on and releasing the bump knob.

Cut tall grass from the top down, removing no more than 20cm in

◾ ◾ each pass to prevent wrapping.

Sharpen the line-cutting blade with a file or replace it with a new blade.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

EGO WARRANTY POLICY

5 year limited warranty on EGO outdoor power equipment and 3 year limited warranty on EGO Power+ System battery packs and chargers.

Please contact EGO customer service on 1300 000 EGO (1300 000 346) any time you have questions or warranty claims.

SERVICE WARRANTY

FOR FIVE YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or workmanship. Defective product will receive free repair.

FOR THREE YEARS from the date of original retail purchase, the EGO Power+ System battery pack and charger are warranted against defects in material or workmanship.

Defective product will receive free repair.

This warranty does not cover routine maintenance parts and consumables, such as the cutting line, that can wear out from normal use within the warranty period.

a) This warranty applies only to the original purchaser at retail and may not be transferred. b) The warranty period for any EGO product or part used for industrial, professional or commercial purpose is one year.

c) This warranty is void if the product has been used for rental purpose.

d) This warranty does not cover the damage resulting from modification, alteration or unauthorized repair or from use of any cutting line other than the EGO authorized cutting line recommended for use with this product.

e) This warranty only covers defects arising under normal usage and does not cover any malfunction, failure or defect resulting from misuse, abuse (including overloading of the product beyond capacity and exposure to water or rain), accidents, neglect or lack of proper installation, and improper maintenance or storage.

f) This warranty does not cover normal deterioration of the exterior finish, including but not limited to scratches, dents, paint chips, or to any corrosion or discoloring by heat, abrasive and chemical cleaners.

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

HOW TO OBTAIN SERVICE

For warranty service, please contact EGO customer service on

1300 000 EGO (1300 000 346). When requesting warranty service, you must present the original dated sales receipt. An authorized service center will be selected to repair the product according to the stated warranty terms.

ADDITIONAL LIMITATIONS

Chervon Australia Pty Ltd ABN 36 165 077 501(“Chervon”) warrants to the original domestic purchaser that this product will be free from defects in materials and workmanship for 5 years from date of purchase, and any battery or charger will be free from defects in materials and workmanship for 3 years from date of purchase. To make a claim, return the faulty item together with proof of purchase directly to your closest service agent or to the place of purchase. Any handling and transportation costs (and other expenses incurred in claiming this warranty) are not covered by this warranty and will not be borne by Chervon. The replacement product or part or repaired product will be made available for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty does not cover normal wear and tear, misuse or abuse. This warranty may also be further limited or voided as specifically detailed in the product Manual. Chervon has no other liability under this warranty.The benefits to you given by this warranty are in addition to other rights and remedies imposed by State and Federal legislation that cannot be excluded. Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Chervon Australia Pty Ltd,

Unit 13, 1488 Ferntree Gully Rd, Knoxfield, VIC. 3180. Phone Number: 1300 000 EGO

(1300 000 346). Email address: [email protected]

56 VOLT LITHIUM-ION CORDLESS BRUSHLESS LINE TRIMMER — ST1500E

PARTS LIST

56V LITHIUM-ION CORDLESS LINE TRIMMER

MODEL NUMBER ST1500E

The Model Number will be found on the Nameplate attached to the housing of the line trimmer. Always mention the Model Number when ordering parts for this tool.
