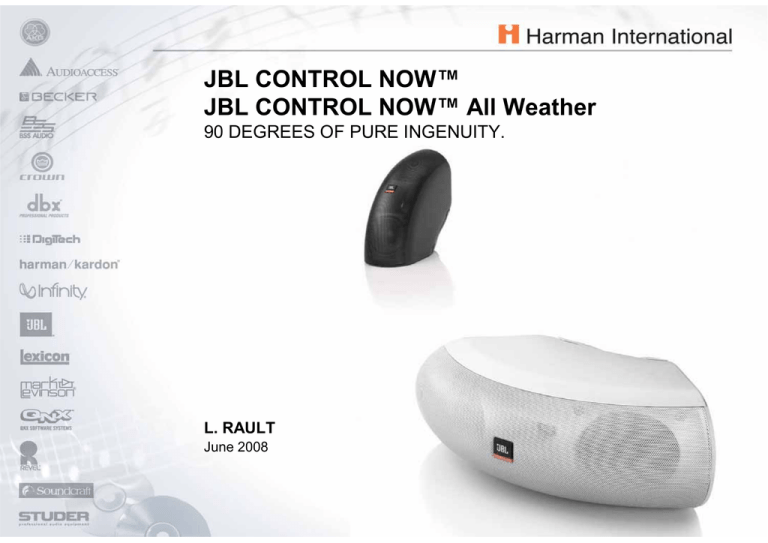

JBL CONTROL NOW™
JBL CONTROL NOW™ All Weather
90 DEGREES OF PURE INGENUITY.
L. RAULT
June 2008
JBL CONTROL NOW™
90 DEGREES OF PURE INGENUITY.
JBL CONTROL NOW™
CONTROL NOW Black
CONTROL NOW White
►
2-way dual 4” multipurpose
loudspeaker
►
2-way dual 4” multipurpose
loudspeaker
►
Regular
►
All-Weather
JBL CONTROL NOW™
May 2008
July 2008
IFA 2008
CONTROL NOW - Black
CONTROL NOW All Weather - White
JBL CONTROL NOW™
THE SHAPE OF THE JBL CONTROL NOW SPEAKER MAKES IT
PERHAPS THE MOST FLEXIBLE SPEAKER EVER DEVELOPED.
ONE SPEAKER, DOZENS OF POSSIBILITIES.
JBL CONTROL NOW™
STAND CONTROL NOW
►
Vertically
►
Or Horizontally
JBL CONTROL NOW™
MOUNT CONTROL NOW ON FLOORSTANDS
►
Using the INCLUSIVE STANDMOUNT BRACKET
►
Bracket works with majority of
third party floorstand suppliers
JBL CONTROL NOW™
CORNER WALL MOUNT CONTROL NOW
►
Wall to Wall
►
Or Ceiling to Wall
JBL CONTROL NOW™
CORNER WALL MOUNT CONTROL NOW
JBL CONTROL NOW™
MOUNT CONTROL NOW ON A WALL IN A TWOSPEAKER ARRAY.
JBL CONTROL NOW™
MOUNT CONTROL NOW AS A THREE-SPEAKER HORIZONTAL ARRAY
ON A WALL CORNER
JBL CONTROL NOW™
ALL SHOWN WALL MOUNTS POSSIBLE WITH INCLUSIVE CORNER /
WALL-MOUNT BRACKET
HANG A FOUR-SPEAKER ARRAY FROM THE
CEILING
►
Using the OPTIONAL POLE-MOUNT
BRACKET and standard ceiling fan
hardware.
JBL CONTROL NOW™
OPTIONAL POLE-MOUNT KIT
►
A proprietary harness simplifies
wiring and wire management
and increases sensitivity by
6dB, compared to wiring in
series.
JBL CONTROL NOW™
INCLUSIVE MULTIUNIT WIRING ADAPTER
►
JBL Control NOW speakers eliminate
impedance restrictions with a wiring
adapter that makes configuring multi-unit
arrays simple.
JBL CONTROL NOW™
MULTIPLE WIRING CONFIGURATIONS.
►
Using the cable assembly
provided to wire the units
for a single channel.
Single-channel wiring diagram.
JBL CONTROL NOW™
MULTIPLE WIRING CONFIGURATIONS.
►
Using the multiunit wiring
adapters to wire the units for
two channels.
►
EVEN sound distribution – Use
this connection for even sound
distribution through both
channels. This may be more
appropriate for larger rooms.
2-Channel wiring diagram for even
sound distribution.
JBL CONTROL NOW™
MULTIPLE WIRING CONFIGURATIONS.
►
Using the multiunit wiring
adapters to wire the units for
two channels.
►
STEREO sound distribution –
Use this connection for a
smaller home theater/stereo
environment.
2-Channel wiring diagram for stereo
sound distribution.
JBL CONTROL NOW™
MULTIPLE WIRING CONFIGURATIONS.
►
Using four sets of cables to
wire the units for four
channels.
4-Channel wiring diagram.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
HIGH-FREQUENCY TRANSDUCER WAVEGUIDE DESIGN.
►
JBL Control NOW speakers can go places
where other speakers cannot
►
Corner-mounting and some multi-unit
configurations would sometimes cause
unwanted sound reflections.
►
CONTROL NOW features an all-new adaptation
of JBL’s patented Bi-Radial® horn
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
HIGH-FREQUENCY TRANSDUCER WAVEGUIDE DESIGN.
►
For JBL Control NOW speakers, a new Bi-Radial-horn profile with smoothly
blended edges was developed to minimize diffraction artifacts.
►
The result is remarkably
wide and uniform highfrequency response, which
is also exceptionally
smooth.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
HIGH-FREQUENCY TRANSDUCER WAVEGUIDE DESIGN.
►
Each JBL Control NOW tweeter uses 3/4" (19mm) titanium-laminate diaphragms
and ferrofluid-cooled voice coils driven by high-strength neodymium boron-iron
magnets.
►
It’s a high-efficiency design for
maximum power handling, minimal
thermal compression.
►
The tweeter/ Bi-Radial-horn
combination produces more than
100dB at 2kHz, from 2.83 volts at 1
meter.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
LOW-FREQUENCY TRANSDUCER DESIGN.
►
JBL Control NOW speakers’ low-frequency transducers deliver an ideal
combination of enhanced power handling and output, with reduced
distortion.
►
Low-frequency performance is
optimized through Finite Element
Analysis of transducer motor and
suspension components.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
LOW-FREQUENCY TRANSDUCER DESIGN.
►
FINITE ELEMENT ANALYSIS (FEA) is a computer analysis technique using the
finite element method to break large, complex systems into small pieces (or
elements).
►
By breaking the complex system down
into small pieces, the system becomes
predictable, as each element is
solvable and the solution to the
system is simply the combination of all
the element solutions.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
LOW-FREQUENCY TRANSDUCER DESIGN.
►
►
Optimized voice coil placement
maximizes heat transfer and provides
symmetrical motor force.
►
Optimized suspension
geometry provides
symmetrical restoring
force.
Optimized motor
geometry
►
Dual neodymium magnets
provide maximum motor
strength.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
SYSTEM ACOUSTICAL DESIGN.
►
The frequency response of JBL Control NOW speakers is optimized for maximum
placement flexibility, particularly relative to walls, ceilings and corners.
►
CONTROL NOW have
constant-directivity
characteristics when wallmounted
►
and Omni-directional
characteristics when cornermounted or grouped in a fourspeaker circular array.
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
SYSTEM ACOUSTICAL DESIGN.
►
A polar plot of SPL vs. angle in a horizontal array of four JBL Control NOW
loudspeakers. Tweeter axes correspond to 45, 135, 225 and 315 degrees.
►
Measurements show
uniform coverage across
the bandwidth, the result
of transducer placement
and Bi-Radial directivity
control.
SPL vs. ANGLE
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
MECHANICAL DESIGN.
►
►
Enclosures and baffles are constructed of a thermoplastic composite material
containing both glass and mineral fill.
It’s exceptionally stiff, yet well damped, and enclosure walls are
double-thick (1/4").
JBL CONTROL NOW™
ADVANCED TECHNOLOGY FOR A MORE NATURAL SOUND
MECHANICAL DESIGN.
►
►
A highly integrated mechanical design uses die-cast aluminum lock plates, port
tubes – and even the electrical network board itself
Increased rigidity and structural integrity to
further reduce unwanted resonances and
acoustical loss.
JBL CONTROL NOW™
CONTROL NOW CARTONS
JBL CONTROL NOW™
CONTROL NOW DISPLAYS
JBL CONTROL NOW™
SPECIFICATIONS
JBL CONTROL NOW™ and CONTROL NOW All Weather *
Maximum recommended amplifier power † : 150W
Power handling: 50W continuous/300W peak
Frequency response: 80Hz – 30kHz (–6dB)
Nominal impedance: 8 Ohms
Sensitivity: 90dB @ 2.83V/1 meter
Crossover point: 2kHz
Crossover slope: 18dB/octave (LF driver); 36dB/octave (HF driver)
LF drivers: Dual 4" (200mm) PolyPlas™, shielded
HF driver: 3/4" (19mm) titanium laminate, shielded
† The maximum recommended amplifier power rating will ensure proper system headroom to allow for
occasional peaks. We do not recommend sustained operation at these maximum power levels.
* Please note that while JBL Control NOW AW is an all-weather outdoor speaker, it is not waterproof. It
should be sheltered from direct exposure to ice, snow and sustained moisture.
