HP Wireless Display Adapter Specification

HP Wireless Display Adapter Specification

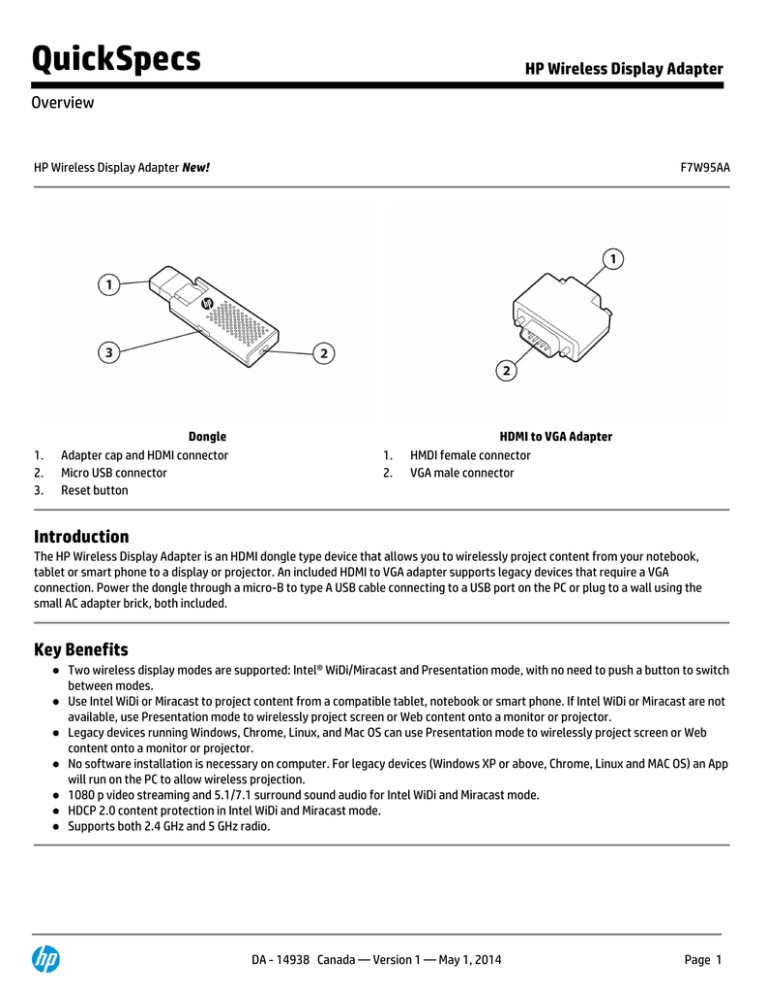

HP Wireless Display Adapter
HP Wireless Display Adapter New!
Adapter cap and HDMI connector
Micro USB connector
Reset button
HDMI to VGA Adapter
HMDI female connector
VGA male connector
The HP Wireless Display Adapter is an HDMI dongle type device that allows you to wirelessly project content from your notebook,
tablet or smart phone to a display or projector. An included HDMI to VGA adapter supports legacy devices that require a VGA
connection. Power the dongle through a micro-B to type A USB cable connecting to a USB port on the PC or plug to a wall using the
small AC adapter brick, both included.
Key Benefits
Two wireless display modes are supported: Intel® WiDi/Miracast and Presentation mode, with no need to push a button to switch
between modes.
Use Intel WiDi or Miracast to project content from a compatible tablet, notebook or smart phone. If Intel WiDi or Miracast are not
available, use Presentation mode to wirelessly project screen or Web content onto a monitor or projector.
Legacy devices running Windows, Chrome, Linux, and Mac OS can use Presentation mode to wirelessly project screen or Web
content onto a monitor or projector.
No software installation is necessary on computer. For legacy devices (Windows XP or above, Chrome, Linux and MAC OS) an App
will run on the PC to allow wireless projection.
1080 p video streaming and 5.1/7.1 surround sound audio for Intel WiDi and Miracast mode.
HDCP 2.0 content protection in Intel WiDi and Miracast mode.
Supports both 2.4 GHz and 5 GHz radio.
DA - 14938 Canada — Version 1 — May 1, 2014
Page 1
HP Wireless Display Adapter
The display adapter is compatible with Intel® Pro WiDi, Intel WiDi, and other Miracast Certified devices as well as devices with WiFi
capability. You do not have to be connected to a network to connect to the display adapter. The following table lists operating system
Operating System Connection Type
Windows XP and higher
Android 4.2 and higher
Chrome WiFi 802.11n
Linux WiFi 802.11n
Mac OS WiFi 802.11n
Intel® WiDi 3.5 and higher, Miracast using WiFi 802.11n or higher, AP
WiFi using 802.11g or higher
Intel® WiDi 3.5 or higher, Miracast
WiFi 802.11n
WiFi 802.11n
WiFi 802.11n
Service and Support
Each adapter has a one-year limited warranty or the warranty remaining for the HP product in which it is installed. Technical support is
available seven days a week, 24 hours a day, as well as in online support forums. Certain restrictions and exclusions apply.
DA - 14938 Canada — Version 1 — May 1, 2014
Page 2
HP Wireless Display Adapter
Technical Specifications
HP Wireless Display Adapter
HDMI V1.3a with HDCP protection
USB 2.0 interface high speed
Technology/Operating bands Dual band 2.4G / 5G radio
IEEE 802.11a/g/n
Wireless protocol standards Programmable Access Point (AP) or Station (STA) functionality
Wi-Fi direct (WiDi) / Miracast
Maximum data rates
11n: 300 Mbps
11b: 11 Mbps
11g: 54 Mbps
11a: 135 Mbps
Maximum output power
11g:15±1dbm ;11n:14±1dbm
11a:13±2dbm ;11n:12±2dbm
Maximum power consumption around 600mA
Antenna type
PIFA antenna
Around 28 g
(Length x Width x Thickness)
Voltage, Operating
94.1 x 30.5 x 14.2 mm
Temperature, operating
10° to 50° C (Normal operation)
0° to °65 C (Extended operation)
-30° to 60° C
Temperature, storage
Configuration utilities
Kit contents
4.75V~5.25V (5V recommended)
Up to 85% (Operating)
Up to 60% (Storage)
Web server running on dongle
HP Wireless Display Adapter and cap
HDMI-to-VGA adapter
Micro USB-to-USB cable
Power adapter and localized plug
Carrying bag
© Copyright 2014 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. All other trademarks are the property of their respective owners.
DA - 14938 Canada — Version 1 — May 1, 2014
Page 3
