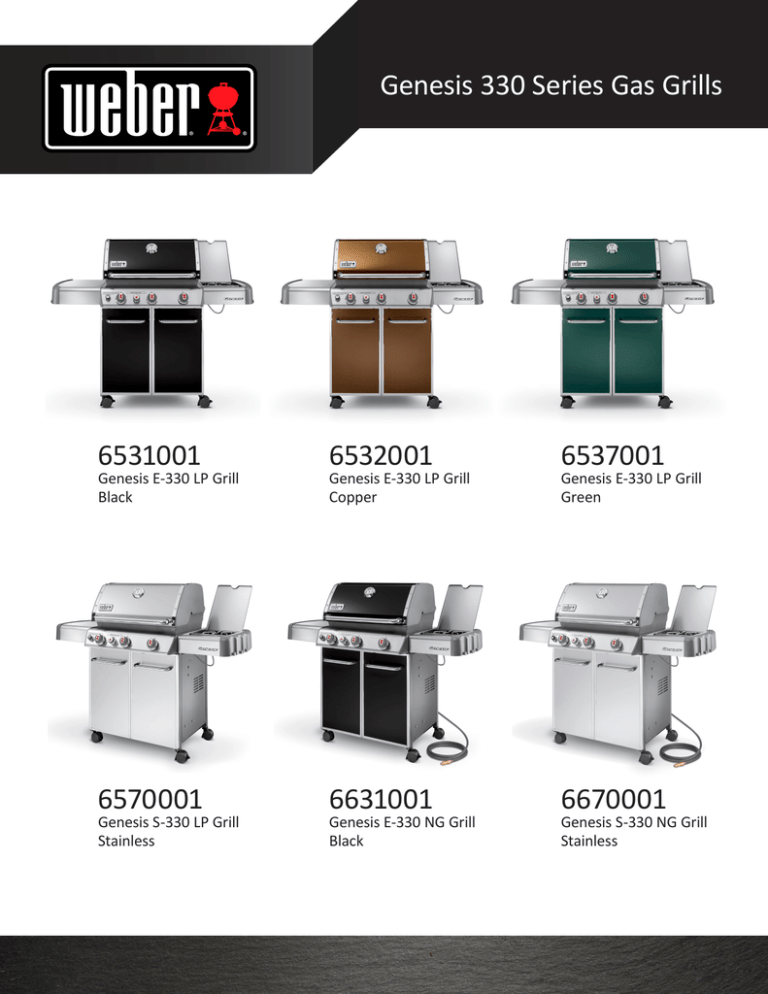

Genesis 330 Series Gas Grills
6531001
6532001
6537001
6570001
6631001
6670001
Genesis E-330 LP Grill
Black
Genesis S-330 LP Grill
Stainless
Genesis E-330 LP Grill
Copper
Genesis E-330 NG Grill
Black
Genesis E-330 LP Grill
Green
Genesis S-330 NG Grill
Stainless
Genesis 330 Series Gas Grills
Cooking System
Fuel
Stainless steel burners: 3
Porcelain-enameled, cast-iron cooking grates
Porcelain-enameled Flavorizer® bars
Main burners: BTU-per-hour input: 38,000
Side burner: BTU-per-hour input: 12,000
Individual electronic ignition system
Sear Station burner: BTU-per-hour input: 10,000
Natural gas (10-foot flexible hose included)
-- OR -Liquid propane (20-lb LP tank sold separately)
Please check with your retailer to ensure you purchase the
correct model you are looking for (Natural gas or LP). Due to the
complexity of the technology, gas train components, and the
level of disassembly that would have to be performed, we are
not allowing conversions or offering kits. This decision was made
in the interest of safety. Not all models are available in LP or NG.
Cooking Area
Primary cooking area (square inches): 507
Warming rack area (square inches): 130
Total cooking area (square inches): 637
Construction
Porcelain-enameled shroud with center-mounted thermometer
Stainless steel work surfaces: 2
Front-mounted control panel
Painted enclosed steel cabinet with painted steel doors and
stainless steel handles
Front access, porcelain-enameled grease tray with catch pan
Heavy-duty front locking swivel casters: 2
Heavy-duty back swivel casters: 2
Stainless steel heat deflectors
Color
Porcelain-enameled steel
Black (LP): 1
Black (NG): 1
Copper (LP): 1
Green (LP): 1
Stainless steel (LP): 1
Stainless steel (NG): 1
Dimensions (Lid Open)
Height (inches): 64.5
Width (inches): 60
Depth (inches): 30
Dimensions (Lid Closed)
Height (inches): 47.5
Width (inches): 60
Depth (inches): 30
