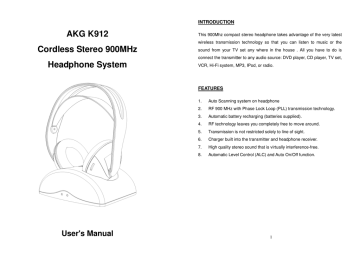

INTRODUCTION
AKG K912
Cordless Stereo 900MHz
Headphone System
This 900Mhz compact stereo headphone takes advantage of the very latest
wireless transmission technology so that you can listen to music or the
sound from your TV set any where in the house . All you have to do is
connect the transmitter to any audio source: DVD player, CD player, TV set,
VCR, Hi-Fi system, MP3, IPod, or radio.
FEATURES
User's Manual
1.
Auto Scanning system on headphone
2.
RF 900 MHz with Phase Lock Loop (PLL) transmission technology.
3.
Automatic battery recharging (batteries supplied).
4.
RF technology leaves you completely free to move around.
5.
Transmission is not restricted solely to line of sight.
6.
Charger built into the transmitter and headphone receiver.
7.
High quality stereo sound that is virtually interference-free.
8.
Automatic Level Control (ALC) and Auto On/Off function.
1
COMPONENT IDENTIFICATION
COMPONENT IDENTIFICATION
1
Ear Cushion Holder (Left)
2
Ear Cushion Holder (Right)
3
Volume Control
4
Auto Tuning Button
5
Auto Tuning Indicator
6
Charge Contact (Headphone)
7
Power Indicator
8
Power ON/OFF Switch
9
Charge Indicator
10
Power Indicator
11
Charge Contact (Transmitter)
12
Channel Selector (Channel 1 2 3)
13
Audio Input
14
DC IN
15
Audio Connection Cable with 3.5 mm Jack Plug and RCA Adapter.
16
Power AC/DC Adapter
17
2 Pieces of AAA Rechargeable Batteries
INSTALLATION
TRANSMITTER
1.
Connect the Power Adapter provided to an electrical outlet.
2.
Connect the Power Adapter Cable to the DC IN input connector
located on the transmitter rear panel.
3.
Connect the Audio Input to the Source with the Audio Connection
Cable provided.
2
3
The Power Indicator on the Transmitter glows once the Power Adapter is
connected to the mains outlet, and the Audio Input is connected to a signal
OPERATION
1.
transmitter is connected to.
source, and switched On. If the Power Indicator does not light up, switch On
the audio source and increase its sound output level until the Power
2.
3.
RECEIVER HEADPHONE
4.
A battery compartment should be found under the Left
3.
If the best reception frequency cannot be obtained, press the "Auto
Tuning" button on the Right headphone cabinet. The corresponding
and Right Ear Cushion Holder.
2.
Place the headphone on your head and adjust the volume to obtain the
desired sound level.
Remove the Left and Right Ear Cushion Holder on the receiver
headphone.
Press the “Power ON/OFF” Switch of the Headphone until the Power
Indicator glows.
Indicator glows.
1.
Switch on the sound source (TV set or audio component) that the
indicator will glow.
Insert a rechargeable LR03/AAA size rechargeable batteries (supplied
with the product) in both right / left earphone cabinet, and make sure
NOTE:
the polarity is correct. (Make sure to use the rechargeable batteries
You should then be able to move around freely from one room to another
provided with the product as these batteries are designed with side
without any interference. If interference does occur (interruptions in the
charging contact)
signal), press the "Auto Scan" button once to find a better reception channel.
Put back the Ear Cushion Holder in original position.
A
For better stereo reception, stay approximately seven meters away
from the transmitter when you press the "Auto Scan" button.
B
If a satisfactory frequency is not obtained, select other channels
among Channel 1, 2 and 3 behind the transmitter, then press the "Auto
Scan" button on the headphone to find the corresponding channel.
To protect the transmitter and to save power, the transmitter automatically
switches off after approximately four minutes if the signal that it receives
from the audio source is too weak for proper reception. If however the signal
returns to an acceptable level, then the transmitter automatically switches
back on.
4
5
proper disposal container to ensure that they are eliminated safely and in an
CHARGING THE BATTERIES
1. On the headphone, press the “Power ON/OFF” Switch until the Power
environmentally-friendly way. Thank you.
Indicator is off.
2. To recharge the headphone batteries, place the headphone on the
transmitter, taking care to ensure that the Charge Contacts touch the
transmitter's charge prongs.
3. The charge process starts automatically and the Charge Indicator glows.
Be sure to charge new batteries for 24 hours before using them for the
first time in the headphone.
Only use rechargeable batteries of the type specified under the “Technical
specifications” heading.
The rechargeable batteries supplied with the headphone must absolutely not
be taken apart, disposed of in an open fire or short circuited.
TECHNICAL SPECIFICATIONS
WARNING:
Transmission mode
: UHF stereo
Never attempt to recharge conventional dry cells. Use the rechargeable
Carrier frequency
: Ch 1 : 915.48
– 915.55 MHz
batteries supplied with the product as these batteries are specially designed
Ch 2 : 915.98 – 916.02 MHz
with side charging contact.
Ch 3 : 916.48 – 916.55 MHz
Never use another type of battery or non-rechargeable batteries to replace
Operating voltage
: Transmitter – 8 V 200 mA
the rechargeable (LR03/AAA) batteries supplied. When the headphone are
Receiver
– 2.4 V (two rechargeable batteries,
not in use, switch Off the headphone to avoid damaging the batteries.
LR03/AAA size)
The batteries must always be fully charged before use. An initial 24 hour
Frequency response
: 7 Hz – 10 KHz
charge is required to guarantee an acceptable service life for the
Distortion
: <2%
rechargeable batteries. Always ensure that the headphone are switched to
Signal-to-noise ratio
: >50 dB
the Off position while the batteries are charging.
Channel separation
: 30 dB
Range
: 150 feet (open area)
IMPORTANT:
This unit should be operated with rechargeable batteries only. When
replacing the batteries or when disposing of the unit, always comply with
applicable laws relating to the disposal of batteries. Please place them in a
6
7
TROUBLE SHOOTING
WARNING :
NO SOUND
Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
Ensure that the power adapter is pushed fully into the power
the user’s authority to operate the equipment.
outlet and that its cable is firmly connected to the transmitter.
subject to the following two conditions: (1) this device may
-
Ensure that the headphone is switched on.
not cause interference, and (2) this device must accept any
-
The headphone battery charge level may be too low. Recharge
interference,
the batteries or replace them with fully charged batteries.
undesired operation of the device.
-
-
including
Ensure that your TV set, Hi-Fi system or audio component is
switched on and set to a channel that broadcasts an audio signal.
-
Use the headphone volume control to increase the sound level.
-
The connected audio/video equipment may not be in playback
mode. Start playback on by the equipment.
-
The headphone output level is set too low. Adjust the volume to a
suitable level.
DISTORTION
-
Ensure that the Auto Tuning indicator is lit. If not, press the Auto
Tuning Button on the headphone until it glows.
-
Use the channel selector to change the transmitter's transmission
frequency. Then press the Auto Tuning Button on the headphone
until it glows.
-
The headphone battery charge level may be too low. Recharge
the batteries or replace them with fully charged batteries.
-
Ensure that the volume Control setting is correct.
-
The headphone may be too far away from the transmitter. Move
closer to it.
-
The audio signal input level is too low. Increase the volume of the
audio source.
8
9
interference
that
Operation is
may
cause
