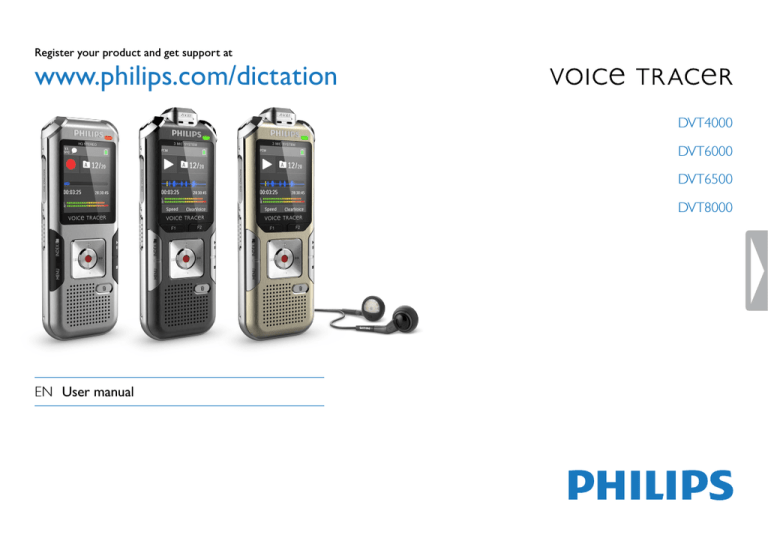

Register your product and get support at
www.philips.com/dictation
DVT4000
DVT6000
DVT6500
DVT8000
EN User manual
2

Table of contents
Table of contents
1 Important safety information 1.1 Safety instructions
2 About this user manual
5
5
7
2.2 Symbols used
7
3 Your recorder
8
3.1 Product highlights
3.2 Package contents
3.3 Product overviews
3.3.1 Front and rear sides
3.3.2 Keys
3.3.3 Remote control (DVT6500, DVT8000)
3.4 Start-up screen
3.4.1 Menu overview
4 First steps
4.1 Charge device
4.2 Power on/off
4.3 Initial installation process
4.3.1 Select language
4.3.2 Set date & time
4.4 Show recording and device information
4.5 Enable/disable the keypad lock
4.6 Insert microSD card
4.7 Pull out the stand (DVT6000 – DVT8000)
4.8 Using the remote control (DVT6500, DVT8000)
Table of contents
8
9
10
10
11
12
13
14
15
15
15
16
16
16
17
17
17
18
19
4.9 How to use the remote control (DVT6500, DVT8000)
4.10Accessories
4.10.1 How to connect headphones
4.10.2 Connecting an external microphone
4.10.3 How to use the phone pick-up microphone
4.10.4 How to use the meeting microphone
4.11Connecting to a computer
4.11.1 Transferring files from or to the device
4.11.2 Disconnecting from a computer
19
20
20
20
21
22
23
24
24
5 Record
25
5.1 Record settings
5.1.1 Recording using an external microphone
5.1.2 Add index marks
5.1.3 Recording using the Zoom function
(DVT6000 – DVT8000)
5.1.4 Using the pre-recording function
5.2 Start recording automatically
5.2.1 Use Timer function
5.2.2 Use voice activation
25
26
27
27
27
28
28
28
6 Playback
29
6.1 Select a recording
6.1.1 Find recording with calendar search
6.2 Playback a recording or music file
6.3 Adjusting playback speed
6.4 Quick search
6.5 Repeat a file / repeat a sequence
29
30
30
31
31
31

3
7 Edit & delete
7.1 Edit a recording
7.1.1 Add to or overwrite a recording
7.1.2 Split a recording
7.2 Deleting recordings on the device
8 Radio (DVT6000 – DVT8000)
8.1 Radio mode
8.2 Saving a radio station pre-set
8.2.1 Saving radio stations automatically
8.2.2 Saving a radio station manually
8.2.3 Deleting a pre-set radio station
8.3 Set output devices for radio playback
8.4 Record from FM radio
9 Settings
9.1 Recording settings
9.1.1 Set file location
9.1.2 Automatically adjusting recording settings
9.1.3 Setting recording quality
9.1.4 Set microphone sensitivity
9.1.5 Enabling/disabling the wind filter
9.1.6 Enabling/disabling noise reduction
9.1.7 Setting editing mode
9.1.8 Switching silent recording on and off
9.1.9 Enabling/disabling the pre-recording function
9.1.10 Setting the timer
9.1.11 Enabling/disabling voice-activated recording
9.1.12 Setting auto divide
9.1.13 Enabling/disabling the record indicator
9.1.14 Selecting an external sound source
4

33
33
33
34
34
35
35
35
35
36
36
36
37
38
38
38
38
39
39
40
41
41
42
42
43
43
44
45
45
9.2 Display settings
9.2.1 Select language
9.2.2 Adjusting the display contrast
9.2.3 Adjusting the backlight
9.2.4 Setting Demonstration mode
9.3 Device settings
9.3.1 Set date & time
9.3.2 Enabling/disabling ClearVoice
9.3.3 Adjusting the equalizer
9.3.4 AUTO-OFF
9.3.5 Alarm clock
9.3.6 Enabling/disabling key and signal tones
46
46
46
46
47
48
48
48
49
49
50
50
10 Service
51
10.1Service functions
10.1.1 Display device information
10.1.2 Memory formatting
10.2Replacing the remote control battery (DVT6500, DVT8000)
10.3Updating the firmware
10.4Troubleshooting
11 Appendix
11.1Technical data
51
51
51
52
52
54
55
55
Table of contents
1 Important safety information
Do not make any adjustments and modifications that are not described
in this manual. Follow all safety instructions to ensure proper
operation of the device. The manufacturer assumes no liability for
damages resulting from non-compliance with the safety instructions.
1.1 Safety instructions
• Protect the device from rain or water to prevent a short circuit.
• Do not expose the device to excessive heat caused by placing it on a
heating device or in direct sunlight.
• Protect the cables from damage by being trapped, particularly at the
plugs and where cables exit the housing.
• Back up your data and recordings. The manufacturer cannot be held
responsible for any loss of data.
• Do not perform any maintenance operations that are not
described in this user manual. Do not disassemble the device into
its component parts to carry out repairs. The device may only be
repaired in authorised service centres.
Table of contents
1.1.1 Batteries and rechargeable batteries
• Fully charge the rechargeable battery before first use. A full recharge
cycle takes about 3.5 hours when the device is connected to a
computer.
• Only use CR2025 type batteries for the remote control (DVT6500,
DVT8000).
• Batteries and rechargeable batteries contain substances that may
pollute the environment. Used batteries and rechargeable batteries
should be disposed of at an official collection point.
1.1.2 Memory cards
• The device supports microSD memory cards up to 32 GB in
capacity.
• Make sure that the card has a sufficiently high data transfer rate. The
manufacturer makes no guarantee for trouble free operation.
• Formatting a memory card erases all data on the card. The memory
card must always be formatted in the device to ensure that the
format is correct. Formatting the memory card using a computer
can lead to eventual errors when reading or writing data.

5
1.1.3 Hearing protection
1.1.5 Legal restrictions on recording
Observe the following guidelines when using headphones:
• Set the volume to a moderate level and do not use headphones to
listen for excessively long periods of time.
• Be particularly careful to avoid adjusting the volume to a level that
your hearing cannot deal with.
• Do not turn the volume up so high that you cannot hear what is
going on around you.
• In potentially dangerous situations you must be very careful, or
temporarily discontinue use.
• Do not use headphones while operating a motorised vehicle, cycling,
or skateboarding, etc. You could be a hazard to yourself and other
road users, and possibly be breaking the law.
• The use of the device's recording function is subject to the legal
restrictions that may apply in your country. You should also respect
the privacy and personal rights of the third parties if you record
talks or lectures.
• Please note that, in certain countries, you may be legally required
to inform the person you are conversing with on the telephone
that you are recording the conversation, or that the recording of
telephone conversations is illegal. Please check if the use of such
data is legal in your country prior to recording telephone calls.
1.1.4 Maximum sound power
• The manufacturer guarantees compliance with the maximum sound
power of its audio players as determined by relevant regulatory
bodies, but only with the original model of headphones supplied. If
you need to replace these headphones, we recommend contacting
your dealer to order the respective original Philips model.
6

Table of contents
2 About this user manual
You can find a quick overview of your device in the following pages.
For detailed description, see the following chapters of this user
manual. Read this user manual carefully.
2.1 Model-specific features and diagrams
Caution
• This symbol warns of damage to the device and possible data loss.
Damage can be caused by improper handling.
Warning
• This symbol warns of danger to persons. Bodily injury or damage
could be caused by improper handling.
This user manual describes a number of models of the device product
range. Please note that some features are only available on certain
models.
2.2 Symbols used
Tip
• This symbol identifies information that helps you to use your
device more efficiently and simply.
Note
• This symbol indicates notices which you must observe when
handling or operating the device.
Table of contents
About this user manual
7
3 Your recorder
We are delighted that you have chosen a Philips device. Visit our
website for comprehensive support such as user manuals, software
downloads, warranty information and much more:
www.philips.com/dictation.
3.1 Product highlights
• Stereo recording in MP3 format for excellent sound quality
• Zoom microphone feature for recording at distances of up to 15
metres / 50 feet
• ClearVoice for clear and natural reproduction of speech
• Motion sensor for automatic microphone sensitivity adjustment
• Voice-activated recording mode without pressing buttons (handsfree operation)
• Pre-recording feature, to avoid missing a single word
• Recording and power supply via a USB port for unlimited recordings
• Large color display for clear status information of recording
• Slot for microSD card for extra storage
• Highlight important parts of your recording using index marks
• Calendar search to find all recordings quickly
• Robust and ergonomic metal design for extra durability
8
Your recorder
Table of contents
DVT4000: Device
DVT6000 – DVT8000: Device
USB cable to connect to a computer
Quick start guide
DVT6000 – DVT8000: Stereo headphones
DVT8000: Meeting microphone
DVT6500: Line-in cable
DVT6500, DVT8000: Carry case
DVT6500, DVT8000: Remote control (battery inserted)
MENU
a b c d e f g h i INDEX/a
3.2 Package contents
Note
• Please note that some individual components may not be included
in delivery with your model. If any item is missing or damaged,
please contact your distributor.
Table of contents
Your recorder
9
3.3 Product overviews
3.3.1 Front and rear sides
a b c d e f g h i j k l m n o 10
ON/OFF switch / HOLD (keypad lock)
Slot for memory card (microSD card)
Microphone
DVT6000 – DVT8000: Zoom microphone
Status LED:
Red – device is recording
Green – device is playing back
Orange – data is being transferred to/from the computer
Display
Operating panel with keys
Speaker
Eye for wrist strap
Reset key
DVT6500, DVT8000: Infra-red remote control signal sensor
window
Headphone socket (stereo jack plug, 3.5 mm)
External microphone socket, line-in socket (stereo jack plug,
3.5 mm)
DVT6000 – DVT8000: Fold-out stand
Micro USB connection for the computer (not shown)
Your recorder
Table of contents
3.3.2 Keys
Short press: call up menu functions (MENU key);
Long press: switch on radio
b g Start recording (record key); confirm selection
c Stop mode: change folder; recording: set index mark
(INDEX/a key)
d DVT6000 – DVT8000: Soft function key F1
e DVT6000 – DVT8000: Soft function key F2
The function of the soft function keys depends on the
operating condition; the assigned function is shown on the
display
f e Short press: playback recording (playback key), pause playback
(pause key);
Long press: set the playback speed
g h Short press: jump to the previous index mark, jump to the
previous recording;
Menu navigation: display previous menu tab;
Press and hold: fast seek rewind mode
+ Increase volume; menu navigation: select menu function,
change value
b Short press: jump to the next index mark, jump to the next
recording;
Menu navigation: display next menu tab;
Press and hold: fast seek forward mode
– Reduce volume, menu navigation: select menu function,
change value
h j Stop playback (stop key); close menu
i z Delete recording (delete key)
a Table of contents
Your recorder
11
3.3.3 Remote control (DVT6500, DVT8000)
a b c 12
Start recording (record key), pause recording (pause key)
Stop recording (stop key)
Battery compartment (not shown)
Your recorder
Table of contents
3.4 Start-up screen
Playback: S – Normal, { – Pause, j – Stop, c – Slow, U – Fast,
g – Recording, | – Recording paused, V W – Search
b ƒSet recording quality: ‡ – PCM, … – SHQ, ƒ – HQ,
ˆ – SP, † – LP, „ – MP3 (music playback),
‰ – WMA (music playback)
c ‚ – Voice activation switched on
d Microphone sensitivity ° – Dictation, ± – Speech to text,
¯ – Conversation, ² – Auto zoom function, µ – Zoom
function: Lecture, · – Zoom function: long distance,
¸ – Manual microphone sensitivity, Ë – Line-in source
e Editing mode set: Å – Add recording, Æ – Overwrite
recording
f Ç – ClearVoice turned on (for better playback quality)
g Set repeat mode / continuous loop: Â – Repeat file playback,
Á – Repeat folder playback, Ã – Repeat selection/sequence,
Ä – Random repeat mode
h À – Timer on, ¿ – Alarm on
i Equalizer mode set (for music playback) È – Pop, É – Jazz,
Ê – Classic
j Battery charge level
k u Selected folder, depending on the selected storage medium
(u – internal memory, à – microSD card) / number of the
current recording / total number of recordings in the folder
l Position indicator of current playback/recording
m Recording index markers set
n Playback/recording duration, total time of recording
o Playback/recording level of the right and left channels
p DVT6000 – DVT8000: Function of the soft function keys
a j
Table of contents
Note
• The position and appearance of the symbols may vary, depending
on the model, the mode and the selected functions.
Your recorder
13
3.4.1 Menu overview
Note
• The symbol of the selected menu tab is
highlighted in blue.
c Ô Display settings:
Select language
Adjusting the display contrast
Adjusting the backlight
Setting Demonstration mode
d × Device settings:
a Ø Folder and file menu:
Find recording with calendar search
Split a recording
Repeat a file / repeat a sequence
b Ó Recording settings:
Record settings
Set microphone sensitivity
Setting recording quality
Enabling/disabling the wind filter
Enabling/disabling noise reduction
Setting editing mode
Switching silent recording on and off
Enabling/disabling the pre-recording function
Setting the timer
Enabling/disabling voice-activated recording
Setting auto divide
Selecting an external sound source
Set date & time
Enabling/disabling ClearVoice
Adjusting the equalizer
AUTO-OFF
Alarm clock
Memory formatting
Enabling/disabling the record indicator
Enabling/disabling key and signal tones
Set file location
Display device information
e Ö Radio settings:
Radio mode
Saving a radio station pre-set
Set output devices for radio playback
f Title of the selected menu tab
g List of available menu functions
14
Your recorder
Table of contents
4 First steps
Use the installation guide on the following pages to start using your
device quickly and easily.
Caution
• Follow the instructions on handling the device, especially the
batteries and rechargeable batteries (see also chapter 1.1.1
Batteries and rechargeable batteries, page 5).
4.1 Charge device
4.2 Power on/off
1
Slide the on/off switch on the side of the device downwards for
approximately two seconds.
XX The device turns on and the start-up screen is displayed.
2
To power off, pull down the power switch on the side of the device
again and hold for about two seconds.
Note
• Connect the device to a computer or use an external battery
charger.
• Fully charge the device before first use.
• A complete charging cycle takes about 3.5 hours. The computer
must be turned on when charging the batteries. If the USB port
of the computer does not supply enough power, use an external
battery charger.
1
Plug the USB connector into a USB port on your computer.
2
Insert the micro USB plug into the USB port on the bottom of the
device.
Table of contents
First steps
15
Note
• The device switches itself off automatically if no key is pressed
within a pre-set period of time (see also chapter 9.3.4 AUTOOFF, page 49).
4.3 Initial installation process
The initial installation process starts when first using the device or
possibly if there has been a long interruption to the power supply. The
date and time entered are saved with each recording as the recording
time.
3
Press + / – to set the month.
4
Press b .
5
Press + / – to set the day.
6
Press b .
7
Press + / – to switch between the 12/24-hour system.
8
Press b .
9
Press + / – to set the hours.
4.3.1 Select language
10Press b.
1
Use the + / – keys to select the display language you want.
11Press + / – to set the minutes.
2
Press the record key, g, to confirm.
12Press the record key, g, to confirm.
Note
• Your language might not be available. Select an alternative one.
4.3.2 Set date & time
1
Press + / – to set the year.
2
Press b .
16
First steps
Tip
• You can change the language, date and time at any time using the
settings menu (see also chapter 9.2.1 Select language, page 46) (see
also chapter 9.3.1 Set date & time, page 48).
Table of contents
4.4 Show recording and device information
1
Press the stop key in the stop mode (start-up screen) j.
a The display shows the properties of the selected recording:
Symbol for the storage location, recording date and time,
recording quality, recording length, and file size in megabytes.
b The display shows general device-related data: Date and time,
remaining recording time in the selected memory, firmware
version and serial number of the device.
2
Press the stop key j to return to the stop mode.
4.5 Enable/disable the keypad lock
The keypad lock deactivates all keys on the device. The timer function
of the device continues to function.
1
Slide the HOLD switch up into the HOLD position to lock the
keypad of the device.
XX The display briefly shows ‘On Hold’ and turns off.
Table of contents
2
Slide the HOLD switch down to the Off position to disengage the
keypad lock.
XX The display briefly shows ‘Off Hold’ and turns off.
4.6 Insert microSD card
Caution
• Do not remove the memory card while recording is in progress. If
you do this, data may be damaged or lost.
1
Flip the memory card slot cover to the side.
2
Insert the microSD card into the card slot with the contacts facing
upwards.
First steps
17
4.7 Pull out the stand (DVT6000 – DVT8000)
Use the stand on the rear side of the device when you stand it on a
table, for example to record a meeting. This way you can get the most
of the microphone on the rear side of the device.
3
Insert the memory card until it snaps into place.
4
To remove the card press the memory card slightly until the
snapping mechanism unlocks and the card is ejected.
1
Pull out the stand on the back of the unit.
2
Place the unit on a flat surface, such as a table.
Note
• To ensure that the device stores the recordings on the memory
card, you must switch from the internal memory to microSD
memory card (see also chapter 9.1.1 Set file location, page 38). The
display shows a folder icon which indicates where the recordings
are currently being stored: u, v, w, x, y – internal memory,
à, á, â, ã, ä – memory card.
18
First steps
Table of contents
4.8 Using the remote control (DVT6500, DVT8000) 4.9 How to use the remote control (DVT6500,
DVT8000)
The battery is already inserted in the remote control. It is protected
by a plastic strip to ensure that no power is consumed during
transportation.
1
Pull out the plastic strip from the battery compartment on the
bottom of the remote control.
Note
• Replace the battery when the remote control stops working
(see also chapter 10.2 Replacing the remote control battery
(DVT6500, DVT8000), page 52).
• Remove the battery from the remote control if it will be stored
unused for an extended period of time. The remote control can
be damaged by a leaking battery.
• Used batteries and rechargeable batteries should be disposed of
at an official collection point.
EAR MIC
Point the remote control at the receiver on the side of the device. The
angle of the device should not exceed 80 degrees; the distance should
not exceed three meters. Make sure there are no objects located
between the remote control and the device.
If the device is operated using the remote control, large symbols are
displayed on the screen instead of the normal views.
Table of contents
First steps
19
1
Turn down the volume of the device before you plug in the
headphones.
2
Insert the stereo jack into the headphone connection EAR on the
side of the device.
3
Turn up the volume until you reach a comfortable listening level.
The speaker is switched off when headphones are connected.
4.10Accessories
Depending on the type of the device, the product package may include
various accessories. Additional accessories may be obtained directly
from your retailer.
4.10.1 How to connect headphones
Scope of delivery: DVT6000 – DVT8000
Warning
• Set the volume to a moderate level and do not use headphones
to listen for excessively long periods of time. Exposure to intense
sound can cause hearing damage. Observe the Hearing safety
instructions (see also chapter 1.1.3 Hearing protection, page 6).
4.10.2 Connecting an external microphone
Note
• If you connect an external microphone to the device, the
recording source will switch automatically and the device
microphone will turn off.
20
First steps
Table of contents
Stop the recording currently in progress.
2
Insert the jack into the microphone connection MIC on the side of
the device.
EAR MIC
1
4.10.3 How to use the phone pick-up microphone
Available as an optional accessory: Philips phone pick-up microphone
LFH9162.
Caution
• Recording of phone calls is subject to the legal restrictions
applicable in your country. Please check if the use of such data is
legal in your country prior to recording telephone calls.
The phone pick-up microphone is used to record phone calls.
Table of contents
1
Stop the recording currently in progress.
2
Insert the jack into the microphone connection MIC on the device
side.
3
Put the microphone earpiece into your ear.
4
Start recording.
5
Call from any mobile or landline. Hold your mobile or the phone
receiver close to the microphone.
First steps
21
4.10.4 How to use the meeting microphone
Scope of delivery: DVT6500, DVT8000
Further microphones (for cascading) are available as optional
accessories. Philips Meeting Microphone LFH9173.
1
Stop the recording currently in progress.
2
Insert the jack into the microphone connection MIC on the side of
the device.
3
Switch the external source settings to mono microphone (see also
chapter 9.1.14 Selecting an external sound source, page 45).
4
Start recording.
The meeting microphone can be used during a meeting or a multiparticipant conference. For optimum sound quality, the participants
should not be more than two meters away from the microphone.
Tip
• If a recording is to be made in larger rooms or at meetings
with a larger number of participants, the recording range may
be extended by connecting up to a maximum of three meeting
microphones.
22
First steps
Table of contents
4.11Connecting to a computer
You can select one of the following options once you have connected
the device to a computer
• A USB mass storage device: You can use the File Explorer to
access the device data without installing additional software. It is
automatically displayed as a mass storage device similarly to a USB
memory stick or card. It is a convenient way to store, back up and
and move files. (see also chapter 4.11.1 Transferring files from or to
the device, page 24).
• Power supply via USB: Record while powered through USB
without draining the battery. You can record until the memory is
full.
Tip
• To start recording press the record key g for at least two
seconds while the device is connected to the computer.
1
Plug the USB connector into a USB port on your computer.
2
Insert the micro USB plug into the USB port on the bottom of the
device.
XX The device is displayed as a mass storage device in File
Explorer.
Table of contents
Caution
• Do not disconnect the device from the computer while files are
transferred from or to the device (the status LED indicator flashes
orange when data is being transferred). This this may damage or
corrupt the files.
• Do not format the drive of the device on a computer. If you want
to delete all data, use the Format memory function (see also
chapter 10.1.2 Memory formatting, page 51).
First steps
23
Note
4.11.1 Transferring files from or to the device
You can use the File Explorer to access the device data without
installing additional software. It is automatically displayed as a mass
storage device similarly to a USB memory stick or card.
1
Connect the device to the computer as described.
2
Open File Explorer.
XX The device will be displayed as a mass storage device named
PHILIPS. Use the Voice folder for recordings and the Music
folder for music files.
3
Copy or move files to your computer or delete files to archive
recordings and free up space on the device.
• The device supports music files in the formats WMA and MP3,
which can be transferred from the computer to the Music folder
of the device. The files are located in the y/ä folder of the
device.
• Files with copy protection (Digital Rights Management, DRM) are
not supported.
• The device can store up to 99 music files.
4.11.2 Disconnecting from a computer
1
Select Eject USB in File Explorer.
2
Disconnect the USB cable from the computer.
Caution
• Do not disconnect the device from the computer while files are
transferred from or to the device (the status LED indicator flashes
orange when data is being transferred). This this may damage or
corrupt the files.
• Do not format the drive of the device on a computer. If you want
to delete all data, use the Format memory function (see also
chapter 10.1.2 Memory formatting, page 51).
24
First steps
Table of contents
1
Press the INDEX/a key while the device is stopped to select the
desired folder.
XX The following icons will be displayed, depending on the
selected location folder: u, v, w, x, y – internal memory, à,
á, â, ã, ä – memory card displayed.
2
Point the built-in microphone toward the sound source and press
g.
XX The record/play indicator lights red. The recording duration
and the remaining recording time are displayed in the selected
folder on the display.
5.1 Record settings
3
Check the recording level/volume.
Set the required recording quality and microphone sensitivity or
select automatic adjustment before you start a recording session. This
function allows to customize the settings (recording quality, microphone
sensitivity etc.) to suit the recording conditions (see also chapter 9.1.2
Automatically adjusting recording settings, page 38).
You can also enable the wind filter function to reduce the noise
produced by the wind if you need to make a recording outdoors (see
also chapter 9.1.5 Enabling/disabling the wind filter, page 40).
When you record in environments with lots of noise in the background
(e.g. while in a crowd or during a train or car journey), you can enable the
noise reduction function to reduce the background noise (see also chapter
9.1.6 Enabling/disabling noise reduction, page 41).
4
Press g to pause recording.
XX The record/play indicator will blink red.
5
Press the g key to resume recording.
6
Press the j key to stop recording.
XX The device returns to stop mode.
5 Record
The device offers many features that you can use during recording or
to improve the quality of a recording. Index marks can be used to mark
certain points in a recording as points of reference. Use the timer and
the voice activation functions to start a recording automatically. The
pre-recording function allows to record the last five seconds before
you press the record key.
Table of contents
Record
25
Note
• Start a new recording: To stop the current recording and start
a new one, press b.
• Start playback: While recording, press e. The current
recording session is stopped and the last three seconds of the
recording are played back.
• Add index marks: During a recording, press the INDEX/a to
add an index mark (see also chapter 5.1.2 Add index marks, page
27).
• To prevent files getting to big during a long recording, a meeting
that lasts several hours for example, you can automatically split
recordings (see also chapter 9.1.12 Setting auto divide, page 44).
• Each folder can store up to 99 files. The size of the memory
depends on the location folder and the quality of a recording (see
also chapter 9.1.3 Setting recording quality, page 39).
If the recording time or the number of files exceeds the available
capacity, recording stops and a message is displayed. You can not
make any more recordings. Delete the recordings which you no
longer require, or connect the device to a computer and transfer
the files to your computer.
26
Record
Tip
• Manual microphone sensitivity
Press + / – during recording to adjust the microphone sensitivity.
• If you you want to make a longer recording, fully charge the
battery. You can also connect the device to a computer using the
USB cable. The device is supplied with power over the USB cable
when connected to the computer and the battery is not drained.
• DVT6500, DVT8000: Use the remote to control the recording
session. Press the { REC/PAUSE key to start or pause
recording. Press the j STOP key to stop recording.
• DVT6000 – DVT8000: Press the F1/F2 keys to call up settings
menu for microphone sensitivity and recording quality in stop
mode.
5.1.1 Recording using an external microphone
If you connect an external microphone to the device, the recording
source will switch automatically and the device's microphone will be
turned off. When you connect a mono microphone or an amplified
recording source (e.g. a stereo system) to the microphone port, you
should set the external source (see also chapter 9.1.14 Selecting an
external sound source, page 45).
Table of contents
5.1.2 Add index marks
5.1.4 Using the pre-recording function
Index marks can be used to mark certain points in a recording as
points of reference. Press h / b to select index marks (see also
chapter 6.2 Playback a recording or music file, page 30).
The pre-recording function allows to record the last five seconds
before you press the record key. The device switches into a standby
mode and records a five-second loop without saving it. Press the
record key to save the five-second loop. This feature allows you to
spontaneously record important parts of a conversation.
1
Press the INDEX/a key during recording to add an index mark.
XX The index number is displayed for one second. Up to 32 index
marks can be set per file.
Tip
• You can also add index marks while the recording is paused.
5.1.3 Recording using the Zoom function (DVT6000 –
DVT8000)
1
Switch on the pre-recording function (see also chapter 9.1.9
Enabling/disabling the pre-recording function, page 42).
2
Press the g key.
XX The device switches into a standby mode and records a fivesecond loop without saving it.
3
Press the g key.
XX The unit starts recording and saves the five-second loop.
Use the zoom function to focus on the front microphone and filter
sounds from the side. This allows you to record a lecture or a speech
over a long distance (see also chapter 9.1.4 Set microphone sensitivity,
page 39).
Table of contents
Record
27
5.2 Start recording automatically
You have two options to start automatic recording: Timer function
and voice activation.
1
Customize the voice-activated recording settings in the Settings
menu and turn on the feature (see also chapter 9.1.11 Enabling/
disabling voice-activated recording, page 43).
XX If this feature is on, the ‚ icon is displayed.
2
Press the g key.
XX The devices switches to standby mode. The (|) symbol will
be displayed. Recording will start when you begin speaking. When
you stop speaking, the device will automatically pause recording
after three seconds of silence.
3
Press the j key to stop recording.
XX The device returns to stop mode.
5.2.1 Use Timer function
You can use this function to start a recording at a specified date and
time. The device can record from the device's microphone, the radio
or an external sound source.
1
Customize the timer settings in the Settings menu and turn on the
feature (see also chapter 9.1.10 Setting the timer, page 43).
XX If this feature is on, the À icon is displayed. The device will
start recording at a specified time. The device can be switched off
at this time or the keypad can be locked.
Tip
• Press + / – during recording to adjust the voice activation level.
5.2.2 Use voice activation
When voice-activated recording is enabled, recording will start
when you begin speaking. When you stop speaking, the device will
automatically pause recording after three seconds of silence, and
resume only when you begin speaking again.
Use the voice activation level to set the volume at which the device
should begin recording.
28
Record
Table of contents
6 Playback
Tip
• Turn on the ClearVoice function for better playback quality. Quiet
fragments are dynamically adjusted, making soft voices clearer and
more understandable (see also chapter 9.3.2 Enabling/disabling
ClearVoice, page 48).
6.1 Select a recording
1
2
Press the INDEX/a, key to select the desired folder while the
device is stopped.
XX The following icons will be displayed, depending on the
selected location folder: u, v, w, x, y – internal memory, à,
á, â, ã, ä – memory card displayed. (A, B, C and D are recording
folders, the y/ä folder contains music files).
Press b while the device is stopped.
a The position indicator jumps to the end of a file.
3
Press h while the device is stopped.
a The position indicator jumps to the start of a file.
b The position indicator jumps to the end of the previous file.
Note
• If the file contains index marks, press h / b to jump to the
previous or the next index mark.
XX The index number is displayed for one second instead of
total recording time.
Note
• The device supports music files in the formats WMA and MP3,
which can be transferred from the computer to the Music folder
of the device. The files are located in the y/ä folder of the
device. The music format icon will be displayed during playback:
„ – MP3 file
‰ – WMA file
• Files with copy protection (Digital Rights Management, DRM) are
not supported.
• The device can store up to 99 music files.
b The position indicator jumps to the start of the next file.
Table of contents
Playback
29
6.1.1 Find recording with calendar search
The search function of the device provides a listing of all stored files
sorted by the record date.
6.2 Playback a recording or music file
Tip
1
Press MENU while the device is stopped.
2
Press the record key, g, to confirm.
3
Press h / b to select the required date.
1
Select the required file as described.
4
Press + / – to select the required file.
XX The first ten seconds of each highlighted file can be played as
a preview.
2
Press e to playback the selected file.
XX The record/play indicator will light green. The total playback
time of the current file will be shown on the display.
5
Press e to playback the selected file.
3
Press the + / – buttons to adjust the volume.
4
Press the e key to pause playback.
XX The playback will stop and the green LED will start blinking.
5
Press the j key to stop playback.
XX The playback is paused at the current position. The device
returns to stop mode. When you resume playback, it will start
three seconds before the current position.
6
Press e to continue playback from the previous position.
7
Press h / b to jump to the start or the end of the file.
30
Playback
• When the device is in the stop mode, playback will start with a
three-second rewind. This function is especially helpful during
transcription of recordings.
Table of contents
Tip
• You can call up the equalizer and the playback mode settings while
playing back the music files.
• DVT6000 – DVT8000: Press F1/F2 to call up the playback
speed and ClearVoice functions or to display the date, time and
remaining recording time.
6.4 Quick search
You can scan backward or forward in the current file at a fast speed.
This allows to find a specific part of the recording.
1
Press and hold the h or b buttons during playback or when the
device is stopped
XX to scan backward or forward in the current file at a fast
speed.
2
Release the key
XX to resume playback at the selected speed form the current
position.
6.3 Adjusting playback speed
1
Press and hold the e key for at least two seconds during
playback.
a This will switch the device to slow playback. The c icon will be
displayed.
b This will switch the device to fast playback. The U icon will be
displayed.
c This will switch the device to normal playback. The S icon will
be displayed.
Table of contents
6.5 Repeat a file / repeat a sequence
You can automatically repeat playback of a certain file, folder or
sequence (=loop).
1
In stop mode (start-up screen), press MENU.
2
Press + / – to select the Repeat function.
3
Press the record key, g, to confirm.
Playback
31
4
Press + / – to repeat a certain file, folder or sequence automatically.
XX The symbol of the selected repeat mode is displayed on the
display:
 – repeat a file
Á – repeat all files in a folder
à – repeat a selection/sequence
a Press INDEX/a, to repeat a sequence at a chosen start point.
b Press INDEX/a, to repeat a sequence at a chosen end point.
Ä – Random playback
5
Press the record key, g, to confirm.
XX The repeat file, folder or sequence begins.
32
Playback
Table of contents
7 Edit & delete
You can overwrite part of a recording or insert a new one. You can
split a large recording into separate files so that it can be easily edited.
You can delete individual recordings from the device.
7.1 Edit a recording
7.1.1 Add to or overwrite a recording
You can edit an existing recording by overwriting a part of it or adding
a new recording at its end. You can use the Overwrite mode to delete
the existing recording from its current position!
Note
• When you edit, the recording quality of the original recording is
used.
1
Set the required editing mode (see also chapter 9.1.7 Setting
editing mode, page 41).
XX The selected editing mode icon will be displayed.
Å – add a recording
Æ – overwrite a recording
Table of contents
Caution
• You can use the Overwrite mode to delete the existing recording
from its current position!
2
Press the INDEX/a button while the device is stopped (start-up
screen) to select a folder in which you wish to edit a recording.
Note
• You can not edit the files in the music folder (y/ä).
3
Press h / b to select the recording that you wish to edit.
4
Overwrite a recording Play the recording up to the point where
you wish to add a new part; use the quick search function or press
h / b to jump to an index mark.
5
Press the e key to pause playback.
6
Press the g key to start recording the new part.
XX The new file overwrites the rest of the recording or is added
to its end, according to the editing mode set.
7
Press g to pause recording.
8
Press the j key to stop recording.
XX The device returns to stop mode.
Edit & delete
33
7.1.2 Split a recording
Split a large recording into two separate recordings so that it can be
more easily archived or transferred via e-mail, or to delete a section of
the recording.
1
Press the INDEX/a button while the device is stopped (start-up
screen) to select a folder in which you wish to split a recording.
2
Press h / b to select the recording that you wish to split.
3
To split a recording, play and stop at the position where the
split should be made. Press the j key to stop the playback.
Alternatively:
Press the h / b key to jump to the index mark where the
recording should be split.
4
Press MENU.
5
Press + / – to select the Split function.
6
Press the record key, g, to confirm.
7
Use + / – OK to select.
8
Press the record key, g, to confirm.
XX The recording is split. Sequential file numbers are reassigned
automatically.
34
Edit & delete
7.2 Deleting recordings on the device
You can delete individual recordings from the device. Connect the
device to a computer if you want to rename or delete entire folders.
Caution
• Only delete the recordings that you no longer need. Keep in mind
that deleted recordings can not be recovered.
1
Press the INDEX/a button while the device is stopped (start-up
screen) to select a folder in which you wish to delete a recording.
2
Press h / b to select the recording that you wish to delete.
3
Press and hold the z key for at least 2 seconds.
4
Press g to confirm the deletion.
XX The recording is deleted. Sequential file numbers are
reassigned automatically.
Table of contents
8 Radio (DVT6000 – DVT8000)
Tip
• You can also use Menu to enter/exit the radio mode.
a In stop mode (start-up screen), press MENU.
Note
b Press h / b to select the radio menu Ö.
• The headphones are the device's antenna. Radio reception is only
possible if headphones are connected to the device.
c Press + / – to select the FM radio on and Off function.
8.1 Radio mode
1
Connect the headphones to the device. (see also chapter 4.10.1
How to connect headphones, page 20).
2
Press and hold the MENU key for at least 2 seconds to enter the
radio mode.
3
Press h / b to select the required frequency. Alternatively:
Press and hold h / b to start seeking for the next radio station.
4
Press the + / – buttons to adjust the volume.
5
Press and hold the MENU key for at least 2 seconds to exit the
radio mode.
d Press the record key, g, to confirm.
8.2 Saving a radio station pre-set
The radio can store up to 20 radio stations in pre-sets.
Tip
Tip
• Press F1 to exit the radio mode.
Table of contents
• Press F2 to search for a radio station.
8.2.1 Saving radio stations automatically
1
Press MENU while the device is in the radio mode.
2
Press + / – to select the Station search function.
3
Press the record key, g, to confirm.
4
Press + / – to select the Auto search function.
Radio (DVT6000 – DVT8000)
35
5
Press the record key, g, to confirm.
XX The device automatically seeks and stores the radio
frequencies in the pre-sets. The device can store up to 20 radio
stations.
8.3 Set output devices for radio playback
8.2.2 Saving a radio station manually
In radio mode, the speaker of the device is not muted when you plug in
headphones. You can choose whether you want to listen to the radio
using the headphones or the speakers.
1
Press MENU while the device is in the radio mode.
1
Press MENU while the device is in the radio mode.
2
Press + / – to select the Station search function.
2
Press + / – to select the Output function.
3
Press the record key, g, to confirm.
3
Press the record key, g, to confirm.
4
Press + / – to select the Manual search function.
4
5
Press + / – to select whether you want to listen to the radio using
the headphones or the speakers.
Press the record key, g, to confirm.
6
5
Press the record key, g, to confirm.
Press h / b to select the required frequency. Alternatively:
Press and hold h / b to start seeking for the next radio station.
6
Press MENU to return to the radio mode.
7
Press the g key to save the selected radio station in the pre-sets.
8.2.3 Deleting a pre-set radio station
1
Press h / b to select the radio station that you wish to delete.
2
Press and hold the z key for at least 2 seconds.
3
Press g to confirm the deletion.
36
Radio (DVT6000 – DVT8000)
Table of contents
8.4 Record from FM radio
You can record FM radio.
1
Start the radio as described, and select the radio station you want
to record.
2
Press the g key.
XX The record/play indicator lights red.
3
Press g to pause recording.
4
Press the j key to stop recording.
XX The device returns to the radio mode.
Table of contents
Radio (DVT6000 – DVT8000)
37
9 Settings
Press the MENU key while the device is stopped (start-up screen) to
enter the Settings menu.
5
Press + / – to select if you want to save the files in the internal
memory or on the microSD card.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Note
• Press the j key at the end of an operation to return to the
stop mode. Press the j key during the operation to cancel the
operation without saving and return to the stop mode.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.1.2 Automatically adjusting recording settings
9.1 Recording settings
9.1.1 Set file location
The display shows a folder icon which indicates where the recordings
are currently being stored: u, v, w, x, y – internal memory, à,
á, â, ã, ä – memory card.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
3
Press + / – to select the Memory select function.
4
Press the record key, g, to confirm.
38
Settings
This function allows the device to automatically adjust the record
settings (recording quality, microphone sensitivity etc.) to suit the
recording conditions. During recording the device detects movement
and switches automatically between Meeting and Conversation.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Auto Adjust Rec function.
4
Press the record key, g, to confirm.
5
Press + / – to enable/disable the function.
6
Press the record key, g, to confirm.
Table of contents
7
Press the j key to exit the menu.
7
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.1.3 Setting recording quality
Use the recording quality settings to set the file format and the quality
of the recording as the data rate (bit rate). The higher the recording
quality the bigger the file and the less recordings you can create.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Quality settings function.
4
Press the record key, g, to confirm.
5
Press + / – to select the required recording quality.
XX The selected quality setting icon will be displayed.
‡ – highest quality, uncompressed, format: WAV, 1,411 kbit/s
… – excellent quality, format: MP3, 192 kbit/s
ƒ – high quality, format: MP3, 96 kbit/s
ˆ – above-average recording time: Format: MP3, 64 kbit/s
† – longer recording time, format: MP3, 8 kbit/s
6
Press the record key, g, to confirm.
Table of contents
Press the j key to exit the menu.
Tip
• DVT6000 – DVT8000: Press the F1/F2 keys to call up settings
menu for microphone sensitivity and recording quality.
9.1.4 Set microphone sensitivity
You can customize the microphone settings to suit the recording
conditions. Adjust the recording sensitivity to avoid recording
background noises and to adapt to the recording environment. Use
the zoom function to focus on the front microphone and filter sounds
from the side. This allows you to record a lecture or a speech from a
long distance away.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Mic sensitivity function.
4
Press the record key, g, to confirm.
Settings
39
5
Press + / – to select the required recording quality.
XX The selected microphone/recording sensitivity icon will be
displayed.
° – Dictation – optimized setting for the recording of a sound
source close to the device.
± – Speech to text – optimized recording for subsequent editing
using speech recognition software.
¯ – Conversation – optimized setting for the recording of multiple
sound sources in close proximity to the device.
² – Auto Zoom (DVT6000 – DVT8000) – automatic adjustment of
the zoom function for a sound source at a larger distance. During
recording the device detects movement and switches automatically
between Zoom and Conversation.
µ – Lecture – optimized setting for the recording of a sound
source at a larger distance.
· – Long distance (DVT6000 – DVT8000) – optimized setting for
the recording of sound sources up to 15 meters / 50 feet away.
¸ – Manual setting – set the microphone/recording sensitivity
manually. Press h / b to select the sensitivity level from 1
(lowest sensitivity, very close) to 9 (highest sensitivity, far away).
Press + / – during recording to adjust the microphone/recording
sensitivity.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
40
Settings
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.1.5 Enabling/disabling the wind filter
You can also enable the wind filter function to reduce the noise
produced by the wind if you need to make a recording outdoors.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Wind filter function.
4
Press the record key, g, to confirm.
5
Press + / – to enable/disable the function.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Table of contents
9.1.6 Enabling/disabling noise reduction
9.1.7 Setting editing mode
When you record in environments with lots of noise in the
background (e.g. while in a crowd or during a train or car journey),
you can enable the noise reduction function to reduce the background
noise.
You can edit an existing recording by overwriting a part of it or adding
a new recording at its end. You can use the Overwrite mode to delete
the existing recording from its current position!
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Noise reduction function.
4
Press the record key, g, to confirm.
5
Press + / – to enable/disable the function.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Edit mode function.
4
Press the record key, g, to confirm.
5
Press + / – to select if you wish to add a new part to an existing
recording, whether you want to delete a part of an existing
recording and overwrite it, or turn off the function.
XX The selected editing mode icon will be displayed.
Å – add a recording
Æ – overwrite a recording
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Table of contents
Settings
41
9.1.8 Switching silent recording on and off
9.1.9 Enabling/disabling the pre-recording function
Use this function to turn off display indication, LED status, and the
signal tones during a recording. This allows you to record while there
is no visible indication on the display that a recording is being made.
The pre-recording function allows to record the last five seconds
before you press the record key. The device switches into a standby
mode and records a five-second loop without saving it. Press the
record key to save the five-second loop.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Silent recording function.
4
Press the record key, g, to confirm.
5
Press + / – to enable/disable the function.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Pre-recording function.
4
Press the record key, g, to confirm.
5
Press + / – to enable/disable the function.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
42
Settings
• Press the j key to cancel the operation without saving and return
to the stop mode.
Table of contents
9.1.10 Setting the timer
10Press the record key, g, to confirm.
You can use this function to start a recording at a specified date and
time. The device can record from the device's microphone, the radio
or an external sound source.
11Press + / – to select the Off function to turn off the timer.
XX If this feature is on, the À icon is displayed. The device will
start recording at a specified time.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Timer function.
4
Press the record key, g, to confirm.
5
Press + / –/ b to select the function Set time, in order to set the
time at which recording starts.
6
Set date and time as described (see also chapter 9.3.1 Set date &
time, page 48).
If voice-activated recording is enabled, recording session will start
when you begin speaking. When you stop speaking, the device will
automatically pause recording after three seconds of silence, and
resume only when you begin speaking again.
Use the voice activation level to set the volume at which the device
should begin recording.
7
Press the record key, g, to confirm.
1
In stop mode (start-up screen), press MENU.
8
Press + / – to select the Record source function to set the sound
source.
2
Press the h / b key to select the record settings menu Ó.
9
3
Press + / – to select the Voice Activation function.
Press + / – to select if the recording should be made from a
microphone, an external source, or a radio station. Select the preset station before you record from the FM radio.
4
Press the record key, g, to confirm.
5
Press + / – to select the On function.
6
Press the record key, g, to confirm.
Table of contents
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.1.11 Enabling/disabling voice-activated recording
Settings
43
7
Press h / b to switch between voice activation level 1 (very
sensitive, the device switches on at low volume) and level 9 (lowest
sensitivity, the device turns on at higher volume). Press + / – when
the device is in recording mode to adjust the voice activation level.
8
Press the record key, g, to confirm.
XX If this feature is on, the ‚ icon is displayed.
9
Press + / – to select the Off function to turn off voice-activated
recording.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.1.12 Setting auto divide
You can automatically divide large recordings, such as a multi-hour
meeting recording. Once the set time has been reached, the device
stops the current recording and automatically starts a new one.
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the record settings menu Ó.
3
Press + / – to select the Auto divide function.
4
Press the record key, g, to confirm.
5
Press + / – to select if you want to record to a new file every 30 or
60 minutes, or turn off this feature.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
44
Settings
Table of contents
9.1.13 Enabling/disabling the record indicator
9.1.14 Selecting an external sound source
This function allows you to switch off the status LED.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
If you connect an external microphone to the device, the recording
source will switch automatically and the device's microphone will be
turned off. When you connect a mono microphone or an amplified
recording source (e.g. a stereo system) to the microphone port
(DVT3200 – DVT7000), you should set the external source.
3
Press + / – to select the Record lamp function.
1
In stop mode (start-up screen), press MENU.
4
Press the record key, g, to confirm.
2
Press the h / b key to select the record settings menu Ó.
5
Press + / – to enable/disable the LED indicator.
3
Press + / – to select the External input function.
6
Press the record key, g, to confirm.
4
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
5
Press + / – to connect an external mono or stereo microphone, or
an amplified recording source (Line-in).
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
XX When you use Line-in, the Ë icon will be displayed.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Table of contents
Settings
45
9.2 Display settings
9.2.1 Select language
Note
• Your language might not be available. Select an alternative one.
9.2.2 Adjusting the display contrast
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the display settings menu Ô.
3
Press + / – to select the Contrast function.
4
Press the record key, g, to confirm.
1
In stop mode (start-up screen), press MENU.
5
Press h / b to select the required display contrast.
2
Press the h / b key to select the display settings menu Ô.
6
Press the record key, g, to confirm.
3
Press + / – to select the Language function.
7
Press the j key to exit the menu.
4
Press the record key, g, to confirm.
5
Use the + / – keys to select the display language you want.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
46
Settings
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.2.3 Adjusting the backlight
1
In stop mode (start-up screen), press MENU.
2
Press the h / b key to select the display settings menu Ô.
3
Press + / – to select the Backlit function.
4
Press the record key, g, to confirm.
Table of contents
5
Press + / – to select from the following settings: Off (DVT4000),
Auto Adjust Rec (DVT6000 – DVT8000), 8s, 20s, On.
Tip
• DVT6000 – DVT8000: The device has an integral brightness
sensor. The setting Auto Adjust Rec is used to automatically
match the brightness of the backlight to the ambient brightness.
1
In stop mode (start-up screen), press a/MENU for at least two
seconds.
2
Press a to select the device settings menu Ô.
3
Press h / b to select the function Demo Mode.
4
Press the record key, g, to confirm.
6
Press the record key, g, to confirm.
5
Press h / b to select the function On.
7
Press the j key to exit the menu.
6
Press the record key, g, to confirm.
XX If this feature is on, the saved images are output sequentially
to the display.
7
Press the ~ key to end demonstration mode.
8
Press the ~ key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.2.4 Setting Demonstration mode
Tip
Using Demonstration mode you can display images on the screen.
Note
• Press the ~ key to cancel the operation without saving and return
to stop mode.
• The images, with the following properties, must be stored in the
root directory of the device: File format: 24 bit .bmp; resolution:
128 × 160 pixels; File name: 01.bmp, 02.bmp, … .
Table of contents
Settings
47
9.3 Device settings
9.3.1 Set date & time
The date and time entered are saved with each recording as the
recording time.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
3
Press + / – to select the Date/time function.
4
Press the record key, g, to confirm.
5
Press + / – to set the year.
6
Press b .
7
Press + / – to set the month.
8
Press b .
9
Press + / – to set the day.
10Press b.
11Press + / – to switch between the 12/24-hour system.
13Press + / – to set the hours.
14Press b.
15Press + / – to set the minutes.
16Press the record key, g, to confirm.
17Press the j key to exit the menu.
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.3.2 Enabling/disabling ClearVoice
Turn on the ClearVoice function for better playback quality. Dynamic
emphasis on quiet passages to improve the intelligibility of quiet
voices.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
3
Press + / – to select the ClearVoice function.
4
Press the record key, g, to confirm.
12Press b.
48
Settings
Table of contents
5
Press + / – to enable/disable the function.
XX If the feature is on, the Ç icon is displayed.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
6
Press the record key, g, to confirm.
7
Press the j key to exit the menu.
Tip
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.3.3 Adjusting the equalizer
• Press the j key to cancel the operation without saving and return
to the stop mode.
9.3.4 AUTO-OFF
The device switches off automatically if no key is pressed within a preset period of time. This saves power.
The equalizer is used for music playback. This setting improves the
listening experience when playing back music by custom frequency
settings.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
1
In stop mode (start-up screen), press MENU.
3
Press + / – to select the Auto off function.
2
Press h / b to select the device settings menu ×.
4
Press the record key, g, to confirm.
3
Press + / – to select the Equalizer function.
5
4
Press + / – to specify whether the device should turn off
automatically after 5, 15, 30 or 60 minutes' inactivity.
Press the record key, g, to confirm.
5
6
Press the record key, g, to confirm.
Press + / – to select the appropriate setting or disable this feature.
XX If this feature is on, the selected equalizer mode is displayed.
È – Pop
É – Jazz
Ê – Classic
7
Press the j key to exit the menu.
Table of contents
Settings
49
Tip
10Press the record key, g, to confirm.
XX If this feature is on, the ¿ icon will be displayed.
• Press the j key to cancel the operation without saving and return
to the stop mode.
11Press + / – to select the Off function to turn off the alarm-clock.
Tip
9.3.5 Alarm clock
You can use the device as an alarm clock or an appointment reminder.
The alarm goes off or a selected file is played at a pre-set time.
• Press the j key to cancel the operation without saving and return
to the stop mode.
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
1
In stop mode (start-up screen), press MENU.
3
Press + / – to select the Alarm function.
2
Press h / b to select the device settings menu ×.
4
Press the record key, g, to confirm.
3
Press + / – to select the Device sounds function.
5
Press + / – to select the Set time function to set the alarm clock.
4
Press the record key, g, to confirm.
6
Set date and time as described (see also chapter 9.3.1 Set date &
time, page 48).
5
Press + / – to enable/disable the key and signal tones.
7
6
Press the record key, g, to confirm.
Press the record key, g, to confirm.
8
7
Press the j key to exit the menu.
Press + / – to select the Set source function to set the alarm clock
signal.
9
Press + / – to select between an alarm signal, selected recording, or
a set radio station to be played as an alarm sound.
50
Settings
9.3.6 Enabling/disabling key and signal tones
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
Table of contents
10 Service
Do not perform any maintenance operations that are not described in
this user manual. Do not disassemble the device into its component
parts to carry out repairs. The device may only be repaired in
authorised service centres.
10.1Service functions
10.1.2 Memory formatting
Caution
• Formatting the memory deletes all recordings and files saved on
the device.
You can use this feature to delete all data and format the selected
memory.
1
Select the memory that you want to format (internal memory or
microSD card memory) (see also chapter 9.1.1 Set file location,
page 38).
2
In stop mode (start-up screen), press MENU.
3
Press h / b to select the device settings menu ×.
4
Press + / – to select the Format memory function.
5
Press the record key, g, to confirm.
6
Use + / – OK to select.
7
Press the record key, g, to confirm.
8
Press g to confirm the formatting.
9
Press the j key to exit the menu.
10.1.1 Display device information
1
In stop mode (start-up screen), press MENU.
2
Press h / b to select the device settings menu ×.
3
Press + / – to select the Information function.
4
Press the record key, g, to confirm.
XX General device information is displayed on the screen:
current date and time, remaining recording time in the selected
memory, firmware version of the device.
5
Press the stop key j to return to the stop mode.
Table of contents
Service
51
Tip
• Press the j key to cancel the operation without saving and return
to the stop mode.
10.2Replacing the remote control battery
(DVT6500, DVT8000)
3
Insert the battery compartment into the remote control until it
snaps into place.
Note
• Follow the instructions on handling the device, especially the
batteries shown in 1 Important safety information. Only use
CR2025 type batteries for the remote control.
1
Remove the battery cover from the remote control by opening
the latch of the battery compartment on the back of the remote
control and take out the battery compartment.
10.3Updating the firmware
Your device is controlled by an internal program called firmware. As
a part of ongoing product maintenance, the firmware is upgraded and
errors are corrected.
It is possible that a newer version (an “update”) of the firmware has
been released since you purchased the device. In this case you can
easily update your device to the latest version.
2
Insert the battery as shown. Make sure the polarity is correct.
52
Service
Table of contents
Caution
• New batteries should be inserted into the device when updating
the firmware, or the rechargeable batteries should be fully
charged. This is to prevent the power supply being interrupted.
1
Connect the device to your computer as described (see also
chapter 4.11 Connecting to a computer, page 23).
2
Download the firmware update for your model from the website
www.philips.com/dictation onto your computer.
3
Copy the new firmware file to the root directory of the device.
4
Disconnect the device from the computer.
XX The firmware is automatically updated. This will only take a
few minutes. The device will then switch off.
Caution
• Wait until the firmware update is complete before calling up other
device functions. Failure to properly update the firmware may
result in the device malfunctioning.
Table of contents
Service
53
Problem
10.4Troubleshooting
Problem
Possible cause/solution
The recording session does
not start
• Pre-recording or voice-activated
recording mode may be enabled.
• The keypad lock may be enabled.
XX Slide the HOLD switch to the
“Off” position.
• The maximum number of recordings
may have been reached or the available
space for recording is full.
XX Delete some recordings or move
them to an external device.
XX Select another location folder.
I cannot hear anything from
the headphones.
• The headphones are incorrectly
connected.
XX Check the headphone connection.
• The volume is at the lowest setting.
The device does not turn on • The battery is discharged.
XX Recharge the battery.
The device does not playback • The keypad lock may be enabled.
recordings
XX Slide the HOLD switch to the
“Off” position.
• No recordings are saved in the device.
The device does not
respond.
• Press the reset button.
microSD card can not be
selected as a recording
location
• There is no memory card in the device.
XX Insert a memory card into the
device.
• Memory card is not formatted (file
system FAT32).
XX Format the memory card in the
device.
I cannot hear anything from
the speaker.
54
Service
Possible cause/solution
External microphone records • Switch external sound source to stereo
mono sound only
microphone.
• A headset is connected to the device.
• The volume is at the lowest setting.
Table of contents
Technical data
11 Appendix
The information in this user manual has been produced to the best of
our knowledge. It (particularly the technical data) may be modified or
updated at any time without prior notice.
11.1Technical data
Display
1.77"
Resolution: 128 × 160 pixels
Internal memory
NAND-Flash, 4 GB
Memory card
microSD card
up to 32 GB SDHC
Recording format
PCM – WAV, 1,411 kbits/s
SHQ – MP3, 192 kbits/s
HQ – MP3, 96 kbits/s
SP – MP3, 64 kbits/s
LP – MP3, 8 kbits/s
Technical data
Dimensions
DVT4000: 45 × 120 × 18 mm
DVT6000 – DVT8000: 45 × 125 × 18 mm
Weight
DVT4000: 83 g/0.238 lb
DVT6000: 84 g/0.238 lb
DVT6500, DVT8000: 85 g/0.238 lb
Music playback
MP3, WMA
Bit rate: 8 – 320 kbps
no DRM
Batteries
Remote control: CR2025
Speaker
Frequency range: 70 – 15.000 Hz
Output: 110 mW
USB connection
High-speed 2.0, Micro-USB
USB input
USB 5 V/DC ª, 500 mA
Recording time
Internal storage
Microphone connection
Stereo jack, 3.5 mm
PCM – 6 h
SHQ – 47 h
HQ – 94 h
SP – 141 h
LP – 1,135 h
Headset connection
Stereo jack, 3.5 mm
Table of contents
Appendix
55
Technical data
Battery life
Recording in LP mode (built-in memory /
microSD memory card)
Up to 50 h/25 h
Sampling rate
PCM/SHQ – 44.1 kHz
HQ – 32 kHz
SP – 22 kHz
LP – 16 kHz
Radio (DVT6000 – DVT8000) FM stereo
Frequency range: 87.5–108 MHz
Memory capacity: 20 radio stations
System requirements
Operating system: Windows 8, 7, Vista,
Mac OS X, Linux
Temperature
5 ºC – 45 ºC / 41 ºF – 113 ºF
Humidity
10 % – 90 %, non-condensing
˜
The conformity with the relevant EU directives is confirmed by the CE
mark.
Declaration of Conformity
Speech Processing Solutions GmbH hereby declares that the devices
DVT4000, DVT6000, DVT6500 and DVT8000 fully comply with
the basic requirements and other relevant provisions of Directives
2006/95/EC, 2004/108/EC and 2009/125/EC.
A complete Declaration of Conformity for this product is available at
www.philips.com/dictation.
This product was manufactured using high-quality materials and
components which may be recycled and reused. Adhere to the
applicable statutory provisions, and only dispose of these products at
official collection points. The proper disposal of the device helps avoid
potential adverse impacts on environment and health.
— Ÿ
Packaging: Please observe the recycling and packaging provisions
applicable in your country.
Batteries: Used batteries should be disposed of at an official
collection point.
56
Appendix
Table of contents
›
Product: The crossed dustbin symbol on your product indicates that
special waste regulations shall apply to the electrical and electronic
equipment contained therein.
In keeping with the provisions of the EU Directive relating to the
disposal of waste electrical and electronic equipment and the
protection of the environment and the health, old devices which are
no longer required, may be disposed of as follows:
• Your dealer will happily take back the old device when you buy a
new device from him.
• Used devices should be disposed of at an official collection point.
This User Manual is a document with no contractual nature.
We accept no liability for changes, mistakes or printing errors.
Philips and the Philips’ Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used by Speech Processing Solutions
GmbH under license from Koninklijke Philips N.V. Trademarks are the
property of their respective owners.
Only remove the battery if you are disposing of the device. Opening
the device invalidates the guarantee. Ensure the battery is fully
discharged before removing it.
1 Undo and remove the screw on the rear side of the device.
2 Lift and remove the cover using a screwdriver.
3 Remove the battery.
Neither Speech Processing Solutions GmbH nor its affiliates shall be
liable to the purchaser of this product or third parties with respect to
claims for damages, losses, costs or expenses incurred by purchaser or
third parties as a result of an accident, misuse or abuse of this product
or unauthorized modifications, repair, modification of the product or
failure to meet the operating and maintenance instructions provided
by Philips.
Table of contents
Appendix
57
© 2014 Speech Processing Solutions GmbH. All rights reserved.
Document Version 1.0, 2014/06/18
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
