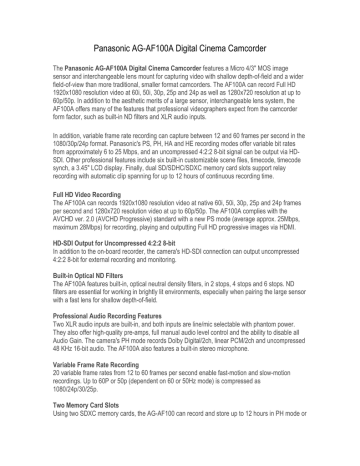

Panasonic AG-AF100A Digital Cinema Camcorder
The Panasonic AG-AF100A Digital Cinema Camcorder features a Micro 4/3" MOS image
sensor and interchangeable lens mount for capturing video with shallow depth-of-field and a wider
field-of-view than more traditional, smaller format camcorders. The AF100A can record Full HD
1920x1080 resolution video at 60i, 50i, 30p, 25p and 24p as well as 1280x720 resolution at up to
60p/50p. In addition to the aesthetic merits of a large sensor, interchangeable lens system, the
AF100A offers many of the features that professional videographers expect from the camcorder
form factor, such as built-in ND filters and XLR audio inputs.
In addition, variable frame rate recording can capture between 12 and 60 frames per second in the
1080/30p/24p format. Panasonic's PS, PH, HA and HE recording modes offer variable bit rates
from approximately 6 to 25 Mbps, and an uncompressed 4:2:2 8-bit signal can be output via HDSDI. Other professional features include six built-in customizable scene files, timecode, timecode
synch, a 3.45" LCD display. Finally, dual SD/SDHC/SDXC memory card slots support relay
recording with automatic clip spanning for up to 12 hours of continuous recording time.
Full HD Video Recording
The AF100A can records 1920x1080 resolution video at native 60i, 50i, 30p, 25p and 24p frames
per second and 1280x720 resolution video at up to 60p/50p. The AF100A complies with the
AVCHD ver. 2.0 (AVCHD Progressive) standard with a new PS mode (average approx. 25Mbps,
maximum 28Mbps) for recording, playing and outputting Full HD progressive images via HDMI.
HD-SDI Output for Uncompressed 4:2:2 8-bit
In addition to the on-board recorder, the camera's HD-SDI connection can output uncompressed
4:2:2 8-bit for external recording and monitoring.
Built-in Optical ND Filters
The AF100A features built-in, optical neutral density filters, in 2 stops, 4 stops and 6 stops. ND
filters are essential for working in brightly lit environments, especially when pairing the large sensor
with a fast lens for shallow depth-of-field.
Professional Audio Recording Features
Two XLR audio inputs are built-in, and both inputs are line/mic selectable with phantom power.
They also offer high-quality pre-amps, full manual audio level control and the ability to disable all
Audio Gain. The camera's PH mode records Dolby Digital/2ch, linear PCM/2ch and uncompressed
48 KHz 16-bit audio. The AF100A also features a built-in stereo microphone.
Variable Frame Rate Recording
20 variable frame rates from 12 to 60 frames per second enable fast-motion and slow-motion
recordings. Up to 60P or 50p (dependent on 60 or 50Hz mode) is compressed as
1080/24p/30/25p.
Two Memory Card Slots
Using two SDXC memory cards, the AG-AF100 can record and store up to 12 hours in PH mode or
48 hours in HE mode. Relay recording with automatic clip spanning enables a maximum
continuous recording time of up to 12 hours. Class 4 or higher SD/SDHC/SDXC cards are required
for recording in PH or HA mode, but for other recording modes Class 2 or higher is sufficient. Video
clips can also be copied from one card to the other for an easy back-up.
Dynamic Range Stretch Function
The DRS function recognizes the average brightness of highlight and shadow areas and
automatically adjusts settings for a wider dynamic range with minimal blown highlights and blocked
shadows.
SMPTE Timecode and Timecode Synch
The built-in SMPTE timecode generator lets you select Drop Frame/Non-Drop Frame and Free
Run/Rec Run modes and preset. User bits are also provided. Connecting two cameras with a TC
preset in/out connector allows the slave camera, to synchronize with the master camera. Note:
After synchronization, each camera's timecode runs separately and is not guaranteed to match
precisely.
Customizable Scene Files
Six built-in, customizable Scene Files can be utilized for matching distinctive looks between
multiple cameras or on different shooting days. Built-in gamma curves including HD Norm, HD Low
and High, Cine-like D, Cine-like V and B.Stretch. Four selectable color matrices including Norm 1
and Norm 2, Fluorescent and Cinelike. Other controls include Color Phase and Saturation as well
as Pedestal and Detail image control.
Manual Focus Assist and AF
The AF100A is equipped with an HD focus assist function. The focus bar indicates the focus level
and the focus-in-red (peaking) display highlights the hard edges of in focus objects. These features
can be extremely helpful when making manual focus adjustments. Auto focus is also available
when using compatible Lumix lenses, and AF features include face detection and area auto focus.
LCD Monitor and Electronic Viewfinder
The AF100A features a 3.45" 16:9 LCD display with approximately 920K dot resolution for
monitoring, playback and adjusting menu settings. There is also an electronic viewfinder with
approximately 1,226K resolution.
Monitoring Features
Monitoring features include two sets of zebra display markers, Waveform and Vectorscope
accurate monitoring of Broadcast Safe Levels. In addition, Spotmeter "marker" provides instant
feedback on key exposure values.
Additional Features
Manual and preset white balance choices
Preset black balance options
Syncro-scan shutter and Slow shutter mode
Pre-record and an intervalometer function for up to 24 hours
Aspect ratio markings (16:9, 2.35, 1.85, 14:9 and 4:3)
Programmable user buttons
ATW Lock and Shot Mark
Smart Battery interface (recording times of up to 4 hours with a 5400mA battery)
Metadata allows users to assign clip names
Down-converted standard definition composite output
Professional color bars and 1000Hz tone
Standard Panasonic communication protocol for remote control
Wireless infrared remote controller
Camera
Sensor Type
Sensor Size
Color Filter
Effective Pixels
Gain
Normal Sensitivity
Horizontal Resolution
Color Temperature
Shutter Speed
4/3" MOS
Valid image range: approx. 17.8 x 10 mm
Primary color filter
Approx. 12,400,000 pixels (single panel, 16:9)
Video Cam mode: -6dB ~ 18dB (in 3dB steps)
Film Cam mode: ISO 200 ~ 3200
f/8.0 normal (2000lx, 3200K, 89.9% reflex, 1080 59.94i)
800 TV lines (at center standard)
ATW, ATW LOCK, preset 3200K, preset 5600K, preset VAR,
Ach, Bch
Preset (59.94 Hz)
60i/p mode: 1/60, 1/100, 1/120, 1/500, 1/1000, 1/2000
30p mode: 1/30, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
24p mode: 1/24, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
Preset (50 Hz)
50i/p mode: 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
25p mode: 1/25, 1/50, 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000
Syncro Scan in Video Cam mode (59.94 Hz)
60i/p mode: 1/60 ~ 1/250.6
30p mode: 1/30 ~ 1/250.6
24p mode: 1/24 ~ 1/250.6
Syncro Scan in Video Cam mode (50 Hz)
50i/p mode: 1/50 ~ 1/250
25p mode: 1/25 ~ 1/250
Syncro Scan in Film Cam mode
10 to 180 to 360 d (in 0.5 d steps)
Slow Shutter (59.94 Hz)
60i/p mode: 1/2, 1/4, 1/8, 1/15, 1/30
30p mode: 1/2, 1/4, 1/8, 1/15
24p mode: 1/2, 1/3, 1/6, 1/12
Slow Shutter (50 Hz)
50i/p mode: 1/2, 1/3, 1/6, 1/12, 1/25
25p mode: 1/2, 1/3, 1/6, 1/12
Recording
Recording Media
SD memory cards: up to 512MB, 1 GB, 2 GB (FAT12, FAT16)
SDHC memory cards: 4 GB, 6 GB, 8 GB, 12GB,
16 GB and 32 GB (FAT32)
SDXC memory cards: 48 GB, 64 GB (exFAT)
Recording Format
Recording Modes
Transmission Rate
Recording Time
Interval Recording
VFR Recording
Audio Recording
Note: Class 4 is supported in PH and HA modes, and Class 6
is supported at VFR recording and in PS mode.
AVCHD ver.2.0 (MPEG-4 AVC/H.264/AVCHD Progressive)
PS mode (59.94 Hz): 1080/59.94p,
PH mode (59.94 Hz): 1080/59.94i, 1080/29.97p, 1080/23.98p,
720/59.94p, 720/29.97p, 720/23.98p
HA/HE mode (59.94 Hz): 1080/59.94i
PS mode (50 Hz): 1080/50p,
PH mode (50 Hz): 1080/50i, 1080/25p, 720/50p, 720/25p,
HA/HE mode (50 Hz): 1080/50i
PS mode: approx. 25 Mbps (VBR)
PH mode: approx. 21 Mbps (VBR)
HA mode: approx. 17 Mbps (VBR)
HE mode: approx. 6 Mbps (VBR)
Approx. 12 hours (PH mode 1920x1080 or 1280x720 with
two 64GB SDXC memory cards)
Off/1 sec. /10 sec. /30 sec. /1 min. /2 min.
Note: recording mode is fixed to PH 1080/24p (59.94 Hz) and
PH 1080/25p (50 Hz) and the maximum shooting time is
24 hours.
1080/24p, 30p: 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30,
32, 34, 36, 40, 44, 48, 54, 60 frames per second
1080/25p: 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30,
32, 34, 37, 42, 45, 48, 50 frames per second
PS/PH mode formats: Dolby Digital/2ch, linear PCM digital/2ch
Audio Sampling Frequency: 48 kHz
Encoding: 16 bit
Dolby Digital Bit Rate: 384 kbps (PS/PH mode), 256 kbps
(HA/HE mode)
Interface
HD/SD-SDI
HDMI
Video
Audio Input
Audio Output
Connector: BNC x1 (0.8 V [p-p], 75Ω)
59.94 Hz formats: 1080/60i, 1080/24PsF, 720/60p, 480/60i
50 Hz formats: 1080/50i, 720/50p, 576/50i
Connector: HDMI TypeA terminal x1
(VIERA Link not supported)
59.94 Hz formats: 1080/60p, 1080/60i, 720/60p, 480/60p
50 Hz formats: 1080/50p, 1080/50i, 720/50p, 576/50p
Connector: RCA pin jack x1 (1.0 V [p-p], 75Ω)
59.94 Hz formats: 480/60i [50 Hz] 576/50i
Connector: XLR x2 (3 pin, line/mic selectable, high impedance)
Line: 0 dBu
Mic: -50/-60 dBu (menu selectable)
Connector: RCA pin jack x2 (Ch1/Ch2, 316 mV, 600 Ω)
Embedded SDI audio: 2ch (linear PCM)
Embedded HDMI audio: 2ch (linear PCM), 5.1ch (Dolby Digital)
Remote
Timecode
USB
Headphone: 3.5 mm diameter stereo mini jack (x1)
Speaker: 20 mm round x1
Camera Remote: 2.5 mm Super mini jack (S/S),
3.5 mm mini jack (focus, iris)
Index Remote: 2.5 mm Super mini jack
Input: 1.0 V to 4.0 V [p-p], 10 KΩ
Output: 2.0 V ±0.5 V [p-p], low impedance
Note: the TC interface is also used for video output
Connector: USB mini B (compliant with USB ver. 2.0)
Card reader function (no copyright protection support)
Display
Monitor
Viewfinder
General
Lens Mount
Built-in ND Filter
Power Supply
Power Consumption
Operating Temperature
Operating Humidity
Dimensions
Weight
Type: LCD (color)
Size: 3.45" (diagonal)
Aspect ratio: 16:9
Resolution: approx. 920,000 dots
Type: LCD (color)
Size: 0.45" (diagonal)
Aspect ratio: 16:9
Resolution: approx. 1,226,000 dots
Micro Four Thirds system
Clear, 1/4, 1/16, 1/64
DC 7.2 V (when the battery is used)
DC 7.3 V (when the AC adaptor is used)
12.4 W (when recording)
32 ~ 104° F (0 ~ 40° C)
10 ~ 80% (no condensation)
6.4 x 7.7 x 11.4" (163.4 x 195 x 290.4 mm)
Note: including the handle and grip
Approx. 2.9 lb (1.3 kg)
Note: excluding the handle, grip, battery and other accessories
