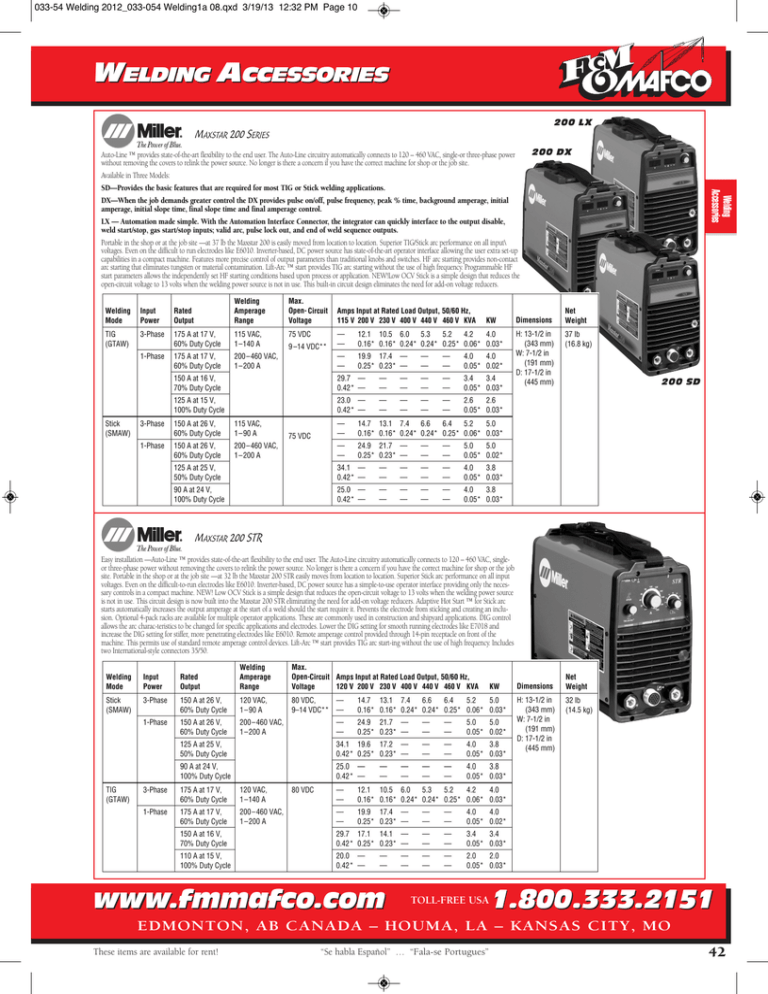

033-54 Welding 2012_033-054 Welding1a 08.qxd 3/19/13 12:32 PM Page 10
Welding Accessories
200 lX
maXStar 200 SerieS
Auto-Line ™ provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120 – 460 VAC, single-or three-phase power
without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for shop or the job site.
200 dX
Available in Three Models:
Welding
Accessories
SD—Provides the basic features that are required for most TIG or Stick welding applications.
DX—When the job demands greater control the DX provides pulse on/off, pulse frequency, peak % time, background amperage, initial
amperage, initial slope time, final slope time and final amperage control.
LX — Automation made simple. With the Automation Interface Connector, the integrator can quickly interface to the output disable,
weld start/stop, gas start/stop inputs; valid arc, pulse lock out, and end of weld sequence outputs.
Portable in the shop or at the job site —at 37 lb the Maxstar 200 is easily moved from location to location. Superior TIG/Stick arc performance on all input\
voltages. Even on the difficult to run electrodes like E6010. Inverter-based, DC power source has state-of-the-art operator interface allowing the user extra set-up
capabilities in a compact machine. Features more precise control of output parameters than traditional knobs and switches. HF arc starting provides non-contact
arc starting that eliminates tungsten or material contamination. Lift-Arc ™ start provides TIG arc starting without the use of high frequency. Programmable HF
start parameters allows the independently set HF starting conditions based upon process or application. NEW!Low OCV Stick is a simple design that reduces the
open-circuit voltage to 13 volts when the welding power source is not in use. This built-in circuit design eliminates the need for add-on voltage reducers.
200 sd
maXStar 200 Str
Easy installation —Auto-Line ™ provides state-of-the-art flexibility to the end user. The Auto-Line circuitry automatically connects to 120 – 460 VAC, singleor three-phase power without removing the covers to relink the power source. No longer is there a concern if you have the correct machine for shop or the job
site. Portable in the shop or at the job site —at 32 lb the Maxstar 200 STR easily moves from location to location. Superior Stick arc performance on all input
voltages. Even on the difficult-to-run electrodes like E6010. Inverter-based, DC power source has a simple-to-use operator interface providing only the necessary controls in a compact machine. NEW! Low OCV Stick is a simple design that reduces the open-circuit voltage to 13 volts when the welding power source
is not in use. This circuit design is now built into the Maxstar 200 STR eliminating the need for add-on voltage reducers. Adaptive Hot Start ™ for Stick arc
starts automatically increases the output amperage at the start of a weld should the start require it. Prevents the electrode from sticking and creating an inclusion. Optional 4-pack racks are available for multiple operator applications. These are commonly used in construction and shipyard applications. DIG control
allows the arc charac-teristics to be changed for specific applications and electrodes. Lower the DIG setting for smooth running electrodes like E7018 and
increase the DIG setting for stiffer, more penetrating electrodes like E6010. Remote amperage control provided through 14-pin receptacle on front of the
machine. This permits use of standard remote amperage control devices. Lift-Arc ™ start provides TIG arc start-ing without the use of high frequency. Includes
two International-style connectors 35/50.
www.fmmafco.com
TOLL-FREE USA
1.800.333.2151
EDMONTON, AB CANADA – HOUMA, LA – KANSAS CITY, MO
These items are available for rent!
“Se habla Español” … “Fala-se Portugues”
42
