DSC-S700

DSC-S700
DSC-S700

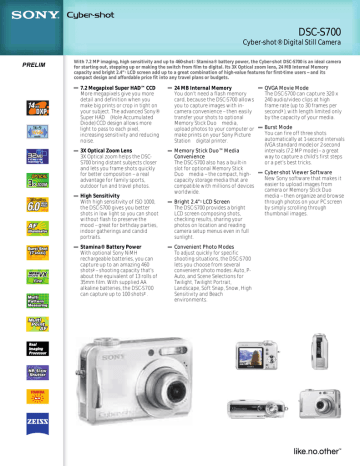

Cyber-shot® Digital Still Camera
PRELIM
With 7.2 MP imaging, high sensitivity and up to 460-shot2 Stamina® battery power, the Cyber-shot DSC-S700 is an ideal camera
for starting out, stepping up or making the switch from film to digital. Its 3X Optical zoom lens, 24 MB Internal Memory
capacity and bright 2.4” 1 LCD screen add up to a great combination of high-value features for first-time users -- and its
compact design and affordable price fit into any travel plans or budgets.
7.2 Megapixel Super HAD™ CCD
More megapixels give you more
detail and definition when you
make big prints or crop in tight on
your subject. The advanced Sony®
Super HAD™ (Hole Accumulated
Diode) CCD design allows more
light to pass to each pixel,
increasing sensitivity and reducing
noise.
24 MB Internal Memory
You don’t need a flash memory
card, because the DSC-S700 allows
you to capture images with incamera convenience -- then easily
transfer your shots to optional
Memory Stick Duo™ media,
upload photos to your computer or
make prints on your Sony Picture
Station™ digital printer.
3X Optical Zoom Lens
3X Optical zoom helps the DSCS700 bring distant subjects closer
and lets you frame shots quickly
for better composition -- a real
advantage for family sports,
outdoor fun and travel photos.
Memory Stick Duo™ Media
Convenience
The DSC-S700 also has a built-in
slot for optional Memory Stick
Duo™ media -- the compact, highcapacity storage media that are
compatible with millions of devices
worldwide.
High Sensitivity
With high sensitivity of ISO 1000,
the DSC-S700 gives you better
shots in low light so you can shoot
without flash to preserve the
mood -- great for birthday parties,
indoor gatherings and candid
portraits.
Stamina® Battery Power
With optional Sony NiMH
rechargeable batteries, you can
capture up to an amazing 460
shots2 -- shooting capacity that’s
about the equivalent of 13 rolls of
35mm film. With supplied AA
alkaline batteries, the DSC-S700
can capture up to 100 shots2 .
Bright 2.4” 1 LCD Screen
The DSC-S700 provides a bright
LCD screen composing shots,
checking results, sharing your
photos on location and reading
camera setup menus even in full
sunlight.
Convenient Photo Modes
To adjust quickly for specific
shooting situations, the DSC-S700
lets you choose from several
convenient photo modes: Auto, PAuto, and Scene Selections for
Twilight, Twilight Portrait,
Landscape, Soft Snap, Snow, High
Sensitivity and Beach
environments.
QVGA Movie Mode
The DSC-S700 can capture 320 x
240 audio/video clips at high
frame rate (up to 30 frames per
second3 ), with length limited only
by the capacity of your media.
Burst Mode
You can fire off three shots
automatically at 1-second intervals
(VGA standard mode) or 2-second
intervals (7.2 MP mode) -- a great
way to capture a child’s first steps
or a pet’s best tricks.
Cyber-shot Viewer Software
New Sony software that makes it
easier to upload images from
camera or Memory Stick Duo™
media -- then organize and browse
through photos on your PC screen
by simply scrolling through
thumbnail images.
DSC-S700
Cyber-shot® Digital Still Camera
Specifications
General
Megapixel: 7.2 MP
Imaging Device: 1/2.5" Super HAD™
CCD
Recording Media: 24MB internal
Flash Memory, optional Memory
Stick® DUO Media, optional
Memory Stick DUO PRO™ Media
Hardware
LCD: 2.4"1 (115K Pixels TFT LCD Screen)
Viewfinder: N/A
Software CD-ROM
NOTE: No Memory Stick Duo™ media
or adaptors are included.
Optional Accessories
Cyber-shot® Starter Kit (ACC-CN3TR)
Rechargeable NiMH Batteries - 2pk
(NH-AA-2DB)
External Slave Flash w/ Bracket (HVLFSL1B)
GPS Unit Kit (GPS-CS1KA)
Soft Carrying Case (LCS-CSD, LCS-CSJ)
Memory Stick Duo™ PRO Media (MSX256S)
Lens Construction: 6 Elements in 5
Groups
Memory Stick Duo™ PRO Media (MSX1GS)
Microphone/Speaker: Yes/Mono
Memory Stick Duo™ PRO Media (MSX1GN)
Memory Stick Duo™ PRO Media (MSX2GN)
Memory Stick Duo™ PRO Media (MSXM4GS)
Memory Stick Duo™ PRO Media USB
Adptr (MSAC-US30)
Multi-slot Memory Stick® Adaptor
(MSAC-USM1)
Lens Type: Sony
Docking Station: N/A
Optics/Lens
Focal Length: 5.8 to 17.4 mm
35mm Equivalent: 35-105mm
Aperture: f2.8-9.7(W), f4.8-9.7 (T)
Focus: Single AF
Focal Distance: Normal Minimum: 19
3/4" (50cm)
Shutter Speed: 1/8-1/2000 sec. (Auto);
1-1/2000 sec. (Program Auto)
Color: Silver
UPC Code: 027242705111
ISO: Auto, 100, 200, 400, 800, 1000
Filter Diameter: N/A
Smart Zoom® Technology: Up to
3.6X (5MP), 4.5X (3MP), 5.6X (2MP),
14X (VGA resolution)4
Digital Zoom: 0-2.0X (Precision)
Optical Zoom: 3X
Macro Mode: Auto Macro
Total Zoom: 6X
Minimum Focus Distance: 2" (5 cm)
EV Compensation: ±2.0 EV, 1/3 EV
Steps
Dimensions
Weight: 4.6 oz (130 g) Body; 6.2 oz.
(178 g) including Battery and
optional Memory Stick® DUO
Media
Measurements: 3-9/16" x 2-3/8" x
15/16" (91 x 61 x 25.1 mm)
Supplied Accessories
“ AA” type one-use Alkaline batteries
(x2)
AV cable
USB cable
Wrist strap
1: Viewable area, measured diagonally.
2: 460-shots using optional NHAA2DB AA-type batteries. Actual results may vary based on product settings,
usage patterns, battery and environmental conditions.
3: Shooting at high frame rate of up to 30 frames per second requires Memory Stick PRO Duo™ media.
4: Smart Zoom feature will not work at highest Resolution setting.
© 2007 Sony Electronics, Inc.
All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, Cybershot, Handycam, Memory Stick Duo, Picture Station, Stamina, Super HAD, and Walkman are trademarks of
Sony.
Please visit the Dealer Network for more information at www.sony.com/dn
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1.800.222.7669 • www.sony.com
Last Updated: 04/03/2007
