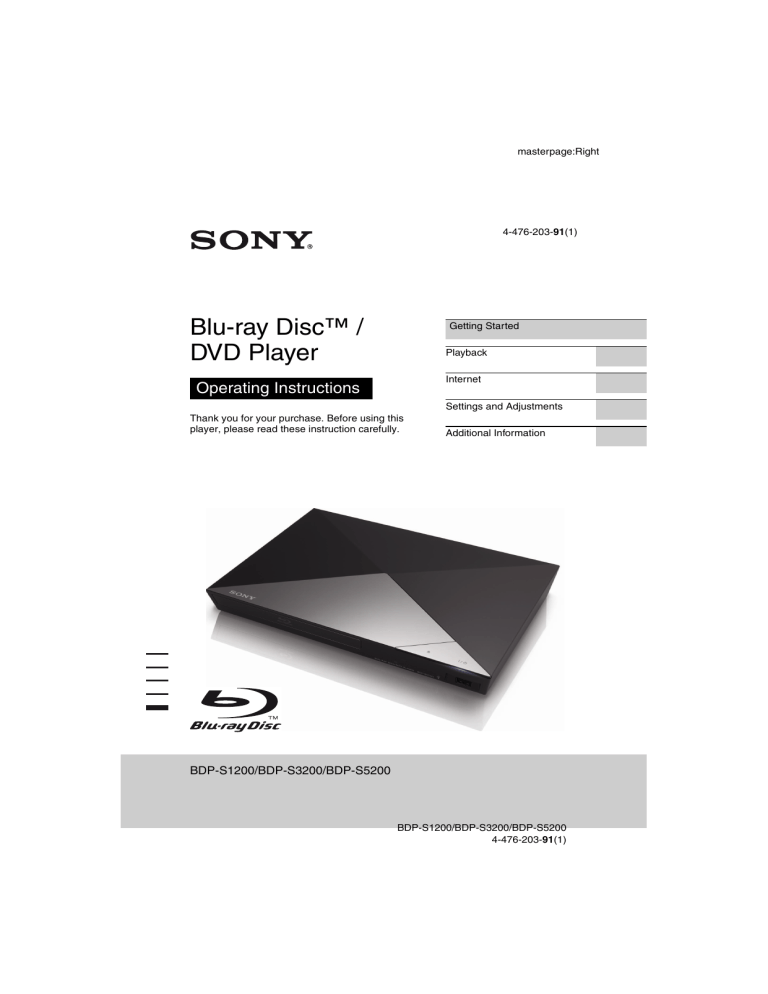

Blu-ray Disc™ /

DVD Player

Operating Instructions

Thank you for your purchase. Before using this player, please read these instruction carefully.

Getting Started

Playback

Internet

Settings and Adjustments

Additional Information

BDP-S1200/BDP-S3200/BDP-S5200

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\02

0WAR.fm

master page=left

WARNING

To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing, and do not place objects filled with liquids, such as vases, on the appliance.

To avoid electrical shock, do not open the cabinet.

Refer servicing to qualified personnel only.

The mains lead must be changed only at a qualified service shop.

Do not expose batteries or appliances with battery-installed to excessive heat, such as sunshine and fire.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc/DVD player is harmful to eyes, do not attempt to disassemble the cabinet.

Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

2

Disposal of Old

Electrical & Electronic

Equipment (Applicable in the European Union and other European countries with separate collection systems)

Precautions

• This unit operates on 220 V - 240 V AC,

50/60 Hz. Check that the unit’s operating voltage is identical with your local power supply.

• Install this unit so that the mains lead can be unplugged from the wall socket immediately in the event of trouble.

Precautions

This equipment has been tested and found to comply with the limits set out in the EMC

Directive using a connection cable shorter than 3 metres.

On placement

• Place the player in a location with adequate ventilation to prevent heat build-up in the player.

• To reduce the risk of fire, do not cover the ventilation opening of the appliance with newspapers, tablecloths, curtains, etc.

• Do not expose the appliance to naked flame sources (for example, lighted candles).

• Do not install this player in a confined space, such as a bookshelf or similar unit.

• Do not place the player outdoors, in vehicles, on ships, or on other vessels.

• If the player is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the player. Should this occur, the player may not operate properly. In this case, remove the disc and leave the player turned on for about half an hour until the moisture evaporates.

• Do not install the player in an inclined position. It is designed to be operated in a horizontal position only.

• Do not place metal objects in front of the front panel. It may limit reception of radio waves.

• Do not place the player in a place where medical equipment is in use. It may cause a malfunction of medical instruments.

• If you use a pacemaker or other medical device, consult your physician or the manufacturer of your medical device before using the wireless LAN function.

• This player should be installed and operated with a minimum distance of at least 20 cm or more between the player and a person’s body (excluding extremities: hands, wrists, feet and ankles).

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\02

0WAR.fm

master page=right

• Do not place heavy or unstable objects on the player.

• Do not place any objects other than discs on the disc tray. Doing so may cause damage to the player or the object.

• Take out any discs from the tray when you move the player. If you don’t, the disc may be damaged.

• Disconnect the AC power cord (mains lead) and all other cables from the player when you move the player.

On power sources

• The player is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the player itself has been turned off.

• Disconnect the player from the wall outlet if you are not going to use the player for a long time. To disconnect the AC power cord

(mains lead), grasp the plug itself; never pull the cord.

• Observe following points to prevent the AC power cord (mains lead) being damaged. Do not use the AC power cord (mains lead) if it is damaged, as doing so may result in an electric shock or fire.

– Do not pinch the AC power cord (mains lead) between the player and wall, shelf, etc.

– Do not put anything heavy on the AC power cord (mains lead) or pull on the AC power cord (mains lead) itself.

On AC adaptor

• Use the supplied AC adaptor for this player, as other adaptors may cause a malfunction.

• Do not disassemble or reverse-engineer.

• Do not confine the AC adaptor in a closed place such as a bookshelf or an AV cabinet.

• Do not connect the AC adaptor to a traveler’s electric transformer, which may generate heat and cause a malfunction.

• Do not drop or apply shock.

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. Your ears and the speakers may be damaged when the sound level reaches the peak.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners

(including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the events that this player is repaired, repaired parts may be collected for reuse or recycling purposes.

On connecting to the HDMI OUT jack

Observe the following as improper handling may damage the HDMI OUT jack and the connector.

• Carefully align the HDMI OUT jack on the rear of the player and the HDMI connector by checking their shapes. Make sure the connector is not upside down or tilted.

• Be sure to disconnect the HDMI cable when moving the player.

• Hold the HDMI connector straight when connecting or disconnecting the HDMI cable. Do not twist or force the HDMI connector into the HDMI OUT jack.

3

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\02

0WAR.fm

master page=left

4

On watching 3D video images

(BDP-S5200 only)

Some people may experience discomfort

(such as eye strain, fatigue, or nausea) while watching 3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review (i) the instruction manual and/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website

(http://www.sony-asia.com/support/) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor (such as a pediatrician or eye doctor) before allowing young children to watch 3D video images.

Adults should supervise young children to ensure they follow the recommendations listed above.

IMPORTANT NOTICE

Caution: This player is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panel televisions and projection televisions are susceptible to this.

If you have any questions or problems concerning your player, please consult your nearest Sony dealer.

Copy Protection

Please be advised of the advanced content protection systems used in both Blu-ray

Disc™ and DVD media. These systems, called AACS (Advanced Access Content

System) and CSS (Content Scramble System), may contain some restrictions on playback, analogue output, and other similar features.

The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the

AACS may adopt or change its restriction rules after the time of purchase.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer

Information Center at http://www.cinavia.com.

To request additional information about

Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer

Information Center, P.O. Box 86851, San

Diego, CA, 92138, USA.

About this manual

The cover page photo is BDP-S5200.

Copyrights and Trademarks

• “AVCHD” and the “AVCHD 3D/

Progressive” logo are trademarks of

Panasonic Corporation and Sony

Corporation.

• Java is a trademark of Oracle and/or its affiliates.

• , “XMB,” and “xross media bar” are trademarks of Sony Corporation and Sony

Computer Entertainment Inc.

• Manufactured under license from Dolby

Laboratories. Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby

Laboratories.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\02

0WAR.fm

master page=right

• For DTS patents, see http://patents.dts.com.

Manufactured under license from DTS

Licensing Limited. DTS, the Symbol, &

DTS and the Symbol together are registered trademarks, and DTS 2.0+Digital Out is a trademark of DTS, Inc. © DTS, Inc. All

Rights Reserved.

• The terms HDMI

®

and HDMI High-

Definition Multimedia Interface, and the

HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the

United States and other countries.

• Blu-ray Disc™, Blu-ray™, Blu-ray 3D™,

BD-Live™, BONUSVIEW™, and the logos are trademarks of the Blu-ray Disc

Association.

• “DVD Logo” is a trademark of

DVD Format/Logo Licensing Corporation.

• “DVD+RW,” “DVD-RW,” “DVD+R,”

“DVD-R,” “DVD VIDEO,” and “CD” logos are trademarks.

• “BRAVIA” is a trademark of Sony

Corporation.

• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.

• This product incorporates proprietary technology under license from Verance

Corporation and is protected by U.S. Patent

7,369,677 and other U.S. and worldwide patents issued and pending as well as copyright and trade secret protection for certain aspects of such technology. Cinavia is a trademark of Verance Corporation.

Copyright 2004-2010 Verance Corporation.

All rights reserved by Verance. Reverse engineering or disassembly is prohibited.

• Windows Media is either a registered trademark or trademark of Microsoft

Corporation in the United States and/or other countries.

This product contains technology subject to certain intellectual property rights of

Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.

Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to access PlayReady-protected content and/or WMDRM-protected content.

If the device fails to properly enforce restrictions on content usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.

• Music and video recognition technology and related data are provided by Gracenote

®

.

Gracenote is the industry standard in music recognition technology and related content delivery. For more information, please visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000-present Gracenote.

Gracenote Software, copyright © 2000present Gracenote. One or more patents owned by Gracenote apply to this product and service. See the Gracenote website for a nonexhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID,

MediaVOCS, the Gracenote logo and logotype, and the “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote in the United

States and/or other countries.

5

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\02

0WAR.fm

master page=left

6

• Wi-Fi

®

, Wi-Fi Protected Access

®

and

Wi-Fi Alliance

®

are registered trademarks of Wi-Fi Alliance.

• Wi-Fi CERTIFIED™, WPA™, WPA2™,

Wi-Fi Protected Setup™, Miracast™ and

Wi-Fi CERTIFIED Miracast™ are trademarks of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED Logo is a certification mark of Wi-Fi Alliance.

• The Wi-Fi Protected Setup Identifier Mark is a mark of Wi-Fi Alliance.

• DLNA

®

, the DLNA Logo and DLNA

CERTIFIED™ are trademarks, service marks, or certification marks of the Digital

Living Network Alliance.

• Opera

®

Devices SDK from Opera Software

ASA. Copyright 1995-2013 Opera Software

ASA. All rights reserved.

• All other trademarks are trademarks of their respective owners.

• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.

Gracenote

®

End User License

Agreement

This application or device contains software from Gracenote, Inc. of Emeryville, California

(“Gracenote”). The software from Gracenote

(the “Gracenote Software”) enables this application to perform disc and/or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases

(collectively, “Gracenote Servers”) and to perform other functions. You may use

Gracenote Data only by means of the intended

End-User functions of this application or device.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote

Servers for your own personal noncommercial use only. You agree not to assign, copy, transfer or transmit the Gracenote

Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR

EXPLOIT GRACENOTE DATA, THE

GRACENOTE SOFTWARE, OR

GRACENOTE SERVERS, EXCEPT AS

EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote

Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the

Gracenote Software, and Gracenote Servers.

Gracenote reserves all rights in Gracenote

Data, the Gracenote Software, and the

Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that

Gracenote, Inc. may enforce its rights under this Agreement against you directly in its own name.

,

continued to page 8

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\01

0COVTOC.fm

Contents

2 WARNING

2 Precautions

Getting Started

9 Guide to Parts and Controls

13 Step 1: Connecting the Player

15 Step 2: Preparing for Network Connection

15 Step 3: Easy Setup

Playback

17 Playing a Disc

19 Playing from a USB Device

19 Playing via a Network

22 Available Options

I

Internet (BDP-S3200/S5200 only)

24 Browsing Websites

Settings and Adjustments

26 Using the Settings Displays

26 [Software Update]

26 [Screen Settings]

27 [Audio Settings]

28 [BD/DVD Viewing Settings]

29 [Parental Control Settings]

29 [System Settings]

30 [Network Settings]

31 [Easy Network Settings]

31 [Resetting]

Additional Information

32 Troubleshooting

36 Specifications

master page=right

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

7

C:\Users\fle1\Desktop\SD130025\4476203911_GB\01

0COVTOC.fm

8

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of

Gracenote Data are licensed to you “AS IS.”

Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data from in the

Gracenote Servers. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that

Gracenote deems sufficient. No warranty is made that the Gracenote Software or

Gracenote Servers are error-free or that functioning of Gracenote Software or

Gracenote Servers will be uninterrupted.

Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL

WARRANTIES EXPRESS OR IMPLIED,

INCLUDING, BUT NOT LIMITED TO,

IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, TITLE, AND

NON-INFRINGEMENT. GRACENOTE

DOES NOT WARRANT THE RESULTS

THAT WILL BE OBTAINED BY YOUR

USE OF THE GRACENOTE SOFTWARE

OR ANY GRACENOTE SERVER. IN NO

CASE WILL GRACENOTE BE LIABLE

FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES OR FOR ANY

LOST PROFITS OR LOST REVENUES.

© 2000 to present. Gracenote, Inc.

master page=left

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=right

Getting Started

Guide to Parts and Controls

Front panel

1 2 34

6 5

A

Disc tray

B

Z

(open/close)

C

[

/

1

(on/standby)

Turns on the player, or sets to standby mode.

D

(USB) jack

Connect a USB device to this jack.

E

Power indicator

Lights up when the player is turned on.

F

Remote sensor

To lock the disc tray (Child Lock)

You can lock the disc tray to avoid accidental opening of the tray.

While the player is turned on, press x (stop), HOME, and then TOP MENU button on the remote to lock or unlock the tray.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

9

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

Rear panel

master page=left

A

DC IN 12 V (AC adaptor input) jack

B

LAN (100) terminal

C

HDMI OUT jack

D

DIGITAL OUT (COAXIAL) jack

10

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=right

Remote

The available functions of the remote are different depending on the disc or the situation.

TOP MENU

RETURN

S EN

SUBTITLE

HOME

POP UP/

MENU

OPTIONS

AUDIO

DISPLAY

z

N

,

2

+

, and AUDIO buttons have a tactile dot. Use the tactile dot as a reference when operating the player.

A

Z

(open/close)

Opens or closes the disc tray.

-TV-

t

(TV input select)

Switches between TV and other input sources.

-TV-

[

/

1

(TV on/standby)

Turns on the TV, or sets to standby mode.

[

/

1

(on/standby)

Turns on the player, or sets to standby mode.

B

Colour buttons (red/green/ yellow/blue)

Shortcut keys for interactive functions.

C

TOP MENU

Opens or closes the BD’s or DVD’s

Top Menu.

POP UP/MENU

Opens or closes the BD-ROM’s

Pop-up Menu, or the DVD’s menu.

OPTIONS (page 22)

Displays the available options on the screen.

RETURN

Returns to the previous display.

<

/

M

/

m

/

,

Moves the highlight to select a displayed item.

b

M / m as a shortcut key for track search during music CD playback.

Centre button (ENTER)

Enters the selected item.

HOME

Enters the player’s home menu.

Displays the wall paper when pressed on the category icon of the home menu.

11

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

12

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=left

SEN (page 19)

Accesses the “Sony Entertainment

Network™” online service.

NET SERVICE

Returns to the previous online service portal.

D m

/

M

(fast reverse/fast forward)

• Fast reverse/fast forward the disc when you press the button during playback. The search speed changes each time you press the button during video playback.

• Plays in slow motion, when pressed for more than one second in pause mode.

• Plays one frame at a time, when you press for a short time in pause mode.

N

(play)

Starts or re-starts playback.

.

/

>

(previous/next)

Skips to the previous/next chapter, track, or file.

X

(pause)

Pauses or re-starts playback.

x

(stop)

Stops playback and remembers the stop point (resume point).

The resume point for a title/track is the last point you played or the last photo for a photo folder.

SUBTITLE (page 28)

Selects the subtitle language when multi-lingual subtitles are recorded on BD-ROMs/DVD VIDEOs.

2

(volume) +/–

Adjusts the TV volume.

AUDIO (page 28)

Selects the language track when multi-lingual tracks are recorded on

BD-ROMs/DVD VIDEOs.

Selects the sound track on CDs.

(muting)

Turns off the sound temporarily.

DISPLAY (page 18)

Displays the playback and web browsing (BDP-S3200/S5200 only) information on the screen.

Home menu display

The home menu appears when you press

HOME. Select a category using < / , .

Select an item using M / m , and press

ENTER.

Item

Category

[Setup]: Adjusts the player settings.

[Photo]: Displays photos.

[Music]: Plays music.

[Video]: Plays videos.

[Input]: Perform Screen mirroring with compatible source device

(BDP-S3200/S5200 only).

[Network]: Displays network items.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=right

Step 1: Connecting the Player

Do not connect the mains lead until you have made all the connections.

Connecting to your TV

Connect the player to your TV with a High Speed HDMI Cable.

High Speed HDMI Cable

*

* See “Supplied accessories” (page 36).

High quality

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

13

14

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=left

Connecting to your AV amplifier (receiver)

Select one of the following connection methods according to the input jacks on your

AV amplifier (receiver). When you select

A

or

B

, make the appropriate settings in

the [Audio Settings] setup (page 27).

High Speed HDMI Cable

*

High Speed HDMI Cable

(not supplied) t

Set [BD Audio MIX Setting] (page 28).

Coaxial digital cable

(not supplied)

* See “Supplied accessories” (page 36).

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

master page=right

Step 2: Preparing for

Network Connection

If you are not going to connect the player

to a network, proceed to “Step 3: Easy

Setup” (page 15).

Step 3: Easy Setup

When turned on for the first time

Wait for a short while before the player turns on and starts [Easy

Initial Settings].

Wired Setup

Use a LAN cable to connect to the LAN

(100) terminal on the player.

1

Insert two R03 (size AAA) batteries by matching the

3

and

#

ends on the batteries to the markings inside the battery compartment of the remote.

LAN cable

(not supplied)

Broadband router

ADSL modem/

Cable modem

Internet z

The use of a shielded and straight interface cable (LAN cable) is recommended.

Wireless Setup (BDP-S3200/

S5200 only)

Use the wireless LAN that is built into the player.

2

Connect the supplied AC adaptor and AC power cord (mains lead) in the numeric order shown below. When removing them, do so in reverse order.

1

to DC IN 12 V

AC adaptor (supplied)

LAN cable (not supplied)

Wireless LAN router

ADSL modem/

Cable modem

Internet

2

AC power cord (mains lead)

(supplied)

3 to mains

15

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

16

C:\Users\fle1\Desktop\SD130025\4476203911_GB\03

0STU.fm

3

Press

[

/

1

to turn on the player.

master page=left

4

Turn on the TV and set the input selector on your TV. This will show the signal from the player on your TV screen.

5

Perform [Easy Initial Settings].

Follow the on-screen instructions to make the basic settings using

<

/

M

/ m

/

,

and ENTER on the remote.

< / M / m / ,

ENTER b

When [Easy Initial Settings] is complete, select [Easy Network Settings] to use the network functions of the player.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=right

Playback

Playing a Disc

For playable discs, see page 37.

1

Switch the input selector on your

TV so that the signal from the player appears on your TV screen.

2

Press

Z

, and place a disc on the disc tray.

3

Playing side facing down

Press

Z

to close the disc tray.

Playback starts.

If playback does not start automatically, select in the

[Photo] category, and press

ENTER.

Enjoying BONUSVIEW/

BD-LIVE

Some BD-ROMs with the “BD-LIVE” logo* have bonus contents and other data that can be downloaded for your enjoyment.

*

1

Connect a USB memory to the

USB jack on the player (page 9).

Use a 1 GB or larger USB memory as your local storage.

2

Prepare for BD-LIVE (BD-LIVE only).

• Connect the player to a network

(page 15).

• Set [BD Internet Connection] in

[BD/DVD Viewing Settings] setup

to [Allow] (page 28).

3

Insert a BD-ROM with

BONUSVIEW/BD-LIVE.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

z

To delete data in the USB memory, select

[Delete BD Data] in the [Video] category, and press ENTER. All data stored in the buda folder will be erased.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

17

18

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=left

Enjoying Blu-ray 3D

(BDP-S5200 only)

Displaying the play information

You can enjoy a Blu-ray 3D Disc with the “Blu-ray 3D” logo*.

*

1

Prepare for Blu-ray 3D Disc playback.

• Connect the player to your

3D-compatible devices using a

High Speed HDMI Cable.

• Set [3D Output Setting] and [TV

Screen Size Setting for 3D] in the

[Screen Settings] setup (page 26).

2

Insert a Blu-ray 3D Disc.

The operation method differs depending on the disc. Refer to the instruction manual supplied with the disc.

You can view the playback information, etc., by pressing DISPLAY.

The displayed information differs depending on the disc type and player status.

Example: when playing a BD-ROM z

Refer also to the instruction manuals supplied with your TV and the connected device.

A

Output resolution/Video frequency

B

Title number or name

C

The currently selected angle

D

The currently selected audio setting

E

Available functions ( audio, subtitle) angle,

F

Playback information

Displays the Play mode, Playing status bar, Disc type, Video codec,

Bitrate, Repeat type, Elapsed time, and Total playing time.

G

Chapter number

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=right

Playing from a USB

Device

3

Select an Internet content and a variety of on-demand entertainment using

<

/

M

/

m

/

,

, and press ENTER.

For “Playable types of files”, see page 38.

1

Connect the USB device to the

USB jack on the player (page 9).

Refer to the instruction manual supplied with the USB device before connecting.

2

Select [Video], [Music], or [Photo] category on the home menu using

<

/

,

.

3

Select [USB

M

/

m

, and press ENTER.

Playing via a Network

Enjoying Sony Entertainment

Network

Sony Entertainment Network serves as a gateway, delivering the selected Internet content and a variety of on-demand entertainment straight to your player.

z

• Some Internet content requires registration via a PC before it can be played.

• Some Internet content may not be available in some regions/countries.

1

Connect the player to a network

(page 15).

Video streaming control panel

The control panel appears when the video file starts playing. The displayed items may differ depending on Internet content providers.

To display again, press DISPLAY.

A

Control display

Press

<

/

M

/ m

/

,

or ENTER for playback operations.

B

Playing status bar

Status bar, Cursor indicating the current position, Playing time,

Duration of the video file

C

Network condition indicates the signal strength for wireless connection (BDP-S3200/

S5200 only).

indicates the wired connection.

D

Network transmission speed

E

The file name of the next video

F

The file name of the current video selection

2

Press SEN button on the remote.

19

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

20

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=left

Playing files on a Home

Network (DLNA) (BDP-S3200/

S5200 only)

A DLNA-compatible product can play video/music/photo files stored on another DLNA-compatible product via a network.

1

Prepare to use DLNA.

• Connect the player to a network

(page 15).

• Prepare the other necessary

DLNA-compatible products.

Refer to the instruction manual supplied with the product.

To play a file from a DLNA server via this unit (DLNA player)

To play a file from a DLNA server via another product (Renderer)

When you play files from a DLNA

Server on this unit, you can use a DLNA

Controller-compatible product (a phone, etc.), to control playback.

Server

Renderer

Controller

Control this unit using a DLNA controller. Refer to the instruction manual supplied with the DLNA controller.

Server

Player

Select the DLNA server icon from category, then choose the file you want to play.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=right

Using “TV SideView”

(BDP-S3200/S5200 only)

“TV SideView” is a free mobile application for remote devices (such as smartphone, etc.). By using “TV

SideView” with this player, you can easily enjoy the player by using the operation on your remote device. You can launch a service or application directly from the remote device and view the disc information during disc playback. “TV SideView” also can be used as a remote control and software keyboard.

Before you use the “TV SideView” device with this player for the first time, be sure to register the “TV SideView” device. Follow the on-screen instructions on the “TV SideView” device for registration.

b

The registration can only be performed on the

Home Menu.

Using Screen mirroring

(BDP-S3200/S5200 only)

“Screen mirroring” is a function to display the screen of a mobile device on the TV by Miracast technology.

The player can be connected directly with a Screen mirroring compatible device (e.g. smartphone, tablet). You can enjoy the display screen of the device on your large TV screen. No wireless router

(or access point) is required to use this feature.

b

• When using Screen mirroring, the quality of picture and sound may sometimes be deteriorated due to interference from other network.

• Some network functions may not be available during Screen mirroring.

• Make sure that the device is compatible with

Miracast. Connectivity with all Miracast compatible devices is not guaranteed.

1

Select [Screen mirroring] from

[Input] category on the home menu using

<

/

,

, and press

ENTER.

2

Follow the on-screen instructions.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

21

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

master page=left

22

Available Options

Various settings and playback operations are available by pressing

OPTIONS. The available items differ depending on the situation.

Common options

x x x x x

[Repeat Setting]:

Sets the repeat mode.

[3D Menu] (BDP-S5200 only):

– [Simulated 3D]: Adjusts the simulated 3D effect.

– [3D Depth Adjustment]: Adjusts the depth of 3D image.

– [2D Playback]: Sets playback to 2D image.

[Play]/[Stop]:

Starts or stops the playback.

[Play from start]:

Plays the item from the beginning.

[Change Category]:

Switches category between [Video],

[Music] and [Photo] category.

[Video] only

x x x x

[3D Output Setting] (BDP-S5200 only):

Sets whether or not to output

3D video automatically.

[A/V SYNC]:

Adjusts the gap between picture and sound, by delaying the sound output in relation to the picture output (0 to 120 milliseconds).

[Video Settings]:

– [Picture Quality Mode]: Selects the picture settings for different lighting environments.

– [BNR]: Reduces the mosaic-like block noise in the picture.

– [MNR]: Reduces minor noise around the picture outlines

(mosquito noise).

[Pause]:

Pauses the playback.

x x x x x x x x x x

[Top Menu]:

Displays the BD’s or

DVD’s Top Menu.

[Menu]/[Popup Menu]:

Displays the

BD-ROM’s Pop-up Menu or DVD’s menu.

[Title Search]:

Searches for a title on

BD-ROMs/DVD VIDEOs and starts playback from the beginning.

[Chapter Search]:

Searches for a chapter and starts playback from the beginning.

[Audio]:

Switches the language track when multilingual tracks are recorded on BD-ROMs/DVD VIDEOs. Selects the sound track on CDs.

[Subtitle]:

Switches the subtitle language when multilingual subtitles are recorded on BD-ROMs/DVD

VIDEOs.

[Angle]:

Switches to other viewing angles when multi-angles are recorded on BD-ROMs/DVD

VIDEOs.

[Number Entry]:

Selects the number by using

<

/

M

/ m

/

, key on the remote.

[IP Content Noise Reduction]:

Adjusts the picture quality of Internet contents.

[Video Search] (BDP-S3200/S5200 only):

Displays information on the

BD-ROM/DVD-ROM based on

Gracenote technology.

Searches for related information using keywords from Gracenote when selecting [Cast] or [Related].

Displays a list of titles when selecting

[Playback History] or [Search

History].

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\04

0PLY.fm

x x x

[Music] only

[Track Search]:

Searches the track number during music CD playback.

[Add Slideshow BGM]:

Registers music files in the USB memory as slideshow background music (BGM).

[Music Search] (BDP-S3200/S5200 only):

Displays information on the audio CD (CD-DA) based on

Gracenote technology.

Searches for related information using keywords from Gracenote when selecting [Track], [Artist] or

[Related].

Displays a list of titles when selecting

[Playback History] or [Search

History].

x x x

[Photo] only

[Slideshow Speed]:

Changes the slideshow speed.

[Slideshow Effect]:

Sets the effect for slideshows.

[Slideshow BGM]:

x x x x x

– [Off]: Turns off the function.

– [My Music from USB]: Sets the music files registered in [Add

Slideshow BGM].

– [Play from Music CD]: Sets the tracks in CD-DAs.

[Change Display]:

Switches between [Grid View] and [List View].

[View Image]:

Displays the selected photo.

[Slideshow]:

Plays a slideshow.

[Rotate Left]:

Rotates the photo counterclockwise by 90 degrees.

[Rotate Right]:

Rotates the photo clockwise by 90 degrees.

master page=right

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

23

C:\Users\fle1\Desktop\SD130025\4476203911_GB\05

0INT.fm

master page=left

24

Internet browser display

Internet (BDP-S3200/S5200 only)

Browsing Websites

You can connect to the Internet and enjoy websites.

1

Prepare the Internet Browser.

Connect the player to a network

(page 15).

2

Select [Network] on the home menu using

<

/

,

.

3

Select [Internet using

M

/

m

, and press ENTER.

z

This browser does not support some websites functions, and some websites may not be shown correctly.

To enter a URL

Select [URL entry] from the options menu. Enter the URL using the software keyboard, then select [Enter].

To set the default start page

While displaying the page you want to set, select [Set as start page] from the options menu.

To return to the previous page

Select [Previous page] from the options menu.

When the previous page does not appear even if you select [Previous page], select

[Window List] from the options menu and select the page you want to return to from the list.

To quit the Internet browser

Press HOME.

You can check the website information by pressing DISPLAY.

The display information differs depending on the website and page status.

A

Page title

B

Page address

C

Cursor

Move by pressing < / M / m / , .

Place the cursor on the link you want to view, then press ENTER. The linked website is displayed.

D

SSL icon

Displays when the website is protected and connected safely.

E

Signal strength indicator (wireless network connection only)

(BDP-S3200/S5200 only)

F

Progress bar/Loading icon

Appears when the page is being read, or during file download/ transfer.

G

Text input field

Press ENTER and select [Input] from the options menu to display the software keyboard.

H

Scroll bar

Press < / M / m / , to move the page display left, up, down or right.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\05

0INT.fm

master page=right

Available options

Various settings and operations are available by pressing OPTIONS.

The available items differ depending on the situation.

x

[Browser Setup]:

Displays the

Internet Browser settings.

– [Zoom]: Increases or decreases the size of the displayed contents.

– [JavaScript Setup]: Enables or x disables JavaScript.

– [Cookie Setup]: Sets whether or not to accept cookies.

– [SSL Alarm Display]: Enables or disables SSL.

[Input]:

Displays the software keyboard to enter characters while browsing a website.

x x x x x x

[Break]:

Moves the cursor to the next line in the text input field.

[Delete]:

Erases one character on the left side of the cursor during text input.

[Window List]:

Displays a list of currently opened website windows.

Allows you to return to a previously displayed website by selecting the window.

[Bookmark List]:

Displays the bookmark list.

[URL entry]:

Allows you to enter a

URL when the software keyboard is displayed.

[Previous page]/[Next page]:

x x x

Moves to the previous/next page.

[Cancel loading]:

Stops loading a page.

[Reload]:

Reloads the same page.

[Add to Bookmark]:

Adds the currently displayed website to the bookmark list.

x x x x

[Set as start page]:

Sets the currently displayed website as the default start page.

[Open in new window]:

Opens a link in a new window.

[Character encoding]:

Sets the character code.

[Display certificate]:

View server certificates sent from pages that support SSL.

25

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=left

26

Settings and Adjustments

• For information about update functions, consult your nearest Sony dealer or local authorised Sony Service facility. You can also visit the following website: http://www.sony-asia.com/support/

Using the Settings

Displays

Select [Setup] on the home menu when you need to change the settings of the player.

The default settings are underlined.

1

Select [Setup] on the home menu using

<

/

,

.

2

Select the setup category icon using

M

/

m

, and press ENTER.

[Screen Settings]

x

[3D Output Setting]

(BDP-S5200 only)

[Auto]: Normally select this.

[Off]: Select this to display all content in

2D.

x

[TV Screen Size Setting for 3D]

(BDP-S5200 only)

Sets the screen size of your

3D-compatible TV.

[Software Update]

x

[Update via Internet]

Updates the player’s software using available network. Make sure that the network is connected to the Internet. For

details, see “Step 2: Preparing for

Network Connection” (page 15).

x

[Update via USB Memory]

Updates the player’s software using

USB memory. Make sure that the

Software Update Folder is correctly named as “UPDATE” and all the update files must be stored in this folder. The player can recognise up to 500 files/ folders in a single layer including the update files/folders.

z

• We recommend performing the software update every 2 months or so.

x

[TV Type]

[16:9]: Select this when connecting to a wide-screen TV or a TV with a wide mode function.

[4:3]: Select this when connecting to a

4:3 screen TV without a wide mode function.

x

[Screen Format]

[Full]: Select this when connecting to a

TV with a wide mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.

[Normal]: Changes the picture size to fit the screen size with the original picture aspect ratio.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=right x

[DVD Aspect Ratio]

[Letter Box]: Displays a wide picture with black bands on the top and bottom.

[Pan & Scan]: Displays a full-height picture on the entire screen, with trimmed sides.

x

[Cinema Conversion Mode]

[Auto]: Normally select this. The player automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.

[Video]: The conversion method suited for video-based material will always be selected regardless of the material.

x

[Output Video Resolution]

Normally select [Auto]. Select [Original

Resolution] to output the resolution recorded on the disc. When the resolution is lower than the SD resolution, it is scaled up to the SD resolution.

x

[BD-ROM 24p Output]

[Auto]: Outputs 1920 × 1080p/24 Hz video signals only when connecting a

1080/24p-compatible TV using the

HDMI OUT jack.

[On]: Turns on the function.

[Off]: Select this when your TV is not compatible with 1080/24p video signals.

x

[DVD-ROM 24p Output]

[Auto]: Outputs 1920 × 1080p/24 Hz video signals only when connecting a

1080/24p-compatible TV using the

HDMI OUT jack.

[Off]: Select this when your TV is not compatible with 1080/24p video signals.

x

[YCbCr/RGB (HDMI)]

[Auto]: Automatically detects the connected TV type, and switches to the matching colour setting.

[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals.

[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals.

[RGB]: Outputs RGB video signals.

x

[HDMI Deep Colour Output]

[Auto]: Normally select this.

[16bit]/[12bit]/[10bit]: Outputs 16bit/

12bit/10bit video signals when the connected TV is compatible with Deep

Colour.

[Off]: Select this when the picture is unstable or colours appear unnatural.

x

[Pause Mode]

[Auto]: Normally select this. Dynamic moving pictures appear without blurring.

[Frame]: Displays static pictures at high resolution.

[Audio Settings]

x

[Digital Audio Output]

[Auto]: Normally select this. Outputs audio signals according to the status of the connected devices.

[PCM]: Outputs PCM signals from the

DIGITAL OUT (COAXIAL)/HDMI

OUT jack.

27

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=left

28

x

[BD Audio MIX Setting]

[On]: Outputs the audio obtained by mixing the interactive and secondary audio to the primary audio.

[Off]: Outputs the primary audio only.

Select this to output HD audio signals to an AV amplifier (receiver).

[BD/DVD Viewing

Settings]

x

[Dolby D Compatible Output]

[On]: Converts DTS audio source to

Dolby Digital audio by using EDID

(Extended Display Identification Data).

[Off]: Turns off the function.

x

[Audio DRC]

[Auto]: Performs playback at the dynamic range specified by the disc

(BD-ROM only). Other discs are played back at the [On] level.

[On]: Performs playback at a standard compression level.

[Off]: No compression works. A more dynamic sound is produced.

x

[BD/DVD Menu Language]

Selects the default menu language for

BD-ROMs or DVD VIDEOs.

Select [Select Language Code], and enter the code for your language,

referring to “Language code list”

(page 41).

x

[Audio Language]

Selects the default track language for

BD-ROMs or DVD VIDEOs.

When you select [Original], the language given priority in the disc is selected.

Select [Select Language Code], and enter the code for your language,

referring to “Language code list”

(page 41).

x

[Downmix]

[Surround]: Outputs audio signals with surround effects. Select this when connecting an audio device that supports

Dolby Surround (Pro Logic) or DTS

Neo:6.

[Stereo]: Outputs audio signals without surround effects. Select this when connecting an audio device that does not support Dolby Surround (Pro Logic) or

DTS Neo:6.

x

[Subtitle Language]

Selects the default subtitle language for

BD-ROMs or DVD VIDEOs.

Select [Select Language Code], and enter the code for your language,

referring to “Language code list”

(page 41).

x

[BD Hybrid Disc Playback Layer]

[BD]: Plays BD layer.

[DVD/CD]: Plays DVD or CD layer.

x

[BD Internet Connection]

[Allow]: Normally select this.

[Do not allow]: Prohibits Internet connection.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=right

[Parental Control

Settings]

[System Settings]

x

[Password]

Sets or changes the password for the

Parental Control function. A password allows you to set a restriction on

BD-ROM or DVD VIDEO, and Internet video playback. If necessary, you can differentiate the restriction levels for

BD-ROMs, DVD VIDEOs, and Internet videos.

x

[Parental Control Area Code]

Playback of some BD-ROMs, DVD

VIDEOs, or Internet videos can be limited according to the geographic area.

Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

x

[BD Parental Control] /

[DVD Parental Control] /

[Internet Video Parental Control]

By setting Parental Control, scenes can be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.

x

[Internet Video Unrated]

[Allow]: Allows the playback of unrated

Internet videos.

[Block]: Blocks the playback of unrated

Internet videos.

x

[OSD Language]

Selects on-screen display language for your player.

x

[HDMI Settings]

By connecting Sony components that are compatible with HDMI functions with a

High Speed HDMI Cable, operation is simplified.

[Control for HDMI]

[On]: The following BRAVIA Sync features are available:

– One-Touch Play

– System Power-Off

– Language Follow

[Off]: Turns off the function.

z

For details, refer to the instruction manual supplied with the TV or components.

[Linked to TV-off]

[On]: Automatically turns off the player and HDMI-compatible components when the connected TV enters standby mode (BRAVIA Sync).

[Off]: Turns off the function.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

29

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=left

30

x

[Startup Screen]

Set the startup screen when turning on the player.

[Network Service Screen]: Starts on

Sony Entertainment Network portal screen.

[Home Menu Screen]: Starts on home menu.

x

[Quick Start Mode]

[On]: Shortens the startup time when turning on the player.

[Off]: Reduces standby power consumption.

x

[Auto Standby]

[On]: Automatically returns to standby mode if no button is pressed for more than 20 minutes.

[Off]: Turns off the function.

x

[Auto Display]

[On]: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.

[Off]: Displays information only when you press DISPLAY.

x

[Screen Saver]

[On]: Turns on the screen saver function.

The screen saver image appears when you do not use the player for more than

10 minutes while an on-screen display is displayed.

[Off]: Turns off the function.

x

[Software Update Notification]

[On]: Sets the player to inform you of newer software version information

(page 26).

[Off]

:

Turns off the function.

x

[Gracenote Settings] (BDP-S3200/

S5200 only)

[Auto]: Automatically downloads disc information when disc playback stops.

Connect to the network for downloading.

[Manual]: Downloads the disc information when [Video Search] or

[Music Search] is selected.

x

[Device Name] (BDP-S3200/S5200 only)

Displays the player’s name. The player’s name can be changed.

x

[System Information]

Displays the player’s software version information and the MAC address.

x

[Software License Information]

Displays information about the Software

License.

[Network Settings]

x

[Internet Settings]

Connect the player to the network

beforehand. For details, see “Step 2:

Preparing for Network Connection”

(page 15).

[Wired Setup] (BDP-S3200/S5200 only): Select this when you connect to a broadband router using a LAN cable.

[Wireless Setup(built-in)] (BDP-S3200/

S5200 only): Select this when you use the wireless LAN that is built into the player for wireless network connection.

x

[Network Connection Status]

Displays the current network status.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\06

0ADJ.fm

master page=right x

[Network Connection

Diagnostics]

Checks for the proper network connection by running the network diagnostics.

x

[Connection Server Settings]

(BDP-S3200/S5200 only)

Sets whether or not to display the connected server.

x

[Auto Renderer Access

Permission] (BDP-S3200/S5200 only)

[On]: Allows automatic access from newly detected DLNA controllercompatible product.

[Off]: Turn off the function.

x

[Renderer Access Control]

(BDP-S3200/S5200 only)

Displays a list of DLNA controllercompatible products and sets whether or not each product is accessible via this player.

x

[Registered Remote Devices]

(BDP-S3200/S5200 only)

Displays a list of your registered remote devices.

x

[Remote Start]

[On]: Turns the player on or off using your remote device when connecting to the network.

[Off]: Turns off the functions.

[Easy Network

Settings]

Select [Easy Network Settings] to specify the network settings. Follow the on-screen instructions.

[Resetting]

x

[Reset to Factory Default Settings]

Resets the player settings to the factory default by selecting the group of settings.

All the settings within the group will be reset.

x

[Initialise Personal Information]

Erases your personal information stored in the player.

b

If you dispose, transfer or resell this unit, please delete all Personal Information for security purposes. Please take the appropriate measures such as logging out after using a network service.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

31

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

32

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the player, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

The display language on the screen switches automatically when connected to the HDMI OUT jack.

, When [Control for HDMI] in [HDMI

Settings] is set to [On] (page 29), the

display language on the screen automatically switches according to the language setting of the connected

TV (if you change the setting on your

TV, etc.).

Sound


There is no picture or the picture is not output correctly.

,

Check that all the connecting cables

are securely connected (page 13).

,

Switch the input selector on your TV to display the signal from the player.

,

Reset the [Output Video Resolution] to the lowest resolution by pressing x

(stop), HOME, and then POP UP/

MENU button on the remote.

,

Try the following:

1

Turn the player off and on again.

2

Turn the connected equipment off and on again.

3

Disconnect and then reconnect the

HDMI cable.

,

The HDMI OUT jack is connected to a

DVI device that does not support copyright protection technology.

,

Check the [Output Video Resolution] settings in the [Screen Settings] setup

(page 27).

,

For BD-ROMs, check the [BD-ROM

24p Output] setting in the [Screen

Settings] setup (page 27).

,

For DVD-ROMs, check the

[DVD-ROM 24p Output] setting in the

[Screen Settings] setup (page 27).

There is no sound or the sound is not output correctly.

, Check that all the connecting cables

are securely connected (page 13).

, Switch the input selector on your AV amplifier (receiver) so that the audio signals of the player are output from your AV amplifier (receiver).

, If the audio signal does not come through the DIGITAL OUT

(COAXIAL)/HDMI OUT jack, check

the audio settings (page 27).

, For HDMI connections, try the following:

1

Turn the player off and on again.

2

Turn the connected equipment off and on again.

3

Disconnect and then reconnect the

HDMI cable.

, For HDMI connections, if the player is connected to a TV through an AV amplifier (receiver), try connecting the

HDMI cable directly to the TV. Refer also to the instruction manual supplied with the AV amplifier (receiver).

, The HDMI OUT jack is connected to a

DVI device (DVI jacks do not accept audio signals).

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=right

, The device connected to the HDMI

OUT jack does not support the audio format of the player. Check the audio

settings (page 27).

The HD Audio (Dolby Digital Plus,

Dolby TrueHD, DTS-HD High

Resolution Audio, and DTS-HD

Master Audio) is not output by bitstream.

, Set [BD Audio MIX Setting] in [Audio

Settings] setup to [Off] (page 28).

, Check that the connected AV amplifier

(receiver) is compatible with each HD

Audio format.

Disc

The disc does not play.

, The disc is dirty or skewed.

, The disc is upside down. Insert the disc with the playback side facing down.

, The disc has a format that cannot be

played back by this player (page 37).

, The player cannot play a recorded disc that is not correctly finalised.

, The region code on the BD or DVD does not match the player.

The interactive audio is not output.

, Set [BD Audio MIX Setting] in [Audio

Settings] setup to [On] (page 28).

Message Code 3 [Audio outputs temporarily muted. Do not adjust the playback volume. The content being played is protected by Cinavia and is not authorized for playback on this device. For more information, see http://www.cinavia.com. Message

Code 3.] appears on the screen when playing a disc.

,

The audio track of the video that you are playing contains a Cinavia code indicating that it is an unauthorised copy of professionally-produced

content (page 4).

USB device

The player does not detect a USB device connected to the player.

,

Make sure that the USB device is securely connected to the USB jack.

,

Check if the USB device or a cable is damaged.

,

Check if the USB device is on.

,

If the USB device is connected via a

USB hub, connect the USB device directly to the player.

Sony Entertainment Network

The picture/sound is poor/certain programmes display a loss of detail, especially during fast-motion or dark scenes.

,

Picture/sound quality may be improved by changing the connection speed. Recommended connection speed is of at least 2.5 Mbps for standard definition video (10 Mbps for high definition video).

The picture is small.

,

Press

M

to zoom in.

33

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

Network connection

The player cannot connect to the network.

, Check the network connection

(page 15) and the network settings

(page 30).

The desired wireless router do not appear in the wireless network list

(BDP-S3200/S5200 only).

, Press RETURN to return to the previous screen, and try wireless setup again. If the desired wireless router is still not detected, select [New connection registration] to perform

[Manual registration].

34

The PC cannot connect to the Internet after [Wi-Fi Protected Setup (WPS)] is performed (BDP-S3200/S5200 only).

, The wireless settings of the router may change automatically if you use the

Wi-Fi Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.

You cannot connect the player to the wireless LAN router (BDP-S3200/

S5200 only).

, Check if the wireless LAN router is on.

, Depending on the surrounding environment, such as the wall material, radio wave receiving condition, or obstacles between the player and the wireless LAN router, the communication distance may be shortened. Move the player and the wireless LAN router closer to each other.

, Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication. Move the player away from such devices, or turn off such devices.

The message [A new software version is available. Please go to the “Setup” section of the menu and select

“Software Update” to perform the update.] appears on the screen when turning the player on.

,

See [Software Update] (page 26) to

update the player to a newer software version.

Control for HDMI (BRAVIA

Sync)

The [Control for HDMI] function does not work (BRAVIA Sync).

, Check that [Control for HDMI] in

[HDMI Settings] is set to [On]

(page 29).

, If you change the HDMI connection, turn the player off and on again.

, If power failure occurs, set [Control for HDMI] in [HDMI Settings] to

[Off], then set [Control for HDMI] in

[HDMI Settings] to [On] (page 29).

, Check the following and refer to the instruction manual supplied with the component.

– the connected component is compatible with the [Control for

HDMI] function.

– the connected component’s setting for the [Control for HDMI] function is correct.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=right

, When you connect the player to a TV through an AV amplifier (receiver),

– if the AV amplifier (receiver) is not compatible with the [Control for

HDMI] function, you may be unable to control the TV from the player.

– if you change the HDMI connection, disconnect and reconnect the mains lead, or a power failure occurs, try the following:

1

Switch the input selector of the

AV amplifier (receiver) so that the picture from the player appears on the TV screen.

2

Set [Control for

HDMI] in [HDMI Settings] to [Off], then set [Control for HDMI] in

[HDMI Settings] to [On] (page 29).

Refer to the instruction manual supplied with the AV amplifier

(receiver).

The System Power-Off function does not work (BRAVIA Sync).

,

Check that [Control for HDMI] and

[Linked to TV-off] in [HDMI Settings]

are set to [On] (page 29).

Message Code 1 [Playback stopped.

The content being played is protected by Cinavia and is not authorized for playback on this device. For more information, see http:// www.cinavia.com. Message Code 1.] appears on the screen when playing a disc.

,

The audio track of the video that you are playing contains a Cinavia code indicating it was intended for presentation using professional equipment only and is not authorised

for playback by consumers (page 4).

The disc tray does not open and you cannot remove the disc even after you press

Z

.

, Try the following:

1

Turn the player off, and disconnect the mains lead.

2

Reconnect the mains lead while pressing down Z on the player.

3

Keep pressing down

Z

on the player until the tray opens.

4

Remove the disc.

Others

Playback does not start from the beginning of content.

,

Press OPTIONS, and select [Play from start].

The player does not respond to any button.

,

Moisture has condensed inside the

player (page 2).

Playback does not start from the resume point where you last stopped playing.

,

The resume point may be cleared from memory depending on the disc when

– you open the disc tray.

– you disconnect the USB device.

– you play other content.

– you turn off the player.

35

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

36

Specifications

System

Laser:

Semiconductor laser

Inputs and outputs

(

Jack name:

Jack type/Output level/Load impedance)

DIGITAL OUT (COAXIAL):

Phono jack/0.5 Vp-p/75 ohms

HDMI OUT:

HDMI 19-pin standard connector

LAN (100):

100BASE-TX Terminal

USB:

USB jack Type A (For connecting a

USB memory, memory card reader, digital still camera, and digital video camera)

DC IN:

BDP-S1200: 12 V DC, 600 mA

BDP-S3200: 12 V DC, 650 mA

BDP-S5200: 12 V DC, 750 mA

Wireless (BDP-S3200/S5200 only)

Wireless LAN standard:

IEEE 802.11 b/g/n

Frequency range:

2.4 GHz band: Channels 1-13

Modulation:

DSSS and OFDM

General

Power requirements:

12 V DC with AC adaptor

Rating: Input 220 V - 240 V AC,

50/60 Hz

Power consumption (when using AC adaptor):

BDP-S1200: 8.8 W

BDP-S3200: 9.5 W

BDP-S5200: 11 W

Dimensions (approx.):

265 mm × 199 mm × 43 mm

(width/depth/height) incl. projecting parts

Mass (approx.):

0.9 kg

Operating temperature:

5 ºC to 35 ºC

Operating humidity:

25 % to 80 %

Supplied accessories

AC adaptor (AC-M1208WW) (1)

AC power cord (mains lead) (1)

High Speed HDMI Cable (BDP-S1200 only) (1)

Remote commander (remote) (1)

R03 (size AAA) batteries (2)

Specifications and design are subject to change without notice.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=right

Playable discs

Blu-ray

Disc

*1

DVD

*3

CD

*3

BD-ROM

BD-R

*2

/BD-RE

*2

DVD-ROM

DVD-R/DVD-RW

DVD+R/DVD+RW

CD-DA (Music CD)

CD-ROM

CD-R/CD-RW

*1

Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version.

The audio output differs depending on the source, connected output jack, and selected

*2 audio settings.

BD-RE: Ver.2.1

BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type)

The BD-Rs recorded on a PC cannot be played if postscripts are recordable.

*3

A CD or DVD disc will not play if it has not been correctly finalised. For more information, refer to the instruction manual supplied with the recording device.

Discs that cannot be played

• BDs with cartridge

• BDXLs

• DVD-RAMs

• HD DVDs

• DVD Audio discs

• PHOTO CDs

• Data part of CD-Extras

• Super VCDs

• Audio material side on DualDiscs

Note on Discs

This product is designed to playback discs that conform to the Compact Disc

(CD) standard. DualDiscs and some of the music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard, therefore, these discs may not be playable by this product.

Note on playback operations of BDs/

DVDs

Some playback operations of BDs/

DVDs may be intentionally set by software producers. Since this player plays BDs/DVDs according to the disc contents the software producers designed, some playback features may not be available.

Note about double-layer BDs/DVDs

The playback pictures and sound may be momentarily interrupted when the layers switch.

Region code (BD-ROM/DVD VIDEO only)

Your player has a region code printed on the rear of the unit and will only play

BD-ROMs/DVD VIDEOs labelled with identical region codes or

ALL

.

Region code

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

37

38

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

Playable types of files

Video

Codec Container Extension With Audio

MPEG-1

Video

*1

MPEG-2

Video

*2

PS

MKV

PS

*3

TS

*4

MKV

*1

AVI

Xvid

MKV

MKV

*1

MP4

*1

TS

*1

MPEG4/AVC

*5 Quick

Time

*6

FLV

*6

3gpp/

3gpp2

*6

.mov

.flv, .f4v

.3gp, .3g2,

.3gpp, .3gp2

VC1

*1

WMV9

*1

TS

MKV

ASF

MKV

.m2ts, .mts

.mkv

.wmv, .asf

.mkv

Motion JPEG

*6

Quick Time .mov

AVI .avi

.mpg, .mpeg

Dolby Digital, DTS, LPCM, MPEG

.mkv

Dolby Digital, LPCM, AAC, MP3

.mpg, .mpeg

Dolby Digital, DTS, LPCM, MPEG

.m2ts, .mts

Dolby Digital, DTS, LPCM, MPEG, AAC

.mkv

.avi

.mkv

.mkv

Dolby Digital, LPCM, AAC, MP3

Dolby Digital, LPCM, WMA9, MP3

Dolby Digital, LPCM, AAC, MP3

Dolby Digital, LPCM, AAC, MP3

.mp4, .m4v

AAC

.m2ts, .mts

Dolby Digital, DTS, LPCM, MPEG, AAC

Dolby Digital, LPCM, AAC, MP3

LPCM, AAC, MP3

AAC

Dolby Digital, DTS, LPCM, MPEG, AAC

Dolby Digital, LPCM, AAC, MP3

WMA9

Dolby Digital, LPCM, AAC, MP3

Dolby Digital, LPCM, AAC, MP3

Dolby Digital, LPCM, AAC, MP3

Format

AVCHD (Ver.2.0)

*1*7*8

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=right

Music

Codec Extension

MP3 (MPEG-1 Audio

Layer III )

*9

.mp3

AAC/HE-AAC

*1*9

WMA9 Standard

*1

.m4a, .aac

*6

.wma

LPCM

*9

FLAC

*6

Dolby Digital

*6*9

.wav

.flac, .fla

.ac3


JPEG

PNG

GIF

MPO

Format Extension

.jpeg, .jpg, .jpe

.png

*10

.gif

*10

.mpo

*6*11

*1

*2

*3

*4

*5

*6

*7

The player may not play this file format on a DLNA server (BDP-S3200/S5200 only).

The player can only play standard definition video on a DLNA server

(BDP-S3200/S5200 only).

The player does not play DTS format files on a DLNA server (BDP-S3200/S5200 only).

The player can only play Dolby Digital format files on a DLNA server

(BDP-S3200/S5200 only).

The player can support AVC up to Level

4.1.

The player does not play this file format on a DLNA server (BDP-S3200/S5200 only).

The player can support frame rate up to

*8

60 fps.

The player plays AVCHD format files that are recorded on a digital video camera, etc.

The AVCHD format disc will not play if it

*9 has not been correctly finalised.

The player can play “.mka” files.

(This file cannot be played on a DLNA server (BDP-S3200/S5200 only).)

*10

The player does not play animated PNG or animated GIF files.

*11

For MPO files other than 3D, the key image or the first image is displayed

(BDP-S5200 only).

b

• Some files may not play depending on the file format, the encoding, or recording condition (BDP-S1200 only).

• Some files may not play depending on the file format, file encoding, recording condition, or DLNA server condition

(BDP-S3200/S5200 only).

• Some files edited on a PC may not play.

• Some files may not be able to perform fast forward or fast reverse function.

• The player does not play coded files such as

DRM and Lossless.

• The player can recognise the following files or folders in BDs, DVDs, CDs and USB devices:

– up to folders in the 9th layer, including the root folder.

– up to 500 files/folders in a single layer.

• The player can recognise the following files or folders stored in the DLNA server

(BDP-S3200/S5200 only):

– up to folders in the 19th layer.

– up to 999 files/folders in a single layer.

• The player can support frame rate:

– up to 60 fps for AVCHD (MPEG4/AVC) only.

– up to 30 fps for other video codecs.

• The player can support video bit rate up to

40 Mbps.

• Some USB devices may not work with this player.

• The player can recognise Mass Storage

Class (MSC) devices (such as flash memory or an HDD), Still Image Capture Device

(SICD) class devices and 101 keyboard.

• To avoid data corruption or damage to the

USB memory or devices, turn off the player when connecting or removing the USB memory or devices.

• The player may not play high bit rate video files on DATA CDs smoothly. It is recommended to play such files using

DATA DVDs or DATA BDs.

39

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

40

About wireless LAN security

(BDP-S3200/S5200 only)

Notes About the Discs

Since communication via the wireless

LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this player supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.

No Security

Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorised access or interception of data.

WEP

WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network.

WEP is a legacy security technology that enables older devices, which do not support TKIP/AES, to be connected.

WPA-PSK (TKIP), WPA2-PSK (TKIP)

TKIP is a security technology developed to correct the deficiencies of WEP. TKIP assures a higher security level than

WEP.

WPA-PSK (AES), WPA2-PSK (AES)

AES is a security technology that uses an advanced security method that is distinct from WEP and TKIP.

AES assures a higher security level than

WEP or TKIP.

• To keep the disc clean, handle the disc by its edge. Do not touch the surface.

Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.

• After playing, store the disc in its case.

• Clean the disc with a cleaning cloth. Wipe the disc from the centre out.

• Do not use solvents such as benzine, thinner, commercially available disc/ lens cleaners, or anti-static spray intended for vinyl LPs.

• If you have printed the disc’s label, dry the label before playing.

• Do not use the following discs.

– A lens cleaning disc.

– A disc that has a non-standard shape

(e.g., card, heart).

– A disc with a label or sticker on it.

– A disc that has cellophane tape or sticker adhesive on it.

• Do not resurface the playing side of a disc to remove surface scratches.

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=right

Code numbers of controllable

TVs

Hold down -TV-

[

/

1

and the TV manufacturer’s code using the remote buttons for 2 seconds.

If more than one remote button is listed, try entering them one at a time until you find the one that works with your TV.

Manufacturer

Sony (Default)

Philips

Panasonic

Hitachi

Sharp

Toshiba

Loewe

Samsung

LG/Goldstar

Remote Button

Colour button

(red)

Colour button

(green) / Colour button (yellow) /

RETURN

Colour button

(blue) / Centre button (ENTER)

TOP MENU

M

POP UP/MENU

<

, m

Language code list

For details, see [BD/DVD Viewing

Settings] (page 28).

The language spellings conform to the

ISO 639: 1988 (E/F) standard.

Code Language

1027 Afar

1032 Afrikaans

1044 Arabic

1051 Aymara

1053 Bashkir

1059 Bulgarian

1061 Bislama

1067 Tibetan

1028 Abkhazian

1039 Amharic

1045 Assamese

1052 Azerbaijani

1057 Byelorussian

1060 Bihari

1066 Bengali

1070 Breton

1079

1097

Catalan

Czech

1105 Danish

1130 Bhutani;

Dzongkha

1144 English

1093 Corsican

1103 Welsh

1109

1142

German

Greek

1149 Spanish

1151 Basque

1165

1171

Finnish

Faroese

1145 Esperanto

1150

1157

Estonian

Persian

1166 Fiji

1174 French

1181 Frisian 1183 Irish

1186 Scots Gaelic 1194 Galician

1196 Guarani

1209 Hausa

1226 Croatian

1233 Armenian

1203

1217

1229

1235

Gujarati

Hindi

Hungarian

Interlingua

1239 Interlingue

1248 Indonesian

1254 Italian

1261 Japanese

1245 Inupiak

1253 Icelandic

1257 Hebrew

1269 Yiddish

1283

1297

Javanese

Kazakh

1287 Georgian

1298 Greenlandic;

Kalaallisut

1300 Kannada 1299 Cambodian;

Khmer

1301 Korean

1307 Kurdish

1313 Latin

1305 Kashmiri

1311

1326

Kirghiz

Lingala

1327 Laothian; Lao 1332 Lithuanian

1334 Latvian 1345 Malagasy

1347 Maori

1350 Malayalam

1353 Moldavian

1349 Macedonian

1352 Mongolian

1356 Marathi

41

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

42

C:\Users\fle1\Desktop\SD130025\4476203911_GB\07

0ADD.fm

master page=left

Code Language

1357 Malay

1363 Burmese

1369 Nepali

1379

1403

Norwegian

Oromo

1358 Malese;

Maltese

1365

1376

Nauru

Dutch

1393 Occitan

1408 Oriya

1428 Polish 1417 Punjabi;

Panjabi

1435 Pashto;

Pushto

1463 Quechua

1436 Portuguese

1481 Rhaeto-

Romance

1482 Kirundi; Rundi 1483 Romanian

1489 Russian 1491 Kinyarwanda

1495 Sanskrit

1501 Sangho;

Sango

1503 Singhalese;

Sinhalese

1506 Slovenian

1498

1505

Sindhi

1502 Serbo-

Croatian

Slovak

1508 Shona

1511 Albanian

1507 Samoan

1509

1512

Somali

Serbian

1513 Siswati; Swati 1514 Sesotho;

Sotho southern

1515 Sundanese 1516 Swedish

1517 Swahili

1525 Telugu

1528 Thai

1531 Turkmen

1534 Setswana;

Tswana

1538 Turkish

1540 Tatar

1557 Ukrainian

1572 Uzbek

1587 Volapük

1632 Xhosa

1684 Chinese

1703 Not specified

1521 Tamil

1527 Tajik

1529 Tigrinya

1532 Tagalog

1535 Tonga; Tonga

1613

1665

1697 islands

1539 Tsonga

1543 Twi

1564 Urdu

1581 Vietnamese

Wolof

Yoruba

Zulu

Parental control/area code

For details, see [Parental Control Area

Code] (page 29).

Code Area

2044 Argentina

2046 Austria

2070 Brazil

2092 China

2115 Denmark

2174 France

2200 Greece

2248 India

2047 Australia

2057 Belgium

2090 Chile

2093 Colombia

2165 Finland

2109 Germany

2219 Hong Kong

2238 Indonesia

2239 Ireland

2276 Japan

2254 Italy

2304 Korea

2333 Luxembourg 2363 Malaysia

2362 Mexico 2376 Netherlands

2390 New Zealand 2379 Norway

2427 Pakistan 2424 Philippines

2428 Poland

2489 Russia

2436

2501

Portugal

Singapore

2149 Spain 2499 Sweden

2086 Switzerland 2543 Taiwan

2528 Thailand 2184 United

Kingdom

2586 Vietnam

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

C:\Users\fle1\Desktop\SD130025\4476203911_

GB\080BCO.fm

master page=left

The software of this player may be updated in the future. For information about any available updates and the latest Operating Instructions, please visit the following website:

http://www.sony-asia.com/support/

© 2014 Sony Corporation

4-476-203-

91

(1)

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

BDP-S1200/BDP-S3200/BDP-S5200

4-476-203-

91

(1)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
