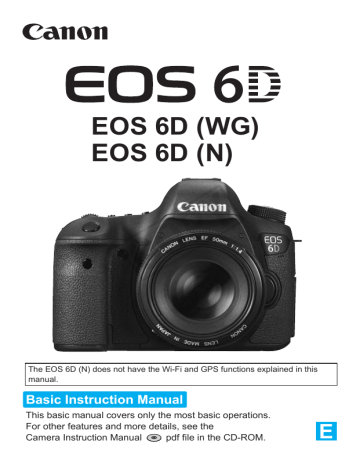

EOS 6D (WG)

EOS 6D (N)

COP

Y

The EOS 6D (N) does not have the Wi-Fi and GPS functions explained in this manual.

Basic Instruction Manual

This basic manual covers only the most basic operations.

For other features and more details, see the

Camera Instruction Manual pdf file in the CD-ROM.

E

2

Introduction

The EOS 6D (WG/N) is high-performance, digital single-lens reflex camera featuring a full-frame (approx. 35.8 x 23.9 mm) CMOS sensor with approx. 20.2 effective megapixels, DIGIC 5+, high-precision and high-speed 11-point AF, approx. 4.5 fps continuous shooting, Live View shooting, Full High-Definition (Full HD) movie shooting, Wi-Fi*, and

GPS*.

The camera is highly responsive to any shooting situation at any time, provides many features for demanding shots, and expands shooting possibilities with various system accessories.

* The EOS 6D (N) does not have the Wi-Fi and GPS functions.

Refer to This Manual while Using the Camera to Further

Familiarize Yourself with the Camera

With a digital camera, you can immediately view the image you have captured. While reading this manual, take a few test shots and see how

Y

Warnings” (p.138, 139) and “Handling Precautions” (p.12, 13).

COP

After shooting, play images back and check whether they have been properly recorded. If the camera or memory card is faulty and the images cannot be recorded or downloaded to a computer, Canon cannot be held liable for any loss or inconvenience caused.

Copyrights

Copyright laws in your country may prohibit the use of your recorded images or copyrighted music and images with music in the memory card for anything other than private enjoyment. Also be aware that certain public performances, exhibitions, etc., may prohibit photography even for private enjoyment.

Compatible Cards

The camera can use the following cards regardless of capacity:

• SD memory cards

• SDHC memory cards*

• SDXC memory cards*

* UHS-I cards compatible.

Cards that Can Record Movies

When shooting movies, use a large-capacity card with a fast reading/ writing speed as shown in the table.

Compression Method (p.116)

IPB

ALL-I (I-only)

Card

6 MB/sec. or faster

20 MB/sec. or faster

If you use a slow-writing card when shooting movies, the movie may Y

If you want to shoot still photos while shooting a movie, you will need an even faster card.

manufacturer’s Web site.

COP

In this manual, “card” refers to SD memory cards, SDHC memory cards, and SDXC memory cards.

* The camera does not come with a card for recording images/

movies. Please purchase it separately.

3

4

Item Check List

Before starting, check that all the following items have been included with your camera. If anything is missing, contact your dealer.

Camera

(with body cap)

Battery Pack

LP-E6

(with protective cover)

Battery Charger

LC-E6/LC-E6E*

Wide Strap

EW-EOS6D

Interface Cable IFC-200U

Y

Stereo AV Cable

AVC-DC400ST

cord.)

The Instruction Manuals and CD-ROMs provided are listed on the next page.

If you purchased a Lens Kit, check that the lenses are included.

Depending on the Lens Kit type, lens instruction manuals may also be included.

Be careful not to lose any of the above items.

Instruction Manuals and CD-ROMs

The instruction manuals are provided in both paper and electronic

(PDF) forms.

Camera Basic

Instruction Manual

(this booklet)

Wi-Fi (Basic)/

GPS Function

Instruction Manual*

Pocket Guide

Explains the camera’s basic function settings and basic shooting/playback instructions.

Wi-Fi/GPS

* Not provided with the EOS 6D (N).

Y

Cautions*

The Basic Instruction Manual explains the basic procedures and features.

For detailed instructions, see the Camera Instruction Manual CD-ROM.

Contains the following manuals in PDF:

• Camera Instruction Manual (Detailed version)

• Wi-Fi Function Instruction Manual (Detailed version)

• EF24-70mm f/4L IS USM Instruction Manual

Software Instruction Manual CD-ROM

Contains Instruction Manuals in PDF for the software in the

Software CD-ROM.

* Instructions for viewing the Instruction Manual CD-ROMs are on pages 128 and

135.

Software CD-ROM (EOS DIGITAL Solution Disk)

Contains software for image-editing and other programs.

For outlines and installation procedure of the software, see pages 132-134.

5

Conventions Used in this Manual

Icons in this Manual

<6>

<5>

<9> <V> <U>

<0>

0, 9, 7, 8

: Indicates the Main Dial.

: Indicates the Quick Control Dial.

: Indicates the Multi-controller and the push direction.

: Indicates the Setting button.

: Indicates that the corresponding function remains active for 4 sec., 6 sec., 10 sec., or

16 sec. respectively after you let go of the button.

* In this manual, the icons and markings indicating the camera’s buttons, dials, and settings correspond to the icons and markings on the camera and on the

LCD monitor.

M

3 : Indicates a function that can be changed by pressing the

Y

: When shown on the upper right of a page, it indicates that the

(p.**) function is available only in the Creative Zone modes (p.20).

COP

: Warning to prevent shooting problems.

: Supplemental information.

: Tips or advice for better shooting.

: Problem-solving advice.

Basic Assumptions

All operations explained in this manual assume that the power switch has been set to <1> and the <R> switch has been set to the left (Multi function lock released) (p.30, 43).

It is assumed that all the menu settings and Custom Functions are set to their defaults.

The illustrations in this manual show the camera attached with an

EF50mm f/1.4 USM lens as an example.

6

Chapters

For first-time DSLR users, Chapters 1 and 2 explain the camera’s basic operations and shooting procedures.

Introduction

1

Getting Started

2

Basic Shooting

5

3

4

Setting the AF and Drive Modes

Y

Image Settings

6

Shooting with the LCD Monitor

(Live View Shooting)

7

Shooting Movies

8

Image Playback

9

Viewing the CD-ROM Instruction Manuals /

Downloading Images to Your Computer

103

113

119

127

2

23

57

77

83

95

7

8

Contents

Introduction 2

Compatible Cards............................................................................. 3

Item Check List................................................................................. 4

Instruction Manuals and CD-ROMs.................................................. 5

Conventions Used in this Manual ..................................................... 6

Chapters........................................................................................... 7

Handling Precautions ..................................................................... 12

Quick Start Guide ........................................................................... 14

Nomenclature ................................................................................. 16

1 Getting Started

Charging the Battery ...................................................................... 24

Y

Installing and Removing the Card .................................................. 27

Turning on the Power ..................................................................... 30

COP

Selecting the Interface Language................................................... 34

Attaching and Detaching a Lens .................................................... 35

23

About the Lens Image Stabilizer .................................................... 38

Basic Operation.............................................................................. 39

Q Quick Control for Shooting Functions ....................................... 45

3 Menu Operations.................................................................. 47

Before You Start............................................................................. 49

Formatting the Card..................................................................... 49

Setting the Power-off Time/Auto Power Off ................................. 51

Setting the Image Review Time ................................................... 51

Turning the LCD Monitor Off/On .................................................. 52

Reverting the Camera to the Default Settings ............................. 52

Contents

Q Displaying the Electronic Level ...............................................53

Feature Guide and Help.................................................................. 54

3

2

Basic Shooting 57

A Fully Automatic Shooting (Scene Intelligent Auto) ...................58

A Full Auto Techniques (Scene Intelligent Auto) ......................... 61

C Creative Auto Shooting.............................................................63

8: Special Scene Mode .............................................................66

2 Shooting Portraits ...................................................................... 67

3 Shooting Landscapes ............................................................... 68

4 Shooting Close-ups....................................................................69

5 Shooting Moving Subjects ........................................................ 70

Y

G Shooting Backlit Scenes............................................................ 73

COP

Setting the AF and Drive Modes 77

f: Selecting the AF Operation ..................................................... 78

S Selecting AF Points .................................................................. 79

MF: Manual Focusing ..................................................................... 80

i Selecting the Drive Mode..........................................................81

j Using the Self-timer ................................................................... 82

9

10

Contents

4 Image Settings 83

Setting the Image-Recording Quality ............................................. 84

i: Setting the ISO Speed ........................................................... 86

A Selecting a Picture Style ........................................................ 87

Setting the White Balance .............................................................. 88

Auto Correction of Brightness and Contrast ................................... 89

Noise Reduction Settings ............................................................... 90

Highlight Tone Priority .................................................................... 92

Lens Peripheral Illumination / Chromatic Aberration Correction .... 93

5

6

Advanced Operations

d: Program AE .............................................................................. 96

Y

f: Aperture-Priority AE ............................................................... 98

a: Manual Exposure ..................................................................... 99

COP

95

Shooting with the LCD Monitor

(Live View Shooting)

103

A Shooting with the LCD Monitor .............................................. 104

Using AF to Focus (AF Method) ................................................... 106

Focusing Manually ....................................................................... 111

7

Shooting Movies 113

k Shooting Movies..................................................................... 114

Setting the Movie-Recording Size ................................................ 116

Contents

8

Image Playback 119

x Image Playback ......................................................................120

H Searching for Images Quickly .................................................121

u Magnified View ........................................................................ 122

k Playing Movies........................................................................ 123

L Erasing Images ........................................................................ 125

9

Viewing the CD-ROM Instruction Manuals /

Downloading Images to Your Computer 127

Viewing the Camera Instruction Manual CD-ROM ....................... 128

Downloading Images to a Computer............................................. 130

About the Software ....................................................................... 132

Y

Software Instruction Manual ......................................................... 135

Safety Warning.............................................................................. 138

COP

11

Handling Precautions

12

Camera Care

This camera is a precision instrument. Do not drop it or subject it to physical shock.

The camera is not waterproof and cannot be used underwater. If you accidentally drop the camera into water, promptly consult the nearest Canon

Service Center. Wipe off any water droplets with a dry cloth. If the camera has been exposed to salty air, wipe it with a well-wrung wet cloth.

Never leave the camera near anything having a strong magnetic field such as a magnet or electric motor. Also avoid using or leaving the camera near anything emitting strong radio waves such as a large antenna. Strong magnetic fields can cause camera misoperation or destroy image data.

Do not leave the camera in excessive heat such as in a car in direct sunlight.

High temperatures can cause the camera to malfunction.

The camera contains precision electronic circuitry. Never attempt to disassemble the camera yourself.

Do not block the mirror operation with your finger, etc. Doing so may cause a malfunction.

Y the camera body or lens. For stubborn dirt, take the camera to the nearest

Canon Service Center.

Do not touch the camera’s electrical contacts with your fingers. This is to prevent

COP condensation may form on the camera and internal parts. To prevent condensation, first put the camera in a sealed plastic bag and let it adjust to the warmer temperature before taking it out of the bag.

If condensation forms on the camera, do not use the camera. This is to avoid damaging the camera. If there is condensation, remove the lens, card and battery from the camera, and wait until condensation has evaporated before using the camera.

If the camera will not be used for an extended period, remove the battery and store the camera in a cool, dry, well-ventilated location. Even while the camera is in storage, press the shutter button a few times once in a while to check that the camera is still working.

Avoid storing the camera where there are chemicals that result in rust and corrosion such as in a chemical lab.

If the camera has not been used for an extended period, test all its functions before using it. If you have not used the camera for some time or if there is an important shoot such as a foreign trip coming up, have the camera checked by your Canon dealer or check the camera yourself and make sure it is working properly.

Handling Precautions

LCD Panel and LCD Monitor

Although the LCD monitor is manufactured with very high precision technology with over 99.99% effective pixels, there may be a few dead pixels displaying only black or red, etc. among the remaining 0.01% or less pixels.

Dead pixels are not a malfunction. They do not affect the images recorded.

If the LCD monitor is left on for a prolonged period, screen burn-in may occur where you see remnants of what was displayed. However, this is only temporary and will disappear when the camera is left unused for a few days.

The LCD monitor display may seem slow in low temperatures, or look black in high temperatures. It will return to normal at room temperature.

Cards

To protect the card and its recorded data, note the following:

Do not drop, bend, or wet the card. Do not subject it to excessive force, physical shock, or vibration.

Do not touch the card’s electronic contacts with your fingers or anything metallic.

Do not affix any stickers, etc., on the card.

Y such as a TV set, speakers, or magnet. Also avoid places prone to having static electricity.

Lens

Do not leave the card in direct sunlight or near a heat source.

Store the card in a case.

COP

After detaching the lens from the camera, put down the lens with the rear end up and attach the lens caps to avoid scratching the lens surface and electrical contacts.

Contacts

Cautions regarding Prolonged Use

If you use continuous shooting, Live View shooting, or movie shooting for a prolonged period, the camera may become hot. Although this is not a malfunction, holding the hot camera for a long period can cause slight skin burns.

13

14

Quick Start Guide

1

Insert the battery

(p.26)

.

To charge the battery, see page 24.

2

3

4

Insert a card

(p.27)

.

With the card’s label facing toward the back of the camera, insert it into the card slot.

Attach the lens

(p.35)

.

Y

COP

Set the lens focus mode switch

to <f>

(p.35)

.

5

Set the power switch to <1>

(p.30)

.

When the LCD monitor displays the date/time/zone setting screens, see page 32.

6

Quick Start Guide

While holding down the center

of the Mode Dial, set it to <A>

(Scene Intelligent Auto)

(p.58)

.

All the necessary camera settings will be set automatically.

7

8

Focus the subject

(p.40)

.

Look through the viewfinder and aim the viewfinder center over the subject.

Press the shutter button halfway, and the camera will focus the subject.

Y

Take the picture

(p.40)

.

Press the shutter button completely

COP

9

Review the picture

(p.51)

.

The captured image will be displayed for 2 sec. on the LCD monitor.

To display the image again, press the <x> button (p.120).

To shoot while looking at the LCD monitor, see “Live View

Shooting” (p.103).

To view the images captured so far, see “Image Playback” (p.120).

To delete an image, see “Erasing Images” (p.125).

15

Nomenclature

LCD panel (p.18)

< i> ISO speed setting button (p.86)

<q> Metering mode selection button

<

U> LCD panel illumination button (p.44)

< 6> Main Dial

(p.41)

Shutter button

(p.40)

Self-timer lamp

(p.82)

Remote control sensor

Grip (Battery compartment)

DC coupler cord hole

Depth-of-field preview button

Mirror

<

R> Drive mode selection button (p.81)

< f> AF operation selection button (p.78)

Lens mount index (p.35)

Flash-sync contacts

Hot shoe

Mode Dial lock release button (p.41)

Mode Dial (p.20)

Strap mount

(p.23)

Speaker

(p.123)

Microphone

COP

Y

Lens release button (p.36)

Lens lock pin

Lens mount

Contacts (p.13)

< q/C>Audio/video OUT/

Digital terminal (p.130)

<

F> Remote control terminal (N3 type)

<

Y> External microphone IN terminal

<

D> HDMI mini OUT terminal

16

Body cap (p.35)

Nomenclature

<

V> Focal plane mark

<

A/k> Live View shooting/

Movie shooting switch (p.103/113)

<

0> Start/Stop button (p.104, 114)

Dioptric adjustment knob (p.39)

Eyecup

Viewfinder eyepiece

< p> AF start button

(p.40, 105)

<

A> AE lock/

FE lock button (p.101)

<

S> AF point selection button (p.79)

<

Q> Quick Control button (p.45)

Strap mount

(p.23)

Power switch (p.30)

<

M>

Menu button (p.47)

<

B>

Info button

(p.44, 53, 55, 120)

LCD monitor (p.47)

Tripod socket

< u> Index/Magnify/Reduce button (p.121/122)

< x> Playback button (p.120)

<

9> Multi-controller (p.43)

Card slot cover (p.27)

COP

Y

Battery compartment cover release lever (p.26)

Battery compartment cover (p.26)

Access lamp (p.29)

Multi function lock switch (p.43)

<

0> Setting button (p.47)

<

5> Quick Control Dial (p.42)

< L> Erase button (p.125)

Card slot (p.27)

17

Nomenclature

LCD Panel

Drive mode (p.81) u shooting i

Continuous

B

Silent single shooting

M

Silent continuous

shooting

Q

Self-timer: 10 sec./ k

Self-timer: 2 sec./

<

A

> Highlight tone priority (p.92)

< g

> ISO speed (p.86)

ISO speed (p.86)

Possible shots

Self-timer countdown

Bulb exposure time

Error No.

Remaining images to record

< h

> AEB

AF operation (p.78)

X

One-Shot AF

9

AI Focus AF

Z

AI Servo AF

4 L

Manual focus

Wi-Fi function

< k

/ l

>

1 2

< r

> GPS status

< x

> Logging function

<

M

> Multi Shot Noise

(p.90)

<

P

> Multiple-exposure

shooting

Shutter speed

FE lock (FEL)

Busy (buSY)

Multi function lock warning (L)

No card warning (Card)

Error code (Err)

Cleaning image sensor (CLn)

COP

Y

Metering mode q

Evaluative metering w

Partial metering r

Spot metering e

Center-weighted

< w

>

HDR shooting

Battery check (p.31)

Exposure level indicator

Exposure compensation amount

(p.100)

AEB range

Flash exposure compensation

amount

Electronic level

Aperture

AF point selection

(

- -

-

AF, SEL [ ], SEL AF)

Card full warning (FuLL)

Card error warning (Card Err)

The display will show only the settings currently applied.

18

Viewfinder Information

Focusing screen

Nomenclature

AF points (p.79)

(Superimposed display)

Spot metering circle

< h

> Warning symbol

< z

> Battery check (p.31)

< A > AE lock (p.101) / in-progress

<

D

> Flash-ready

Improper FE lock warning

COP

Y

Max. burst

< g

> ISO speed

(p.86)

< o

> Focus

confirmation

Number of remaining multiple exposures

ISO speed (p.86)

<

A

> Highlight tone priority (p.92)

< d

> FE lock/

Exposure level indicator

Exposure compensation amount (p.100)

AEB range

Flash exposure compensation amount

Electronic level

< e > High-speed sync

< y

> Flash exposure

compensation

Shutter speed (p.97)

FE lock (FEL)

Busy (buSY)

Multi function lock warning (L)

AF point selection

(

-

- -

AF, SEL [ ], SEL AF)

Card full warning (FuLL)

Card error warning (Card)

No card warning (Card)

Aperture (p.98)

The display will show only the settings currently applied.

19

20

Nomenclature

Mode Dial

Turn the Mode Dial while holding down the Mode Dial center (Mode Dial lock release button).

Creative Zone

These modes give you more control for shooting various subjects.

d : Program AE (p.96) s : Shutter-priority AE (p.97) f : Aperture-priority AE (p.98) a : Manual exposure (p.99)

Custom shooting mode

You can register the shooting mode (d/s/f/a/F), AF button. The camera sets everything to suit the subject or scene.

COP

C : Creative Auto (p.63) operation, menu settings,

F : Bulb

Basic Zone

Y

8 : Special scene (p.66) etc., to the w or x Mode

Dial setting and shoot.

2 : Portrait (p.67)

3 : Landscape (p.68)

4 : Close-up (p.69)

5 : Sports (p.70)

6 : Night Portrait (p.71)

F : Handheld Night Scene (p.72)

G : HDR Backlight Control (p.73)

Nomenclature

Lens

EF24-105mm f/4L IS USM

Focus mode switch (p.35)

Hood mount (p.37)

φ77mm filter thread

(front of lens)

Distance scale

Infrared index

Zoom ring (p.36)

Zoom position index (p.36)

Contacts (p.13)

Focusing ring (p.80, 111)

Image Stabilizer switch (p.38)

COP

Y

Lens mount index (p.35)

21

Nomenclature

Battery Charger LC-E6

Charger for Battery Pack LP-E6/LP-E6N (p.24).

Power plug

Battery pack slot

Charge lamp

22

IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS.

CAREFULLY FOLLOW THESE INSTRUCTIONS.

Y

For connection to a supply not in the U.S.A., use an attachment plug adapter of the proper configuration for the power outlet, if needed.

COP

Battery Charger LC-E6E

Charger for Battery Pack LP-E6/LP-E6N (p.24).

Power cord

Charge lamp

Battery pack slot

Power cord socket

1

Getting Started

shooting and basic camera operations.

Attaching the Strap

COP the camera’s strap mount eyelet from the bottom. Then pass it through the strap’s buckle as shown in the illustration. Pull the strap to take up any slack and make sure the strap will not loosen from the buckle.

The eyepiece cover is also attached to the strap.

Eyepiece cover

23

Charging the Battery

1 Remove the protective cover.

Detach the protective cover provided with the battery.

LC-E6

LC-E6E

2

Attach the battery.

As shown in the illustration, attach the battery securely to the charger.

To detach the battery, follow the above procedure in reverse.

Recharge the battery.

3

For LC-E6

As shown by the arrow, flip out the

Y the prongs into a power outlet.

For LC-E6E

COP power outlet.

X

Recharging starts automatically and the charge lamp blinks in orange.

Charge Level

0 - 49%

50 - 74%

75% or higher

Fully charged

Color

Orange

Green

Charge Lamp

Indicator

Blinks once per second

Blinks twice per second

Blinks three times per second

Lights up

It takes approx. 2.5 hours to fully recharge a completely exhausted battery at room

temperature (23°C / 73°F). The time required to recharge the battery will vary greatly

depending on the ambient temperature and the battery’s remaining capacity.

For safety reasons, recharging in low temperatures (5°C - 10°C /

41°F - 50°F) will take longer (up to approx. 4 hours).

24

Charging the Battery

Tips for Using the Battery and Charger

Upon purchase, the battery is not fully charged.

Recharge the battery before using.

Recharge the battery on the day before or on the day it is to be used.

Even during storage, a charged battery will gradually drain and lose its capacity.

After recharging the battery, detach it and disconnect the charger from the power outlet.

You can attach the cover in a different orientation to indicate whether the battery has been recharged or not.

If the battery has been recharged, attach the cover so that the battery-shaped hole < > is aligned over the blue sticker on the battery. If the battery is

Y

When not using the camera, remove the battery.

If the battery is left in the camera for a prolonged period, a small amount of power current is released, resulting in excess discharge and shorter

COP the battery when it is fully charged may lower the battery’s performance.

The battery charger can also be used in foreign countries.

The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz power source. If necessary, attach a commercially-available plug adapter for the respective country or region. Do not attach any portable voltage transformer to the battery charger. Doing so can damage the battery charger.

If the battery becomes exhausted quickly even after being fully charged, the battery has reached the end of its service life.

Check the battery’s recharge performance and purchase a new battery.

After disconnecting the charger’s power plug, do not touch the prongs for approx. 10 sec.

If the battery’s remaining capacity is 94% or higher, the battery will not be recharged.

The charger cannot charge any battery other than Battery Pack LP-E6/LP-E6N.

25

Installing and Removing the Battery

Load a fully charged Battery Pack LP-E6 (or LP-E6N) into the camera.

Installing the Battery

1

Open the cover.

Slide the lever as shown by the arrows and open the cover.

Insert the battery.

2

Insert the end with the battery contacts.

Insert the battery until it locks in place.

3

Y

Press the cover until it snaps shut.

COP

Only Battery Pack LP-E6/LP-E6N can be used.

Removing the Battery

Open the cover and remove the battery.

Press the battery lock lever as shown by the arrow and remove the battery.

To prevent short circuiting of the battery contacts, be sure to attach the provided protective cover (p.24) to the battery.

26

Installing and Removing the Card

The camera can use an SD, SDHC, or SDXC memory card. UHS-I

Speed Class SDHC and SDXC memory cards can also be used. The captured images are recorded onto the card.

Make sure the card’s write-protect switch is set upward to enable writing/erasing.

Installing the Card

1 Open the cover.

Slide the cover as shown by the arrows to open it.

Write-protect switch

2

Insert the card.

Y

3 and insert it until it clicks in place.

COP

Close the cover.

Close the cover and slide it in the direction shown by the arrows until it snaps shut.

When you set the power switch to

<1>, the number of possible shots

(p.31) will be displayed on the LCD monitor.

Possible shots

27

Installing and Removing the Card

The number of possible shots depends on the remaining capacity of the card, image-recording quality, ISO speed, etc.

Setting [z1: Release shutter without card] to [Disable] will prevent you from forgetting to insert a card.

Removing the Card

Access lamp

1

Open the cover.

Set the power switch to <2>.

Make sure the access lamp is off, then open the cover.

If [Recording...] is displayed, close the cover.

2

Gently push in the card, then let go to eject it.

the cover.

28

Installing and Removing the Card

When the access lamp is lit or blinking, it indicates that images are being written to or read by the card, being erased, or data is being transferred. Do not open the card slot cover during this time. Also, never do any of the following while the access lamp is lit or blinking. Otherwise, it can damage the image data, card, or camera.

• Removing the card.

• Removing the battery.

• Shaking or banging the camera around.

If the card already contains recorded images, the image number may not start from 0001.

If a card-related error message is displayed on the LCD monitor, remove and reinsert the card. If the error persists, use a different card.

If you can transfer all the images on the card to a computer, transfer all the images and then format the card with the camera (p.49). The card may then return to normal.

Do not touch the card’s contacts with your fingers or metal objects.

Y

COP

29

Turning on the Power

If you turn on the power switch and the Date/Time/Zone setting screen appears, see page 32 to set the Date/Time/Zone.

<1> : The camera turns on.

<2> : The camera is turned off and does not operate. Set to this position when not using the camera.

About the Automatic Self-Cleaning Sensor

Whenever you set the power switch to <1> or <2>, sensor cleaning will be executed automatically. (A small sound may be

Y the LCD monitor will display <f>.

You can still shoot during sensor cleaning by pressing the shutter

COP sensor cleaning and take a picture.

If you repeatedly turn the power switch <1>/<2> at a short interval, the <f> icon may not be displayed. This is normal and not a problem.

3 About Auto Power Off

To save battery power, the camera turns off automatically after 1 minute of non-operation. To turn on the camera again, just press the shutter button halfway (p.40).

You can set the auto power off time with [52: Auto power off]

(p.51).

30

If you set the power switch to <2> while an image is being recorded to the card, [Recording...] will be displayed and the power will turn off after the card finishes recording the image.

Turning on the Power

z Checking the Battery Level

When the power switch is set to <1>, the battery level will be indicated in one of six levels. A blinking battery icon (b) indicates that the battery will be exhausted soon.

Icon

Level (%) 100 - 70 69 - 50 49 - 20 19 - 10 9 - 1 0

Number of Possible Shots

[Approx. number of shots]

Temperature

Possible shots

Room Temperature

(23°C / 73°F)

1090

Y

Low Temperature

(0°C / 32°F)

980

View shooting, and CIPA (Camera & Imaging Products Association) testing standards.

COP

• With size-AA/LR6 alkaline batteries at room temperature (23°C / 73°F): approx. 480 shots.

The number of possible shots will decrease with any of the following operations:

• Pressing the shutter button halfway for a prolonged period.

• Activating the AF frequently without taking a picture.

• Using the lens Image Stabilizer.

• Using the LCD monitor often.

The number of possible shots may decrease depending on the actual shooting conditions.

The lens operation is powered by the camera’s battery. Depending on the lens used, the number of possible shots may be lower.

For the number of possible shots with Live View shooting, see page 105.

See [54: Battery info.] to check the battery’s condition in detail.

If size-AA/LR6 batteries are used in Battery Grip BG-E13, a four-level indicator will be displayed. ([x/m] will not be displayed.)

31

3

Setting the Date, Time, and Zone

When you turn on the power for the first time or if the date/time/zone have been reset, the Date/Time/Zone setting screens will appear.

Follow the steps below to set the time zone first. If you set the camera to the correct time zone for where you currently live, when you travel to another time zone you can simply set the camera to the correct time zone for your destination to update the camera’s date/time automatically.

Note that the date/time appended to recorded images will be based on this date/time setting. Be sure to set the correct date/time.

1 Display the menu screen.

Press the <M> button to display the menu screen.

2

Under the [52] tab, select [Date/

Time/Zone].

Press the <U> key to select the

COP

Press the <V> key to select [Date/

Time/Zone], then press <0>.

3

Set the time zone.

[London] is set by default.

Press the <U> key to select the time zone box.

Press <0> so <r> is displayed.

Press the <V> key to select the time zone, then press <0>. (Returns to

<s>.)

32

The menu setting procedure is explained on pages 47-48.

The time displayed on the upper right is the time difference compared with Coordinated Universal Time (UTC). If you do not see your time zone, set the time zone while referring to the difference with UTC.

3 Setting the Date, Time, and Zone

4 Set the date and time.

Press the <U> key to select the number.

Press <0> so <r> is displayed.

Press the <V> key to set the number, then press <0>. (Returns to <s>.)

Set the Daylight Saving Time.

5

Set it if necessary.

Press the <U> key to select [Y].

Press <0> so <r> is displayed.

Press the <V> key to select [Z], then press <0>.

When the daylight saving time is set

Y

6

daylight saving time will be canceled and the time will go back by 1 hour.

COP

Press the <U> key to select [OK], then press <0>.

X

The Date/Time/Zone and daylight saving time will be set and the menu will reappear.

If you store the camera without the battery or if the camera’s battery becomes exhausted, the date/time/zone may be reset. If this happens, set the time zone and date/time again.

The date/time that was set will start from when you press <0> in step 6.

After changing the time zone, check that the correct date/time has been set.

33

34

3

Selecting the Interface Language

1 Display the menu screen.

Press the <M> button to display the menu screen.

2

Under the [52] tab, select

[LanguageK].

Press the <U> key to select the

[52] tab.

Press the <V> key to select

[Language

K

], then press <0>.

Y

3

COP

Press the <V> key to select the language, then press <0>.

X

The interface language will change.

Attaching and Detaching a Lens

The camera is compatible with all Canon EF lenses. The camera

cannot be used with EF-S and EF-M lenses.

1 Remove the caps.

Remove the rear lens cap and the body cap by turning them as shown by the arrows.

2 Attach the lens.

Align the red dots on the lens and camera and turn the lens as shown by the arrow until it clicks in place.

3

<AF>.

<AF> stands for Autofocus.

If it is set to <MF> (manual focus),

COP

4 Remove the front lens cap.

Minimizing Dust

When changing lenses, do it quickly in a place with minimal dust.

When storing the camera without a lens attached, be sure to attach the body cap to the camera.

Remove dust on the body cap before attaching it.

Do not look at the sun directly through any lens. Doing so may cause loss of vision.

If the front part (focusing ring) of the lens rotates during autofocusing, do not touch the rotating part.

35

36

Attaching and Detaching a Lens

About Zooming

To zoom, turn the zoom ring on the lens with your fingers.

If you want to zoom, do it before focusing. Turning the zoom ring after achieving focus may throw off the focus slightly.

Detaching the Lens

While pressing the lens release button, turn the lens as shown by the arrows.

Turn the lens until it stops, then detach it.

Y detached lens.

COP out while you are carrying it around. Set the zoom ring to the 24mm wide-angle end, then slide the zoom ring lock lever to <LOCK>. The zoom ring can be locked only at the wide-angle end.

Attaching and Detaching a Lens

Attaching a Lens Hood

A lens hood can block unwanted light and protect the front of the lens from rain, snow, dust, etc. Before storing the lens in a bag, etc., you can attach the hood in reverse.

If the Lens Hood and Lens Have a Mount Index

1

Align the red dots on the hood and lens edges, and turn the hood as shown by the arrow.

2

Turn the hood as shown in the illustration.

Y attaches securely.

COP

If Neither the Lens Hood Nor the Lens Have a Mount Index

Attach the hood.

Turn the hood as shown by the arrow until it attaches securely.

If the lens has a mount index and you do not attach the hood properly, it may obstruct the image’s periphery, making it look dark.

When attaching or detaching the hood, grasp the base of the hood when turning it. Grasping the hood’s edges when turning it may deform the hood, resulting in failure to turn.

37

About the Lens Image Stabilizer

When you use the IS lens’ built-in Image Stabilizer, camera shake is corrected to obtain a sharper shot. The procedure explained here is based on the EF24-105mm f/4L IS USM lens as an example.

* IS stands for Image Stabilizer.

1 Set the Image Stabilizer switch to

<1>.

Also set the camera’s power switch to

<1>.

2 Press the shutter button halfway.

X

The Image Stabilizer will operate.

Take the picture.

3

When the picture looks steady in the viewfinder, press the shutter button

Y

COP moves at the time of exposure.

For bulb exposures, set the IS switch to <2>. If <1> is set, Image

Stabilizer misoperation may occur.

The Image Stabilizer may not be effective for excessive shaking such as on a rocking boat.

The Image Stabilizer may not be effective when you use the EF24-

105mm f/4L IS USM lens for panned shots.

38

The Image Stabilizer can operate with the lens focus mode switch set to either <AF> or <MF>.

When using a tripod, you can still shoot with the IS switch set to <1> with no problem. However, to save battery power, setting the IS switch to

<2> is recommended.

The Image Stabilizer is effective even when the camera is mounted on a monopod.

With the EF24-105mm f/3.5-5.6 IS STM lens, the Image Stabilizer mode may switch automatically to suit the shooting conditions.

Basic Operation

Adjusting the Viewfinder Clarity

Turn the dioptric adjustment knob.

Turn the knob left or right so that the

AF points in the viewfinder look sharp.

If the knob is difficult to turn, remove the eyecup.

If the camera’s dioptric adjustment still cannot provide a sharp viewfinder image, using E-series Dioptric Adjustment Lenses (10 types, sold separately) is recommended.

Holding the Camera

shake.

COP

Horizontal shooting

Vertical shooting

1. Wrap your right hand around the camera grip firmly.

2. Hold the lens bottom with your left hand.

3. Rest your hand’s right index finger lightly on the shutter button.

4. Press your arms and elbows lightly against the front of your body.

5. To maintain a stable stance, place one foot slightly ahead of the other.

6. Press the camera against your face and look through the viewfinder.

To shoot while looking at the LCD monitor, see page 103.

39

Basic Operation

Shutter Button

The shutter button has two steps. You can press the shutter button halfway. Then you can further press the shutter button completely.

Pressing halfway

This activates autofocusing and the automatic exposure system that sets the shutter speed and aperture.

The exposure setting (shutter speed and aperture) is displayed in the viewfinder and on the LCD panel (0).

Pressing completely

This releases the shutter and takes the picture.

Y

Preventing Camera Shake

camera shake. It can cause blurred pictures. To prevent camera shake, note the following:

• Hold and steady the camera as shown on the preceding page.

• Press the shutter button halfway to autofocus, then slowly press the shutter button completely.

40

In Creative Zone modes, pressing the <p> button is the same as pressing the shutter button halfway.

If you press the shutter button completely without pressing it halfway first or if you press the shutter button halfway and then press it completely immediately, the camera will take a moment before it takes the picture.

Even during menu display, image playback, or image recording, you can instantly go back to shooting-ready by pressing the shutter button halfway.

Basic Operation

Mode Dial

Turn the dial while holding down the lock release button at the center of the dial.

6

Main Dial

(1)

After pressing a button, turn the

<6> dial.

When you press a button such as <f>

<R> <i>, the respective function

Y timer (9). During this time, you can turn the <6> dial to set the desired setting.

COP you press the shutter button halfway, the camera will be ready to shoot.

Use this dial to select or set the AF operation, drive mode, ISO speed, metering mode, AF point selection, etc.

(2)

Turn the <6> dial only.

While looking at the viewfinder or LCD panel, turn the <6> dial to set the desired setting.

Use this dial to set the shutter speed, aperture, etc.

The operations in (1) are also possible while the <R> switch is set to the right (Multi function lock, p.43).

41

Basic Operation

5

Quick Control Dial

(1)

After pressing a button, turn the

<5> dial.

When you press a button such as <f>

<R> <i>, the respective function remains selected for the duration of the timer (9). During this time, you can turn the <5> dial to set the desired setting.

When the function selection ends or if you press the shutter button halfway, the camera will be ready to shoot.

Use this dial to select or set the AF

Y etc.

(2)

Turn the <5> dial only.

COP panel, turn the <

5

> dial to set the desired setting.

Use this dial to set the exposure compensation amount, the aperture setting for manual exposures, etc.

42

The operations in (1) are also possible while the <R> switch is set to the right (Multi function lock, p.43).

Basic Operation

9

Multi-controller

The Multi-controller <9> has eight keys which tilt in the directions shown by the arrows.

R Multi function Lock

Use the eight keys to select the AF point, correct the white balance, move the AF point or magnifying frame during Live View shooting, scroll around magnified images during playback, etc.

For menus and the Quick Control, the

Multi-controller works only in the vertical and horizontal directions

<V> <U>. It does not work in diagonal directions.

Y set to the right, it prevents the Main Dial, Quick Control Dial, and Multicontroller from moving and changing a setting inadvertently.

<R> switch set to the left:

Lock released

<R> switch set to the right:

Lock engaged

If the <R> switch is set to the right and you try to use one of the locked camera controls, <L> will be displayed in the viewfinder and on the LCD panel. On the shooting function settings display (p.44), [LOCK] will be displayed.

43

44

Basic Operation

U LCD Panel Illumination

Turn on (9)/off the LCD panel illumination by pressing the <U> button.

During a bulb exposure, pressing the shutter button completely will turn off the

LCD panel illumination.

Displaying Shooting Function Settings

After you press the <B> button a number of times, the shooting function settings will be displayed.

With the shooting settings displayed, you can turn the Mode Dial to see the settings for each shooting mode.

Pressing the <Q> button enables Quick Control of the shooting function settings (p.45).

Y

Press the <B> button again to turn off the display.

COP

Q Quick Control for Shooting Functions

You can directly select and set the shooting functions displayed on the

LCD monitor. This is called the Quick Control screen.

1

Press the <Q> button.

X

The Quick Control screen will appear

(7).

Basic Zone modes

Set the desired function.

2

Press the <V> <U> key to select a function.

X

The setting of the selected function is displayed.

Turn the <6> or <5> dial to

Y

Creative Zone modes

COP

3 Take the picture.

Press the shutter button completely to take the picture.

X

The captured image will be displayed.

For the functions settable in Basic Zone modes and the setting procedure, see page 75.

45

Q Quick Control for Shooting Functions

Sample Quick Control Screen

46

Aperture (p.98)

Shutter speed (p.97)

Shooting mode*

1

(p.20)

Flash exposure compensation

AE lock*

1

(p.101)

Highlight tone priority*

1

(p.92)

Exposure compensation/AEB setting (p.100)

Picture Style (p.87)

ISO speed (p.86)

Wi-Fi function*

2

Custom Controls

AF operation (p.78)

Image-recording quality (p.84)

White balance (p.88)

Auto Lighting Optimizer (p.89)

AF point (p.79)

White balance correction

Drive mode (p.81)

Metering mode

Y

*1: These functions cannot be set with the Quick Control screen.

*2: Refer to the Wi-Fi Function Instruction Manual for Wi-Fi function settings.

Function Setting Screen

COP

Ð

<0>

Select the desired function and press

<0>. The function’s setting screen will appear.

Turn the <6> or <5> dial to change the setting. You can also press the <U> key to change some of the settings. Also, some functions can be set by pressing the <B> button.

Press <0> to finalize the setting and return to the Quick Control screen.

When you select < > (Custom

Controls) or < > (AF point, p.79) and press the <M> button, the shooting function settings display will reappear.

3

Menu Operations

You can set various settings with the menus such as the imagerecording quality, date/time, etc. While looking at the LCD monitor, use the <M> button, <V> <U> keys, and <

0

> button on the camera back.

<M> button

LCD monitor

<0> button

<V> <U>

Menus in Basic Zone Modes

Y

COP

* Some menu tabs and menu items are not displayed in Basic Zone modes.

Menus in Creative Zone Modes

3

Playback

A

Live View shooting z

Shooting

Tab

5

Set-up

8 Custom

Functions

9

My Menu

Menu settings

Menu items

47

3 Menu Operations

Menu Setting Procedure

1 Display the menu screen.

Press the <M> button to display the menu screen.

2 Select a tab.

Press the <U> key to select a menu tab.

For example, the [z4] tab refers to the screen displayed when the forth tab from the left [ ] is selected.

Select the desired item.

3

Press the <V> key to select the

Y

4 Select the setting.

Press the <V> or <U> key to

COP the <V> or <U> key to select them.)

The current setting is indicated in blue.

5 Set the desired setting.

Press <0> to set it.

6 Exit the setting.

Press the <M> button to return to the shooting function settings display.

48

In step 2, you can also turn the <6> dial to select a menu tab. In step

4, you can also turn the <5> dial to select certain settings.

The explanation of menu functions hereinafter assumes that you have pressed the <M> button to display the menu screen.

To cancel, press the <M> button.

Before You Start

3 Formatting the Card

If the card is new or was previously formatted by another camera or computer, format the card with the camera.

When the card is formatted, all images and data in the card will be erased. Even protected images will be erased, so make sure there is nothing you need to keep. If necessary, transfer the images and data to a computer, etc., before formatting the card.

1 Select [Format card].

Under the [51] tab, select [Format

card], then press <0>.

Y

Format the card.

2

Select [OK], then press <0>.

COP the menu will reappear.

For low-level formatting, press the

<L> button to append [Low level

format] with a checkmark <X>, then select [OK].

49

Before You Start

Execute [Format card] in the following cases:

The card is new.

The card was formatted by a different camera or a computer.

The card is full with images or data.

A card-related error is displayed.

About Low-level Formatting

Perform low-level formatting if the card’s recording or reading speed seems slow or if you want to totally erase data in the card.

Since low-level formatting will format all recordable sectors in the card, the formatting will take slightly longer than normal formatting.

You can stop the low-level formatting by selecting [Cancel]. Even in this case, normal formatting will be completed and you can use the card as usual.

Y

COP

When the card is formatted or data is erased, only the file management information is changed. The actual data is not completely erased. Be aware of this when selling or discarding the card. When discarding the card, execute low-level formatting or destroy the card physically to prevent the personal data from being leaked.

Before using a new Eye-Fi card, the software in the card must be installed in your computer. Then format the card with the camera.

50

The card capacity displayed on the card format screen may be smaller than the capacity indicated on the card.

This device incorporates exFAT technology licensed from Microsoft.

Before You Start

3 Setting the Power-off Time/Auto Power Off

To save battery power, the camera turns off automatically after a set time of idle operation elapses. If you do not want the camera to turn off automatically, set this to [Disable]. After the power turns off, you can turn on the camera again by pressing the shutter button or other buttons.

1

Select [Auto power off].

Under the [52] tab, select [Auto

power off], then press <0>.

2

Set the desired time.

Select the desired setting, then press

<0>.

min. to save power. (The camera’s power does not turn off.)

COP

You can set how long the image is displayed on the LCD monitor immediately after capture. To keep the image displayed, set [Hold]. To not have the image displayed, set [Off].

1

Select [Image review].

Under the [z1] tab, select [Image

review], then press <0>.

2

Set the desired time.

Select the desired setting, then press

<0>.

If [Hold] is set, the image will be displayed until the auto power off time elapses.

51

52

Before You Start

3 Turning the LCD Monitor Off/On

The shooting settings display (p.44) can be set to remain on even when you press the shutter button halfway.

Under the [52] tab, select [LCD off/on

btn], then press <0>. The available settings are described below. Select one, then press <0>.

[Remains on] : Display remains on even when you press the shutter button halfway. To turn off display, press the

<B> button.

[Shutter btn.] : When you press the shutter button halfway, the

Y

COP

The camera’s shooting settings and menu settings can be reverted to their defaults.

1 Select [Clear all camera settings].

Under the [54] tab, select [Clear all

camera settings], then press <0>.

2 Select [OK].

Select [OK], then press <0>.

Q Displaying the Electronic Level

Displaying the Electronic Level on the LCD Monitor

1

Press the <B> button.

Each time you press the <B> button, the screen display will change.

Display the electronic level.

If the electronic level does not appear, set [53: z button

display options] so that the electronic level can be displayed.

Horizontal level

2

Y increments.

When the red line turns green, it

COP

53

Feature Guide and Help

While you set some function, the feature’s description can be displayed.

Feature Guide

The Feature guide displays a simple description of the respective shooting mode, function or option. It appears when you change the shooting mode or set a shooting function, Live View shooting, Movie shooting, or Quick Control for playback. When you select a function or option on the Quick Control screen, the Feature guide description appears. When you proceed with the operation, the Feature guide will disappear.

Shooting mode (Sample)

Quick Control (Sample)

COP

Y

Shooting settings Live View shooting Playback

3 Disabling the Feature Guide

Select [Feature guide].

Under the [53] tab, select [Feature

guide], then press <0>.

Select [Disable], then press <0>.

54

Feature Guide and Help

Help

When [zHelp] is displayed at the bottom of the menu screen, pressing the <B> button displays the function’s description (Help). If the Help fills more than one screen, a scroll bar will appear on the right edge. You can turn the <5> dial to scroll down.

Example: [z4: Long exp. noise reduction]

B

Î

Y

Î

Scroll bar

Example: [8C.Fn II -1: Tracking sensitivity]

B

Î

55

COP

Y

2

Basic Shooting

on the Mode Dial for best results.

With Basic Zone modes, all you do is point and shoot while the

COP shooting function settings cannot be changed.

Ba si c

Zo n e

57

58

A Fully Automatic Shooting (Scene Intelligent Auto)

<A> is a fully automatic mode. The camera analyzes the scene

and sets the optimum settings automatically. It also adjusts focus automatically by detecting whether the subject is still or moving (p.61).

AF point

1

Set the Mode Dial to <A>.

Turn the Mode Dial while holding down the lock release button at the center.

2 Aim any AF point over the subject.

All the AF points will be used to focus, and generally the closest object will be focused.

Aiming the center AF point over the

Y

3

Focus the subject.

COP focus.

X

The AF point achieving focus flashes briefly in red. At the same time, the beeper will sound and the focus confirmation light <o> in the viewfinder will light up.

Focus confirmation light

A Fully Automatic Shooting (Scene Intelligent Auto)

4 Take the picture.

Press the shutter button completely to take the picture.

X

The captured image will be displayed for 2 sec. on the LCD monitor.

The <A> mode makes the colors look more impressive in nature, outdoor, and sunset scenes. If the desired color tone is not obtained, use a Creative

Zone mode and select a Picture Style other than <D> and shoot (p.87).

FAQ

The focus confirmation light <o> blinks and focus is not

achieved.

Y move away and try again.

Multiple AF points flash simultaneously.

COP

AF point covering the desired subject flashes, take the picture.

The beeper continues to beep softly. (The focus confirmation

light <o> does not light up.)

It indicates that the camera is focusing continuously on a moving subject. (The focus confirmation light <o> does not light up.) You can take sharp pictures of a moving subject.

Note that focus lock (p.61) will not work in this case.

Pressing the shutter button halfway does not focus the subject.

If the focus mode switch on the lens is set to <MF> (manual focus), set it to <AF> (autofocus).

59

A Fully Automatic Shooting (Scene Intelligent Auto)

The shutter speed display is blinking.

Since it is too dark, taking the picture may result in a blurred subject due to camera shake. Using a tripod or a Canon EX-series Speedlite

(sold separately) is recommended.

When the external flash was used, the bottom part of the picture came out unnaturally dark.

If a hood is attached to the lens, it can obstruct the flash coverage. If the subject is close, detach the hood before taking the picture with flash.

COP

Y

60

In Basic Zone modes except <G>, using a Canon EX-series Speedlite

(sold separately) in low-light or backlit conditions can capture the subject brightly while avoiding camera shake or reduce backlit shadows.

A Full Auto Techniques (Scene Intelligent Auto)

Recomposing the Shot

Depending on the scene, position the subject toward the left or right to create a balanced background and good perspective.

In the <A> mode, while you press the shutter button halfway to focus a still subject, the focus will be locked. You can then recompose the

Y modes (except <5> Sports).

In the <A> mode, if the subject moves (distance to camera changes) while or after you focus, AI Servo AF will take effect to focus the subject continuously. (The beeper will continue beeping softly.) As long as you keep aiming the AF point on the subject while pressing the shutter button halfway, the focusing will be continuous. When you want to take the picture, press the shutter button completely.

61

62

A Full Auto Techniques (Scene Intelligent Auto)

A Live View Shooting

You can shoot while viewing the image on the LCD monitor. This is called “Live View shooting”. For details, see page 103.

1 Set the Live View shooting/Movie

shooting switch to <A>.

2 Display the Live View image on the LCD monitor.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

Y

Focus the subject.

3

Aim the center AF point < > on the

COP focus.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

4 Take the picture.

Press the shutter button completely.

X

The picture will be taken and the captured image is displayed on the

LCD monitor.

X

After the image review ends, the camera will return to Live View shooting automatically.

Press the <0> button to end the

Live View shooting.

C Creative Auto Shooting

In the <C> mode, you can easily change the depth of field and drive mode. You can also choose the ambience you want to convey in your images. The default settings are the same as the <A> mode.

* CA stands for Creative Auto.

1

Set the Mode Dial to <C>.

2

Press the <Q> button.

(

7

)

X

The Quick Control screen will appear.

3 Set the desired function.

Y function.

X

The selected function and Feature

COP each function, see pages 64-65.

4 Take the picture.

Press the shutter button completely to take the picture.

63

C Creative Auto Shooting

Shutter speed

Aperture

ISO speed

Battery check

Image-recording quality

(1)

(2)

(3)

Possible shots

64

(1) Ambience-based shots

You can choose the ambience you want to convey in your images.

COP

(2) Blurring/sharpening the background

If you move the index mark toward the left, the background will look more blurred. If you move it toward the right, the background will look more in focus. If you want to blur the background, see “Shooting

Portraits” on page 67. Set it by pressing the <U> key. You can also use the <6> or <5> dial to move the mark.

Depending on the lens and shooting conditions, the background may not look so blurred. If flash is used, this setting will not be applied.

C Creative Auto Shooting

(3) Drive mode: Press the <U> key to select the desired drive mode.

You can also select the drive mode by turning the <6> or <5> dial, or pressing <0> to select it from a list.

<u> Single shooting:

Shoot one image at a time.

<i> Continuous shooting:

While you hold down the shutter button completely, shots will be taken continuously. You can shoot up to approx. 4.5 shots per second.

<B> Silent single shooting:

Single shooting with less shooting sound than <u>.

<M> Silent continuous shooting:

Continuous shooting (max. approx. 3.0 shots per second) with less shooting sound than <i>.

< > Self-timer: 10 sec./Remote control:

< > Self-timer: 2 sec./Remote control:

Y

The picture is taken 10 seconds or 2 seconds after you press the shutter button. A remote controller can also be used.

COP

65

8: Special Scene Mode

When you set a shooting mode suiting the scene, the camera sets the optimum settings automatically.

1

Set the Mode Dial to <8>.

2

Press the <Q> button.

(

7

)

X

The Quick Control screen will appear.

3

Select the shooting mode.

Press the <V> key to select the

Y a shooting mode.

from a list by selecting the shooting mode section and pressing <0>.

Available Shooting Modes in the <8> Mode

Shooting Mode

2

Portrait

3

Landscape

4

Close-up

5

Sports

Page

p.67

p.68

p.69

p.70

Shooting Mode

6

Night Portrait

Page

p.71

F

Handheld Night Scene p.72

G

HDR Backlight Control p.73

66

2 Shooting Portraits

The <2> (Portrait) mode blurs the background to make the human subject stand out. It also makes skin tones and the hair look softer.

Shooting Tips

Y

The further the distance between the subject and background, the better.

COP

The further the distance between the subject and background, the more blurred the background will look. The subject will also stand out better in front of a plain, dark background.

Use a telephoto lens.

If you have a zoom lens, use the telephoto end to fill the frame with the subject from the waist up. Move in closer if necessary.

Focus the face.

Check that the AF point covering the face flashes in red. For closeups of the face, focus the eyes.

The default setting is <i> (Continuous shooting). If you hold down the shutter button, you can shoot continuously to obtain different poses and facial expressions (max. approx. 4.5 shots/sec.).

67

3 Shooting Landscapes

Use the <3> (Landscape) mode for wide scenery or to have everything in focus from near to far. For vivid blues and greens, and very sharp and crisp images.

68

Y

Shooting Tips

COP

When using the wide-angle end of a zoom lens, objects near and far will be in focus better than at the telephoto end. It also adds breadth to landscapes.

Shooting night scenes.

When shooting night scenes, use a tripod to prevent camera shake.

4 Shooting Close-ups

When you want to photograph flowers or small things up close, use the

<4> (Close-up) mode. To make small things appear much larger, use a macro lens (sold separately).

Y

Shooting Tips

COP

A simple background makes the flower, etc., stand out better.

Move as close as possible to the subject.

Check the lens for its minimum focusing distance. Some lenses have indications such as <40.25m/0.8ft>. The lens minimum focusing distance is measured from the <V> (focal plane) mark on the top left of the camera to the subject. If you are too close to the subject, the focus confirmation light <o> will blink.

With a zoom lens, use the telephoto end.

If you have a zoom lens, using the telephoto end will make the subject look larger.

69

5 Shooting Moving Subjects

To photograph a moving subject, whether it is a child running or a moving vehicle, use the <5> (Sports) mode.

Y

Shooting Tips

Use a telephoto lens.

Use the center AF point to focus.

Aim the center AF point over the subject, then press the shutter button halfway to autofocus. During autofocusing, the beeper will continue beeping softly. If focus cannot be achieved, the focus confirmation light <o> will blink.

The default setting is <i> (Continuous shooting). When you want to take the picture, press the shutter button completely. If you hold down the shutter button, continuous shooting (max. approx. 4.5 shots per sec.) and autofocusing will take effect to capture the movement of the subject.

70

Under low light when camera shake is prone to occur, the viewfinder’s shutter speed display on the bottom left will blink. Hold the camera steady and shoot.

6 Shooting Night Portraits (With a Tripod)

To shoot people at night and obtain a natural-looking night scene in the background, use the <6> (Night Portrait) mode. Flash is required.

Using a tripod is also recommended.

Shooting Tips

Y

COP night view. Also, use a tripod to prevent camera shake.

Also shoot in another shooting modes.

Since camera shake is prone to occur with night shots, shooting also with <A> and <F> is recommended.

Tell the subject to keep still even after the flash fires.

If you use the self-timer together with flash, the self-timer lamp will light up briefly after the picture is taken.

During Live View shooting, it may be difficult to focus dots of light such as in a night scene. In such a case, you should set the AF method to [Quick

mode] and shoot. If it is still difficult to focus, set the lens’ focus mode switch to [MF] and focus manually.

71

F Shooting Night Scenes (Handheld)

Normally, a tripod is necessary to steady your camera when shooting a night scene. However, with the <F> (Handheld Night Scene) mode, you can shoot night scenes while handholding the camera. In this mode, four shots are taken continuously for each picture, and a resulting bright image with reduced camera shake is recorded.

Shooting Tips

Hold the camera firmly.

COP

Y

While shooting, hold the camera firmly and steadily. If any of the four shots are greatly misaligned due to camera shake, etc., they may not align properly in the final image.

When including a human subject:

With flash, you can shoot both the human subject and night scene background while handholding the camera. To take a nice portrait, the first shot will use flash. Tell the person not to move until all four continuous shots are taken.

72

See the cautions on page 74.

G Shooting Backlit Scenes

When shooting a scene having both bright and dark areas, use the

<G> (HDR Backlight Control) mode. When you take a picture, three continuous shots are taken at different exposures, and the resulting image with the least loss of shadow detail due to backlighting and widest tonal range is recorded.

Shooting Tips

Hold the camera firmly.

COP

Y

While shooting, hold the camera firmly and steadily. If any of the three shots are greatly misaligned due to camera shake, etc., they may not align properly in the final image.

Even if a Speedlite is attached to the camera, it will not fire.

See the cautions on page 74.

HDR stands for High Dynamic Range.

73

74

Cautions for <F> (Handheld Night Scene)

During Live View shooting, it may be difficult to focus dots of light such as in a night scene. In such a case, you should set the AF method to [Quick

mode] and shoot. If it is still difficult to focus, set the lens’ focus mode switch to [MF] and focus manually.

When shooting flash photography, if the subject is too close to the camera, the picture may come out extremely bright (overexposure).

If you use flash when shooting dimly lit night scenes, or human subjects in situations where the subject and background are both near enough to be illuminated by the flash, the shots may not align correctly. This can result in a blurry photo.

Regarding flash coverage:

• When using a Speedlite with automatic flash coverage setting, the zoom position will be fixed to the wide end, regardless of the lens’ zoom position.

• When using a Speedlite with manual flash coverage switch, shoot with the flash head retracted to the wide (normal) position.

Cautions for <G> (HDR Backlight Control)

Y

Note that the image may not be rendered with a smooth gradation and may look irregular or have significant noise.

HDR Backlight Control may not be effective for excessively backlit

COP

Cautions for both <F> (Handheld Night Scene) and <G> (HDR

Backlight Control)

Compared with other shooting modes, the shooting area will be smaller.

You cannot select RAW and RAW+JPEG. In other shooting modes, if

RAW is set, the image quality will be 73. Also, if RAW+JPEG is set, the image will be recorded in the set JPEG quality.

If you shoot a moving subject, the subject’s movement will leave afterimages.

The image alignment may not function properly with repetitive patterns

(lattice, stripes, etc.), flat or single-tone images, or greatly misaligned shots caused by camera shake.

Recording the image to the card will take longer than with normal shooting. During the processing of the images, “buSY” will be displayed in the viewfinder and on the LCD panel and you cannot take another picture until the processing is completed.

If the shooting mode is set to <F> or <G>, direct printing is not possible. Select another shooting mode and do direct printing.

Q Quick Control

Example: Portrait mode

In Basic Zone modes when the shooting function settings screen is displayed, you can press the <Q> button to display the

Quick Control screen. The table below indicates the functions that can be set with the Quick Control screen in each

Basic Zone mode.

1

Set the Mode Dial to a Basic Zone mode.

2

Press the <Q> button.

(7)

X

The Quick Control screen will appear.

3

Set the function.

Y necessary in the A mode.)

X

The selected function and Feature guide (p.54) will appear.

Functions can also be selected with the <6> or <5> dial.

COP

Settable Functions in Basic Zone Modes

o : Default setting k: User selectable : Not selectable

Function

u: Single shooting i: Continuous shooting

Drive mode

(p.81)

B: Silent single shooting

M: Silent continuous shooting

Self-timer (p.82)

Ambience-based shots

Light/scene-based shots

Q k

Blurring/sharpening the background (p.64)

8

A C

2 3 4 5 6 F G o o k o o k o o o k k o k k o k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k k

* If you change the shooting mode or set the power switch to <2>, it will revert to the default settings (except the self-timer).

75

COP

Y

3

Setting the AF and

Drive Modes

Y

you can compose the picture as desired while autofocusing.

COP

You can also select the AF operation and drive mode that best match the shooting conditions and subject.

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s/f/a/F).

In Basic Zone modes, the AF operation and AF point are set automatically.

<AF> stands for autofocus. <MF> stands for manual focus.

77

78 f: Selecting the AF OperationN

You can select the AF operation characteristics to suit the shooting conditions or subject. In Basic Zone modes, the optimum AF operation is set automatically for the respective shooting mode.

1 Set the lens focus mode switch to

<AF>.

2 Turn the Mode Dial to a Creative

Zone mode.

3

Press the <f> button.

(9)

4

While looking at the LCD panel, turn the <6> or <5> dial.

COP

Z : AI Servo AF

S Selecting AF PointsN

You can select an AF point for focusing from among eleven AF points.

In Basic Zone modes, the AF point will be selected automatically and you cannot select the AF point.

1

Press the <S> button.

(9)

X

The selected AF point will be displayed in the viewfinder and on the

LCD panel.

When all the AF points light up, automatic AF point selection will be set.

Select an AF point.

2

You can either use <9> or turn the

<6> or <5> dial to select an AF point.

Y

Selecting with the Multi-controller

point.

If all the AF points light up, automatic

AF point selection will be set.

Press <0> to toggle between the center AF point and automatic selection.

Selecting with the Dials

Turn the <6> dial to select an AF point on the left or right or turn the

<5> dial to select an AF point above or below.

If all the AF points light up, automatic

AF point selection will be set.

79

80

MF: Manual Focusing

Focusing ring

1 Set the lens focus mode switch to

<MF>.

X

<4 L> will be displayed on the

LCD panel.

2 Focus the subject.

Focus by turning the lens focusing ring until the subject looks sharp in the viewfinder.

COP

Y

i Selecting the Drive Mode

Single and continuous drive modes are provided.

1

Press the <R> button.

(9)

2 Select the drive mode.

While looking at the LCD panel, turn the <6> or <5> dial.

u : Single shooting

When you press the shutter button completely, only one shot will be taken.

Y

While you hold down the shutter button completely, shots will be taken continuously.

COP

M : Silent continuous shooting (Max. approx. 3.0 shots/sec.)

Continuous shooting with less shooting sound than <i>.

Q : 10-sec. self-timer/Remote control k: 2-sec. self-timer/Remote control

For self-timer shooting, see page 82.

81

82 j Using the Self-timer

Use the self-timer when you want to be in the picture.

1

2

Press the <R> button.

(9)

Select the self-timer.

While looking at the LCD panel, turn the <6> or <5> dial to select the self-timer delay.

Q : 10-sec. self-timer k : 2-sec. self-timer

Take the picture.

3

Look through the viewfinder, focus

Y

X

You can check the self-timer operation with the self-timer lamp, COP

X

Two seconds before the picture is taken, the self-timer lamp will light up and the beeper will sound faster.

4

Image Settings

Image-recording quality, ISO speed, Picture Style, white balance, Auto Lighting Optimizer, lens peripheral illumination correction, chromatic aberration correction, and other functions.

COP

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s/f/a/F).

83

84

3

Setting the Image-Recording Quality

You can select the pixel count and the image quality. There are eight JPEG image-recording quality settings: 73, 83, 74, 84, 7a, 8a, b, c.

There are three RAW image quality settings: 1, 41, 61.

1

Select [Image quality].

Under the [z1] tab, select [Image

quality], then press <0>.

Select the image-recording quality.

2

To select a RAW setting, turn the

<6> dial. To select a JPEG setting, press the <U> key.

On the upper right, the “**M

(megapixels) **** x ****” numbers indicate the recorded pixel count, and

Y

Press <0> to set it.

COP

3 Setting the Image-Recording Quality

Guide to Image-Recording Quality Settings (Approx.)


Quality

73

83

Pixels

Recorded

20M

Printing Size

A2

File Size

(MB)

Possible

Shots

Maximum

Burst

6.0

3.1

1250

2380

73 (1250)

2380 (2380)

74

3.2

2300 2300 (2300)

8.9M

A3

1.7

4240 4240 (4240)

JPEG

84

7a

8a b

*1 c

*2

5.0M

2.5M

A4

9x13 cm

2.1

1.1

1.2

3450

6370

6130

3450 (3450)

6370 (6370)

6130 (6130)

0.3M

0.3

23070 23070 (23070)

1

20M A2 23.5

300

RAW

41

61

1

73

11M

5.0M

20M

20M

A3

A4

A2

A2

18.5

13.0

Y

380

550

240

RAW

+

JPEG

41

73

61

73

11M

20M

5.0M

20M

A3

A2

COP

A2

18.5+6.0

13.0+6.0

290

380

*1: b is suitable for playing the images on a digital photo frame.

*2: c is suitable for emailing the image or using it on a Web site.

14 (17)

8 (10)

12 (17)

7 (8)

8 (9)

10 (12) b and c will be in 7 (Fine) quality.

The file size, possible shots, and maximum burst during continuous shooting are based on Canon’s testing standards (3:2 aspect ratio, ISO 100 and

Standard Picture Style) using an 8 GB card. These figures will vary

depending on the subject, card brand, aspect ratio, ISO speed, Picture

Style, Custom Functions, and other settings.

Figures in parentheses apply to an UHS-I class 8 GB card based on Canon’s testing standards.

85

86 i: Setting the ISO SpeedN

Set the ISO speed (image sensor’s sensitivity to light) to suit the ambient light level. In Basic Zone modes, the ISO speed is set automatically.

1

Press the <i> button.

(9)

Set the ISO speed.

2

While looking at the LCD panel or the viewfinder, turn the <6> or <5> dial.

ISO speed can be set within ISO 100

Y

A” indicates ISO Auto. The ISO speed will be set automatically. You can also press the <B> button to

COP

ISO Speed Guide

ISO Speed

L, ISO 100 - 400

ISO 400 - 1600

Shooting Situation

(No flash)

Sunny outdoors

Overcast skies or evening time

ISO 1600 - 25600, H1, H2 Dark indoors or night

* High ISO speeds will result in grainier images.

Flash Range

The higher the ISO speed, the farther the flash range will be.

A Selecting a Picture StyleN

By selecting a Picture Style, you can obtain image characteristics matching your photographic expression or the subject.

In Basic Zone modes, <D> (Auto) is set automatically.

1 Select [Picture Style].

Under the [z4] tab, select [Picture

Style], then press <0>.

X

The Picture Style selection screen will appear.

Select a Picture Style.

2

Press the <V> key to select a

Picture Style, then press <0>.

X

The Picture Style will be set and the

Y

COP

87

88

3

Setting the White BalanceN

White balance (WB) is for making the white areas look white. Normally, the <Q> (Auto) setting will obtain the correct white balance. If naturallooking colors cannot be obtained with <Q>, you can select the white balance to match the light source or set it manually by shooting a white object.

In Basic Zone modes, <Q> is set automatically.

1 Select [White balance].

Under the [z3] tab, select [White

balance], then press <0>.

Select the white balance.

2

Select the desired setting, then press

<0>.

COP

Y

3

Auto Correction of Brightness and ContrastN

If the image comes out dark or the contrast is low, the brightness and contrast can be corrected automatically. This function is called Auto

Lighting Optimizer. The default setting is [Standard]. With JPEG images, the correction is applied when the image is captured.

In Basic Zone modes, [Standard] is set automatically.

1 Select [Auto Lighting Optimizer].

Under the [z3] tab, select [Auto

Lighting Optimizer], then press

<0>.

Select the setting.

2

Select the desired setting, then press

<0>.

Y

3 Take the picture.

COP necessary.

89

90

3

Noise Reduction SettingsN

High ISO Speed Noise Reduction

This function reduces the noise generated in the image. Although noise reduction is applied at all ISO speeds, it is particularly effective at high

ISO speeds. At low ISO speeds, the noise in the darker parts of the image (shadow areas) is further reduced.

1 Select [High ISO speed NR].

Under the [z4] tab, select [High ISO

speed NR], then press <0>.

2

Set the level.

Y

X

The setting screen closes and the menu will reappear.

COP

[M: Multi Shot Noise Reduction]

Noise reduction with higher image quality than when [High] is applied. For a single photo, four shots are taken in a burst and merged automatically into a single JPEG image.

3 Take the picture.

The image will be recorded with noise reduction applied.

3 Noise Reduction SettingsN

Long Exposure Noise Reduction

Noise reduction is possible with images exposed for 1 sec. or longer.

1

Select [Long exp. noise reduction].

Under the [z4] tab, select [Long

exp. noise reduction], then press

<0>.

Set the desired setting.

2

Select the desired setting, then press

<0>.

X

The setting screen closes and the

Y

[Auto]

For 1 sec. or longer exposures, noise reduction is performed

COP

[Auto] setting is effective in most cases.

[Enable]

Noise reduction is performed for all exposures of 1 sec. or longer.

The [Enable] setting may be able to reduce noise that cannot be detected with the [Auto] setting.

3

Take the picture.

The image will be recorded with noise reduction applied.

91

92

3

Highlight Tone PriorityN

You can minimize overexposed highlight areas.

1 Select [Highlight tone priority].

Under the [z4] tab, select

[Highlight tone priority], then press

<0>.

Select [Enable].

2

Select [Enable], then press <0>.

Highlight details are improved. The dynamic range is expanded from the standard 18% gray to bright highlights. The gradation between the smoother.

Y

3 Take the picture.

The image will be recorded with

COP

3

Lens Peripheral Illumination / Chromatic Aberration Correction

Peripheral light fall-off is a phenomenon that makes the image corners look darker due to the lens characteristics. Color fringing along subject outlines is called chromatic aberration. Both lens aberrations can be corrected. The default settings are [Enable] for both corrections.

Peripheral Illumination Correction

1 Select [Lens aberration correction].

Under the [z2] tab, select [Lens

aberration correction], then press

<0>.

2 Select the setting.

Y attached lens.

Select [Peripheral illumin.], then

COP

Select [Enable], then press <0>.

If [Correction data not available] is displayed, see “About the Lens

Correction Data” on page 94.

3 Take the picture.

The image will be recorded with the peripheral illumination corrected.

93

94

3 Lens Peripheral Illumination / Chromatic Aberration Correction

Chromatic Aberration Correction

1

Select the setting.

Check that [Correction data

available] is displayed for the attached lens.

Select [Chromatic aberration], then press <0>.

Select [Enable], then press <0>.

If [Correction data not available] is displayed, see “About the Lens

Correction Data” below.

Take the picture.

2

The image will be recorded with the

Y

About the Lens Correction Data

data and chromatic aberration correction data for approx. 25 lenses. If you select [Enable], the peripheral illumination correction and chromatic aberration correction will be applied automatically for any lens whose correction data is registered in the camera.

With EOS Utility (provided software), you can check which lenses have their correction data registered in the camera. You can also register the correction data for unregistered lenses. For details, refer to the

Software Instruction Manual (CD-ROM) for EOS Utility Instruction

Manual (p.135).

5

Advanced Operations

can set the shutter speed and/or aperture to set the exposure as desired. By changing the

COP

various results.

Y

The M icon at the upper right of the page title indicates that the function is available only in Creative Zone modes (d/ s/f/a/F).

After you press the shutter button halfway and let go, the exposure values will remain displayed in the viewfinder and on the LCD panel for 4 sec. (0).

Set the <R> switch to the left.

95

96 d: Program AE

The camera automatically sets the shutter speed and aperture to suit the subject’s brightness. This is called Program AE.

* <d> stands for Program.

* AE stands for Auto Exposure.

1

Set the Mode Dial to <d>.

2 Focus the subject.

Look through the viewfinder and aim the selected AF point over the subject. Then press the shutter button halfway.

X

The AF point which achieves focus flashes in red, and the focus

Y viewfinder’s bottom right lights up

X

(when in One-Shot AF mode).

be set automatically and displayed in the viewfinder and on the LCD panel.

3 Check the display.

A standard exposure will be obtained as long as the shutter speed and aperture display do not blink.

4

Take the picture.

Compose the shot and press the shutter button completely.

s: Shutter-Priority AE

In this mode, you set the shutter speed and the camera automatically sets the aperture to obtain the standard exposure suiting the brightness of the subject. This is called shutter-priority AE. A faster shutter speed can freeze the action or a moving subject. A slower shutter speed can create a blurred effect, giving the impression of motion.

* <s> stands for Time value.

Blurred motion

(Slow shutter speed: 1/30 sec.)

Frozen action

(Fast shutter speed: 1/2000 sec.)

1

Set the Mode Dial to <s>.

COP

While looking at the LCD panel, turn the <6> dial.

3

Focus the subject.

Press the shutter button halfway.

X

The aperture is set automatically.

4

Check the viewfinder display and shoot.

As long as the aperture is not blinking, a standard exposure will be obtained.

97

f: Aperture-Priority AE

In this mode, you set the desired aperture and the camera sets the shutter speed automatically to obtain the standard exposure suiting the subject brightness. This is called aperture-priority AE. A higher f/number (smaller aperture hole) will make more of the foreground and background fall within acceptable focus. On the other hand, a lower f/number (larger aperture hole) will make less of the foreground and background fall within acceptable focus.

* <f> stands for Aperture value (aperture opening).

98

Blurred background

(With a low aperture f/number: f/5.6)

Sharp foreground and background

Y

1

2

Set the Mode Dial to <f>.

COP

Set the desired aperture.

While looking at the LCD panel, turn the <6> dial.

3 Focus the subject.

Press the shutter button halfway.

X

The shutter speed is set automatically.

4 Check the viewfinder display and shoot.

As long as the shutter speed is not blinking, a standard exposure will be obtained.

a: Manual Exposure

In this mode, you set both the shutter speed and aperture as desired. To determine the exposure, refer to the exposure level indicator in the viewfinder or use a commercially-available exposure meter. This method is called manual exposure.

* <a> stands for Manual.

1

Set the Mode Dial to <a>.

2 Set the ISO speed

(p.86)

.

3 Set the shutter speed and aperture.

To set the shutter speed, turn the

Standard exposure index

<6> dial.

Y switch to the left, then turn the <6>

4

or <5> dial.

COP

Press the shutter button halfway.

X

The exposure setting will be displayed

Exposure level mark in the viewfinder and on the LCD panel.

The exposure level mark <h> indicates how far the current exposure level is from the standard exposure level.

5 Set the exposure and take the picture.

Check the exposure level indicator and set the desired shutter speed and aperture.

If the exposure level exceeds ±3 stops, the end of the exposure level indicator will display <I> or <J>.

99

Setting Exposure Compensation N

Exposure compensation can brighten (increased exposure) or darken

(decreased exposure) the standard exposure set by the camera.

Exposure compensation can be set in the d/s/f shooting modes.

Although you can set the exposure compensation up to ±5 stops in 1/3stop increments, the exposure compensation indicator in the viewfinder and on the LCD panel can only display the setting up to ±3 stops. If you want to set the exposure compensation setting beyond ±3 stops, you should use the Quick Control (p.45) or follow the instructions for [z3:

Expo.comp./AEB].

Increased exposure for a brighter image

1 Check the exposure level indicator.

Press the shutter button halfway

2

(0) and check the exposure level indicator.

Y

amount.

While looking at the viewfinder or

COP switch to the left, then turn the <5> dial.

Decreased exposure for a darker image

3 Take the picture.

To cancel the exposure compensation, set the exposure compensation amount back to <E>.

100

A AE LockN

Use AE lock when the area of focus is to be different from the exposure metering area or when you want to take multiple shots at the same exposure setting. Press the <A> button to lock the exposure, then recompose and take the shot. This is called AE lock. It is effective for backlit subjects.

1 Focus the subject.

Press the shutter button halfway.

X

The exposure setting will be displayed.

Press the <A> button.

(0)

2

X

The <A> icon lights up in the viewfinder to indicate that the exposure setting is locked (AE lock).

Y locked.

3 Recompose and take the picture.

COP while taking more shots, hold down the <A> button and press the shutter button to take another shot.

101

COP

Y

6

Shooting with the LCD Monitor

(Live View Shooting)

Y

monitor. This is called “Live View shooting”.

COP

setting the Live View shooting/

Movie shooting switch to <A>.

103

A Shooting with the LCD Monitor

1 Set the Live View shooting/Movie

shooting switch to <A>.

2

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

The Live View image will closely reflect the brightness level of the actual image you capture.

3

Focus the subject.

Y

4

the current AF method (p.106).

COP

Take the picture.

Press the shutter button completely.

X

The picture will be taken and the captured image is displayed on the

LCD monitor.

X

After the image review ends, the camera will return to Live View shooting automatically.

Press the <0> button to exit Live

View shooting.

104

A Shooting with the LCD Monitor

Enabling Live View Shooting

Set [A1: Live View shoot.] to

[Enable].

Number of Possible Shots with Live View Shooting

[Approx. number of shots]

Temperature

Room Temperature

( 23°C / 73°F)

Low Temperature

(0°C / 32°F)

190 Possible shots 220

Y

With a fully-charged Battery Pack LP-E6, continuous Live View shooting is possible for approx. 1 hr. 45 min. at room temperature (23°C / 73°F).

COP

105

Using AF to Focus (AF Method)

Selecting the AF Method

The AF methods available are [FlexiZoneAF

†

(Single)], [u Live

mode] (face detection, p.107), and [Quick mode] (p.109).

If you want to achieve precise focus, set the lens focus mode switch to

<MF>, magnify the image, and focus manually (p.111).

Select the AF method.

Under the [A1] tab, select [AF

method].

While the Live View image is displayed, you can also press the

<f> button to select the AF method

FlexiZone - Single: d on the setting screen.

Y

The image sensor is used to focus. Although AF is possible with the COP with the Quick mode.

AF point

1 Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

X

The AF point < > will appear.

2 Move the AF point.

You can use <9> to move the AF point to where you want to focus. (It cannot go to the edges of the picture.)

To return the AF point to the center, press the <0> or <L> button.

106

Using AF to Focus (AF Method)

3 Focus the subject.

Aim the AF point over the subject and press the shutter button halfway.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

X

If focus is not achieved, the AF point will turn orange.

Take the picture.

4

Check the focus and exposure, then press the shutter button completely to take the picture (p.104).

u (Face detection) Live mode: c

Y human face and focuses. Have the target person face the camera.

1 Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

When a face is detected, the <p> frame will appear over the face to be focused.

If multiple faces are detected, <q> will be displayed. Use <9> to move the <q> frame over the target face.

107

Using AF to Focus (AF Method)

2 Focus the subject.

Press the shutter button halfway and the camera will focus the face covered by the <p> frame.

X

When focus is achieved, the AF point will turn green and the beeper will sound.

X

If focus is not achieved, the AF point will turn orange.

If a face cannot be detected, the AF point < > will be displayed and AF will be executed at the center.

3 Take the picture.

Y take the picture (p.104).

COP

108

Using AF to Focus (AF Method)

Quick Mode: f

The dedicated AF sensor is used to focus in One-Shot AF mode, using the same AF method as with viewfinder shooting.

Although you can focus the target area quickly, the Live View image

will be interrupted momentarily during the AF operation.

You can use eleven AF points to focus (automatically selected). You can also select one AF point to focus and focus only the area covered by that AF point (manually selected). In Basic Zone modes, the AF point will be selected automatically. You cannot select the AF point.

AF point

1

Display the Live View image.

Press the <0> button.

X

The Live View image will appear on the LCD monitor.

Y

Select the AF point.N

Press the <S> button.

You can either use <9> or turn the

<6> or <5> dial to select an AF point.

Press <0> to toggle between the center AF point and automatic selection.

109

Using AF to Focus (AF Method)

Focus the subject.

3

Aim the AF point over the subject and press the shutter button halfway.

X

The Live View image will turn off, the reflex mirror will go back down, and

AF will be executed. (No picture is taken.)

X

When focus is achieved, the beeper will sound and the Live View image will reappear.

X

The AF point used to focus will light up in green.

X

If focus is not achieved, the AF point

4

will blink in orange.

Y

Check the focus and exposure, then press the shutter button completely to take the picture (p.104).

COP

110

Focusing Manually

You can magnify the image and focus precisely with manual focus.

1 Set the lens focus mode switch to

<MF>.

Turn the lens focusing ring to focus roughly.

2 Display the magnifying frame.

Press the <u> button.

Magnifying frame

AE lock

Magnified area position

Magnification

3 Move the magnifying frame.

Press <9> to move the magnifying frame to the position where you want

COP

To return the magnifying frame to the center, press <0> or the <L> button.

4 Magnify the image.

Each time you press the <u> button, the magnification within the frame will change as follows:

5x 10x Normal view

1x

111

Focusing Manually

5

Focus manually.

While looking at the magnified image, turn the lens focusing ring to focus.

After achieving focus, press the <u> button to return to the normal view.

6

Take the picture.

Check the focus and exposure, then press the shutter button completely to take the picture (p.104).

COP

Y

112

7

Shooting Movies

Y

Movie shooting switch to <k>.

The movie recording format will

COP

For cards which can record movies, see page 3.

Under the [53] tab, if you set [Wi-Fi] to [Enable], you cannot shoot movies. Before shooting movies, set [Wi-Fi] to [Disable].

113

k Shooting Movies

Autoexposure Shooting

When the shooting mode is set to other than <a>, autoexposure control will take effect to suit the scene’s current brightness.

Recording movie

1

Set the shooting mode.

Set the Mode Dial to any shooting mode except <a>.

2

Set the Live View shooting/Movie

shooting switch to <k>.

X

The reflex mirror will make a sound, then the image will appear on the

LCD monitor.

3 Focus the subject.

Y

AF or manual focus (p.106-112).

4

When you press the shutter button COP

Shoot the movie.

Press the <0> button to start shooting a movie.

X

While the movie is being shot, the

“o” mark will be displayed on the upper right of the screen.

To stop shooting the movie, press the

<0> button again.

114

Microphone

k Shooting Movies

Manual Exposure Shooting

You can manually set the shutter speed, aperture, and ISO speed for movie shooting. Using manual exposure to shoot movies is for advanced users.

Shutter speed

Aperture

1

Set the Mode Dial to <a>.

2

Set the Live View shooting/Movie

shooting switch to <k>.

3

Set the ISO speed.

Press the <i> button.

X

The ISO speed setting screen will appear on the LCD monitor.

speed.

Y

Set the shutter speed and aperture.

Press the shutter button halfway and check the exposure level indicator.

To set the shutter speed, turn the

<6> dial. The settable shutter speeds depend on the frame rate <9>.

• 6 5 4 : 1/4000 sec. - 1/30 sec.

• 8 7 : 1/4000 sec. - 1/60 sec.

To set the aperture, turn the <5> dial.

If it cannot be set, set the <R> switch to the left, then turn the <6> or <5> dial.

5 Focus and shoot the movie.

The procedure is the same as steps 3 and 4 for “Autoexposure Shooting”

(p.114).

115

3

Setting the Movie-Recording Size

With [Z2: Movie rec. size], you can set the movie’s image size, frame rate per second, and compression method.

The frame rate switches automatically depending on the [53: Video system] setting.

Image size

A [1920x1080] : Full High-Definition (Full HD) recording quality.

The aspect ratio will be 16:9.

B [1280x720] : High-Definition (HD) recording quality. The aspect ratio will be 16:9.

C [640x480]

: Standard-definition recording quality. The aspect ratio will be 4:3.

Frame rate (fps: frames per second)

Y

6/8

: For areas where the TV format is NTSC (North America,

4

5/7

Japan, Korea, Mexico, etc.).

COP

: Mainly for motion pictures.

Compression method

X IPB

: Compresses multiple frames at a time efficiently for recording. Since the file size will be smaller than with ALL-I, you can shoot longer.

W ALL-I (I-only) : Compresses one frame at a time for recording.

Although the file size will be bigger than with

IPB, the movie will be more suited for editing.

116

3 Setting the Movie-Recording Size

Total Movie Recording Time and File Size Per Minute

Movie-

Recording Size

A

65

4

65

4

X

W

B

87 X

87 W

C 65 X

Total Recording Time (approx.)

4 GB Card 8 GB Card 16 GB Card

16 min.

32 min.

1 hr. 4 min.

5 min.

18 min.

6 min.

48 min.

11 min.

37 min.

12 min.

22 min.

1 hr. 14 min.

25 min.

1 hr. 37 min.

3 hr. 14 min.

File Size

(approx.)

235 MB/min.

685 MB/min.

205 MB/min.

610 MB/min.

78 MB/min.

About Movie Files Exceeding 4 GB

Even if you shoot a movie exceeding 4 GB, you can keep shooting without interruption.

Y the 4 GB file size, the elapsed shooting time or time code displayed in the movie-shooting image will start blinking. If you keep shooting until the movie file size exceeds 4 GB, a new movie file will be

COP will stop blinking.

When you play back the movie, you will have to play each movie file individually. Movie files cannot play back consecutively automatically.

After the movie playback ends, select the next movie to be played.

Movie Shooting Time Limit

The maximum recording time of one movie clip is 29 min. 59 sec. If the movie shooting time reaches 29 min. 59 sec., the movie shooting will stop automatically. You can start shooting a movie again by pressing the <0> button. (A new movie file starts being recorded.)

117

COP

Y

8

Image Playback

images and movies.

COP

About images shot and saved with another device

The camera may not be able to properly display images captured with a different camera, edited with a computer, or had their file names changed.

119

x Image Playback

Single-Image Display

1 Play back the image.

Press the <x> button.

X

The last captured image or last image viewed will appear.

No information

Select an image.

2

To play back images starting with the last image, turn the <5> dial counterclockwise. To play back images starting with the first captured image, turn the dial clockwise.

Each time you press the <B>

Y

COP

With basic information

120

Histogram Shooting information display

3 Exit the image playback.

Press the <x> button to exit the image playback and return to shooting-ready state.

x Searching for Images Quickly

H Display Multiple Images on One Screen (Index Display)

Search for images quickly with the index display showing four or nine images on one screen.

1

Press the <u> button.

Press the <u> button during image playback.

X

[6u] will be displayed on the lower right of the screen.

Switch to the index display.

2

Turn the <6> dial counterclockwise.

X

The 4-image index display will appear. The selected image is highlighted in a orange frame.

Y the 9-image index display will appear. If you turn the <6> dial to the right, the index display will change as follows: 9-image, 4-

COP

Î

Î

3

Select an image or movie.

Turn the <5> dial to move the orange frame and select the image. You can also select it with the <V> or <U> key.

Press the <u> button to turn off the

[6u] icon, then turn the <6> dial to go to the next or preceding screen.

Press <0> in the index display, and the selected image will be displayed as a single image.

121

u Magnified View

You can magnify a captured image by approx. 1.5x to 10x on the LCD monitor.

Magnified area position

Magnify the image.

1

The image can be magnified during image playback (single-image display), during image review after image capture, and from shootingready state.

Press the <u> button.

X

The magnified view will appear. The magnified area and [6u] will be displayed on the lower right of the screen.

The image magnification increases

Y approx. 10x.

The image magnification decreases

COP counterclockwise. Turning the dial further will display the index display

(p.121).

2 Scroll around the image.

Use <9> to scroll around the magnified image.

To exit the magnified display, press the <u> button or <x> button and the single-image display will reappear.

122

k Playing Movies

Speaker

1 Play back the image.

Press the <x> button to display images.

Select a movie.

2

Turn the <5> dial to select the movie to be played.

On the single-image display, the

<s1> icon displayed on the upper left indicates a movie. If the movie is a video snapshot, < > will be displayed.

You can press the <B> button to switch to the shooting information display.

Y

3

movie. As movies cannot be played

on the index display, press <0>

COP

display.

In the single-image display, press

<0>.

X

The movie playback panel will appear at the bottom of the screen.

4 Play back the movie.

Select [7] (Play), then press <0>.

X

The movie will start playing.

You can pause the movie playback by pressing <0>.

You can adjust the sound volume by turning the <6> dial even during movie playback.

For more details on the playback procedure, see the next page.

123

k Playing Movies

Movie Playback Panel

Operation

7 Play

8 Slow motion

5 First frame

3 Previous

frame

6 Next frame

Playback Description

Pressing <0> toggles between play and stop.

Adjust the slow motion speed by pressing the <U> key.

The slow-motion speed is indicated at the upper right of the screen.

Displays the movie’s first frame.

Each time you press <0>, the previous frame is displayed.

If you hold down <0>, it will rewind the movie.

Each time you press <0>, the movie will play frame-byframe. If you hold down <0>, it will fast forward the movie.

Displays the movie’s last frame.

4 Last frame

Background

music*

X Edit mm’ ss” hh:mm:ss:ff

9 Volume

32

Play back a movie with the selected background music.

Displays the editing screen.

Playback position

Y

Playback time (minutes:seconds with [Movie play count:

Rec time] set)

COP

count: Time code] set)

You can adjust the built-in speaker’s (p.123) volume by turning the <6> dial.

Pressing the <M> button returns to the single-image display.

* When background music is set, the movie’s sound will not be played.

124

L Erasing Images

You can either select and erase images one by one or erase them in one batch. Protected images will not be erased.

Once an image is erased, it cannot be recovered. Make sure you no longer need the image before erasing it. To prevent important images from being erased accidentally, protect them. Erasing a RAW+JPEG image will erase both the RAW and JPEG images.

Erasing a Single Image

Play back the image to be erased.

1

Press the <L> button.

2

3

X

The Erase menu will appear at the

Y

Select [Erase], then press <0>. The image displayed will be erased.

COP

125

COP

Y

9

Viewing the CD-ROM Instruction Manuals /

Downloading Images to Your Computer

This chapter explains how to install the Camera

Instruction Manual (on the CD-ROM provided) to your computer, download images from the camera to your computer, gives an overview of the software in the EOS

COP

Y

how to view the PDF files on the Software Instruction

Manual CD-ROM.

Camera

Instruction Manual

EOS DIGITAL

Solution Disk

(Software)

Software

Instruction Manual

127

Viewing the Camera Instruction Manual CD-ROM

The Camera Instruction Manual CD-ROM contains the following electronic manuals (PDF):

Camera Instruction Manual

Explains all the camera functions and procedures, including basic content (this booklet).

Wi-Fi Function Instruction Manual

Explains all the Wi-Fi functions and procedures, including basic content.

EF24-70mm f/4L IS USM Instructions Manual

If you bought the EF24-70mm f/4L IS USM lens kit, read this manual before use.

Y

Viewing the Camera Instruction Manual on the CD-ROM

To view the instruction manuals (PDF files), Adobe Reader 6.0 or higher

COP free from the Internet. After installing Adobe Reader, follow the procedure below.

1

Insert the “CAMERA INSTRUCTION

MANUAL” CD-ROM into your computer.

2

Double-click the CD-ROM icon.

For Windows, the icon is displayed in [(My)

Computer].

For Macintosh, the icon is displayed on the desktop.

The icon displayed will differ depending on your computer’s operating system.

128

Viewing the Camera Instruction Manual CD-ROM

3

Double-click the START file.

X

The screen shown in step 4 will appear.

The icon displayed will differ depending on your computer’s operating system.

4

Click on the manual you want to view.

Click on the name of the manual under your respective language.

Y

X

The instruction manual in your language will be displayed.

COP

You can save the PDF file to your computer.

All the instruction manuals (PDF files) have page links to make it quick to find the desired page. Click on a page number in the Table of Contents or

Index and that page will appear.

To learn how to use Adobe Reader, see Adobe Reader’s Help section.

129

Downloading Images to a Computer

You can use the provided software to download the images in the camera to your computer. There are two ways to do this.

Download by Connecting the Camera to the Computer

1 Install the software

(p.134)

.

2

Use the provided interface cable to connect the camera to your computer.

Use the interface cable provided with the camera.

Y

Connect the cable to the camera’s

<C> terminal with the cable plug’s <D> icon facing the front of

COP

Connect the cord’s plug to the computer’s USB terminal.

3

Use EOS Utility to download the images/movies.

For details, refer to the Software

Instruction Manual on the CD-ROM

(p.135).

130

Under the [53] tab, if [Wi-Fi] is set to [Enable], the camera cannot connect to a computer. Set [Wi-Fi] to [Disable], then connect the interface cable.

Downloading Images to a Computer

Downloading Images with a Card Reader

If you have a commercially-available card reader, you can use it to download images to your computer.

1 Install the software

(p.134)

.

2 Insert the card into the card reader.

Y

Use Canon software to download

3 the images/movies.

COP

For details, refer to the Software

Instruction Manual on the CD-ROM

(p.135).

When downloading images from the camera to your computer, with a card reader without using Canon software, copy the DCIM folder on the card to your computer.

131

About the Software

EOS DIGITAL Solution Disk

This disk contains various software for EOS DIGITAL cameras.

EOS Utility

With the camera connected to a computer, EOS Utility enables you to transfer still photos and movies shot with the camera to the computer.

You can also use this software to set various camera settings and shoot remotely with the computer connected to the camera. Also, you can copy background music tracks, such as EOS Sample Music*, to the card.

* Five original background music tracks are provided by Canon. Use EOS Utility

Y shows with the camera.

COP

This software is recommended for users who mainly shoot RAW images.

You can view, edit, process, and print RAW images at high speed. You can also edit JPEG images while retaining the original images.

Picture Style Editor

You can edit Picture Styles, and create and save original Picture Style files. This software is aimed at advanced users who are experienced in processing images.

132

About the Software

An Internet connection is necessary to install the software below.

Insert the EOS DIGITAL Solution Disk into your Internet-connected computer. Click [Easy installation] ([Install] on a Macintosh), and the software will be installed automatically.

ImageBrowser EX

Connect to the Internet to download and install the software*.

This software is recommended for users who mainly shoot JPEG images. You can easily view still photos and play back MOV movies and video snapshot albums, and also edit and print JPEG images.

* EOS DIGITAL Solution Disk is necessary for downloading and installing

ImageBrowser EX.

Map Utility

Y

Connect to the Internet to download and install the software.

Shooting locations can be displayed on a map on a computer screen by

COP

The ZoomBrowser EX/ImageBrowser programs that came with previous cameras does not support the EOS 6D’s still photos and MOV movie files.

Use ImageBrowser EX.

133

Installing the Software

Do not connect the camera to your computer before you install the software. The software will not be installed correctly.

Follow the procedure below to install ImageBrowser EX, Map Utility, and other software on the EOS DIGITAL Solution Disk. Software installation requires an Internet connection. You cannot download and install the software without an Internet connection.

Even if a previous version of ImageBrowser EX and Map Utility are installed in your computer, follow the procedure below to install/update

ImageBrowser EX and Map Utility. They are optimized for this camera.

You can also use the auto update feature to add the latest functions.

If previous versions of software other than ImageBrowser EX and Map

Utility are installed in your computer, follow the procedure below to update (overwrite) the software.

1

Y

2

on the desktop, then double-click on [Canon EOS Digital

Installer].

Click [Easy Installation] and follow the on-screen instructions to install.

COP

For Macintosh, click [Install].

If the install screen for “Microsoft Silverlight” is displayed during installation, install “Microsoft Silverlight”.

3

Click [Restart] and remove the CD-ROM after the computer restarts.

When the computer has restarted, the installation is complete.

134

Software Instruction Manual

Contains the Software Instruction Manuals.

Copying and Viewing the Instruction Manual PDFs

1

Insert the [Software INSTRUCTION MANUAL] CD-ROM into your computer.

2

Double-click the CD-ROM icon.

For Windows, the icon is displayed in [(My) Computer].

For Macintosh, the icon is displayed on the desktop.

3

Copy the [English] folder to your computer.

Y

Windows Macintosh

EUx.xM_E_xx

EOS Utility

Digital Photo Professional

Picture Style Editor

EUx.xW_E_xx

COP

Map Utility MUx.x_E_xx

DPPx.xM_E_xx

PSEx.xM_E_xx

Instruction manual for ImageBrowser EX (ImageBrowser EX

User Guide) is included in the software.

4

Double-click the copied PDF file.

Adobe Reader (most recent version recommended) must be installed on your computer.

Adobe Reader can be downloaded free from the Internet.

135

Trademarks

Adobe is a trademark of Adobe Systems Incorporated.

Microsoft and Windows are trademarks or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.

SDXC logo is a trademark of SD-3C, LLC.

HDMI, HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

All other trademarks are the property of their respective owners.

About MPEG-4 Licensing

“This product is licensed under AT&T patents for the MPEG-4 standard and may be used for encoding MPEG-4 compliant video and/or decoding MPEG-4 compliant video that was encoded only (1) for a personal and non-commercial purpose or (2) by a

Y

* Notice displayed in English as required.

COP

136

Certification Logo

Under the [54] tab, if you select [Certification Logo Display] and press

<0>, some of the logos of the camera’s certifications will appear. Other certification logos can be found in this Instruction Manual, on the camera body, and on the camera’s package.

Use of genuine Canon accessories is recommended

This product is designed to achieve excellent performance when used with genuine Canon accessories.

Canon shall not be liable for any damage to this product and/or accidents such as fire, etc., caused by the malfunction of non-genuine Canon accessories

(e.g., a leakage and/or explosion of a battery pack). Please note that this warranty does not apply to repairs arising out of the malfunction of non-genuine

Canon accessories, although you may request such repairs on a chargeable basis.

Battery Pack LP-E6/LP-E6N is dedicated to Canon products only. Using it with an incompatible battery charger or product may result in malfunction or accidents for which Canon cannot be held liable.

COP

Y

137

Safety Warnings

Follow these safeguards and use the equipment properly to prevent injury, death, and material damage.

Preventing Serious Injury or Death

• To prevent fire, excessive heat, chemical leakage, and explosions, follow the safeguards below:

- Do not use any batteries, power sources, and accessories not specified in this booklet. Do not use any home-made or modified batteries.

- Do not short-circuit, disassemble, or modify the battery pack or back-up battery. Do not apply heat or apply solder to the battery pack or back-up battery. Do not expose the battery pack or back-up battery to fire or water. And do not subject the battery pack or back-up battery to strong physical shock.

- Do not install the battery pack or back-up battery in reversed polarity (+ –). Do not mix new and old or different types of batteries.

- Do not recharge the battery pack outside the allowable ambient temperature range of 0°C - 40°C (32°F - 104°F). Also, do not exceed the recharging time.

- Do not insert any foreign metallic objects into the electrical contacts of the camera, accessories, connecting cables, etc.

physician immediately. (Battery chemicals may harm the stomach and intestines.)

• When disposing of a battery pack or back-up battery, insulate the electrical contacts with tape to prevent contact with other metallic objects or batteries. This is to prevent fire or an explosion.

COP and prevent a fire.

• If the battery pack or back-up battery leaks, changes color, deforms, or emits smoke or fumes, remove it immediately. Be careful not to get burned in the process.

• Prevent any battery leakage from contacting your eyes, skin, and clothing. It can cause blindness or skin problems. If the battery leakage contacts your eyes, skin, or clothing, flush the affected area with lots of clean water without rubbing it. See a physician immediately.

• During the recharging, keep the equipment away from the reach of children. The cord can accidentally choke the child or give an electrical shock.

• Do not leave any cords near a heat source. It can deform the cord or melt the insulation and cause a fire or electrical shock.

• Do not fire the flash at someone driving a car. It may cause an accident.

• Do not fire the flash near a person’s eyes. It may impair the person’s vision. When using flash to photograph an infant, keep at least 1 meter away.

• Before storing the camera or accessory when not in use, remove the battery pack and disconnect the power plug. This is to prevent electrical shock, heat generation, and fire.

• Do not use the equipment where there is flammable gas. This is to prevent an explosion or fire.

138

• If you drop the equipment and the casing breaks open to expose the internal parts, do not touch the internal parts due to the possibility of electrical shock.

• Do not disassemble or modify the equipment. High-voltage internal parts can cause electrical shock.

• Do not look at the sun or an extremely bright light source through the camera or lens.

Doing so may damage your vision.

• Keep the camera from the reach of small children. The neck strap can accidentally choke the child.

• Do not store the equipment in dusty or humid places. This is to prevent fire and electrical shock.

• Before using the camera inside an airplane or hospital, check if it is allowed.

Electromagnetic waves emitted by the camera may interfere with the plane’s instruments or the hospital’s medical equipment.

• To prevent fire and electrical shock, follow the safeguards below:

- Always insert the power plug all the way in.

- Do not handle a power plug with wet hands.

- When unplugging a power plug, grasp and pull the plug instead of the cord.

- Do not scratch, cut, or excessively bend the cord or put a heavy object on the cord.

Also do not twist or tie the cords.

Y

• Occasionally unplug the power plug and use a dry cloth to clean off the dust around the power outlet. If the surrounding is dusty, humid, or oily, the dust on the power outlet may become moist and short-circuit the outlet to cause a fire.

COP

• Do not leave equipment inside a car under the hot sun or near a heat source. The equipment may become hot and cause skin burns.

• Do not carry the camera around while it is attached to a tripod. Doing so may cause injury. Also make sure the tripod is sturdy enough to support the camera and lens.

• Do not leave a lens or lens-attached camera under the sun without the lens cap attached. Otherwise, the lens may concentrate the sun’s rays and cause a fire.

• Do not cover or wrap the battery-recharging apparatus with a cloth. Doing so may trap heat within and cause the casing to deform or catch fire.

• If you drop the camera in water or if water or metal fragments enter inside the camera, promptly remove the battery pack and back-up battery. This is to prevent fire and electrical shock.

• Do not use or leave the battery pack or back-up battery in a hot environment. Doing so may cause battery leakage or a shorter battery life. The battery pack or back-up battery can also become hot and cause skin burns.

• Do not use paint thinner, benzene, or other organic solvents to clean the equipment.

Doing so may cause fire or a health hazard.

If the product does not work properly or requires repair, contact your dealer or your nearest Canon Service Center.

139

140

Digital Camera Model DS126401 / DS126402 / DS126403 Systems

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for class B digital devices, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.

— Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

Y

— Consult the dealer or an experienced radio/TV technician for help.

The cable with the ferrite core provided with the digital camera must be used

15 of the FCC rules.

COP

Do not make any changes or modifications to the equipment unless otherwise specified in the manual. If such changes or modifications should be made, you could be required to stop operation of the equipment.

Canon U.S.A. Inc.

One Canon Park, Melville, NY 11747, U.S.A.

Tel No. 1-800-OK-CANON (1-800-652-2666)

CAN ICES-3 (B) / NMB-3 (B)

When connecting to and using a household power outlet, use only AC

Adapter Kit ACK-E6 (rated input: 100-240 V AC 50/60 Hz, rated output:

8.0 V DC). Using anything else can cause fire, overheating, or electrical shock.

USA and Canada only:

The Lithium ion/polymer battery that powers the product is recyclable. Please call 1-800-8-BATTERY for information on how to recycle this battery.

For CA, USA only

Included lithium battery contains Perchlorate Material – special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.

CAUTION

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.

COP

Y

141

MEMO

COP

Y

142

MEMO

COP

Y

143

MEMO

COP

Y

144

MEMO

COP

Y

145

MEMO

COP

Y

146

MEMO

COP

Y

147

COP

Y

The lenses and accessories mentioned in this Instruction Manual are current as of

July 2014. For information on the camera’s compatibility with any lenses and accessories introduced after this date, contact any Canon Service Center.

CPH-E056-001 © CANON INC. 2014

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
