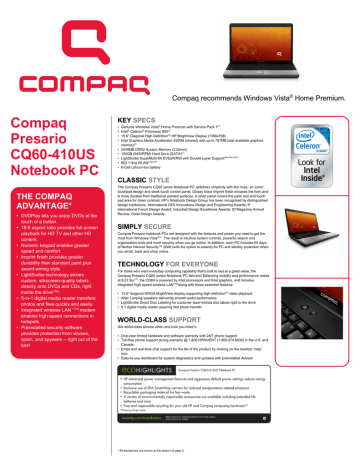

Compaq Presario Data Sheet

Compaq Presario Data Sheet
Compaq recommends Windows Vista® Home Premium.
Compaq
Presario
CQ60-410US
Notebook PC
THE COMPAQ
ADVANTAGE*
• DVDPlay lets you enjoy DVDs at the
touch of a button.
• 16:9 aspect ratio provides full-screen
playback for HD TV and other HD
content.
• Numeric keypad enables greater
speed and comfort.
• Imprint finish provides greater
durability than standard paint plus
award-wining style.
• LightScribe technology etches
custom, silkscreen-quality labels
directly onto DVDs and CDs, right
inside the drive(16a).
• 5-in-1 digital media reader transfers
photos and files quickly and easily.
• Integrated wireless LAN (10d) modem
enables high-speed connections in
hotspots.
• Preinstalled security software
provides protection from viruses,
spam, and spyware -- right out of the
box!
KEY SPECS
•
•
•
•
•
•
•
•
•
Genuine Windows Vista® Home Premium with Service Pack 1(1)
Intel® Celeron® Processor 900(3)
15.6" Diagonal High Definition(8) HP BrightView Display (1366x768)
Intel Graphics Media Accelerator 4500M (shared) with up to 797MB total available graphics
memory(6)
2048MB DDR2 System Memory (2 Dimm)
160GB (5400RPM) Hard Drive (SATA)(7)
LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support(6d)(16a)(16d)
802.11b/g WLAN(10a)(13)
6-Cell Lithium-Ion battery
CLASSIC STYLE
The Compaq Presario CQ60 series Notebook PC redefines simplicity with thin lines, an iconic
touchpad design and sleek touch control panel. Glossy black Imprint finish encases the form and
is more durable than traditional painted surfaces. A silver panel covers the palm rest and touch
pad area for clean contrast. HP’s Notebook Design Group has been recognized by distinguished
design institutions: International CES Innovations Design and Engineering Awards; iF
International Forum Design Award; Industrial Design Excellence Awards; ID Magazine Annual
Review; Good Design Awards.
SIMPLY SECURE
Compaq Presario notebook PCs are designed with the features and power you need to get the
most from Windows Vista®(1). The result is intuitive system controls, powerful search and
organization tools and more security when you go online. In addition, each PC includes 60 days
of Norton Internet Security™ 2008 (with the option to extend) for PC and identity protection when
you email, bank and shop online.
TECHNOLOGY FOR EVERYONE
For those who want everyday computing capability that's built to last at a great value, the
Compaq Presario CQ60 series Notebook PC delivers! Balancing mobility and performance needs
at 6.57 lbs(12), the CQ60 is powered by Intel processors and Intel graphics, and includes
integrated high-speed wireless LAN(10d)along with these essential features:
•
•
•
•
15.6" diagonal WXGA BrightView display supporting high-definition(8) video playback
Altec Lansing speakers delivering smooth audio performance
LightScribe Direct Disc Labeling for customer laser-etched disc labels right in the drive
5:1 digital media reader assuring fast photo transfer
WORLD-CLASS SUPPORT
Get world-class service when and how you need it.
• One-year limited hardware and software warranty with 24/7 phone support
• Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836) in the U.S. and
Canada
• Email and real-time chat support for the life of the product by clicking on the desktop “help”
icon
• Easy-to-use dashboard for system diagnostics and updates with preinstalled Advisor
Compaq Presario CQ60-410US Notebook PC
• HP advanced power management features and aggressive default power settings reduce energy
consumption
• Exclusive use of EPA SmartWay carriers for reduced transportation-related emissions
• Recyclable packaging material for less waste
• A variety of environmentally responsible accessories are available including extended life
batteries and mice
• Free and responsible recycling for your old HP and Compaq computing hardware**
**Shipping charges apply.
Please recycle your computing hardware and printing supplies.
Find out how at our website.
* All disclaimers are shown at the bottom of page 2.
Compaq Presario CQ60-410US Notebook PC
Datasheet
Specifications
Operating System
• Genuine Windows Vista® Home Premium with Service Pack 1(1)
Processor
• Intel® Celeron® Processor 900(3)
Processor Speed
• 2.20 GHz (4)
Bus Speed
• 800MHz FSB(4a)
Processor Cache
• 1MB Cache
Memory
• 2048MB DDR2 System Memory (2 Dimm)
• Max supported =4096MB
Accessible Memory Slots
• 2
Video Graphics
• Intel Graphics Media Accelerator 4500M (shared) with up to
797MB total available graphics memory(6)
Hard Drive
• 160GB (5400RPM) Hard Drive (SATA)(7)
Finish and Features
• HP Imprint finish & integrated microphone
Service and Support
Multimedia Drive
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer
Support(6d)(16a)(16d)
Warranty and Support
• Microsoft® Works
• Microsoft® Office 2007 Home and Student Edition: 60 Day Trial
Version(19)
Internet Solutions
• HP Total Care Set Up(13)
• Microsoft® Internet Explorer
Optional Accessories
Sold Separately
(8)
Display
• 15.6" Diagonal High Definition
(1366x768)
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector) (9)
Wireless Option
• 802.11b/g WLAN(10a)(13)
Digital Media
• 5-in-1 integrated Digital Media Reader for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
cards(17a)
Audio
Productivity and Finance
• HP Notebook 90W Smart AC Adapter with Dongle KG298AA#ABA
• HP Notebook 8-Cell Battery - KS525AA
• HP Wireless Optical Mobile Mouse US - KU916AA#ABA
HP BrightView Display
• Altec Lansing
(11)
Fax/Modem
• High speed 56k modem
Keyboard
• 101-key compatible with full size keyboard with integrated numeric
keypad
Pointing Device
• Touch Pad with On/Off button and dedicated vertical scroll
Up/Down pad
External Notebook Ports
•
•
•
•
•
•
Dimensions
• Unpackaged: 14.88" (L) x 9.9" (D) x 1.38" (min H)/1.72"
(max H)
• Packaged: 20.5"(W) x 4.2"(D) x13.6"(H)
Weight
• Unpackaged: 6.57 lbs(12)
• Packaged: 9.2 lbs
Security
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
Power
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
• 1-Year Limited Hardware Warranty with Toll Free Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support with 1-Year (from date of
purchase) Free Limited Software Support with Product
Registration.
Additional Information
Product Number
• NW159UA#ABA
Ad Embargo Date
• 6/28/2009
UPC Code
• 884962284780
Country of Origin
• CHINA
• United States
Tariff Number
• 8471300000
Pallet Information
•
•
•
•
3 Universal Serial Bus (USB) 2.0
1 Headphone out
1 microphone-in
1 VGA (15-pin)
1 RJ-11 (modem)
1 RJ -45 (LAN)
Dimensions: 47.2" (L) x 39.4" (W) x 46."(H) approx.
Total weight: 558.4 lbs
Layers: 3
Products per layer: 19
Compaq recommends Windows
Vista® Home Premium.
Software
Security and Support
• Symantec® Norton Internet Security™ 2009 (including 60 days
complimentary live update)(15)(19b)
• HP Help & Support
• HP Recovery Manager
• HP Total Care Advisor
Multimedia
•
•
•
•
•
(1)
HP DVD Play
Muvee Reveal
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Certain Windows Vista product features require advanced or additional hardware. See
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
www.windowsvista.com/upgradeadvisor.
(3)
Intel's numbering is not a measurement of higher performance. (4) GHz refers to internal clock speed of the processor.
Other factors besides clock speed may impact system and application performance. (4a) Actual bus speed is less. Listed bus
speed represents the equivalent effective throughput for data. (6) Shared video memory (UMA) uses part of the total system
memory for video performance. System memory dedicated to video performance is not available for other use by other
programs. Note: this disclaimer affects system memory and graphics. (6d) Note that DVD-RAM cannot read or write to 2.6GB
Single Sided/5.2 GB Double Sided – Version 1.0 media (7) 1 GB = 1 billion bytes. Actual formatted capacity is less. Up to
12GB of system disk is reserved for system recovery software. (8) High-Definition content is required to view high-definition
images. (9) Actual speeds may vary. (10a) The specifications for the 802.11n WLAN are draft specifications and are not final.
This may affect the ability of the PC to communicate with other 802.11n WLAN devices (10d) Wireless access point and
Internet service required and is not included. (11) Maximum achievable download speeds are currently unknown, may not
reach 56Kbps and will vary with line conditions. Upload speeds are less and also will vary. (12) Weight will vary by
configuration. (13) Internet access requires payment of additional fees or subscription for use. Special Offers do not include
local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of
the customer. (15) Internet access required and sold separately. (16a) Actual speeds may vary. Don’t copy copyright-protected
materials. Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD
players and DVD-ROM drives. LightScribe creates a monochrome image. LightScribe media required and sold separately.
(16d)
LightScribe creates a monochrome image. LightScribe media required and sold separately. (17a) Digital Media Slot
supports MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer do not insert any type of adapter, or
mini format memory card, into the Digital Media Slot. Mini/Reduced flash memory cards require separately purchased
adapter. (19) The Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is reduced after 60 days.
The full version is sold separately.(19b) Internet access required. First 60 days included. Subscription required for live updates
afterwards.
Actual product may vary from image shown on datasheet.
©
2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such
products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 06/02_r1 tg Product Number: NW159UA#ABA
