SCC-100
SALES NETWORK
SAMSUNG TECHWIN CO., LTD.
145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si,
Gyeonggi-do 462-703, Korea
TEL : +82-31-740-8137~8141 FAX : +82-31-740-8145
• SAMSUNG OPTO-ELECTRONICS AMERICA,INC.
ELECTRONIC IMAGING DIV.
40 Seaview Drive, Secaucus, NJ 07094, U.S.A
TEL : +1-201-902-0347 FAX : +1-201-902-0429
• SAMSUNG TECHWIN MOSCOW OFFICE
Korp 14, 37-A, PR-KT, Lenningradsky, Moscow 125167, Russia
TEL : +7-95-258-9296,9298 FAX : +7-95-258-9297
•
www.samsungtechwin.com
www.samsungcctv.com
P/No. : Z6806-0671-01A
VAN 05. 09
CIRCULAR JACK PIN SPECIFICATION
No.
Function
GND
SYNC
GND
Remarks
SIGNAL
SIGNAL
POWER
ZOOM CAMERA CONTROLLER
SAMSUNG OPTO-ELECTRONICS UK, LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business
Park Chertsey, Surrey KT16 OPS
TEL : +44-1932-45-5308 FAX : +44-1932-45-5325
• TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.
7 Pingchang Rd, Nankai Dist. Tianjin 300190, P.R China
TEL : +86-22-2761-4724(33821) FAX : +86-22-2761-6514
•
No.
Function
TRX TRX +
+12V DC

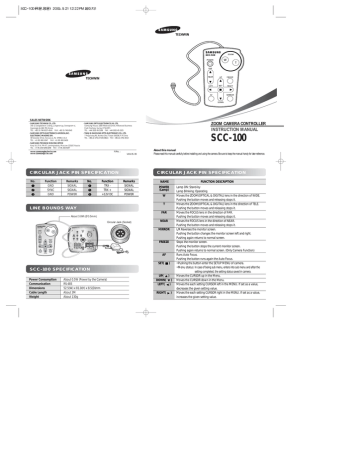

INSTRUCTION MANUAL
SCC-100
About this manual
Please read this manual carefully before installing and using the camera. Be sure to keep the manual handy for later reference.
CIRCULAR JACK PIN SPECIFICATION
Remarks
SIGNAL
SIGNAL
POWER
FUNCTION DESCRIPTION
NAME
POWER
(Lamp)
W
T
LINE BOUNDS WAY
FAR
About 3.0M (Ø 3.5mm)
Circular Jack (Socket)
NEAR
MIRROR
FREEZE
AF
SET(
)
SCC-100 SPECIFICATION
Power Consumption
Communication
Dimensions
Cable Length
Weight
About 0.5W (Power by the Camera)
RS-485
52.5(W) x 81.0(H) x 8.5(D)mm
About 3M
About 130g
UP( )
DOWN( )
LEFT( )
RIGHT(
)
Lamp ON: Stand-by
Lamp Bilnking: Operating
Moves the ZOOM(OPTICAL & DIGITAL) lens in the direction of WIDE.
Pushing the button moves and releasing stops it.
Moves the ZOOM(OPTICAL & DIGITAL) lens in the direction of TELE.
Pushing the button moves and releasing stops it.
Moves the FOCUS lens in the direction of FAR.
Pushing the button moves and releasing stops it.
Moves the FOCUS lens in the direction of NEAR.
Pushing the button moves and releasing stops it.
L/R Reverses the monitor screen.
Pushing the button changes the monitor screen left and right.
Pushing again returns to normal screen.
Stops the monitor screen.
Pushing the button stops the current monitor screen.
Pushing again returns to normal screen. (Only Camera Function)
Runs Auto Focus.
Pushing the button runs again the Auto Focus.
•Pushing the button enter the SETUP MENU of camera.
•Menu status: In case of being sub menu, enters into sub menu and after the
setting completed, the setting status saved in camera.
Moves the CURSOR up in the Menu.
Moves the CURSOR down in the Menu.
Moves the each setting CURSOR left in the MENU. If set as a value,
decreases the given setting value.
Moves the each setting CURSOR right in the MENU. If set as a value,
increases the given setting value.
