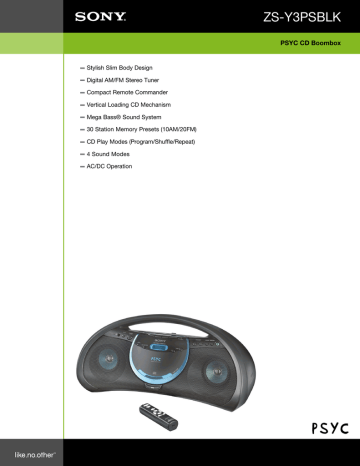

ZS-Y3PSBLK
ZS-Y3PSBLK
PSYC CD Boombox
Stylish Slim Body Design
Digital AM/FM Stereo Tuner
Compact Remote Commander
Vertical Loading CD Mechanism
Mega Bass® Sound System
30 Station Memory Presets (10AM/20FM)
CD Play Modes (Program/Shuffle/Repeat)
4 Sound Modes
AC/DC Operation
ZS-Y3PSBLK
PSYC CD Boombox
Features
Stylish Slim Body Design establishes a sleek look in portable
entertainment.
Digital AM/FM Stereo Tuner provides the most accurate drift-free
tuning of AM and FM radio stations and lets you choose from the wide
variety of radio talk shows and music programs, with the added
enjoyment of stereo sound
Compact Remote Commander Remote control including keys to
directly access tracks on a CD as well as preset stations programmed
into tuner memory.
Vertical Loading CD Mechanism Unique design feature for loading a
CD in a vertical rather than horizontal fashion. Easy to load and remove.
Output Power: 4.6 W Total (2.3W + 2.3W (at 3.2 ohms, 10% harmonic
distortion))
Power Consumption: 16W
Battery Type: Unit: "C" x 6 (optional); Remote: "AAA" x 2
Power Handling Capacity: With 3.2-ohm loads, both channels driven
from 100-10000Hz; rated 1.7 W per channel minimum RMS power, with
no more than 10% total harmonic distortion in AC operation.
Speaker
Speaker System: Built-In Stereo
Speaker Dimensions: 4" (10cm) x 2
Inputs and Outputs
Headphone Input(s): 1
DC-In: 1
Dimensions
Mega Bass® Sound System produces rich, deep, bass tones for
more powerful overall sound.
30 Station Memory Presets (10AM/20FM) uses electronic settings for
easy one-button tuning of your choice of 10 AM and 20 FM radio stations.
CD Play Modes (Program/Shuffle/Repeat) lets you hear tracks in
sequence as recorded,in program RMS order or a single track over and
over, or all tracks in random (Shuffle) order
AC/DC Operation Power your boombox by batteries or use the
supplied AC adaptor.
Weight: 7 lbs 11 oz (3.5 Kg)
Measurements: 17 11/12 x 8 3/7 x 7 1/12" (455 x 214 x 180mm)
Color: White
UPC Code: 027242690813
©2006 Sony Electronics Inc.
Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Direct Access,
Mega Bass, Remote Commander, and like.no.other are trademarks of Sony.
Features and specifications are subject to change without notice. Non-metric weights and measures are
approximate.
Specifications
General
Type of Use: Portable Boombox
Disc Changer: 1
Tray Type: Vertical Loading Single CD
Audio
Digital-to-Analog Converter: 1 Bit
Frequency Response: CD: 20-20000Hz (+1/-2dB)
Format(s) Supported: CD-R/RW Playback Compatibility
Tuning: Auto Scan Radio
Antenna System: AM: Built-in Ferrite Bar Antenna; FM: Telescopic Antenna
Frequency Range: AM: 530-1710kHz; FM: 87.5-108.0MHz
CD Play Mode(s): Program, Shuffle, Repeat, 20 Track RMS Programming
Station Preset(s): 30 (10 AM, 20 FM)
Sound Enhancer: Mega Bass®
Equalizer: 5 Presets (Rock, Pop, Jazz, Vocal, Custom)
Tuner Type: Digital
Hardware
Display: 2 Line Dot Matrix LCD
Remote Control: Yes
Power
Battery Life (Approx.): Unit: up to 20 hours (with Sony® Alkaline Batteries)
Power Requirements: AC 120V, 60Hz
Please visit the Dealer Network for current information at www.sony.com/dn
Sony Electronics Inc. • 16530 Via Esprillo • San Diego, CA 92127 • 1-800-222-7669 • www.sony.com
Last Updated: 03/02/2006
