HP ProBook 6455b Notebook PC HP ProBook 6555b

HP ProBook 6455b Notebook PC  HP ProBook 6555b

QuickSpecs

Overview

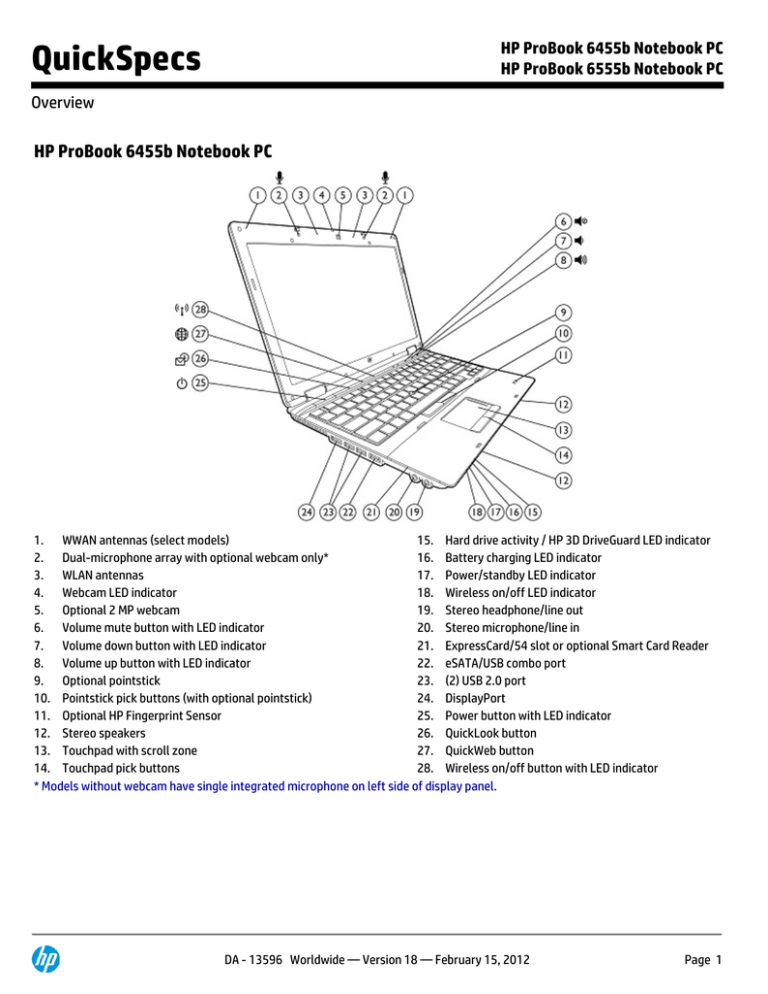

HP ProBook 6455b Notebook PC

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

1.

WWAN antennas (select models)

2.

Dual-microphone array with optional webcam only*

3.

WLAN antennas

4.

Webcam LED indicator

5.

Optional 2 MP webcam

6.

Volume mute button with LED indicator

7.

Volume down button with LED indicator

15. Hard drive activity / HP 3D DriveGuard LED indicator

16. Battery charging LED indicator

17. Power/standby LED indicator

18. Wireless on/off LED indicator

19. Stereo headphone/line out

20. Stereo microphone/line in

21. ExpressCard/54 slot or optional Smart Card Reader

8.

Volume up button with LED indicator

9.

Optional pointstick

10. Pointstick pick buttons (with optional pointstick)

11. Optional HP Fingerprint Sensor

22. eSATA/USB combo port

23. (2) USB 2.0 port

24. DisplayPort

25. Power button with LED indicator

12. Stereo speakers

13. Touchpad with scroll zone

26. QuickLook button

27. QuickWeb button

14. Touchpad pick buttons 28. Wireless on/off button with LED indicator

* Models without webcam have single integrated microphone on left side of display panel.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 1

QuickSpecs

Overview

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

1. Upgrade Bay (optical drive or second hard drive)

2. (1) USB 2.0 port

3. Media Card Reader

4. 1394a port

5. RJ-11/modem port

6. Lock slot

7. RJ-45/Ethernet port

8. VGA/external monitor connector

9. Power connector

1. Battery bay

2. SIM slot for WWAN (select models) – inside battery bay

3. Battery release latch

4. Docking connector

5. Secondary battery connector

6.

Vents

7.

Hard drive bay

8.

Memory module compartment

9.

WLAN/WWAN module compartment (select models)

10. Bluetooth module compartment

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 2

QuickSpecs

Overview

HP ProBook 6555b Notebook PC

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

1.

WWAN antennas (select models)

2.

Dual-microphone array with optional webcam only*

3.

WLAN antennas

4.

Webcam LED indicator

5.

Optional 2 MP webcam

6.

Volume mute button with LED indicator

7.

Volume down button with LED indicator

16. Touchpad pick buttons

17. Hard drive activity / HP 3D DriveGuard LED indicator

18. Battery charging LED indicator

19. Power/standby LED indicator

20. Wireless on/off LED indicator

21. Stereo headphone/line out

22. Stereo microphone/line in

8.

Volume up button with LED indicator

9.

Calculator button

10. Separate numeric keypad

11. Optional pointstick

12. Pointstick pick buttons (with optional pointstick)

13. Optional HP Fingerprint Sensor

14. Stereo speakers

15. Touchpad with scroll zone

23. ExpressCard/54 slot or optional Smart Card Reader

24. eSATA/USB combo port

25. (2) USB 2.0 port

26. DisplayPort

27. Power button with LED indicator

28. QuickLook button

29. QuickWeb button

30. Wireless on/off button with LED indicator

* Models without webcam have single integrated microphone on left side of display panel.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 3

QuickSpecs

Overview

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

1. Upgrade Bay (optical drive or second hard drive)

2. (1) USB 2.0 port

3. Media Card Reader

4. 1394a port

5. Serial port

6.

Lock slot

7.

RJ-11/modem port

8.

RJ-45/Ethernet port

9.

VGA/external monitor connector

10. Power connector

1. Battery bay

2. SIM slot for WWAN (select models) – inside battery bay

3. Battery release latch

4. Docking connector

5. Secondary battery connector

6.

Vents

7.

Hard drive bay

8.

Memory module compartment

9.

WLAN/WWAN module compartment (select models)

10. Bluetooth module compartment

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 4

QuickSpecs

Overview

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

At A Glance

Genuine Windows 7 versions, RedFlag Linux (PRC only), or FreeDOS

New AMD architecture

ATI Mobility Radeon™ 4250 HD Graphics

AMD Phenom™ II Quad-Core, Triple-Core, or Dual-Core Mobile Processor, AMD Turion™ II Dual-Core Mobile Processor, or

AMD Athlon™ II Dual-Core Processor

Widescreen LED-backlit HD or HD+ display

HP ProBook 6455b: 14.0-inch diagonal

HP ProBook 6555b: 15.6-inch diagonal

Starting at 5.0 lb/2.26 kg (6455b) or 5.5 lb/2.51 kg (6555b)

Flexible wireless connectivity options:

Integrated HP un2420 EV-DO/HSPA Mobile Broadband Module provides worldwide Gobi mobile Internet technology with

GPS

Integrated Broadcom 802.11 a/b/g/n, b/g/n, or b/g (Russia/Ukraine only) wireless LAN module

Bluetooth® v2.1+EDR

Touchpad with scroll zone; optional pointstick

Full-sized spill-resistant keyboard with drains; full separate numeric keypad on the HP ProBook 6555b

Touch-sensitive controls for HP QuickLook 3, HP QuickWeb, wireless on/off, mute, volume down, volume up; calculator button on HP ProBook 6555b

Choice of 9-cell (93 WHr) or 6-cell (55 WHr and 47 WHr) primary battery, or HP Long Life 6-cell (51 WHr) battery

HP Long Life 3-cell (47 WHr) Battery available as after-market option

Optional external batteries: HP Ultra-Capacity Battery, HP Extended Life Battery

Optional integrated 2 MP Webcam with dual-microphone array

Choice of 7200 rpm user-removable hard drive up to 500 GB with HP 3D DriveGuard protection, or 128 GB Solid State Drive

Upgrade Bay for optical drive or optional second hard drive

Media Card Reader

New eSATA/USB 2.0 combo port

Reliability with HP 3D DriveGuard, magnesium alloy support structure, HP DuraFinish, and spill-resistant keyboard with drains

Security features including HP ProtectTools with Central Management, Computrace LoJack Pro ready, HP SpareKey, HP Disk

Sanitizer, TPM 1.2; * optional Smart Card Reader (replaces ExpressCard slot), optional HP Fingerprint Sensor, and optional HP

Privacy Filter

HP Power Assistant allows you to conserve power, stretch battery run-time, accurately monitor your reported power need, and report workforce power consumption.

HP QuickLook 3 for instant access to e-mail, calendar, and contacts; HP QuickWeb for fast access to the web

HP DayStarter displays your calendar and battery charge while Windows starts up

HP Support Assistant helps maintain your PC performance and resolve problems with automated updates and tune-ups, onboard diagnostics, and guided assistance.

Options include HP Advanced Docking Station, HP Docking Station, HP USB 2.0 Docking Station, and HP Essential USB 2.0 Port

Replicator

BFR/PVC-free ** , ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by country- please see epeat.net.

* TPM module disabled where not permitted by law (for example, Russia and China).

** This notebook is brominated flame retardant and polyvinyl chloride-free (BFR/PVC-free) on notebooks that are non-WWAN; meeting the evolving definition of 'BFR/PVC-free' as set forth in the "iNEMI Position Statement on the 'Definition of Low-Halogen' Electronics

(BFR/CFR/PVC-Free)'". Plastic parts contain < 1000 ppm (0.1%) of bromine [if the Br source is from BFRs] and < 1000 ppm (0.1%) of chlorine [if the Cl source is from CFRs or PVC or PVC copolymers]. Power supply and power cords are not BFR/PVC-free. Service parts after purchase may not be BFR/PVC-free.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 5

QuickSpecs

Standard Features (availability may vary by country)

Processors

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

AMD Phenom II Quad-Core Mobile Processor N970 (2.2 GHz, 35W, 2 MB L2 cache)

AMD Phenom II Quad-Core Mobile Processor N950 (2.1 GHz, 35W, 2 MB L2 cache)

AMD Phenom II Quad-Core Mobile Processor N930 (2.0 GHz, 35W, 2 MB L2 cache)

AMD Phenom II Triple-Core Mobile Processor N870 (2.3 GHz, 35W, 1.5 MB L2 cache)

AMD Phenom II Triple-Core Mobile Processor N850 (2.2 GHz, 35W, 1.5 MB L2 cache)

AMD Phenom II Triple-Core Mobile Processor N830 (2.1 GHz, 35W, 1.5 MB L2 cache)

AMD Phenom II Dual-Core Mobile Processor N660 (3.0 GHz, 35W, 2 MB L2 cache)

AMD Phenom II Dual-Core Mobile Processor N640 (2.9 GHz, 35W, 2 MB L2 cache)

AMD Phenom II Dual-Core Mobile Processor N620 (2.8 GHz, 35W, 2 MB L2 cache)

AMD Turion II Dual-Core Mobile Processor N530 (2.5 GHz, 35W, 2 MB L2 cache)

AMD Turion II Dual-Core Mobile Processor P520 (2.3 GHz, 25W, 2 MB L2 cache)

AMD Athlon II Dual-Core Processor for Notebook PCs P360 (2.3 GHz, 25W, 1 MB L2 cache)

AMD Athlon II Dual-Core Processor for Notebook PCs P340 (2.2 GHz, 25W, 1 MB L2 cache)

AMD Athlon II Dual-Core Processor for Notebook PCs P320 (2.1 GHz, 25W, 1 MB L2 cache)

NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.

Operating System Preinstalled

Supported

Genuine Windows 7 Professional Edition 32 *

Genuine Windows 7 Professional Edition 64 *

Genuine Windows 7 Home Premium Edition 32 *

Genuine Windows 7 Home Premium Edition 64 *

Genuine Windows 7 Home Basic Edition 32 * (select countries)

Red Flag Linux (PRC only)

FreeDOS

Genuine Windows 7 Enterprise 32 *

Genuine Windows 7 Enterprise 64 *

Genuine Windows 7 Ultimate 32 *

Genuine Windows 7 Ultimate 64 *

Genuine Windows Vista Enterprise 32 **

Genuine Windows Vista Enterprise 64 **

Genuine Windows Vista Business 32**

Genuine Windows Vista Home Basic 32**

Genuine Windows Vista Business available thorough downgrade rights

from Genuine Windows 7 Professional 32

SuSE Linux Enterprise Desktop 11

Certified

* System may require upgraded and/or separately purchased hardware and/or a DVD drive to install the

Windows 7 software and take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.

** Certain Windows Vista product features require advanced or additional hardware. See: http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx

and http://www.microsoft.com/windowsvista/getready/capable.mspx

for details. Windows Vista Upgrade

Advisor can help you determine which features of Windows Vista will run on your computer. To download the tool, visit: http://www.windowsvista.com/upgradeadvisor .

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 6

QuickSpecs

Standard Features (availability may vary by country)

Chipset

Graphics

Display

Memory

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

AMD M880G Chipset

ATI Mobility Radeon HD 4250

Microsoft DirectX 10.1 capable

Internal

External

HP ProBook 6455b:

14.0-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)

14.0-inch diagonal LED-backlit HD+ anti-glare (1600 x 900 resolution)

HP ProBook 6555b:

15.6-inch diagonal LED-backlit HD anti-glare (1366 x 768 resolution)

15.6-inch diagonal LED-backlit HD+ WVA anti-glare (1600 x 900 resolution)

HP Privacy Filter support

Up to 32-bit per pixel color depth

DisplayPort supports resolutions up to 2560 x 1600, 30-bit color depth at 60

Hz, and full HD (1920 x 1080) monitors, 24-bit color depth at 120 Hz

VGA port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz

DVI-D (single link) video signal available through DVI port in optional HP

Docking Station (sold separately) supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

Standard

Maximum

DDR3 PC3-10600 SDRAM (1333 MHz) *

Two SODIMM slots supporting dual-channel memory

1024 MB, 2048 MB and 4096 MB SODIMMs

Upgradeable to 8192 MB with 4096 MB SODIMMs in slots 1 and 2

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

* Memory speed is processor dependent.

NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or

Linux. With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 7

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Communications

Integrated Marvell Gigabit Ethernet PCI Controller (10/100/1000 NIC)*

56K V.92 modem**

* The term "10/100/1000" or "Gigabit" Ethernet indicates compliance with IEEE standard 802.3ab for

Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

** Designed for downloads from 56K modem compliant sources. Maximum achievable download transmission rates currently do not reach 56 KB/s, and will vary with line conditions. Modem availability is subject to country regulatory approval.

Wireless Devices

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.

HP un2420 EV-DO/HSPA

Mobile Broadband Module

Integrated mobile broadband module with Gobi global mobile Internet technology that provides connectivity to both CDMA (EVDO) and UMTS (HSPA) networks. It also provides GPS functionality for various mapping applications and security applications such as Computrace LoJack Pro Premium for HP

ProtectTools.

NOTE: Separately purchased mobile network operator service is required.

Two 850/900/1575/1800/1900/2100 MHz antennas integrated in the top of the display panel support current and future WWAN technologies.

All 802.11 integrated wireless LAN options

Wi-Fi Certified *

Cisco Compatible Extensions support

Wired Equivalent Privacy (WEP) support up to 128-bit keys

Wi-Fi Protected Access (WPA) and WPA2 support

802.1x authentication support, including EAP-TLS, EAP-TTLS, PEAP-GTC,

PEAP-MSCHAPv2, and LEAP

Advanced Encryption Standard (AES) support

Dual antennas integrated in the display enclosure

Integrated support for 802.11 a, b, g, and n

Up to 300 mbps data rate

Broadcom 4322AGN

802.11a/b/g/n

WiFi Adapter

Broadcom 4313GN

802.11b/g/n

WiFi Adapter

Integrated support for 802.11 b, g, and n

Up to 72 mbps data rate

Broadcom 4312G

802.11b/g

WiFi Adapter

(Russia/Ukraine only)

HP Integrated Module with Bluetooth 2.1+EDR

Wireless Technology

Integrated support for 802.11 b and g

Up to 54 mbps data rate

Bluetooth Specification v2.1+EDR compliant

Works with a wide range of Bluetooth devices

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 8

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Keyboard

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as the isolated inverted-T cursor control keys, editing keys, both left and right control and alt keys, 12 function keys, and 19.05 x 19.05 mm key pitch (center-tocenter spacing). U.S. and International key layouts are available. Other features include hotkeys for instant access to power conservation and brightness. The HP ProBook 6555b Includes a separate numeric keypad.

Touch-sensitive controls Touch-sensitive controls provide easy access to the following features: HP QuickLook 3, HP QuickWeb, wireless on/off, volume mute, volume up, volume down. The HP ProBook 6555b also features a calculator button

Pointing device

Touchpad with scroll zone, two pick buttons

Optional pointstick with two additional pointstick buttons

Expansion card slots ExpressCard/54 slot

or

Optional Integrated

Smart Card Reader

(replaces ExpressCard/54 slot)

Media Card Reader

Supports ExpressCard/54 and ExpressCard/34

Compatible with ISO 7816 compliant Smart Cards

PC/SC interface support

Supports SD (Secure Digital), HC-SD (High Capacity Secure Digital), MultiMedia

Card, HS-MultiMedia Card (MultiMedia Card Plus), Sony Memory Stick, Sony

Memory Stick Pro, Memory Stick Duo*, Picture card

Additionally, the following cards are supported via passive adapters (sold separately): Mini-Secure Digital (Mini-SD), Transflash (Micro-SD), Reduced size

Multimedia card (RS-MultiMedia Card), Reduced size Dual voltage Multimedia card, MultiMedia Card Mobile Cards, MultiMedia Card Micro Cards, Memory

Stick Duo (MS Duo)*, Memory Stick Duo Pro (MS Duo Pro)*, Memory Stick M2

Micro

* Memory Stick Duo Adapters are required and sold separately. Inserting a Memory Stick Duo Card directly into your notebook could damage the memory card and/or notebook.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 9

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Internal Storage Hard drives

160/250/320/500 GB 7200 rpm SMART SATA II

320 GB 7200 rpm SMART SATA II Self Encrypting Drive

NOTE: These hard drives are customer removable and will withstand multiple insertion/removal cycles. Up to 10 GB is reserved for the system recovery software.

HP 3D DriveGuard

(Windows only)

Solid State Drive

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

128 GB

Upgrade Bay

Interfaces

Fixed 12.7 mm SATA optical drive

Second hard drive

Weight saver

Blu-ray ROM DVD+/-RW SuperMulti DL LightScribe Drive

DVD+/-RW SuperMulti DL LightScribe Drive

DVD-ROM Drive

500 GB 7200 rpm SMART SATA II Hard Drive

ExpressCard/54 slot

External monitor

1394a

Stereo microphone in

Stereo headphone/line out

Power connector

RJ-11/modem

RJ-45/Ethernet

USB 2.0

eSATA/USB 2.0 combo

Serial port

Docking connector

Secondary battery connector

One (or optional Smart Card Reader)

Two – (1) DisplayPort, (1) VGA

One

One

One

One

One

One

Three

One

One (HP ProBook 6555b only)

One

One

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 10

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Audio/Visual

HD audio (HP Premier Sound)

Integrated stereo speakers

Integrated microphone (dual-microphone array when equipped with optional 2 MP webcam)

Touch-sensitive controls for volume up, volume down, and mute

Stereo headphone/line out

Stereo microphone/line in

Optional 2 MP webcam

Supports videoconferencing and still image capture

Large image sensor for excellent color matching and good low light sensitivity

Up to 30 frames/sec

Fixed focus lens

Video capture at VGA, 1.3 Mpixel, and 2 Mpixel resolutions

16-bit true color (camera sensors output YCrCb format among others)

Software Preinstalled software with Windows operating system

HP Recovery Manager (available with Windows 7 or Vista only)

HP Support Assistant (available with Windows 7 or Vista only)

HP ProtectTools Security Manager

HP ProtectTools for Central Management

HP Quick Launch Buttons Software

HP QuickLook 3

HP QuickWeb

HP Power Assistant

HP Connection Manager 3.1

HP Wireless Assistant

HP DayStarter

Microsoft Office 2010 preloaded (purchase of a Product

Key required to activate a full Office 2010 suite)*

McAfee Total Protection*

PDF Complete Special Edition**

Intervideo WinDVD – DVD Player (select models)

Roxio Creator Business (select models)

HP Webcam Software (select models)

Skype

WinZip 14.5 trial

HP SoftPaq Download Manager

Additional software available from the web

* Microsoft Office 2010 Preloaded includes reduced functionality versions of Word and Excel. Purchase of

Product Key required to activate full Office 2010 suite available at participating resellers/retailers and http://www.office.com

.

** 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to receive updates. First update included. Subscription required for updates thereafter.

*** 60 day trial; purchase license afterwards for full functionality

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 11

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

HP Recovery Manager

Models shipped with Windows 7 or Windows Vista include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 10 GB of the hard drive is reserved for the system recovery software.

Security Standard Features

Optional Features

HP ProtectTools Security Manager

Enhanced Pre-Boot Security

HP SpareKey

One-Step Logon

Setup Password

TPM 1.2 Embedded Security Chip*

TPM Enhanced DriveLock*

HP Disk Sanitizer

Lock slot

Support for Computrace** LoJack Pro for HP ProtectTools

Smart Card Reader

(replaces ExpressCard/54 slot)

Compatible with ISO 7816 compliant Smart Cards

PC/SC interface support

HP Fingerprint Sensor

HP Privacy Filter

Enhanced sensor scans the fingerprint to uniquely identify and authenticate a person.

Narrows viewing area so that screen data is visible only to persons directly in front of the monitor.

Computrace** LoJack Pro

Premium for HP

ProtectTools with GPS

Tracking

Subscription based security solution providing the ability to track, initiate physical recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality requires HP un2420 EV-DO/HSPA

Mobile Broadband Module.

* TPM module disabled where use is restricted by law; for example, Russia and China.

** The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription with terms ranging from one to five years.

For more information on HP security solutions refer to: http://www.hp.com/go/security .

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 12

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

HP ProtectTools Security

Manager with Central

Management

HP ProtectTools Security Manager is the security platform for business notebooks and desktops. The HP

ProtectTools Security Manager is an extensible client security console that delivers enhanced security capabilities through add-on software modules. The following modules are available on the hard drive (also downloadable from the web) and can be configured in Software Setup:

Credential Manager for HP ProtectTools

Device Access Manager for HP ProtectTools

Drive Encryption for HP ProtectTools

File Sanitizer for HP ProtectTools

Privacy Manager for HP ProtectTools (Chat & Sign)

Embedded Security for HP ProtectTools

Computrace LoJack Pro for HP ProtectTools

HP ProtectTools is now centrally manageable with the capability to manage notebooks from a single point. Security is management ready out of the box, in partnership with Digital Persona. New features address requirements that customers expect from a centrally managed security solution such as user provisioning, credential reset, and credential revocation.

HP ProtectTools provides two separate management solutions, targeted at the enterprise and the SMB:

Digital Persona Pro AD: Designed for the enterprise customer. Integrates with Active Directory and gives IT Managers the ability to provision users, create login policies based on passwords, biometrics or smartcards. Management features also include remote credential recovery in case the user forgets the password, loses the smartcard or cannot use the fingerprint reader for any reason.

In addition, advanced auditing capabilities are also built in. Digital Persona Pro AD is available now.

Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active Directory version, but for workgroups. Workgroup activation is built into HP

ProtectTools, and activation of up to 5 seats is completely free.

Power Supply

External 90-watt Smart AC adapter, 6-foot (1.8 meter) power cord included.

Total length including external AC adapter is 12 feet (3.66 meter).

HP Fast Charge*

*HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast

Charge does not apply to the 9-cell primary battery, the 12-cell Ultra-Capacity batteries, or the HP Long

Life Battery.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 13

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Battery Primary battery

HP 9-cell (93 WHr) Li-Ion battery

HP 6-cell (55 WHr) Li-Ion battery

HP Long Life 6-cell (51 WHr) battery*

3-cell (47 WHr) Li-Ion battery

Optional HP Long Life

Battery*

Optional HP Extended Life

Battery

8-cell (52 WHr) Li-Ion battery

Optional HP Ultra-

Capacity Battery

12-cell (95 WHr) Li-Ion battery

* The 3-year limited warranty on the HP Long Life Battery is only available on platforms with a 3-year system warranty. The HP Long Life Battery will carry a limited 1-year warranty on platforms with a 1-year system warranty.

HP 6-cell (55 WHr) Primary

Up to 5 hours and 30 minutes

Up to 11 hours

Battery Life

System Standby Time

HP 9-cell (93 WHr) Primary

HP ProBook 6455b

Primary battery

Primary battery and optional HP Extended Life

Battery

Primary battery and optional HP Ultra-Capacity

Battery

HP ProBook 6555b

Up to 9 hours

Up to 14 hours and 30 minutes

Up to 18 hours

Primary battery

Primary battery and optional HP Extended Life

Battery

Primary battery and optional HP Ultra-Capacity

Battery

Up to 1 week

Up to 8 hours

Up to 11 hours 30 minutes

Up to 15 hours 45 minutes

Up to 15 hours

Up to 4 hours 30 minutes

Up to 9 hours

Up to 13 hours 30 minutes

Power Conservation

ATI PowerPlay technology

Hibernation

Standby

ACPI compliance

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 14

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Standard Features (availability may vary by country)

Docking and Stands

HP 90W Docking Station

HP 120W Advanced Docking Station

HP USB 2.0 Docking Station

HP Essential USB 2.0 Port Replicator

HP Dual Hinge Notebook Stand

HP Display & Notebook Stand

HP Adjustable Display Stand

HP Adjustable Dual Display Stand

NOTE: Some HP Docking stations may not support every feature of some HP Notebook models. Please refer to the individual docking station documentation for specific information about supported features.

Service and Support

HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country. On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack

Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack .

NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.

http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 15

QuickSpecs

Options (availability may vary by country)

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

NOTE: Options/capabilities listed in the QuickSpecs represent those capabilities available through Base Units or Build to Order configurations. The various product features and capabilities will vary in terms of configurable vs. aftermarket options (AMOs). There may be options and capabilities available through CTO that are not available as AMOs.

Memory

HP 1 GB (DDR3 1333 MHz) SODIMM

HP 2 GB (DDR3 1333 MHz) SODIMM

AT911AA

AT912AA

HP 4 GB (DDR3 1333 MHz) SODIMM AT913AA

Storage

Expansion Solutions

Power

HP Upgrade Bay SATA DVD+/-RW SuperMulti DL LightScribe Drive

HP 250 GB Pocket Media Drive

HP External USB Drive CD/DVD R/RW

HP Upgrade Bay SATA 500 GB 7200 rpm Hard Drive

HP Primary SATA 500 GB 7200 rpm Hard Drive

HP Primary SATA 320 GB 7200 rpm Hard Drive

HP 90W Docking Station

HP 120W Advanced Docking Station

HP USB 2.0 Docking Station

HP Essential USB 2.0 Port Replicator

HP Dual Hinge Notebook Stand

HP Display & Notebook Stand

HP Adjustable Display Stand

HP Adjustable Dual Display Stand

HP Smart 65W Travel AC Adapter

HP 90W Smart AC Adapter

HP 90W Smart Combo Adapter

HP Long Life 3-Cell Battery

HP 6-Cell Li-Ion Primary Battery

HP 9-Cell Li-Ion Primary Battery

HP Extended Life Battery

HP Ultra-Capacity Battery

AK869AA

FE477AA

FS943AA

AU097AA

AU098AA

AS282AA

VB041AA

NZ222AA

FQ834AA

AQ731AA

AW661AA

AW662AA

AW663AA

AW664AA

AU155AA

ED495AA

AJ652AA

AU213AA

KU531AA

AT908AA

AJ359AA

AT486AA

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 16

QuickSpecs

Options (availability may vary by country)

Carrying Cases

HP Basic Carrying Case

HP Value Nylon Case

HP Universal Nylon Case

HP Professional Slim Top Load Case

HP Executive Leather Case

HP Deluxe Nylon Backpack

HP Deluxe Roller Case

HP Basic Backpack

HP Merlot Slipcase

HP Basic Messenger Carrying Case

HP Professional Series Carrying Case

HP Professional Series Backpack

HP Professional Series Messenger

HP Professional Series Designer Tote

HP Professional Series Slip Case

HP Elite Series Designer Tote

HP Elite Series Quick Case

Security

HP Notebook Combination Lock

HP Docking Station Cable Lock

HP 14.0-inch Display Privacy Filter

HP 15.6-inch Display Privacy Filter

HP ExpressCard Smart Card Reader

Input/Output Devices

HP PS/2 Keyboard & Mouse Bundle

HP USB Keyboard & Mouse Bundle

HP USB Optical Travel Mouse

HP USB/PS2 Optical 2-Button Scroll Mouse

HP Wireless Mouse

HP BT Headset

HP Mobile Audio Speakers

HP Mobile Productivity Bundle

HP Bluetooth ExpressCard Mouse

HP Migration Cable for Windows 7

HP Premium Autofocus Webcam

Premium Digital Headset

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

AJ078AA

RR314AA

RR315AA

AY530AA

RR316AA

RR317AA

GD405AA

AM863AA

AU095AA

AP355AA

AT886AA

AT887AA

AT888AA

AT889AA

AT890AA

AT891AA

AT892AA

AY475AA

AU656AA

AU100AA

AU103AA

AJ451AA

RC464AA

RC465AA

RH304AA

DC369A

AR085AA

AR084AA

FS944AA

AQ792AA

GK872AA

AY493AA

KQ245AA

KJ270AA

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 17

QuickSpecs

Options (availability may vary by country)

Miscellaneous

DisplayPort To DVI-D Adapter

Promo USB Graphics Adapter

External USB Modem

Belkin USB to Serial Adapter

Notebook Multi-Purpose Cleaning Kit

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

FH973AA

NL571AT

GS023AA

EM449AA

BL528AA

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 18

QuickSpecs

Memory

DDR3 PC3-10600 SDRAM (1333 MHz)*

Two SODIMM slots supporting dual-channel memory

SODIMM sizes supported: 1024 MB, 2048 MB and 4096 MB

Standard Memory

1024 MB (1024 MB x 1)

2048 MB (1024 MB x 2)

2048 MB (2048 MB x 1)

3072 MB (2048 MB + 1024 MB)

4096 MB (2048 MB x 2)

4096 MB (4096 MB x 1)

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Optional Memory

Upgrades

Up to

2048 MB

3072 MB

4096 MB

4096 MB

8192 MB

Support for up to 8192 MB of memory with the installation of optional DDR3 SDRAM memory kits. Both memory slots are user-accessible. Please refer to the Hardware and Software Guide for installation procedures. Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

Slot 1

1024 MB

2048 MB

2048 MB

4096 MB

4096 MB

* Memory speed is processor dependent.

Slot 2

1024 MB

1024 MB

2048 MB

Empty

4096 MB

NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory modules, we strongly recommend using only HP- branded memory modules to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. Full availability of 4 GB or more of memory requires a Windows 64-bit operating system or Linux.

With Windows 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

Memory Upgrades

HP 1 GB (DDR3 1333 MHz) SODIMM

HP 2 GB (DDR3 1333 MHz) SODIMM

HP 4 GB (DDR3 1333 MHz) SODIMM

AT911AA

AT912AA

AT913AA

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 19

QuickSpecs

Storage

Upgrade Bay Drive Support

Blu-ray ROM DVD+/-RW SuperMulti DL

LightScribe Drive

Quantity Supported

One

DVD+/-RW SuperMulti DL LightScribe Drive One

DVD-ROM Drive One

500 GB 7200 rpm SMART SATA II Hard Drive One

Weight Saver One

Internal Storage Device

Hard Drives

Quantity Supported

500 GB 7200 rpm SMART SATA II Hard Drive One

320 GB 7200 rpm SMART SATA II Hard Drive One

320 GB 7200 rpm SMART SATA II Self

Encrypting Hard Drive

One

250 GB 7200 rpm SMART SATA II Hard Drive One

160 GB 7200 rpm SMART SATA II Hard Drive One

Solid State Drive

128 GB Solid State Drive One

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Drive Bay

Upgrade Bay

Upgrade Bay

Upgrade Bay

Upgrade Bay

Upgrade Bay

Drive Bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

Dedicated hard drive bay

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 20

QuickSpecs

Technical Specifications

System Unit

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Dimensions (HxWxD)

Weight

HP ProBook 6455b:

1.33 in (at front) x 13.35 in x 9.3 in

33.8 mm (at front) x 339 mm x 236.2 mm

HP ProBook 6555b:

1.37 in (at front) x 14.62 in x 9.76 in

34.8 mm (at front) x 371.4 mm x 248.0 mm

HP ProBook 6455b:

Starting at 5.0 lb (2.26 kg) with weight saver (no optical drive)

Starting at 5.31 lb (2.39 kg) with DVD-ROM drive

HP ProBook 6555b:

Starting at 5.5 lb (2.51 kg) with weight saver (no optical drive)

Starting at 5.81 lb (2.64 kg) with DVD-ROM drive

NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components. Weight includes 6-cell battery and hard drive.

Stand-Alone Power

Requirements (AC Power)

Nominal Operating Voltage 18.5 V

Average Operating Power 19.49 W

Max Operating Power < 90 W

Temperature

Operating

Relative Humidity

Non-operating

Operating

Non-operating

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

-4° to 140° F (-20° to 60° C)

10% to 90%, non-condensing

Shock

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

125 G, 2 ms, half-sine

Random Vibration

Altitude

(unpressurized)

Industry Standard

Certifications

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

UL

CSA

FCC Compliance

ENERGY STAR®

EPEAT

ICES

GS

Australia / NZ A-Tick

Compliance

CCC

Japan VCCI Compliance

KCC

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

–50 to 10,000 ft (–15.24 to 3,048 m)

–50 to 40,000 ft (–15.24 to 12,192 m)

Yes

Yes

Yes

Select models

Yes

Yes

Yes

Yes

Yes

Yes

*

Registered Gold in United States**

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 21

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

BSMI

CE Marking Compliance

BNCI or BELUS

Yes

Yes

Yes

CIT

GOST

Saudi Arabian Compliance

(ICCP)

SABS

Yes

Yes

Yes

Yes

UKRSERTCOMPUTER Yes

* Configurations of the HP ProBook 6455b and HP ProBook 6555b that are ENERGY STAR qualified are identified as HP ProBook 6455b ENERGY STAR and HP ProBook 6555b ENERGY STAR on HP websites and on www.energystar.gov

.

** EPEAT Registered Gold in U.S. EPEAT registration varies by country. See www.epeat.net for registration status by country.

NOTE: For accessibility information on HP products, please visit: http://www.hp.com/accessibility .

NOTE: Unless otherwise noted, temperature limits listed in the following component specifications relate to the internal temperatures of these components and not to the environment in which the PC is operating.

HP 90W Smart AC Adapter Dimensions

Weight

Input

Output

Connector

Environmental Design

5.00 x 1.97 x 1.1 in (12.7 x 5.0 x 2.9 cm)

0.82 lb (370 g)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

83% min at 115 VAC

47 to 63 Hz

1.5 A at 90 VAC, 0.75 A at 180 VAC PFC Version

2.4 A at 90 VAC, 1.2 A at 180 VAC NON PFC Version

Output power

DC output

Hold-up time

Output current limit

90W

19.0V

5 msec at 115 VAC input

<11A, Over voltage protection- 29V max automatic shutdown

3 pin/grounded, mates with interchangeable cords

Operating temperature

Non-operating (storage) temperature

Altitude

Humidity

Storage Humidity

32° to 104° F (0° to 40° C)

–4° to 149° F (–20° to 65° C)

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

10% to 90%

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 22

QuickSpecs

Technical Specifications

EMI and Safety

Certifications

Optional HP Ultra-

Capacity Battery

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

CE Mark – full compliance with LVD and EMC directives; Worldwide safety standards – IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals –

C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,

CCC, NOM-1 NYCE; MTBF– over 200,000 hours at 25°C ambient condition.

Dimensions (H x W x L)

Weight

1.3 x 6.0 x 10.6 in (3.33 x 15.25 x 26.88 cm)

1.77 lb (0.803 kg)

Cells/Type

Energy

12-cell Lithium-Ion

Watt-hour Capacity 95 WHr

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating

Battery Re-Charge Time

Smart Adapter

–4° to 140° F (–20° to 60° C)

3 to 4 hours

Fuel Gauge

System ON 4 to 5 hours (depending on system power consumption)

When pressed, LEDs light indicating level of charge remaining on battery

Optional HP Extended Life

Battery

Dimensions (H x W x L)

Weight

Cells/Type

Energy

1.0 x 3.9 x 8.7 in (2.5 x 10.0 x 22.0 cm)

1.00 lb (0.455 kg)

8-cell Lithium-Ion

Watt-hour Capacity 52 WHr

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating –4° to 140° F (–20° to 60° C)

3 hours

Battery Re-Charge Time

System in OFF mode or

Standby

System ON 3 to 5 hours (depending on system power consumption)

Fuel Gauge

HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF

When pressed, LEDs light indicating level of charge remaining on battery

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 23

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Optional HP Long Life 3cell 47 WHr Lithium-Ion

Battery

Dimensions (H x W x L)

Weight

0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)

0.71 lb (0.32 kg)

Cells/Type

Energy

3-cell Lithium-Ion

Watt-hour Capacity 47 WHr

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating

Battery Re-Charge Time

System in OFF mode or

Standby

–4° to 140° F (–20° to 60° C)

2.5 hours

System ON 3 to 5 hours (depending on system power consumption)

HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF

9-Cell (93 WHr) Lithium-

Ion battery

Dimensions (H x W x L)

Weight

0.8 x 2.9 x 8.3 in (2.0 x 7.3 x 21.0 cm)

1.07 lb (0.488 kg)

Cells/Type

Energy

9-cell Lithium-Ion

Watt-hour Capacity 93 WHr

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating

Battery Re-Charge Time

System in OFF mode or

Standby

–4° to 140° F (–20° to 60° C)

3 to 4 hours

System ON 4 to 6 hours (depending on system power consumption)

6-Cell (55 WHr) Lithiumon battery

Dimensions (H x W x L)

Weight

Cells/Type

0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.4 cm)

0.71 lb (0.32 kg)

6-cell Lithium-Ion

Energy

Temperature

Watt-hour Capacity

Operating (Charging)

55 WHr

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating –4° to 140° F (–20° to 60° C)

Battery Re-Charge Time

System in OFF mode or

Standby

System ON

2.5 hours

3 to 5 hours (depending on system power consumption)

HP Fast Charge Technology Charges the battery up to 90% within 90 minutes when system is OFF

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 24

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

HP Long Life 6-cell 51 WHr

Dimensions (H x W x L)

Lithium-Ion Primary battery

Weight

Cells/Type

Energy

0.8 x 2.1 x 8.0 in (2.0 x 5.3 x 20.3 cm)

0.73 lb (0.331 kg)

6-cell Lithium-Ion

Watt-hour Capacity 51 WHr

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (–10° to 60° C)

Non-operating

Battery Re-Charge Time

System in OFF mode or

Standby

–4° to 140° F (–20° to 60° C)

2.5 hours

System ON 3 to 5 hours (depending on system power consumption)

Displays

14.0-inch LED HD (1366 x

768) anti-glare

Active Area (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

12.74 x 7.56 in (32.4 x 19.2 cm)

14.0 in (35.6cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

0.227 mm

1366 x 768

RGB Stripe

LED

112 ppi

±30° Horizontal, ±10° Vertical (minimum)

30/30/20/10 (Left/Right/Down/Up) (minimum) or

45/45/35/25 (Left/Right/Down/Up) (typical)

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 25

QuickSpecs

Technical Specifications

14.0-inch LED HD+ (1600 x

900) anti-glare

Dimensions (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

15.6-inch LED HD (1366 x

768) anti-glare

Active Area (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

323.5 mm x 192.0 mm (typ)

14.0 in (35.6cm)

Anti-glare

300 (min)

60 Hz

200 nits (typ)

Pitch

Format

Configuration

LED

0.1935mm

1600 x 900

RGB Strip

131 ppi

30/30/20/10 (Left/Right/Down/Up) (minimum)

13.54 x 7.59 in (34.4 x 19.4 cm)

15.6 in (39.6cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

LED

0.252 mm

1366 x 768

RGB Stripe

100 ppi

±30° Horizontal, ±10° Vertical (minimum)

30/30/20/10 (Left/Right/Down/Up) (minimum) or

45/45/35/25 (Left/Right/Down/Up) (typical)

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 26

QuickSpecs

Technical Specifications

15.6-inch LED HD+ WVA

(1600 x 900) anti-glare

Active Area (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

13.54 x 7.59 in (34.4 x 19.4 cm)

15.6 in (39.6 cm)

Anti-glare

300:1 (typical)

60 Hz

200 nit (typical)

Pitch

Format

Configuration

LED

0.215 mm

1600 x 900

RGB Stripe

118 ppi

±60° Horizontal, ± 50° Vertical (minimum) or

±70° Horizontal, ±60° Vertical (typical)

Internal Storage

500 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

0.25 lbs (115 g)

500 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Seek Time

(typical reads, including settling)

Synchronous (maximum) 100 MB/s (Drive Capability)

Single Track

1.5 ms

Average

Maximum

7200 rpm

11 ms

22 ms

Rotational Speed

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 27

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

320 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

0.25 lbs (115 g)

320 GB

0.37 in (9.5 mm) or on some models 0.28 in (7 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Seek Time

(typical reads, including settling)

Synchronous (maximum) 100 MB/s (Drive Capability)

Single Track

1.5 ms

Average

Maximum

7200 rpm

11 ms

22 ms

Rotational Speed

Logical Blocks

625,142,448

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

250 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

0.25 lbs (115g)

250 GB

0.37 in (9.5 mm) or on some models 0.28 in (7 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous (maximum) 100 MB/s (Drive Capability)

Single Track

Average

Maximum

1.5 ms

11 ms

22 ms

Rotational Speed

Logical Blocks

7200 rpm

488,397,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 28

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

160 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

0.25 lb (115 g)

160 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Seek Time

(typical reads, including settling)

Synchronous (maximum) 100 MB/s (Drive Capability)

Single Track

1.5 ms

Average

Maximum

7200 rpm

11 ms

22 ms

Rotational Speed

Logical Blocks

312,581,808

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

128 GB

2.5-inch SATA Solid State

Drive

Weight

Capacity

Height

Width

80.1 Grams

128 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

Interface

Performance

SATA

Maximum Sequential

Read

Maximum Sequential Write

Logical Blocks

220 MB/s

250,069,680

200 MB/s

Operating Temperature

32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security; ATA-7 ;SATA 2.6; DIPM

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 29

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

DVD-ROM Drive Access Times

Random

Max Data Transfer Rate

24X CD-ROM

Transfer Mode

8X-DVD

UDMA Mode 5

< 110 ms CD (typical)

< 110 ms DVD (typical)

Up to 3,600 KB/s

Up to 10,800 KB/s

Interface

Gen 1 SATA

Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD,

CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA,

Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10,

DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media (write) None

Max Media Capacity (read) 8.5 GB

Transport

Tray Loading

DVD+/-RW SuperMulti DL

LightScribe Drive

Access Times

Random

Max Data Transfer Rate

24X CD-ROM

8X DVD

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

Transfer Mode

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

UDMA Mode 5

< 150ms CD (typical)

< 160 ms DVD (typical)

Up to 3,600 KB/s

Up to 10,800 KB/s

Up to 3,600 KB/s

Up to 2,400 KB/s

Up to 10,800 KB/s

Up to 10,800 KB/s

Up to 10,800 KB/s

Up to 8100KB/s

Up to 5,400 KB/s

Up to 5,400 KB/s

Up to 6,750 KB/s

Interface

Gen 1 SATA

Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD,

CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA,

Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10,

DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media (write) CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, LightScribe

Max Media Capacity (read) 8.5 GB

Max Media Capacity

(write)

Transport

8.5 GB

Tray Loading

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 30

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Blu-ray ROM DVD+/-RW

SuperMulti DL LightScribe

Drive

Access Times

Random

Max Data Transfer Rate

24X CD-ROM

8X DVD-ROM

16X CD-R

10X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

Transfer Mode

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

4X BD-ROM

UDMA Mode 5

<190 ms CD-ROM (typical)

<190 ms DVD-ROM (typical)

<230 ms BD-ROM (typical)

Up to 3600KB/s

Up to 10800 KB/s

Up to 1,200KB/s

Up to 1500 KB/s

Up to 10800 KB/s

Up to 10,800KB/s

Up to 10800 KB/s

Up to 8,100 KB/s

Up to 5400 KB/s

Up to 6750 KB/s

Up to 18,000KB/s

Interface

Gen 1 SATA

Supported Media (read) CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD,

CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA,

Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10,

DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE

Supported Media (write) CD-R, CD-RW, DVD+R, DVD+R(9), DVD+RW, DVD-R, DVD-R(9), DVD-RW, DVD-

RAM, LightScribe

Max Media Capacity (read) 50.0 GB

Max Media Capacity

(write)

Transport

8.5 GB

Tray Loading

Audio

Hardware Implementation

Touch-Sensitive Volume

Controls

IDT 92HD75B High Definition CODEC

Volume up, volume down, and mute

Full Duplex

Microphone In

Headphone/Line Out

Yes

Stereo

Stereo

Integrated Microphone

Yes, one microphone on configurations without optional webcam; dualmicrophone array when equipped with optional webcam

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 31

QuickSpecs

Technical Specifications

Audio Output Quality Frequency Response

Signal to Noise Ratio

20 Hz – 20 kHz

>85 dB

Total Harmonic Distortion 0.01%

Noise Floor

–110 dB

Play/Record Sampling

Rate(s)

8 kHz – 48kHz

DAC

ADC

16, 20 or 24-bit

16 or 20-bit

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Integrated Stereo

Speakers

Power Rating

Impedance

2 Watts

4 Ohms

Security

HP Fingerprint Sensor

(optional)

Mobile Voltage Operation 3.0V-3.6V Single Supply

Operating Temperature

32° - 158°F (0° - 70°C)

Current Consumption @

3.3V

Less than 70 mA peak imaging and scrolling

Less than 25 mA hardware finger detection

Advanced Power Management

High-Rate Image Capture Up to 240 image frames /sec

ESD Resistance

Detection Matrix

IEC 61000-4-2 Level 4 (±15KV)

192 x 16 Pixels

9.7 mm x 0.81 mm

500 ppi High-Resolution Images

Communications

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 32

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Integrated Marvell

10/100/1000 NIC

Ethernet Features

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)

100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)

1000 Mbit/s operation (1000BASE-T; IEEE 802.3z and 802.3ab; IEEE 802.3

clauses 34-42)

Auto-Negotiation (Automatic Speed Selection)

Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100

Mbit/s

IEEE 802.1p QoS (Quality of Service) Support

IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

Power Management

ACPI compliant – multiple power modes

Situation-sensitive features reduce power consumption

Performance Features

TCP/IP/UDP Checksum Offload (configurable)

Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft

Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)

PXE 2.1 Remote Boot

Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))

Comprehensive diagnostic and configuration software suite

Interface

PCI Express x1

NIC Device Driver Name

Marvell Yukon 88E8072 PCI-E Gigabit Ethernet Controller

V.92 56K Data/Fax Modem Form Factor

Power Management

Support

MDC 1.5 Daughtercard

APM Revision 1.2, ACPI

Approvals/

Certifications

UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15 Class

B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark, Other

Countries

Data Mode Capabilities

V.92 data

V.8bis

V.80

V44, V.42bis, MNP5 (Compression)

V.42 (LAPM, MNP2-4) (Error Correction)

Optional symbol rates:

2800, 3429

Asymmetric Symbol rates

Synchronous primary channel data signaling rates:

3600, 31200

Automatic rate re-negotiation

V.34

V.32bis

V.32

V.23

V.22bis

V.22

V.21

Bell 212A

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 33

QuickSpecs

Technical Specifications

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Fax Mode Capabilities

Command Set

Bell 103J

TIA/EIA-578-B (Class 1)

T.30, T.4 (Group 3)

V.17

V.29

V.27ter

V.21 Channel 2

V.250 (Partial)

TIA-602

Identification: +GMI, +GMM, +GMR

Port control: +IPR, +ICF, +IFC, +ILRR

Modulation: +MS, +MR, +MA

Error control: +ES, +ER, +EB, +ESR, +ETBM

Data compression: +DS, +DR

V.251

HP un2420

EV-DO/HSPA Mobile

Broadband Module

Technology/Operating

Bands

Wireless Protocol

Standards

GSM/GPRS/EDGE: 850MHz(Cell), 900MHz(EGSM), 1800MHz(DCS), 1900MHz

(PCS)

UMTS/WCDMA with receive diversity: 2100MHz (UTRA FDD Band I), 1900MHz

(UTRA FDD Band II), 900MHz (UTRA FDD Band VIII), 850MHz (UTRA FDD Band V)

1xEVDO/1xRTT with receive diversity: 850MHz (Band Class0-Cell), 1900MHz

(Band Class1-PCS)

GSM/GPRS/EDGE: Class B, Multi-slot operation, coding schemes CS1 – CS4 and

MSC1 – MSC9.

UMTS/WCDMA: Release 99 and Release 6

CDMA: 1xEVDO Release 0 and Release A, IS-95A, IS-95B, IS-2000

Meets or exceeds TIA/EIA IS-98-D

Wireless Parametric

Standards

Maximum Data Rates

GPS

GPS Bands

UMTS (HSPA) – 7.2 Mbps (Download ), 2.0 Mbps (Upload)

CDMA (EVDO Release A) – 3.1 Mbps (Download), 1.8 Mbps (Upload)

Standalone GPS enabled

L1 – 1575.42 MHz

Maximum Output Power

GSM/GPRS/EDGE: 32dBm (+/-1)

WCDMA: 24dBm (+/-1)

CDMA: 24dBm (+/-1)

Maximum Power

Consumption

2500mA (peak); 1000mA (average)

5 mA

Power Consumption,

Sleep Mode

Power Management

Antenna Type

Form Factor

Weight

USB selective suspend

Integrated notebook wireless button

Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure

PCI-Express MiniCard, USB 2.0 interface

11.5 g

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 34

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Dimensions (Length x

Width x Thickness)

Voltage, Operating

2.01 x 1.18 x 0.18 in (51 x 30 x 5 mm)

3.3v +/- 10%

Temperature, Operating

(from TIA/EIA/IS-98-D)

Temperature, Non-

operating, 96 hours (from

MIL-STD 202 Method 108)

–22° to 140° F (–30° to 60° C) (full RF performance)

–22° to 167° F (–30° to 75° C) (reduced RF performance)

–40° to 185° F (–40° to 85° C)

Humidity, Non-operating 85% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

Configuration Utilities

HP Connection Manager

LED Activity

LED Off – Radio Off;

Solid LED On – Radio On

Broadcom 4312G

802.11b/g WiFi Adapter

(Russia/Ukraine only)

Wireless LAN Standards

IEEE 802.11b

IEEE 802.11g

Interoperability

Wi-Fi certified

Cisco Compatible Extensions Program compliantwith Microsoft Windows Vista and XP

Frequency Band

Data Rates

2.4 GHz

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Modulation

Security

1

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,

LEAP, EAP-FAST.

Sub-channels

Media Access Protocol

Network Architecture

Models

Roaming

Output Power (for CCK)

2

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

17 dBm , nominal

Output Power (for OFDM; power varies by data rate)

2

15 dBm , nominal

Power Consumption

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit: 2.0 W (max)

Receive: 2.0 W (max)

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 35

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Power Management

Receiver Sensitivity

Antenna type

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

3

Configuration Utility

4

ACPI compliant power management

802.11 compliant power saving mode

54 Mbps: -71 dBm, 11 Mbps: -85 dBm , 1 Mbps: -95 dBm

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

PCI-Express Half-MiniCard

0.013 lb (6 g)

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

3.3v +/- 10%

Operating

Non-operating

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Microsoft Windows XP

Choice of Configuration Utility:

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support Cisco

Compatible Extensions.

LED Activity

1.

2.

3.

4.

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Broadcom 4322AGN

802.11a/b/g/n

WiFi Adapter

Wireless LAN Standards

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

Wi-Fi certified (802.11abg only)

Cisco Compatible Extensions Program compliant (802.11abg only) with

Microsoft Windows Vista and XP

2.4 GHz and 5 GHz

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 36

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Data Rates

Frequency Support

Modulation

Security

1

802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6, 6.5, 9, 12, 13, 13.5, 18, 19.5, 24, 26, 27, 36, 39, 40.5, 48, 52, 54,

58.5, 65, 78, 81, 104, 108, 117, 121.5, 130, 135, 162, 216, 243, 270, 300 Mbps

20 MHz: 2.4 GHz and 5 GHz bands

40 MHz: 2.4 GHz and 5 GHz bands

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,

LEAP, EAP-FAST.

Sub-channels

Media Access Protocol

Network Architecture

Models

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

Roaming

Output Power (for CCK)

2

IEEE 802.11 compliant roaming between access points

17 dBm

Output Power (for OFDM; power varies by data rate)

2

15 dBm

Power Consumption

Power Management

Idle associated: 250 mW

Idle unassociated: 150 mW

Transmit/Receive 20 MHz channel: 2.0 W (max)

Transmit/Receive 40 MHz channel: 2.0 W (max)

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

270 Mbps: -61dBm, , 54 Mbps: -72 dBm, 11 Mbps: -85 dBm , 1 Mbps: -92 dBm

Antenna type

Form Factor

Weight

Dimensions

Operating Voltage

Temperature

Humidity

Altitude

Configuration Utility

4

High efficiency dual band antenna with spatial diversity, mounted in the display enclosure

PCI-Express Half-MiniCard

0.013 lb (6 g)

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

3.3v +/- 10%

Operating

Non-operating

Operating

Non-operating

14° to 149° F (–10° to 65° C)

–40° to 176° F (–40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

Microsoft Windows XP

Choice of Configuration Utility:

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 37

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Microsoft Windows XP Wireless Network Connection Manager

Broadcom Wireless Configuration Utility (required for Cisco Compatible

Extensions support)

Microsoft Windows Vista

Microsoft Windows Vista Wireless Network Connection Manager

Broadcom IHV extensions for Windows Vista available to support Cisco

Compatible Extensions.

LED Activity

1.

2.

3.

4.

LED Off – Radio OFF; Solid LED On – Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista.

Broadcom 4313GN

802.11b/g/n

WiFi Adapter

Wireless LAN Standards

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

Wi-Fi certified

Cisco Compatible Extensions Program compliant with Microsoft Win7, Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

2.4 GHz

Data Rates

Frequency Support

Modulation

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 6.5, 7.2, 13, 14.4, 19.5, 21.7, 26, 28.9, 39, 43.3, 52, 57.8, 58.5, 65,

72.2Mbps

20 MHz: 2.4 GHz bands

Security

1

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,

802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,

LEAP, EAP-FAST.

Sub-channels

Media Access Protocol

Network Architecture

Models

Roaming

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Multinational support with frequency bands and channels compliant to local regulations.

CSMA/CA (Collision Avoidance) with ACK

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 38

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Output Power (for CCK)

2

17 dBm , nominal

Output Power (for OFDM; power varies by data rate)

2

15 dBm , nominal

Power Consumption

Power Management

Idle associated: 250 mW avg (CLKREQ enabled)

Idle unassociated: 425 mW avg

Transmit/Receive 20 MHz channel: 5.5 W (max)

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

3

Antenna type

72.2 Mbps: -71dBm

High efficiency dual band antenna with spatial diversity, usually mounted in the display enclosure

Form Factor

Weight

PCI-Express Half-MiniCard

0.013 lb (6 g)

Dimensions

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

Operating Voltage

Temperature

Humidity

Altitude

3.3v +/- 10%

Operating

Non-operating

Operating

Non-operating

Operating

Non-operating

14° to 149° F (-10° to 65° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity

1.

2.

3.

4.

LED Off - Radio OFF; Solid LED On - Radio ON

Check latest software/driver release for updates on supported security features.

Maximum output power may vary by country according to local regulations.

Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows

Vista and Win7.

HP Integrated Module with Bluetooth 2.1+EDR

Wireless Technology

Bluetooth Specification

2.1+EDR Compliant

Dimensions

1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)

Frequency Band

Number of Available

Channels

Data Rates and

Throughput

2402 to 2480 MHz

79 (1 MHz) available channels

Transmit Power

Receiver Sensitivity

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or

1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Better than -80 dBM at 0.1 % raw bit error rate

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 39

QuickSpecs

Technical Specifications

Power Consumption

Antenna

Range

Electrical Interface

Bluetooth Software

Supported

Link Topology

Security

Power Management

Certifications

Temperature

Humidity

Altitude

Bluetooth Profiles

Supported

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Internally integrated within module

Up 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Operating

Non-operating

Operating

Non-operating

-4° to 158° F (-20° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90%

5% to 95%

Operating

Non-operating

Serial Port Profile (SPP)

1

15,000 ft (4,572 m)

40,000 ft (12,192 m)

Service Discovery Applicaton Profile (SDAP)

Dial-Up Networking (DUN)

1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

1,2

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

1,2,3

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 40

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

1

indicates the profile is supported by Microsoft Windows XP SP2

2

indicates the profile is part of Windows Vista

Environmental Data Eco-Label Certifications

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

US Energy Star

IT ECO declaration

EPEAT – Gold where HP registers commercial notebook products. See http://www.epeat.net

for registration status in your country.

System Configuration

The configuration used for the Energy Consumption and Declared Noise

Emissions data for the Convertible Mini tower Desktop model is based on a

"Typically Configured Notebook"

HP ProBook 6455b Notebook PC

Energy Consumption

Normal Operation

Sleep (Energy Star low

power mode)

Off

115 VAC

10.93W

0.71W

0.57W

230 VAC

11.11W

0.77W

0.63W

100 VAC

10.68W

0.68W

0.56W

Heat Dissipation

*

Normal Operation

Sleep

Off

115 VAC

37 BTU/hr

230 VAC

38 BTU/hr

100 VAC

37 BTU/hr

2 BTU/hr

1 BTU/hr

3 BTU/hr

2 BTU/hr

2 BTU/hr

1 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

System Fan Off

Idle

Fixed Disk

(random writes)

Sound Power

(LWAd, bels)

2.6

2.7

System fan is usually off except when charging the battery

Sound Pressure

(LpAm, decibels)

17.3

17.6

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 41

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

HP ProBook 6555b Notebook PC

Energy Consumption

Normal Operation

Sleep (Energy Star low

power mode)

Off

Heat Dissipation

*

Normal Operation

Sleep

Off

115 VAC

10.93W

0.71W

230 VAC

11.11W

0.77W

100 VAC

10.68W

0.68W

0.57W

0.63W

0.56W

115 VAC

37 BTU/hr

230 VAC

38 BTU/hr

100 VAC

37 BTU/hr

2 BTU/hr

2 BTU/hr

3 BTU/hr

2 BTU/hr

2 BTU/hr

2 BTU/hr

* Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

System Fan Off

Idle

Sound Power

(LWAd, bels)

3.0

Fixed Disk

(random writes)

3.0

System fan is usually off except when charging the battery

Sound Pressure

(LpAm, decibels)

22.5

22.6

HP ProBook 6455b Notebook PC and HP 6555b Notebook PC

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Additional information

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

The battery type and chemistry used in the product is:

Li-ion

High capacity Lithium-Ion battery

This product is in compliance with the Restrictions of Hazardous Substances

(RoHS) directive – 2002/95/EC.

This HP product is designed to comply with the Waste Electrical and Electronic

Equipment (WEEE) Directive - 2002/96/EC.

This product is in compliance with California Proposition 65 (State of

California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see www.epeat.net

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 42

QuickSpecs

Technical Specifications

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Material Usage

Plastics parts weighing over 25 grams used in the product are marked per ISO

11469 and ISO1043.

This product contains 0% post consumer recycled plastic (by wt.)

This product is greater than 95.1% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

Corrugated carton – 360 g

Cardboard & misc. – 365 g

Internal:

Polyethylene low density – 15 g

EPE - Expanded Polyethylene – 90 g

The Corrugated carton packaging material is made from 70% – 80% recycled content.

The Cardboard & misc. packaging material is made from 70% – 80% recycled content.

The Polyethylene low density packaging material is made from 0% recycled content.

The EPE –Expanded Polyethylene packaging material is made from 70%

– 80% recycled content.

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN

6120 standards.

This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General

Specification of the Environment

( http://www.hp.com/hpinfo/globalcitizenship/environment/supplychain/ gen_specifications.html

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 43

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

End-of-life Management and Recycling

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Nickel finishes that release greater than 0.5 µgrams/cm

2

/week, measured according to EN 1811:1998, are not used on any product surface designed to be frequently handled or touched by users.

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

Hewlett-Packard

Corporate Environmental

Information

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP's commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Environment website http://www.hp.com/environment

Eco-label certifications http://www.hp.com/hpinfo/globalcitizenship/environment/productdesign/ ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/operations/ envmanagement.html

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 44

QuickSpecs

HP ProBook 6455b Notebook PC

HP ProBook 6555b Notebook PC

Technical Specifications

Copyright © 2012 Hewlett-Packard Development Company, L.P.

All rights reserved. Microsoft, Windows, Windows 7, Windows Vista and Windows XP are registered trademarks or trademarks of

Microsoft Corporation in the U.S. and/or other countries. Phenom, Turion, and Athlon are registered trademarks or trademarks of AMD

Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in the U.S. and other countries. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

DA - 13596 Worldwide — Version 18 — February 15, 2012 Page 45

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
