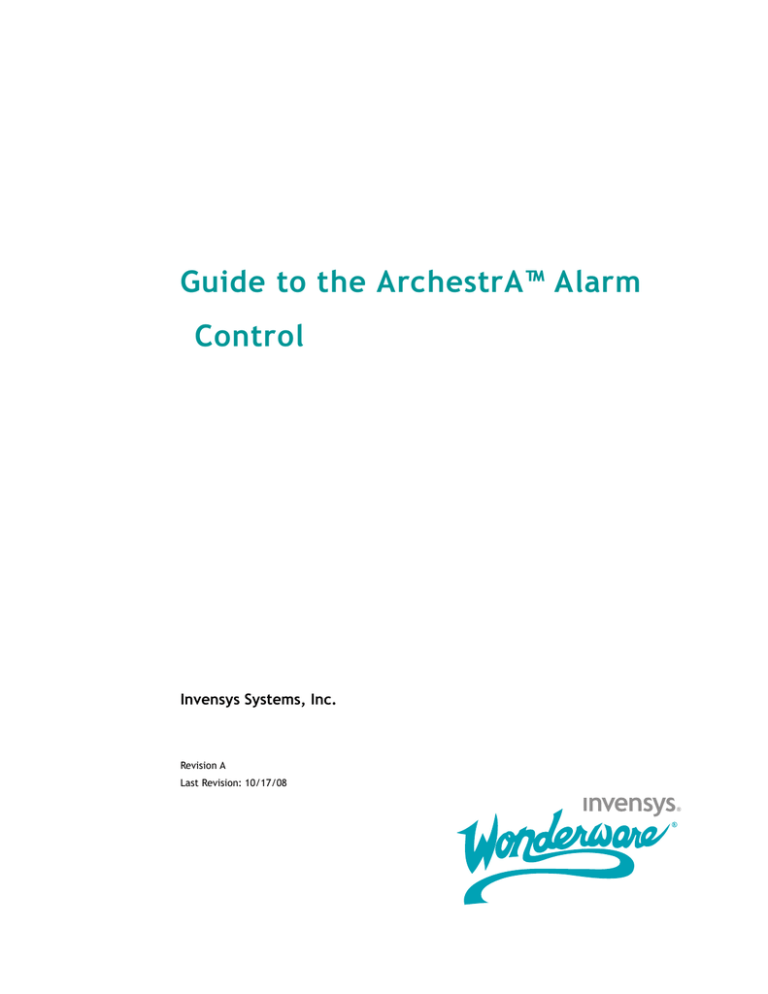

Guide to the ArchestrA™ Alarm

Control

Invensys Systems, Inc.

Revision A

Last Revision: 10/17/08

Copyright

© 2008 Invensys Systems, Inc. All Rights Reserved.

All rights reserved. No part of this documentation shall be reproduced, stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of

Invensys Systems, Inc. No copyright or patent liability is assumed with respect to the use of the information contained herein. Although every precaution has been taken in the preparation of this documentation, the publisher and the author assume no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein.

The information in this documentation is subject to change without notice and does not represent a commitment on the part of Invensys Systems, Inc. The software described in this documentation is furnished under a license or nondisclosure agreement. This software may be used or copied only in accordance with the terms of these agreements.

Invensys Systems, Inc.

26561 Rancho Parkway South

Lake Forest, CA 92630 U.S.A.

(949) 727-3200 http://www.wonderware.com

For comments or suggestions about the product documentation, send an e-mail message to [email protected]

Trademarks

All terms mentioned in this documentation that are known to be trademarks or service marks have been appropriately capitalized. Invensys Systems, Inc. cannot attest to the accuracy of this information. Use of a term in this documentation should not be regarded as affecting the validity of any trademark or service mark.

Alarm Logger, ActiveFactory, ArchestrA, Avantis, DBDump, DBLoad, DT Analyst,

Factelligence, FactoryFocus, FactoryOffice, FactorySuite, FactorySuite A

2

, InBatch,

InControl, IndustrialRAD, IndustrialSQL Server, InTouch, MaintenanceSuite,

MuniSuite, QI Analyst, SCADAlarm, SCADASuite, SuiteLink, SuiteVoyager,

WindowMaker, WindowViewer, Wonderware, Wonderware Factelligence, and

Wonderware Logger are trademarks of Invensys plc, its subsidiaries and affiliates.

All other brands may be trademarks of their respective owners.

Contents

3

Welcome.......................................... 11

Documentation Conventions.............................................11

Technical Support .............................................................12

Chapter 1 About the ArchestrA Alarm Control ......... 13

Client Modes ......................................................................14

Alarm Manager...............................................................14

Current Alarms ..........................................................14

Recent Alarms and Events.........................................14

Alarm Database..............................................................15

Historical Alarms .......................................................15

Historical Events ........................................................15

Historical Alarms and Events ...................................15

Switching Between Client Modes ..................................15

Using the Alarm Control in ArchestrA Symbols .............16

Alarm Acknowledgement ..................................................16

Current Value and Quality Display .................................17

Alarm Queries ...................................................................17

Alarm Filtering..................................................................19

Alarm Queries to Query Filters Translation ................19

Alarm Hiding .....................................................................20

Alarm Control Grid Freezing............................................20

Alarm Sorting ....................................................................21

Status Bar..........................................................................21

Guide to the ArchestrA Alarm Control

4 Contents

Chapter 2 Configuring the Alarm Control.................23

Placing the Alarm Control into an ArchestrA Symbol....24

Setting the Alarm Control Properties ..............................25

Showing Current Alarms or Recent Alarms and

Events .............................................................................25

Showing Historical Alarms and/or Events.......................28

Setting Alarm Control Colors ...........................................31

Setting Event Record Colors..........................................31

Setting Return To Normal Record Colors .....................32

Setting Heading, Grid, and Window Color ...................32

Setting Priority Ranges for Alarm Records ..................34

Setting Colors for Acknowledged Alarms .....................35

Setting Colors for Unacknowledged Alarms.................36

Setting Unacknowledged Alarms to Flash ...................36

Renaming, Resizing, and Reordering Column

Headers...........................................................................37

Renaming Column Headers...........................................38

Resizing Columns...........................................................38

Changing the Order of Columns....................................39

Sorting Alarms ..................................................................41

Filtering Alarms................................................................42

Using Wildcards in Queries...........................................43

Using an Existing Query Filter .....................................43

Adding a New Query Filter............................................44

Constructing Filters ...................................................45

Modifying an Existing Query Filter ..............................47

Deleting a Query Filter Favorite...................................47

Exporting Query Filter Favorites..................................47

Importing Query Filter Favorites..................................48

Setting Time Zone and Format.........................................48

Setting the Time Zone....................................................49

Setting the Wonderware Time Format .........................50

Setting the .NET Datetime Format ..............................51

Configuring Run-Time Behavior ......................................52

Showing Heading, Grid, or Status Bar .........................52

Automatically Querying for Alarms on Start Up .........53

Scrolling Automatically to New Alarms........................54

Hiding Errors, Warnings, and Status Messages ..........54

Restricting User Access to Rows and Columns ............55

Retain Hiding when Changing Alarm Query Filter.....56

Overriding the Frozen Grid ...........................................56

Guide to the ArchestrA Alarm Control

Contents 5

Customizing the “No Records” Message........................57

Changing the Language of the “No Records”

Message.....................................................................57

Configuring the Run-Time Shortcut Menu...................58

Chapter 3 Using the Alarm Control at Run Time ....... 61

Refreshing the Alarm Control Grid..................................62

Using Status Bar Information ..........................................62

Using Status Bar Information of Current Modes.........62

Using Status Bar Information of Historical Modes......64

Acknowledging Alarms .....................................................65

Sorting Alarms at Run Time.............................................66

Filtering Alarms at Run Time ..........................................67

Using an Existing Query Filter .....................................67

Adding a New Query Filter............................................68

Modifying an Existing Query Filter ..............................68

Deleting a Query Filter ..................................................69

Importing Query Filter Favorites..................................69

Exporting Query Filter Favorites..................................69

Filtering Alarms with Client-Based Filtering ..............70

Resetting the Grid .............................................................73

Hiding Alarms ...................................................................73

Showing Alarm Statistics .................................................75

Freezing and Unfreezing the Alarm Control Grid...........76

Switching between Client Modes......................................76

Switching Run-Time Languages ......................................78

Chapter 4 Scripting the Alarm Control ................... 79

Alarm Control Properties..................................................79

AckComment.DefaultValue Property............................79

AckComment.UseDefault Property ...............................80

AlarmColor.Ack.BackGround Property.........................80

AlarmColor.Ack.ForeGround Property .........................82

AlarmColor.Ack.RTN.BackGround Property................83

AlarmColor.Ack.RTN.ForeGround Property ................84

AlarmColor.Range Property ..........................................84

AlarmColor.RTN.BackGround Property .......................85

AlarmColor.RTN.ForeGround Property........................86

AlarmColor.UnAck.BackGround Property ...................86

AlarmColor.UnAck.Flash.BackGround Property .........88

AlarmColor.UnAck.Flash.ForeGround Property..........89

Guide to the ArchestrA Alarm Control

6 Contents

AlarmColor.UnAck.ForeGround Property ....................90

AlarmColor.UnAck.RTN.BackGround Property ..........91

AlarmColor.UnAck.RTN.ForeGround Property ...........92

AlarmQuery Property ....................................................93

AllowColumnResize Property ........................................93

AutoResumeDuration Property.....................................93

AutoScroll Property........................................................94

ClientMode Property......................................................94

ConnectStatus Property.................................................95

ContextMenu.AckAll Property ......................................95

ContextMenu.AckOthers Property................................95

ContextMenu.AckSelected Property .............................96

ContextMenu.AckSelectedGroups Property .................96

ContextMenu.AckSelectedPriorities Property..............96

ContextMenu.AckSelectedTags Property .....................97

ContextMenu.AckVisible Property................................97

ContextMenu.Favorites Property..................................97

ContextMenu.Freeze Property ......................................98

ContextMenu.Hidden Property .....................................98

ContextMenu.HideAll Property.....................................98

ContextMenu.HideOthers Property ..............................99

ContextMenu.HideSelected Property............................99

ContextMenu.HideSelectedGroups Property................99

ContextMenu.HideSelectedPriorities Property ..........100

ContextMenu.HideSelectedTags Property..................100

ContextMenu.HideVisible Property ............................100

ContextMenu.Requery Property..................................101

ContextMenu.Reset Property ......................................101

ContextMenu.Sort Property ........................................101

ContextMenu.Statistics Property................................102

ContextMenu.UnhideAll Property ..............................102

Database.Authentication Property..............................102

Database.Name Property.............................................103

Database.Password Property.......................................103

Database.ServerName Property..................................103

Database.UserID Property ..........................................104

Domain Property ..........................................................104

Enabled Property .........................................................104

EventColor.BackGround Property ..............................105

EventColor.ForeGround Property ...............................105

Favorite Property .........................................................106

FlashUnAckAlarms Property ......................................106

Guide to the ArchestrA Alarm Control

Contents 7

GridColor Property.......................................................106

HeadingColor.BackGround Property ..........................107

HeadingColor.ForeGround Property ...........................108

Height Property............................................................108

HiddenAlarms Property...............................................109

HideErrors Property.....................................................109

MaxDatabaseRecords Property ...................................109

NewAlarmEventMode Property ..................................110

NoRecordsMessage.Enabled Property ........................110

NoRecordsMessage.Message Property ........................111

QueryStartup Property ................................................111

RetainHidden Property ................................................111

RowCount Property ......................................................112

RowSelection Property .................................................112

SelectedCount Property ...............................................113

ShowContextMenu Property........................................113

ShowGrid Property.......................................................113

ShowHeading Property ................................................113

ShowStatusBar Property .............................................114

SortColumn.First Property ..........................................114

SortColumn.Second Property ......................................114

SortColumn.Third Property.........................................115

SortOrder.First Property .............................................115

SortOrder.Second Property..........................................116

SortOrder.Third Property ............................................116

Time.Format Property .................................................116

Time.Type Property......................................................117

TimeSelector Property .................................................118

TimeSelector.DurationMS Property............................118

TimeSelector.EndDate Property..................................119

TimeSelector.StartDate Property................................119

TimeSelector.TimeDuration Property.........................120

TimeZone.TimeZone Property .....................................122

TotalRowCount Property .............................................122

UnAckAlarms Property................................................123

UpdateToCurrentTime Property .................................123

Visible Property............................................................124

Width Property .............................................................124

WindowColor Property.................................................124

X Property.....................................................................125

Y Property.....................................................................125

Guide to the ArchestrA Alarm Control

8 Contents

Alarm Control Methods ..................................................125

AboutBox() Method ......................................................125

Ack.All() Method...........................................................125

Ack.Group() Method .....................................................126

Ack.Priority() Method ..................................................126

Ack.Selected() Method..................................................127

Ack.SelectedGroup() Method .......................................127

Ack.SelectedPriority () Method....................................128

Ack.SelectedTag() Method ...........................................128

Ack.Tag() Method .........................................................128

Ack.Visible() Method ....................................................129

Connect() Method .........................................................130

Disconnect() Method.....................................................130

Favorites.Export() Method...........................................130

Favorites.Import() Method...........................................130

FreezeDisplay() Method ...............................................131

GetItem() Method .........................................................132

GetLastError() Method ................................................132

GetSelectedItem() Method ...........................................133

Hide.All() Method .........................................................133

Hide.Group() Method ...................................................134

Hide.Priority() Method.................................................134

Hide.Selected() Method ................................................135

Hide.SelectedGroup() Method .....................................135

Hide.SelectedPriority() Method ...................................135

Hide.SelectedTag() Method..........................................135

Hide.Tag() Method .......................................................136

Hide.Visible() Method ..................................................136

MoveWindow() Method ................................................137

Requery() Method.........................................................138

Reset() Method..............................................................138

Select.All() Method.......................................................138

Select.Group() Method .................................................138

Select.Item() Method....................................................139

Select.Priority() Method...............................................139

Select.Tag() Method .....................................................140

SetSort() Method ..........................................................141

Show.Context() Method................................................141

Show.Favorite() Method...............................................141

Show.Hidden() Method ................................................142

Show.Sort() Method......................................................142

Show.Statistics() Method .............................................142

TimeSelector.GetStartAndEndTimes() Method .........142

Guide to the ArchestrA Alarm Control

Contents 9

TimeSelector.RefreshTimes() Method .........................143

TimeSelector.SetStartAndEndTimes() Method ..........143

Toggle.All() Method ......................................................144

Toggle.Item() Method ...................................................144

UnhideAll() Method......................................................145

UnSelectAll() Method ...................................................145

Configuring Events .........................................................145

Configuring the NewAlarm Event...............................145

.NET Colors .....................................................................147

Chapter 5 Transferring Alarm Configuration from

InTouch..........................................149

Transferring the InTouch Alarm Viewer Control

Configuration................................................................149

Transferring Configuration of the Control

Name Tab .................................................................150

Transferring Configuration of the General Tab .........151

Transferring Configuration of the Color Tab..............153

Transferring Configuration of the Time

Format Tab...............................................................154

Transferring Configuration of the Query Tab ............155

Transferring Configuration of the Properties Tab .....157

Transferring Script Configuration on the

Events Tab................................................................157

Transferring the InTouch Alarm DB View Control

Configuration................................................................158

Transferring Configuration of the Control

Name Tab .................................................................158

Transferring Configuration of the General Tab .........159

Transferring Configuration of the Color Tab..............162

Transferring Configuration of the Database Tab .......163

Transferring Configuration of the Selection Tab........164

Transferring Configuration of the Time/Sort Tab ......166

Transferring Configuration of the Query Filter Tab..167

Transferring Configuration of the Properties Tab .....168

Transferring Scripts Configuration on the

Events Tab................................................................168

Transferring Query Favorites Configuration ................169

Mapping Properties and Methods ..................................169

Index .............................................181

Guide to the ArchestrA Alarm Control

10 Contents

Guide to the ArchestrA Alarm Control

Welcome

11

This guide describes configuring and using the ArchestrA

Alarm control. This control is delivered as part of the

ArchestrA Symbol Editor and can be used in ArchestrA symbols to show current and historical alarms and events in a grid.

You can view this document online or you can print it, in part or whole, by using the print feature in Adobe Acrobat Reader.

This guide assumes you know how to use Microsoft Windows, including navigating menus, moving from application to application, and moving objects on the screen. If you need help with these tasks, see the Microsoft online help.

This guide also assumes you know how to use Microsoft SQL

Server. For help with SQL Server, see the Microsoft online help.

In some areas of the Application Server, you can also rightclick to open a menu. The items listed on this menu change, depending on where you are in the product. All items listed on this menu are available as items on the main menus.

Documentation Conventions

This documentation uses the following conventions:

Convention

Initial Capitals

Bold

Monospace

Used for

Paths and file names.

Menus, commands, dialog box names, and dialog box options.

Code samples and display text.

Guide to the ArchestrA Alarm Control

12 Welcome

Technical Support

Wonderware Technical Support offers a variety of support options to answer any questions on Wonderware products and their implementation.

Before you contact Technical Support, refer to the relevant section(s) in this documentation for a possible solution to the problem. If you need to contact technical support for help, have the following information ready:

The type and version of the operating system you are using.

Details of how to recreate the problem.

The exact wording of the error messages you saw.

Any relevant output listing from the Log Viewer or any other diagnostic applications.

Details of what you did to try to solve the problem(s) and your results.

If known, the Wonderware Technical Support case number assigned to your problem, if this is an ongoing problem.

Guide to the ArchestrA Alarm Control

Chapter 1

About the ArchestrA Alarm

Control

13

The ArchestrA Alarm Control is a graphical element you can use in your ArchestrA symbols to show current and historical alarms and events.

The ArchestrA Alarm Control replaces the Alarm Viewer control and Alarm DB View control in the InTouch HMI and extends alarm visualization to the ArchestrA Graphics environment.

You can place the ArchestrA Alarm Control directly from the

Tools panel in the ArchestrA Symbol Editor onto the canvas.

You can customize it to your needs by adding further graphics, interactions, and scripts.

You can deploy a managed InTouch application containing

ArchestrA Alarm Controls to a remote node and visualize and interact with alarms at run time with InTouch

WindowViewer.

For this documentation, the ArchestrA Alarm Control is simply referred to as "Alarm Control."

We recommend you have a basic understanding of the

InTouch Alarm system before continuing. For more information, see the InTouch HMI Alarms and Events Guide.

Guide to the ArchestrA Alarm Control

14 Chapter 1 About the ArchestrA Alarm Control

Client Modes

The Alarm Control supports five different client modes, which can be grouped depending on their data source.

Current Alarms

Recent Alarms and Events

Alarm Manager

Alarm DB

Logger

Alarm

Database

Historical

Alarms

Historical

Events

Historical Alarms

& Events

Alarm Manager

The Alarm Manager manages currently active alarms

(summary alarms) and recent alarms and events (historical alarms and events). These types of alarms and events are held in the InTouch internal alarm memory.

Current Alarms

When the Alarm Control is showing alarms in "Current

Alarms" mode, it is showing currently active alarms directly from the Alarm Manager.

Recent Alarms and Events

When the Alarm Control is showing alarms in "Recent

Alarms and Events" mode, it is showing historical alarms and events stored in Alarm Manager.

Unlike the "Current Alarms" mode, the "Recent Alarms and

Events mode" shows time point data, such as alarm transitions and events, instead of continuous conditions.

Guide to the ArchestrA Alarm Control

Client Modes 15

Alarm Database

The Alarm Database stores alarms and events from the

Alarm Manager to a SQL Server database. You can use the

Alarm DB Logger utility to continuously log alarms and events to the Alarm Database.

Historical Alarms

When the Alarm Control is configured in "Historical Alarms" mode, only alarms stored in the Alarm Database are shown.

Historical Events

When the Alarm Control is configured in "Historical Events" mode, only events stored in the Alarm Database are shown.

Historical Alarms and Events

When the Alarm Control is configured in "Historical Alarms and Events" mode, both alarms and events stored in the

Alarm Database are shown.

Switching Between Client Modes

The client mode and many other features are controlled by properties and methods.

By default, the Alarm Control is set to show current alarms.

You can change the client mode also at run time by using the

Alarm Control properties.

Guide to the ArchestrA Alarm Control

16 Chapter 1 About the ArchestrA Alarm Control

Using the Alarm Control in ArchestrA Symbols

You can use the ArchestrA Alarm control as a faceplate so that when the operator clicks an icon, an ArchestrA Alarm control showing a specific alarm area opens.

You can also configure the ArchestrA Alarm control to interact with the Galaxy namespace and other ArchestrA symbols by mapping its properties to ArchestrA attributes and symbol elements.

The Alarm Control can be placed into ArchestrA Symbols hosted by Automation Object templates and instances. You can configure them to retrieve alarms from their hosting

Area object or their hosting Automation object.

Alarm Acknowledgement

You can configure the Alarm Control to require an alarm to be acknowledged even if the condition causing the alarm has passed. This ensures that an operator is aware of events that caused a temporary alarm state but have returned to normal.

You acknowledge alarms at run time using a shortcut menu or through script methods.

Guide to the ArchestrA Alarm Control

Current Value and Quality Display 17

Current Value and Quality Display

The Alarm Control in one of the current client modes shows continuously the current value and quality of a tag or attribute in alarm state.

You can see the current value and quality of tags or attributes in alarm from:

InTouch running on the local computer.

Galaxy namespace.

Note

You cannot see current value and quality data from InTouch tags running on a remote computer.

Alarm Queries

The Alarm Control supports the standard InTouch and

Galaxy alarm query formats, such as:

\galaxy!Area_001

\intouch!Group_A

The Alarm Control also supports relative references for

Galaxy alarms in alarm queries. For all alarm modes, relative references are resolved at run time at the point of query to the Alarm Manager or Alarm Database.

You must put the reference part of the alarm query between less-than (<) and greater-than (>) characters.

The following tables shows examples of alarm queries.

Alarm Query

\provider!group

\provider!group!tagname

Description

Shows all alarms from the given provider and group. For example:

\intouch!Group_A

Shows all alarms from the given provider, group and tag. For example:

\galaxy!Mixing_Area!RotorCtrl

Guide to the ArchestrA Alarm Control

18 Chapter 1 About the ArchestrA Alarm Control

Alarm Query

\\node\provider!group

\\node\provider!group!tagname

HotBackupName

\galaxy!<me.Area>!<me.tagname>.*

\galaxy!<myArea.tagname> or

\galaxy!<me.Area>

\galaxy!<myPlatform.tagname>

\galaxy!<myContainer.tagname>

\galaxy!<myEngine.tagname>

Description

Shows all alarms from the given provider and group from a given node.

For example:

\\remote\intouch!Group_B

Shows all alarms from the given provider, group and tag from a given node. For example:

\\grnode\galaxy!Packaging_Area!Wrapp

er1

Shows all alarms from primary or backup alarm provider as configured in the Hot Backup Manager.

Shows all alarms from the Automation

Object. Alarms from other Automation

Objects in the same area are ignored.

Shows all alarms from the Area object hosting the Automation Object

Shows all alarms from the Winplatform object hosting the Automation Object.

Shows all alarms from the container

Automation Object. At run-time the

Alarm Control resolves the Container attribute to detect the container.

Shows all alarms from the AppEngine object hosting the Automation Object.

At run-time the Alarm Control resolves the MyEngine attribute to detect the host.

Guide to the ArchestrA Alarm Control

Alarm Filtering 19

Alarm Filtering

The Alarm Control unites the Query Favorites concept of the

InTouch Alarm Viewer control and the Filter Favorites concept of the InTouch Alarm DB View control.

The Query Favorites of InTouch Alarm Viewer control define a set of alarm provider, alarm group, an optional node name, and a priority range under one name. The alarm provider, alarm group, and the node name are used for subscribing to a specific alarm group. The priority range on the other hand is used to filter the alarms from the given alarm group.

The Filter Favorites of InTouch Alarm DB View control define a set of any number of criteria you want to filter from the Alarm Database under one name.

In summary, Filter Favorites fulfill a purely filtering function whereas Query Favorites fulfill a subscription and a filtering function at the same time.

The Alarm Control filtering feature unites both these concepts by exclusively using filter conditions and subscribing to the necessary alarm providers on demand.

The filter conditions can be re-used between different client modes. For example, if you define node name, provider name, alarm group, and a priority range for the current alarms, you can also use this filter to retrieve the historized alarm data of the same source from the Alarm Database instead.

Alarm Queries to Query Filters Translation

As with InTouch alarm controls, you can define queries for current alarms in the \\node\provider!group format, but they are translated by the Alarm Control to a filter after you save.

For example, the query string

\\GRNode\galaxy!MixingArea is translated to the following filter string:

Node = ‘GRNode’ AND Provider=’galaxy’ AND

Group=’MixingArea’

You can modify the filter in a tree to query only alarms in the priority range 1 to 250, such as:

AND

Node = ‘GRNode’

Provider = ‘Galaxy’

Group = ‘MixingArea’

Priority >= ‘1’

Priority <= ‘250’

Guide to the ArchestrA Alarm Control

20 Chapter 1 About the ArchestrA Alarm Control

Alarm Hiding

The "hiding" and "unhiding" of alarm records is known in the corresponding InTouch alarm controls as "suppressing" and

"unsuppressing".

When the Alarm Control is hiding alarms, it ignores certain alarms. If an alarm matches the exclusion criteria, it is not visible.

The actual alarm generation is completely unaffected by hiding. Alarm records are still logged into the alarm history.

As in the InTouch HMI, you can unhide specific alarms and also use properties and methods to interact with the alarm hiding feature at run time.

Alarm Control Grid Freezing

You can freeze the Alarm Control to prevent the Alarm control tree from being updated with any further changes.

For example, if new alarms occur while the Alarm Control is frozen, the new alarms are only shown after you unfreeze the

Alarm Control.

You can configure a time period after which the Alarm

Control automatically unfreezes to avoid the Alarm Control being unknowingly frozen. For example, the operator leaves the workstation and returns without realizing that the

Alarm Control is still frozen.

The Alarm Control unfreezes automatically if one of the following changes:

Alarm Mode

Alarm Query

Query Filter

Guide to the ArchestrA Alarm Control

Alarm Sorting 21

Alarm Sorting

Like InTouch alarm controls, you can sort the alarms in ascending or descending direction for selected columns.

The Alarm Control supports alarm sorting for up to three columns at design time and run time.

At run time, the operator can configure sorting of even more columns by clicking on the column headers of the Alarm

Control.

Status Bar

The status bar of the Alarm Control resembles the status bars of the InTouch alarm controls, with the following differences:

Alarm Control shows also the alarm client time zone.

Alarm Control querying the Alarm Database has a

Requery button to more easily retrieve data from the

Alarm Database.

Alarm Control shows the current client mode as an icon.

Guide to the ArchestrA Alarm Control

22 Chapter 1 About the ArchestrA Alarm Control

Guide to the ArchestrA Alarm Control

Chapter 2

Configuring the Alarm Control

23

This section shows you how to place an Alarm Control onto the canvas and configure it. You can configure it either with the

Edit Animations

dialog box, or by changing individual properties in the Properties Editor.

After placing the Alarm Control onto the canvas, you can configure the:

Client Mode to show current alarms, recent alarms and events, or historical alarms and/or events.

Colors for the Alarm Control grid, window, heading, and alarm records.

Order and width of the grid columns and their headers.

Sorting order of alarm records.

Filtering for alarm records and save the filters as favorites for re-use.

Time format and zone for the alarm record time stamps.

Run-time behavior for the Alarm Control, such as:

If the operator can resize columns or select multiple records at run time.

Access to specified options of the shortcut menu at run time.

Guide to the ArchestrA Alarm Control

24 Chapter 2 Configuring the Alarm Control

Placing the Alarm Control into an ArchestrA

Symbol

You can easily place the ArchestrA Alarm Control into an

ArchestrA Symbol by placing it onto the canvas.

To place the Alarm Control into an ArchestrA Symbol

1

Open the ArchestrA Symbol in the ArchestrA Symbol

Editor.

2

3

On the

Tools

panel, click the ArchestrA Alarm Control icon. The cursor appears in insert mode.

Click on the canvas where you want to place the Alarm

Control.

Guide to the ArchestrA Alarm Control

Setting the Alarm Control Properties 25

Setting the Alarm Control Properties

Like all other graphical objects in the ArchestrA Symbol

Editor, you can set some of the properties of the selected

Alarm Control directly in the Properties Editor.

We recommend you configure the Alarm Control with the

Edit Animations

dialog box and only use the Properties Editor to edit the configuration afterward.

Showing Current Alarms or Recent Alarms and Events

You can set the Alarm Control to either show:

Current alarms

Recent alarms and events

You use the

ClientMode Property

integer property in scripting

to switch the Alarm Control to show current alarm or recent alarms and events at run time.

You can also configure a comment to use when alarms are

acknowledged at run time. Use the

AckComment.UseDefault

Property

Boolean property and

AckComment.DefaultValue

Property

string property in scripting to use a default

acknowledgement comment at run time.

Guide to the ArchestrA Alarm Control

26 Chapter 2 Configuring the Alarm Control

To show current alarms

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

If necessary, click

Alarm Mode

. The

Alarm Mode

page appears.

3

4

5

6

In the

Client Mode

list, click

Current Alarms

.

In the

Alarm Query

box, type the alarm query. To create a new line in the Alarm Query box, press

Ctrl + Enter

. For

more information on the valid syntax, see Alarm Queries on page 17.

If you want to want to use a default acknowledgement comment, select the

Use Default Ack Comment

check box and type a comment in the text box.

Click

OK

.

Guide to the ArchestrA Alarm Control

Showing Current Alarms or Recent Alarms and Events 27

To show recent alarms and events

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Alarm Mode

. The

Alarm Mode

page appears.

In the

Client Mode

list, click

Recent Alarms and Events

.

4

5

6

In the

Alarm Query

box, type the alarm query.

To create a new line in the Alarm Query box, press Ctrl + Enter.

The alarm query must follow one of the following syntax:

\\node\provider!group

\provider!group

HotBackupName

For example:

\intouch!$system

\galaxy!Area_001

For Alarm Controls hosted by Automation Object templates or instances, you can specify one of the following alarm queries:

\galaxy!myArea to retrieve alarms and events from the Area object hosting the Automation Object template or instance.

\galaxy!me to retrieve alarms and events from the

Automation Object template or instance.

For more information on alarm queries, see Alarm

Queries in the InTouch HMI Alarms and Events Guide.

If you want to want to use a default acknowledgement comment, select the

Use Default Ack Comment

check box and type a comment in the text box.

Click

OK

.

Guide to the ArchestrA Alarm Control

28 Chapter 2 Configuring the Alarm Control

Showing Historical Alarms and/or Events

You can set the Alarm Control to show one of the following:

Historical alarms from the Alarm Database

Historical events from the Alarm Database

Historical alarms and events from the Alarm Database

When you configure the Alarm Control to show historical alarms and/or events, you also configure the following:

Server name hosting the Alarm Database

Authentication information to connect to the Alarm

Database

Maximum number of records to retrieve from the Alarm

Database

Time range or duration to show in the Alarm Control.

If the Alarm Control should update to the current client time

For more information on creating an alarm database and logging alarms, see Recording Alarms into an Alarm

Database in the InTouch HMI Alarms and Events Guide.

Use the following properties in scripting to switch the client mode and configure the database connection, such as:

ClientMode Property on page 94

Database.Authentication Property on page 102

Database.Name Property on page 103

Database.Password Property on page 103

Database.ServerName Property on page 103

Database.UserID Property on page 104

Domain Property on page 104

Guide to the ArchestrA Alarm Control

Showing Historical Alarms and/or Events 29

To show historical alarms and/or events

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Alarm Mode

. The

Alarm Mode

page appears.

3

In the

Client Mode

list, click:

• Historical Alarms

to only show alarms from the Alarm

Database. No events are shown.

• Historical Events

to only show events from the Alarm

Database. No alarms are shown.

• Historical Alarms and Events

to show both alarms and events from the Alarm Database.

4

5

6

7

8

9

10

In the

Authentication Mode

list, click one of the following:

• Windows Integrated

to use the authentication of the currently logged-on Windows user.

• Windows Account

to use a given Windows user authentication.

• SQL Server

to use SQL Server authentication mode.

In the

Server Name

list, either select or type the name of the server hosting the Alarm Database.

In the

Database Name

box, type the name of the Alarm

Database. By default, this is WWALMDB.

If you are using

Windows Account

authentication mode, type the domain, user name, and password in the

Domain

,

User Name

and

Password

boxes.

If you are using

SQL Server

authentication mode, type user name and password in the

User Name

and

Password

boxes.

Click

Test Connection

. The connection to the Alarm

Database is tested and a result message appears. If necessary, check your authentication information.

Click

OK

.

Guide to the ArchestrA Alarm Control

30 Chapter 2 Configuring the Alarm Control

To set maximum records and time range

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Alarm Mode

. The

Alarm Mode

page appears.

Make sure the Client Mode is set to

Historical Alarms

,

Historical Events

, or

Historical Alarms and Events

.

4

5

In the

Maximum Records

box, type the number of records to view from the control at one instance. The valid range of maximum records is from 1 to 32766.

You can also use the

MaxDatabaseRecords Property

property in scripting to set the maximum records at run time.

To use a pre-defined time interval, select an interval from the middle list of the

Time Range

pickers.

6

To use a specific start time and end time, clear

Update to

Current Time

, and select the start time from the list at the left and the end time from the list at the right of the

Time

Range

pickers.

7

You can also use the

TimeSelector.*

methods and properties in scripting to set the start date, end date, or duration at run time. For more information, see the

Scripting the Alarm Control on page 79.

Click

OK

.

Guide to the ArchestrA Alarm Control

Setting Alarm Control Colors 31

Setting Alarm Control Colors

You can show different types of alarm records in different colors so the operator can more easily identify certain types of alarms.

You can configure the Alarm Control with priority breakpoints to show alarm records within the resulting priority ranges in different colors.

You can also configure the control background color, the grid color, and the heading colors.

Setting Event Record Colors

You can set text color and background color for event alarm records. Use the

EventColor.ForeGround Property

and

EventColor.BackGround Property

properties in scripting to set the event alarm record text color and background color at run time.

To set text and background colors for event records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Colors

. The

Colors

page appears.

3

4

5

Configure the event record text color. Do the following:

a

Click the color field next to

Event

and under

Text

. The color picker appears.

b

Select a color and click

OK

.

Configure the event record background color. Do the following:

a

Click the color field next to

Event

and under

Background

. The color picker appears.

b

Select a color and click

OK

.

Click

OK

.

Guide to the ArchestrA Alarm Control

32 Chapter 2 Configuring the Alarm Control

Setting Return To Normal Record Colors

You can set text color and background color for "return to

normal" alarm records. Use the

AlarmColor.RTN.ForeGround

Property

and

AlarmColor.RTN.BackGround Property

properties

in scripting to set the "return to normal" alarm record text color and background color at run time.

To set text and background colors for "return to normal" records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Colors

. The

Colors

page appears.

Configure the "return to normal" record text color. Do the following:

a

Click the color field next to

Alarm RTN

and under

Text

.

The color picker appears.

4

5 b

Select a color and click

OK

.

Configure the "return to normal" record background color. Do the following:

a

Click the color field next to

Alarm RTN

and under

Background

. The color picker appears.

b

Select a color and click

OK

.

Click

OK

.

Setting Heading, Grid, and Window Color

You can set text color and background color for the heading, the grid color, and the Alarm Control window color. Use the

corresponding

HeadingColor.ForeGround Property

,

HeadingColor.BackGround Property

WindowColor Property

,

GridColor Property

, and

properties in scripting to set the colors for heading, grid, and window.

To set heading, grid, and window color for the Alarm Control

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

Guide to the ArchestrA Alarm Control

Setting Alarm Control Colors 33

2

Click

Colors

. The

Colors

page appears.

3

Do one of the following:

a

Configure the heading text color by clicking the color box next to

Heading

and under

Text

. If the color box does not open, you need to select the

Show Heading

option on the

Run-Time Behavior

page first.

b

Configure the heading background color by clicking the color box next to

Heading

and under

Background

. If the color box does not open, you need to select the

Show Heading

option on the

Run-Time Behavior

page first.

c d

Configure the grid color by clicking the color box next to

Grid

. If the color box does not open, you need to select the

Show Grid

option on the

Run-Time Behavior

page first.

Configure the window color by clicking the color box next to

Window

.

Guide to the ArchestrA Alarm Control

34 Chapter 2 Configuring the Alarm Control

Setting Priority Ranges for Alarm Records

You can use alarm priority ranges to filter alarms. The

Alarm Control can show alarms within a given range with a different text and background color. Use the

AlarmColor.Range Property property group in scripting

to set the breakpoints at run time.

The Alarm Control supports four alarm ranges defined by three breakpoints:

1 < breakpoint 1 < breakpoint 2 < breakpoint 3 < 999

To set priority ranges for alarm records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Colors

. The

Colors

page appears.

In the

From Pri

column in the list at the right, locate the break point you want to change. These are values except

1 or 999.

Click on the value and type a new value in the range between the previous breakpoint and the next breakpoint.

5

6

Press

Enter

. All priority values in the list are updated.

Click

OK

.

Guide to the ArchestrA Alarm Control

Setting Alarm Control Colors 35

Example

If you use the color configuration in the procedure above, the

Alarm Control at run time could have following appearance:

Setting Colors for Acknowledged Alarms

You can set the text and background colors for records of acknowledged alarms. For each of the priority ranges, you can set a text color and a background color. Use the

AlarmColor.Ack.ForeGround Property

and

AlarmColor.Ack.BackGround Property

property groups in scripting to set the text color and background color for acknowledged alarms in each priority range at run time.

To set colors for acknowledged alarm records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

5

6

Click

Colors

. The

Colors

page appears.

In the list at the right, locate the

Ack

record and priority range for which you want to change the text or background color.

Click the color box in the

Text

or

Background

column of the line. The color picker appears.

Select a color and click

OK

.

Click

OK

.

Guide to the ArchestrA Alarm Control

36 Chapter 2 Configuring the Alarm Control

Setting Colors for Unacknowledged Alarms

You can set the text and background colors for records of unacknowledged alarms. For each of the priority ranges, you can set a text color and a background color. Use the

AlarmColor.UnAck.ForeGround Property

and

AlarmColor.UnAck.BackGround Property

property groups in scripting to set the text color and background color for unacknowledged alarms in each priority range at run time.

To set colors for unacknowledged alarm records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

5

6

Click

Colors

. The

Colors

page appears.

In the list at the right, locate the

Unack

record and priority range for which you want to change the text or background color.

Click the color box in the

Text

or

Background

column of the line. The color picker appears.

Select a color and click

OK

.

Click

OK

.

Setting Unacknowledged Alarms to Flash

Instead of showing unacknowledged alarm records in predefined constant text and background color, you can configure the Alarm Control to flash unacknowledged alarms in another text and background colors.

The unacknowledged alarm records flash between the colors of the Unack alarms and the colors of the Flash Unack alarms. Use the

FlashUnAckAlarms Property

Boolean property in scripting to set unacknowledged alarm records to flash at

run time. Use the

AlarmColor.UnAck.Flash.ForeGround

Property

and

AlarmColor.UnAck.Flash.BackGround Property

property groups in scripting to set the text color and background color for flashing unacknowledged alarms in each priority range at run time.

To set flashing and colors for unacknowledged alarm records

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Colors

. The

Colors

page appears.

Select the

Flash Unack Alarms

check box.

Note

You cannot select the Flash UnAck Alarms check box if the client mode is set to one of the historical modes.

Guide to the ArchestrA Alarm Control

Renaming, Resizing, and Reordering Column Headers 37

4

5

6

In the list on the right, locate the

Unack

record and priority range for which you want to change the text or background color. Do the following:

a

Click the color box in the

Text

or

Background

column of the line. The color picker appears.

Select a color and click

OK

.

b

Locate the

Flash Unack

record and priority range for which you want to change the text or background color.

Do the following:

a

Click the color box in the

Text

or

Background

column of the line. The color picker appears.

b

Select a color and click

OK

.

Click

OK

.

Renaming, Resizing, and Reordering Column

Headers

You can rename, resize, and change the order of column headers in the Alarm Control. reset all settings sorting order column names and widths column order grid preview

All changes you make in the Column Details list are shown in the grid preview.

You can also use the grid preview to resize columns or change their order with the pointer.

Guide to the ArchestrA Alarm Control

38 Chapter 2 Configuring the Alarm Control

Renaming Column Headers

You can rename the column headers in the Alarm Control.

To rename column headers

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Column Details

. The

Column Details

page appears.

In the

Column Details

list, locate the column header you want to rename and click on it.

Type a new name and press

Enter

. The

Column Details

list and the grid preview are updated.

5

Click

OK

.

Resizing Columns

You can resize the column headers in the Alarm Control either by:

Typing in a numeric value.

Dragging the column header boundary width with the pointer in the grid preview.

To resize the column numerically

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Column Details

. The

Column Details

page appears.

In the

Column Details

list, locate the name of the column you want to resize and click on the

Width

value in the row.

Guide to the ArchestrA Alarm Control

Renaming, Resizing, and Reordering Column Headers 39

4

Type a new width in pixels and press

Enter

. The

Column

Details

list and the grid preview are updated.

5

Click

OK

.

To resize the column graphically

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Column Details

. The

Column Details

page appears.

In the grid preview, locate the column you want to resize and drag the column boundary to resize the column. The width value of the

Column Details

list is updated.

Click

OK

.

Changing the Order of Columns

You can change the order of the columns in the Alarm

Control by:

Moving column names up and down in the

Column Details

list using buttons.

Dragging the column header with the pointer in the grid preview.

You also can reset the column widths and order to their default values. Resetting the column widths and order also resets the names to their default values.

To change the column order

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Column Details

. The

Column Details

page appears.

Guide to the ArchestrA Alarm Control

40 Chapter 2 Configuring the Alarm Control

3

Do one of the following:

Click arrow up and arrow down to reposition the columns.

In the grid preview, drag the name of the column you want to reposition and drop it to the left of another column to reposition it.

4

The grid preview and the

Column Details

list shows the new column order.

Click

OK

.

To reset column widths and order

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Column Details

. The

Column Details

page appears.

Click

Reset

. The column widths, names, and order are reset to their default values.

Click

OK

.

Guide to the ArchestrA Alarm Control

Sorting Alarms 41

Sorting Alarms

You can configure how the Alarm Control sorts alarm records at run time. By default, the Alarm Control lists alarm records by time in ascending order.

You can sort alarm records in ascending or descending order based on a primary column, an optional secondary sort column, and an optional tertiary sort column.

You can configure the sorting columns and directions either

in lists or with the grid preview. Use the

SortColumn.First

Property

,

SortColumn.Second Property

, and

SortColumn.Third

Property

properties in scripting to set the columns to be sorted at run time. Use the

SortOrder.First Property

,

SortOrder.Second Property

, and

SortOrder.Third Property

properties in scripting to set the sort direction for each at run time.

To set sorting columns and directions with lists

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Column Details

. The

Column Details

page appears.

In the

Sorting

area, do the following:

a b

Select the primary sort column in the

First Sort

Column

list and a sorting direction in the list to its right.

Optionally, select the secondary sort column in the

Second Sort Column

list and a sorting direction in the list to its right.

c

If you set the

Second Sort Column

, optionally select the tertiary sort column in the

Third Sort Column

list and a sorting direction in the list to its right.

The grid preview is updated and shows arrows for the sorted columns and their sort directions.

Guide to the ArchestrA Alarm Control

42 Chapter 2 Configuring the Alarm Control

To set sorting columns and directions with the grid preview

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Column Details

. The

Column Details

page appears.

In the grid preview, click on a column to select it for sorting. An arrow appears on the column header and the change is also shown in the

Sorting

area lists.

To change the sorting direction, click on the column header again. The arrow changes on the column header and the change is also shown in the

Sorting

area lists.

6

7

Note

If you click on a column header after releasing the Shift key, all sorting information is lost and the selected column is the new primary sorting criteria.

5

To set secondary and tertiary sorting, hold the

Shift

key and repeat from step 3.

Release the

Shift

key.

Click

OK

.

Filtering Alarms

You can filter current and historical alarms by using query filters. A query filter is a collection of filter criteria in a logical construct.

For example, you can filter alarms by defining a query filter that only shows alarms with priorities larger than 500 and smaller than 750.

You can re-use the filter queries you define for historical alarms for current alarms and vice versa. You can also re-use filter queries you define at design-time at run time and vice versa.

Important

Query filters for current alarms and recent alarms and events require at least Provider and Group as filter criteria.

These must use the equals sign.

When you use TimeLCT, TimeOAT, or TimeLCTOAT as filter criteria for historical alarm modes, you need make sure that the TimeSelector.StartDate and TimeSelector.EndDate properties do not limit the query. Otherwise the Alarm

Control can possibly not return all alarm and event records.

Set the TimeSelector.StartDate property earlier than any time filtering requirement, and the TimeSelector.EndDate later than any time filtering requirement.

Guide to the ArchestrA Alarm Control

Filtering Alarms 43

Using Wildcards in Queries

In current alarm queries, you can use wildcards only in the

Tagname part of the query and not in the Provider, Group, or

Node part of the query. A valid example is:

\galaxy!Mixing!RotorBlade*

In query filters that are used for current queries, the same restrictions apply.

In query filters that are used for historical queries, you must convert the operator and wildcard to SQL syntax according to the following table:

Operator

Wildcard

Current Query

=

*

Historical Query

Like

%

For example:

Provider = ‘galaxy’ AND Group = ‘Mixing’

AND Name Like ‘RotorBlade%’

If you want to use a query filter containing a wildcard for a current query and a historical query, create two separate query filters.

Using an Existing Query Filter

You can use an existing query filter to filter the alarms shown in the ArchestrA Alarm Control. You can also use the

Favorite Property

string property in scripting to switch to an existing query filter at run-time.

To use an existing query filter

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Query Filters

. The

Query Filters

page appears.

In the

Query Filter Favorites

list, select a query filter.

Click

OK

.

Guide to the ArchestrA Alarm Control

44 Chapter 2 Configuring the Alarm Control

Adding a New Query Filter

You can define a new query filter to filter the alarms shown in the ArchestrA Alarm Control. The new query filter is saved as a favorite in the

Query Filter Favorites

list.

To add a new query filter

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Query Filters

. The

Query Filters

page appears.

3

Click

Add

. The

Add Filter

dialog box appears.

For more information, see Constructing Filters on page 45.

Guide to the ArchestrA Alarm Control

Filtering Alarms 45

Constructing Filters

You use the

Add Filter

or

Modify Filter

dialog box to create or edit a filter graphically.

Logical associations

Condition setting

Filter criteria Construction area

To construct a filter

1

If you want to change the filter name, type a new unique name in the

Filter Name

box.

2

Add filter criteria to the construction area by selecting a column name on the left and clicking the right arrow button. When you add filter criteria to the construction area, they are automatically logically connected by AND.

3

4

5

If necessary, remove filter criteria by selecting them in the filter construction area and clicking the left arrow button.

To change the logical operator, select it in the filter construction area, and then either:

Click

AND

or

OR

.

Right-click and select

AND

or

OR

from the shortcut menu.

To group filter criteria logically, either:

Drag a filter criteria in the construction area over another filter criteria.

Guide to the ArchestrA Alarm Control

46 Chapter 2 Configuring the Alarm Control

Select one filter criteria, click

Group

, and then click the other filter criteria.

6

By default, the filter criteria are logically grouped with

AND. If necessary, you can select the

AND

item in the tree and click

OR

to change it to an OR grouping.

Assign values to filter criteria.

Note

If you are using the Value column as a filter criteria, you may get unexpected results at run time. The items in the Value column are sorted alphabetically, not numerically. This is because the Value column can contain strings.

Do the following:

a

Select a filter criteria in the construction area.

b c

Select an operator from the

Operator

list.

Type or select a value in the

Value

box.

7

8 d

Click

Set

. The filter criteria is updated in the construction area.

To cut, copy, or paste individual filter criteria or filter criteria branches, right-click on the filter criteria and select the appropriate option from the shortcut menu.

When you are done, click

OK

.

Guide to the ArchestrA Alarm Control

Filtering Alarms 47

Modifying an Existing Query Filter

You can modify an existing query filter using the

Modify

Filter

dialog box.

To modify an existing query filter

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Query Filters

. The

Query Filters

page appears.

Select an existing query filter in the

Query Filter Favorites

list.

4

5

Click the ellipsis button. The

Modify Filter

dialog box

appears. For more information, see Constructing Filters on page 45.

Click

OK

.

Deleting a Query Filter Favorite

You can delete any non-default query filter favorites.

To delete a query filter favorite

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

5

Click

Query Filters

. The

Query Filters

page appears.

Select an existing query filter in the

Query Filter Favorites

list.

Click the

Delete

button.

When a message appears, click

Yes

.

Exporting Query Filter Favorites

You can export the query filter favorites list to an XML file.

The XML file containing the query filter favorites can be imported to other Alarm Control in design time or run time.

Do not edit this file directly. The default query filter favorite is not exported to the XML file.

To export the query filter favorites list

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Query Filters

. The

Query Filters

page appears.

Click the

Export

button. The

Export Query Filter Favorites

dialog box appears.

Select a location and a name for the XML file and click

Save

.

Guide to the ArchestrA Alarm Control

48 Chapter 2 Configuring the Alarm Control

Importing Query Filter Favorites

You can import the query filter favorites list from an XML file.

To import the query filter favorites list

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Query Filters

. The

Query Filters

page appears.

Click

Import

. The

Import Query Filter Favorites

dialog box appears.

4

5

In the

Import Option

list, click either:

• Append

to append the imported query filters to the existing query filters. If query filter names in the imported XML conflict with existing query filters, you are prompted to confirm the import for each filter.

• Overwrite

to replace all existing query filters with the imported query filters.

Browse to the XML file and click

Open

.

Setting Time Zone and Format

You can set the time zone in which the client shows the alarm and event records. By default, the time zone is set to the client computer’s current time zone at design time. Use

the

TimeZone.TimeZone Property

,

Time.Type Property

, and

Time.Format Property

properties in scripting to set the time zone, time type, and time format at run time.

Guide to the ArchestrA Alarm Control

Setting Time Zone and Format 49

You can also set the time format of the alarm and event records. You can select between two different time format sets:

Wonderware Time Format: same as the InTouch Alarm

Viewer control and InTouch Alarm DB View control of

InTouch version 10.0 and later.

.NET Time Format: defined by Microsoft .NET

Framework time format conventions.

Setting the Time Zone

You can set the time zone in which the Alarm Control shows the alarm and event records.

You can either set the time display to a predefined time zone, or to the client time zone. The client time zone is the time zone of the computer on which the Alarm Control is running.

The

Client Time Zone

setting is useful if you are deploying an application using the Alarm Control to a different time zone.

For example, if you develop your application in the “Pacific

Time” zone and deploy it to two computers in the time zones

“Central Time” and “Eastern Time”, you can ensure the

Alarm Control shows the local time for each deployment by setting the time zone to

Client Time Zone

.

To set the time zone

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Time Settings

. The

Time Settings

page appears.

3

4

In the

Time Zone

list, select a time zone.

Click

OK

.

Guide to the ArchestrA Alarm Control

50 Chapter 2 Configuring the Alarm Control

Setting the Wonderware Time Format

You can set the Wonderware time format in which the Alarm

Control shows the alarm and event records. You can either use a predefined datetime format, or compose one.

To set the Wonderware time format

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Time Settings

. The

Time Settings

page appears.

In the

Time Format

area, do the following:

4 a b

Make sure

Use .NET Time Format

is cleared.

Click a date format from the list at the left. The equivalent date format code appears in the box above.

c

Click a time format from the list at the right. The equivalent time format code is appended to the format string in the box above.

If you want to customize the datetime format, modify the codes in the box as follows:

%d

%Y

%y

%#x

Code

%m

%b

%B

Purpose

Two-digit month

Three-letter month

Full month name

Two-digit day

Four-digit year

Two-digit year

Full day and date

5

%H

%I

%M

%S

%s

%p

Click

OK

.

Hours in 24 hour format

Hours in 12 hour format

Minutes

Seconds

Milliseconds

AM or PM

55

34

223

PM

Example

03

Mar

March

17

2008

08

Tuesday, March

11, 2008

14

2

Guide to the ArchestrA Alarm Control

Setting Time Zone and Format 51

Setting the .NET Datetime Format

You can set the .NET datetime format in which the Alarm

Control shows the alarm and event records. You can either use a predefined datetime format, or compose one. The predefined date format is based on the short date format setting of the operating system and may vary from computer to computer.

To set the .NET datetime format

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Time Settings

. The

Time Settings

page appears.

In the

Time Format

area, do the following:

4 a b

Select the

Use .NET Time Format

check box.

Click a date format from the list at the left. The equivalent date format code appears in the box above.

c

Click a time format from the list at the right. The equivalent time format code is appended to the format string in the box above.

If you want to customize the datetime format, modify the codes in the box as in the table below. For more information, see the Microsoft Knowledge database on

.NET datetime formats.

yy

HH hh mm

Code

M

MM

MMM

Purpose

Single-digit month

Two-digit month

Three-letter month

MMMM Full month name d Single-digit day dd ddd dddd yyyy

Two-digit day

Abbreviated day of the week

Day of the week

Four-digit year

Example

9

09

Sep

September

8

08

Mon.

Monday

2008

Two-digit year

Hours in 24 hour format

Hours in 12 hour format

Minutes

08

14

2

55

Guide to the ArchestrA Alarm Control

52 Chapter 2 Configuring the Alarm Control

5

Code

ss fff tt

Click

OK

.

Purpose

Seconds

Milliseconds

AM or PM

Example

34

223

PM

Configuring Run-Time Behavior

You can configure the behavior and appearance of the Alarm

Control at run time, for example:

Showing and Hiding parts of the Alarm Control.

Specifying if the Alarm Control queries the alarm database when it starts up.

Scrolling to new alarms.

Hiding warnings, errors, and messages.

Restricting operator access to parts of the Alarm Control.

Specifying Alarm Control freeze behavior.

Customizing the "no records" message.

Customizing the run-time shortcut menu.

Showing Heading, Grid, or Status Bar

You can show and hide parts of the Alarm Control at run time, such as the heading, grid, or status bar. Use the

ShowHeading Property, ShowGrid Property, and

ShowStatusBar Property properties in scripting to show

or hide the heading, grid, and status bar at run time.

Heading

Grid

Status

Bar

Caution

If you hide the status bar, you will not be able to see important indicators, such as the New Alarms, Hidden Alarms, and

Frozen Grid indicators.

Guide to the ArchestrA Alarm Control

Configuring Run-Time Behavior 53

To show the heading, grid, or status bar at run time

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Show or hide the part. Do any of the following:

Select the

Show Heading

check box to show the heading at run time, or clear it to hide the heading at run time.

Select the

Show Grid

check box to show the grid at run time, or clear it to hide the grid at run time.

Select the

Show Status Bar

check box to show the status bar at run time, or clear it to hide the status bar at run time.

Click

OK

.

Automatically Querying for Alarms on Start Up

You can configure the Alarm Control to automatically query the Alarm Manager or Alarm Database when the control

starts up at run time. Use the QueryStartup Property

property in scripting to control the start up behavior at run time.

By default, current alarms and recent alarms and events are automatically queried when the Alarm Control starts at run time. You can disable the automatic query if the Alarm

Control is:

Configured to mainly use query filters.

Driven mainly by scripts.

To query the Alarm Manager or Alarm Database automatically on start up

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Select the

Query on Startup

check box.

Click

OK

.

Guide to the ArchestrA Alarm Control

54 Chapter 2 Configuring the Alarm Control

Scrolling Automatically to New Alarms

If the operator is viewing multiple pages of alarms, new alarms may go unnoticed. You can configure the Alarm

Control to scroll automatically to new alarms. Use the

AutoScroll Property

Boolean property in scripting to scroll automatically to new alarms.

However, if the Alarm Control scrolls automatically to new alarms, it may be hard for the operator to view and analyze older alarms if new alarms occur. If the Alarm Control is frozen, it will not scroll automatically to new alarms.

To scroll automatically to new alarms

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Select the

Auto Scroll to New Alarms

check box.

Click

OK

.

Hiding Errors, Warnings, and Status Messages

You can prevent a message dialog box from opening when errors, warnings, or status messages occur in the Alarm

Control. Even if you hide errors, warnings, and status messages, the messages are sent to the ArchestrA Logger.

Use the

HideErrors Property

property in scripting to hide error, warning, and status messages at run time.

To hide error and warning messages

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Select the

Hide Errors and Warnings

check box.

Click

OK

.

Guide to the ArchestrA Alarm Control

Configuring Run-Time Behavior 55

Restricting User Access to Rows and Columns

You can prevent the operator from:

Resizing columns.

Selecting rows.

Selecting multiple rows.

Use this feature for interfaces where it is easy to accidentally resize columns or select rows. For example, if the Alarm

Control is running on a small display, use the

AllowColumnResize Property

and

RowSelection Property

properties in scripting to control the ability to resize columns and select rows at run time.

To prevent the operator from resizing columns

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Clear the

Allow Column Resizing

check box.

Click

OK

.

To prevent the operator from selecting rows

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

In the

Row Selection

list, click:

• No

to prevent operator from selecting rows.

• Single

to allow operator to only select one row.

• Multiple

to allow operator select multiple rows.

Click

OK

.

Guide to the ArchestrA Alarm Control

56 Chapter 2 Configuring the Alarm Control

Retain Hiding when Changing Alarm Query Filter

You can configure the Alarm Control to hide alarms even if the alarm query filter changes. Use the

RetainHidden

Property

property in scripting to retain the hiding of alarms

at run time.

To retain hiding when change the alarm query filter

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Select the

Retain Hidden

check box.

Click

OK

.

Overriding the Frozen Grid

You can configure the Alarm Control to unfreeze the grid after a given time in seconds. Use this option to make sure that new alarms appear on the grid after a specified time.

Use the

AutoResumeDuration Property

property in scripting to

unfreeze the Alarm Control after a certain duration at run time.

The Alarm Control also unfreezes if you change one of the following:

Alarm Mode

Alarm Query

Query Filter

To override the frozen grid

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Select the

Auto Resume after

check box and type the number of seconds after which the grid unfreezes.

Click

OK

.

Guide to the ArchestrA Alarm Control

Configuring Run-Time Behavior 57

Customizing the “No Records” Message

You can customize the message that appears when there are no records to show in the grid. Use the

NoRecordsMessage.Enabled Property

and

NoRecordsMessage.Message Property

properties in scripting to customize the "no records" message at run time.

To customize the "no records" message

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

4

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

Select the

Show Custom ‘No Records’ Message

check box and type a message you want to show in the Alarm

Control when there are no alarm records.

Click

OK

.

Changing the Language of the “No Records” Message

You can change the language of the message that appears when there are no records to show in the grid.

To change the language of the “No Records” Message

1

Right-click on the canvas and click

Scripts

. The

Edit

Scripts

dialog box appears.

2

Click the Add icon and give the script a name, for example ChangeLanguage.

3

4

5

6

In the

Expression

box, type: intouch:$Language

In the

Trigger

list, click

DataChange

.

In the script area, type the following:

If intouch:$Language == 1033 then ' Switch to

English

AlarmClient1.NoRecordsMessage.Message = "No

Records"; else If intouch:$Language == 1031 then ' Switch to German

AlarmClient1.NoRecordsMessage.Message = "Keine

Einträge"; else if intouch:$Language == 1036 then '

Switch to French

AlarmClient1.NoRecordsMessage.Message =

"Aucun enregistrement"; endif; endif; endif;

Click

OK

.

Guide to the ArchestrA Alarm Control

58 Chapter 2 Configuring the Alarm Control

Configuring the Run-Time Shortcut Menu

You can configure the run-time shortcut menu to show only selected options or to be hidden at run time. The shortcut menus of the Alarm Control showing historical alarms (or events) and the Alarm Control showing current alarms (or recent alarms and events) are different.

Current alarms mode Historical alarms mode

For the current alarms shortcut menu, you can also show or hide entire shortcut submenus. Use the

ContextMenu.*

and

the

ShowContextMenu Property

properties in scripting to

control if shortcut menu items appear or not at run time. For

more information, see the ContextMenu.AckAll Property on page 95 and following.

To hide the shortcut menu

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

3

4

Clear the

Show Context Menu

check box.

Click

OK

.

Guide to the ArchestrA Alarm Control

Configuring Run-Time Behavior 59

To show or hide shortcut menu options

1

Double-click the Alarm Control on the canvas. The

Edit

Animations

dialog box appears.

2

3

Click

Run-Time Behavior

. The

Run-Time Behavior

page appears.

Make sure the

Show Context Menu

check box is selected.

4

5

In the shortcut menu lists, do the following:

a

Select the options you want to appear on the run-time shortcut menu (if applicable for the selected client mode).

b

Clear the options you want to hide from the operator on the run-time shortcut menu.

Click

OK

.

Guide to the ArchestrA Alarm Control

60 Chapter 2 Configuring the Alarm Control

Guide to the ArchestrA Alarm Control

Chapter 3

Using the Alarm Control at Run

Time

61

This section shows how you can interact with the Alarm

Control at run time, such as:

Refreshing the Alarm Control grid to show the most current alarms.

Using the status bar to view various information about the alarm records.

Acknowledging, hiding, filtering, or sorting alarms.

Freezing the Alarm Control grid.

Switching between client modes.

Switching between languages.

Guide to the ArchestrA Alarm Control

62 Chapter 3 Using the Alarm Control at Run Time

Refreshing the Alarm Control Grid

You can refresh the Alarm Control grid at run time.

Depending on which client mode is selected, the Alarm

Control:

Requeries the Alarm Manager for latest current alarm records from all configured providers.

Retrieves alarm record data from the Alarm Database based on the time range settings.

To refresh the alarm control grid

1

Right-click the Alarm Control grid at run time. The shortcut menu appears.

2

Click

Requery

.

Using Status Bar Information

The status bar shows you information about the current

Alarm Control grid. Depending on the client mode, the status bar information shows different information.

Using Status Bar Information of Current Modes

If the Alarm Control is showing current alarms or recent alarms and events, the status bar shows the following:

Element

Client Mode

Icon(s)

New Alarms

Hidden Alarms

Frozen Grid

Description

Indicates the Alarm Control is showing current alarms (or recent alarms and events).

Appears if new alarms have occurred. If you move the pointer over the indicator, the tooltip shows you how many alarms are unacknowledged.

Appears if any alarms are currently hidden. If you move the pointer over the indicator, the tooltip shows you how many alarms are hidden.

Appears if the Alarm Control is currently frozen.

Guide to the ArchestrA Alarm Control

Using Status Bar Information 63

Element

Alarm Records

Icon(s) Description

Shows the total number of alarm records and which alarms are currently shown.

Query Filter

Shows the name of the current query filter favorite.

Retrieval

Shows the percentage of alarms retrieved from all alarm providers.

If this percentage is less than 100%, not all alarm providers are providing alarm data.

Use the

Alarm Statistics

dialog box to detect which alarm providers are not providing alarm data.

Time Zone

Shows the current time zone of the Alarm

Control. Move the pointer over the time zone to show the full information in a tool tip.

Guide to the ArchestrA Alarm Control

64 Chapter 3 Using the Alarm Control at Run Time

Using Status Bar Information of Historical Modes

If the Alarm Control is showing historical alarms or events, the status bar shows the following:

Element

Client Mode

Description

Indicates the Alarm Control is showing historical alarms and/or events.

Alarm Records

Shows the total number of alarm records and which alarms are currently shown.

Alarm Database

Shows the name of the server hosting the

Alarm Database and the Alarm Database name.

Connection Status

Shows the connection status to the Alarm

Database.

Time Zone

Shows the current time zone of the Alarm

Control. Move the pointer over the time zone to show the full information in a tool tip.

Requery

Click this button to retrieve latest alarm records from the Alarm Database.

Guide to the ArchestrA Alarm Control

Acknowledging Alarms 65

Acknowledging Alarms

You can acknowledge alarm records in alarm state directly from the Alarm Control. You can acknowledge:

One or more selected alarms.

All alarms, including alarms not visible due to the limited space of the Alarm Control.

All visible alarms.

All alarms with common values, such as provider names, group names, priority ranges, and tag names. You can simplify alarm acknowledgement for the operator by using methods in scripting. For more information, see

Ack.All() Method on page 125.

To acknowledge a selected alarms using the Alarm Control grid

1

Select one or more alarms in alarm state.

2

3

4

Right-click the Alarm Control grid and click

Ack Selected

.

If no default acknowledgement statement is configured for the Alarm Control, the

Ack Comment

dialog box appears.

Type an alarm acknowledgement comment and click

OK

.

To acknowledge other alarms using the Alarm Control grid

1

Select one or more alarms in alarm state.

2

Right-click the Alarm Control grid, point to

Ack Others

, and click one of the following:

• Ack All

to acknowledge all alarms in alarm state.

• Ack Visible

to acknowledge all visible alarms.

• Ack Selected Group

to acknowledge alarms with the same provider names and group names of one or more selected alarms in alarm state.

• Ack Selected Tag

to acknowledge alarms with the same provider names, group names, and tag names within the priority ranges of one or more selected alarms in alarm state.

• Ack Selected Priority

to acknowledge alarms with the same provider names, group names, and within the priority ranges of one or more selected alarms in alarm state.

3

4

If no default acknowledgement statement is configured for the Alarm Control, the

Ack Comment

dialog box appears.

Type an alarm acknowledgement comment and click

OK

.

Guide to the ArchestrA Alarm Control

66 Chapter 3 Using the Alarm Control at Run Time

Sorting Alarms at Run Time

You can sort alarms at run time in similar way as design time. Any changes you make to the sorting at run time are lost when you switch back to design time. You can simplify alarm sorting for the operator by using methods in scripting.

For more information, see SetSort() Method on page 141 and

Show.Sort() Method on page 142.

Note

If you are sorting by the Value column, the items in the column are sorted alphabetically, not numerically. This is because the Value column can contain strings.

To set sorting columns and directions with lists at run time

1

Right-click the Alarm Control grid and click

Sort

. The

Sort

dialog box appears.

2

3

4

5

In the

First Sort Column

list, select the first sort column and a sorting direction in the list to its right.

Optionally, select the second sort column in the

Second

Sort Column

list and a sorting direction in the list to its right.

If you set the

Second Sort Column

, optionally select the third sort column in the

Third Sort Column

list and a sorting direction in the list to its right.

Click

OK

.

To set sorting columns and directions in the grid at run time

1

In the Alarm Control grid, click on a column header to set sorting for the column. An arrow appears on the column header.

2

To change the sorting direction, click on the column header again. The arrow changes direction on the header.

Note

If you click on a column header after releasing the Shift key, all sorting information is lost and the selected column is the new primary sorting criteria.

3

4

To set sorting for second and third columns, repeat step 3 while pressing the

Shift

key.

Release the

Shift

key.

Guide to the ArchestrA Alarm Control

Filtering Alarms at Run Time 67

Filtering Alarms at Run Time

You can filter alarms at run time by using the filters you defined at design time.

If you did not define a filter according to your needs at design time, you can still create new filters at run time, or modify existing filters.

If you saved filters to an XML file, you can load them from a file at run-time.

Filters you define at run-time are not saved for use at design-time. To re-use filters you create or modify at run-time, export the filter list to an XML file, and import the

XML file at design-time.

If you are showing historical alarms or events, you can use the filtering mechanism provided by the grid technology instead of using filter favorites.

Using an Existing Query Filter

At run time, you can use any filter you defined at design time, regardless if you defined it for the current modes or historical modes. You can also use scripting to switch to an

existing query filter. For more information, see Favorite

Property on page 106.

To use an existing query filter

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

Select the filter from the list and click

OK

. The alarm records are filtered and the current filter name appears in the status bar.

Guide to the ArchestrA Alarm Control

68 Chapter 3 Using the Alarm Control at Run Time

Adding a New Query Filter

At run time, you can create new query filters to limit the number of alarm records.

The new query filters are not stored for future use and are only valid for the current session. If you want to store them for future use, you must also export the query filters to an

XML file. For more information, see Exporting Query Filter

Favorites on page 69.

To add a new query filter

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

The configuration is the same as in design time. For more

information, see Adding a New Query Filter on page 44.

Modifying an Existing Query Filter

At run time, you can modify a query filter.

The modification of query filters is not saved for future use and is only valid for the current session. If you want to save the modifications, you must also export the query filters to an

XML file. For more information, see Exporting Query Filter

Favorites on page 69.

To modify an existing query filter

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

The configuration is the same as in design time. For more

information, see Modifying an Existing Query Filter on page 47.

Guide to the ArchestrA Alarm Control

Filtering Alarms at Run Time 69

Deleting a Query Filter

At run time, you can delete a query filter.

After you delete a query filter at run time, it is only deleted for the current session. If you want to save the list of query filters without the deleted query filter, you must export the query filters to an XML file. For more information, see

Exporting Query Filter Favorites on page 69.

To delete an existing query filter

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

The configuration is the same as in design time. For more

information, see Deleting a Query Filter Favorite on page 47.

Importing Query Filter Favorites

At run time, you can import the list of query filters from an

XML file.

To import Query Filter Favorites

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

The configuration is the same as in design time. For more

information, see Importing Query Filter Favorites on page 48.

Exporting Query Filter Favorites

At run time, you can export the list of query filters to an XML file for future use. After exporting, you can import the query filter from the XML into design time.

Note

The default query filter favorite is not exported to the XML file.

To export Query Filter Favorites

1

Right-click the Alarm Control grid and click

Query Filters

.

The

Query Filters

dialog box appears.

2

The configuration is the same as in design time. For more

information, see Exporting Query Filter Favorites on page 47.

Guide to the ArchestrA Alarm Control

70 Chapter 3 Using the Alarm Control at Run Time

Filtering Alarms with Client-Based Filtering

The grid technology used in the Alarm Control lets you filter the grid contents after the data has been retrieved from the data source.

You can filter historical alarms and/or events in the following ways for any selected column:

Filter

(All)

(Custom)

(Blanks)

(NonBlanks)

Description

No filtering, all records are shown for the selected column.

Lets you configure a more complex filter for the selected column, for example a filter that can compare values of different columns.

Filters by showing blank values only.

Filters by showing non blank values only.

Filters by the selected value.

Values

If a filter is applied to any column in the Alarm Control, the filter icon in the column header appears in blue .

Guide to the ArchestrA Alarm Control

Filtering Alarms at Run Time 71

To filter alarms with client-based filtering

1

Click the filter icon on the column you want to filter by. A menu appears.

2

Select one of the following:

• (All)

to switch off filtering.

• (Custom)

to define a more complex filter.

• (Blanks)

to filter by blank values.

• (NonBlanks)

to filter by non blank values.

A value to filter by the value.

If you selected

(Custom)

, a dialog box appears.

Guide to the ArchestrA Alarm Control

72 Chapter 3 Using the Alarm Control at Run Time

3

Do one of the following:

Select a different operator for the current condition.

Type or select a different operand for the current condition. The operand can be a value, or the value of a different column in the same row.

Click

Add a condition

to add more conditions to the filter.

4

Click

Delete Condition

to delete one or more selected conditions. (You can mark the condition by clicking on the button to the left of each condition.)

Click

OK

.

Guide to the ArchestrA Alarm Control

Resetting the Grid 73

Resetting the Grid

You can reset the column widths, column order, and names to their last design-time values. When you reset the grid, the query filter is also reset to its default. You can also reset the grid by using a method in scripting. For more information,

see Reset() Method on page 138.

To reset the grid

‹

Right-click the Alarm Control grid and click

Reset

.

Hiding Alarms

You can temporarily remove specified alarms from the Alarm

Control by hiding them. You can hide:

All alarms, including alarms not visible due to the limited space of the Alarm Control.

All visible alarms.

One or more selected alarms.

All alarms with the same provider names and group names of one or more selected alarms.

All alarms with the same provider names, group names, and within the priority ranges of one or more selected alarms.

All alarms with the same provider names, group names, and tag names within the priority ranges of one or more selected alarms.

You can also view which alarms are hidden and unhide them.

You can simplify alarm hiding and unhiding for the operator by using methods in scripting. For more information, see

Hide.All() Method on page 133.

To hide all alarms

‹

Right-click the Alarm Control grid, point to

Hide Others

, and click

Hide All

.

To hide all visible alarms

‹

Right-click the Alarm Control grid, point to

Hide Others

, and click

Hide Visible

.

Guide to the ArchestrA Alarm Control

74 Chapter 3 Using the Alarm Control at Run Time

To hide selected alarms

1

Select one or more alarms in alarm state.

2

Right-click the Alarm Control grid and click

Hide

Selected

.

To hide alarms with common parameters

1

Select one or more alarms.

2

Right-click the Alarm Control grid, point to

Hide Others

, and click one of the following:

• Hide Selected Group

to hide alarms with the same provider names and group names of one or more selected alarms.

• Hide Selected Tag

to hide alarms with the same provider names, group names, and tag names within the priority ranges of one or more selected alarms.

• Hide Selected Priority

to hide alarms with the same provider names, group names, and within the priority ranges of one or more selected alarms.

To unhide alarms

1

Right-click the Alarm Control grid and click

Hidden

. The

Hidden Alarms

dialog box appears.

2

3

Select the alarms you want to unhide and click

Unhide

.

Click

Close

.

Guide to the ArchestrA Alarm Control

Showing Alarm Statistics 75

Showing Alarm Statistics

You can view alarm statistics at run time to see which alarm providers are providing the alarm data. You can also use scripting to show alarm statistics at run time. For more

information, see Show.Statistics() Method on page 142.

To show alarm statistics

1

Right-click the Alarm Control grid and click

Statistics

.

The

Alarm Statistics

dialog box appears.

2

3

Note

If you use an Alarm Hotbackup name as alarm query, you can expand the Hotbackup name in the Alarm Statistics dialog box to show the individual percentages of retrieval for the configured primary and backup alarm provider.

Click

Update

to update the statistics.

Click

Close

.

Guide to the ArchestrA Alarm Control

76 Chapter 3 Using the Alarm Control at Run Time

Freezing and Unfreezing the Alarm Control

Grid

You can freeze the Alarm Control grid at run time so that no more updates are shown.

After you unfreeze the Alarm Control, the grid updates with the new alarm records and any other updates while the grid was frozen.You can also use scripting to freeze and unfreeze the Alarm Control grid at run time. For more information,

see FreezeDisplay() Method on page 131.

To freeze or unfreeze the Alarm Control grid

1

Right-click the Alarm Control grid. The shortcut menu appears.

2

A check mark next to the

Freeze

option indicates if the grid is currently frozen.

Click

Freeze

. The Alarm Control grid is either frozen or unfrozen.

Switching between Client Modes

You can switch between client modes at run time by changing the Alarm Control ClientMode property. The easiest way to do this, is to configure an ArchestrA script to interact with the Alarm Control ClientMode property at design time.

To switch between client modes

1

Place the Alarm Control on the ArchestrA symbol.

2

Paste a button on the canvas and change its caption to

Current Alarms

.

3

Double-click the button and configure it with the following action script:

AlarmControlGrid1.ClientMode = 1;

Guide to the ArchestrA Alarm Control

Switching between Client Modes 77

4

5

Click

OK

.

Repeat steps 2 to 4 for the following buttons:

Button Caption

Recent Alarms and Events

Action script

AlarmControlGrid1.ClientMode = 2;

Historical Alarms

AlarmControlGrid1.ClientMode = 3;

Historical Events

AlarmControlGrid1.ClientMode = 4;

Historical Alarms and Events

AlarmControlGrid1.ClientMode = 5;

8

9

6

7

Save and close the ArchestrA symbol.

Create a new managed InTouch application and open it in WindowMaker.

Place the ArchestrA symbol on a new InTouch window.

Switch to WindowViewer to test your application.

10

Click

Historical Alarms

to show historical alarms instead of current alarms.

By default, the Alarm Control tries to connect to the alarm database called WWALMDB on the local computer using the currently logged on user. If you are using a different configuration, you can use value input links or action script to set the following properties:

Database.ServerName Property

Database.UserID Property

Database.Password Property

Domain Property

Database.Name Property

Database.Authentication Property

Guide to the ArchestrA Alarm Control

78 Chapter 3 Using the Alarm Control at Run Time

Switching Run-Time Languages

You can switch the language of the Alarm Control in the same way as other parts of your InTouch application. When you switch language, the alarm state, alarm class, alarm type, and the various alarm comment fields are switched to the foreign language.

To switch the language

‹

Do one of the following:

In WindowViewer on the

Special

menu, point to

Languages

, and then click the language you want to switch to.

In WindowMaker, use the InTouch QuickScript

SwitchDisplayLanguage

in a button action script to switch the language. At run time, click the button to switch the language.

In WindowMaker, use the system tag $Language in a button action script and assign it to the language code you want to switch to. At run time, click the button to switch the language.

Guide to the ArchestrA Alarm Control

Chapter 4

Scripting the Alarm Control

79

This section shows you the properties, methods, and events for the Alarm Control.

Alarm Control Properties

This section describes all the properties available for scripting in the Alarm Control.

AckComment.DefaultValue Property

The AckComment.DefaultValue property is a read-write string property that gets or sets the default acknowledgement comment when the

AckComment.UseDefault property is TRUE.

Syntax

result = AlarmClient.AckComment.DefaultValue;

AlarmClient.AckComment.DefaultValue = ackComment;

Example

AlarmClient1.AckComment.UseDefault = 1;

AlarmClient1.AckComment.DefaultValue = "This alarm is acknowledged by John Smith";

Remarks

For more information, see Showing Current Alarms or

Recent Alarms and Events on page 25.

Guide to the ArchestrA Alarm Control

80 Chapter 4 Scripting the Alarm Control

AckComment.UseDefault Property

The AckComment.UseDefault property is a read-write

Boolean property that gets or sets the usage of the default acknowledgement comment.

Syntax

result = AlarmClient.AckComment.UseDefault;

AlarmClient.AckComment.UseDefault = useComment;

Example

AlarmClient1.AckComment.UseDefault = 1;

AlarmClient1.AckComment.DefaultValue = "This alarm is acknowledged by John Smith";

Remarks

For more information, see Showing Current Alarms or

Recent Alarms and Events on page 25.

AlarmColor.Ack.BackGround Property

The AlarmColor.Ack.BackGround property is an array of read-write integer properties that get or set the background colors of all acknowledged alarm records.

Index

0

1

2

3

4

Purpose

Sets the background color of all acknowledged alarm records in all priority ranges.

Gets or sets the background color of acknowledged alarm records in the priority range

1 to AlarmColor.Range[1].

Gets or sets the background color of acknowledged alarm records in the priority range

AlarmColor.Range[1] to AlarmColor.Range[2].

Gets or sets the background color of acknowledged alarm records in the priority range

AlarmColor.Range[2] to AlarmColor.Range[3].

Gets or sets the background color of acknowledged alarm records in the priority range

AlarmColor.Range[3] to 999.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 81

Syntax

Color = AlarmClient.AlarmColor.Ack.BackGround[n];

AlarmClient.AlarmColor.Ack.BackGround[n] = Color;

Parameters

n

Index from 0 to 4.

Color

Color of background.

Examples

AlarmClient1.AlarmColor.Ack.BackGround[0] = Color.Red;

AlarmClient1.AlarmColor.Ack.BackGround[1] =

Color.FromARGB(0,128,0);

AlarmClient1.AlarmColor.Ack.BackGround[2] = Color.Grey;

AlarmClient1.AlarmColor.Ack.BackGround[3] =

Color.Yellow;

AlarmClient1.AlarmColor.Ack.BackGround[4] =

Color.Black;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

82 Chapter 4 Scripting the Alarm Control

AlarmColor.Ack.ForeGround Property

The AlarmColor.Ack.ForeGround property is an array of read-write integer properties that get or set the text colors of all acknowledged alarm records.

Index

0

1

2

3

4

Purpose

Sets the text color of all acknowledged alarm records in all priority ranges.

Gets or sets the text color of acknowledged alarm records in the priority range 1 to

AlarmColor.Range[1].

Gets or sets the text color of acknowledged alarm records in the priority range

AlarmColor.Range[1] to AlarmColor.Range[2].

Gets or sets the text color of acknowledged alarm records in the priority range

AlarmColor.Range[2] to AlarmColor.Range[3].

Gets or sets the text color of acknowledged alarm records in the priority range

AlarmColor.Range[3] to 999.

Syntax

Color = AlarmClient.AlarmColor.Ack.ForeGround[n];

AlarmClient.AlarmColor.Ack.ForeGround[n] = Color;

Parameters

n

Index from 0 to 4.

Color

Color of text.

Examples

AlarmClient1.AlarmColor.Ack.ForeGround[0] =

Color.Black;

AlarmClient1.AlarmColor.Ack.ForeGround[1] = Color.Blue;

AlarmClient1.AlarmColor.Ack.ForeGround[2] =

Color.Green;

AlarmClient1.AlarmColor.Ack.ForeGround[3] =

Color.Yellow;

AlarmClient1.AlarmColor.Ack.ForeGround[4] =

Color.FromARGB(0,128,0);

Guide to the ArchestrA Alarm Control

Alarm Control Properties 83

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.Ack.RTN.BackGround Property

The AlarmColor.Ack.RTN.BackGround property is a read-write color property that gets or sets the background color of acknowledged alarm records that "return to normal"

(ACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.Ack.RTN.BackGround;

AlarmClient.AlarmColor.Ack.RTN.BackGround = Color;

Parameters

Color

Color of background.

Return Value

Returns the background color of acknowledged alarms that

"return to normal".

Example

AlarmClient1.AlarmColor.Ack.RTN.BackGround =

Color.Blue;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

84 Chapter 4 Scripting the Alarm Control

AlarmColor.Ack.RTN.ForeGround Property

The AlarmColor.Ack.RTN.ForeGround property is a read-write color property that gets or sets the text color of acknowledged alarm records that "return to normal"

(ACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.Ack.RTN.ForeGround;

AlarmClient.AlarmColor.Ack.RTN.ForeGround = Color;

Parameters

Color

Color of text.

Example

AlarmClient1.AlarmColor.Ack.RTN.ForeGround =

Color.Black;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.Range Property

The AlarmColor.Range property is an array of read-write integer properties that get or set the boundaries of the priority ranges.

You can use priority ranges to classify, group, and emphasize alarms and events belonging to a certain priority range.

The boundaries must fulfill the following condition:

1 < Range[1] < Range[2] < Range[3] < 999

By default, the boundaries are set as follows:

AlarmColor.Range[1]

AlarmColor.Range[2]

AlarmColor.Range[3]

250

500

750

Syntax

RangeN = AlarmClient.AlarmColor.Range[N];

AlarmClient.AlarmColor.Range[1] = RangeN;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 85

Parameters

N

Range index 1, 2, or 3.

Example

The following example defines four priority ranges (1 to 50,

51 to 600, 601 to 800, and 801 to 999):

AlarmClient1.AlarmColor.Range[1] = 50;

AlarmClient1.AlarmColor.Range[2] = 600;

AlarmClient1.AlarmColor.Range[3] = 800;

Remarks

For more information, see Setting Priority Ranges for Alarm

Records on page 34.

AlarmColor.RTN.BackGround Property

The AlarmColor.RTN.BackGround property is a read-write color property that gets or sets the background color of alarm records that "return to normal" (ACK_RTN and

UNACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.RTN.BackGround;

AlarmClient.AlarmColor.RTN.BackGround = Color;

Parameters

Color

Color of background.

Example

AlarmClient1.AlarmColor.RTN.BackGround = Color.Blue;

Remarks

For more information, see Setting Return To Normal Record

Colors on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

86 Chapter 4 Scripting the Alarm Control

AlarmColor.RTN.ForeGround Property

The AlarmColor.RTN.ForeGround property is a read-write color property that gets or sets the text color of alarm records that "return to normal" (ACK_RTN and UNACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.RTN.ForeGround;

AlarmClient.AlarmColor.RTN.ForeGround = Color;

Parameters

Color

Color of text.

Example

AlarmClient1.AlarmColor.RTN.ForeGround = Color.Yellow;

Remarks

For more information, see Setting Return To Normal Record

Colors on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.UnAck.BackGround Property

The AlarmColor.UnAck.BackGround property is an array of read-write integer properties that get or set the background colors of all unacknowledged alarm records.

Index

0

1

2

Purpose

Sets the background color of all unacknowledged alarm records in all priority ranges.

Gets or sets the background color of unacknowledged alarm records in the priority range 1 to AlarmColor.Range[1].

Gets or sets the background color of unacknowledged alarm records in the priority range AlarmColor.Range[1] to

AlarmColor.Range[2].

Guide to the ArchestrA Alarm Control

Alarm Control Properties 87

Index

3

4

Purpose

Gets or sets the background color of unacknowledged alarm records in the priority range AlarmColor.Range[2] to

AlarmColor.Range[3].

Gets or sets the background color of unacknowledged alarm records in the priority range AlarmColor.Range[3] to 999.

Syntax

Color = AlarmClient.AlarmColor.UnAck.BackGround[n];

AlarmClient.AlarmColor.UnAck.BackGround[n] = Color;

Parameters

n

Index from 0 to 4.

Color

Color of background.

Example

AlarmClient1.AlarmColor.UnAck.BackGround[0] =

Color.Blue;

AlarmClient1.AlarmColor.UnAck.BackGround[1] =

Color.ARGB(223,113,76);

AlarmClient1.AlarmColor.UnAck.BackGround[2] =

Color.Yellow;

AlarmClient1.AlarmColor.UnAck.BackGround[3] =

Color.Green;

AlarmClient1.AlarmColor.UnAck.BackGround[4] =

Color.White;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

88 Chapter 4 Scripting the Alarm Control

AlarmColor.UnAck.Flash.BackGround Property

The AlarmColor.UnAck.Flash.BackGround property is an array of read-write color properties that get or set the background colors of all flashing unacknowledged alarm records.

Index

0

1

2

3

4

Purpose

Sets the background color of all flashing unacknowledged alarm records in all priority ranges.

Gets or sets the background color of flashing unacknowledged alarm records in the priority range 1 to AlarmColor.Range[1].

Gets or sets the background color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[1] to

AlarmColor.Range[2].

Gets or sets the background color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[2] to

AlarmColor.Range[3].

Gets or sets the background color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[3] to 999.

Syntax

Color =

AlarmClient.AlarmColor.UnAck.Flash.BackGround[n];

AlarmClient.AlarmColor.UnAck.Flash.BackGround[n] =

Color;

Parameters

n

Index from 1 to 4.

Color

Color of background.

Example

AlarmClient1.AlarmColor.UnAck.Flash.BackGround[1] =

Color.ARGB(223,113,76);

AlarmClient1.AlarmColor.UnAck.Flash.BackGround[2] =

Color.Yellow;

AlarmClient1.AlarmColor.UnAck.Flash.BackGround[3] =

Color.Green;

AlarmClient1.AlarmColor.UnAck.Flash.BackGround[4] =

Color.White;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 89

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.UnAck.Flash.ForeGround Property

The AlarmColor.UnAck.Flash.ForeGround property is an array of read-write color properties that get or set the text colors of all flashing unacknowledged alarm records.

Index

0

1

2

3

4

Purpose

Sets the text color of all flashing unacknowledged alarm records in all priority ranges.

Gets or sets the text color of flashing unacknowledged alarm records in the priority range 1 to AlarmColor.Range[1].

Gets or sets the text color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[1] to

AlarmColor.Range[2].

Gets or sets the text color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[2] to

AlarmColor.Range[3].

Gets or sets the text color of flashing unacknowledged alarm records in the priority range AlarmColor.Range[3] to 999.

Syntax

Color =

AlarmClient.AlarmColor.UnAck.Flash.ForeGround[n];

AlarmClient.AlarmColor.UnAck.Flash.ForeGround[n] =

Color;

Parameters

n

Index from 1 to 4.

Color

Color of text.

Guide to the ArchestrA Alarm Control

90 Chapter 4 Scripting the Alarm Control

Examples

AlarmClient1.AlarmColor.UnAck.Flash.ForeGround[1] =

Color.ARGB(223,113,76);

AlarmClient1.AlarmColor.UnAck.Flash.ForeGround[2] =

Color.Yellow;

AlarmClient1.AlarmColor.UnAck.Flash.ForeGround[3] =

Color.Green;

AlarmClient1.AlarmColor.UnAck.Flash.ForeGround[4] =

Color.White;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.UnAck.ForeGround Property

The AlarmColor.UnAck.ForeGround property is an array of read-write integer properties that get or set the text colors of all unacknowledged alarm records.

Index

0

1

2

3

4

Purpose

Sets the text color of all unacknowledged alarm records in all priority ranges.

Gets or sets the text color of unacknowledged alarm records in the priority range 1 to

AlarmColor.Range[1].

Gets or sets the text color of unacknowledged alarm records in the priority range

AlarmColor.Range[1] to AlarmColor.Range[2].

Gets or sets the text color of unacknowledged alarm records in the priority range

AlarmColor.Range[2] to AlarmColor.Range[3].

Gets or sets the text color of unacknowledged alarm records in the priority range

AlarmColor.Range[3] to 999.

Syntax

Color = AlarmClient.AlarmColor.UnAck.ForeGround[n];

AlarmClient.AlarmColor.UnAck.ForeGround[n] = Color;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 91

Parameters

n

Index from 0 to 4.

Color

Color of text.

Example

AlarmClient1.AlarmColor.UnAck.ForeGround[0] =

Color.Blue;

AlarmClient1.AlarmColor.UnAck.ForeGround[1] =

Color.ARGB(223,113,76);

AlarmClient1.AlarmColor.UnAck.ForeGround[2] =

Color.Yellow;

AlarmClient1.AlarmColor.UnAck.ForeGround[3] =

Color.Green;

AlarmClient1.AlarmColor.UnAck.ForeGround[4] =

Color.White;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.UnAck.RTN.BackGround Property

The AlarmColor.UnAck.RTN.BackGround property is a read-write color property that gets or sets the background color of unacknowledged alarm records that "return to normal" (UNACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.UnAck.RTN.BackGround;

AlarmClient.AlarmColor.UnAck.RTN.BackGround = Color;

Parameters

Color

Color of background.

Example

AlarmClient1.AlarmColor.UnAck.RTN.BackGround =

Color.Blue;

Guide to the ArchestrA Alarm Control

92 Chapter 4 Scripting the Alarm Control

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

AlarmColor.UnAck.RTN.ForeGround Property

The AlarmColor.UnAck.RTN.ForeGround property is a read-write color property that gets or sets the text color of unacknowledged alarm records that "return to normal"

(UNACK_RTN).

Syntax

Color = AlarmClient.AlarmColor.UnAck.RTN.ForeGround;

AlarmClient.AlarmColor.UnAck.RTN.ForeGround = Color;

Parameters

Color

Color of text.

Example

AlarmClient1.AlarmColor.UnAck.RTN.ForeGround =

Color.FromARGB(0,0,0);

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 93

AlarmQuery Property

The AlarmQuery property is a read-write string property that gets or sets the alarm query.

Syntax

result = AlarmClient.AlarmQuery;

AlarmClient.AlarmQuery = AlmQry;

Parameters

AlmQry

Alarm query string in format \\node\provider!group where node is optional.

Example

AlarmClient.AlarmQuery = "\intouch!GroupA";

Remarks

After you write a new value to the AlarmQuery property, the

Alarm Control is updated. If you are using the default query filter, the query is updated with the new node, provider, and group name.

AllowColumnResize Property

The AllowColumnResize property is a read-write Boolean property that gets or sets the ability to resize the columns at run time.

Syntax

result = AlarmClient.AllowColumnResize;

AlarmClient.AllowColumnResize = allowColResizing;

AutoResumeDuration Property

The AutoResumeDuration property is a read-write integer property that gets or sets the time in seconds after which the grid becomes unfrozen and resumes showing alarms.

Set this value to 0 to disable auto resume.

Syntax

result = AlarmClient.AutoResumeDuration;

AlarmClient.AllowColumnResize = timeout;

Guide to the ArchestrA Alarm Control

94 Chapter 4 Scripting the Alarm Control

AutoScroll Property

The AutoScroll property is a read-write Boolean property that gets or sets automatic scrolling to new alarms.

Syntax

result = AlarmClient.AutoScroll;

AlarmClient.AutoScroll = allowAutoscroll;

ClientMode Property

The ClientMode property is a read-write integer property that gets or sets the client mode for the Alarm Control. Use one of the following values:

2

3

4

5

Value

1

Client Mode

Current Alarms

Recent Alarms and Events

Historical Alarms

Historical Events

Historical Alarms and Events

Syntax

result = AlarmClient.ClientMode;

AlarmClient.ClientMode = clientMode;

Example

AlarmClient1.ClientMode = 2;

LogMessage("Alarm client set to Recent Alarms and

Events");

Remarks

For more information, see Showing Current Alarms or

Recent Alarms and Events on page 25.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 95

ConnectStatus Property

The ConnectStatus property is a read-only string property that gets the status of the connection to the Alarm Database.

Syntax

result = AlarmClient.ConnectStatus;

Return Value

Returns the status of the connection to the alarm database.

Can be "Connected," "Not connected," or "In progress."

Example

alive = AlarmClient1.ConnectStatus; if alive == "Connected" then

LogMessage("The Alarm Control is currently connected to the Alarm Database"); else

LogMessage("The Alarm Control is either currently connecting to the Alarm Database or not connected."); endif;

ContextMenu.AckAll Property

The ContextMenu.AckAll property is a read-write Boolean property that gets or sets the appearance of the

Ack All

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckAll;

AlarmClient.ContextMenu.AckAll = AckAllVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.AckOthers Property

The ContextMenu.AckOthers property is a read-write

Boolean property that gets or sets the appearance of the

Ack

Others

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckOthers;

AlarmClient.ContextMenu.AckOthers = AckOthersVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

96 Chapter 4 Scripting the Alarm Control

ContextMenu.AckSelected Property

The ContextMenu.AckSelected property is a read-write

Boolean property that gets or sets the appearance of the

Ack

Selected

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckSelected;

AlarmClient.ContextMenu.AckSelected = AckSelectedVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.AckSelectedGroups Property

The ContextMenu.AckSelectedGroups property is a read-write Boolean property that gets or sets the appearance of the

Ack Selected Groups

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckSelectedGroups;

AlarmClient.ContextMenu.AckSelectedGroups =

AckSelGrpsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.AckSelectedPriorities Property

The ContextMenu.AckSelectedPriorities property is a read-write Boolean property that gets or sets the appearance of the

Ack Selected Priorities

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckSelectedPriorities;

AlarmClient.ContextMenu.AckSelectedPriorities =

AckSelPriVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 97

ContextMenu.AckSelectedTags Property

The ContextMenu.AckSelectedTags property is a read-write

Boolean property that gets or sets the appearance of the

Ack

Selected Tags

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckSelectedTags;

AlarmClient.ContextMenu.AckSelectedTags =

AckSelTagsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.AckVisible Property

The ContextMenu.AckVisible property is a read-write

Boolean property that gets or sets the appearance of the

Ack

Visible

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.AckVisible;

AlarmClient.ContextMenu.AckVisible = AckVisVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.Favorites Property

The ContextMenu.Favorites property is a read-write Boolean property that gets or sets the appearance of the

Query Filters

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Favorites;

AlarmClient.ContextMenu.Favorites = FavsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

98 Chapter 4 Scripting the Alarm Control

ContextMenu.Freeze Property

The ContextMenu.Freeze property is a read-write Boolean property that gets or sets the appearance of the

Freeze

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Freeze;

AlarmClient.ContextMenu.Freeze = FreezeVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.Hidden Property

The ContextMenu.Hidden property is a read-write Boolean property that gets or sets the appearance of the

Hidden

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Hidden;

AlarmClient.ContextMenu.Hidden = HiddenVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.HideAll Property

The ContextMenu.HideAll property is a read-write Boolean property that gets or sets the appearance of the

Hide All

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideAll;

AlarmClient.ContextMenu.HideAll = HideAllVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 99

ContextMenu.HideOthers Property

The ContextMenu.HideOthers property is a read-write

Boolean property that gets or sets the appearance of the

Hide

Others

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideOthers;

AlarmClient.ContextMenu.HideOthers = HideOthersVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.HideSelected Property

The ContextMenu.HideSelected property is a read-write

Boolean property that gets or sets the appearance of the

Hide

Selected

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideSelected;

AlarmClient.ContextMenu.HideSelected = HideSelVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.HideSelectedGroups Property

The ContextMenu.HideSelectedGroups property is a read-write Boolean property that gets or sets the appearance of the

Hide Selected Groups

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideSelectedGroups;

AlarmClient.ContextMenu.HideSelectedGroups =

HideSelGrpsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

100 Chapter 4 Scripting the Alarm Control

ContextMenu.HideSelectedPriorities Property

The ContextMenu.HideSelectedPriorities property is a read-write Boolean property that gets or sets the appearance of the

Hide Selected Priorities

option on the shortcut menu.

Syntax

result =

AlarmClient.ContextMenu.HideSelectedPriorities;

AlarmClient.ContextMenu.HideSelectedPriorities =

HideSelPrisVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.HideSelectedTags Property

The ContextMenu.HideSelectedTags property is a read-write

Boolean property that gets or sets the appearance of the

Hide

Selected Tags

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideSelectedTags;

AlarmClient.ContextMenu.HideSelectedTags =

HideSelTagsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.HideVisible Property

The ContextMenu.HideVisible property is a read-write

Boolean property that gets or sets the appearance of the

Hide

Visible

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.HideVisible;

AlarmClient.ContextMenu.HideVisible = HideVisVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 101

ContextMenu.Requery Property

The ContextMenu.Requery property is a read-write Boolean property that gets or sets the appearance of the

Requery

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Requery;

AlarmClient.ContextMenu.Requery = RequeryVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.Reset Property

The ContextMenu.Reset property is a read-write Boolean property that gets or sets the appearance of the

Reset

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Reset;

AlarmClient.ContextMenu.Reset = ResetVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.Sort Property

The ContextMenu.Sort property is a read-write Boolean property that gets or sets the appearance of the

Sort

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Sort;

AlarmClient.ContextMenu.Sort = SortVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Guide to the ArchestrA Alarm Control

102 Chapter 4 Scripting the Alarm Control

ContextMenu.Statistics Property

The ContextMenu.Statistics property is a read-write Boolean property that gets or sets the appearance of the

Statistics

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.Statistics;

AlarmClient.ContextMenu.Statistics = StatsVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

ContextMenu.UnhideAll Property

The ContextMenu.UnhideAll property is a read-write

Boolean property that gets or sets the appearance of the

Unhide All

option on the shortcut menu.

Syntax

result = AlarmClient.ContextMenu.UnhideAll;

AlarmClient.ContextMenu.UnhideAll = UnhideAllVis;

Remarks

For more information, see Configuring the Run-Time

Shortcut Menu on page 58.

Database.Authentication Property

The Database.Authentication property is a read-write string property that gets or sets the authentication mode to connect to the Alarm Database. Possible values are:

Windows Integrated

Windows Account

SQL Server

The default value is "Windows Integrated".

Syntax

result = AlarmClient.Database.Authentication;

AlarmClient.Database.Authentication = AuthMode;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 103

Database.Name Property

The Database.Name property is a read-write string property that gets or sets the name of the Alarm Database. The default value is "WWALMDB".

If you change the Database.Name property at run time, you need to call the Connect method to connect to the new alarm database.

Syntax

result = AlarmClient.Database.Name;

AlarmClient.Database.Name = AlmDBName;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Database.Password Property

The Database.Password property is a read-write string property that gets or sets the password associated with the user name to connect to the Alarm Database.

Syntax

result = AlarmClient.Database.Password;

AlarmClient.Database.Password = Psswrd;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Database.ServerName Property

The Database.ServerName property is a read-write string property that gets or sets the name of the server that hosts the Alarm Database.

Syntax

result = AlarmClient.Database.ServerName;

AlarmClient.Database.ServerName = SrvName;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Guide to the ArchestrA Alarm Control

104 Chapter 4 Scripting the Alarm Control

Database.UserID Property

The Database.UserID property is a read-write string property that gets or sets the name of user authorized to access the Alarm Database.

Syntax

result = AlarmClient.Database.UserID;

AlarmClient.Database.UserID = UserName;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Domain Property

The Domain property is a read-write string property that gets or sets the domain name of the user to connect to the

Alarm Database.

Syntax

result = AlarmClient.Domain;

AlarmClient.Domain = DomName;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Enabled Property

The Enabled property is a read-write Boolean property that gets or sets the enablement of Alarm Control. When the

Alarm Control is disabled, alarm records are still updated, but the operator cannot interact with the control.

The operator can still use scripting to interact with the control.

Syntax

result = AlarmClient.Enabled;

AlarmClient.Enabled = EnableFlag;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 105

EventColor.BackGround Property

The EventColor.BackGround property is a read-write color property that gets or sets the background color of event records.

Syntax

Color = AlarmClient.EventColor.BackGround;

AlarmClient.EventColor.BackGround = Color;

Parameters

Color

Color of background.

Example

AlarmClient1.EventColor.BackGround = Color.Blue;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

EventColor.ForeGround Property

The EventColor.ForeGround property is a read-write color property that gets or sets the text color of event records.

Syntax

Color = AlarmClient.EventColor.ForeGround;

AlarmClient.EventColor.ForeGround = Color;

Parameters

Color

Color of text.

Example

AlarmClient1.EventColor.ForeGround = Color.Blue;

Remarks

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

106 Chapter 4 Scripting the Alarm Control

Favorite Property

The Favorite property is a read-write string property that gets or sets the name of the current query filter favorite.

Syntax

QueryFilterName = AlarmClient.Favorite;

AlarmClient.Favorite = QueryFilterName;

Parameters

QueryFilterName

The name of a query filter favorite.

Example

The following example sets the current Alarm Control grid to the Query Filter Favorite with the name "All Hi Priority

Alarms".

AlarmClient1.Favorite = "All Hi Priority Alarms";

Remarks

You can also use this property to reset the currently used query filter to its default with the following script:

AlarmClient.Favorite = "Default";

FlashUnAckAlarms Property

The FlashUnAckAlarms property is a read-write Boolean property that gets or sets the flashing of unacknowledged alarm records.

Syntax

result = AlarmClient.FlashUnAckAlarms;

AlarmClient.FlashUnAckAlarms = FlashUnAckRecs;

Remarks

For more information, see Setting Unacknowledged Alarms to Flash on page 36.

GridColor Property

The GridColor property is a read-write color property that gets or sets the color of the grid lines.

Syntax

Color = AlarmClient.GridColor;

AlarmClient.GridColor = Color;

Parameters

Color

Color of the grid lines.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 107

Example

AlarmClient1.GridColor = Color.Black;

Remarks

For more information, see Setting Heading, Grid, and

Window Color on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

HeadingColor.BackGround Property

The HeadingColor.BackGround property is a read-write color property that gets or sets the background color of the heading.

Syntax

Color = AlarmClient.HeadingColor.BackGround;

AlarmClient.HeadingColor.BackGround = Color;

Parameters

Color

Color of background.

Example

AlarmClient1.HeadingColor.BackGround = Color.Blue;

Remarks

For more information, see Setting Heading, Grid, and

Window Color on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

108 Chapter 4 Scripting the Alarm Control

HeadingColor.ForeGround Property

The HeadingColor.ForeGround property is a read-write color property that gets or sets the text color of the heading.

Syntax

Color = AlarmClient.HeadingColor.ForeGround;

AlarmClient.HeadingColor.ForeGround = Color;

Parameters

Color

Color of text.

Example

AlarmClient1.HeadingColor.ForeGround = Color.Blue;

Remarks

For more information, see Setting Heading, Grid, and

Window Color on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Height Property

The Height property is a read-write integer property that gets or sets the height of the Alarm Control in pixels.

Syntax

result = AlarmClient.Height;

AlarmClient.Height = Hght;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 109

HiddenAlarms Property

The HiddenAlarms property is a read-only integer property that gets the number of hidden alarms.

Syntax

Result = AlarmClient.HiddenAlarms;

Example

LogMessage("There are " +

Text(AlarmClient1.HiddenAlarms,"#")+" hidden alarms.");

HideErrors Property

The HideErrors property is a read-write Boolean property that gets or sets the Hide Errors option.

TRUE - Run-time errors, warnings, and status messages are written to the ArchestrA Logger. No pop-ups appear.

FALSE - Run-time errors, warnings, and status messages pop-up and are also written to the ArchestrA Logger.

Syntax

result = AlarmClient.HideErrors;

AlarmClient.HideErrors = SilentMode;

Remarks

For more information, see Hiding Errors, Warnings, and

Status Messages on page 54.

MaxDatabaseRecords Property

The MaxDatabaseRecords property is a read-write integer property that gets or sets the maximum database records to retrieve. The valid range is 1 to 32766.

Syntax

result = AlarmClient.MaxDatabaseRecords;

AlarmClient.MaxDatabaseRecords = MaxRecs;

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Guide to the ArchestrA Alarm Control

110 Chapter 4 Scripting the Alarm Control

NewAlarmEventMode Property

The NewAlarmEventMode property is an read-write integer property that gets or sets the trigger behavior of the New

Alarm event.

Syntax

EMode = AlarmClient.NewAlarmEventMode;

AlarmClient.NewAlarmEventMode = EMode;

Parameters

EMode

Event mode with following possible values:

Value

0

1

2

Description

The NewAlarm event cannot be triggered.

(default).

The NewAlarm event is triggered only one time the first time a new alarm occurs.

The NewAlarm event is triggered every time a new alarm occurs.

NoRecordsMessage.Enabled Property

The NoRecordsMessage.Enabled property is a read-write

Boolean property that gets or sets the visibility of a custom message when no alarm records are available.

Syntax

result = AlarmClient.NoRecordsMessage.Enabled;

AlarmClient.NoRecordsMessage.Enabled = showMessage;

Example

AlarmClient1.NoRecordsMessage.Enabled = 1;

AlarmClient1.NoRecordsMessage.Message = "There are no alarm records available";

Remarks

Use this property in combination with the

NoRecordsMessage.Message property.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 111

NoRecordsMessage.Message Property

The NoRecordsMessage.Message property is a read-write string property that gets or sets the custom message text when no alarm records are available and the

NoRecordsMessage.Enabled

property value is TRUE.

Syntax

result = AlarmClient.NoRecordsMessage.Message;

AlarmClient.NoRecordsMessage.Message = myCustomMessage;

Example

AlarmClient1.NoRecordsMessage.Enabled = 1;

AlarmClient1.NoRecordsMessage.Message = "There are no alarm records available";

Remarks

Use this property in combination with the

NoRecordsMessage.Enabled property.

QueryStartup Property

The QueryStartup property is a read-write Boolean property that gets or sets or sets the automatic update of the Alarm

Control on startup.

Syntax

result = AlarmClient.QueryStartup;

AlarmClient.QueryStartup = AutoQry;

Remarks

For more information, see Automatically Querying for

Alarms on Start Up on page 53.

RetainHidden Property

The RetainHidden property is a read-write Boolean property that gets or sets the retention of hidden alarms or events when the alarm query or query filter to retrieve records changes at run time.

Syntax

result = AlarmClient.RetainHidden;

AlarmClient.RetainHidden = RetainHddn;

Remarks

For more information, see Retain Hiding when Changing

Alarm Query Filter on page 56.

Guide to the ArchestrA Alarm Control

112 Chapter 4 Scripting the Alarm Control

RowCount Property

The RowCount property is a read-only integer property that gets the number of records shown in the Alarm Control grid.

For current alarms (and recent alarms and events), the

RowCount

property value is always the same as the

TotalRowCount

property value.

For historical alarms, if the Alarm Control retrieves more alarm records than specified by the

MaxDatabaseRecords

property value, it splits these into multiple pages.

The

RowCount

property shows how many alarm records are currently shown on the current page. The RowCount property value is the same as the

MaxDatabaseRecords

property value, with exception of the last page.

Syntax

Result = AlarmClient.RowCount;

Example

NRows = AlarmClient1.RowCount;

LogMessage("There are " + Text(NRows, "#") + " alarm records on the retrieved page.");

RowSelection Property

The RowSelection property is a read-write string property that determines if row selection is allowed at run time. The following values are possible:

Value

No

Single

Multiple

Description

Operator cannot select rows.

Operator can only select one row at a time.

Operator can select one or more rows.

The default value is "Multiple".

Syntax

Result = AlarmClient.RowSelection;

AlarmClient.RowSelection = RwSel;

Example

AlarmClient1.RowSelection = "Multiple";

Remarks

For more information, see Restricting User Access to Rows and Columns on page 55.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 113

SelectedCount Property

The SelectedCount property is a read-only integer property that gets the total number of selected alarm records.

Syntax

Result = AlarmClient.SelectedCount;

Return Value

Returns the number of selected alarm records.

Example

NSelRows = AlarmClient1.SelectedCount;

If NSelRows > 5 Then

LogMessage("There are more than 5 rows selected.");

Endif;

ShowContextMenu Property

The ShowContextMenu property is a read-write Boolean property that gets or sets the ability to open the shortcut menu at run time.

Syntax

result = AlarmClient.ShowContextMenu;

AlarmClient.ShowContextMenu = ContxtMnuAvail;

ShowGrid Property

The ShowGrid property is a read-write Boolean property that gets or sets the appearance of grid lines.

Syntax

result = AlarmClient.ShowGrid;

AlarmClient.ShowGrid = showGrid;

ShowHeading Property

The ShowHeading property is a read-write Boolean property that gets or sets the visibility of the grid heading at run time.

Syntax

result = AlarmClient.ShowHeading;

AlarmClient.ShowHeading = showHeading;

Guide to the ArchestrA Alarm Control

114 Chapter 4 Scripting the Alarm Control

ShowStatusBar Property

The ShowStatusBar property is a read-write Boolean property that gets or sets the visibility of the status bar at run time.

Syntax

result = AlarmClient.ShowStatusBar;

AlarmClient.ShowStatusBar = showStatusBar;

SortColumn.First Property

The SortColumn.First property is a read-write string property that gets or sets the first sort column.

The default value is "Time (LCT)".

Syntax

result = AlarmClient.SortColumn.First;

AlarmClient.SortColumn.First = sortByFirst;

Example

AlarmClient1.SortColumn.First = "Class";

Remarks

Use this property in connection with the SortOrder.First to determine the sorting direction.

SortColumn.Second Property

The SortColumn.Second property is a read-write string property that gets or sets the second sort column.

The default value is blank.

Syntax

result = AlarmClient.SortColumn.Second;

AlarmClient.SortColumn.Second = sortBySecond;

Example

AlarmClient1.SortColumn.Second = "Type";

Remarks

Use this property in connection with the SortOrder.Second to determine the sorting direction.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 115

SortColumn.Third Property

The SortColumn.Third property is a read-write string property that gets or sets the third sort column.

The default value is blank.

Syntax

result = AlarmClient.SortColumn.Third;

AlarmClient.SortColumn.Third = sortByThird;

Example

AlarmClient1.SortColumn.Third = "State";

Remarks

Use this property in connection with the SortOrder.Third to determine the sorting direction.

SortOrder.First Property

The SortOrder.First property is a read-write Boolean property that gets or sets the sorting direction of the first sort column. The following values are possible:

Value

FALSE

TRUE

Description

Ascending sorting direction

Descending sorting direction

The default value is FALSE (Ascending).

Syntax

result = AlarmClient.SortOrder.First;

AlarmClient.SortOrder.First = sortDirFirst;

Remarks

Use this property in connection with the SortColumn.First to determine which column is sorted.

Guide to the ArchestrA Alarm Control

116 Chapter 4 Scripting the Alarm Control

SortOrder.Second Property

The SortOrder.Second property is a read-write Boolean property that gets or sets the sorting direction of the second sort column. The following values are possible:

Value

FALSE

TRUE

Description

Ascending sorting direction

Descending sorting direction

The default value is FALSE (Ascending).

Syntax

result = AlarmClient.SortOrder.Second;

AlarmClient.SortOrder.Second = sortDirSecond;

Remarks

Use this property in connection with the SortColumn.Second to determine which column is sorted.

SortOrder.Third Property

The SortOrder.Third property is a read-write Boolean property that gets or sets the sorting direction of the third sort column. The following values are possible:

Value

FALSE

TRUE

Description

Ascending sorting direction

Descending sorting direction

The default value is FALSE (Ascending).

Syntax

result = AlarmClient.SortOrder.Third;

AlarmClient.SortOrder.Third = sortDirThird;

Remarks

Use this property in connection with the SortColumn.Third to determine which column is sorted.

Time.Format Property

The Time.Format property is a read-write string property that gets or sets the date and time formats of the alarm records in the Alarm Control.

You can either use the .NET time format or the Wonderware time format. Set the Time.Type property to determine which time format type to use.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 117

Syntax

result = AlarmClient.Time.Format;

AlarmClient.Time.Format = TmFormat;

Example

This example shows the time format in French format

(day/month/year) using the .NET datetime type.

AlarmClient1.Time.Type = 1;

AlarmClient1.Time.Format = "dd/MM/yyyy";

Remarks

For more information about the .NET time format, see

Setting the .NET Datetime Format on page 51.

For more information about the Wonderware time format,

see Setting the Wonderware Time Format on page 50.

Time.Type Property

The Time.Type property is a read-write Boolean property that gets or sets the time format type of the alarm records.

The following values are possible:

Value

FALSE

TRUE

Description

Wonderware time format

.NET time format (default)

Syntax

result = AlarmClient.Time.Type;

AlarmClient.Time.Type = TmType;

Example

This example shows the time format in German format

(day.month.year) using the Wonderware datetime type.

AlarmClient1.Time.Type = 0;

AlarmClient1.Time.Format = "%d.%m.%Y %H:%M:%S";

Remarks

For more information about the .NET time format, see

Setting the .NET Datetime Format on page 51.

For more information about the Wonderware time format,

see Setting the Wonderware Time Format on page 50.

Guide to the ArchestrA Alarm Control

118 Chapter 4 Scripting the Alarm Control

TimeSelector Property

The TimeSelector property gets the Time Range Picker object used in the Alarm Control. You can use it in scripting to shorten the code using its properties and methods.

For the individual properties and methods, see the following properties, or the methods starting at

TimeSelector.GetStartAndEndTimes() Method on page 142.

Example 1

dim TRP as object;

TRP = AlarmClient1.TimeSelector;

Timeselect = TRP;

StartDate = TRP.StartDate;

EndDate = TRP.EndDate; duration = TRP.TimeDuration;

Example 2

dim TRP as object;

TRP = AlarmClient1.TimeSelector;

TRP.SetStartAndEndTimes(StartDate, EndDate, Duration);

TimeSelector.DurationMS Property

The TimeSelector.DurationMS property is a read-write integer property that gets the time duration measured in milliseconds.

The start time of the Alarm control (TimeSelector.StartDate) is calculated as the end time (TimeSelector.EndDate) minus the new time duration (TimeSelector.DurationMS).

When you set the value of the TimeSelector.DurationMS property, the TimeSelector.TimeDuration property is set to

0.

The default value is 3600000.

Syntax

result = AlarmClient.TimeSelector.DurationMS;

AlarmClient.TimeSelector.DurationMS = Value;

Example

AlarmClient1.TimeSelector.DurationMS = 1800000;

// The Alarm Control now retrieves alarms from the last

30 minutes.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 119

TimeSelector.EndDate Property

The TimeSelector.EndDate property is a read-only string property that gets the end date and time of the Alarm

Control.

The default value is the time the Alarm Control is placed on the canvas. If the

Update to Current Time

option is enabled, the TimeSelector.EndDate property is updated with the current time.

Note

To set the end date and time of the Alarm Control, use the

TimeSelector.SetStartAndEndTimes() Method method.

Syntax

result = AlarmClient.TimeSelector.EndDate;

Example

LogMessage(AlarmClient1.TimeSelector.EndDate);

TimeSelector.StartDate Property

The TimeSelector.StartDate property is a read-only string property that gets the start date and time of the Alarm

Control.

The default value is the time the Alarm Control is placed on the canvas. If the

Update to Current Time

option is enabled, the TimeSelector.StartDate property is updated as current time minus duration.

Note

To set the start date and time of the Alarm Control, use the

TimeSelector.SetStartAndEndTimes() Method method.

Syntax

result = AlarmClient.TimeSelector.StartDate;

Example

LogMessage(AlarmClient1.TimeSelector.StartDate);

Guide to the ArchestrA Alarm Control

120 Chapter 4 Scripting the Alarm Control

TimeSelector.TimeDuration Property

The TimeSelector.TimeDuration property is a read-write integer property that gets or sets the time duration. The start time of the Alarm control (TimeSelector.StartDate) is calculated as the end time (TimeSelector.EndDate) minus the new time duration.

The TimeSelector.TimeDuration can have one of the following values:

13

14

15

16

9

10

11

12

5

6

7

8

1

2

3

4

Value

0

21

22

23

17

18

19

20

Description

Custom

The last minute.

The last five minutes.

The last ten minutes.

The last 15 minutes.

The last 30 minutes.

The last hour.

The last two hours.

The last four hours.

The last eight hours.

The last 12 hours.

The last 24 hours.

The last two days.

The last week.

The last two weeks.

The last month.

The last three months.

One minute.

Five minutes.

Ten minutes.

15 minutes.

30 minutes.

One hour.

Two hours.

Guide to the ArchestrA Alarm Control

Alarm Control Properties 121

26

27

28

29

Value

24

25

Description

Four hours.

Eight hours.

12 hours.

24 hours.

Two days.

One week.

30

31

32

33

Two weeks.

One month.

Three months.

Yesterday: 0:00:00 of the previous day to

0:00:00 of the current day.

34

35

Current day: 0:00:00 of the current day to the current time.

Previous hour: The start of the previous hour to the start of the current hour.

36 Current hour: The start of the current hour to the current time.

The default value is 6 (Last Hour).

Syntax

result = AlarmClient.TimeSelector.TimeDuration;

AlarmClient.TimeSelector.TimeDuration = Value;

Example

AlarmClient1.TimeSelector.TimeDuration = 5;

// The Alarm Control now retrieves alarms from the last

30 minutes.

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Guide to the ArchestrA Alarm Control

122 Chapter 4 Scripting the Alarm Control

TimeZone.TimeZone Property

The TimeZone.TimeZone property is a read-write string property that gets or sets the time zone of the Alarm Control.

The default value depends on the current setting of the operating system.

If you want to show time stamps using the local time of the computer, set the TimeZone.TimeZone property to an empty string.

Syntax

result = AlarmClient.TimeZone.TimeZone;

AlarmClient.TimeZone.TimeZone = TimeZone;

Example

AlarmClient1.TimeZone.TimeZone = "(GMT-09:00) Alaska";

Remarks

For more information, see Setting Time Zone and Format on page 48.

TotalRowCount Property

The TotalRowCount property is a read-only integer property that gets the total number of alarm records in the Alarm

Control.

For current alarms (and recent alarms and events), the

RowCount

property value is always the same as the

TotalRowCount

property value.

For historical alarms, if the Alarm Control retrieves more alarm records than specified by the

MaxDatabaseRecords

property value, it splits these into multiple pages.

The

RowCount

property value shows how many alarm records are currently shown on the current page, whereas the

TotalRowCount

property value shows how many alarm records are retrieved from the alarm database.

Syntax

Result = AlarmClient.TotalRowCount;

Return Value

Returns the end date and time of the Alarm Control in historical mode.

Example

NTRows = AlarmClient1.TotalRowCount;

If (NTRows > 1000) then

LogMessage("More than 1000 records are currently in the Alarm Control");

Endif;

Guide to the ArchestrA Alarm Control

Alarm Control Properties 123

UnAckAlarms Property

The UnAckAlarms property is a read-only integer property that gets the number of unacknowledged alarm records in the Alarm Control.

Syntax

Result = AlarmClient.UnackAlarms;

Return Value

Returns the number of unacknowledged alarm records in the

Alarm Control.

Example

NUnack = AlarmClient1.UnAckAlarms;

If NUnack > 10 Then

LogMessage("There are more than 10 unacknowledged alarms in the grid!");

Endif;

UpdateToCurrentTime Property

The UpdateToCurrentTime property is a read-write Boolean property that gets or sets the

Update to Current Time

option.

If you set this property to TRUE, the Alarm Control end time is set to the current time and the start time is calculated as the difference of end time and duration. Whenever you refresh the Alarm Control, the end time is set as current time.

If you set this property to FALSE, the Alarm Control uses the end time, duration, and start time as defined by the Time

Range Picker control.

The default value is TRUE.

Syntax

result = AlarmClient.UpdateToCurrentTime;

AlarmClient.UpdateToCurrentTime = UpdToCurrTime;

Example

AlarmClient1.UpdateToCurrentTime = 1;

AlarmClient1.Requery();

Remarks

For more information, see Showing Historical Alarms and/or

Events on page 28.

Guide to the ArchestrA Alarm Control

124 Chapter 4 Scripting the Alarm Control

Visible Property

The Visible property is a read-write Boolean property that gets or sets the visibility of the Alarm Control.

Syntax

result = AlarmClient.Visible;

AlarmClient.Visible = Boolean;

Width Property

The Width property is a read-write integer property that gets or sets the width of the Alarm Control in pixels.

Syntax

result = AlarmClient.Width;

AlarmClient.Width = Wdth;

WindowColor Property

The WindowColor property is a read-write color property that gets or sets the color of the Alarm Control background.

Syntax

Color = AlarmClient.WindowColor;

AlarmClient.WindowColor = Color;

Parameters

Color

Color of background.

Example

AlarmClient1.WindowColor = Color.FromARGB(240,200,198);

Remarks

For more information, see Setting Heading, Grid, and

Window Color on page 32.

Color is a .NET Framework data type. You can use various

Color methods to set the color, such as a predefined color name, FromARGB(), FromKnownColor(), and FromName().

For a list of the .NET color names and the hexadecimal codes,

see .NET Colors on page 147.

For more information on the color methods, see the online

Microsoft documentation for .NET Framework Development.

Guide to the ArchestrA Alarm Control

Alarm Control Methods 125

X Property

The X property is a read-write integer property that gets or sets the horizontal position of the Alarm Control in relation to the left edge of the InTouch window in which it appears.

Syntax

result = AlarmClient.X;

AlarmClient.X = LeftPos;

Y Property

The Y property is a read-write integer property that gets or sets the vertical position of the Alarm Control in relation to the top edge of the InTouch window in which it appears.

Syntax

result = AlarmClient.Y;

AlarmClient.Y = TopPos;

Alarm Control Methods

This section describes the methods available for scripting in the Alarm Control.

AboutBox() Method

The AboutBox method shows the

About

dialog box of the

Alarm Control.

Syntax

AlarmClient.AboutBox();

Ack.All() Method

The Ack.All method acknowledges all alarms in the Alarm

Control, including those not shown.

Syntax

AlarmClient.Ack.All(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.All("Alarm is acknowledged");

Guide to the ArchestrA Alarm Control

126 Chapter 4 Scripting the Alarm Control

Ack.Group() Method

The Ack.Group method acknowledges all alarms for a given alarm source and group.

The alarm source and group names are case-insensitive.

Syntax

AlarmClient.Ack.Group(AlarmSource, Group, AckComment);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.Group("\\machine1\galaxy", "Area_001",

"All alarms in Area_001 acknowledged");

Ack.Priority() Method

The Ack.Priority method acknowledges all alarms for a given alarm source, group, and priority range.

The alarm source and group names are case-insensitive.

Syntax

AlarmClient.Ack.Priority(AlarmSource, Group,

FromPriority, ToPriority, AckComment);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

AckComment

A string indicating the alarm acknowledgement comment.

Guide to the ArchestrA Alarm Control

Alarm Control Methods 127

Example

GrpName = "ValveGroup";

AlarmClient1.Ack.Priority("\intouch", GrpName, 250,

500, "All local InTouch alarms in the ValveGroup alarm group with priorities from 250 to 500 are now acknowledged.");

Ack.Selected() Method

The Ack.Selected method acknowledges all selected alarms.

Syntax

AlarmClient.Ack.Selected(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.Selected("This selected alarm is acknowledged");

Ack.SelectedGroup() Method

The Ack.SelectedGroup method acknowledges all alarms that have the same alarm sources and groups as one or more selected alarms.

Syntax

AlarmClient.Ack.SelectedGroup(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.SelectedGroup("Alarm acknowledged");

Guide to the ArchestrA Alarm Control

128 Chapter 4 Scripting the Alarm Control

Ack.SelectedPriority () Method

The Ack.SelectedPriority method acknowledges all alarms that have the same alarm sources, groups, and within the priority ranges as one or more selected alarms.

Syntax

AlarmClient.Ack.SelectedPriority(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.SelectedPriority("Alarm acknowledged");

Ack.SelectedTag() Method

The Ack.SelectedTag method acknowledges all alarms that have the same alarm sources, groups, tags, and within the priority ranges as one or more selected alarms.

Syntax

AlarmClient.Ack.SelectedTag(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.SelectedTag("Alarm acknowledged");

Ack.Tag() Method

The Ack.Tag method acknowledges all alarms for a given alarm source, group, tag name, and priority range.

The alarm source, group names, and tag names are case-insensitive.

Syntax

AlarmClient.Ack.Tag(AlarmSource, Group, Tag,

FromPriority, ToPriority, AckComment);

Guide to the ArchestrA Alarm Control

Alarm Control Methods 129

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

Tag

The name of the alarm tag. For example, ValveTag1.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

AckComment

A string indicating the alarm acknowledgement comment.

Example

AckComment = "All ArchestrA alarm records of the attribute Valve17 in the group (area) Vessel_25B of the galaxy on machine25 with priorities from 1 to 99 are now acknowledged.";

AlarmClient1.Ack.Tag("\\machine25\galaxy",

"Vessel_25B", "Valve17", 1, 99, AckComment);

Ack.Visible() Method

The Ack.Visible method acknowledges all alarms currently visible in the Alarm Control.

Syntax

AlarmClient.Ack.Visible(AckComment);

Parameters

AckComment

A string indicating the alarm acknowledgement comment.

Example

AlarmClient1.Ack.Visible("Alarm acknowledged");

Guide to the ArchestrA Alarm Control

130 Chapter 4 Scripting the Alarm Control

Connect() Method

The Connect method connects the Alarm Control to the

Alarm Database.

Syntax

AlarmClient.Connect();

Disconnect() Method

The Disconnect method disconnects the Alarm Control from the Alarm Database.

Syntax

AlarmClient.Disconnect();

Favorites.Export() Method

The Favorites.Emport method exports the list of query filter favorites list to an XML file.

Syntax

AlarmClient.Favorites.Export(FilePath, FileName);

Parameters

FilePath

Name of the path to export the query filter favorites file.

FileName

Name of the query filter favorites file to export.

Example

AlarmClient1.Favorites.Export("c:\",

"MyFavorites.xml");

Favorites.Import() Method

The Favorites.Import method imports the list of query filter favorites list from an XML file. You can either overwrite the exisiting query filter favorites with the new favorites, or append them.

Syntax

AlarmClient.Favorites.Import(FilePath, FileName,

OverwriteAppend);

Guide to the ArchestrA Alarm Control

Alarm Control Methods 131

Parameters

FilePath

Name of the path to the query filter favorites file to import.

FileName

Name of the query filter favorites file to import.

OverwriteAppend

String determining if the import of the query filter favorites overwrites existing favorites, or appends to existing favorites. Set to one of the following:

Overwrite to overwrite existing query filter favorites.

Append to append to existing query filter favorites.If a query filter with the same name already exists, it is not overwritten by the query filter in the file.

Example

AlarmClient1.Favorites.Import("c:\MyFavs\", "Favs.xml",

"Overwrite");

FreezeDisplay() Method

The FreezeDisplay method freezes or unfreezes the Alarm

Control. The following values are possible:

Value

TRUE

FALSE

Description

Freezes the Alarm Control.

Unfreezes the Alarm Control.

Syntax

AlarmClient.FreezeDisplay(FreezeFlag);

Parameters

FreezeFlag

Boolean value or expression (TRUE = freeze control,

FALSE = unfreeze control)

Example

AlarmClient1.FreezeDisplay($hour > 17 OR $hour<9 );

LogMessage("The Alarm Control is frozen between 6 PM and 8 AM.");

Guide to the ArchestrA Alarm Control

132 Chapter 4 Scripting the Alarm Control

GetItem() Method

The GetItem method returns the data at the given row and column. The row is given as a zero-based index. You need to specify 0 to retrieve data from the 1st row. The column name can either be the original column name, or the displayed column name.

Syntax

Result = AlarmClient.GetItem(RowNumber, ColumnName);

Parameters

RowNumber

An integer row number for the alarm record containing the value you want to fetch.

ColumnName

Name of the column.

Return Value

Returns the data at the given row and column as a string value.

Example

Data1 = AlarmClient1.GetItem(5, "Current Value");

LogMessage("The current value of the 6th alarm record is " + Data1);

Remarks

To get alarm record data from the currently selected row in a given column name, use the

GetSelectedItem

method.

GetLastError() Method

The GetLastError method returns the last error message.

This is useful if the Hide Errors option is selected.

Syntax

ErrMsg = AlarmClient.GetLastError();

Return Value

Returns the last error message.

Example

ErrMsg = AlarmClient1.GetLastError();

ComboBox1.AddItem(ErrMsg);

Guide to the ArchestrA Alarm Control

Alarm Control Methods 133

GetSelectedItem() Method

The GetSelectedItem method returns the data at the currently selected row and specified column. The column name can either be the original column name, or the displayed column name.

Syntax

Result = AlarmClient.GetSelectedItem(ColumnName);

Parameters

ColumnName

Name of the column.

Return Value

Returns the data in the currently selected row and specified column as a string value.

Example

Data2 = AlarmClient1.GetSelectedItem ("State");

LogMessage("The current state of the selected alarm record is " + Data2);

Remarks

To get alarm record data from a given column name and row index, use the

GetItem

method.

Hide.All() Method

The Hide.All method hides all current alarms in the Alarm

Control, including future alarms.

Syntax

AlarmClient.Hide.All();

Guide to the ArchestrA Alarm Control

134 Chapter 4 Scripting the Alarm Control

Hide.Group() Method

The Hide.Group method hides all alarms for a given alarm source and group.

The alarm source and group names are case-insensitive.

Syntax

AlarmClient.Hide.Group(AlarmSource, Group);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

Example

AlarmClient1.Hide.Group("\\machine1\galaxy",

"Area_001");

LogMessage("All alarms in Area_001 hidden.");

Hide.Priority() Method

The Hide.Priority method hides all alarms for a given alarm source, group, and priority range.

The alarm source and group names are case-insensitive.

Syntax

AlarmClient.Hide.Priority(AlarmSource, Group,

FromPriority, ToPriority);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

Guide to the ArchestrA Alarm Control

Alarm Control Methods 135

Example

GrpName = "ValveGroup";

AlarmClient1.Hide.Priority("\intouch", GrpName, 250,

500);

LogMessage("All local InTouch alarms in the ValveGroup alarm group with priorities from 250 to 500 are now hidden.");

Hide.Selected() Method

The Hide.Selected method hides all selected alarms.

Syntax

AlarmClient.Hide.Selected();

Hide.SelectedGroup() Method

The Hide.SelectedGroup method hides all alarms that have the same alarm sources and groups as one or more selected alarms.

Syntax

AlarmClient.Hide.SelectedGroup();

Hide.SelectedPriority() Method

The Hide.SelectedPriority method hides all alarms that have the same alarm sources, groups, and within the priority ranges as one or more selected alarms.

Syntax

AlarmClient.Hide.SelectedPriority();

Hide.SelectedTag() Method

The Hide.SelectedTag method hides all alarms that have the same alarm sources, groups, tag names, and within the priority ranges as one or more selected alarms.

Syntax

AlarmClient.Hide.SelectedTag();

Remarks

None

Guide to the ArchestrA Alarm Control

136 Chapter 4 Scripting the Alarm Control

Hide.Tag() Method

The Hide.Tag method hides all alarms for a given alarm source, group, tag name, and priority range.

The alarm source, group name, and tag names are case-insensitive.

Syntax

AlarmClient.Hide.Tag(AlarmSource, Group, Tag,

FromPriority, ToPriority);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

Tag

The name of the alarm tag. For example, ValveTag1.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

Example

AlarmClient1.Hide.Tag("\\machine25\galaxy",

"Vessel_25B", "Valve17", 1, 99);

LogMessage("All ArchestrA alarm records of the attribute Valve17 in the group (area) Vessel_25B of the galaxy on machine25 with priorities from 1 to 99 are now hidden.");

Hide.Visible() Method

The Hide.Visible method hides all alarms currently visible in the Alarm Control.

Syntax

AlarmClient.Hide.Visible();

Guide to the ArchestrA Alarm Control

Alarm Control Methods 137

MoveWindow() Method

The MoveWindow method scrolls the alarm records in the control in a given direction.

Syntax

AlarmClient.MoveWindow(ScrollDir, Repeat);

Parameters

ScrollDir

String indicating the direction to scroll. This parameter is case-insensitive. See the following table.

ScrollDir Description

LineDn Line down. The Repeat parameter controls the number of lines to be scrolled.

LineUp Line up. The Repeat parameter controls the number of lines to be scrolled.

PageDn Page down. The Repeat parameter controls the number of pages to be scrolled.

PageUp Page up. The Repeat parameter controls the number of pages to be scrolled.

Top To the top of the control

Bottom To the bottom of the control.

PageRt Page to the right. The Repeat parameter controls the number of pages to be scrolled.

PageLf Page to the left. The Repeat parameter controls the number of pages to be scrolled.

Right Scrolls right. The Repeat parameter controls the number of columns to be scrolled.

Left

Home

Scrolls left. The Repeat parameter controls the number of columns to be scrolled.

Scrolls to the top row and left most column of the control.

Repeat

Number of times to repeat the scroll action.

Example

AlarmClient1.MoveWindow ("Bottom", 0);

Guide to the ArchestrA Alarm Control

138 Chapter 4 Scripting the Alarm Control

Requery() Method

The Requery method refreshes the alarm records in the

Alarm Control.

For current alarms and recent alarms and events, the control requeries the Alarm Manager. For historical alarms or events, the control retrieves alarm records from the Alarm

Database.

Syntax

AlarmClient.Requery();

Reset() Method

The Reset method resets column widths and the column order to their last known design-time settings. The Reset method also resets the current query filter to the default query.

Syntax

AlarmClient.Reset();

Select.All() Method

The Select.All method selects all alarms in the Alarm

Control.

Syntax

AlarmClient.Select.All();

Select.Group() Method

The Select.Group method selects all alarms for a given provider and group.

Syntax

AlarmClient.Select.Group(AlarmSource, Group);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

Guide to the ArchestrA Alarm Control

Alarm Control Methods 139

Example

AlarmClient1.Select.Group("\\machine1\galaxy",

"Area_001");

LogMessage("All galaxy alarms of group Area_001 from machine1 are now selected.");

Select.Item() Method

The Select.Item method selects an alarm record at a given zero-based row number.

Syntax

AlarmClient.Select.Item(RowNumber);

Parameters

RowNumber

An integer row number for the alarm record to select. The first row in the control is 0.

Example

AlarmClient1.Select.Item(5);

LogMessage("The alarm record in the 6th row (index 5) is now selected.");

Select.Priority() Method

The Select.Priority method selects all alarms for a given alarm source, group, and priority range.

Syntax

AlarmClient.Select.Priority(AlarmSource, Group,

FromPriority, ToPriority);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

Guide to the ArchestrA Alarm Control

140 Chapter 4 Scripting the Alarm Control

Example

GrpName = "ValveGroup";

AlarmClient1.Select.Priority("\intouch", GrpName, 250,

500);

LogMessage("All local InTouch alarms in the ValveGroup alarm group with priorities from 250 to 500 are now selected.");

Select.Tag() Method

The Select.Tag method selects all alarms for a given alarm source, group, tag name, and priority range.

Syntax

AlarmClient.Select.Tag(AlarmSource, Group, Tag,

FromPriority, ToPriority);

Parameters

AlarmSource

The name of the provider and optionally node providing alarms including backslash. For example:

\\node1\galaxy

\intouch

Group

The name of the alarm group. For example, $system.

Tag

The name of the alarm tag. For example, ValveTag1.

FromPriority

Starting priority of alarms. For example, 100.

ToPriority

End priority of alarms. For example, 900.

Example

AlarmClient1.Select.Tag("\\machine25\galaxy",

"Vessel_25B", "Valve17", 1, 99);

LogMessage("All ArchestrA alarm records of the attribute Valve17 in the group (area) Vessel_25B of the galaxy on machine25 with priorities from 1 to 99 are now selected.");

Guide to the ArchestrA Alarm Control

Alarm Control Methods 141

SetSort() Method

The SetSort method sets the level of sorting according to the defined sort columns and sort orders.

Syntax

AlarmClient.SetSort(Level);

Parameters

Level

The level of sorting:

Value

1

2

3

Description

Only use the primary sort column.

Use primary and secondary sort columns.

Use primary, secondary, and tertiary sort columns.

Example

AlarmClient1.SetSort(2);

Remarks

Use the

Show.Sort

method to open the

Sort

dialog box instead.

Show.Context() Method

The Show.Context method opens the shortcut menu at run time. This method ignores the ShowContextMenu property setting and always shows the context menu.

Syntax

AlarmClient.Show.Context();

Show.Favorite() Method

The Show.Favorite method opens the

Query Filters

dialog box.

Syntax

AlarmClient.Show.Favorite();

Guide to the ArchestrA Alarm Control

142 Chapter 4 Scripting the Alarm Control

Show.Hidden() Method

The Show.Hidden method opens the

Hidden Alarms

dialog box.

Syntax

AlarmClient.Show.Hidden();

Show.Sort() Method

The Show.Sort method opens the

Sort

dialog box.

Syntax

AlarmClient.Show.Sort();

Show.Statistics() Method

The Show.Statistics method opens the

Alarm Statistics

dialog box.

Syntax

AlarmClient.Show.Statistics();

TimeSelector.GetStartAndEndTimes() Method

The TimeSelector.GetStartAndEndTimes method gets the start and end times for the query.

Syntax

AlarmClient.GetStartAndEndTimes(StartTime, EndTime);

Parameters

StartTime

String attribute, custom property, or element property to retrieve the start time.

EndTime

String attribute, custom property, or element property to retrieve the end time.

Example

dim SDate as string; dim EDate as string;

AlarmClient1.TimeSelector.GetStartAndEndTimes(SDate,

EDate);

StartDate = SDate;

EndDate = EDate;

Guide to the ArchestrA Alarm Control

Alarm Control Methods 143

TimeSelector.RefreshTimes() Method

The TimeSelector.RefreshTimes method sets the time period for the query by updating the end time to current time and recalculates the start time based on the new end time and duration.

If you set the Boolean parameter to TRUE, the OnChange event is triggered if the time is updated.

Only use this method, if the

Update to Current Time

option is cleared or the

UpdateToCurrentTime

property is FALSE.

Note

This method does not work if the UpdatetoCurrentTime property value is TRUE.

Syntax

AlarmClient.TimeSelector.RefreshTimes(TriggerEvent);

Example

dtag = 1;

AlarmClient.TimeSelector.RefreshTimes(dtag);

TimeSelector.SetStartAndEndTimes() Method

The TimeSelector.SetStartAndEndTimes method sets the start and end times for the query.

You must specify one of the following parameter combinations:

Start time and end time. Set the Duration parameter to

0.

Start time and duration. Set the EndTime parameter to

““.

End time and duration. Set the StartTime parameter to

““.

Start time, duration, and end time. The Alarm Control shows an error message if start time plus duration is not equal to end time.

Syntax

AlarmClient.SetStartAndEndTimes(StartTime, EndTime,

Duration);

Guide to the ArchestrA Alarm Control

144 Chapter 4 Scripting the Alarm Control

Parameters

StartTime

String value or expression indicating the start time.

EndTime

String value or expression indicating the end time.

Duration

Duration enum. For more information on possible values,

see TimeSelector.TimeDuration Property on page 120.

Example

AlarmClient1.TimeSelector.SetStartAndEndTimes("08/31/2

008 15:33:43","09/01/2009 15:33:43",0);

Toggle.All() Method

The Toggle.All method reverses the selection of all alarm records. Selected alarms are cleared, and unselected alarms are selected.

Syntax

AlarmClient.Toggle.All();

Toggle.Item() Method

The Toggle.Item method reverses the selection of a given alarm record. If the given alarm record is selected, the selection is cleared; otherwise, it is selected.

Syntax

AlarmClient.Toggle.Item(RowNumber);

Parameters

RowNumber

An integer row number for the alarm record to reverse the selection. The first row in the control is 0.

Example

AlarmClient1.Toggle.Item(5);

LogMessage("The selection of the alarm record in the

6th row (index 5) is now reversed.");

Guide to the ArchestrA Alarm Control

Configuring Events 145

UnhideAll() Method

The UnhideAll method unhides all hidden alarms.

Syntax

AlarmClient.UnhideAll();

UnSelectAll() Method

The UnSelectAll method unselects all alarm records.

Syntax

AlarmClient.UnSelectAll();

Configuring Events

You can execute an action script when the Alarm Control triggers an event. Examples of basic events are:

Click: The user clicks the Alarm Control.

DoubleClick: The user double-clicks the Alarm Control.

Startup: The Alarm Control opens at run time.

Shutdown: The Alarm Control closes at run time.

The Click, DoubleClick, Startup, and Shutdown events are standard for all .NET client controls. For more information, see the Creating and Managing ArchestrA Graphics Users

Guide.

The Alarm Control has one event of its own that is triggered when a new alarm occurs, the NewAlarm event.

Configuring the NewAlarm Event

You can configure the NewAlarm event to execute an

ArchestrA symbol script whenever a new alarm occurs.

You can control the trigger behavior with the

NewAlarmEventMode property. For more information, see

NewAlarmEventMode Property on page 110.

To configure the NewAlarm event

1

Double-click the Alarm Control. The

Edit Animations

dialog box appears.

2

Click

Event

. The

Event

page appears.

Guide to the ArchestrA Alarm Control

146 Chapter 4 Scripting the Alarm Control

3

In the

Event

list, click

NewAlarm

.

4

5

In the script area, type the script you want to execute when a new alarm occurs, for example:

AlertIcon.Visible = true;

You must also set the NewAlarmEventMode property to

1 or 2 to enable the NewAlarm event trigger. Do the following:

a b

On the

Special

menu, click

Scripts

. The

Edit Scripts

dialog box appears.

Make sure

Trigger type

is set to

On Show

.

c d e

In the script area, type the following:

AlarmClient1.NewAlarmEventMode = 1;

If you want the script to be executed every time a new alarm occurs, set the NewAlarmEventMode property to 2 instead.

Click

OK

.

Guide to the ArchestrA Alarm Control

.NET Colors 147

.NET Colors

The following table is an overview of the color .NET color names with hexadecimal code.

Color with Hex Code

AliceBlue #F0F8FF

Aquamarine #7FFFD4

Bisque #FFE4C4

Blue #0000FF

BurlyWood #DEB887

Chocolate #D2691E

Cornsilk #FFF8DC

DarkBlue #00008B

DarkGray #A9A9A9

DarkMagenta #8B008B

Color with Hex Code

AntiqueWhite #FAEBD7

Azure #F0FFFF

Black #000000

BlueViolet #8A2BE2

CadetBlue #5F9EA0

Coral #FF7F50

Color with Hex Code

Aqua #00FFFF

Beige #F5F5DC

BlanchedAlmond

#FFEBCD

Brown #A52A2A

Chartreuse #7FFF00

CornflowerBlue #6495ED

Crimson #DC143C

DarkCyan #008B8B

Cyan #00FFFF

DarkGoldenrod #B8860B

DarkGreen #006400 DarkKhaki #BDB76B

DarkOliveGreen #556B2F DarkOrange #FF8C00

DarkOrchid #9932CC DarkRed #8B0000

DarkSeaGreen #8FBC8B DarkSlateBlue #483D8B

DarkTurquoise #00CED1 DarkViolet #9400D3

DeepSkyBlue #00BFFF DimGray #696969

Firebrick #B22222

Fuchsia #FF00FF

Gold #FFD700

Green #008000

FloralWhite #FFFAF0

Gainsboro #DCDCDC

Goldenrod #DAA520

GreenYellow #ADFF2F

HotPink #FF69B4

Ivory #FFFFF0

IndianRed #CD5C5C

Khaki #F0E68C

LavenderBlush #FFF0F5 LawnGreen #7CFC00

LightBlue #ADD8E6 LightCoral #F08080

LightGray #D3D3D3 LightGoldenrodYellow

#FAFAD2

LightPink #FFB6C1

LightSkyBlue #87CEFA

LightYellow #FFFFE0

LightSalmon #FFA07A

LightSlateGray #778899

Lime #00FF00

DarkSalmon #E9967A

DarkSlateGray #2F4F4F

DeepPink #FF1493

DodgerBlue #1E90FF

ForestGreen #228B22

GhostWhite #F8F8FF

Gray #808080

Honeydew #F0FFF0

Indigo #4B0082

Lavender #E6E6FA

LemonChiffon #FFFACD

LightCyan #E0FFFF

LightGreen #90EE90

LightSeaGreen #20B2AA

LightSteelBlue #B0C4DE

LimeGreen #32CD32

Guide to the ArchestrA Alarm Control

148 Chapter 4 Scripting the Alarm Control

Color with Hex Code

Linen #FAF0E6

MediumAquamarine

#66CDAA

MediumPurple #9370DB

Color with Hex Code

Magenta #FF00FF

MediumBlue #0000CD

MediumSpringGreen

#00FA9A

MidnightBlue #191970

Moccasin #FFE4B5

OldLace #FDF5E6

Orange #FFA500

MediumSeaGreen

#3CB371

MediumTurquoise

#48D1CC

MintCream #F5FFFA

NavajoWhite #FFDEAD

Olive #808000

OrangeRed #FF4500

PaleGoldenrod #EEE8AA PaleGreen #98FB98

PaleVioletRed #DB7093 PapayaWhip #FFEFD5

Peru #CD853F

PowderBlue #B0E0E6

Pink #FFC0CB

Purple #800080

RosyBrown #BC8F8F

Salmon #FA8072

SeaShell #FFF5EE

SkyBlue #87CEEB

Snow #FFFAFA

Tan #D2B48C

Tomato #FF6347

Violet #EE82EE

WhiteSmoke #F5F5F5

RoyalBlue #4169E1

SandyBrown #F4A460

Sienna #A0522D

SlateBlue #6A5ACD

SpringGreen #00FF7F

Teal #008080

Transparent #FFFFFF

Wheat #F5DEB3

Yellow #FFFF00

Color with Hex Code

Maroon #800000

MediumOrchid #BA55D3

MediumSlateBlue

#7B68EE

MediumVioletRed

#C71585

MistyRose #FFE4E1

Navy #000080

OliveDrab #6B8E23

Orchid #DA70D6

PaleTurquoise #AFEEEE

PeachPuff #FFDAB9

Plum #DDA0DD

Red #FF0000

SaddleBrown #8B4513

SeaGreen #2E8B57

Silver #C0C0C0

SlateGray #708090

SteelBlue #4682B4

Thistle #D8BFD8

Turquoise #40E0D0

White #FFFFFF

YellowGreen #9ACD32

Guide to the ArchestrA Alarm Control

Chapter 5

Transferring Alarm Configuration from InTouch

149

You can transfer the configuration of the InTouch Alarm

Viewer control and the InTouch Alarm DB View control to the configuration of the ArchestrA Alarm Control.

You can also map the InTouch alarm control properties and methods to the properties and methods of the ArchestrA

Alarm Control.

Transferring the InTouch Alarm Viewer

Control Configuration

You can transfer the configuration of the InTouch Alarm

Viewer control tabs options to the ArchestrA Alarm Control.

Guide to the ArchestrA Alarm Control

150 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Control Name

Tab

You can transfer the configuration of the

Control Name

tab options of the InTouch Alarm Viewer control to the

ArchestrA Alarm Control.

InTouch option

ControlName

Left, Top, Width, and Height

Visible

GUID

Alarm Control option

You can rename the ArchestrA Alarm

Control the same way as any other elements on the canvas. For more information, see the Creating and

Managing ArchestrA Graphics User’s

Guide.

You can directly edit the positioning options in the same way as any other element on the canvas. Edit the following properties in the Properties

Editor:

X

,

Y

,

Width

, and

Height

.

You can directly edit the visibility option in the same way as any other element on the canvas. In the

Properties Editor, edit the

Visible

property.

This option has no meaning in the

ArchestrA Alarm Control.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm Viewer Control Configuration 151

Transferring Configuration of the General Tab

You can transfer the configuration of the

General

tab options of the InTouch Alarm Viewer control to the ArchestrA Alarm

Control.

InTouch option

Perform Query on Startup

Show Context

Sensitive Menu

Configure

Context Menus

Use Default Ack

Comment

Retain

Suppression

Alarm Control option

In the ArchestrA Alarm Control, this option is called

Query on Startup

. You can configure this option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, this option is called

Show Context Menu

.

You can configure this option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the availability of individual shortcut menu options at run-time directly on the

Run-Time

Behavior

page.

In the ArchestrA Alarm Control, you can configure the

Use Default Ack

Comment

option on the

Alarm Mode

page, when either Current Alarms or

Recent Alarms and Events is selected as client type.

In the ArchestrA Alarm Control, this option is called

Retain Hidden

. You can configure it on the

Run-Time Behavior

page.

Guide to the ArchestrA Alarm Control

152 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch option

Show Status Bar In the ArchestrA Alarm Control, you can configure the

Show Status Bar

option on the

Run-Time Behavior

page.

Show Heading In the ArchestrA Alarm Control, you can configure the

Show Heading

option on the

Run-Time Behavior

page.

Resize Column

Alarm Control option

Row Selection

In the ArchestrA Alarm Control, this option is called

Allow Column Resizing

.

You can configure it on the

Run-Time

Behavior

page.

In the ArchestrA Alarm Control, this option is called

Row Selection

. You can configure it on the

Run-Time Behavior

page.

Use Extended

Selection

Show Grid

Silent Mode

In the ArchestrA Alarm Control, this option is called

Row Selection

. You can configure it on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the

Show Grid

option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, this option is called

Hide Errors and

Warnings

. You can configure it on the

Run-Time Behavior

page.

Flash Unack

Alarms

Show Message

In the ArchestrA Alarm Control, you can configure the

Flash Unack Alarms

option on the

Colors

page.

In the ArchestrA Alarm Control, this option is called

Show Custom ‘No

Records’ Message

. You can configure it on the

Run-Time Behavior

page.

Font You can configure this option from the

ArchestrA Symbol Editor page. Select the ArchestrA Alarm Control on the canvas and select an appropriate font type, size, and style on the menu bars.

Column Details In the ArchestrA Alarm Control, you can configure the column details directly on the

Column Details

page.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm Viewer Control Configuration 153

Transferring Configuration of the Color Tab

You can transfer the configuration of the

Color

tab options of the InTouch Alarm Viewer control to the ArchestrA Alarm

Control.

All the options of the

Color

tab in the InTouch Alarm Viewer control can be set on the

Colors

page of the ArchestrA Alarm

Control.

The following table shows you some minor differences in wording:

InTouch Alarm Viewer control

Title Bar Text

Title Bar Back

Alarm Return

ArchestrA Alarm Control

Heading Text

Heading Background

Alarm RTN

You can also set the background color in addition to the text color for most of the alarm records.

You can set the alarm priority range breakpoints directly in the table in the

From Pri

column.

Guide to the ArchestrA Alarm Control

154 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Time Format

Tab

You can transfer the configuration of the

Time Format

tab options of the InTouch Alarm Viewer control to the

ArchestrA Alarm Control.

InTouch option

Time Format

Alarm Control option

In the ArchestrA Alarm Control, you can configure the

Time Format

option on the

Time Settings

page.

Displayed Time This option has no meaning in the

ArchestrA Alarm Control. All alarm records are shown with the following time stamps in the Alarm Control grid:

• Time (OAT)

: Original Alarm Time

• Time (LCT)

: Last Changed Time

Displayed Time

Zone

• Time (LCT, OAT)

: Last Changed

Time, but Original Alarm Time if the alarm record is unacknowledged.

In the ArchestrA Alarm Control, this option is called

Time Zone

. You can configure it on the

Time Settings

page.

You need to explicitly configure the time zone for the correct time stamp.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm Viewer Control Configuration 155

Transferring Configuration of the Query Tab

You can transfer the configuration of the

Query

tab options of the InTouch Alarm Viewer control to the ArchestrA Alarm

Control.

InTouch option

From Priority,

To Priority

Alarm State

Query Type

Alarm Query

Alarm Control option

In the ArchestrA Alarm Control, you can only set the priority limits as part of a query filter on the

Query Filters

page. For more information, see

Filtering Alarms on page 42.

In the ArchestrA Alarm Control, you can only set the alarm state limitation as part of a query filter on the

Query

Filters

page. For more information, see

Filtering Alarms on page 37.

In the ArchestrA Alarm Control, you can set the

Client Mode

option on the

Alarm Mode

page as follows:

For query type "Summary", set the client mode to

Current Alarms

.

For query type "Historical", set the client mode to

Recent Alarms and

Events

.

In the ArchestrA Alarm Control, you can configure the

Alarm Query

option on the

Alarm Mode

page.

Guide to the ArchestrA Alarm Control

156 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch option

Query Favorites

File, Edit Query

Favorites

Sort Column

Auto Scroll to

New Alarms

Secondary Sort

Column, Sort

Direction

Alarm Control option

In the ArchestrA Alarm Control, all query favorites and filter favorites are managed on one page and are interchangeable between different client modes. To access the Query

Filter Favorites, open the

Query Filters

page.

In the ArchestrA Alarm Control, you can configure the sorting of alarm records on the

Column Details

page.

In the ArchestrA Alarm Control, you can configure the

Auto Scroll to New

Alarms

on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the sorting of alarm records on the

Column Details

page.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm Viewer Control Configuration 157

Transferring Configuration of the Properties Tab

You can set the properties of the ArchestrA Alarm Control in the

Properties Editor

when the Alarm Control is selected on the canvas.

For more information on the exact mapping between the

InTouch Alarm Viewer control properties and ArchestrA

Alarm Control properties, see Mapping Properties and

Methods on page 169.

The advanced property filtering feature does not exist in the

ArchestrA Alarm Control. However, when you browse for properties of the ArchestrA Alarm Control from other elements with the

Galaxy Browser

, you can filter the properties. Also, the properties of the ArchestrA Alarm

Control are logically grouped in the Properties Editor.

Transferring Script Configuration on the Events

Tab

You can configure scripts for events of the ArchestrA Alarm

Control on the

Event

animation page. The events are the same as the events for the InTouch Alarm Viewer control:

Click

DoubleClick

New Alarm

Shutdown

StartUp

Guide to the ArchestrA Alarm Control

158 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring the InTouch Alarm DB View

Control Configuration

You can transfer the configuration of the InTouch Alarm DB

View control tabs options to the ArchestrA Alarm Control.

Transferring Configuration of the Control Name

Tab

You can transfer the configuration of the

Control Name

tab options of the InTouch Alarm DB View control to the

ArchestrA Alarm Control.

InTouch option

ControlName

Left, Top, Width, and Height

Alarm Control option

You can rename the ArchestrA Alarm

Control the same way as any other elements on the canvas. For more information, see the Creating and

Managing ArchestrA Graphics User’s

Guide.

You can directly edit the positioning options in the same way as any other element on the canvas. Edit the following properties in the Properties

Editor:

X

,

Y

,

Width

, and

Height

.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm DB View Control Configuration 159

InTouch option

Visible

GUID

Alarm Control option

You can directly edit the visibility option in the same way as any other element on the canvas. In the

Properties Editor, edit the

Visible

property.

This option has no meaning in the

ArchestrA Alarm Control.

Transferring Configuration of the General Tab

You can transfer the configuration of the

General

tab options of the InTouch Alarm DB View control to the ArchestrA

Alarm Control.

InTouch option

Enable Refresh

Menu

Enable Sort

Menu

Alarm Control option

In the ArchestrA Alarm Control, you can configure the availability of the

Requery

shortcut menu option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the availability of the

Sort

shortcut menu option on the

Run-Time Behavior

page.

Guide to the ArchestrA Alarm Control

160 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch option

Enabled Reset

Menu

Enabled Filter

Menu

Alarm Control option

In the ArchestrA Alarm Control, you can configure the availability of the

Reset

shortcut menu option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the availability of the

Query Filters

shortcut menu option on the

Run-Time Behavior

page.

Display Mode In the ArchestrA Alarm Control, set the

Client Mode

on the

Alarm Mode

page to the same setting as the

Display Mode

setting in the InTouch Alarm DB View control.

Column Details In the ArchestrA Alarm Control, you can configure the column details directly on the

Column Details

page.

Show Grid

Show Heading

In the ArchestrA Alarm Control, you can configure the

Show Grid

option on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, you can configure the

Show Heading

option on the

Run-Time Behavior

page.

Row Selection

Resize Column

In the ArchestrA Alarm Control, this option is called

Row Selection

. You can configure it on the

Run-Time Behavior

page.

In the ArchestrA Alarm Control, this option is called

Allow Column Resizing

.

You can configure it on the

Run-Time

Behavior

page.

Show Status Bar In the ArchestrA Alarm Control, you can configure the

Show Status Bar

option on the

Run-Time Behavior

page.

Retrieve Buttons In the ArchestrA Alarm Control, the retrieve buttons are not available. The underlying grid technology handles the alarm retrieval from the alarm database.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm DB View Control Configuration 161

InTouch option

Silent Mode

Font

Show Message

Alarm Control option

In the ArchestrA Alarm Control, this option is called

Hide Errors and

Warnings

. You can configure it on the

Run-Time Behavior

page.

You can configure this option from the

ArchestrA Symbol Editor page. Select the ArchestrA Alarm Control on the canvas and select an appropriate font type, size, and style on the menu bars.

In the ArchestrA Alarm Control, this option is called

Show Custom ‘No

Records’ Message

. You can configure it on the

Run-Time Behavior

page.

Guide to the ArchestrA Alarm Control

162 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Color Tab

You can transfer the configuration of the

Color

tab options of the InTouch Alarm DB View control to the ArchestrA Alarm

Control.

All the options of the

Color

tab in the InTouch Alarm DB

View control can be set on the

Colors

page of the ArchestrA

Alarm Control.

The following table shows you some minor differences in wording:

InTouch Alarm DB View control

Forecolor

Backcolor

Alm

Return

ArchestrA Alarm Control

Text

Background n/a

RTN

You can set the alarm priority range breakpoints directly in the table in the

From Pri

column.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm DB View Control Configuration 163

Transferring Configuration of the Database Tab

You can transfer the configuration of the

Database

tab options of the InTouch Alarm DB View control to the

ArchestrA Alarm Control.

In the ArchestrA Alarm Control, you can configure the following options on the

Alarm Mode

page:

• Server Name

• User

• Test Connection

• Database Name

• Password

In the ArchestrA Alarm Control, the

Auto Connect

option is called

Query on Startup

. You can configure it on the

Run-Time

Behavior

page.

The configuration for the Alarm Database only appears if the

Client Mode

is set to

Historical Alarms

,

Historical Events

, or

Historical Alarms and Events

.

Guide to the ArchestrA Alarm Control

164 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Selection Tab

You can transfer the configuration of the

Selection

tab options of the InTouch Alarm DB View control to the

ArchestrA Alarm Control.

InTouch option

Use Specific

Time, Start

Time, End Time

Alarm Control option

In the ArchestrA Alarm Control, you can set these options directly in the

Time Range Picker control on the

Alarm Mode

page.

When you select a time from either the start time or end time part of the Time

Range Picker control, the Alarm

Control is automatically set to use a specific time.

To keep the specific start and end time, you must also clear

Update to Current

Time

. When you refresh the Alarm

Control grid at run time, the time range stays fixed to the given start and end time.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm DB View Control Configuration 165

InTouch option

Duration

UnAck Duration,

Alarm Duration

Query Time

Zone

Maximum

Records

Alarm Control option

In the ArchestrA Alarm Control, you can set this option directly in the Time

Range Picker control on the

Alarm

Mode

page.

When you select a duration from the center part of the Time Range Picker control, the Alarm Control is automatically set to use a time offset.

To keep the duration, you must also select the

Update to Current Time

check box. When you refresh the Alarm

Control grid at run time, the end time is set to the current time and the

Alarm Control shows the alarms within the set duration.

In the ArchestrA Alarm Control, you cannot configure the Unack Duration and Alarm Duration settings. The

Alarm Control grid shows both UnAck

Duration and Alarm Duration in separate columns.

In the ArchestrA Alarm Control, you can configure the

Time Zone

setting on the

Time Settings

page.

In the ArchestrA Alarm Control, you can configure the

Maximum Records

setting on the

Alarm Mode

page.

Guide to the ArchestrA Alarm Control

166 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Time/Sort Tab

You can transfer the configuration of the

Time/Sort

tab options of the InTouch Alarm DB View control to the

ArchestrA Alarm Control.

InTouch option

Time Format

Displayed Time

Zone

Primary Sort

Column,

Secondary Sort

Column, Sort

Order

Alarm Control option

In the ArchestrA Alarm Control, you can configure the

Time Format

setting on the

Time Settings

page.

In the ArchestrA Alarm Control, you can configure the

Time Zone

setting on the

Time Settings

page.

In the ArchestrA Alarm Control, you can configure the sorting options on the

Column Details

page.

Guide to the ArchestrA Alarm Control

Transferring the InTouch Alarm DB View Control Configuration 167

Transferring Configuration of the Query Filter

Tab

You can transfer the configuration of the

Query Filter

tab options of the InTouch Alarm DB View control to the

ArchestrA Alarm Control.

In the ArchestrA Alarm Control, all query favorites and filter favorites are managed on one page and are interchangeable between different client modes. To access the Query Filter

Favorites, open the

Query Filters

page.

Guide to the ArchestrA Alarm Control

168 Chapter 5 Transferring Alarm Configuration from InTouch

Transferring Configuration of the Properties Tab

You can set the properties of the ArchestrA Alarm Control in the

Properties Editor

when the Alarm Control is selected on the canvas.

For more information on the exact mapping between the

InTouch Alarm DB View control properties and ArchestrA

Alarm Control properties, see Mapping Properties and

Methods on page 169.

The advanced property filtering feature does not exist in the

ArchestrA Alarm Control. However, when you browse for properties of the ArchestrA Alarm Control from other elements with the

Galaxy Browser

, you can filter the properties. Also, the properties of the ArchestrA Alarm

Control are logically grouped in the Properties Editor.

Transferring Scripts Configuration on the Events

Tab

You can configure scripts for events of the ArchestrA Alarm

Control on the

Event

animation page. The events are the same as the events for the InTouch Alarm DB View control:

Click

DoubleClick

NewAlarm

Shutdown

StartUp

For more information, see Configuring Events on page 145.

Guide to the ArchestrA Alarm Control

Transferring Query Favorites Configuration 169

Transferring Query Favorites Configuration

You can only transfer query favorites configuration from

InTouch to the ArchestrA Alarm Control by recreating the filters on the Query Filters page.

If you intend to use a the query filter in one of the current client modes, make sure you also include

Provider

and

Group

as filter criteria.

Mapping Properties and Methods

The following table shows all properties and methods of the

InTouch Alarm Viewer control and InTouch Alarm DB View controls and their corresponding properties and methods of the ArchestrA Alarm Control.

InTouch alarm control property or method

AboutBox()

AckAll()

AckAllMenu

AckAlmBackColor

AckAlmBackColorRange1

AckAlmBackColorRange2

AckAlmBackColorRange3

AckAlmBackColorRange4

AckAlmColorRange1

AckAlmColorRange2

AckAlmColorRange3

AckAlmColorRange4

ArchestrA Alarm Control property or method

AboutBox() Method on page 125

Ack.All() Method on page 125

ContextMenu.AckAll Property on page 95

AlarmColor.Ack.BackGround Property on page 80

AlarmColor.Ack.BackGround Property on page 80

AlarmColor.Ack.BackGround Property on page 80

AlarmColor.Ack.BackGround Property on page 80

AlarmColor.Ack.BackGround Property on page 80

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

Guide to the ArchestrA Alarm Control

170 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch alarm control property or method

AckAlmForeColor

AckAlmForeColorRange1

AckAlmForeColorRange2

AckAlmForeColorRange3

AckAlmForeColorRange4

AckGroup()

AckOthersMenu

AckPriority()

AckRtnBackColor

AckRtnForeColor

AckSelected()

AckSelectedGroup()

AckSelectedGroupsMenu

AckSelectedMenu

AckSelectedPrioritiesMenu

AckSelectedPriority()

AckSelectedTag()

AckSelectedTagsMenu

AckTag()

AckVisible()

ArchestrA Alarm Control property or method

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

AlarmColor.Ack.ForeGround Property on page 82

Ack.Group() Method on page 126

ContextMenu.AckOthers Property on page 95

Ack.Priority() Method on page 126

AlarmColor.RTN.BackGround Property on page 85

AlarmColor.RTN.ForeGround Property on page 86

Ack.Selected() Method on page 127

Ack.SelectedGroup() Method on page 127

ContextMenu.AckSelectedGroups

Property on page 96

ContextMenu.AckSelected Property on page 96

ContextMenu.AckSelectedPriorities

Property on page 96

Ack.SelectedPriority () Method on page 128

Ack.SelectedTag() Method on page 128

ContextMenu.AckSelectedTags Property on page 97

Ack.Tag() Method on page 128

Ack.Visible() Method on page 129

Guide to the ArchestrA Alarm Control

Mapping Properties and Methods 171

InTouch alarm control property or method

AckVisibleMenu

AlarmQuery

AlarmState

AlmRtnBackColor

AlmRtnColor

AlmRtnForeColor

ApplyDefaultQuery()

ApplyQuery()

AutoConnect

AutoScroll

ColorPriorityRange1

ColorPriorityRange2

ColorPriorityRange3

ColumnResize

Connect()

ConnectStatus

CustomMessage

DefaultAckComment

ArchestrA Alarm Control property or method

ContextMenu.AckVisible Property on page 97

AlarmQuery Property on page 93

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

AlarmColor.RTN.BackGround Property on page 85

AlarmColor.RTN.ForeGround Property on page 86

AlarmColor.RTN.ForeGround Property on page 86

Favorite Property on page 106

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

QueryStartup Property on page 111

AutoScroll Property on page 94

AlarmColor.Range Property on page 84

AlarmColor.Range Property on page 84

AlarmColor.Range Property on page 84

AllowColumnResize Property on page 93

Connect() Method on page 130

ConnectStatus Property on page 95

NoRecordsMessage.Message Property on page 111

AckComment.DefaultValue Property on page 79

Guide to the ArchestrA Alarm Control

172 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch alarm control property or method

DisplayedTime

DisplayedTimeZone

DisplayMode

Duration

EndTime

EventBackColor

EventColor

EventForeColor

ExtendedSelection

FilterFavoritesFile

FilterMenu

FilterName

FlashUnackAlarms

FlashUnAckAlmColorRange1

FlashUnAckAlmColorRange2

ArchestrA Alarm Control property or method

This option has no meaning in the

ArchestrA Alarm Control. All three times are shown in the Alarm Control:

Original Alarm Time

Last Changed Time

Last Changed Time, but Original

Alarm Time for unacknowledged alarms

TimeZone.TimeZone Property on page 122

ClientMode Property on page 94

TimeSelector.TimeDuration Property on page 120

TimeSelector.EndDate Property on page 119

EventColor.BackGround Property on page 105

EventColor.ForeGround Property on page 105

EventColor.ForeGround Property on page 105

RowSelection Property on page 112

No corresponding property. The file name is used as a parameter for the

Favorites.Export() Method and

Favorites.Import() Method methods.

ContextMenu.Favorites Property on page 97

Favorite Property on page 106

FlashUnAckAlarms Property on page 106

AlarmColor.UnAck.Flash.ForeGround

Property on page 89

AlarmColor.UnAck.Flash.ForeGround

Property on page 89

Guide to the ArchestrA Alarm Control

Mapping Properties and Methods 173

InTouch alarm control property or method

FlashUnAckAlmColorRange3

FlashUnAckAlmColorRange4

Font

FreezeDisplay()

FreezeMenu

FromPriority

GetItem()

GetLastError()

GetNext()

GetPrevious()

GetSelectedItem()

GridColor

GroupExactMatch

ArchestrA Alarm Control property or method

AlarmColor.UnAck.Flash.ForeGround

Property on page 89

AlarmColor.UnAck.Flash.ForeGround

Property on page 89

You can only set the font at design time, not at run time.

FreezeDisplay() Method on page 131

ContextMenu.Freeze Property on page 98

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

GetItem() Method on page 132

GetLastError() Method on page 132

No corresponding property. Alarm records are retrieved one by one from the

Alarm Database after the initial set of alarm records is retrieved. The initial set is defined by the

Maximum Records

setting.

No corresponding property. Alarm records are retrieved one by one from the

Alarm Database after the initial set of alarm records is retrieved. The initial set is defined by the

Maximum Records

setting.

GetSelectedItem() Method on page 133

GridColor Property on page 106

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

Guide to the ArchestrA Alarm Control

174 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch alarm control property or method

GroupName

MaxRecords

MoveWindow()

NewAlarmEventMode

Password

PrimarySort

ProviderExactMatch

ProviderName

QueryFavoritesFile

QueryFavoritesMenu

QueryName

QueryStartup

QueryTimeZone

QueryType

Refresh()

RefreshMenu

ArchestrA Alarm Control property or method

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

MaxDatabaseRecords Property on page 109

MoveWindow() Method on page 137

NewAlarmEventMode Property on page 110

Database.Authentication Property on page 102

SortOrder.First Property on page 115

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite property.

For more information, see Favorite

Property on page 106.

No corresponding property. The file name is used as a parameter for the

Favorites.Export() Method and

Favorites.Import() Method methods.

ContextMenu.Favorites Property on page 97

Favorite Property on page 106

QueryStartup Property on page 111

TimeZone.TimeZone Property on page 122

ClientMode Property on page 94

Requery() Method on page 138

ContextMenu.Requery Property on page 101

Guide to the ArchestrA Alarm Control

Mapping Properties and Methods 175

InTouch alarm control property or method

Requery()

RequeryMenu

Reset()

ResetMenu

RetainSuppression

RowCount

RowSelection

SecondarySort

SecondarySortColumn

SelectAll()

SelectedCount

SelectGroup()

SelectItem()

SelectPriority()

SelectQuery()

SelectTag()

ServerName

SetQueryByName

SetSort()

ShowContext()

ShowContextMenu

ArchestrA Alarm Control property or method

Requery() Method on page 138

ContextMenu.Requery Property on page 101

Reset() Method on page 138

ContextMenu.Reset Property on page 101

RetainHidden Property on page 111

RowCount Property on page 112

RowSelection Property on page 112

SortColumn.Second Property on page 114

SortColumn.Second Property on page 114

To select all records, see Select.All()

Method on page 138.

To reverse the selection of all records, see

Toggle.All() Method on page 144.

SelectedCount Property on page 113

Select.Group() Method on page 138

To select a given alarm record, see

Select.Item() Method on page 139.

To reverse the selection of a given alarm

record, see Toggle.Item() Method on page 144.

Select.Priority() Method on page 139

Favorite Property on page 106

Select.Tag() Method on page 140

Database.ServerName Property on page 103

Favorite Property on page 106

SetSort() Method on page 141

Show.Context() Method on page 141

ShowContextMenu Property on page 113

Guide to the ArchestrA Alarm Control

176 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch alarm control property or method

ShowDate

ShowFetch

ShowFilter()

ShowGrid

ShowHeading

ShowMessage

ShowQueryFavorites()

ShowSort()

ShowStatistics()

ShowStatusBar

ShowSuppression()

SilentMode

SortColumn

SortMenu

SortOnCol()

SortOrder

SpecificTime

StartTime

StatsMenu

SuppressAll()

ArchestrA Alarm Control property or method

There is no equivalent functionality in the ArchestrA Alarm Control.

No corresponding property. The buttons for retrieving sets of alarm records from the Alarm Database do not exist in the

ArchestrA Alarm Control.

Show.Favorite() Method on page 141

ShowGrid Property on page 113

ShowHeading Property on page 113

NoRecordsMessage.Enabled Property on page 110

Show.Favorite() Method on page 141

Show.Sort() Method on page 142

Show.Statistics() Method on page 142

ShowStatusBar Property on page 114

Show.Hidden() Method on page 142

HideErrors Property on page 109

You can set three sort columns in the

ArchestrA Alarm Control. To set the first

column, see SortColumn.First Property on page 114.

ContextMenu.Sort Property on page 101

To set the first sort column, see

SortColumn.First Property on page 114.

To set the sort order of the first sort

column, see SortOrder.First Property on page 115.

SortOrder.First Property on page 115

UpdateToCurrentTime Property on page 123

TimeSelector.StartDate Property on page 119

ContextMenu.Statistics Property on page 102

Hide.All() Method on page 133

Guide to the ArchestrA Alarm Control

Mapping Properties and Methods 177

InTouch alarm control property or method

SuppressAllMenu

SuppressedAlarms

SuppressGroup()

SuppressionMenu

SuppressOthersMenu

SuppressPriority()

SuppressSelected()

SuppressSelectedGroup()

SuppressSelectedGroupsMenu

SuppressSelectedMenu

SuppressSelectedPrioritiesMenu

SuppressSelectedPriority()

SuppressSelectedTagsMenu

SuppressSelectedTag()

SuppressTag()

SuppressVisible()

SuppressVisibleMenu

Time

TimeFormat

TitleBackColor

ArchestrA Alarm Control property or method

ContextMenu.HideAll Property on page 98

HiddenAlarms Property on page 109

Hide.Group() Method on page 134

ContextMenu.Hidden Property on page 98

ContextMenu.HideOthers Property on page 99

Hide.Priority() Method on page 134

Hide.Selected() Method on page 135

Hide.SelectedGroup() Method on page 135

ContextMenu.HideSelectedGroups

Property on page 99

ContextMenu.HideSelected Property on page 99

ContextMenu.HideSelectedPriorities

Property on page 100

Hide.SelectedPriority() Method on page 135

ContextMenu.HideSelectedTags

Property on page 100

Hide.SelectedTag() Method on page 135

Hide.Tag() Method on page 136

Hide.Visible() Method on page 136

ContextMenu.HideVisible Property on page 100

Time.Type Property on page 117 and

Time.Format Property on page 116

Time.Format Property on page 116 and

Time.Type Property on page 117

HeadingColor.BackGround Property on page 107

Guide to the ArchestrA Alarm Control

178 Chapter 5 Transferring Alarm Configuration from InTouch

InTouch alarm control property or method

TitleForeColor

ToPriority

TotalAlarms

TotalRowCount

UnAckAlarms

UnAckAlmBackColor

UnAckAlmBackColorRange1

UnAckAlmBackColorRange2

UnAckAlmBackColorRange3

UnAckAlmBackColorRange4

UnAckAlmColorRange1

UnAckAlmColorRange2

UnAckAlmColorRange3

UnAckAlmColorRange4

UnAckAlmForeColor

UnAckAlmForeColorRange1

UnAckAlmForeColorRange2

UnAckAlmForeColorRange3

ArchestrA Alarm Control property or method

HeadingColor.ForeGround Property on page 108

No corresponding property. Configure a

Query Filter favorite at design time instead and use the Favorite Property.

For more information, see Favorite

Property on page 106.

TotalRowCount Property on page 122

TotalRowCount Property on page 122

UnAckAlarms Property on page 123

AlarmColor.UnAck.BackGround

Property on page 86

AlarmColor.UnAck.BackGround

Property on page 86

AlarmColor.UnAck.BackGround

Property on page 86

AlarmColor.UnAck.BackGround

Property on page 86

AlarmColor.UnAck.BackGround

Property on page 86

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

AlarmColor.UnAck.ForeGround

Property on page 90

Guide to the ArchestrA Alarm Control

Mapping Properties and Methods 179

InTouch alarm control property or method

UnAckAlmForeColorRange4

UnAckOrAlarmDuration

UnSelectAll()

UnSuppressAll()

UnsuppressAllMenu

UseDefaultAckComment

UserID

Visible

WindowColor

ArchestrA Alarm Control property or method

AlarmColor.UnAck.ForeGround

Property on page 90

No corresponding property. UnAck

Duration and Alarm Duration are shown in the Alarm Control grid.

UnSelectAll() Method on page 145

UnhideAll() Method on page 145

ContextMenu.UnhideAll Property on page 102

AckComment.UseDefault Property on page 80

Database.UserID Property on page 104

Visible Property on page 124

WindowColor Property on page 124

Guide to the ArchestrA Alarm Control

180 Chapter 5 Transferring Alarm Configuration from InTouch

Guide to the ArchestrA Alarm Control

Index

181

Symbols

“No Records” message, changing the language of 57

“No Records” message, customizing 57

A

about the ArchestrA alarm control 13

AboutBox 125

access to rows and columns, restricting user 55

Ack.All 125

AckComment.DefaultValue 79

AckComment.UseDefault 80

Ack.Group 126

acknowledged alarms, setting colors for 35

acknowledging alarms 16, 65

Ack.Priority 126

Ack.Selected 127

Ack.SelectedGroup 127

Ack.SelectedPriority 128

Ack.SelectedTag 128

Ack.Tag 128

Ack.Visible 129

adding a new query filter 44, 68

alarm configuration from InTouch, transferring 149

alarm control

about 13

configuring 23

placing into an ArchestrA symbol 24

properties 25

scripting 79

using at run-time 61

using in ArchestrA symbols 16

alarm control colors

setting 31

alarm control grid

freezing 20

refreshing 62

unfreezing 76

alarm control methods 125

alarm control properties 79

alarm database 15

alarm DB view control configuration, transferring the InTouch 158

alarm filtering 19

alarm hiding 20

alarm manager 14

alarm queries 17, 19

alarm query filter 56

alarm records, setting priority ranges for 34

alarm sorting 21

alarm statistics, showing 75

Guide to the ArchestrA Alarm Control

182 Index

alarm viewer control configuration, transferring the InTouch 149

AlarmColor.Ack.BackGround 80

AlarmColor.Ack.ForeGround 82

AlarmColor.Ack.RTN.BackGround 83

AlarmColor.Ack.RTN.ForeGround 84

AlarmColor.Range 84

AlarmColor.RTN.BackGround 85

AlarmColor.RTN.ForeGround 86

AlarmColor.UnAck.BackGround 86

AlarmColor.UnAck.Flash.BackGround 8

8

AlarmColor.UnAck.Flash.ForeGround 8

9

AlarmColor.UnAck.ForeGround 90

AlarmColor.UnAck.RTN.BackGround 91

AlarmColor.UnAck.RTN.ForeGround 92

AlarmQuery 93

alarms and events, recent 14

alarms and events, showing current alarms or recent 25

alarms and/or events, showing historical 28

Alarms at run-time, Sorting 66

alarms or recent alarms and events, showing current 25

alarms to flash, setting unacknowledged 36

alarms, acknowledging 16, 65

alarms, current 14

alarms, filtering 42

alarms, hiding 73

alarms, historical 15

alarms, scrolling automatically to new 54

alarms, setting colors 35, 36

alarms, sorting 41

AllowColumnResize 93

ArchestrA alarm control, about 13

ArchestrA symbols, placing the alarm control into 24

ArchestrA symbols, using the alarm control in 16

automatically querying for alarms on start up 53

AutoResumeDuration 93

AutoScroll 94

B

bar, status 21

C

changing alarm query filter 56

changing column order 39

changing the language of the “No

Records” message 57

client modes 14

switching between 15, 76

client-based filtering 70

ClientMode 94

color tab 153, 162

colors

setting alarm control 31 setting event record 31

setting return to normal record 32

colors for acknowledged alarms, setting 35

colors for unacknowledged alarms, setting 36

colors, .NET 147

column headers, renaming 38

columns, changing the order of 39

columns, resizing 38

columns, restricting user access to rows and 55

configuration

transferring query favorites 169

transferring the InTouch alarm DB view control 158

transferring the InTouch alarm viewer control 149 configuration from InTouch, transferring alarm 149

configuring events 145

configuring run-time behavior 52

configuring the alarm control 23

configuring the newalarm event 145

configuring the run-time shortcut menu 58

Connect 130

ConnectStatus 95

constructing filters 45

ContextMenu.AckAll 95

ContextMenu.AckOthers 95

ContextMenu.AckSelected 96

ContextMenu.AckSelectedGroups 96

ContextMenu.AckSelectedPriorities 96

ContextMenu.AckSelectedTags 97

ContextMenu.AckVisible 97

ContextMenu.Favorites 97

Guide to the ArchestrA Alarm Control

Index 183

ContextMenu.Freeze 98

ContextMenu.Hidden 98

ContextMenu.HideAll 98

ContextMenu.HideOthers 99

ContextMenu.HideSelected 99

ContextMenu.HideSelectedGroups 99

ContextMenu.HideSelectedPriorities 100

ContextMenu.HideSelectedTags 100

ContextMenu.HideVisible 100

ContextMenu.Requery 101

ContextMenu.Reset 101

ContextMenu.Sort 101

ContextMenu.Statistics 102

ContextMenu.UnhideAll 102

control colors, setting alarm 31

control configuration

transferring the InTouch alarm DB view 158

transferring the InTouch alarm viewer 149

control grid, refreshing the alarm 62

control name tab 150, 158

conventions, documentation 11

current alarms 14

current alarms, showing 25

current modes, using status bar information of 62

current value and quality display 17

customizing the “No Records” message 57

D

database tab, transferring configuration of the 163

database, alarm 15

Database.Authentication 102

Database.Name 103

Database.Password 103

Database.ServerName 103

Database.UserID 104

datetime format, setting the .NET 51

DB view control configuration, transferring the InTouch alarm 158

deleting a query filter 69

deleting a query filter favorite 47

Disconnect 130

display, current value and quality 17

Documentation 11 documentation conventions 11

Domain 104

E

Enabled 104

errors, hiding 54

event record colors, setting 31

EventColor.BackGround 105

EventColor.ForeGround 105

events 14

configuring 145

historical 15

events tab 157, 168

events, showing 25, 28

existing query filter, modifying 47, 68

existing query filter, using 43, 67

exporting query filter favorites 47, 69

F

Favorite 106

favorites, exporting query filter 47, 69

favorites, importing query filter 48, 69

Favorites.Export 130

Favorites.Import 130

filter

modifying an existing query 47, 68

retain hiding when changing alarm query 56

using an existing query 43, 67

filter tab 167

filtering alarms 42

filtering alarms at run-time 67

filtering alarms with client-based filtering 70

filtering, alarm 19

filters, constructing 45

flashing alarms 36

FlashUnAckAlarms 106

format

setting the .NET datetime 51

setting the Wonderware time 50

setting time zone and 48

format tab 154

FreezeDisplay 131

freezing the alarm control grid 20, 76

frozen grid, overriding the 56

Guide to the ArchestrA Alarm Control

184 Index

G

general tab 151, 159

GetItem 132

GetLastError 132

GetSelectedItem 133

grid, overriding the frozen 56

grid, refreshing the alarm control 62

grid, resetting 73

GridColor 106

H

headers, renaming column 38

HeadingColor.BackGround 107

HeadingColor.ForeGround 108

Height 108

HiddenAlarms 109

Hide.All 133

HideErrors 109

Hide.Group 134

Hide.Priority 134

Hide.Selected 135

Hide.SelectedGroup 135

Hide.SelectedPriority 135

Hide.SelectedTag 135

Hide.Tag 136

Hide.Visible 136

hiding

errors 54 status messages 54 warnings 54

hiding alarms 20, 73

hiding when changing alarm query filter, retain 56

historical alarms 15

historical alarms, showing 28

historical events 15

historical modes, using status bar information of 64

I

importing query filter favorites 48, 69

InTouch alarm DB view control configuration 158

InTouch alarm viewer control configuration 149

InTouch, transferring alarm configuration from 149

L

language, changing the “No Records” message 57

languages, switching run-time 78

M

mapping properties 169

MaxDatabaseRecords 109

methods, alarm control 125

methods, mapping properties and 169

modes

switching between client 15, 76

using status bar information of current 62

using status bar information of historical 64

modes, client 14

modifying an existing query filter 47, 68

MoveWindow 137

N

name tab 150, 158

.NET colors 147

.NET datetime format, setting the 51

new alarms, scrolling automatically to 54

newalarm event, configuring 145

NewAlarmEventMode 110

NoRecordsMessage.Enabled 110

NoRecordsMessage.Message 111

normal record colors, setting return to 32

O

or recent alarms and events, showing current alarms 25

overriding the frozen grid 56

P

placing the alarm control into an

ArchestrA symbol 24

priority ranges for alarm records, setting 34

properties

alarm control 79

setting 25

properties and methods, mapping 169

properties tab 157, 168

Guide to the ArchestrA Alarm Control

Index 185

Q

queries, alarm 17

queries, using wildcards in 43

query favorites configuration, transferring 169

query filter

adding 44, 68

deleting 69

modifying an existing 47, 68

retain hiding when changing alarm 56

translating from alarm queries 19

using an existing 43, 67

query filter favorite, deleting 47

query filter favorites

exporting 47, 69

importing 48, 69

query filter tab 167

query tab 155

querying for alarms on start up 53

QueryStartup 111

R

ranges for alarm records, setting priority 34

recent alarms and events 14

recent alarms and events, showing 25

record colors

setting event 31

setting return to normal 32

refreshing the alarm control grid 62

renaming column headers 38

reordering column headers 37

Requery 138

Reset 138

resetting the grid 73

resizing column headers 37

resizing columns 38

restricting user access to rows and columns 55

retain hiding when changing alarm query filter 56

RetainHidden 111

return to normal record colors, setting 32

RowCount 112

rows and columns, restricting user access to 55

RowSelection 112

run time, sorting alarms 66

run-time

filtering alarms 67

sorting alarms 66

using the alarm control 61

run-time behavior, configuring 52

run-time languages, switching 78

run-time shortcut menu, configuring 58

S

script configuration on the events tab, transferring 157

scripting the alarm control 79

scripts configuration on the events tab, transferring 168

scrolling automatically to new alarms 54

Select.All 138

SelectedCount 113

Select.Group 138

selection tab, transferring configuration of the 164

Select.Item 139

Select.Priority 139

Select.Tag 140

SetSort 141

setting alarm control colors 31

setting colors for acknowledged alarms 35

setting colors for unacknowledged alarms 36

setting event record colors 31

setting heading, grid, and window color 32

setting priority ranges for alarm records 34

setting return to normal record colors 32

setting the alarm control properties 25

setting the .NET datetime format 51

setting the time zone 49

setting the Wonderware time format 50

setting time zone and format 48

setting unacknowledged alarms to flash 36

Show.Context 141

ShowContextMenu 113

Show.Favorite 141

ShowGrid 113

ShowHeading 113

Show.Hidden 142

showing alarm statistics 75

Guide to the ArchestrA Alarm Control

186 Index

showing current alarms or recent alarms and events 25

showing heading, grid, or status bar 52

showing historical alarms 28 showing historical alarms and/or events 28

Show.Sort 142

Show.Statistics 142

ShowStatusBar 114

SortColumn.First 114

SortColumn.Second 114

SortColumn.Third 115

Sorting Alarms 41

sorting alarms 21

Sorting Alarms at run-time 66

SortOrder.First 115

SortOrder.Second 116

SortOrder.Third 116

start up, automatically querying for alarms 53

statistics, showing alarm 75

status bar 21

status bar information 62 status bar information of current modes 62

status bar information of historical modes 64

status messages, hiding 54

switching between client modes 15, 76

switching run-time languages 78

T

technical support, contacting 12

time format tab 154

time format, setting the Wonderware 50

time zone and format, setting 48

time zone, setting 49

time, using the alarm control at run 61

time/sort tab, transferring configuration of the 166

Time.Format 116

TimeSelector 118

TimeSelector.DurationMS 118

TimeSelector.EndDate 119

TimeSelector.GetStartAndEndTimes 142

TimeSelector.RefreshTimes 143

TimeSelector.SetStartAndEndTimes 143

TimeSelector.StartDate 119

TimeSelector.TimeDuration 120

Time.Type 117

TimeZone.TimeZone 122

Toggle.All 144

Toggle.Item 144

TotalRowCount 122

transferring alarm configuration from

InTouch 149

transferring configuration

color tab 153, 162

control name tab 150, 158

database tab 163

general tab 151, 159

properties tab 157, 168

query filter tab 167

query tab 155

selection tab 164

time format tab 154

time/sort tab 166

transferring query favorites configuration 169

transferring script configuration on the

events tab 157, 168

transferring the InTouch alarm DB view control configuration 158

transferring the InTouch alarm viewer control configuration 149

translating alarm queries to query filters 19

U

UnAckAlarms 123

unacknowledged alarms 36 unacknowledged alarms, setting colors for 36

unfreezing the alarm control grid 76

UnhideAll 145

UnSelectAll 145

UpdateToCurrentTime 123

user access to rows and columns, restricting 55

using an existing query filter 43, 67

using status bar information 62 using status bar information of current modes 62

Guide to the ArchestrA Alarm Control

Index 187

using status bar information of historical modes 64

using the alarm control at run-time 61

using the alarm control in ArchestrA symbols 16

using wildcards in queries 43

V

view control configuration, transferring the InTouch alarm DB 158

viewer control configuration, transferring the InTouch alarm 149

Visible 124

W

warnings, hiding 54

welcome 11

when changing alarm query filter, retain hiding 56

Width 124

wildcards in queries, using 43

WindowColor 124

Wonderware time format, setting the 50

X

X property 125

Y

Y property 125

Z

zone and format, setting time 48

zone, setting the time 49
