Quantum TC-L32BX-EY User's Guide

Quantum TC-L32BX-EY User's Guide
8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH8VHU·V*XLGH
/72+DOI+HLJKW7DSH'ULYH
/72
$

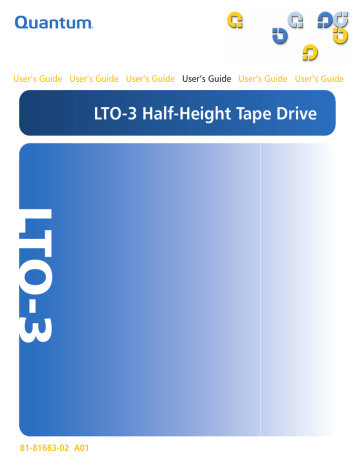

Quantum LTO-3 Half-Height Tape Drive User’s Guide, P/N 81-81683-02 A01, May 2007.
Product of USA.
Quantum Corporation provides this publication “as is” without warranty of any kind, either express or
implied, including but not limited to the implied warranties of merchantability or fitness for a particular
purpose. Quantum Corporation may revise this publication from time to time without notice.
COPYRIGHT STATEMENT
Copyright 2007 by Quantum Corporation. All rights reserved.
Your right to copy this manual is limited by copyright law. Making copies or adaptations without prior
written authorization of Quantum Corporation is prohibited by law and constitutes a punishable violation of
the law.
TRADEMARK STATEMENT
Quantum and the Quantum logo are registered trademarks of Quantum Corporation.
Other trademarks may be mentioned herein which belong to other companies.
Contents
Preface
Chapter 1
ix
Introduction
1
Overview............................................................................................................. 1
Drive Models ...................................................................................................... 2
Internal ......................................................................................................... 2
Tabletop ....................................................................................................... 2
Features ............................................................................................................... 3
Chapter 2
Installation Procedures
5
Before Installing the LTO-3 Half-Height Tape Drive .................................. 6
Handling Precautions and Installation Guidelines ............................... 6
Preinstallation Requirements.................................................................... 7
Unpacking and Inspecting the Drive....................................................... 8
Installing the Internal LTO-3 Half-Height Tape Drive ................................ 9
Configuring the Internal Parallel SCSI Tape Drive ............................. 10
Mounting the Internal Tape Drive ......................................................... 13
Connecting the Internal Drive Interface and DC Power Cables........ 15
Restarting the Internal Tape Drive System........................................... 17
Installing the Tabletop LTO-3 Half-Height Tape Drive............................. 17
LTO-3 Half-Height Tape Drive User’s Guide
iii
Contents
Configuring the Tabletop Parallel SCSI Tape Drive............................ 19
Connecting the Tabletop Drive Interface and AC Power Cables ...... 21
Restarting the Tabletop Drive System ................................................... 24
Installing the LTO Driver Software............................................................... 25
Registering the LTO-3 Half-Height Tape Drive .......................................... 25
Chapter 3
UNIX Configuration Procedures
26
A Word About SCSI Controllers.................................................................... 26
Finding Existing SCSI Devices and Controllers ................................... 27
Configuring Sun UNIX Environments ......................................................... 27
Finding Existing SCSI Devices and Controllers ................................... 28
Configuring the UNIX Environment ..................................................... 28
Configuring IBM AIX UNIX Environments ................................................ 30
Finding Existing SCSI Controllers and Devices ................................... 30
Configuring the UNIX Environment ..................................................... 30
Configuring Linux UNIX Environments...................................................... 32
Finding Existing SCSI Controllers and Devices ................................... 32
Configuring the UNIX Environment ..................................................... 33
Configuring HP-UX UNIX Environments ................................................... 33
Finding Existing SCSI Controllers and Devices ................................... 34
Configuring the UNIX Environment ..................................................... 34
Chapter 4
Operation
36
Understanding the Front Panel Display....................................................... 36
Using LTO Tape Cartridges ........................................................................... 38
Loading a Tape Cartridge........................................................................ 38
Unloading a Tape Cartridge ................................................................... 39
Write Protecting a Tape Cartridge ......................................................... 39
Tape Cartridge Care and Maintenance ................................................. 40
Cleaning the Tape Drive ................................................................................. 41
Performing an Emergency Reset and Cartridge Eject ................................ 42
Chapter 5
Theory
44
Track Layout..................................................................................................... 44
Recording Method ........................................................................................... 46
Data Buffer ........................................................................................................ 46
LTO-3 Half-Height Tape Drive User’s Guide
iv
Contents
Data Integrity.................................................................................................... 46
Error-correction Code (ECC)................................................................... 47
Servo-tracking Faults ............................................................................... 48
Data Compression............................................................................................ 48
Data Compression Considerations......................................................... 49
Intelligent Data Compression ................................................................. 50
Chapter 6
Specifications
52
Physical Specifications .................................................................................... 53
Power Specifications........................................................................................ 55
Drive Performance Specifications.................................................................. 56
Environmental Requirements ........................................................................ 58
Injected Noise Specifications .......................................................................... 59
Reliability Specifications ................................................................................. 59
Mean Time Between Failures.................................................................. 60
Mean Time to Replace.............................................................................. 60
LTO Cartridge Specifications ......................................................................... 60
Environmental Considerations ............................................................... 60
Cartridge Memory .................................................................................... 61
Cartridge Reliability ................................................................................. 61
Chapter 7
Troubleshooting Guide
62
Installation Best Practices ............................................................................... 62
Following SCSI Best Practices ................................................................. 62
Using a Parallel SCSI Host Bus Adapter (HBA)................................... 62
Using a Serial-attached SCSI Host Bus Adapter .................................. 63
HBA Preinstallation Checks .................................................................... 64
Troubleshooting Suggestions ......................................................................... 64
Computer Does Not Start ........................................................................ 64
Computer Hardware Does Not Recognize the Tape Drive................ 65
Computer Software Does Not Recognized the Tape Drive................ 70
Drive Does Not Load the Tape Cartridge ............................................. 72
Drive Does Not Eject the Tape Cartridge.............................................. 74
Slow Backup Operations ......................................................................... 76
Failed Operations TapeAlert Messages................................................. 78
LTO-3 Half-Height Tape Drive User’s Guide
v
Contents
Appendix A
Installation Checklists
85
Internal LTO-3 Half-Height Tape Drive Quick Start ................................. 86
Tabletop LTO-3 Half-Height Tape Drive Quick Start ................................ 87
Appendix B
Disposal of Electrical & Electronic Equipment
88
Appendix C
Regulatory Compliances
89
Safety Compliances.......................................................................................... 90
Electromagnetic Compatibility (EMC) Compliances ................................. 91
Index
LTO-3 Half-Height Tape Drive User’s Guide
93
vi
Figures
Figure 1
Internal LTO-3 Half-Height Tape Drive ................................... 2
Figure 2
Internal Parallel SCSI ID Configuration Jumper Pins........... 11
Figure 3
Internal Parallel SCSI Bus Termination Examples ................ 13
Figure 4
Acceptable Mounting Orientation ........................................... 14
Figure 5
Internal Tape Drive Mounting Holes...................................... 15
Figure 6
Internal SCSI Drive Interface and DC Power Connectors.... 16
Figure 7
Internal SAS Drive Interface and DC Power Connectors..... 16
Figure 8
Tabletop Parallel SCSI ID Selector Switch.............................. 20
Figure 9
Tabletop SCSI Interface and Power Cable Connectors......... 21
Figure 10
Tabletop SAS Interface and Power Cable Connectors.......... 22
Figure 11
Tabletop Parallel SCSI Bus Termination Examples............... 24
Figure 12
Front Panel Display ................................................................... 37
Figure 13
Ultrium Tape Cartridge Write-Protect Switch....................... 39
Figure 14
Layout of the Tracks on LTO Ultrium Tapes ......................... 45
Figure 15
LTO-3 Half-Height Tape Drive Dimensions .......................... 54
LTO-3 Half-Height Tape Drive User’s Guide
vii
Tables
Table 1
Performance Features and Capabilities .................................... 3
Table 2
Internal SCSI ID Configuration Jumper Pin Settings............ 11
Table 3
Recommended SCSI Controllers.............................................. 27
Table 4
Front Panel Display LED Blink Codes .................................... 37
Table 5
Physical Specifications............................................................... 53
Table 6
Voltage and Current Specifications ......................................... 55
Table 7
Power Dissipation ...................................................................... 55
Table 8
Drive Performance Specifications............................................ 56
Table 9
Environmental Requirements .................................................. 58
Table 10
Reliability Specifications ........................................................... 59
Table 11
Environmental Tolerances ........................................................ 61
LTO-3 Half-Height Tape Drive User’s Guide
viii
Preface
Audience
This guide is written for users of the Quantum LTO-3 Half-Height Tape
Drive.
Purpose
This guide provides information about the LTO-3 Half-Height Tape Drive
including:
• Installing the drive
• Basic drive operations
• Maintenance
• Specifications
• Troubleshooting
Document Organization
This guide is organized as follows:
• Chapter 1, Introduction, provides an overview of LTO and Ultrium
technologies, and summarizes the drive’s key features.
• Chapter 2, Installation Procedures, describes handling precautions,
unpacking tips, and installation instructions.
• Chapter 3, UNIX Configuration Procedures, describes the
configuration settings for UNIX systems.
LTO-3 Half-Height Tape Drive User’s Guide
ix
Preface
• Chapter 4, Operation, describes the operation and maintenance of the
drive.
• Chapter 5, Theory, describes the theory of operation behind the drive,
including the technology used in various drive components.
• Chapter 6, Specifications, provides drive and cartridge specifications.
• Chapter 7, Troubleshooting Guide provides troubleshooting
procedures you can follow if you encounter a problem with your
drive.
• Appendix A, Installation Checklists, provides abbreviated quick-start
checklists for users who are already familiar with the installation
procedures.
• Appendix B, Disposal of Electrical & Electronic Equipment, provides
instructions for proper disposal of unwanted electrical and electronic
equipment.
• Appendix C, Regulatory Compliances, identifies drive compliance
with safety and EMC regulations.
This guide also has an index.
Notational Conventions
This guide uses the following conventions:
Note:
Related Documents
Notes emphasize important information related to the main
topic.
Tech Tip:
Tech Tips provide technical information which may be
helpful in performing the procedure.
Caution:
Cautions indicate potential hazards to equipment and are
included to prevent damage to equipment.
Warning:
Warnings indicate potential hazards to personal safety and
are included to prevent injury.
The following subsection identifies the primary documents that are
related to the LTO-3 Half-Height Tape Drive.
LTO-3 Half-Height Tape Drive User’s Guide
x
Preface
Standards Conformance
0
The Small Computer System Interface is described in standards that
include several versions and a number of individual documents. The
original Small Computer System Interface Standard, X3.131-1986, is
referred to as SCSI-1. SCSI-1 was revised, resulting in the Small
Computer System Interface – 2 (X3.131-1994), referred to as SCSI-2. The
set of SCSI-3 standards are collectively referred to as SCSI-3. The
applicable ANSI standards are as follows:
• INCITS Technical Committee T10 (SCSI Storage Interfaces)
Standards:
•
SCSI Architecture Model – 2 (SAM-2) INCITS 366-2003
•
SCSI Architecture Model – 3 (SAM-3) INCITS 402-2005
•
SCSI Architecture Model – 4 (SAM-4) in development
•
Automation/Drive Interface – Commands (ADC) INCITS 4032005
•
Automation/Drive Interface Commands (ADC-2) in
development
•
Automation/Drive Interface – Transport Protocol (ADT) INCITS
406-2005
•
Automation/Drive Interface – Transport Protocol – 2 (ADT-2) in
development
•
Fibre Channel Protocol for SCSI (FCP) INCITS 269-1996
•
Fibre Channel Protocol for SCSI, Second Version - 2 (FCP-2)
INCITS 350-2003
•
Fibre Channel Protocol for SCSI, Third Version - 3 (FCP-3)
INCITS 416-2006
•
Fibre Channel Protocol for SCSI, Fourth Version - 4 (FCP-3) in
development
•
SCSI-3 Medium Changer Commands (SMC) INCITS 314-1998
•
SCSI Media Changer Commands – 2 (SMC-2) INCITS 382-2004
•
SCSI Media Changer Commands – 3 (SMC-3) in development
•
SCSI Parallel Interface – 3 (SPI-3) INCITS 336-2000
•
SCSI Parallel Interface-4 (SPI-4) INCITS 362-2002
LTO-3 Half-Height Tape Drive User’s Guide
xi
Preface
•
SCSI Parallel Interface-5 (SPI-5) INCITS 367-2003
•
SCSI-3 Primary Commands (SPC) INCITS 301-1997
•
SCSI Primary Commands – 2 (SPC-2) INCITS 351-2001
•
SCSI Primary Commands – 3 (SPC-3) INCITS 408-2005
•
SCSI Primary Commands – 4 (SPC-4) in development
•
SCSI-3 Stream Commands (SSC) INCITS 335-2000
•
SCSI Stream Commands – 2 (SSC-2) INCITS 380-2003
•
SCSI Stream Commands – 3 (SSC-3) in development
•
Serial Attached SCSI – (SAS) INCITS 376-2003
•
Serial Attached SCSI – 1.1 (SAS-1.1) INCITS 417-2006
•
Serial Attached SCSI – 2 (SAS-2) in development
• INCITS Technical Committee T11 (Device Level Interfaces) Standards
•
Fibre Channel Arbitrated Loop (FC-AL-2) Amendment 1 INCITS
332.1999/AM1-2003Fibre Channel Generic Services-4 (FC-GS-4)
INCITS 387-2004
•
Fibre Channel Generic Services-5 (FC-GS-5) in development
•
Fibre Channel Generic Services-6 (FC-GS-6) in development
•
Fibre Channel - Link Services (FC-LS) in development
Note:
Contacts
The term “SCSI” is used wherever it is not necessary to
distinguish between the versions of SCSI.
Quantum company contacts are listed below.
Quantum Corporate Headquarters
0
To order documentation on the LTO-3 Half-Height Tape Drive or other
products contact:
Quantum Corporation
P.O. Box 57100
Irvine, CA 92619-7100
(949) 856-7800
(800) 284-5101
LTO-3 Half-Height Tape Drive User’s Guide
xii
Preface
0
Technical Publications
To comment on existing documentation send e-mail to:
[email protected]
0
Quantum Home Page
Visit the Quantum home page at:
http://www.quantum.com
0
Customer Support
Quantum Global Services provides 24-hour support that can be reached
at:
North/South America:
(949) 725-2100 or (800) 284-5101
Asia/Pacific Rim:
(International Code) + 61 7 3839 0988
Europe/Middle East/Africa:
(International Code) + 44 (0) 1256 848748
Send faxes for Global Services to:
North/South America:
(949) 725-2176
Asia/Pacific Rim:
(International Code) + 61 7 3839 0955
Europe/Middle East/Africa:
(International Code) + 44 (0) 1256 848777
Send e-mail for Global Services to:
Asia/Pacific Rim:
[email protected]
Europe/Middle East/Africa:
[email protected]
Visit our website:
www.quantum.com/support
LTO-3 Half-Height Tape Drive User’s Guide
xiii
Preface
LTO-3 Half-Height Tape Drive User’s Guide
xiv
Chapter 1
1
Introduction
This chapter provides an introductory overview of the Quantum LTO-3
Half-Height Tape Drive. Topics include:
• Overview
• Drive Models
• Features
Overview
The Quantum LTO-3 Half-Height Tape Drive is a high-performance 16channel tape drive that complies with the LTO interchange specifications.
The drive is suited for mid-range to high-end servers, mainframe
systems, and tape library automation systems.
The LTO-3 Half-Height Tape Drive uses Ultrium data cartridges. Its
capacity is maximized using intelligent data compression. The drive has a
native capacity of 400 Gbytes (800 Gbytes assuming 2:1 data
compression).
LTO-3 Half-Height Tape Drive User’s Guide
1
Chapter 1 Introduction
Drive Models
The LTO-3 Half-Height Tape Drive has a 5¼-inch half-height form factor
with automatic electromechanical cartridge soft load. It is available in two
models:
• Internal
• Tabletop
Drive Models
Internal
1
The internal model (see figure 1) is a 5¼-inch drive that you can install
inside the drive bay of a:
• Computer workstation or server system
• Quantum rackmount drive enclosure
Tabletop
1
The tabletop model is a 5¼-inch drive that is already mounted inside a
stand-alone external drive enclosure with a built-in power supply.
Figure 1 Internal LTO-3 HalfHeight Tape Drive
LTO-3 Half-Height Tape Drive User’s Guide
2
Chapter 1 Introduction
Features
Features
Table 1 describes the key performance features and capabilities of the
LTO-3 Half-Height Tape Drive.
Table 1 Performance Features
and Capabilities
Feature
Description
Cartridge memory
Stores pertinent information about the
media to enable fast cartridge loading
Chassis
Shock damped and isolated
Data buffering
128 Mbytes for high performance
Head positioner
Patented proprietary mechanism for
increased data integrity
Intelligent data
compression
Analyzes compression factors before
recording to maximize performance and
capacity
Interfaces
Either parallel Small Computer System
Interface (SCSI) or serial-attached SCSI
(SAS)
LSI circuitry
Custom designed for fast, efficient data
processing
Native data transfer rate
Up to 68 Mbytes per second
Read channel
Third generation for increased maturity
and data integrity
RISC processors
Provide fast, efficient data processing
SmartVerify
Includes two levels of ECC for extra data
safety and error protection
Supported platforms
A wide variety of Windows and UNIX
systems
TapeAlert
Monitors and reports drive performance
LTO-3 Half-Height Tape Drive User’s Guide
3
Chapter 1 Introduction
Features
Feature
Description
Tape picking
Enhanced implementation for increased
reliability
Variable-speed transfer
Variable speeds for matching with the host
to:
• Optimize data transfers
• Shorten backup times
• Increase reliability
LTO-3 Half-Height Tape Drive User’s Guide
4
Chapter 2
2
Installation Procedures
This chapter provides detailed installation instructions for both the
internal and tabletop models of the Quantum LTO-3 Half-Height Tape
Drive, including:
• Before Installing the LTO-3 Half-Height Tape Drive, which includes:
•
Handling Precautions and Installation Guidelines
•
Preinstallation Requirements on page 7
•
Unpacking and Inspecting the Drive on page 8
• Detailed procedures for:
•
Installing the Internal LTO-3 Half-Height Tape Drive on page 9
•
Installing the Tabletop LTO-3 Half-Height Tape Drive on page 17
•
Installing the LTO Driver Software on page 25, optional/when
required
•
Registering the LTO-3 Half-Height Tape Drive on page 25
Optionally, experienced users who are familiar with installing the LTO-3
Half-Height Tape Drive can refer to the quick-start checklists in
appendix A on page 85 of this guide. Each checklist provides abbreviated
installation instructions, with references to the corresponding detailed
procedures in this chapter.
LTO-3 Half-Height Tape Drive User’s Guide
5
Chapter 2 Installation Procedures
Before Installing the LTO-3 Half-Height Tape Drive
Before Installing the LTO-3 Half-Height Tape Drive
Handling Precautions
and Installation
Guidelines
2
Always observe the following precautions and guidelines when handling
and installing LTO-3 Half-Height Tape Drives:
• Internal, at all times
• Tabletop, when removed from its free-standing enclosure
Handling Precautions
• Internal drives have exposed
components that are sensitive to static
electricity. To reduce the possibility of
damage from static discharge, the
drives are packaged in a protective
antistatic bag. Do not remove the drive
from the antistatic bag until you are
ready to install it.
• Wear an ESD-preventive grounding
wrist strap or observe similar ESD
precautions when working with the
drive. Be sure the wrist strap makes
good skin contact. Do not remove the
wrist strap until you finish working
with the drive.
Also, avoid contact between the drive,
other equipment, and clothing. The
wrist strap only protects the equipment
from ESD voltages on the body; ESD
voltages on clothing can still cause
damage.
• Before removing the drive from the
antistatic bag, touch a grounded metal
surface to discharge any static
electricity buildup from your body.
(continued)
LTO-3 Half-Height Tape Drive User’s Guide
6
Chapter 2 Installation Procedures
Before Installing the LTO-3 Half-Height Tape Drive
Handling Precautions
(continued)
• Handle the drive by its sides rather
than by the top cover to reduce the risk
of dropping the drive or damaging it
during installation.
• Either lay the drive on a nonconductive
surface or put it back inside the
protective antistatic bag to reduce the
chance of damage from static discharge
Installation Guidelines
• LTO-3 Half-Height Tape Drives with
the parallel SCSI interface are low
voltage differential (LVD) SCSI devices.
Install LVD drives only in LVD
environments. Do not mix LVD and
HVD devices on the same parallel SCSI
bus.
• Due to the high speed of the LTO-3
Half-Height Tape Drive, do not connect
more than one LTO-3 drive to the same
channel on a host SCSI adapter.
Preinstallation
Requirements
2
Before installing the LTO-3 Half-Height Tape Drive, make sure you have:
• A host bus adapter (HBA) installed and properly configured in the
host computer:
•
Parallel SCSI HBA for a parallel SCSI drive
•
Serial SCSI HBA for a SAS drive
• Interface components:
•
For a parallel SCSI drive, either internal or tabletop, a 68-pin
parallel SCSI cable and terminator
•
For a SAS drive, either:
LTO-3 Half-Height Tape Drive User’s Guide
•
7-pin 1x SATA style interface cable for an internal drive
•
26-pin SFF-8088 mini-SAS style interface cable for a tabletop
drive
7
Chapter 2 Installation Procedures
Before Installing the LTO-3 Half-Height Tape Drive
• Backup application software that supports the tape drive. For a list of
the backup software applications that have been tested with the LTO3 Half-Height Tape Drive, please visit our website at:
www.quantum.com/support
Unpacking and
Inspecting the Drive
2
Although each LTO-3 Half-Height Tape Drive is inspected and carefully
packaged at the factory, damage can occur:
• In shipment
• When being unpacked
Observe the handling precautions listed in Handling Precautions and
Installation Guidelines and carefully unpack and inspect the LTO-3 HalfHeight Tape Drive as follows:
1 Visually inspect the shipping container and notify your carrier
immediately of any damage.
2 Place the shipping container on a flat, clean, stable surface and
carefully remove the contents.
3 Visually inspect the LTO-3 Half-Height Tape Drive and notify your
Quantum representative immediately of any damage.
4 Always save the shipping container and packing materials for any
future reshipment.
LTO-3 Half-Height Tape Drive User’s Guide
8
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Installing the Internal LTO-3 Half-Height Tape Drive
To install the internal LTO-3 Half-Height Tape Drive, complete the
following procedures in the order presented:
1 Depending on the interface configuration of the drive:
IF the drive interface is . . .
THEN . . .
parallel Small Computer
System Interface (SCSI),
proceed to Configuring the Internal
Parallel SCSI Tape Drive in the
following subsection to configure
the parallel SCSI ID and bus
terminator power.
serial-attached SCSI (SAS),
there is no need to configure the
SCSI ID or bus termination, as SAS
is a point-to-point architecture. Skip
to Mounting the Internal Tape
Drive on page 13
2 Connecting the Internal Drive Interface and DC Power Cables on
page 15.
3 Restarting the Internal Tape Drive System on page 17
4 Installing the LTO Driver Software on page 25, if required.
5 Registering the LTO-3 Half-Height Tape Drive on page 25.
LTO-3 Half-Height Tape Drive User’s Guide
9
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Configuring the Internal
Parallel SCSI Tape Drive 2
The factory-set default configuration of the internal parallel SCSI LTO-3
Half-Height Tape Drive is:
• SCSI ID: 6
• Terminator power: enabled
IF the default parallel SCSI
ID configuration is . . .
THEN you can . . .
compatible with your system
SCSI bus,
skip the following subsection and
proceed to Configuring the Internal
Parallel SCSI Terminator Power on
page 12.
already assigned to another
device,
change the configuration of either the
other device, or the LTO-3 HalfHeight Tape Drive, as described in
the following subsection.
2
Configuring the Internal Drive Parallel SCSI ID
Each device on the parallel SCSI bus must have its own unique SCSI ID.
Use SCSI configuration jumper pins 1–2, 3–4, 5–6, and 7–8 on the drive
back panel to change the SCSI ID of the LTO-3 Half-Height Tape Drive
(see figure 2 and table 2).
Note:
Parallel SCSI controllers and host adapters generally use ID 7.
In some systems, the boot drive uses ID 0 or ID 1. Avoid
configuring the LTO-3 Half-Height Tape Drive to these SCSI
IDs.
If you are installing the internal LTO-3 Half-Height Tape Drive in a UNIX
operating system environment, see Finding Existing SCSI Devices and
Controllers on page 28 and refer to the appropriate subsection in
chapter 3 to identify the installed parallel SCSI devices and controllers:
• Configuring Sun UNIX Environments on page 27
• Configuring IBM AIX UNIX Environments on page 30
• Configuring Linux UNIX Environments on page 32
• Configuring HP-UX UNIX Environments on page 33
LTO-3 Half-Height Tape Drive User’s Guide
10
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Figure 2 Internal Parallel SCSI
ID Configuration Jumper Pins
SCSI ID configuration jumper pins
Terminator power
Reserved
SCSI ID bit 3
SCSI ID bit 2
SCSI ID bit 1
SCSI ID bit 0
Terminator power
Table 2 Internal SCSI ID
Configuration Jumper Pin
Settings
Jumper Pins
SCSI ID
1–2
3–4
5–6
7–8
0
Open
Open
Open
Open
1
Shunted
Open
Open
Open
2
Open
Shunted
Open
Open
3
Shunted
Shunted
Open
Open
4
Open
Open
Shunted
Open
5
Shunted
Open
Shunted
Open
6 (default)
Open
Shunted
Shunted
Open
7
Shunted
Shunted
Shunted
Open
8
Open
Open
Open
Shunted
9
Shunted
Open
Open
Shunted
LTO-3 Half-Height Tape Drive User’s Guide
11
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Jumper Pins
SCSI ID
1–2
3–4
5–6
7–8
10
Open
Shunted
Open
Shunted
11
Shunted
Shunted
Open
Shunted
12
Open
Open
Shunted
Shunted
13
Shunted
Open
Shunted
Shunted
14
Open
Shunted
Shunted
Shunted
15
Shunted
Shunted
Shunted
Shunted
2
Configuring the Internal Parallel SCSI Terminator Power
By default, terminator power is enabled on the internal parallel SCSI
LTO-3 Half-Height Tape Drive. If you use this default setting, then the
last device at the end of the parallel SCSI bus must have either:
• A parallel SCSI bus terminator
• Terminator power enabled
See figure 3 for examples of internal parallel SCSI bus termination.
To disable terminator power, remove the jumper across pins 11 and 12
(see figure 2).
Note:
LTO-3 Half-Height Tape Drive User’s Guide
The internal parallel SCSI LTO-3 Half-Height Tape Drive does
not provide SCSI termination. The last device at the end of the
parallel SCSI bus chain must have a SCSI bus terminator.
12
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Figure 3 Internal Parallel SCSI
Bus Termination Examples
SCSI device
(termination
enabled)
SCSI terminator
Tape drive
(no termination)
Tape drive
(no termination)
SCSI device
(termination
disabled)
SCSI terminator
SCSI controller
(termination
enabled)
Mounting the Internal
Tape Drive
2
SCSI controller
(termination
enabled)
You can mount the internal LTO-3 Half-Height Tape Drive either
horizontally or vertically, but not upside down (see figure 4).
IF you mount the drive . . .
THEN the . . .
horizontally,
base of the drive must be within 15
degrees of horizontal.
vertically,
side of the drive should be within 5
degrees of horizontal.
LTO-3 Half-Height Tape Drive User’s Guide
13
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Figure 4 Acceptable Mounting
Orientation
YES
YES
YES
NO
Mount the drive in a 5.25-inch, half-height drive bay as follows:
1 As required:
a Save and close your open files and terminate all running
applications.
b Shut down the workstation or server system.
c Disconnect the system AC power cord from the facility AC
power receptacle.
2
Remove the cover from the workstation or server system.
Note:
See your computer manufacturer’s instructions for the
proper procedures to remove the cover.
3 Select an available 5.25-inch half-height bay and, if required, remove
the bay cover.
4 Position the drive in the bay and align either the upper or lower
mounting holes—whichever is appropriate—with the holes in the
chassis (see figure 5).
5 Secure the drive using two M3.0 X 4 metric screws on each side.
Caution:
Using screws longer than 4 mm can damage the drive.
Do not use screws longer than 4 mm to secure the
internal LTO-3 Half-Height Tape Drive.
After mounting the internal LTO-3 Half-Height Tape Drive, proceed to
Connecting the Internal Drive Interface and DC Power Cables in the
following subsection.
LTO-3 Half-Height Tape Drive User’s Guide
14
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
Figure 5 Internal Tape Drive
Mounting Holes
Upper mounting holes
Lower mounting holes
Connecting the Internal
Drive Interface and DC
Power Cables
2
As shown in figure 6 and figure 7, the rear panels of the internal LTO-3
Half-Height Tape Drives have connectors for:
• Either a 68-pin parallel SCSI or a 7-pin 1x SATA style interface cable
• A serial library interface cable
• The internal drive DC power cable
Connect the interface and DC power cables to the internal drive as
follows:
1 Verify that the system is shut down and the AC power cord is
disconnected from the facility AC power receptacle.
2 Depending on the interface configuration of your internal drive:
a For the parallel SCSI internal drive:
•
Attach the internal parallel SCSI interface cable to the 68-pin
parallel SCSI connector on the back of the drive.
Caution:
LTO-3 Half-Height Tape Drive User’s Guide
The LTO-3 Half-Height Tape Drive with the
parallel SCSI interface is a low voltage
differential (LVD) SCSI device. Install it only
in LVD environments. Plugging an LVD drive
into a high voltage differential (HVD) bus
makes the entire bus nonfunctional and may
permanently damage the drive or other SCSI
devices on the bus.
15
Chapter 2 Installation Procedures
Installing the Internal LTO-3 Half-Height Tape Drive
•
See the internal parallel SCSI bus termination examples in
figure 3 on page 13 to check/verify the system SCSI bus
configuration and install a 68-pin LVD SCSI bus terminator
as required.
b For the SAS internal drive, attach the internal SAS interface cable
to the 7-pin 1x SATA style SAS connector on the back of the
drive.
Figure 6 Internal SCSI Drive
Interface and DC Power
Connectors
Serial library port
68-pin parallel SCSI connector
Figure 7 Internal SAS Drive
Interface and DC Power
Connectors
DC power connector
Serial library port
DC power connector
7-pin 1x SATA style SAS connector
3 If you are installing the internal LTO-3 Half-Height Tape Drive in a
tape library system, connect the RS-422 serial interface cable to the
serial library port on the back of the drive. (The serial library port is
not used on workstation or server systems.)
LTO-3 Half-Height Tape Drive User’s Guide
16
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
4 Connect the internal drive DC power cable to the DC power
connector on the back of the drive.
5 Reinstall the system cover.
6 Reconnect the system AC power cord to the facility AC power
receptacle.
After connecting the interface and DC power cables, proceed to
Restarting the Internal Tape Drive System in the following subsection.
Restarting the Internal
Tape Drive System
2
After connecting the internal drive interface and DC power cables:
1 Restart the workstation or server system.
2 Refer to the operating procedures in chapter 4 to verify that the
internal LTO-3 Half-Height Tape Drive comes on and completes the
Power On Self Test (POST) functions.
3 As required, proceed to either:
•
Installing the LTO Driver Software on page 25
•
Registering the LTO-3 Half-Height Tape Drive on page 25
Installing the Tabletop LTO-3 Half-Height Tape Drive
The tabletop LTO-3 Half-Height Tape Drive is a compact external drive
that connects to the host computer through an external parallel SCSI port
or an external serial-attached SCSI (SAS) port.
Do not attempt to install the LTO-3 Half-Height Tape Drive until you
have reviewed Handling Precautions and Installation Guidelines on
page 6.
LTO-3 Half-Height Tape Drive User’s Guide
17
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
To install the tabletop LTO-3 Half-Height Tape Drive, complete the
following procedures in the order presented:
1 Depending on the interface configuration of the drive:
IF the drive interface is . . .
THEN . . .
parallel Small Computer
System Interface (SCSI),
proceed to Configuring the
Tabletop Parallel SCSI Tape Drive
in the following subsection to
configure the SCSI ID.
serial-attached SCSI (SAS),
there is no need to configure the
SCSI ID, as SAS is a point-to-point
architecture. Skip to Connecting the
Tabletop Drive Interface and AC
Power Cables on page 21.
2 Connecting the Tabletop Drive Interface and AC Power Cables on
page 21.
3 Restarting the Tabletop Drive System on page 24.
4 Installing the LTO Driver Software on page 25, if required.
5 Registering the LTO-3 Half-Height Tape Drive on page 25.
LTO-3 Half-Height Tape Drive User’s Guide
18
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
Configuring the Tabletop
Parallel SCSI Tape Drive 2
The factory-set default configuration of the tabletop parallel SCSI LTO-3
Half-Height Tape Drive is:
• SCSI ID: 6
• Terminator power: enabled
IF the default parallel SCSI
ID configuration is . . .
THEN you can . . .
compatible with your system
SCSI bus,
skip the following subsection and
proceed to Connecting the Tabletop
Drive Interface and AC Power Cables
on page 21.
already assigned to another
device,
change the configuration of either the
other device, or the LTO-3 HalfHeight Tape Drive, as described in
the following subsection.
Note:
You cannot disable terminator power on a tabletop parallel
SCSI drive.
2
Configuring the Tabletop Drive Parallel SCSI ID
Each device on the parallel SCSI bus must have its own unique SCSI ID.
Use the push-button SCSI ID selector switch on the drive back panel to
change the SCSI ID of the tabletop LTO-3 Half-Height Tape Drive (see
figure 8).
LTO-3 Half-Height Tape Drive User’s Guide
19
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
Figure 8 Tabletop Parallel
SCSI ID Selector Switch
Parallel SCSI ID selector switch
Note:
Parallel SCSI controllers and host adapters generally use ID 7.
In some systems, the boot drive uses ID 0 or ID 1. Avoid
configuring the LTO-3 Half-Height Tape Drive to these SCSI
IDs.
If you are installing the tabletop LTO-3 Half-Height Tape Drive in a
UNIX operating system environment, see Finding Existing SCSI Devices
and Controllers on page 27 and refer to the appropriate subsection in
chapter 3 to identify the installed parallel SCSI devices and controllers:
• Configuring Sun UNIX Environments on page 27
• Configuring IBM AIX UNIX Environments on page 30
• Configuring Linux UNIX Environments on page 32
• Configuring HP-UX UNIX Environments on page 33
After configuring the parallel SCSI ID, proceed to Connecting the
Tabletop Drive Interface and AC Power Cables in the following
subsection.
LTO-3 Half-Height Tape Drive User’s Guide
20
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
Connecting the Tabletop
Drive Interface and AC
Power Cables
2
As shown in figure 9 and figure 10, the rear panels of the tabletop LTO-3
Half-Height Tape Drives have connectors for:
•
Either a 68-pin parallel SCSI cable (two connectors), or a 26-pin SFF8088 mini-SAS style interface cable
•
The AC power cable
For the tabletop parallel SCSI drive, either SCSI connector can be used as
a SCSI IN or SCSI OUT connection. This means you can use either
connector to attach the drive to a host computer or to another parallel
SCSI device.
Figure 9 Tabletop SCSI
Interface and Power Cable
Connectors
68-pin parallel SCSI connectors
AC power switch
AC power connector
LTO-3 Half-Height Tape Drive User’s Guide
21
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
26-pin SFF-8088 mini-SAS connector
Figure 10 Tabletop SAS
Interface and Power Cable
Connectors
AC power switch
AC power connector
Connect the interface and AC power cables to the tabletop drive as
follows:
1
2
As required:
a
Save and close your open files and terminate all running
applications.
b
Shut down the workstation or server system.
c
Disconnect the system AC power cord from the facility AC
power receptacle.
Depending on the interface configuration of your tabletop drive:
a
For the parallel SCSI tabletop drive:
•
Attach the SCSI IN interface cable to one of the 68-pin
parallel SCSI interface connectors on the back of the drive.
•
Attach either the SCSI OUT interface cable or a SCSI
terminator to the other parallel SCSI interface connector on
the back of the drive.
If the tabletop LTO-3 Half-Height Tape Drive is the last or
only device in a SCSI chain, you must install a 68-pin low
voltage differential (LVD) terminating plug on the unused
parallel SCSI connector.
LTO-3 Half-Height Tape Drive User’s Guide
22
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
See figure 11 for tabletop parallel SCSI bus termination
examples.
Caution:
b
The LTO-3 Half-Height Tape Drive with the
parallel SCSI interface is a low voltage differential
(LVD) SCSI device. Install it only in LVD
environments. Plugging an LVD drive into a high
voltage differential (HVD) bus makes the entire
bus nonfunctional and may permanently damage
the drive or other SCSI devices on the bus.
For the SAS tabletop drive, attach the external SAS interface cable
to the 26-pin SFF-8088 mini-SAS connector on the back of the
drive.
3 Verify that the tabletop LTO-3 Half-Height Tape Drive AC power
switch is set to the off position, and connect the AC power cord to the
power connector on the back of the drive.
4 Connect the drive AC power cord to the facility AC power receptacle.
5 Reconnect the workstation or server system AC power cord to the
facility AC power receptacle.
After connecting the tabletop drive interface and AC power cables,
proceed to Restarting the Tabletop Drive System in the following
subsection.
LTO-3 Half-Height Tape Drive User’s Guide
23
Chapter 2 Installation Procedures
Installing the Tabletop LTO-3 Half-Height Tape Drive
Figure 11 Tabletop Parallel
SCSI Bus Termination
Examples
SCSI terminators
External SCSI device
External tape drive
External tape drive
External SCSI
device
SCSI controller
(termination disabled)
Internal SCSI
device (termination
enabled
SCSI controller
(termination
enabled)
Example 1: SCSI termination in a system
that has only external SCSI devices.
Restarting the Tabletop
Drive System
2
Example 2: SCSI termination in a system that
has both internal and external SCSI devices.
After connecting the tabletop drive interface and AC power cables:
1 Set the tabletop LTO-3 Half-Height Tape Drive power switch to the
on position.
2 Restart the workstation or server system.
3 Refer to the operating procedures in chapter 3 to verify that the
tabletop LTO-3 Half-Height Tape Drive comes on and completes the
Power On Self Test (POST) functions.
As required, proceed to either:
• Installing the LTO Driver Software
• Registering the LTO-3 Half-Height Tape Drive
LTO-3 Half-Height Tape Drive User’s Guide
24
Chapter 2 Installation Procedures
Installing the LTO Driver Software
Installing the LTO Driver Software
If you intend to use the LTO-3 Half-Height Tape Drive with the
Microsoft® native backup applet on a Windows 2000, Windows Server®
2003, Windows XP®, or Windows Vista operating system, install the
appropriate version of the LTO driver software. (See the Downloads page
for LTO-3 drivers under Standalone Tape Drives on the Quantum
support website at www.quantum.com/support.)
Note:
The LTO driver software is not necessary with commercial
backup application software.
Registering the LTO-3 Half-Height Tape Drive
After installing the LTO-3 Half-Height Tape Drive, be sure to register it
via the Quantum website at:
www.quantum.com/registration
Registering the drive ensures that you will receive the latest technical
information about the drive, as well as other product, service, and
support information.
LTO-3 Half-Height Tape Drive User’s Guide
25
Chapter 3
UNIX Configuration Procedures
3
This chapter describes how to configure various UNIX systems to
recognize and obtain optimal performance from the LTO-3 Half-Height
Tape Drive.
The topics covered in this chapter are:
• A Word About SCSI Controllers
• Configuring Sun UNIX Environments
• Configuring IBM AIX UNIX Environments on page 30
• Configuring Linux UNIX Environments on page 32
• Configuring HP-UX UNIX Environments on page 33
A Word About SCSI Controllers
The LTO-3 Half-Height Tape Drive transfers data natively at 68 Mbytes
per second, with 2:1 compression of the data. It supports the SCSI Ultra
160 specification and can transfer data at burst rates of up to 320 Mbytes
per second. To achieve maximum drive performance, always choose
high-performance disk drives for your system, as well as highperformance SCSI controllers.
LTO-3 Half-Height Tape Drive User’s Guide
26
Chapter 3 UNIX Configuration Procedures
Configuring Sun UNIX Environments
Table 3 lists the recommended types of SCSI controllers, in order of most
preferred (top) to least preferred (bottom).
Table 3 Recommended SCSI
Controllers
Controller Type
Maximum Transfer Rate
Ultra 320 SCSI
320 Mbytes per second, most preferred
Ultra 3 SCSI
160 Mbytes per second
Wide Ultra2 SCSI
80 Mbytes per second, compatible
For definitions of the terms used above, please refer to SCSI Trade
Association web site:
www.scsita.org/aboutscsi/index01.html
Finding Existing SCSI
Devices and Controllers 3
Each SCSI device attached to a host must have a unique SCSI address.
The first step in configuring the UNIX environment is to determine the
addresses of all SCSI devices to verify that each has a unique address.
Note:
SCSI ID 7 is almost always dedicated to the SCSI controller.
Never configure the LTO-3 Half-Height Tape Drive for ID 7
unless you are absolutely sure that the controller is not
assigned ID 7.
Configuring Sun UNIX Environments
This subsection provides procedures for configuring the following Sun
UNIX operating system environments:
• Solaris 2.4, 2.5 and 2.6
• Solaris 7, 8, 9 and 10
LTO-3 Half-Height Tape Drive User’s Guide
27
Chapter 3 UNIX Configuration Procedures
Configuring Sun UNIX Environments
Finding Existing SCSI
Devices and Controllers 3
Use the modinfo and dmesg commands to identify the installed SCSI
devices and controllers.
For example, the command dmesg | egrep target | sort | uniq can find all
SCSI controllers and devices. The output may look similar to:
sd32
sd34
st21
st22
at
at
at
at
ithps0:
ithps0:
ithps1:
ithps1:
target2
target4
target0
target1
lun0
lun0
lun0
lun0
In this example, the LTO-3 Half-Height Tape Drive can be set for SCSI ID
2 through 6 and attached to controller ithps1. (This particular controller
also supports SCSI addresses 8 through 15.)
Note:
You might be able to view the main pages of three types of
SCSI controllers for Sun Sparc systems:
• esp
• glm
• isp
Do not attach the LTO-3 Half-Height Tape Drive to esp type
controllers. They are not fast enough and will produce very
slow backup operations.
In this case, the Ultra Wide glm type controller would be the
minimum acceptable device.
The best controllers for the LTO-3 Half-Height Tape Drive are
Ultra3 SCSI-capable devices with a minimum data transfer
rate of 160 Mbytes per second.
Configuring the UNIX
Environment
3
Procedure
1 Add the following lines to the st.conf file in the /kernel/drv directory.
tape-config-list=
"SEAGATE ULTRIUM06242-XXX", "Seagate LTO 1", "SEAGATE_LTO1",
"CERTANCE ULTRIUM 2", "Seagate LTO 2", "Certance_LTO2",
"CERTANCE ULTRIUM 3", "Seagate LTO 3", "Certance_LTO3",
“QUANTUM ULTRIUM 3”, ”Quantum LTO 3”,”Quantum_LTO3”,
# THE LAST ENTRY IN THIS SECTION MUST END WITH A SEMICOLON
LTO-3 Half-Height Tape Drive User’s Guide
28
Chapter 3 UNIX Configuration Procedures
Configuring Sun UNIX Environments
SEAGATE_LTO1 = 1,0x3b,0,0x1d639,4,0x00,0x00,0x00,0x00,1;
Certance_LTO2 = 1,0x3b,0,0x1d639,4,0x00,0x00,0x00,0x00,1;
Certance_LTO3 = 1,0x3b,0,0x1d639,4,0x00,0x00,0x00,0x00,1;
Quantum_LTO3 = 1,0x3b,0,0x1d639,4,0x00,0x00,0x00,0x00,1;
The value 0x1d639 equates to the way the LTO-3 Half-Height Tape
Drive is configured to operate in the Solaris environment. This value
enables the LTO-3 Half-Height Tape Drive to support:
•
Variable-length records (variable-length block size), not limited
to 64 Kbytes
•
Long time outs (5 times longer than normal) for long erase
functions (Attempting to erase the entire tape is not
recommended.)
•
End of data detection
•
Backspace over:
•
Files (same as mt bsf command to backspace over file marks)
•
Records (same as mt bsr command to backspace over
individual tape blocks)
•
Unloadable device drivers
•
Buffered write operations
•
Mode Select Page 10h operations to enable/disable data
compression
2 After modifying the st.conf file, use the boot-r command to restart the
system and reconfigure the kernel.
a If you are replacing a tape device with the same SCSI ID, you
might want to delete the st devices from the /dev/rmt directory.
(This is recommended.)
b When using commands that require a blocking factor, such as tar
or ufsdump, the preferred factor is:
LTO-3 Half-Height Tape Drive User’s Guide
•
128 (optimal)
•
64 (minimal)
29
Chapter 3 UNIX Configuration Procedures
Configuring IBM AIX UNIX Environments
c When using commands that require tape density and size
settings, the tape:
•
Density is 124,000 bpi
•
Length is 1800 feet
Note, however, that the ufsdump and ufsrestore commands are
preferred, as they automatically detect end-of-tape without the
need for tape density and length settings.
d When writing data to tape, use the c option to enable data
compression. For example, tar cf /dev/rmt/0c causes the tape drive
to compress the data before writing to tape.
Configuring IBM AIX UNIX Environments
This subsection provides procedures for configuring IBM AIX Version
4.1x and later UNIX operating system environments.
Finding Existing SCSI
Controllers and Devices 3
Use the lsdev–Cs scsi command to identify the installed SCSI devices and
controllers.
Note the existing SCSI device IDs and verify that the SCSI ID for the LTO3 Half-Height Tape Drive does not conflict with the other IDs shown by
the lsdev command.
Configuring the UNIX
Environment
3
Procedure
Use the Other SCSI Tape Drive option of the SMIT utility to configure AIX:
1 Enter SMIT at the Tape Drive menu by typing smit tape.
2 Select Add a tape Drive.
3 Use the Other SCSI Tape Drive option to specify the type of tape drive
you will be adding.
4 Select Parent SCSI Adapter from the available list to display the Add a
tape Drive “Entry Fields”.
LTO-3 Half-Height Tape Drive User’s Guide
30
Chapter 3 UNIX Configuration Procedures
Configuring IBM AIX UNIX Environments
5 Change the following standard options to maximize drive
performance and functionality:
a Set the Connection Address with the Drives Target and Lun (always
use Lun 0). In the list, the target device is the first number and the
Lun is the second. For example, if the drive is ID 5, choose 5,0.
b Set the BLOCK size to 0.
c Set Use DEVICE BUFFERS during writes to yes.
d Set RETURN error on tape change or reset to no.
e Set Use EXTENDED file marks to yes.
f Set RESERVE/RELEASE support to yes.
g Set BLOCK SIZE for variable length support (Num.) to 0.
h Set Density 1 to 0.
6 Leave the Set delay. . . and Set timeout. . . lines at the default value.
7 Click OK to install the drive in the system database and create the
devices. There is no need to restart the system.
8 Exit SMIT.
9 Subsequently:
a Use the AIX commands backup and restore to transfer data to
and from the LTO-3 Half-Height Tape Drive. They transfer data
much more quickly than other commands such as tar and cpio.
However, for:
•
cpio, use a blocking factor of 128
•
tar, use the N option and a factor of 128
Note:
LTO-3 Half-Height Tape Drive User’s Guide
Some older systems with poor video controllers might
experience a degradation in performance when using the
v option, which prints the path names on the standard
console during the backup. Unless there is a real need to
see the filenames as they are backed up, do not use the v
option.
31
Chapter 3 UNIX Configuration Procedures
Configuring Linux UNIX Environments
b For commands that use density and tape size settings, the tape:
•
Density is 124,000 bpi
•
Length is 1800 feet
Configuring Linux UNIX Environments
This subsection provides procedures for configuring Linux UNIX
operating system environments.
Finding Existing SCSI
Controllers and Devices 3
Use the following command to list the current SCSI controllers:
dmesg | grep SCSI
This command produces output similar to:
(scsi0)<Adaptec AHA-294XX Ultra2 SCSI host
adapter> found at PCI 0/16/0
Use the following command to find existing SCSI devices:
cat /proc/scsi/scsi
This command produces output similar to:
Host: scsi0 Channel: 0 Id:6 Lun:00
Vendor: Quantum Model: ULTRIUM 3 Rev: 1897
Type: Sequential-Access ANSI SCSI revision 04
Use the output of these two commands to determine which SCSI target
ID numbers are available. In this example, a tape drive is attached at
target ID 6.
The widely available distributions of Linux automatically install the
proper SCSI and tape device drivers. If you executed the cat command to
find existing SCSI devices, you have ensured that the SCSI driver for your
controller is installed.
LTO-3 Half-Height Tape Drive User’s Guide
32
Chapter 3 UNIX Configuration Procedures
Configuring HP-UX UNIX Environments
Use the following command to view currently loaded modules:
execute
Verify that one of the entries is st.
Use the following command to view the st device number for your
attached tape drive:
dmesg | grep tape
This command produces output similar to:
Detected SCSI tape st0 and scsi0 . . .
Configuring the UNIX
Environment
3
Procedure
1 Use the mt command options to configure the UNIX environment.
2 Use the stsetoptions command from within the mt command to set up
a default configuration.
See the man page for mt for details.
3 Subsequently:
a Do not use the erase command.
b Do not use commands that partition the tape. Partitioning is not
supported in the LTO format.
c For commands that use density and tape size settings, the tape:
•
Density is 124,000 bpi
•
Length is 1800 feet
d For commands that use a blocking factor, use a factor of 128.
Configuring HP-UX UNIX Environments
This subsection provides procedures for configuring HP-UX Version 11.0
UNIX operating system environments.
LTO-3 Half-Height Tape Drive User’s Guide
33
Chapter 3 UNIX Configuration Procedures
Configuring HP-UX UNIX Environments
Finding Existing SCSI
Controllers and Devices 3
Use the following command to list the current SCSI controllers and
devices:
can ioscan–f.
Configuring the UNIX
Environment
3
Procedure
1 Log in as superuser and issue the command:
ioscan –C tape –f
This command produces output similar to:
Class I H/WPath Driver S/WState H/Wtype Description
Tape 7 8/12.6.0 stape Claimed Device QUANTUM ULTRIUM 3
2 From the root directory and as superuser, issue the command:
/sbin/insf –C tape
3 Issue the command:
/sbin/mksf –d stape –H x/x.x.x –I y –c 1
–n –u /dev/rmt/zcnb
Where:
• x is the data under H/WPath from the ioscan
•
y is the data under I from the ioscan
•
z is the tape device identifier number
Note:
You can execute an ls command for the /dev/rmt directory
to choose:
• An identifier number that has not already been used
• A unique device name such as cnb to more easily
remember which device name will enable data
compression during write
4 Refer to the man pages for mksf to review settings for rewind, no
rewind, Berkeley mode, and AT&T mode.
LTO-3 Half-Height Tape Drive User’s Guide
34
Chapter 3 UNIX Configuration Procedures
Configuring HP-UX UNIX Environments
5 After executing the insf and mksf commands, use the following
command to check the installation:
ioscan –fn | grep –C tape
This command produces an output that shows the hardware and
device addressing and the device name assigned to the LTO-3 HalfHeight Tape Drive.
LTO-3 Half-Height Tape Drive User’s Guide
35
Chapter 4
4
Operation
This chapter describes how to operate the LTO-3 Half-Height Tape Drive.
Topics covered in this chapter are:
• Understanding the Front Panel Display
• Using LTO Tape Cartridges on page 38
• Cleaning the Tape Drive on page 41
• Performing an Emergency Reset and Cartridge Eject on page 42
Understanding the Front Panel Display
As shown in figure 12, the LTO-3 Half-Height Tape Drive front panel
display has four LED indicators that reflect the operating condition of the
drive:
The green POWER LED is on whenever power is applied to the drive.
The green ACTIVITY LED, the orange ERROR LED, and the amber
STATUS LED are either on steady or blinking at different rates in various
combinations to indicate the various drive conditions as shown in table 4.
LTO-3 Half-Height Tape Drive User’s Guide
36
Chapter 4 Operation
Understanding the Front Panel Display
Figure 12 Front Panel Display
In table 4:
Table 4 Front Panel Display
LED Blink Codes
This indication . . .
Signifies that the LED is . . .
On
illuminated continuously in a steady state.
Slow
blinking on and off at a rate of one cycle per
second.
Fast
blinking on and off at a rate of four cycles per
second.
Drive Condition
Activity LED
(Green)
Error LED
(Orange)
Cleaning Request
Status LED
(Amber)
On
Cleaning cartridge
present
On
On
Cleaning cartridge at
EOT
On
Fast
Cleaning failure or
media error
Fast
Hardware error
Fast
Manual intervention
required
On
Microcode download
LTO-3 Half-Height Tape Drive User’s Guide
Fast
Slow
Fast
Fast
37
Chapter 4 Operation
Using LTO Tape Cartridges
Activity LED
(Green)
Error LED
(Orange)
Status LED
(Amber)
Microcode download
error
Fast
Fast
Fast
Positioning – loading,
unloading, rewinding,
spacing, or locating
Slow
Power On Self Test
(POST) in progress
Slow
Slow
Slow
Fast
On
Drive Condition
Power On Self Test
(POST) failure
Servo initialization
Slow
Tape Active – writing,
reading, or verifying
Slow
Slow
Using LTO Tape Cartridges
Loading a Tape Cartridge4
To load an Ultrium tape cartridge into the LTO-3 Half-Height Tape Drive,
gently insert the cartridge into the slot and then either:
• Push the cartridge further into the drive until the drive senses the
cartridge and automatically completes the load operation.
• Use a library or host command to complete the load operation.
LTO-3 Half-Height Tape Drive User’s Guide
38
Chapter 4 Operation
Using LTO Tape Cartridges
Unloading a Tape
Cartridge
4
To unload an Ultrium tape cartridge from the LTO-3 Half-Height Tape
Drive, either:
• Use a library or host command to unload the tape.
• Press the Eject button on the front panel of the drive.
Caution:
Write Protecting a Tape
Cartridge
4
After you press the Eject button, several minutes can
elapse before the drive ejects the cartridge. Do not
power down the tape drive or the host computer until
the drive has completely ejected the cartridge.
Ultrium tape cartridges have a sliding write-protect switch at the rightrear corner as shown in figure 13.
Sliding the write-protect
switch toward the . . .
Enables data to be . . .
center of the cartridge
(the Locked position),
read from the cartridge, but not written to
it. (This is the write-protected position.)
corner of the cartridge
(the Unlocked position),
both read from and written to the
cartridge. (This is the write-enabled
position.)
Figure 13 Ultrium Tape
Cartridge Write-Protect Switch
Front
Locked
Unlocked
LTO-3 Half-Height Tape Drive User’s Guide
Write protect switch (unlocked)
39
Chapter 4 Operation
Using LTO Tape Cartridges
Tape Cartridge Care and
Maintenance
4
Observe the following precautions to protect the data on your Ultrium
tape cartridges:
Always:
• Remove the cartridge from the drive when not in use
and store it in its protective case.
• Avoid dropping the cartridge. This can damage
components inside the cartridge, possibly rendering
the tape unusable. If you drop a tape cartridge, open
the cartridge door and make sure that the leader pin
is in the correct position.
• Re-tension a dropped cartridge before using.
• Keep the cartridge away from:
• Direct sunlight and heat sources, such as
radiators, heaters, or warm air ducts.
• Sources of electromagnetic fields, such as
telephones, computer monitors, dictation
equipment, mechanical or printing calculators,
motors, magnetic tools, and bulk erasers.
Do not:
• Expose the cartridge to dirt, dust or moisture.
• Touch the tape media within the cartridge.
• Bulk erase Ultrium tape cartridges. LTO tape
cartridges have prewritten servo patterns that
cannot be reformatted by the tape drive. A bulk
erase operation would make them unusable.
• Use tape cartridges outside the specified operating
conditions: 10o C to 40o C, 20% to 80% relative
humidity.
If a tape cartridge has been exposed to conditions
outside the specified range, recondition the tape
before using in the operating environment by
exposing it to the operating environment for a time
equal to or greater than the time it was outside the
operating environment, up to a maximum of 24
hours. Then re-tension the tape to stabilize the tape
pack for better performance.
LTO-3 Half-Height Tape Drive User’s Guide
40
Chapter 4 Operation
Cleaning the Tape Drive
Cleaning the Tape Drive
Excessive tape debris or other material can accumulate on the tape heads
if the drive is:
• Used with non-approved media
• Operated in a hot, dusty environment
When this happens, the drive can experience excessive errors while
reading or writing, and illuminate the amber Status LED continuously
during operation. This means that the drive needs to be cleaned.
The LTO cleaning cartridge has the same dimensions as the tape cartridge
and contains an LTO Cartridge Memory (LTO-CM), but is loaded with
cleaning media instead of recording media. Always keep the LTO
cleaning cartridge in its protective case when not in use.
Procedure
To clean the LTO-3 Half-Height Tape Drive:
1 Load an LTO cleaning cartridge into the tape drive.
2 Observe that both the Status and Activity LEDs are on steady during
the cleaning process.
Note:
If the LTO-3 Half-Height Tape Drive does not recognize
the cartridge as an LTO cleaning cartridge, the drive stops
the cleaning process and ejects the cartridge.
3 After the cleaning process completes, depending on the drive
configuration, either:
a The drive automatically ejects the LTO cleaning cartridge, or
b You must press the Eject button to eject the LTO cleaning
cartridge.
4 Write the date on the cartridge label for future reference.
LTO-3 Half-Height Tape Drive User’s Guide
41
Chapter 4 Operation
Performing an Emergency Reset and Cartridge Eject
Each time you use the LTO cleaning cartridge, the cleaning media
advances to a new, unused section. After approximately 50 cleanings, all
of the media will be used up and the LTO-3 Half-Height Tape Drive:
• Turns on the green Activity LED
• Fast flashes the amber Status LED
• Ejects the LTO cleaning cartridge
Always discard used-up LTO cleaning cartridges.
Note:
If the amber Status LED comes on continuously within 24
hours after a cleaning cycle, perform the cleaning procedure
again. If, after three cleaning cycles in a 72-hour period, the
amber Status LED comes on again, contact Quantum Technical
Support.
Performing an Emergency Reset and Cartridge Eject
If the LTO-3 Half-Height Tape Drive stops communicating with the host
computer, use the following procedure to reset the drive and eject a
cartridge (if necessary).
Caution:
LTO-3 Half-Height Tape Drive User’s Guide
When you perform an emergency reset and cartridge
eject, any data in the drive or host buffers will not be
written to the tape and the tape record may not be
correctly terminated with an end-of-data mark. If the endof-data mark is not written to the tape, you will not be
able to append any data to that tape unless you overwrite
the existing data on the tape.
42
Chapter 4 Operation
Performing an Emergency Reset and Cartridge Eject
To perform an emergency reset, hold down the Eject button between 5 to
15 seconds, and then release it.
IF there is . . .
THEN the tape drive firmware . . .
no tape in the drive,
restarts the drive and begins the Power On
Self Test function.
a tape in the drive,
ignores all outstanding SCSI commands,
ejects the tape, restarts the drive, and begins
the Power On Self Test function.
If the emergency reset procedure does not eject the cartridge from the
drive, see Drive Does Not Eject the Tape Cartridge on page 74.
LTO-3 Half-Height Tape Drive User’s Guide
43
Chapter 5
Theory
5
This chapter describes operational theories used in the LTO-3 HalfHeight Tape Drive.
The topics covered in this chapter are:
• Track Layout
• Recording Method on page 46
• Data Buffer on page 46
• Data Integrity on page 46
• Data Compression on page 48
Track Layout
With the LTO-3 Half-Height Tape Drive, there are 704 data tracks on the
LTO tape, numbered 0 through 703. Data track 703 is the track closest to
the bottom edge of the tape (the reference edge).
The area between adjacent servo bands is a data band. There are 4 data
bands, each of which includes 176 data tracks. The data bands are
numbered 2, 0, 1, 3. Data band 2 is closest to the bottom edge of the tape.
LTO-3 Half-Height Tape Drive User’s Guide
44
Chapter 5 Theory
Track Layout
A track group is a set of tracks that is recorded concurrently. The sets of
11 data tracks in a data band are data sub-bands. There are 16 data subbands per data band. The data tracks are accessed in a serpentine manner.
A wrap is a track group recorded in the physical forward or physical
reverse direction. The wraps are recorded in a serpentine fashion starting
in data band 0. The tape contains 44 track groups, 22 written in the
forward direction and 22 written in the reverse direction. Even-numbered
wraps are recorded in the forward direction (BOT to EOT), and oddnumbered wraps are recorded in the reverse direction (EOT to BOT).
Figure 14 shows the layout of data on an LTO tape.
Figure 14 Layout of the Tracks
on LTO Ultrium Tapes
Tape edge
Servo band
Even # wrap
Odd # wrap
Beginning of tape (BOT)
End of tape (EOT)
Sub-bands 1 through 14
(not shown)
Sub-band 0
Data Band
Even # wrap
Odd # wrap
Sub-band 15
Servo band
Tape edge
LTO-3 Half-Height Tape Drive User’s Guide
45
Chapter 5 Theory
Recording Method
Recording Method
The LTO-3 Half-Height Tape Drive records data using write-equalized
(0,13/11) Run Length Limited (RLL) code. RLL (0,13/11) Data bits are
defined as follows:
• ONE is represented by a flux transition at the center of a bit-cell.
• ZERO is represented by no flux transition in the bit-cell.
Data Buffer
In its default configuration, the LTO-3 Half-Height Tape Drive has a 128Mbyte buffer. The buffer controller has a burst transfer rate of 320
Mbytes/sec., and utilizes bank switching to achieve a maximum average
bandwidth of nearly 240 Mbytes/sec. The high bandwidth is needed to
support look-aside data compression in the case of compressible data
being transferred from SCSI at 160 Mbytes/sec.
Data Integrity
The mechanical and electrical design of the drive ensures that drive
performance does not degrade over time. Changes in head alignment,
head wear, component drift, and other factors are minimized to ensure
that data integrity and interchange capability are not compromised. The
drive also incorporates adaptive Finite Impulse Response (FIR) filters that
modify the equalization of each read channel dynamically to compensate
for many of those changes.
The error rate of the LTO-3 Half-Height Tape Drive is less than 1 hard
error in 1017 bits. The undetectable error rate is 1 in 1027 bits read.
LTO-3 Half-Height Tape Drive User’s Guide
46
Chapter 5 Theory
Data Integrity
Error-correction Code
(ECC)
5
The use of Cyclic Redundancy Checking (CRC), two-level orthogonal
Error Correction Coding (ECC) provides a very low probability of
encountering a hard error. During the read process, ECC correction is
performed on the fly without affecting tape streaming.
There are two levels of Error Correction Coding (ECC). These two levels
are orthogonal — that is, an ECC codeword at one level intersects ECC
codewords at the other level just once, which means there will be only
one common symbol between them. The two levels are called C1 and C2.
5
C1 ECC
As data is written to memory from the data processing unit, the DMA/
ECC interface generates C1 ECC bytes and writes them to memory.
As data is written to tape, the C1 ECC is checked and an interrupt
generated if there is an error. The C1 ECC read from memory is the ECC
that is written to tape.
When data is read from tape and stored into memory, C1 ECC is checked
and:
• If the C1 ECC is good, the “Valid” bit for the codeword pair is set.
• Otherwise, a pointer to the invalid codeword pair is passed to the C1
ECC correction engine.
•
If the C1 ECC correction engine can correct the error, then the
corrected bytes are written to memory, and the Valid bit is set.
•
Otherwise, the Valid bit is left cleared.
As data is read from memory to the data processor for decompression,
the C1 ECC is again checked and an interrupt generated if it is not correct.
5
C2 ECC
C2 ECC involves three distinct operations:
1 Encoding: Generating C2 ECC bytes from data bytes (performed by
ECC coprocessor hardware).
2 Decoding: Generating ECC syndromes from data and ECC bytes,
testing for all-zeroes (performed by ECC coprocessor hardware).
LTO-3 Half-Height Tape Drive User’s Guide
47
Chapter 5 Theory
Data Compression
3 Correction: Generating corrected data from syndromes.
The correction depends on the number and types of errors involved:
Servo-tracking Faults
5
•
For one known C1 codeword pair in error in a subdata set (C2
codeword), the operation is performed by the ECC coprocessor
hardware.
•
For two or more known C1 codeword pairs in error, the matrix is
computed by firmware and the correction is performed by
hardware.
•
For one or more unknown C1 codeword pairs, syndromes are
generated by hardware, error location is computed by firmware,
the matrix is computed by firmware and the correction is
performed by hardware.
During a write operation, if the servo system detects an error that may
result in adjacent data tracks being overwritten, the write operation is
aborted. The write operation will not continue until the correct servo
tracking is re-established.
Data Compression
Typical data streams of text, graphics, software code, or other forms of
data contain repeated information of some sort, whether it is at the text
level where you can readily recognize regular repetitions of a single
word, or at the binary level where the repetitions are in bits or bytes.
Although most data is unique and random, the binary level data exhibits
patterns of various sizes that repeat with varying degrees of regularity.
Storage efficiency is increased if the redundancies or repetition in the
data are removed before the data is recorded to tape. Data compression
technology significantly reduces or eliminates redundancies in data
before recording the information to tape. This increases the amount of
data that can be stored on a finite medium and increases the overall
storage efficiency of the system.
With data compression, the redundant information in a data stream is
identified and represented by codewords or symbols that allow the same
LTO-3 Half-Height Tape Drive User’s Guide
48
Chapter 5 Theory
Data Compression
data to be recorded in a fewer number of bits. These codewords or
symbols point back to the original data string, using fewer characters to
represent the strings. Because these smaller symbols are substituted for
the longer strings of data, more data can be stored in the same physical
space.
Some important benefits result from data compression in tape drives:
• The same amount of information can be stored on a smaller length of
tape.
• More data can be stored on a given length of tape.
• Performance can more closely parallel to that of high-transfer-rate
computers.
• More information can be transferred in the same time interval.
Data Compression
Considerations
5
In an effective data-compression method, several factors are important:
• The amount of compression, which is measured by the compression
ratio. This ratio compares the amount of uncompressed data to the
amount of compressed data. It is obtained by dividing the size of the
uncompressed data by the size of the compressed data.
• The speed with which data is compressed and decompressed relative
to the host transfer rate.
• The types of data to be compressed.
• The data integrity of the compressed data.
The amount of compression possible in a data stream depends on factors
such as:
• Data pattern
• Compression algorithm
• Pattern repetition length
• Pattern repetition frequency
• Object size (block of information to be compressed)
• Starting pattern chosen
LTO-3 Half-Height Tape Drive User’s Guide
49
Chapter 5 Theory
Data Compression
The transfer rate depends on factors such as:
• Compression ratio
• Drive buffer size
• Host computer input/output (I/O) speed
• Effective disc speeds of the host computer
• Record lengths that the host computer transmits
Data compression algorithms can be tailored to provide maximum
compression for specific types of data. Because varying types of data are
encountered in normal day-to-day operating circumstances, however, an
effective data compression method for a tape drive must serve various
data types. Additionally, the data compression method must adapt to
different data types, automatically providing optimum handling for all
types of data.
Intelligent Data
Compression
5
The compressed capacity of the tape is maximized through the use of
intelligent data compression. The intelligent data compression hardware
determines the compressibility of each record. If the size of the record is
larger after a compression attempt than the native (uncompressed) size,
then the record is written in its native form.
The intelligent data compression utilizes two compression schemes:
• Scheme-1 is a LZ1-based compression scheme using a history buffer
to achieve data compression.
• Scheme-2 is a pass-through compression scheme designed to pass
uncompressible data through with minimal expansion.
There are three specific requirements for compliance with the LTO
specification.
• The output data stream must be decompressible following LTO rules
to create the input sequence of records and file marks perfectly.
• An LTO compressed data stream may not contain any of the eight
reserved control symbols.
• While control symbols allow switching to Scheme 2, this should
never be used by operational software because this capability is only
for diagnostic and testing purposes.
LTO-3 Half-Height Tape Drive User’s Guide
50
Chapter 5 Theory
Data Compression
Software data compression should never be used because the built-in
intelligent data compression of the LTO-3 Half-Height Tape Drive is
much more efficient than software data compression.
The LTO-3 Half-Height Tape Drive uses a derivative of ALDC-2 lossless
data compression that includes additional control codes for intelligent
data compression.
LTO-3 Half-Height Tape Drive User’s Guide
51
Chapter 6
Specifications
6
This chapter provides technical specifications for the LTO-3 Half-Height
Tape Drive.
The topics covered in this chapter are:
• Physical Specifications
• Power Specifications on page 55
• Drive Performance Specifications on page 56
• Environmental Requirements on page 58
• Injected Noise Specifications on page 59
• Reliability Specifications on page 59
• LTO Cartridge Specifications on page 60
LTO-3 Half-Height Tape Drive User’s Guide
52
Chapter 6 Specifications
Physical Specifications
Physical Specifications
Table 5 lists the physical specifications of the LTO-3 Half-Height Tape
Drive, which is shown in figure 15.
Table 5 Physical
Specifications
Internal Drive
Specification
Without Bezel
With Bezel
Tabletop Drive
Height
1.63 inches
(41.3 mm)
1.70 inches
(43.1 mm)
2.60 inches
66.2 mm)
Width
5.76 inches
(146.30)
5.87 inches
(149.10 mm)
8.35 inches
(212.13 mm)
Length
8.56 inches
(217.50 mm)
8.76 inches
(222.57 mm)
10.73 inches
(272.49 mm)
(Max. to end of connector)
(Max. to end of connector)
3.66 lbs.
(1.66 kg)
3.72 lbs.
(1.69) kg)
Weight
LTO-3 Half-Height Tape Drive User’s Guide
8.00 lb.
(3.63 kg)
53
Chapter 6 Specifications
Physical Specifications
Figure 15 LTO-3 Half-Height
Tape Drive Dimensions
TO CARTRIDGE CENTER
FROM BOTTOM MOUNTING SURFACE
LTO-3 Half-Height Tape Drive User’s Guide
TO CARTRIDGE CENTER
FROM SIDE MOUNTING SURFACE
54
Chapter 6 Specifications
Power Specifications
Power Specifications
The tabletop LTO-3 Half-Height Tape Drive has a built-in 90-260 VAC
(47-63 Hz) automatic switching power supply.
Maximum voltage and power specifications for the internal LTO-3 HalfHeight Tape Drive is listed in table 6. Specifications are the same as those
for other SCSI drives unless otherwise noted.
Table 6 Voltage and Current
Specifications
Specification
+12 VDC
+5 VDC
DC Voltage Tolerance
12.00 ± 10%
5.00 ± 5%
Non-operating max
voltage
14 Volts peak
7 Volts peak
0.8 amps RMS
2.3 amps RMS
(1 sec max)
4.1 amps max RMS*
4.1 amps max RMS*
Standby current (max)
0.45 amps RMS
1.50 amps RMS*
Ripple (peak-to-peak)
< 100 mV
< 100 mV
Max operating current
Continuous:
Peak:
* RMS parameters measured at the power connector using a true RMS
digital meter.
Table 7 Power Dissipation
Power Specification
Dissipation
Max Standby Power
12.5 watts RMS*
Max Continuous Operating Power
31 watts RMS*
LTO-3 Half-Height Tape Drive User’s Guide
55
Chapter 6 Specifications
Drive Performance Specifications
Power Specification
Dissipation
Max Peak Operating Power
36 watts RMS (1 sec max)
* RMS parameters measured at the power connector using a true RMS
digital meter.
Drive Performance Specifications
Table 8 lists the performance specifications of the LTO-3 Half-Height
Tape Drive.
Table 8 Drive Performance
Specifications
Specification
Value
Average data access time
(650-m tape) from BOW
(beginning of wrap)
60 seconds
Average rewind time
(650-m tape)
> 51 seconds
Max rewind time
(650-m tape)
< 120 seconds
Capacity
LTO Ultrium 3 (680 m)
400 Gbytes (native)
Cartridge unload time
25 seconds
Error recovery
Read-after-write Reed Solomon
ECC (2 levels)
Flux density
10249 cells per mm
LTO-3 Half-Height Tape Drive User’s Guide
56
Chapter 6 Specifications
Drive Performance Specifications
Specification
Value
Head configuration
2 bumps
16 thin-film write heads per bump
16 MR read heads per bump
2 MR servo heads per bump
Maximum data access time
(650-m tape) from BOW
120 seconds
Maximum rewind time
(650-m tape)
< 115 seconds
Recording density
5,120 RLL-encoded ONEs per mm
Recording format
Ultrium 16-channel (U-316)
Recording method
0, 13/11 RLL
Recording undetectable errors
Less than 1 in 1027 data bits
Recording unrecoverable errors
Less than 1 in 1017 data bits
Synchronous transfer rate
(burst)
160 Mbytes per sec max
Tape drive type
LTO (Ultrium)
Tape speed
Up to 4.53 meters per second
Track density
70 tracks per mm
Transfer rate (sustained)
68 Mbytes/second (max, native)
LTO-3 Half-Height Tape Drive User’s Guide
57
Chapter 6 Specifications
Environmental Requirements
Environmental Requirements
Table 9 lists the environmental specifications of the LTO-3 Half-Height
Tape Drive.
Table 9 Environmental
Requirements
Specification
Operational
Acoustic level idling
(A-wt sum)
52 dBA maximum 5.0 LwA Bels
—
Acoustic level operational
(A-wt sum)
57 dBA maximum 5.5 LwA Bels
—
Airflow requirements
Internal: 9 CFM (front to back)
N/A
Altitude
max 10,000 feet MSL
(at 25°C)
40,000 feet (power off)
Humidity gradient
10% per hour
10% per hour
Relative humidity
20% to 80% non-condensing
10% to 95% non-condensing
Shock (1/2 sine wave)
10 Gs peak, 11 msec
40 Gs peak, 11 msec
Temperature
+50° to +104°F
(+10° to + 40°C)
–40° to +149°F
(–40° to + 66°C)
Thermal gradient
11°C per hour (10-40°C)
11°C per hour (10-40°C)
Vibration (sweep test)
0.005 inches DA (5-43 Hz)
0.50 G peak (43–1000 Hz)
sweep rate 5-1000Hz;
1.0 octave per minute
0.1 inches (5-–15Hz)
1.0 G (15–500 Hz)
1.0 octave per minute
LTO-3 Half-Height Tape Drive User’s Guide
Nonoperational
58
Chapter 6 Specifications
Injected Noise Specifications
Injected Noise Specifications
The internal drive operates without degradation of error rates with 100
mV of noise injected between the chassis and 0 V at the power connector
at any frequency between 45 Hz and 20 MHz.
Reliability Specifications
The LTO-3 Half-Height Tape Drive is designed for maximum reliability
and data integrity. Table 10 lists the reliability specifications.
Table 10 Reliability
Specifications
Specification
Description
Cartridge load/eject
100,000 cartridge load/eject cycles (no thread)
Error recovery and
control
• Error correction code techniques
(C1 and C2 ECC)
• Read-after-write (RAW)
• Error monitoring and reporting (error log)
• Retry on
Mean time between
failures (MTBF)
250,000 hours MTBF at 100% duty cycle:
power applied and tape moving continuously
(tabletop drive; 50,000 hours at full load and
25°C)
Mean time to replace
(MTTR)
Less than 30 minutes
Nonrecoverable error
rate
Less than 1 in 1017 bits
LTO-3 Half-Height Tape Drive User’s Guide
59
Chapter 6 Specifications
LTO Cartridge Specifications
Mean Time Between
Failures
6
The mean time between failures (MTBF) for the internal drive is specified
at 250,000 hours minimum. This specification includes all power-on and
operational time but excludes maintenance periods. Operational time is
assumed to be 100% of the power-on time. Operational time is the time
the tape is loaded.
The MTBF for the tabletop drive power supply is 50,000 hours with the
unit operated at full load and 25°C.
Note:
Mean Time to Replace
6
The MTBF rating does not represent any particular drive, but
is derived from a large database of test samples. Actual rates
may vary from unit to unit.
The mean time to replace (MTTR) is the average time required by a
qualified service technician to diagnose a defective drive and to install a
replacement drive. The MTTR for LTO products is less than 0.5 hour (30
minutes).
The Quantum LTO drives are field-replaceable units. If a problem occurs
with a subassembly or component in the drive, you should replace the
entire unit. Return the drive to the factory in its original packaging.
Contact your distributor, dealer, your computer system company or your
Quantum sales representative to arrange the return.
LTO Cartridge Specifications
Environmental
Considerations
6
Table 11 lists the basic environmental tolerances for LTO Ultrium
cartridges.
LTO-3 Half-Height Tape Drive User’s Guide
60
Chapter 6 Specifications
LTO Cartridge Specifications
Table 11 Environmental
Tolerances
Specification
Value
Maximum localized temperaturepermanent tape damage
Greater than 52°C
Operating temperature
10°C to 40°C
Relative humidity
10% to 80% storage,
20% to 80% operating
Wet bulb temperature
26° C max
If during storage and/or transportation a cartridge has been exposed to
conditions outside the specified values, it must be conditioned before use
in the operating environment. The conditioning shall be exposure to the
operating environment for a time equal to, or greater than, the time away
from the operating environment, up to a maximum of 24 hours. There
shall be no deposit of moisture anywhere on or in the cartridge.
The stray magnetic field at any point on the tape shall not exceed 4000
A/m.
Cartridge Memory
6
Each Ultrium cartridge has 4 Kbytes of nonvolatile memory:
• 3 Kbytes are used to store tape-directory and hardware specific
information.
• 1 Kbyte is available for application and OEM use.
The cartridge memory is powered, read, and written to via a radiofrequency link.
Cartridge Reliability
6
After 5,000 load/eject cycles, replace the cartridge to insure data
integrity.
LTO-3 Half-Height Tape Drive User’s Guide
61
Chapter 7
7
Troubleshooting Guide
This chapter provides best-practice installation guidelines for getting the
most out of your LTO-3 Half-Height Tape Drive and troubleshooting
information you can use to identify and resolve tape drive problems.
Topics covered in this chapter are:
• Installation Best Practices
• Troubleshooting Suggestions on page 64
Installation Best Practices
Following SCSI Best
Practices
7
Using a Parallel SCSI
Host Bus Adapter (HBA) 7
Always follow SCSI best practices when installing an LTO-3 Half-Height
Tape Drive to ensure trouble-free installation and operation.
To achieve the very best performance from your parallel SCSI LTO-3
Half-Height Tape Drive and optimize your backup operations, always
attach the dive to a SCSI controller that supports the SCSI Ultra 3 LVD
interface with 160 MBytes per sec. transfer rate. Attaching the drive to a
non-LVD controller, or attaching non-LVD devices to the same bus with
LTO-3 Half-Height Tape Drive User’s Guide
62
Chapter 7 Troubleshooting Guide
Installation Best Practices
the LTO-3 Half-Height Tape drive would degrade the performance of the
drive and your backup operations.
Caution:
Never connect the LTO-3 Half-Height Tape Drive to a
disk RAID controller. This is not supported.
If you must use a SCSI host bus adapter (HBA), always:
• Use a dedicated SCSI HBA to enable the best performance and reduce
the chance of installation difficulties that might be caused by
duplicate SCSI IDs on the same bus channel.
• Use a SCSI LVD controller kit that includes a high-quality SCSI cable
and terminator that conforms to Ultra 2 SCSI specifications. A lowquality cable, or a cable that does not conform to the Ultra 2 SCSI
specifications can cause intermittent write/read errors, SCSI
timeouts, and corrupted data.
• Make sure that:
Using a Serial-attached
SCSI Host Bus Adapter 7
•
Your operating system supports both the adapter and your
backup software application.
•
You have the proper drivers for the HBA, if any are necessary.
To achieve the very best performance from your serial-attached SCSI
(SAS) LTO-3 Half-Height Tape Drive and optimize your backup
operations, always attach the drive to a serial-attached SCSI controller
that supports 3 GBytes per sec. per port transfer rate.
LTO-3 Half-Height Tape Drive User’s Guide
63
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
HBA Preinstallation
Checks
7
Before installing the HBA, check and record your current system
configuration. For example:
In the . . . operating
system,
Windows 2000
You can find information on any currently
installed SCSI HBA by . . .
1 Double-clicking Administrative Tools in
the Control Panel
2 Clicking Computer Management > Device
Manager
3 Clicking the SCSI host adapters listed
4 Clicking Properties to view the Resources
tab
UNIX/Linux
Viewing the boot log text file.
Refer to your operating system documentation for specific information
on reviewing your system configuration.
After installing the SCSI HBA, restart the system. Then, ensure that the
operating system recognizes the HBA and that there are no conflicts with
other adapters.
Troubleshooting Suggestions
Computer Does Not Start 7
If the computer started and operated properly before installing a SCSI
HBA and the LTO-3 Half-Height Tape Drive, but does not start now:
1 Remove the SCSI HBA.
LTO-3 Half-Height Tape Drive User’s Guide
64
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
2 Restart the system.
IF the system . . .
THEN . . .
starts normally,
there is a problem with the SCSI HBA.
1 Make sure that the SCSI HBA:
• Is compatible with system
• Does not have burnt
components
Reinstall the SCSI HBA in a different
PCI slot and restart the computer.
still does not start,
Computer Hardware Does
Not Recognize the Tape
Drive
7
contact Technical Support.
If the computer starts normally but does not recognize the tape drive:
1 Restart the system and check whether the SCSI controller is
recognized at system startup. You should see messages similar to:
SCSI Adapter Manufacturer SCSI BOIS xxxxxxx
CHA: SCSI ID #,
SCSI Device Name
SCSI ID #,
SCSI Device Name”
IF the SCSI controller is . . .
during system startup,
THEN . . .
recognized
proceed to step 2 to determine
whether the tape drive is
recognized when the SCSI
controller scans for devices.
not recognized
contact Technical Support.
2 If the SCSI controller is recognized during system startup, restart the
system to determine whether the tape drive is recognized when the
SCSI controller scans for devices. You should see messages similar to:
Bus Target
Lun Device
0 0 0 Quantum ULTRIUM 3
LTO-3 Half-Height Tape Drive User’s Guide
65
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
IF the tape drive is . . .
during system startup,
THEN . . .
recognized
the problem has been resolved.
not recognized
proceed to step 3 to determine whether
the tape drive is receiving power.
3 If the tape drive is not recognized when the SCSI controller scans for
devices, check the Power LED on the LTO-3 Half-Height Tape Drive
front panel to make sure the drive is receiving power.
IF the Power LED is . . .
THEN . . .
off,
proceed to step 4 to check the power
connections to the tape drive.
on,
proceed to step 5 to determine whether
the drive passed the Power On Self
Test functions.
4 If the Power LED is off, check the power connections to the tape drive.
For the internal tape drive:
a Shut down the system, remove the cover, and re-seat the DC
power cable connector on tape drive.
b Restart the system and check the Power LED.
.
LTO-3 Half-Height Tape Drive User’s Guide
66
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
IF the Power LED is . . .
THEN . . .
off,
shut down the system, replace the
power connector attached to the
tape drive with one from a known
working device such as a CDROM, and restart the system.
If the Power LED:
• Comes on, then resolve the
problem with the DC power
cable/connector.
• Remains off, then contact
Technical Support to resolve the
possible problem with the tape
drive.
on,
repeat step 2 of this procedure to
confirm that re-seating the DC
power cable to the tape drive
solved the problem and the tape
drive is recognized during system
startup.
If the tape drive is:
• Recognized during the SCSI
controller scan, then the
problem is resolved. Reinstall
the computer cover.
• Still not recognized, then
proceed to step 5 to determine
whether the drive passed the
Power On Self Test functions.
LTO-3 Half-Height Tape Drive User’s Guide
67
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
For the tabletop tape drive:
a Set the drive AC power switch to the off position and re-seat the
AC power cord connector.
b Set the drive AC power switch to the on position and check the
Power LED.
IF the Power LED is . . .
THEN . . .
off,
set the drive AC power switch to
the off position, replace the AC
power cable with one from a
known working device, and reset
the AC power switch to the on
position.
If the Power LED:
• Comes on, then resolve the
problem with the AC power
cable/connector.
• Remains off, then contact
Technical Support to resolve the
possible problem with the tape
drive.
on,
repeat step 2 of this procedure to
confirm that re-seating or
replacing the AC power cable
solved the problem and the tape
drive is recognized during system
startup.
If the tape drive is:
• Recognized during the SCSI
controller scan, then the
problem is resolved.
• Still not recognized, then
proceed to step 5 to determine
whether the drive passed the
Power On Self Test functions.
LTO-3 Half-Height Tape Drive User’s Guide
68
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
5 If the Power LED is on, but the tape drive is not recognized during the
SCSI controller scan, use the front panel LEDs to determine whether
the drive passes the Power on Self Test (POST) functions. (See table 4
on page 37.)
IF the LEDs show that
the tape drive . . . the
POST functions,
THEN . . .
fails
contact Technical Support to resolve
the possible problem with the tape
drive.
passes
proceed to step 6 to check for possible
SCSI problems.
6 If the tape drive LEDs indicate that the drive has passed the POST
functions, check the SCSI bus connections.
For the internal tape drive:
a Shut down the system.
b Verify that there are no SCSI ID conflicts between the tape drive
and other SCSI devices.
c Make sure you are using a proper SCSI cable and proper bus
termination.
d Check the SCSI cable for bent pins.
e If possible, replace the SCSI cable with one from another SCSI
controller bus chain.
f If checks a through e do not reveal a problem, contact Technical
Support to resolve the possible problem with the tape drive.
For the tabletop tape drive:
a Shut down the system and cycle the tape drive AC power switch
through its Off/On positions.
b Verify that there are no SCSI ID conflict between the tape drive
and other SCSI devices.
c Make sure you are using a proper SCSI cable and proper bus
termination.
d Check the SCSI cable for bent pins.
LTO-3 Half-Height Tape Drive User’s Guide
69
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
e If possible, replace the SCSI cable with one from another SCSI
controller bus chain.
f If checks a through e do not reveal a problem, contact Technical
Support to resolve the possible problem with the tape drive.
Computer Software Does
Not Recognized the Tape
Drive
7
Depending on your operating system environment, refer to the following
subsections for troubleshooting guidelines if the LTO-Half-Height Tape
drive is recognized by the system hardware at startup, but not by the
operating system or applications.
Windows Operating System Environments
7
When a tape drive is installed in a Windows operating system
environment, Windows displays a message on the screen if it does not
have a driver in place for the tape drive.
IF the tape drive is for use in . . .
THEN you . . .
an ISV application,
can click the Cancel button to
clear the message.
When the ISV backup software
application is running, the
application invokes its own
drivers to run the tape drive.
a native Windows operating
system backup utility,
must install the proper driver for
the tape drive.
Red Hat Linux Operating System Environments
7
The tape driver for Red Hat Linux, called st, is included as part of the Red
Hat Linux operating system.
When Red Hat Linux starts, the operating system recognizes the tape
drive and automatically configures it as a device in the /dev directory. If it
is the first tape device in the /dev directory, the tape drive is known as:
/dev/st0 or /dev/nst0.
LTO-3 Half-Height Tape Drive User’s Guide
70
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
There are various ways to view the log files to see whether Linux
recognizes the tape drive:
• One method is to open a terminal window and issue the following
command from the root directory:
dmesg | grep SCSI
This command produces an output similar to:
(scsi0)<Adaptec AHA-294XX Ultra2 SCSI host adapter> found at PCI 0/16/0
• Another method might be to use the command:
cat /proc/scsi/scsi
This command produces an output similar to:
Host: scsi0 Channel: 0 Id:6 Lun:00
Vendor: Quantum Model: ULTRIUM 3 Rev: 1897
Type: Sequential-Access ANSI SCSI revision 04
• You can also use a text editor to view the messages in the file /var/log/
and look for tape drive entries.
• Sometimes a system can have multiple tape device names in the /dev
directory and will not know which st number to use. To view the st
device number for your attached tape drive, use the command:
dmesg | grep tape
This command produces an output similar to:
Detected SCSI tape st0 and scsi0 . . .
LTO-3 Half-Height Tape Drive User’s Guide
71
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
Drive Does Not Load the
Tape Cartridge
7
If you cannot load a tape cartridge into the LTO-3 Half-Height Tape
Drive:
1 Verify that the tape drive Power LED is on and that all other LEDs
are off.
IF the Power
LED is . . .
AND other LEDs
are . . .
off,
off,
refer to the procedures
for troubleshooting
power problems under
Computer Hardware
Does Not Recognize the
Tape Drive on page 65 to
determine why the
Power LED is not on.
on,
on or flashing,
see table 4 on page 37 to
determine whether the
other LED activity is
normal or abnormal.
Then proceed to step 2 of
this procedure.
THEN . . .
If the amber Status LED
is on and the orange Error
LED is flashing fast to
indicate a Power On Self
Test error, contact
Technical Support to
resolve the possible
problem with the tape
drive.
on,
LTO-3 Half-Height Tape Drive User’s Guide
off,
skip to step 3 of this
procedure.
72
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
2 If other LEDs are on, reset the tape drive by either:
•
Pressing and holding the Eject button on the front panel for more
than 5 seconds and releasing it (both internal and tabletop
drives),
•
Or by cycling the drive AC power switch off and on (tabletop
tape drive only).
3 Verify that the tape drive passes the Power On Self Test by viewing
LED activity. All LEDs should be off for approximately 20 to 30
seconds after the tape drive resets.
If the amber Status LED is on and the orange Error LED is flashing
fast to indicate a Power On Self Test error, contact Technical Support
to resolve the possible problem with the tape drive.
4 If the Power LED is on, all the other LEDs are off, and you still cannot
load a tape cartridge into the tape drive, examine the tape and the
inside of the tape drive.
•
•
Verify that:
•
There are no tape labels interfering with tape insertion.
•
Tape labels are only on proper tape surfaces, and that labels
are flat and not curled.
•
The tape drive opening is free of debris and tape labels.
•
The tape pin and tape are fully within the cartridge.
If you are inserting a cleaning cartridge, verify that the cleaning
tape:
•
Is valid. The tape drive ejects unsupported cleaning tapes.
•
Has not expired. See table 4 on page 37 for Cleaning
Cartridge at EOT.
5 Attempt to insert a different tape cartridge.
6 If a tape still cannot be inserted into the tape drive, contact Technical
Support to resolve the possible problem with the tape drive.
LTO-3 Half-Height Tape Drive User’s Guide
73
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
Drive Does Not Eject the
Tape Cartridge
7
If you cannot eject a tape cartridge from the LTO-3 Half-Height Tape
Drive:
1 Verify that the tape drive Power LED is on and that all other LEDs are
off.
IF the Power
LED is . . .
AND other LEDs
are . . .
off,
off,
refer to the procedures
for troubleshooting
power problems under
Computer Hardware
Does Not Recognize the
Tape Drive on page 65 to
determine why the
Power LED is not on.
on,
on or flashing,
see table 4 on page 37 to
determine whether the
other LED activity is
normal or abnormal.
Then proceed to step 2 of
this procedure.
THEN . . .
If the amber Status LED
is on and the orange Error
LED is flashing fast to
indicate a Power On Self
Test error, contact
Technical Support to
resolve the possible
problem with the tape
drive.
on,
LTO-3 Half-Height Tape Drive User’s Guide
off,
skip to step 3 of this
procedure.
74
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
2 If other LEDs are on, reset the tape drive by either:
•
Pressing and holding the Eject button on the front panel for more
than 5 seconds and releasing it (both internal and tabletop drives)
•
Cycling the drive AC power switch off and on (tabletop tape
drive only)
3 With the Power LED on and all other LEDs off, press the Eject button
on the front panel.
IF . . .
THEN . . .
the Drive LED flashes, with no
other LED indicators on,
wait for the tape to eject
(normally takes from 2 to 3
minutes).
• If the tape ejects, and the
Drive LED stops flashing, the
problem has been resolved.
• If the tape does not eject, and
there are no other LED
indications, contact Technical
Support to resolve the
possible problem with the
tape drive.
you see a message similar to:
You cannot eject the cartridge
because the tape drive is in use.
Wait until the operation is complete
before ejecting the cartridge. The
backup software may still have the
tape drive in prevent mode so that
the cartridge cannot be ejected.
Use the backup software
commands to eject the tape.
the orange Error LED fast
flashed to indicate a hardware
error,
LTO-3 Half-Height Tape Drive User’s Guide
use the mt offline command to
eject the tape.
Note:
In UNIX/Linux
environments, the
message may not
appear, even though
the operating system
prevents the drive from
ejecting the tape. Use
the mt offline command
anyway.
the cartridge might be
physically jammed inside the
drive. Contact Technical
Support to resolve the possible
problem with the tape drive.
75
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
Slow Backup Operations 7
Many factors can make backups appear to be slow. To achieve the highest
possible transfer rate, the LTO-3 Half-Height Tape Drive:
• MUST be attached to a Low Voltage Differential (LVD) SCSI
controller capable of a minimum of 80 Mbytes per sec., and
• MUST NOT share the same SCSI bus as another active SCSI device
such as hard drives.
1 Verify that the tape drive is attached to an LVD SCSI controller. You
can do this by:
•
Watching the system the startup process
•
Examining the system startup log files
IF the tape drive is . . .
to an LVD SCSI controller,
LTO-3 Half-Height Tape Drive User’s Guide
THEN . . .
attached
proceed to step 2 of this
procedure to determine
whether the tape drive shares
the SCSI bus with another
active SCSI device.
not attached
attach the tape drive to an LVD
SCSI controller to achieve the
best possible hardware
performance for the best
possible transfer rate.
76
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
2 If the tape drive is attached to an LVD SCSI controller, verify that it
does not share the SCSI bus with another active SCSI device by:
•
•
Checking:
•
Windows Device Manager
•
Unix/Linux logs
Monitoring the SCSI controller activity during system startup.
IF the tape drive . . .
THEN . . .
shares the SCSI bus with
other SCSI devices that are
active when tape backups are
performed,
reconfigure the SCSI setup to
make the tape drive the only
active device on the SCSI bus.
is the only active device on
the SCSI bus
proceed to step 3 of this
procedure to determine
whether the method of
performing tape backups is a
factor.
3 The method of performing tape backups can be a factor in slow
backup operations. Data sent to the tape drive over a network
connection and delays in data transfer over a network connection can
cause backups to slow down.
To determine whether the method of performing tape backups is a
factor:
a Use the tape diagnostic software to perform a write/read test.
Caution:
The read/write test will overwrite any data on the
tape. Always use a new/blank or “scratch”
cartridge for diagnostic read/write tests.
The diagnostic write/read test evaluates the connection between
the tape drive and the SCSI controller and removes the network
data transfer and the backup software from the performance
evaluation.
LTO-3 Half-Height Tape Drive User’s Guide
77
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
b When the test finishes, determine the megabytes per second data
transfer rate to verify that the tape drive is performing at an
acceptable rate.
IF you believe that the read/
write transfer rate is . . .
too slow,
THEN . . .
use the tape diagnostic
software to perform a trace
buffer retrieval.
Send the diagnostic output
file to Technical Support for
evaluation of the SCSI bus
condition.
acceptable, but backups still
seem to be slow,
it might be attributed to the
number of files and the
average size of the backup
files.
These factors can have a
significant effect on the
backup performance.
Backups where the average
file size is less than 200
Kbytes, for example, are
slower than backups where
the average file size is greater
than 200 Kbytes.
Obtain backup log files to
determine number of files
and average file size.
Failed Operations
TapeAlert Messages
7
The LTO-3 Half-Height Tape Drive supports the TapeAlert standard, and
issues the appropriate alert messages in response to operational error
conditions. You can view TapeAlert messages either directly, on the
system screen, or in the log file of your backup application. Note,
however, that some operational error conditions can cause more than one
TapeAlert message.
LTO-3 Half-Height Tape Drive User’s Guide
78
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
The following subsections provide troubleshooting guidelines for dealing
with the most common TapeAlert error conditions.
7
Backup Failure TapeAlert Messages
A number of problems can cause a backup operation to fail.
This TapeAlert message . . .
Signifies . . .
The operation has stopped because
an error has occurred while reading
or writing data which the drive cannot
correct.
that a media error occurred
during a read or write operation.
The tape is from a faulty batch or the
tape drive is faulty.
that a media error occurred
during a read or write operation.
or:
These messages frequently
appear in addition to the “The
The tape is damaged or the drive is
faulty. Call the tape drive supplier
helpline.
Proceed to step 1 of the following
procedure.
operation has stopped because...”
message. In this case, proceed to
step 1 of the following procedure.
Otherwise, repeat the backup
operation with a known good
tape and proceed to step 1 of the
following procedure if the
problem persists.
1 Review the configuration subsections in chapter 2, Installation
Procedures, on page 5 and verify that the SCSI bus is properly
configured and terminated.
2 Retry the backup operation if you make any changes are made to the
SCSI cabling or termination, or if you unplug and reconnect any SCSI
cables.
3 If the problem persists, remove the data tape, insert a cleaning
cartridge to clean the tape drive (see Cleaning the Tape Drive on
page 41).
4 After the tape drive ejects the cleaning cartridge, reload the data tape
and retry the backup operation.
LTO-3 Half-Height Tape Drive User’s Guide
79
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
5 If the problem persists, use the tape diagnostic software to perform a
write/read test with 4 Gbytes of data.
Caution:
The write/read test will overwrite any data on the
tape. Always use a new/blank or “scratch” cartridge
for diagnostic write/read tests.
IF the diagnostic test . . .
THEN . . .
completes normally,
retry the backup operation
using the same new/blank or
“scratch” tape that you used for
the diagnostic write/read test.
If the backup retry:
• Succeeds, discard the
original data tape. The
problem is resolved.
• Fails, repeat steps 3 and 4 of
this procedure to clean the
tape drive a second time and
proceed to step 6.
fails,
repeat steps 3 and 4 of this
procedure to clean the tape
drive a second time and
proceed to step 6.
6 Retry the backup operation. If the backup retry:
•
Succeeds, the problem is resolved.
•
Fails, contact Technical Support to resolve the possible problem
with the tape drive.
LTO-3 Half-Height Tape Drive User’s Guide
80
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
7
Write-Protected TapeAlert Messages
Write-protected TapeAlert messages can appear in response to:
• Actual write-protected tape cartridges
• Defective tape cartridges
• Cartridges of a type that appear to be write protected
This TapeAlert message . . .
Signifies . . .
You are trying to write to a writeprotected cartridge. Remove the
write-protection or use another
tape.
that you are trying to write to a
tape cartridge that is actually
write protected.
1 Eject the tape cartridge
from the drive.
2 Set the cartridge writeprotect switch to the
unlocked (read-enabled)
position (see figure 13 on
page 39).
3 Retry the backup operation.
The memory in the tape cartridge
has failed, which reduces
performance. Do not use the
cartridge for further backup
operations.
and/or:
You have loaded a cartridge of a
type that is read-only in this drive.
The cartridge will appear as writeprotected.
Overwrite protection is set to
<setting>. Click OK to overwrite the
media or insert new media that can
be overwritten.
LTO-3 Half-Height Tape Drive User’s Guide
you are trying to write to a tape
cartridge that is either defective
(failed Cartridge Memory chip),
or the wrong type.
Retry the backup operation
using a known good cartridge
of the proper type.
If the problem persists, contact
Technical Support to resolve
the possible problem with the
tape drive.
a software-related problem.
Refer to the documentation for
your backup software for
information on the overwrite
and append settings.
81
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
Hardware Failure TapeAlert Messages
7
Hardware failure TapeAlert messages are descriptive and
straightforward.
This TapeAlert message . . .
Signifies . . .
The tape drive has a hardware fault:
a tape drive hardware failure.
1. Eject the tape or magazine.
2. Reset the drive.
3. Restart the operation.
Or:
The tape drive has a hardware fault:
1. Turn the tape drive off and then on
again.
2. Restart the operation.
3. If the problem persists, call the tape
drive supplier helpline.
1 Press the Eject button on the front panel to eject the tape cartridge.
2 Cycle the tape drive power to the off then on position:
For the internal LTO-3 Half-Height Tape Drive:
a Terminate all running applications.
b Shut down the workstation or server system.
c Restart the system.
For the tabletop LTO-3 Half-Height Tape Drive, use the AC power
on/off switch on the back panel to cycle the drive power to the off
then on positions.
3 Check the tape drive front panel LED indicators to determine the
operational condition of the drive (see table 4 on page 37).
This LED indication . . .
Signifies . . .
• Amber Power LED on steady
the normal operational
configuration. The problem is
resolved.
and:
• All others off
LTO-3 Half-Height Tape Drive User’s Guide
82
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
This LED indication . . .
Signifies . . .
• Orange Error LED fast
flashing
a hardware failure condition.
• Orange Error LED fast
flashing
a failed Power On Self Test
function.
and:
Contact Technical Support to
resolve the possible problem
with the tape drive.
• Amber Status LED on steady
Contact Technical Support to
resolve the possible problem
with the tape drive.
7
Tape Cleaning TapeAlert Messages
Tape cleaning TapeAlert messages indicate problems when you insert a
cleaning cartridge into the LTO-3 Half-Height Tape Drive. Like hardware
failure TapeAlert messages, tape cleaning TapeAlert messages are
descriptive and straightforward.
This TapeAlert message . . .
Signifies . . .
The last cleaning cartridge used in
the tape drive has worn out:
that the cleaning cartridge is used
up. Discard it.
1. Discard the worn out cleaning
cartridge.
See Cleaning the Tape Drive on
page 41 and use a new or still
functional LTO cleaning cartridge
to clean the tape drive.
2. Wait for the current operation to
finish.
3. Then use a new cleaning cartridge.
The last cleaning cartridge used in
the tape drive was an invalid type:
1. Do not use this cleaning cartridge
in this drive.
2. Wait for the current operation to
finish.
3. Then use a valid cleaning
cartridge.
LTO-3 Half-Height Tape Drive User’s Guide
the tape drive does not recognize
the cleaning tape as being of a
valid type.
See Cleaning the Tape Drive on
page 41 and use a valid LTO-type
cleaning cartridge to clean the
tape drive.
83
Chapter 7 Troubleshooting Guide
Troubleshooting Suggestions
This TapeAlert message . . .
Signifies . . .
The tape drive needs cleaning:
the tape drive has issued a
message to the backup software
to instruct you to clean the tape
drive.
1. If the operation has stopped, eject
the tape and clean the drive.
2. If the operation has not stopped,
wait for it to finish and then clean
the drive.
See Cleaning the Tape Drive on
page 41.
3. Check the tape drive users manual
for device specific cleaning
instructions.
LTO-3 Half-Height Tape Drive User’s Guide
84
Appendix A
Installation Checklists
A
Use the following quick-start checklists to get your tape drive up and
running as quickly as possible:
• Internal LTO-3 Half-Height Tape Drive Quick Start
• Tabletop LTO-3 Half-Height Tape Drive Quick Start
LTO-3 Half-Height Tape Drive User’s Guide
85
Appendix A
Internal LTO-3 Half-Height Tape Drive Quick Start
Internal LTO-3 Half-Height Tape Drive Quick Start
Use the following quick-start procedure to install the internal LTO-3
Half-Height Tape Drive. Print this page and check each step as you
complete it. If you need more information about a step, see the sebsection
referenced in the step.
‰
1
Unpack the contents of your drive package, and check for damaged items.
See Unpacking and Inspecting the Drive on page 8.
‰
2
Review a parallel SCSI drive’s default settings and change them if necessary:
•
SCSI ID: 6
•
Terminator Power: Enabled
See Configuring the Internal Parallel SCSI Tape Drive on page 10.
‰
3
Turn off your computer, remove its covers and power cable, and select a mounting
bay for the drive.
See Mounting the Internal Tape Drive on page 13.
‰
4
Connect a parallel SCSI or serial-attached SCSI (SAS) interface cable to the drive.
See Connecting the Internal Drive Interface and DC Power Cables on page 15.
‰
5
Terminate the parallel SCSI bus if the internal tape drive is the last device on the
SCSI bus.
See figure 3 on page 13.
‰
6
Connect a serial cable, if installing the tape drive in a tape library system.
See Connecting the Internal Drive Interface and DC Power Cables on page 15.
‰
7
Connect a DC power cable to the drive.
See Connecting the Internal Drive Interface and DC Power Cables on page 15.
‰
8
Replace the computer covers and AC power cable, turn on the computer, and
verify that the internal tape drive is operating properly.
‰
9
Register your tape drive.
See Registering the LTO-3 Half-Height Tape Drive on page 25.
LTO-3 Half-Height Tape Drive User’s Guide
86
Appendix A
Tabletop LTO-3 Half-Height Tape Drive Quick Start
Tabletop LTO-3 Half-Height Tape Drive Quick Start
Use the following quick-start procedure to install tabletop LTO-3 HalfHeight Tape Drive. Print this page and check each step as you complete
it. If you need more information about a step, see the subsection
referenced in the step.
‰
1
Unpack the contents of your drive package, and check for damaged items.
See Unpacking and Inspecting the Drive on page 8.
‰
2
Review the parallel SCSI drive’s default settings and change them if necessary:
•
SCSI ID: 6
•
Terminator Power: Enabled
See Configuring the Tabletop Parallel SCSI Tape Drive on page 19.
‰
3
Connect a parallel SCSI or serial-attached SCSI (SAS) interface cable to the drive.
See Connecting the Internal Drive Interface and DC Power Cables on page 15.
‰
4
Check SCSI bus termination for a parallel SCSI drive.
See figure 8 on page 20.
‰
5
Connect a power cable to the drive.
See Connecting the Tabletop Drive Interface and AC Power Cables on page 21.
‰
6
• Turn on the computer
• Turn on the tabletop tape drive
• Verify that the tabletop tape drive is operating properly.
‰
7
Register your tape drive.
Registering the LTO-3 Half-Height Tape Drive on page 25.
LTO-3 Half-Height Tape Drive User’s Guide
87
Appendix B
Disposal of Electrical & Electronic
B
Equipment
This symbol on the LTO-3 Half-Height Tape Drive or
on its packaging indicates that the tape drive should not
be disposed of with your other waste materials. Instead,
it should be submitted to a designated collection point
for the recycling of electrical and electronic equipment.
The separate collection and recycling of your waste
equipment at the time of disposal helps conserve
natural resources and ensures that the equipment is
recycled in a manner that protects human health and the environment.
For more information about properly disposing of your waste equipment
for recycling, please visit our website at qcare.quantum.com or contact
your local government authority, your household waste disposal service,
or the business from which you purchased the product.
LTO-3 Half-Height Tape Drive User’s Guide
88
Appendix C
C
Regulatory Compliances
This appendix identifies the he LTO-3 Half-Height Tape Drive regulatory
compliances. The topics include:
• Safety Compliances
• Electromagnetic Compatibility (EMC) Compliances on page 91
LTO-3 Half-Height Tape Drive User’s Guide
89
Appendix C
Safety Compliances
Safety Compliances
The LTO-3 Half-Height Tape Drives are safety compliant with the
following regulatory codes in the countries indicated:
Country
Regulatory Organization
Compliant to:
Canada
Canadian Standards Association
(CSA)
UL/CSA 60950-1
EU member nations
Comité Europèen de Normalisation
Electrotechnique – the European
Committee for Electrotechnical
Standardization (CENELEC)
EN 60950-1, 1st edition
IECEE member
nations*
International Electrotechnical
Commission on Electrical
Equipment (IECEE) for Mutual
Recognition of Test Certificates for
Electrical Equipment “CB Scheme”
CB Scheme per IEC
60950-1 with details
and exceptions for each
member country
Israel
SII
CB Scheme
Taiwan
BSMI
BSMI certification,
CNS 14336
United States
Underwriters Laboratories (UL)
UL/CSA 60950-1
* IECEE member nations include: Argentina, Austria, Australia, Belgium, Brazil,
Canada, China (PR), Czech Republic, Denmark, Finland, France, Germany, Hungary,
India, Ireland, Israel, Italy, Japan, (South) Korea, Montenegro, Netherlands, Norway,
Poland, Russian Federation, Serbia, Singapore, Slovakia, Slovenia, South Africa, Spain,
Switzerland, Turkey, United Kingdom, and USA.
LTO-3 Half-Height Tape Drive User’s Guide
90
Appendix C
Electromagnetic Compatibility (EMC) Compliances
Electromagnetic Compatibility (EMC) Compliances
The LTO-3 Half-Height Tape Drives are EMC compliant with the
following regulatory organizations and codes in the countries indicated:
Country
Regulatory Organization
Compliant to:
Australia
Australian Communications and
Media Authority (ACMA)
AS/NZS 3548 (same as
CISPR 22)
Canada
Industry Canada Digital Apparatus
- Interference-Causing Equipment
Standard
(ICES-003)
ICES-003 Digital
Apparatus
EU member nations
CE
Emissions per CISPR
22, EN55022 and
Immunity per CISPR
24, EN55024
Israel
SII
CISPR 22 and CISPR 24
Japan
Voluntary Control Council for
Interface (VCCI)
VCCI
New Zealand
Australian Communications and
Media Authority (ACMA)
AS/NZS 3548 (same as
CISPR 22)
South Korea
MIC
CISPR 22 and CISPR 24
Taiwan
Bureau of Commodity Inspection
and Quarantine (BSMI)
BSMI EMC
certification, CNS
14338
United States
Federal Communications
Commission (FCC)
Title 47: Code of
Federal Regulations,
Part 15, Subpart B
(47CFR15B),
LTO-3 Half-Height Tape Drive User’s Guide
91
Appendix C
Electromagnetic Compatibility (EMC) Compliances
Note:
Use the LTO-3 Half-Height Tape Drive only in equipment
where the combination has been determined to be suitable by
an appropriate certification organization (for example,
Underwriters Laboratories Inc. or the Canadian Standards
Association in North America).
Also consider the following safety points:
• Install the drive in an enclosure that limits the user’s access to live
parts, gives adequate system stability and provides the necessary
grounding for the drive.
• Provide the correct voltages (+5 VDC and +12 VDC) based on the
regulation applied—Extra Low Voltage (SEC) for UL and CSA, and
Safety Extra Low Voltage for BSI and VDE (if applicable).
LTO-3 Half-Height Tape Drive User’s Guide
92
Index
configuring
A
internal drives 10
tabletop drives 19
AIX 4.1 settings 30
E
ejecting a cartridge 39
environmental requirements 58
error-correction code 47
B
D
backup/restore problems 78
data buffer 46
best practices 62
data buffering, description 3
data compression
considerations 49
description 3
C
F
features 3
front panel display 36
intelligent 50
cartridge memory, description 3
data integrity 46
cartridges
error-correction code 47
care and maintenance 40
ejecting 39
servo-tracking faults 48
data transfer rate
loading 38
description 3
specifications 60
variable-speed 4
troubleshooting 72
drive performance specifications 56
unloading 39
write-protecting 39
cautions, internal drives 6
chassis, description 3
LTO-3 Half-Height Tape Drive User’s Guide
G
guidelines, handling and
installation 6
H
handling precautions 6
head positioner, description 3
HP-UX 11.0 settings 33
93
Index
mounting, internal drives 13
I
IBM AIX 4.1.x and later settings 30
injected noise 59
inspecting the drive 8
installation guidelines 7
installation instructions
SCSI controllers 26
N
SCSI ID
native data transfer rate, description
3
internal drives 9
preinstallation requirements 7
tabletop drives 17
installing the LTO driver 25
S
parallel internal drives 10
parallel tabletop drives 19
servo-tracking faults 48
slow backups 76
SmartVeirfy, description 3
O
specifications
drive performance 56
overview 1
intelligent data compression 50
environmental requirements 58
description 3
interfaces, description 3
internal drives
configuring 10
guidelines and cautions 6
installation instructions 9
mounting 13
injected noise 59
P
LTO cartridge 60
physical specifications 53
physical 53
platforms, supported 3
registering 25
terminator power 12
loading a cartridge 38
LSI circuitry, description 3
Q
supported platforms 3
quick-start checklist
tabletop drives 87
mean time between failures 60
T
tabletop drives
configuring 19
R
read channel, description 3
recording method 46
registering tape drive 25
M
reliability 59
Sun (Solaris 2.4, 2.5, 2.6, 7, 8, 9)
UNIX settings 27
L
Linux settings 32
regulatory compliance 89
preinstallation requirements 7
internal drives 86
layout of track 44
power 55
power specifications 55
parallel SCSI ID 10
quick-start checklist 86
mean time between failures 60
regulatory compliance 89
reliability 59
RISC processor, description 3
method of recording 46
LTO-3 Half-Height Tape Drive User’s Guide
installation instructions 17
parallel SCSI ID settings 19
quick-start checklist 87
tape drive
registering 25
troubleshooting 72
tape picking, description 4
TapeAlert
description 3
94
Index
messages 82
terminator power, internal drives 12
track layout 44
troubleshooting 64
backup/restore problems 78
computer boots but does not
recognize tape drive 65
slow backups 76
tape drive not recognized by
operating system or
application 70
tape drives and cartridges 72
tape will not eject from drive 74
TapeAlert messages 82
U
UNIX settings
HP-UX 33
IBM AIX 30
Linux 32
Sun (Solaris 2.4, 2.5, 2.6, 7, 8, 9) 27
unloading a cartridge 39
unpacking the drive 8
V
variable-speed data transfer,
description 4
W
write-protecting a cartridge 39
LTO-3 Half-Height Tape Drive User’s Guide
95
