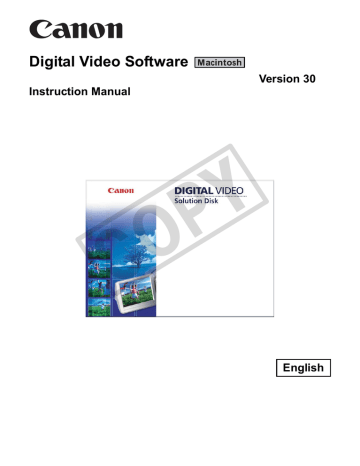

Digital Video Software

Digital Video Software
Digital Video Software
Version 30
Instruction Manual
C
Y
P
O
English
Contents
Read This First ........................................................................................................... 4
Checking Supplied Accessories ............................................................................ 4
System Requirements ............................................................................................... 5
What is Digital Video Software? ............................................................................... 6
Windows ..................................................................................................................... 7
CameraWindow ..................................................................................................... 7
[Acquire Images] Tab ........................................................................................ 7
[Print] Tab .......................................................................................................... 8
[Set to Camera] Tab .......................................................................................... 9
Camera Browser Window ............................................................................... 10
Browser Window...................................................................................................11
[Image Viewer] Window ....................................................................................... 15
[Trim Image] Window ...................................................................................... 16
[Color/Brightness Adjustment] Window ........................................................... 16
[Red Eye Correction] Window ......................................................................... 17
[Insert Text] Window ........................................................................................ 17
[Level Adjustment] Window ............................................................................. 18
[Tone Curve Adjustment] Window ................................................................... 18
[Sharpness] Window ....................................................................................... 19
[Auto Adjustment] Window .............................................................................. 19
Installing the Digital Video Software ...................................................................... 20
Before Downloading Still Images ........................................................................... 23
Connecting the Camcorder to a Computer .......................................................... 23
Settings on the camcorder .............................................................................. 23
Connecting the camcorder .............................................................................. 24
Downloading Still Images........................................................................................ 25
Using the Computer to Download Still Images (CameraWindow) ....................... 26
Auto-downloading ........................................................................................... 26
Applying Auto-downloading Settings .............................................................. 27
Downloading the Selected Still Images from the CameraWindow .................. 30
Using the Camcorder to Download Still Images (Direct Transfer Function) ........ 32
Setting the Direct Transfer Download Destination Folder ............................... 32
Direct Transfer ................................................................................................ 33
Using a Card Reader/Writer ................................................................................ 34
Auto-downloading ........................................................................................... 35
Applying Auto-downloading Settings .............................................................. 35
Downloading the Selected Still Images from the ImageBrowser .................... 36
Printing Still Images................................................................................................. 38
Printing Still Images without Downloading Them................................................. 38
Printing Still Images Already Downloaded to the Computer ................................ 43
[Photo Print] .................................................................................................... 43
[Index Print] ..................................................................................................... 45
[Layout Print] ................................................................................................... 47
Organizing Images ................................................................................................... 49
Applying Star Rating ............................................................................................ 49
Specifying the Keywords...................................................................................... 50
Classifying the Images......................................................................................... 51
Sort by the Shooting Date ............................................................................... 51
Sort by the Star Rating .................................................................................... 52
C
2
Contents
Y
P
O
Renaming Multiple Files ...................................................................................... 54
Searching for Images........................................................................................... 55
Creating a Movie from the Still Images .................................................................. 57
Editing Movies (MovieEdit Task).......................................................................... 57
Playing Back Movies............................................................................................ 59
Exporting Images ..................................................................................................... 60
Changing the File Type and Saving..................................................................... 60
Extracting Still Images from Movies (MovieFrame Task) ..................................... 63
Uploading Still Images to the camcorder ............................................................. 65
Using Various Functions ......................................................................................... 67
Attaching Images to E-mail Messages ................................................................ 67
Running a Slide Show ......................................................................................... 69
Adding Sound to a Still Image.............................................................................. 70
Reviewing and Changing the Owner Name of the Camcorder............................ 71
Uninstalling the Software ........................................................................................ 72
Uninstalling ImageBrowser .................................................................................. 72
Troubleshooting ....................................................................................................... 73
Macintosh
C
Y
P
O
Contents
3
Read This First
„ Disclaimer
• While every effort has been made to ensure that the information contained in this
guide is accurate and complete, no liability can be accepted for any errors or
omissions. Canon reserves the right to change the specifications of the hardware
and software described herein at any time without prior notice.
• No part of this guide may be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in any form, by any means,
without the prior written permission of Canon.
• Canon makes no warranties for damages resulting from corrupted or lost data
due to mistaken operation or malfunction of the camcorder, the software, memory
cards (SD, SDHC and miniSD Cards), personal computers, or peripheral devices,
or due to use of a memory card not initialized by a Canon camcorder.
„ Trademark Acknowledgments
• Macintosh, Mac OS, iPhoto and QuickTime are trademarks of Apple Inc.,
registered in the U.S. and other countries.
• miniSD™ is a trademark of SD Card Association.
• The SD logo is a trademark. The SDHC logo is a trademark.
• Intel is a trademark or a registered trademark of Intel Corporation or its
subsidiaries in the United States and other countries.
• Other names and products not mentioned above may be registered trademarks
or trademarks of their respective companies.
Y
P
O
© Canon Inc. 2008 All rights reserved.
C
„ Safety Precautions
Do not play the supplied CD-ROM(s) in any CD player that does not support data
CD-ROMs. Playing the CD-ROM(s) in an audio CD player (music player) could
damage the speakers. It is also possible to suffer from hearing loss from listening
with headphones to the loud sounds of a CD-ROM played on a music CD player.
Checking Supplied Accessories
Use the following accessories to download recorded still images from the camcorder
to your computer.
• DIGITAL VIDEO Solution Disk
• Supplied USB cable
The cable supplied with your
camcorder may be different from the
one described in this manual.
The explanations in this manual use mainly Mac OS X version 10.3 screen shots.
The steps and windows may vary depending on your computer.
4
Read This First
System Requirements
OS:
Computer Model:
CPU:
RAM:
Interface:
Free Hard Disk Space:



Proper operation is not guaranteed on any particular system, even if it meets
the requirements outlined above.
ImageBrowser does not operate on disks initialized with the Unix File
System (UFS).
A CD-ROM drive is required to install the software.
C
Y
P
O
Macintosh
Display:
Mac OS X (version 10.3/10.4)
Computers that come with above OS preinstalled
PowerPC G3/G4/G5, or Intel processor
256 MB or more
USB
Canon Utilities
- ImageBrowser
300 MB or more
1024 u 768 pixels/32,000 colors or better
System Requirements
5
What is Digital Video Software?
Digital Video Software allows you to download still images you recorded with the
camcorder to a computer and manage, print, and edit them.
„ ImageBrowser
•
•
•
•
•
•
•
•
•
Viewing still images as thumbnails
Managing by shooting date folders with still images
Categorizing, organizing, and searching large volumes of still images
Printing still images
Editing still images
Changing the data for still images and save them as new files
Attaching still images to e-mail
Viewing still images in a slide show
Adding sound to a still image
„ CameraWindow
• Downloading still images to your computer
• Viewing still images directly from the camcorder, without downloading them
• Printing still images directly from the camcorder, without downloading them to the
computer
Y
P
O
This instruction manual explains how to install the software, what you can do with the
main features and how to operate them. For more detailed operational instructions,
refer to the Help menu of each software program.
C
Your camcorder may not support some features of the software.
6
What is Digital Video Software?
Windows
CameraWindow
After you connect the camcorder to your computer, you can use CameraWindow to
download still images to the computer. Furthermore, you can print still images directly
from the camcorder, without having to download them to the computer (
38), and
you can confirm and change the owner’s name of the camcorder you specify (
71).
Refer to Using the Computer to Download Still Images (CameraWindow) (
26) for
launching the software. The Remote capture function is not supported by the
camcorder.


Click the [CameraWindow] icon in the Dock (bar appearing at the bottom of
the desktop) if the Camera Control window does not appear.
When the [CameraWindow] icon is not in the Dock, double click the [Canon
Utilities] folder on the drive where the program was installed, followed by the
[CameraWindow] folder and the [CameraWindow] icon.
„ [Acquire Images] Tab
Y
P
O
After you connect the camcorder to your computer, use this tab to download still
images to the computer.
Camera Control window
Selects a function in the Camera Control window.
Macintosh
C
Specify the image type to be downloaded and the destination folder.
Images in the camcorder are displayed allowing you to select images.
Images will be downloaded to the computer, and ImageBrowser starts.
Windows
7
„ [Print] Tab
After connecting the camcorder to your computer, use this tab to print still images
without downloading them to the computer first. The window varies depending on the
selected printing type. Refer to Printing Still Images without Downloading Them
(
38).
Camera Control window
Prints all still images, one image per page.
C
Y
P
O
Displays a list of the still images in the camcorder (built-in memory or memory
card), allowing you to select which ones to print.
Prints according to the DPOF print settings set by the camcorder.
Prints all still images as an index page
(rows of images with file names and image information).
8
Windows
„ [Set to Camera] Tab
This tab is used for confirming and changing the owner’s name of the camcorder you
can specify (
71) and uploading the still images to the camcorder. My Camera
function is not supported by the camcorder.
Camera Control window
C
Y
P
O
Uploading the images from the computer.
Macintosh
Enter or change the name of the camcorder’s owner.
Windows
9
„ Camera Browser Window
Camera Browser window
C
Starts ImageBrowser.
Prints the selected still images.
Still image information and a histogram
Y
P
O
Selects the still image selection method.
Selects whether to show or hide
the image frame and file name.
Changes the size of the thumbnail.
If your camcorder supports wide size still image (16:9 such as 1920 x 1080
pixels) recording, the thumbnails that appear in this window will be also 16:9
images. The sample images used on this instruction manual are normal size
still images (4:3).
10
Windows
Browser Window
ImageBrowser is a software program used for organizing, printing and editing the
downloaded still images. To start ImageBrowser, click the [ImageBrowser] icon in the
Dock. If the ImageBrowser icon is not in the Dock, double-click the [Canon Utilities]
folder on the drive on which the program was installed, followed by the
[ImageBrowser] folder and the [ImageBrowser] icon.
1 Explorer View
3
C
2
Y
P
O
4
5
In the [Last Acquired Images] panel, the newly downloaded still images are placed
into virtual folders classified by recording date. In the panel below, the folders that
the downloaded still images are actually saved in are displayed. Selecting the
[Favorite Folders] tab shows only the folders that are registered as favorites. The
[All Folders] tab shows all available folders.
indicates that newly downloaded
still images are in the folder.
Clicking the triangle symbol besides the folder name displays/hides the folder
contents. To register a folder as Favorites, follow the instructions below.
When you have selected the [Favorite Folders] tab:
Click [Add] and specify a folder.
When you have selected the [All Folders] tab:
Select a folder and click [Add to Favorites].
Macintosh
1
To remove the registered folder, select the folder, and click [Remove].
2 Browser Area
This area displays the images contained in the selected folder.
Windows
11
3 View Mode
You can select a view mode of images in the Browser Area.
[Preview Mode]: The thumbnails are displayed at the bottom of the Browser Area,
and the Information Panel is displayed in the upper part.
Preview Image
Information Panel
Selected Thumbnail
[List Mode]: The images are displayed as thumbnails. The thumbnails can be
enlarged/reduced by selecting [Enlarge] or [Reduce] from the [View] menu.
C
Y
P
O
Context Menu
When you click on a thumbnail while pressing the [control] key on the keyboard,
a context menu will appear. The context menu allows you to select several
functions directly without using the menu bar located on top of the window.
Context menu
12
Windows
[File Information]
When the view mode is set to [List Mode], select [Get Info] from the [File] menu
to display the following window.
You can rename files.
Hides the information display at the right.
Shooting information
C
Input a comment.
Sets a star rating.
Y
P
O
You can switch and view the shooting
information of the next or previous
image by clicking these buttons.
Histogram
Sets a keyword.
Placing a check mark here prevents the image from being overwritten or deleted.
Macintosh
You can play sounds if they are attached to images.
Windows
13
4 Image display control panel
1
2
1 Filter Tool
4
Allows you to select which still images to display
according to the star rating. When you download the
images, the star rating is set to two stars as a default. To
change the star rating, refer to Applying Star Rating
(
49).
2
Enlarge/Reduce
Enlarges/Reduces the thumbnails in the Browser Window.
3
Selecting Images
Allows you to select all images and deselects images.
4
Display Pattern
Allows you to change the appearance of the Browser
Window.
5 Control panel
1
1 Canon Camera
14
3
2
View Image
3
SlideShow
4
Print & Email
5
Send to Trash
Windows
2
C
Y
P
O
3
4
5
Opens CameraWindow.
Displays a selected image in the [Image Viewer] window.
Displays still images in a slide show.
After you download still images to a computer, use this to
print them or to attach them to e-mail messages.
Deletes the selected images.
[Image Viewer] Window
The [Image Viewer] window appears when you select an image and click [View Image]
or double click an image.
Changes the
zoom ratio of
the image.
1
Y
P
O
3
4
5
6
7
8
Displays the previous/next image in the current folder.
2
Save
Allows saving the edited image.
3
Edit
Allows you to perform the following operations: red-eye
correction, auto correct, color and brightness correction,
sharpness adjustment, trimming, inserting text, or
registering external image editing applications. Unable to
use when the multiple images are selected.
4
Number of
Displays
5
Synchronize
6
Full Screen
Displays an image in full screen size. To return to Browser
Window, click the full screen sized image or press any
key.
7
Print
Prints the selected still image. Refer to [Photo Print]
(
43).
8
Show Shooting
Information
The shooting information of the image will be displayed.
[Show AF Frame] cannot be used for the images recorded
by the camcorder.
C
Allows you to display multiple images at the same time.
Synchronizes View functions across all displayed images.
Windows
Macintosh
1 Back/Next
2
Changes
the star rating.
15
„ [Trim Image] Window
Select [Trim Image] from the
icon located at the bottom of the [Image Viewer]
window. Specify the area in the still image to crop and click [Trim Image] to trim the
image.
Y
P
O
„ [Color/Brightness Adjustment] Window
Select [Color/Brightness Adjustment] from the
icon located at the bottom of
the [Image Viewer] window. Use this to change the image’s properties by adjusting
the RGB intensity, saturation and brightness.
C
16
Windows
„ [Red Eye Correction] Window
Select [Red Eye Correction] from the
icon located at the bottom of the [Image
Viewer] window. Use this to correct still images in which people’s eyes appear red.
„ [Insert Text] Window
Select [Insert Text] from the
Y
P
O
icon located at the bottom of the [Image Viewer]
C
Macintosh
window. Use this to write text on still images.
Windows
17
„ [Level Adjustment] Window
Select [Level Adjustment] from the
icon located at the bottom of the [Image
Viewer] window. Use this to adjust the levels in a still image to change its
appearance.
Y
P
O
„ [Tone Curve Adjustment] Window
Select [Tone Curve Adjustment] from the
icon located at the bottom of the
[Image Viewer] window. Use this to adjust the tone curve for a still image to change
its appearance.
C
18
Windows
„ [Sharpness] Window
Select [Sharpness] from the
icon located at the bottom of the [Image Viewer]
window. Use this to emphasize and clarify the outlines of people and objects.
„ [Auto Adjustment] Window
Y
P
O
Select [Auto Adjustment] from the
icon located at the bottom of the [Image
image.
C
Macintosh
Viewer] window. Use this to automatically correct the color balance of the still
Windows
19
Installing the Digital Video Software
Before you connect the camcorder to the computer with the USB cable for the
first time, you must install the Digital Video Software.
Your digital video camcorder is equipped with the standard Picture Transfer
Protocol (PTP). This protocol enables you to download still images by simply
connecting the camcorder to a computer with the USB cable (using software
such as iPhoto or Image Capture preinstalled on Mac OS X).
However, note that there are several limitations to downloading still images
with this method.
 It may take a few minutes, after connecting the camcorder, until you can
download still images.
 Still images protected on the camcorder may lose this setting once they are
downloaded to the computer.
 When downloading the still images by Image Capture that comes with Mac
OS, the Exif version may change to 2.1 and image information may be
modified. Either install ImageBrowser to download the still images or use the
following procedure.
1) Connect the camcorder to the computer, and start Image Capture.
2) Click [Options].
3) Remove the checkmark from [Embed Colorsync profile] in the
[Download Options] tab and click [OK].
1
2
3
20
Y
P
O
Close all programs that are running, and check that the
camcorder is not connected to the computer.
C
Set the DIGITAL VIDEO Solution Disk in the computer’s
CD-ROM drive.
Double click the CD-ROM icon and the [Canon Digital Video
Installer] icon.
Installing the Digital Video Software
4
Click [Install] under Digital Video Software.
Installer Panel
Select [Easy Installation] and click [Next].
Y
P
O
To install the software individually, select [Custom Installation].
C
When installing the software by selecting [Easy Installation], EOS Utility
(software for downloading still images from the Canon EOS Digital SLR
Cameras) will be installed. This software is used only for compatible Canon
EOS Digital SLR Cameras, and the camcorder does not support this software.
6
Read the license agreement and click [Agree] to accept the
terms.
Installing the Digital Video Software
Macintosh
5
21
7
8
Review the installation settings and click [Next].
Y
P
O
When the “Installation has finished.” message appears,
click [Finish].
After the installation is complete, restart the computer as prompted.
C
9
Remove the DIGITAL VIDEO Solution Disk from the CD-ROM
drive.
When installation is complete, remove the DIGITAL VIDEO Solution Disk before
you connect the camcorder to the computer.
22
Installing the Digital Video Software
Before Downloading Still Images
Connecting the Camcorder to a Computer








Be sure to install the Digital Video Software before you connect the
camcorder to the computer.
Make sure the camcorder is being powered using the power adapter before
connecting it to a computer.
Connect the USB cable directly to one of the computer’s main USB ports.
The interface may not function correctly if the camcorder is connected via a
USB hub.
The connection may not operate correctly if you are using other USB
devices, excluding USB mice or keyboards, at the same time. If this occurs,
disconnect the other devices from the computer and try reconnecting the
camcorder.
Do not connect two or more camcorders to the same computer via the USB
interface. The connections may not operate correctly.
Never allow the computer to go into standby (sleep) mode while a
camcorder is connected via the USB interface.
Y
P
O
Refer to your computer manual for the location of the computer’s USB ports.
For details about changing settings on the camcorder and connecting the
camcorder to the computer, see the camcorder’s instruction manual.
„ Settings on the camcorder
C
Macintosh
Before connecting the camcorder to the computer, change the following camcorder
settings in advance.
• In the still images index screen, select which still images to play back (built-in
memory or memory card).
• In the [SYSTEM SETUP] menu, set [USB SETTING] to one of the following options.
- [PC/PRINTER]:
To simply connect the camcorder to the computer without further operations.
- [CONNECT&SET]:
Select [PC/PRINTER] on the camcorder every time you connect it to a computer.
Before Downloading Still Images
23
„ Connecting the camcorder
1
2
3
4
Connect the compact power adapter to the camcorder.
If downloading images from a memory card, insert the
memory card into the camcorder.
Set the camcorder to still image playback mode.
Wait until the ACCESS indicator stops flashing.
Attach the supplied USB cable to the computer’s USB port
and the camcorder’s USB Terminal.
USB Cable
USB Terminal
on the Camcorder
Camcorder End
Computer End
Y
P
O
USB Port on
the Computer
C
24
Before Downloading Still Images
Downloading Still Images
Below explains the procedure for connecting a camcorder to a computer using the
USB cable. For connecting a card reader/writer, see Using a Card Reader/Writer
(
34).


You cannot connect the camcorder to a computer if the memory card
contains 1800 images or more, and you may not be able to download
images with ImageBrowser or OS standard software (depending on the
computer you are using and the installed OS) if the memory card contains
more than approximately 1000 images. In this case, use a card reader/writer
to download images.
- For instructions on how to connect a card reader/writer, see Using a Card
Reader/Writer (
34).
Observe the following precautions when the camcorder’s access indicator is
flashing. Failure to do so may cause data to become corrupted.
- Do not remove the memory card or detach the USB cable.
- Do not turn off the camcorder or the computer.
- Do not change the position of the mode dial.
The still images you recorded and/or downloaded to the hard disk are
important original data files. Create a copy of the file first before working on it
on your computer.
C
Y
P
O
Macintosh

Downloading Still Images
25
Using the Computer to Download Still Images
(CameraWindow)
You can select a downloading method in the Camera Control window.
„ Auto-downloading
1
Connect the camcorder to the computer (
2
Click [Starts to download images].
• The Camera Control window will be displayed. If it does not appear
automatically, click the [CameraWindow] icon in the Dock (the bar at the
bottom of the desktop).
• If you do not wish the Camera Control window to open automatically when you
connect the camcorder, click the [File] menu and clear the check mark from
the [Displays this screen when the camera is connected].
Click [Quit] to close the Camera Control window after downloading images.
Y
P
O
Camera Control window
C
26
23).
Downloading Still Images
„ Applying Auto-downloading Settings
This task allows you to apply auto-downloading settings. You can specify the types of
still images and the destination folder.
2
In the Camera Control window, click the [Acquire Images]
tab and click [Preferences].
Y
P
O
Select [Change auto download settings] and click [Next].
C
Macintosh
1
Downloading Still Images
27
3
Select the image type to be downloaded and click [Next].
Place a check mark here
if you wish the original
image to be deleted after
downloading.
4
Specify the destination folder settings and click [Next].
Destination Folder
Click this button to
browse where you
want to save the
images.
C
Select to specify
the name of the
subfolder.
28
Downloading Still Images
Y
P
O
5
Specify a process to perform after the image is downloaded
and click [Next].
The window below will be displayed when you select [Perform selected
processes consecutively] (you can redisplay the window by clicking [Select]).
Select a process to perform after the image is downloaded, and click [OK].
C
Click [Finish].
Macintosh
6
Y
P
O
Placing a check mark
here makes images in
the camcorder to be
automatically downloaded
when the camcorder is
connected.
Downloading Still Images
29
„ Downloading the Selected Still Images from the CameraWindow
1
2
Click [Lets you select and download images].
Y
P
O
Select images you wish to download and click [Download
Images].
• Clicking on 2 images while holding down the [option] + [shift] key selects also
all images between the 2 images.
• Clicking on different images while holding down the [shift] key selects multiple
images.
C
A blue frame appears
around the selected image.
30
Downloading Still Images
Confirm the settings and click [Start Download].
• ImageBrowser starts, and Browser Window appears.
Settings for the folder and the
subfolder for downloaded images
Settings for the file prefix and
the consecutive numbers
• To make changes, click [Change Settings].
[Specify Folder] Tab
Y
P
O
Specify the settings of the folder
and subfolder.
C
[Specify File Name] Tab
Specify the file name with which
to save the images.
Macintosh
3
Downloading Still Images
31
Using the Camcorder to Download Still Images (Direct
Transfer Function)
If your camcorder supports the Direct Transfer function, you can use the camcorder to
download images.
„ Setting the Direct Transfer Download Destination Folder
1
2
32
Click the [Acquire Images] tab and click [Preferences].
Click [Quit] to close the Camera Control window.
C
Y
P
O
Select [Change direct transfer download destination folder]
and click [Next].
Downloading Still Images
3
Specify the destination folder settings and click [Finish].
Destination Folder
Click this button
to specify the
destination folder.
Select to specify
the name of the
subfolder.
„ Direct Transfer
Y
P
O
Select a transfer option on the camcorder screen and press
the
button.
• See your camcorder instruction manual for how to set and operate the
camcorder to transfer images.
• The
button cannot be used when it is not lighted.
C
Macintosh
1
Downloading Still Images
33
Using a Card Reader/Writer
Select a download method in the image download window.
The basic operations are the same as when you connect the camcorder to the
computer. Follow the procedure below to open the CameraWindow. For instructions
on how to connect the card reader/writer, refer to its manual.
If you are using a camcorder that supports miniSD cards but your card reader/
writer does not support them, please purchase an appropriate adapter for your
card. If you are using SDHC cards, you need to use a card reader/writer
compatible with SDHC cards.
1
2
Insert a memory card containing images recorded with the
camcorder into the card reader/writer and connect it to the
computer.
Select a method to download the images.
• [Download Images]: A progress bar will be displayed and images will be
downloaded to the computer, and ImageBrowser starts. To apply autodownloading settings, refer to Applying Auto-downloading Settings (
35).
• [Lets you select and download images]: The ImageBrowser opens, displaying
the still images on the memory card as thumbnails (small images).
C
34
Downloading Still Images
Y
P
O
„ Auto-downloading
1
Click [Download Images].
Click [Exit] to close the window after downloading images.
Y
P
O
„ Applying Auto-downloading Settings
1
Click [Preferences].
C
Macintosh
This task allows you to apply auto-downloading settings. You can specify the types of
still images and the destination folder.
Downloading Still Images
35
2
Configure the settings and click [OK].
Y
P
O
„ Downloading the Selected Still Images from the
ImageBrowser
1
36
C
Click [Lets you select and download images].
Downloading Still Images
Select images you wish to download and click [Download
Images].
• Clicking on 2 images while holding down the [option] + [shift] key selects also
all images between the 2 images.
• Clicking on different images while holding down the [shift] key selects multiple
images.
A blue frame appears
around the selected image.
C
Y
P
O
Macintosh
2
Downloading Still Images
37
Printing Still Images
Printing Still Images without Downloading Them
This section explains how to print still images by connecting the camcorder to the
computer. The steps are basically the same when using a card reader/writer.
You can select one of the following 4 methods to print still images directly from the
camcorder, without downloading images to the computer.
• [Print All Photos]
- Prints all still images, one image per page.
• [Print Contact Sheet with All Photos]
- Prints all still images as an index (rows of images with file names and image
information).
• [Print according to DPOF settings]
- Prints according to the DPOF print settings set by the camcorder.
• [Select image and print]
- A list of the still images will be displayed, and you can select you wish to print.
1
2
23)
Click the [Print] tab in the Camera Control window.
C
38
Y
P
O
Connect the camcorder to the computer. (
Printing Still Images
3
Click on one of the 4 printing methods.
4
Specify the print settings and click [Print].
Y
P
O
C
Macintosh
The window varies depending on the selected printing method in step 3.
Printing Still Images
39
When you have selected [Print All Photos]:
Selects the printer.
C
Sets the shooting date/time
imprint and color settings.
40
Printing Still Images
Sets the paper size settings.
Y
P
O
Sets the number of print copies
of the displayed image.
Click this button to switch between still images
if multiple images are selected.
When you have selected [Print Contact Sheet with All Photos]:
Sets the printer and paper size settings.
Selects the printer.
Y
P
O
Sets the print settings for shooting information,
comments, headers, footers and page numbers.
Sets the number of rows and columns.
Click this to use the trimming
function (crops a portion of
the still image).
Rotates still images.
Sets the number of print copies of the contact sheets.
When you have selected [Print according to DPOF settings]:
• The selected still images will be printed according to the number of copies set with
the camcorder. The same window described in the previous section When you have
selected [Print All Photos]: (
40) will be displayed.
Printing Still Images
Macintosh
C
Click these buttons to switch between pages.
41
When you have selected [Select image and print]:
• If you selected [Select image and print], the following window will be displayed.
Select still images you wish to print, and click [Print]. If you selected [Contact Sheet
Print], the same window described in the previous section When you have selected
[Print Contact Sheet with All Photos]: (
41) will be displayed. If you selected [One
Photo Per Page Print], the same window described in the previous section When you
have selected [Print All Photos]: (
40) will be displayed instead. Set the print
settings and print the still images.
5
6
42
C
Y
P
O
When the print window opens, click [Print].
When the printing finishes, click
Printing Still Images
to close the window.
Printing Still Images Already Downloaded to the
Computer
You can select one of the following 3 methods to print still images downloaded to the
computer.
• [Photo Print]
- Prints one still image per page.
• [Index Print]
- Prints selected images in rows with file names and image information.
• [Layout Print]
- Allows you to lay out the selected still images in special arrangements and add text
and decorations, printing them as one page in a fancy album.
„ [Photo Print]
Select the still images you wish to print and click [Print &
Email] [Photo Print] from the displayed menu.
C
Y
P
O
Macintosh
1
Printing Still Images
43
2
Specify the print settings and click [Print].
Selects the printer.
C
Sets the shooting date/time
imprint and color settings.
44
Printing Still Images
Sets the paper settings.
Y
P
O
Sets the number of print copies
of the displayed image.
Click this button to switch between still images
if multiple images are selected.
3
4
When the print window opens, click [Print].
When the printing finishes, click
to close the window.
„ [Index Print]
Select still images you wish to print and click [Print & Email]
[Index Print] from the displayed menu.
C
Y
P
O
Macintosh
1
Printing Still Images
45
2
Specify the print settings and click [Print].
Sets the paper size and orientation.
Selects the printer.
C
Click these buttons to switch between pages.
Y
P
O
Sets the print settings for shooting information,
comments, headers, footers and page numbers.
Sets the number of rows and columns.
Click this to use the trimming
function (crops a portion of
the still image).
Rotates still images.
Sets the number of print copies of the contact sheets.
3
4
46
When the print window opens, click [Print].
When the printing finishes, click
Printing Still Images
to close the window.
„ [Layout Print]
• You can select one of the following 3 layout print methods.
- [Custom layout printing]:
Allows you to specify the size and location of the still images freely.
- [Fixed photo size printing]:
Allows you to specify the size of the all still images.
- [Tiled photo printing]:
Allows you to have the program lay out and print the specified number of images
per page with no gaps between still images on the page.
• Selecting [Edit] [Add Text] allows you to write some text on a still image. You can
move added text boxes on the still image by dragging them.
• Selecting [Edit] [Edit Header] allows you to insert a header.
Select still images you wish to print and click [Print & Email]
[Layout Print].
C
Y
P
O
Macintosh
1
Printing Still Images
47
2
3
4
48
Select a print style from the pull-down menu and click [Print]
after specifying the print settings.
Y
P
O
When the print window opens, click [Print].
When the printing finishes, click
C
Printing Still Images
to close the window.
Organizing Images
Applying Star Rating
• This task allows you to apply ratings to your images from one star to three stars. The
star rating can be used as one of the search conditions, or for the selection of
images to be displayed in the Browser Window.
• The default setting of the star rating is two stars.
Select the image to which you wish to apply the Star Rating.
Select [Change Star Rating] from the [Edit] menu.
The default setting of the star rating is two stars.
C
Y
P
O
Macintosh
1
2
Organizing Images
49
Specifying the Keywords
You can use keywords when searching for images.
1
2
3
Select an image to which you wish to apply the keyword.
Select [Keyword] [Settings] from the [Edit] menu.
Y
P
O
Place a check mark next to the keyword you wish to apply
and click [OK].
C
You can add and delete keywords, or change the keyword list in the [Manage
Keywords] window by selecting [Keyword] [Manage] from the [Edit] menu.
50
Organizing Images
Classifying the Images
This task allows you to sort images into a folder according to the shooting date or star
rating.
„ Sort by the Shooting Date
2
Select the images you wish to classify and select [Organize
Image] [Sort Images] from the [File] menu.
Y
P
O
Select [The files will be separated into folders for each
shooting date.] and click [Next].
C
Macintosh
1
Organizing Images
51
3
Specify the sort settings and click [OK].
The selected images are classified into the specific folder.
C
„ Sort by the Star Rating
1
52
Y
P
O
Select the images you wish to classify and select [Organize
Image] [Sort Images] from the [File] menu.
Organizing Images
3
Select [The files will be organized by Star Rating.] and click
[Next].
Y
P
O
Specify the sort settings and click [OK].
C
Macintosh
2
Organizing Images
53
Renaming Multiple Files
This task allows you to rename multiple files at the same time, or to rename and copy
multiple files.
1
2
Select the images you wish to rename and select [Organize
Image] [Rename] from the [File] menu.
Y
P
O
Specify the settings and click [OK].
The images are renamed according to the settings specified.
C
Placing a check mark
here makes copies of
images with new names.
The name of the original
images will not be changed.
54
Organizing Images
Searching for Images
This task allows you to search for images by star rating, modification date, shooting
date, comment or keywords.
3
Select a folder in the explorer view.
Select [Search] from the [File] menu.
C
Y
P
O
Specify the search conditions and click [Search Now].
• The search results are displayed as thumbnails.
• Select at least one search condition.
• Clicking the
icon discloses the parameters of settings.
Clicking this button allows
you to specify a folder.
Macintosh
1
2
Organizing Images
55
4
Click [Finish].
• To change the search parameters and perform another search, click [Back]
and repeat steps 3-4.
Y
P
O
• The images of the search result are displayed in the [Search Results] folder.
You can print or copy these images to another folder.
C
Explorer View
The searched images will remain in this folder until ImageBrowser is closed or
another search is performed, but if you delete an image in this folder, the
corresponding original image will be deleted as well.
56
Organizing Images
Creating a Movie from the Still Images
Editing Movies (MovieEdit Task)
You can link still images, insert text and background music, and add effects.
If you have an AVI file in your computer, you can use this function to edit the
file.
3
Select images in the Browser area.
From the [Edit] menu, select [Movie Edit].
C
Y
P
O
Arrange images and click [2.Effect].
• To change the order of images, select an image and click [Move Left] or [Move
Right].
• Operational instructions are displayed in the upper section of the window.
Macintosh
1
2
Plays back the movie
being edited.
Storyboard Area
Displays thumbnails of the
selected images. The images
will be linked from left to right.
Transition Box
Displays the symbol of the transition effect between linked images.
Creating a Movie from the Still Images
57
4
Apply effects to the images and click [3.Audio].
5
Set the audio and click [4.Save].
6
To set a transition effect, you need to select a transition box in the Storyboard
Area.
You can add an MP3 or WAV file as audio.
C
Y
P
O
Select a file type and click [Save].
• Select the destination folder, input the file name and click [Save].
• To exit MovieEdit Task, from the [MovieEdit Task] menu, select [Quit MovieEdit
Task].
Select this to save as
Motion JPEG compressed
AVI.
Select this to save as either Motion JPEG compressed AVI or QuickTime movie.
58
Creating a Movie from the Still Images
Playing Back Movies
In the CameraWindow and Browser Area, movies are displayed with the first scene as
a still image with a
(movie) icon.
1
In the Browser Area, double-click a thumbnail with a
(movie) icon.
Clicking the
(Play) icon at the bottom of the image in the Main Window also
plays back the movie.
Click the
C
icon in the [Image Viewer] window.
Macintosh
2
Y
P
O
Creating a Movie from the Still Images
59
Exporting Images
Changing the File Type and Saving
This task allows you to change the size, resolution or data of selected still images and
save them as new files and allows saving the shooting properties of the still image to a
text file or copying the still images with new names. Furthermore, you can export still
images for use as a screen saver or a wallpaper.
1
2
60
Select an image you wish to export and [Export Image] from
the [File] menu.
C
Y
P
O
Select exporting type and click [Next].
Exporting Images
3
Specify the export settings and click [Finish].
The window varies depending on the selected export type in step 2.
When you have selected [Edit and Save Image]:
You can convert still images to another file type, resize and save them as new files.
You can select the file type from BMP, PICT, JPEG and TIFF. You can also specify a
prefix to be added to the exported still images.
Y
P
O
C
Macintosh
When you have selected [Export Shooting Properties]:
You can select information you wish to export and save as a text file.
Exporting Images
61
When you have selected [Export as a Screensaver]:
You can export and save the image as a screen saver.
When you have selected [Export an Image as Wallpaper]:
You can export and save the image as a desktop wallpaper. This task cannot be
performed if you have selected multiple images.
C
62
Exporting Images
Y
P
O
Extracting Still Images from Movies (MovieFrame Task)
You can extract still images from movies and save them as image files.
2
Select a movie and select [Extract frames from a movie]
from the [Edit] menu.
Y
P
O
Set the still image extraction method and click [2. Preview].
• [Extract all frames]: Extracts all frames in the movie as still images.
• [Specify an interval and extract frames]: Extracts frames as still images from a
specified frame range or time interval.
• [Specify the number of copies and extract frames]: Extracts a specified
number of still images from the entire movie. The extraction interval is
calculated based on an equal distribution of the specified number of still
images.
• [Extract a specified image]: Extracts still images from scenes that catch your
attention.
C
Macintosh
1
Exporting Images
63
3
4
Confirm the still images which will be extracted (images with
check marks) and click [3. Save].
Y
P
O
Specify the file name and the folder where you wish to save
it and click [Save].
• Select the destination folder and click [Open] or [Choose].
• To exit MovieFrame Task, from the [MovieFrame Task] menu, select [Quit
MovieFrame Task].
C
64
Exporting Images
Uploading Still Images to the camcorder
You can copy still images saved on the computer to the camcorder.
2
3
Connect the camcorder to the computer (
23).
The still images will be added to the memory selected for the playback of still
images (built-in memory or memory card).
Click the [Set to Camera] tab in the Camera Control window,
and [Uploads images to the camera].
C
Y
P
O
Select the still image you wish to add and click [Open].
You can check the selected image by clicking the file name.
Macintosh
1
Exporting Images
65
4
In the Add image window, select the image size and click
[Add].
• The selected images will be recorded to the memory card.
• When recording is complete, the images will appear in the CameraWindow.
C
66
Exporting Images
Y
P
O
Using Various Functions
Attaching Images to E-mail Messages
You can attach selected images to an e-mail message. If necessary, you can make the
image file size smaller.
3
Select the images you wish to send in the Browser Area.
From the [Internet] menu, select [Create Image for Email].
Specify the image size and click [Finish].
C
Y
P
O
Macintosh
1
2
Using Various Functions
67
• If you select [Using custom settings.], change the settings in [Custom Settings]
and click [OK].
• The image will be saved to the [Email Images] folder in the explorer view
section.
C
Y
P
O
Explorer View



68
Note that some e-mail software may not start automatically. For details, refer
to the Help menu of the OS you are using.
You can also set the e-mail software that starts automatically after the image
is created. To do so, click the [Applications] folder on the drive where the OS
was installed and then double click the [Mail] icon. Next, in Mail preferences,
click [General] and then configure [Default Email Reader].
The images in the [Email Images] folder are saved in the following location:
Open the [Users] folder, followed by [User login name], [Library],
[Preferences], [ImageBrowserUserData], and [Mail].
Using Various Functions
Running a Slide Show
1
From the [View] menu, select [Slide Show Options].
2
Select the slide show settings and click [OK].
• [Auto Play]: Select the interval by sliding the control under [Play Interval] (from
1 to 30 seconds).
• [Control with Mouse or Keypad]: Advances the slide show manually with the
mouse or keyboard.
• [Repeat Continuously]: Runs the slide show in a loop.
• [Hides buttons]: Hides the buttons during the slide show.
• [Transition Effect]: Select the transition effect to be used when moving from
one slide to another. When you select an effect, you can check the effect in
the preview window.
3
Select the images and select [Slide Show] from the [View]
menu.
Click
Macintosh
C
Y
P
O
on the lower right of the screen to end the slide show.
Using Various Functions
69
Adding Sound to a Still Image
• To add sound to still images, use the Mac OS recording function. Depending on the
computer, you may need to connect peripherals such as microphones. Check if your
computer settings allow recording.
• The sound cannot be played back on the camcorder.
1
In the Browser Area, select a still image and select [Sound]
[Record] from the [File] menu.
The recording window appears.
2
3
C
Click [Save] to stop recording.
•
appears on the still image.
• The sound file will be copied in AIFF type (extension “.AIF”) to the same folder
as the still image.
• To play back the sound, select an image with a sound icon and select [Sound]
[Play] from the [File] menu.


70
Y
P
O
Click
and start recording when the [Save] button is
enabled.
To remove sound from a still image, select [Sound] [Send to Trash] from
the [File] menu.
disappears and the copied sound file will be deleted.
While playing back the sound, select [Sound] [Pause] or [Stop] to control
the status.
Using Various Functions
Reviewing and Changing the Owner Name of the
Camcorder
You can change and confirm the owner’s name of the camcorder.
3
Connect the camcorder to the computer (
23).
Click the [Set to Camera] tab and click [Confirms/changes
camera settings] in the Camera Control window.
Y
P
O
Enter the camcorder’s owner’s name and click [OK].
C
Input the camcorder’s owner’s name
here (up to 31 characters).
Macintosh
1
2
Using Various Functions
71
Uninstalling the Software
Uninstall the software when you wish to delete it from your computer or when
reinstallation is required to fix corrupted files.
Uninstalling ImageBrowser
Move the program’s folder and subfolders into the Trash to uninstall programs such as
ImageBrowser.


If the program folders contain subfolders into which images have been
saved, be careful not to accidentally delete those subfolders.
For more details on how to uninstall ImageBrowser, refer to Read Me.
C
72
Uninstalling the Software
Y
P
O
Troubleshooting
Connection
Camcorder is not recognized when connected to the computer.
Î There is no memory card in the camcorder.
Insert a memory card into the camcorder.
Î The camcorder is not set to the correct mode.
Set the camcorder to still image playback mode.
Î Camcorder is not correctly connected to the computer.
Read Connecting the Camcorder to a Computer (
23) and check the
connection.
Ensure that you are using the correct cable and that its connectors are in good
shape.
Î If you are experiencing operational problems, detach the USB cable from
the camcorder and computer and terminate the connection. Restart the
computer and then reconnect the camcorder.
ImageBrowser Operation
Y
P
O
C
Macintosh
Cannot download still images.
Î The camcorder is not set to the correct mode.
Set the camcorder to still image playback mode.
Image files or folders do not appear in ImageBrowser.
Î Images or folders shown in ImageBrowser and the actual file contents
may be different.
Click the [View] menu and select [Refresh].
Troubleshooting
73
CANON INC.
U.S.A. –––––––––– Canon U.S.A., Inc.
Canon Customer Care Center
Tel (US): 1-800-828-4040
(Mon.-Fri., 9 AM to 8 PM Eastern Time)
CANADA –––––––– Canon CANADA Inc.
Tel (Canada): 1-800-OK-CANON (1-800-652-2666)
ASIA ––––––––––– Canon Hongkong Co., Ltd.
19/F., The Metropolis Tower, 10 Metropolis Drive,
Hunghom, Kowloon, Hong Kong
Phone: 852-2170-2828
Fax: 852-2723-9684
C
Y
P
O
The information in this manual is verified as of 1 February 2008.
DIE-301M
© CANON INC. 2008
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
