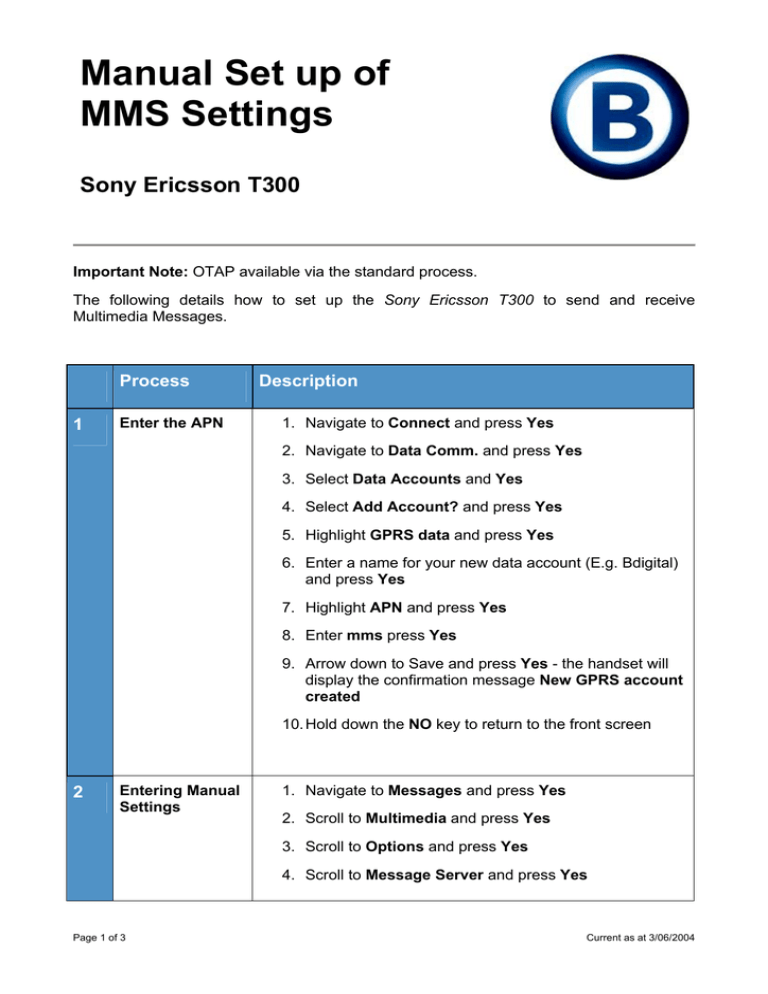

Manual Set up of
MMS Settings
Sony Ericsson T300
Important Note: OTAP available via the standard process.
The following details how to set up the Sony Ericsson T300 to send and receive
Multimedia Messages.
Process
1
Enter the APN
Description
1. Navigate to Connect and press Yes
2. Navigate to Data Comm. and press Yes
3. Select Data Accounts and Yes
4. Select Add Account? and press Yes
5. Highlight GPRS data and press Yes
6. Enter a name for your new data account (E.g. Bdigital)
and press Yes
7. Highlight APN and press Yes
8. Enter mms press Yes
9. Arrow down to Save and press Yes - the handset will
display the confirmation message New GPRS account
created
10. Hold down the NO key to return to the front screen
2
Entering Manual
Settings
1. Navigate to Messages and press Yes
2. Scroll to Multimedia and press Yes
3. Scroll to Options and press Yes
4. Scroll to Message Server and press Yes
Page 1 of 3
Current as at 3/06/2004
Manual Set up of MMS Settings - Sony Ericsson T300
5. Enter http://172.24.199.10:8002/ as the Message
Server and press Yes
6. Scroll to WAP Profile and press Yes
7. Scroll to Create New and press Yes
8. Enter a name for the WAP profile eg. Optus MMS and
press Yes
9. Scroll to Connect Using and press Yes
10. Select Your Data Account and press Yes
11. Scroll to IP address and press Yes
12. Enter 061.088.190.010 and press Yes
13. Scroll to Save? and press Yes - the handset will
display the confirmation message New Profile created
14. Press No and scroll to Auto Download and press Yes
15. Scroll to On and press Yes
16. Hold down the NO key to return to the front screen
The customer should now be able to send and receive
Multimedia messages
3
Sending
Multimedia
Messages with
attachments
1. Navigate to Messages and press Yes
2. Scroll to Multimedia and press Yes
3. Scroll to Write New and press Yes
4. Handset displays Compose
5. To insert a picture:
Highlight Add Picture
Press Yes
6. Select the picture you want to send by pressing Yes
7. The handset will display message Accept? Press Yes
8. Scroll down to Send message and press Yes
9. Phone displays Number: Enter a number or scroll right
with the joystick for more options
Page 2 of 3
Current as at 3/06/2004
Manual Set up of MMS Settings - Sony Ericsson T300
10. Select Phone book, Email address or SIM entries
11. Note:
To enter @ press the 0 key 4 times
To enter . press the 1 key once
12. Press Yes after entering a number or email address
13. Scroll to Send message and press Yes
14. The mobile phone will display Sending…
The Multimedia Message will now be sent.
Visit us 365 days a year at
www.Bdigital.com.au
Or call
13 30 20
Page 3 of 3
Current as at 3/06/2004
This Factsheet is provided as a guide only to our Customers and is subject to the terms and conditions specified within our Terms of Use policy.
These terms can be viewed on our website or may be obtained by calling our Customer Care number. B Digital Limited ABN 99 085 089 970 trading as B.
