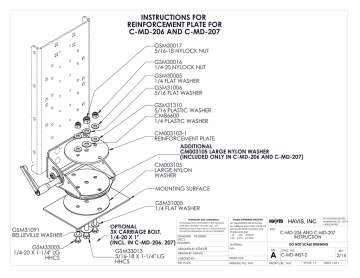

INSTRUCTIONS FOR
REINFORCEMENT PLATE FOR
C-MD-206 AND C-MD-207
GSM30017
5/16-18 NYLOCK NUT
GSM30016
1/4-20 NYLOCK NUT
GSM30005
1/4 FLAT WASHER
GSM31006
5/16 FLAT WASHER
GSM31310
5/16 PLASTIC WASHER
CM86600
1/4 PLASTIC WASHER
CM003103-1
REINFORCEMENT PLATE
ADDITIONAL
CM003105 LARGE NYLON WASHER
(INCLUDED ONLY IN C-MD-206 AND C-MD-207)
CM003105
LARGE NYLON
WASHER
MOUNTING SURFACE
GSM31005
1/4 FLAT WASHER
PROPRIETARY AND CONFIDENTIAL
GSM31091
BELLEVILLE WASHER
GSM33003
1/4-20 X 1-1/4" LG
HHCS
OPTIONAL
3X CARRIAGE BOLT,
1/4-20 X 1"
(INCL. IN C-MD-206, 207)
GSM33013
5/16-18 X 1-1/4" LG
HHCS
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF HAVIS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF HAVIS IS PROHIBITED.
STANDARD
SPEC'S
REQUIRED:
98-000004
DESIGNED BY: KDAVIS
HAVIS, INC.
UNLESS OTHERWISE SPECIFIED:
ALL DIMENSIONS ARE IN INCHES
ALL THREADS ARE IN UNC-2A/2B OR
UNF-2A/2B AFTER COATING AND
TOLERANCES ARE:
.XX
.XXX ANGLES
.02
.010
.5 DEG
MATERIAL:
N/A
DRAWN BY: KDAVIS
CHECKED BY: -
FINISH: N/A
REF # N/A
AREA(SQ. IN.): N/A
TITLE:
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
C-MD-206 AND C-MD-207
INSTRUCTION
DO NOT SCALE DRAWING
SIZE
A
DWG. NO.
C-MD-INST-2
WEIGHT (LB): N/A
SCALE: 1:4
REV
2/14
SHEET 1 OF 1
