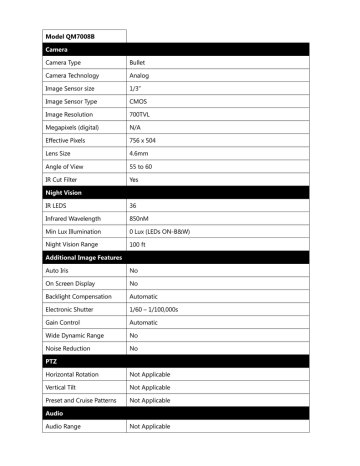

Model QM7008B
Camera
Camera Type
Bullet
Camera Technology
Analog
Image Sensor size
1/3”
Image Sensor Type
CMOS
Image Resolution
700TVL
Megapixels (digital)
N/A
Effective Pixels
756 x 504
Lens Size
4.6mm
Angle of View
55 to 60
IR Cut Filter
Yes
Night Vision
IR LEDS
36
Infrared Wavelength
850nM
Min Lux Illumination
0 Lux (LEDs ON-B&W)
Night Vision Range
100 ft
Additional Image Features
Auto Iris
No
On Screen Display
No
Backlight Compensation
Automatic
Electronic Shutter
1/60 – 1/100,000s
Gain Control
Automatic
Wide Dynamic Range
No
Noise Reduction
No
PTZ
Horizontal Rotation
Not Applicable
Vertical Tilt
Not Applicable
Preset and Cruise Patterns
Not Applicable
Audio
Audio Range
Not Applicable
Audio Microphone
Not Applicable
Connectivity
Connector Types
BNC
Other Connections
2.1mm Power
Wireless
No
Remote Monitoring
Use as Standalone
No
Compatible Mobile Devices
None
Compatible Systems
Analog DVRs
Power
Power Supply
12V 500mA
Power Consumption
<6W with LEDs on
Physical
Weatherproof
Yes
IP Rating
IP66
Body Construction
Metal
Mounting Hardware
Screws
Weight
16 oz
Dimensions (WxDxH)
2.25 x 5.75 x 3.25 in (w/o bracket)
Operating Temperature
14 to 110°F
