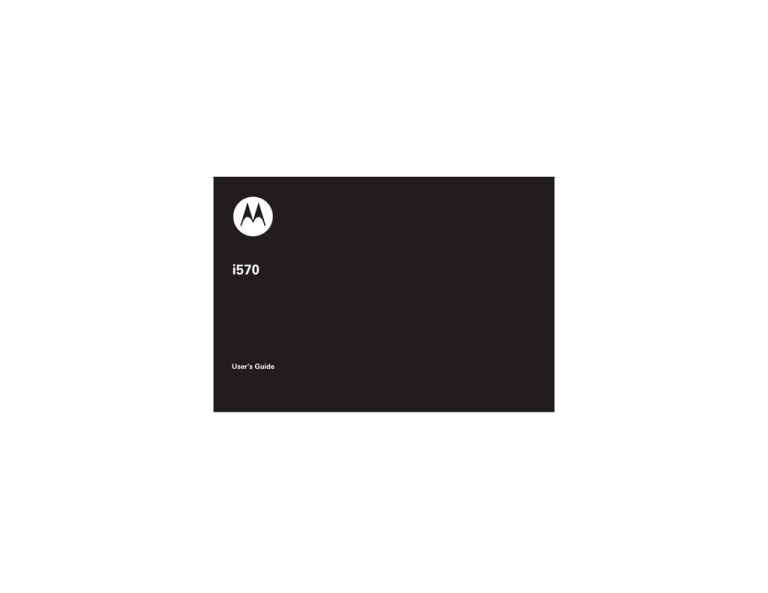

i570
User’s Guide
IMPORTANT NOTICE: PLEASE READ
PRIOR TO USING YOUR PHONE
The SIM card provided in this kit is intended for use
with the phone provided in this package.
Loss of certain features will result when using a SIM
card from one of the following models: i30sx, i35s,
i50sx, i55sr, i58s, i60c, i80s, i85s, i88s, i90c, i95cl
series, and the i2000 series.
For more information on SIM card compatibility, go to
www.motorola.com/iden.
Defects or damage to your Motorola phone that result
from the use of non-Motorola branded or certified
Accessories, including but not limited to replacement
housings and or other peripheral accessories, are
excluded from warranty coverage. Please refer to the
text of Motorola's Limited 90 day warranty located in
this user’s guide for complete details.
DECLARATION OF CONFORMITY
Per FCC CFR 47 Part 2 Section 2.1077(a)
Responsible Party Name: Motorola, Inc.
Address: 8000 West Sunrise Boulevard
Plantation, FL 33322 USA
Phone Number: 1 (800) 453-0920
Hereby declares that the product:
Product Name: i570
Model Number: H65XAN6RR4CN
Conforms to the following regulations:
FCC Part 15, subpart B, section 15.107(a),
15.107(d) and section 15.109(a)
Class B Digital Device
As a personal computer peripheral, this device
complies with Part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
HELLOMOTO
Introducing your new Motorola i570 phone. Here’s a quick anatomy lesson.
Speaker On/Off Key
Left Soft Key
Perform function
in lower left
display.
Right Soft Key
Perform function
in lower right
display.
Menu Key
From home screen,
open main menu.
Power Key
Turns phone on.
Talk Key
Make &
answer calls.
4-Way
Navigation Key
End Key
End calls, exit
menu system.
OK Key
In menus & lists,
press to select
highlighted option.
Smart Key
Volume Keys
PTT Button
External Display
Audio Jack
Microphone
1
check it out
Home Screen
Main Menu
Main Menu
aq b
cd e
fo g
2 Customizable O key
3
that can be used
to open the
Settings screen
4
1 Press and hold the
Power Key W for a
few seconds, or until
the screen lights up,
to turn on your phone.
2
Press the Navigation Key
up, down, left or right ( )
to highlight a menu feature.
Press the O key
to select.
Motorola, Inc.
Consumer Advocacy Office
600 N US Hwy 45
Libertyville, IL 60048
www.hellomoto.com
Note: Do not ship your phone to the above address. If you need to
return your phone for repairs, replacement or warranty service,
please contact the Motorola Custmer Support Center at:
1-800-453-0920 (United States)
1-877-483-2840 (TTY/TDD United States for hearing impaired)
Caution: Changes or modifications made in the radio phone, not
expressly approved by Motorola, will void the user's authority to
operate the equipment.
MOTOROLA and the Stylized M Logo are registered in the US
Patent & Trademark Office. All other product or service names are
the property of their respective owners. Java and all other Javabased marks are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
© Motorola, Inc., 2009.
Manual Number: NNTN7682A
Product Support:
www.motorola.com/iden
Certain mobile phone features are dependent on the capabilities
and settings of your service provider’s network. Additionally,
certain features may not be activated by your service provider,
and/or the provider's network settings may limit the feature’s
functionality. Always contact your service provider about feature
availability and functionality. All features, functionality, and other
product specifications, as well as the information contained in this
user's guide are based upon the latest available information and
are believed to be accurate at the time of printing. Motorola
reserves the right to change or modify any information or
specifications without notice or obligation.
3
contents
check it out . . . . . . . . . . . 2
contents . . . . . . . . . . . . . . 4
menu map . . . . . . . . . . . . 6
Use and Care . . . . . . . . . . 8
essentials . . . . . . . . . . . . . 9
about this guide. . . . . . . 9
SIM card . . . . . . . . . . . 10
battery . . . . . . . . . . . . . 11
turn it on & off . . . . . . . 14
enable security . . . . . . 15
make a phone call . . . . 15
answer a phone call. . . 15
make a private call. . . . 15
answer a private call . . 16
store a phone number
or private ID. . . . . . . . . 16
call a stored phone
number or private ID . . 17
4
find your phone number
and private ID . . . . . . . 18
text messages. . . . . . . 18
manage memory . . . . . 21
main attractions . . . . . . 22
PTX Features . . . . . . . . 22
one touch PTT . . . . . . . 26
quick PTT . . . . . . . . . . . 26
MMS . . . . . . . . . . . . . . 26
surveillance profile. . . . 39
basics . . . . . . . . . . . . . . . 40
display . . . . . . . . . . . . . 40
text entry . . . . . . . . . . . 41
navigation key . . . . . . . 43
handsfree speaker. . . . 44
airplane mode . . . . . . . 44
features for the
hearing impaired . . . . . 44
calls. . . . . . . . . . . . . . . . .
recent calls . . . . . . . . .
caller ID . . . . . . . . . . . .
call forward . . . . . . . . .
voice name . . . . . . . . .
emergency calls . . . . .
international calls. . . . .
speed dial . . . . . . . . . .
voice mail. . . . . . . . . . .
customize. . . . . . . . . . . .
volume. . . . . . . . . . . . .
ring tones . . . . . . . . . .
wallpaper . . . . . . . . . . .
datebook . . . . . . . . . . .
other features . . . . . . . .
advanced calling . . . . .
contacts. . . . . . . . . . . .
datebook . . . . . . . . . . .
47
47
48
48
49
49
50
50
51
52
52
52
53
54
55
55
56
56
GPS . . . . . . . . . . . . . .
handsfree . . . . . . . . . .
pc applications . . . . . .
personalize . . . . . . . . .
TTY . . . . . . . . . . . . . . .
security. . . . . . . . . . . .
Safety and General
Information . . . . . . . . . .
Service & Repairs . . . . .
Specific Absorption
Rate Data . . . . . . . . . . .
Motorola Limited
Warranty for the
United States
and Canada . . . . . . . . . .
Hearing Aid
Compatibility . . . . . . . .
Information From the
World Health
Organization . . . . . . . . .
57
58
58
59
59
60
Patent and Trademark
Information . . . . . . . . . . 78
Privacy and Data
Security . . . . . . . . . . . . . 79
Smart Practices While
Driving. . . . . . . . . . . . . . 80
62
67
68
70
74
76
5
menu map
main menu
a Net
q Java Apps.
b
c
d
e
f
o
g
6
• Java System
Settings
• (see next page)
VoiceRecord
• [New VoiceRec]
Contacts
• [New Contact]
Messages
• [Create Message]
• Voice Mail
• Inbox
• Drafts
• Sent Items
• Fax Mail
• Net Alert
• SMS
Call Forward
• Forward
• To
Datebook
• [New Event]
Memo
menu map
h
i
s
j
Call Timers
• Last Call
• Phone Reset
• Phone Lifetime
• Prvt/Grp Reset
• Prvt/Grp Lifetime
• Circuit Reset
• Circuit Lifetime
• Kbytes Reset
Recent Calls
Shortcuts
• [New Entry]
• 1)Shortcuts
• 2)Cntcs[New Contact]
• 3)Recent Calls
• 4)Contacts
• 5)Datebook
• 6)Messages
• 7)VoiceRecord
• 8)Net
• 9)Call Forward
My Info
• My Name
• Line 1
• Private ID
• Group ID:
• IP1 Address
• IP2 Address
• Circuit Data
p
k
l
m
[
S
Profiles
• New Profile
• Surveillance
• Standard
• Car
• Meeting
• Office
• Outdoors
• Headset
• PRVT Only
• CONTCS Only
Call Alert
GPS
• Position
• Privacy
• Interface
Ring Tones
My Pictures
Quick PTT
This is the standard main menu layout. Your
phone’s menu may be a little different.
settings menu
Display/Info
• Wallpaper
• Palette
• Text Size
• Home Icons
• Backlight
• Clock
• Menu View
• Large Dialing
• Contrast Ext
• Language
Phone Calls
• Set Line
• Any Key Ans
• Auto Redial
• Call Waiting
• Auto Ans
• Flip Activation
• Minute Beep
• Call Duration
• TTY
• Hearing Aid
• Notifications
2-Way Radio
• Tkgrp Silent
• Tkgrp Area
• One Touch PTT
• Alert Type
• PTT Picture: On/Off
Personalize
• Menu Options
• Up Key
• Down Key
• Left Key
• Right Key
• Center Key
• Left Sftkey
• Right Sftkey
• Power Up
Volume
• Line 1
• Messages
• Earpiece
• Speaker
• Keypad
• Java Earpiece
• Java Speaker
• Data
Security
• Phone Lock
• Keypad Lock
• SIM PIN
• GPS PIN
• Change Passwords
Advanced
• Alert Timeout
• Headset/Spkr
• Disco Lights
• Connectivity
• Reset Defaults
• Return to Home
• Airplane Mode
• Phone Only
• Baud Rate
menu map
7
Use and Care
Use and Care
To care for your Motorola phone, please keep it away from:
8
liquids of any kind
Don’t expose your phone to
water, rain, extreme humidity,
sweat, or other moisture.
dust and dirt
Don’t expose your phone to
dust, dirt, sand, food, or other
inappropriate materials.
extreme heat or cold
Avoid temperatures below
-10°C/14°F or above 45°C/113°F.
cleaning solutions
To clean your phone, use only a
dry soft cloth. Don’t use alcohol
or other cleaning solutions.
microwaves
Don’t try to dry your phone in a
microwave oven.
the ground
Don’t drop your phone.
Use and Care
essentials
Caution: Before using the phone for the first
time, read the Important Safety and Legal
information included in the gray edged pages
at the back of this guide.
about this guide
This guide shows how to locate a menu
feature as follows:
Find it: M > Settings.
This means that, from the home screen:
1 Press the menu key M to open the
menu.
2 Press the navigation key
to scroll to
Settings, and press the center key O to
select it.
OK
symbols
This means a feature is network/
subscription dependent and may
not be available in all areas. Contact
your service provider for more
information.
This means a feature requires an
optional accessory.
essentials
9
SIM card
2 Carefully slide your SIM card into the
SIM card holder.
insert the SIM card
Turn off your phone and remove your battery
before you install or remove a SIM card.
1 Slide the latch and open the SIM card
holder.
3 Close the SIM card holder.
Warning: To avoid loss or damage, do not
remove your SIM chip from your phone unless
absolutely necessary.
10
essentials
battery
Battery or Unable to Charge, take the
following steps:
Battery Use & Battery Safety
• Remove the battery and inspect it to
confirm that it bears a Motorola
“Original Equipment” hologram;
• Motorola recommends you always
use Motorola-branded batteries and
chargers. The warranty does not cover
damage caused by non-Motorola
batteries and/or chargers.
Caution: Use of an unqualified battery
or charger may present a risk of fire,
explosion, leakage, or other hazard.
Improper battery use, or use of a
damaged battery, may result in a fire,
explosion, or other hazard.
• Battery usage by children should be
supervised.
• Important: Motorola mobile devices
are designed to work best with
qualified batteries. If you see a
message on your display such as Invalid
• If there is no hologram, the battery
is not a qualified battery;
• If there is a hologram, replace the
battery and retry charging it;
• If the message remains, contact a
Motorola Authorized Service Center.
• New batteries or batteries stored for a
long time may take more time to
charge.
• Charging precautions: When charging
your battery, keep it near room
temperature. Never expose batteries to
temperatures below 0°C (32°F) or
above 45°C (113°F) when charging.
essentials
11
Always take your mobile device with
you when you leave your vehicle.
• When storing your battery, keep it in a
cool, dry place.
• It is normal over time for battery life to
decrease, and for the battery to exhibit
shorter runtime between charges or
require more frequent or longer
charging times.
• Avoid damage to battery and mobile
device. Do not disassemble, open,
crush, bend, deform, puncture, shred,
or submerge the battery or mobile
device. Avoid dropping the battery or
mobile device, especially on a hard
surface. If your battery or mobile
device has been subjected to such
damage, take it to a Motorola
Authorized Service Center before
using. Do not attempt to dry it with an
12
essentials
appliance or heat source, such as a hair
dryer or microwave oven.
• Use care when handling a charged
battery: particularly when placing it
inside a pocket, purse, or other
container with metal objects. Contact
with metal objects (e.g., jewelry, keys,
beaded chains) could complete an
electrical circuit (short circuit), causing
the battery to become very hot, which
could cause damage or injury.
Promptly dispose of used batteries in
accordance with local regulations.
Contact your local recycling center for
proper battery disposal.
Warning: Never dispose of batteries in a fire
because they may explode.
battery installation
1 Slide the release button back until it
releases the battery door.
3 Push the battery down until it snaps in
place.
4 Replace the battery door and press it
gently until you hear a click.
2 Remove the battery door.
essentials
13
battery charging
New batteries are not fully charged.
1 Insert the charger
into the connector
on your phone as
shown.
2 Plug the other end
of the charger into
the appropriate
electrical outlet.
3 When your phone
displays Charge
Complete, remove the
charger.
When you charge the battery, the battery level
indicator at the upper right of the screen
shows charging progress. At least one
segment of the indicator must be visible to
ensure full phone functionality while charging.
14
essentials
Tip: Motorola batteries have circuitry that
protects the battery from damage from
overcharging. Of course, unplugging the
charger from the wall will avoid current drain.
turn it on & off
To turn on your phone,
press and hold W for a
few seconds or until the
display turns on. If
prompted, enter your
four-digit unlock code.
To turn off your phone,
press and hold W for
two seconds.
enable security
answer a phone call
You must enable security the first time you
power on you phone or within 10 days of first
activation.
When your phone rings and/or vibrates, you
have the following options to answer the call:
1 Press - under Ok.
2 Your are prompted to enable security.
Press - under Yes.
3 Press o to return to the idle screen.
make a phone call
1 If you want to talk on speaker phone,
press the speaker key t without
opening the flip. To hang up press the
smart key ..
2 If you want to answer the call using the
ear speaker, just open the flip and press
O. To hang up, close the flip or press
o.
Enter a phone number and press Oto make
a call or use a voice name. See “voice name”
on page 49.
Note: You must have the Flip Activation feature
On. See “advanced calling” on page 55.
Tip: For best performance avoid touching the
antenna with your fingers during the call.
make a private call
To hang up, close the flip or press o.
With Private calls service, you use your phone
as a long-range, digital 2-way radio using oneto-one Private calls.
essentials
15
1 To make a private call enter the Private ID
you want to call.
2 Push and hold the PTT button. Begin
talking after your phone emits a chirping
sound.
2 Push and hold the PTT button and begin
talking after your phone emits a chirping
sound.
3 Release the PTT button to listen.
To end the call press - under Exit.
3 Release the PTT button to listen.
To end the call press o, or press under Exit.
A Private call ends automatically if there is
no activity on the call for a few seconds.
Tip: To let someone know you want to talk to
them on a Private call, press - under Alert.
answer a private call
1 When your phone emits a chirping sound
or vibrates to indicate you are receiving a
Private call, wait for the caller to finish
speaking.
16
essentials
store a phone number
or private ID
You can store a phone number or Private ID in
Contacts:
Find it: M > Contacts > [New Contact].
1 Enter a name for the new entry. Each
entry’s name can contain 20 characters.
2 Select a specific Ringer.
3 Select a type for the entry (Mobile, Private,
Work1, Work2, Home, Fax, Pager, or Other).
4 Enter the number for the entry.
5 Press - under Done when finished.
Tip: Before saving the entry, you can save
more information. You can choose a special
ringer, store an Email address, an IP address
and more.
After you have saved the number, the new
Contacts entry is displayed.
call a stored phone
number or private ID
Shortcut: From the home screen press under Contcs.
or
Find it: M > Contacts.
1 Scroll to the Contacts entry.
jump to the first contact name starting
with the letter you typed.
2 If the Contacts entry contains more than
one number, press
left or right until
the type of number you want to call is
displayed (Mobile, Private, Work1, Work2, Home,
etc.)
OK
3 If you chose a phone number, press O to
call the entry.
or
If you chose a Private ID, push and hold the
PTT button to call the number.
Tip: If the Contacts entry you scrolled to
contains a Private ID, you can make an instant
Private call to that Private ID by pushing and
holding the PTT button, even if the Private ID
is not the type of number displayed.
Tip: In Contacts, enter the first letter of the
contact you want and your contact list will
essentials
17
find your phone number
and private ID
Find it: M > My Info.
Tip: Want to see your phone number or
Private ID while you’re on a call? Press M >
My Info.
text messages
If your service provider offers Text Messaging,
your phone is enabled to send and receive
text messages using MOSMS.
set it up
Before you begin using text messaging, you
may need to set up your signature, service
center number, and expiration information.
Shortcut: From the home screen press under Msgs > Inbox > M > Setup.
18
essentials
or
Find it: M > Messages > Inbox > M > Setup.
The following options become available:
option
Signature: Enter your signature (up to 11
characters long).
Srvc Cntr No: Enter the phone number of your
service center. If you do not know this
number, contact your service provider.
Expire After: This is the amount of time
messages you send are saved at the
service center if they cannot be delivered.
After this period, they are discarded.
Clean Up After: Set the number of days after
which sent messages are deleted or the
number of messages to be kept.
Press - under Done to save the options you
selected.
receive a text message
1 To view the message press - under Read.
2 To dismiss the message notification press
- under Exit.
Note: If your phone is powered off when you
receive a text message, your phone notifies
you the next time you power it on. If you are
out of your coverage area, your phone alerts
you when you return to your coverage area.
Tip: While reading a text and numeric
message that contains a phone number, you
can press O to call that number.
read from the Message center
1 From the home screen press - under
Msgs > Inbox.
2 Select the message you want to read or
press the number of the message you
want to read. If the message fills more
than one screen, scroll to read it.
3 To save the message, press - under Ok
or to reply to the message, press under Reply or to see all other choices,
including forwarding and deleting the
message, calling the sender, or storing
the sender’s number in Contacts, press M.
create and send text messages
1 From the home screen press - under
Msgs > [Create Message].
or
Select Inbox, Sent Items, or Drafts.
2 To address the message use the keypad
to enter the phone number of the person
you want to send the message to and
press - under Back or press - under
Contcs, or press M > Recent Calls. Select the
number you want.
essentials
19
3 Select Mesg: and enter the text of the
message or to use a quick note press under Browse and scroll to the quick note
you want.
4 Press M > Set Send Method and select Text,
Fax, x400, Paging, Email, ERMES, or Voice.
5 If you want to send the message, press
- under Send or to delete the message
without sending it, press - under Cancel.
Note: If you want to request confirmation
of delivery press M > Send & Confirm.
2 To edit the fields you want to change,
follow step 2 through step 5 in “create
and send text messages” above.
resend text messages
Shortcut: From the home screen press under Msgs > Sent Items.
1 Scroll to the message you want to resend
or press the number of the message you
want to resend.
2 Press - under Resend.
use drafts
delete sent text messages
When you save a message as a draft, it is
saved in the drafts folder.
Shortcut: From the home screen press under Msgs > Sent Items.
Shortcut: From the home screen press under Msgs > Drafts.
1 Select the message you want to delete
and press O.
1 Select the draft you want to edit. You also
have the choice to create new text
messages from this menu.
2 Press - under Delete.
20
essentials
3 Press - under Yes to confirm.
delete all unlocked sent messages
Shortcut: From the home screen press under Msgs > Sent Items.
Shortcut: From the home screen press under Msgs.
1 Press M > Delete All.
2 Press M > Setup > Memory Size.
1 Select Inbox, Drafts or Sent Items.
2 Press - under Yes to confirm.
manage memory
Your text inbox, outbox, and drafts folder have
a set amount of memory available for storing
messages.
The text inbox holds 20 messages. If the text
inbox is full, you cannot receive messages
until you delete some.
The outbox and drafts folder share memory
space. Together they can hold 30 messages.
If the outbox and drafts folder memory is full,
you cannot send messages or save drafts
until you delete some.
To view the amount of memory available in
your Inbox, Drafts or Sent Items:
essentials
21
main attractions
PTX Features
PTX features let you send information
through Private calls.
Your phone can send and receive the
following items through Private calls with
other phones that have this capability:1
• Pictures
You can turn your phone’s ability to send and
receive pictures On and Off.
• My Info
send pictures
• Contact information
You can send pictures stored in My Pictures
through Private calls. The picture you send
appears on the Private call recipient’s display.
1
When you make or receive a Private call, your
phone automatically determines whether the
Private recipient is able to receive each of
1. Additional charges may apply.
22
these items. Your phone saves this
information for as long as the Private ID is on
your Recent Calls list or is saved in your Contacts.
Your phone updates the saved information
each time you make or receive a call to or
from that Private ID.
main attractions
If the recipient accepts the picture, their
phone saves it.
send a picture during a private
call
Note: You cannot make or receive calls while
transmitting a picture.
1 While in a Private call press - under
Picture.
2 Select the picture you want to send.
3 Push the PTT button to send.
Note: The first time you send a stored picture
after turning the phone on, Picture Fees May Apply.
Continue? appears.
start a call by sending a picture
You can start a call by sending a picture that
you have previously received and is stored in
My Pictures.
Find it: M > My Pictures.
1 Press M > Send Via PTT.
A list of Contacts and Recent Calls that have
Private IDs and are able to receive
pictures appears.
2 Select the name of the person you want
to send the picture to.
3 Push the PTT button to send the picture.
4 Wait while the picture is transmitted. The
Private call is temporarily interrupted
while a picture is transmitted.
5 When prompted, press the PTT button to
resume the Private call.
receive a picture
When someone sends you a picture, your
phone emits a tone or vibrates and a message
appears asking if you want to accept the
picture.
Pictures you receive are saved to your phone’s
memory. They are accessible through My
Pictures.
main attractions
23
When you see a message asking if you want
to accept the picture, press - under Yes to
accept or - under No to decline.
To stop the transmission before it is finished,
press - under Cancel.
Note: The first time you accept a stored
picture after turning the phone on, Picture Fees
May Apply. Continue? appears and you are
prompted to respond. Press - under Yes to
accept the picture.
clear a picture from the display
If you want to remove a picture from your
phone’s display while still on a call, press
M > Clear Screen.
The picture will not appear on the display
again the next time you receive a call from the
person who sent it. This does not delete the
picture from your phone’s My Pictures.
24
main attractions
turn PTT picture on and off
You can turn your phone’s ability to send and
receive pictures On and Off.
You cannot turn your phone’s ability to send
and receive My Info and contact information
on and off.
Find it: M > Settings > 2-Way Radio > PTT Picture >
On.
send My Info
1 While in a Private Call press M >
Send via PTT and push the PTT button to
send.
or
2 From the home screen press M >
My Info > M > Send via PTT.
3 Enter the Private ID of the person you
want to send your info to or press under Browse.
4 Select a contact number from your
Recent Calls, Contacts or Memo.
Find it: M > My Info > M > Send via PTT Setup >
Auto Send.
5 Push the PTT button to send your
information.
1 Select On or Off.
set my info sending option
You can control what portion of the
information in My Info is sent and whether it is
sent automatically in every call or only when
you choose to send it.
Find it: M > My Info > M > Send via PTT Setup >
Info To Send.
The information your phone sends always
includes My Name and Private. You may also send
Line 1, and Carrier IP, depending on your sending
options.
automatic sending
To control whether you send your information
automatically:
2 When you make a call in which your
information is sent automatically, the
name you entered in the My Name field of
My Info appears on the display of the
recipient’s phone, even if your name and
Private ID are not stored in the recipient’s
Contacts.
send Contact information
1 While in a Private Call press M >
Send Contact.
2 Press - under Browse.
3 Select a contact number from the Recent
Calls, Contacts or Memo.
4 Push the PTT button to send.
main attractions
25
one touch PTT
quick PTT
Find it: M > Settings > 2-Way Radio > One Touch PTT
Quick PTT lets you quickly access any Private
IDs on your phone so you can make a Private
call.
One Touch PTT sets your phone to do any of
the following each time you push the PTT
button:
option
Off: Nothing happens if you push the PTT
button when the phone is in idle mode.
Last Call: Call the most recent Private ID on
the recent calls list.
Assigned Number: Call a Private ID you assign.
Enter the number using your keypad, or
press - under Search. Select Contacts, Recent
Calls or Memo.
To view a list of Contacts with Private IDs in
Contacts:
Find it: M > Quick PTT.
To move between Contacts, Recent Calls, or
Memo, use the
left or right, or press *
OK
or #.
MMS
Multimedia Messaging Service (MMS) lets
you send and receive messages that may
include text, pictures, and audio recordings.
Depending on your service provider, your
phone may support Text Messages or MMS,
26
main attractions
but they both cannot be activated at the same
time.
scroll to the phone number or email address
and press - under Remove.
create a message
When you are finished addressing the
message, press - under Back.
Shortcut: From the home screen press under Msgs > [Create Message].
or
Find it: M > Messages > [Create Message].
You can also create a message from Contacts, or
Recent Calls.
address the message
1 Select To:
2 Add the phone number or email address.
or
3 Select from Contacts or Recent Calls.
4 Press O.
enter or edit the body of the message
1 Select Mesg:.
2 Enter text or use QNotes and press O.
3 Press - under Send.
more message options
View more message fields in a message you
are creating, select ...More...
The following options become available:
option
Subject: Create or edit the subject line.
Attach: Attach a picture, voice record or ring
tone.
Tip: To remove a phone number or email
address from the list of message recipients,
main attractions
27
option
Cc: Sends a copy of the message to other
recipients.
Auto Replies: Allows you to create a list of
possible short answers for the recipient to
choose when replying to your message.
Priority: Set priority Normal or High.
Report: Set receipt confirmation On Delivery.
Valid Until: Set a date after which attempts to
deliver the message end, or press - under
No Date.
reply to a message
You can reply to a message while you are
viewing it, or while a previously viewed
message is highlighted in the message
center. You cannot reply to unread messages.
1 View the message you want to reply to.
28
main attractions
2 To reply to the sender only, press under Reply or - under Reply All.
3 A list of short phrases appears. Select any
of these phrases to add it to your
messages or select [Create Reply].
4 Edit any message fields you want to
change.
5 Send the message.
quick notes
When you are filling in the Message and Subject
message fields, you can add ready-made
words or short phrases called Quick Notes.
After you add these words or phrases, you
can edit them as you would any other text.
1 While you are creating a message, scroll
to or select Message or Subject.
2 Press - under QNotes.
3 Select the Quick Note you want to insert
into the message.
create a new voice record
attach pictures, voice
recordings and ring tones
1 Press M or select Attach > [New Attachment].
You can create a new voice record to send
with a message:
To attach an item while creating a message:
2 Select VoiceRecord.
1 Select Attach > [New Attachment].
3 Say the message you want to record into
the microphone.
2 Select My Pictures, VoiceRecord, or Ring Tones.
A list of available pictures, voice records or
ring tones appears.
3 Select the picture, voice recording or ring
tone you want to attach.
Tip: To view or listen to the item before
attaching it, highlight it and press under View or Play.
If you want to attach more items, select
[New Attachment].
4 When you are finished, press - under
Done.
4 When you are finished recording,
press O.
5 When you are finished, press Done.
The voice record is attached to the message
and saved to the list of voice records.
remove an attachment
To remove an attachment in a message you
are creating:
1 Select Attach.
main attractions
29
2 Scroll to the attachment you want to
remove.
3 Press M > Unattach.
drafts
While you are creating a message, you can
save it in the Drafts folder before you send it.
You can view, edit, send, or delete saved
drafts.
save a message in the drafts folder
While composing a message you can press
M > Save In Drafts.
You can continue to create the message. The
version you saved in the Drafts folder will not
change.
send a draft
Shortcut: From the home screen press under Msgs > Drafts.
30
main attractions
1 Select the draft you want to send.
2 Press M > Send.
edit a draft
Shortcut: From the home screen press under Msgs > Drafts.
1 Select the draft you want to edit.
2 Press O.
delete a draft
When you send a draft, it is removed from the
Drafts folder.
To delete a message in the Drafts folder
without sending it, scroll to the message you
want to delete and select Delete > Yes.
sent items
MMS messages you have sent or tried to
send are stored in the Sent Items.
forward items from the sent items
Shortcut: From the home screen press under Msgs > Sent Items.
1 Scroll to the message you want to
forward.
2 Press M > Forward.
3 Edit and press - under Send.
resend
If a message was not sent from your handset,
you can resend it.
Shortcut: From the home screen press under Msgs > Sent Items.
1 Scroll to the message you want to resend.
check delivery status
If a message was successfully sent and you
set the message to give a report confirming
delivery, you can check the delivery status:
Shortcut: From the home screen press under Msgs > Sent Items.
Scroll to the message you want to view and
press O.
delete a message
1 Scroll to the message you want to delete.
2 Press M.
3 Select Delete Message.
2 Press Resend.
4 Press Yes to confirm.
Note: If your message was sent successfully,
Resend will not appear as an option.
receive a message
When you receive an MMS message, a
message notification appears on the display.
main attractions
31
1 To view the message press O.
2 If the message fills more than one screen,
scroll to read it.
embedded objects and
attachments
Messages may contain pictures, or audio
recordings as part of the body of the message
or as attachments.
If a message contains pictures, or audio
recordings in the body of the message,
highlight each picture, or audio recording to
view or play it.
If a message contains a picture or an audio
recording as an attachment, open the
attachment to view the picture or play the
audio recording.
open attachments
1 View the message.
32
main attractions
2 Highlight the attachment you want to
open. Attachments appear at the end of a
message.
3 Press O.
Note: Attachments that are of an unknown
type cannot be opened, but they can be
deleted.
view received messages from
the message center
Shortcut: From the home screen press under Msgs > Inbox.
Select the message. If the message has not
yet been downloaded from the message
server, it is downloaded now.
delete unread messages
1 Scroll to the message you want to delete.
2 Press Delete.
3 Press Yes to confirm.
lock and unlock messages
3 Press M > Alert.
4 Push the PTT button.
Locked messages cannot be deleted until you
unlock them.
store message information to
contacts
1 View the message you want to lock or
unlock.
If a message you receive contains a phone
number, Private ID or an email address in the
From field, the To field, the Cc field, the
subject line, or the body of the message, you
can store this information to Contacts.
2 Press M > Lock Message or Unlock Message.
call a number in a message
If a message you receive contains a phone
number or Private ID in the From field, the To
field, the Cc field, the subject line, or the body
of the message, you can call or send a call
alert to that number.
send a call alert
1 View the message.
2 Highlight the Private ID you want to alert.
1 View the message.
2 Highlight the number or email address
you want to save.
3 Press M > Save Number or Save Email.
4 To store the number or email address as a
new entry, select [New Contact].
To store the number or email address to
an existing entry, select the entry.
main attractions
33
5 With the Contacts type field highlighted,
press
left or right to display the
Contacts type you want to assign the
number or email address.
OK
6 Press - under Done.
go to a website
If a message contains one or more website
URLs, you can go to that website.
1 View the message.
save an embedded picture or
audio recording
To save a picture or audio recording that is
part of the body of a message you receive:
1 View the message.
2 Highlight the picture or audio recording
you want to save.
3 Press M.
4 Select Save Picture, or Save Audio.
2 Highlight the website URL you want to go
to.
The item will save in the default storage
location.
3 Press M > Go To Website.
Note: Some types of pictures, and audio
recordings can be viewed or played, but
not saved.
Note: The entire URL must appear in the
message to allow you to open the
website.
34
main attractions
delete an embedded picture, or
audio recording
Selected items save to the default storage
location.
To delete a picture, or audio recording that is
part of the body of a message you receive:
Note: Some types of pictures and audio
recordings can be viewed or played, but
not saved.
1 View the message.
2 Highlight the picture, or audio recording
you want to delete and press M.
delete attachments
3 Select Delete Picture or Delete Audio.
2 Highlight the attachment you want to
delete.
save attachments
1 View the message.
2 Highlight the attachment you want to
save.
3 Press M > Save Attachment.
1 View the message.
3 Press M > Delete Attachment.
4 Press - under Yes to confirm.
message transmission
After you start to send a message you have
created or start to download a message you
have been sent, you can still stop the
message transmission from being completed:
main attractions
35
With the flip is closed, press the smart key on
the top .. Opening or closing the flip does
not interrupt message transmission.
customize MMS
Find it: M > Messages > M > Setup.
This option is available from many contextsensitive menus when you are using MMS.
The Setup menu lets you customize MMS for
your handset with the following options:
option
Friendly Name: Enter text here to create a
friendly name. Your friendly name is the
name displayed in the From field on other
iDEN handsets when they receive
messages from you.
36
main attractions
option
Signature: Enter text here to create a
signature. Your signature is text that is
automatically inserted at the end of all
messages you create. You can edit the text
before sending the message.
Quick Notes: Lets you create new Quick Notes
and edit or delete Quick Notes you have
created.
Replies: Lets you create new reply phrases
and edit or delete reply phrases you have
created.
Cleanup: Controls how long messages remain
in the Inbox and Sent Items before they are
deleted.
Memory Size: Shows the total amount of Used,
Free:, and total Capacity of the phone’s
memory.
new quick notes and reply
phrases
Note: These Quick Notes are not the same as
the quick notes used with Text messages.
Each messaging service has its own quick
notes feature.
create quick notes
1 From the Setup menu, select Quick Notes or
Replies.
2 Select [New QuickNote] or [New Reply].
3 Enter text from the keypad and press O.
edit quick notes
You can edit only Quick Notes and reply
phrases you have created.
1 From the Setup menu, select Quick Notes or
Replies.
3 Edit the text and press O.
delete only Quick Notes and reply
phrases you have created
1 From the Setup menu, select Quick Notes or
Replies.
2 Scroll to the Quick Note or reply phrase
you want to delete.
3 Press - under Delete.
4 Press - under Yes to confirm.
delete all Quick Notes or all reply
phrases you have created
1 From the Setup menu, select Quick Notes or
Replies.
2 Press M > Delete All.
3 Press - under Yes to confirm.
2 Select the Quick Note or reply phrase you
want to edit.
main attractions
37
cleanup options
The cleanup option controls how long
messages remain in the Inbox and Sent Items
before they are deleted. You set the clean-up
option for the Inbox and Sent Items
separately.
The cleanup option deletes only read,
unlocked messages.
Find it: M > Messages > M > Setup > Cleanup.
1 Select Inbox or Sent Items.
2 Choose a clean up option from the
following list
option
Off: Messages are never automatically
deleted.
5 Messages: If you have more than 5
messages, messages are deleted in the
order they were received, starting with the
oldest, until 5 are left.
38
main attractions
option
10 Messages: If you have more than 10
messages, messages are deleted in the
order they were received, starting with the
oldest, until 10 are left.
With these options, messages are deleted
in the order they were received, starting
with the oldest, until the selected number
are left.
1 Day: Messages are deleted if they are older
than 1 day.
3 Days: Messages are deleted if they are
older than 3 days.
With these options, messages are deleted
when you exit the message center after
setting the option.
Custom: Lets you create a cleanup option of
up to 99 messages or 99 days.
3 Press - under Yes to automatically delete
messages now or press - under No to
delete messages later.
delete all messages
To delete all read, unlocked messages from
the Inbox, all messages in the Drafts folder, or
all successfully sent messages in the Sent
Items:
Find it: M > Messages.
1 Select Inbox, Drafts, or Sent Items.
2 Press M > Delete All.
3 Press - under Yes to confirm.
surveillance profile
When the unit is set to Surveillance
mode, it DOES NOT turn on its backlight,
make sounds or vibrate. This setting is
designed for public safety, the unit will only
ring through an earbud or headset and will
only show an incoming call message on the
screen.
Find it: M > Profiles > Surveillance.
1 Insert the earpiece or headset when
prompted to do so and press O.
Note: Surveillance profile works better
with a Motorola OriginalTM Surveillance
Earpiece for concealed hands-free
operation and high audio quality, sold
separately.
2 The phone is now operating in
surveillance mode.
main attractions
39
basics
See page 1 for a basic phone diagram.
status indicators
display
Status indicators are shown at the top of the
home screen:
The home screen shows when you turn on
the phone. To dial a number from the home
screen, press number keys and O.
1. 2. 3. 4.
5. 6. 7.
Note: Your home screen may look different.
Time &
Date
Left Soft
Key Label
Right Soft
Key Label
Soft key labels - show the current soft key
functions. For soft key locations, see page 1.
40
basics
1 Signal Strength Indicator: Vertical bars
show the strength of the network
connection. You can’t make or receive
calls when 1 or 0 shows.
2 Active Phone Line: 1 indicates phone line
1 is ready to make calls.
3 Speaker Off: Sounds associated with
Private calls are set to come through the
earpiece rather than through the speaker.
4 Ringer Off: Your phone is set to not ring.
5 Message Indicator: Shows when
you receive a text message.
6 Packet Data: Your handset is ready to
transfer packet data or is transferring
packet data.
7 Battery Charge Indicator: A fuller battery
indicates a greater charge. Recharge the
battery when your phone shows Low Battery.
text entry
Some features let you enter text.
Your phone provides convenient ways to enter
words, letters, punctuation, and numbers
whenever you are prompted to enter text (for
example, when adding a Contacts entry or
when using SMS Text Messaging).
change the character input mode
1 When you see a screen where you can
enter text, press M to change the
character input mode.
2 Select one of the following options:
entry modes
Alpha
Press a key several times for
each characters.
Word
Enter words using a predictive
text entering system that lets
you enter a word with fewer key
presses.
Symbols
Enter symbols.
basics
41
entry modes
Numeric
Enter numbers by pressing the
numbers on the keypad.
Languages Select the language in which
you want to write the message.
Tip: When entering text, press and hold #
to change letter capitalization (Abc > ABC > abc).
word mode
Word English Text Input lets you enter text
into your phone by pressing keys just once
per letter.
Word English Text Input analyzes the letters
you enter using an intuitive word database
and creates a suitable word in the language
you are using to type the message. (The word
may change as you type.)
42
basics
enter a word using Word Character
Input
1 Select the Word character input mode.
2 Press the corresponding keys once per
letter to enter a word (for example, to
enter the word Bill, press 2 4 5 5).
(If you make a mistake, press - under
Delete to erase a single character. Press and
hold - under Delete to delete an entire
entry.)
3 To accept a word and insert a space,
press #.
To accept a word completion (such as
Billion when you entered Bill), press
right.
OK
alpha mode
To enter characters by tapping the keypad:
1 Select the Alpha mode.
2 Press the corresponding keys repeatedly
until the desired letter appears. (For
example, to enter the word Bill, press 2
twice, 4 three times, 5 three times,
and 5 three times again. If you make a
mistake, press Delete or # to erase a
single character. Press and hold Delete to
erase an entire word.)
By default, the first letter of an entry is
capitalized and the following letters are lower
cased. After a character is entered, the cursor
automatically advances to the next space after
two seconds or when you enter a character
on a different key.
Characters scroll in the following order:
characters
1
.?!,@&:;“-()‘¿ ¡%£ ¥
2
ABC2ÁÃÂÀÇ
3
DEF3ÉÊÈ
characters
4
GHI4ÍÌ
5
JKL5
6
MNO6ÓÕÔÒ
7
PQRS7ß
8
TUV8ÚÜÛÙ
9
WXYZ9
0
+-0*/\[]=><#§
#
Space
*
Back
navigation key
Press the navigation key
up, down, left, or
right to scroll to items in
the display. When you
scroll to something,
press O.
OK
basics
43
handsfree speaker
You can use your phone’s handsfree speaker
to make calls without holding the phone to
your ear.
Airplane mode turns off your phone’s calling
features in situations where wireless phone
use is prohibited. You can use the phone’s
other non-calling features when Airplane
Mode is activated.
During a call (with the flip open), press under Speaker to turn the handsfree speaker
On.
Find it: M > Settings > Advanced > Airplane Mode >
On.
The handsfree speaker stays on until you
press - under Speaker or close the flip.
features for the hearing
impaired
Note: The handsfree speaker won’t work
when your phone is connected to a handsfree
car kit or headset.
airplane mode
Note: Consult airline staff about the use of
Airplane Mode during flight. Turn off your
phone whenever instructed to do so by airline
staff.
44
basics
using your phone with a
hearing aid
For best results use the following optimization
procedures and handset setting. They
generally apply as well for users with cochlear
implants:
optimize your handset position and
orientation
While in a phone call slide your phone up and
down, then left and right until best
microphone coupling is obtained. You also
may need to adjust your hearing aid (HA)
volume setting.
If you are unsure whether your HA is telecoil
equipped or needs an auxiliary magnet,
please refer to your HA user guide or contact
a hearing aid professional or supplier.
Approximate telecoil location is within
6 -13 mm of this location.
Off - Shut off
M - Microphone
T - Telecoil
Approximate telecoil location is just
above the battery.
If your HA has a telecoil, activate its switch,
then also rotate the handset as illustrated to
align the telecoils.
Note: Some automatically switched hearing
aids may need an auxiliary switching magnet.
optimize your handset antenna
position
Your phone’s rating for Hearing Aid
compatibility is determined with the antenna
extended if it has an extendable antenna.
However, acceptable use might occur with
the antenna retracted. Test your handset in
basics
45
both antenna positions when the handset is in
the optimum orientation.
choose your hearing aid setting
Find it: M > Settings > Phone Calls > Hearing Aid.
1 Set this option to Microphone. Microphone
coupling is now optimized.
or
2 Set this option to Telecoil. Handset meets
US federal requirements for telecoil
coupling sound.
or
3 Set this option to Off (factory default). This
is the setting for non Hearing Aid users.
46
basics
calls
To make and answer calls, see page 15.
2 Scroll through the list.
recent calls
store an item to contacts from
recent calls
The recent calls list contains information
associated with calls you have made and
received and call alerts you have received.
When you send or receive Private calls, the
recent call list contains the following PTX
items with those calls:
• Contact information received
• My Info received
• Pictures sent or received.
The recent calls list displays up to 20 of the
most recent calls and call alerts.
Phone calls, Private calls, My Info, or Contacts
entries received from other phones can be
stored to the Contacts list from the Recent Calls list.
Find it: M > Recent Calls.
1 Scroll to or select the item you want to
store.
2 Press - under Save to store the
information as a new entry in the
Contacts list.
or
1 Press M > Recent Calls.
calls
47
3 If Store is not one or your options, press
M > Update Contacts. And select the contact
you want to update.
3 Press O.
To permanently block your number, call your
customer service provider.
4 Press - under Save to save your changes.
redial
To redial your last outgoing call, press and
hold O.
caller ID
Caller ID allows people to identify a
caller before answering the phone by
displaying the number of the incoming call. If
you do not want your number displayed when
you make a call, just follow these easy steps.
To block your phone number from being
displayed for a specific outgoing call:
1 Press * 6 7.
2 Enter the number you want to call.
48
calls
call forward
Call forwarding sends calls to the phone
numbers you specify. You can forward all calls
to one number or forward missed calls to
different numbers depending on the reason
you missed the call.
Find it: M > Call Forward.
1 To forward all calls select All Calls and select
To: to enter the phone number you want all
your calls forwarded to.
or
2 You can specify a forwarding number for
each type of missed call by selecting
Detailed and choosing the following options:
If Busy: When your handset is on a call or
transferring data.
If No Answer: When you do not answer on
the first 4 rings.
If Unreachable: When your handset is out of
coverage or powered off.
voice name
You can place calls by speaking commands to
your phone if you have previously assigned a
voice name to your contacts.
assign voice names to contacts
1 Press - under Contcs and select [New
Contact].
2 Assign a name, phone number and select
[Options].
3 Select Voice Name and follow the prompt to
record the voice name.
4 Press - under Back and - under Save.
place a call using voice name
With the flip closed or open, press the
speaker key t until you are prompted to say
the voice name.
The handset will automatically place the call.
emergency calls
Your service provider programs one or more
emergency phone numbers that you can call
under any circumstances, even when your
phone is locked or the SIM card is not
inserted.
Note: Emergency numbers vary by country.
Your phone’s preprogrammed emergency
number(s) may not work in all locations, and
sometimes an emergency call cannot be
placed due to network, environmental, or
interference issues.
calls
49
Emergency phone calls can be made even
when your SIM card is blocked or not in your
phone.
Dial 911 or your local emergency number to
be connected to an emergency response
center. If you are on an active call, you must
end it before making an emergency call.
When you make an emergency call, your
phone’s GPS Enabled feature can help
emergency service personnel find you, if you
are in a location where your phone's GPS
antenna has established a clear view of the
open sky and your local emergency response
center has the equipment to process location
information. Because of the limitations of this
feature, always provide your best knowledge
of your location to the emergency response
center when you make an emergency call.
Note: Emergency calls cannot be placed
while the keypad is locked.
50
calls
Note: If you have not registered on the
network, emergency calls cannot be placed
while your SIM card is in your phone.
international calls
If your phone service includes international
dialing, press and hold 0 to insert your local
international access code (indicated by +).
Then, press the keypad keys to dial the
country code and phone number.
speed dial
Each phone number stored in Contacts is
assigned a Speed Dial number, which you can
use to call that number.
1 From the idle screen, use the keypad to
enter the Speed Dial number assigned to
the phone number you want to call.
2 Press #.
To dismiss the message notification:
3 Press O.
If the flip is closed, press the smart key . on
the top.
turbo dial
If the flip is open, press O, Back, or close the
flip.
The first nine entries in your contacts are set
for turbo dial. They can be called by pressing
and holding the speed dial number
(1 through 9).
If the caller leaves a message, this icon y
appears on the display, reminding you that
you have a new message.
voice mail
Note: To receive voice mail messages, you
must first set up a voice mail account with
your service provider.
receive a voice mail message
When you receive a voice mail message, New
VoiceMail Message appears on the display.
To call your service provider’s voice mail
system and listen to the message, press under Call.
calls
51
customize
volume
ring tones
Press the volume
keys to:
To set the ring tone your phone makes when
you receive phone calls, call alerts, message
notifications, pictures sent using Send via PTT
or Datebook reminders:
• turn off an
incoming call alert
• change the
earpiece volume
during calls
• change the ringer
volume from the
home screen
Tip: You can quickly set your ringer to
VibeAll by pressing and holding the
volume key down in the home screen.
52
customize
Note: Only ring tones stored in your phone’s
memory are available in the ring tones list.
Not all audio files can be assigned as ring
tones.
Find it: M > Ring Tones.
1 Make sure VibeAll is set to Off.
2 Scroll through the list of ring tones and
select the one you want to assign. Vibrate
sets your phone to vibrate instead of
making a sound; Silent sets your phone to
neither vibrate nor make a sound.
Tip: Highlighting a ring tone lets you hear
it.
Shortcut: To set VibeAll to On using the volume
controls, press the volume controls to turn
down the volume as far as possible to set
VibeAll to On.
3 Select the features you want to assign the
ring tone to.
To set your phone to vibrate instead of making
a sound for some features but not others:
4 When you are finished, press - under
Done.
1 From the main menu, select Ring Tones.
Note: This icon M appears on the display if
you set your phone to Silent. This icon Q
appears on the display if you set the phone to
VibeAll.
3 Select Vibrate from the list of ring tones.
setting your phone to vibrate
You can set your phone to vibrate instead of
making a sound when you receive all phone
calls, Private calls, call alerts, messages
notifications, pictures sent using Send via PTT,
and Datebook reminders.
2 Make sure VibeAll is set to Off.
4 Select the features you want to set to
vibrate.
5 When you are finished, press - under
Done.
wallpaper
Set a photo or picture as a wallpaper
(background) image in your phone’s home
screen or throughout all menu screens.
Find it: M > Ring Tones > VibeAll > On.
customize
53
Find it: M > Settings > Display/Info > Wallpaper.
To select a wallpaper image scroll through the
list of pictures and press O to select the
picture of your choice.
Note: You can set the wallpaper to change
automatically after a certain period of time by
turning on the Auto Cycle feature located in the
Wallpaper menu.
datebook
Find it: M > Datebook > M > Setup.
You can view or change these options:
option
Start View: Sets Datebook to start in day view,
week view, or month view when you
access Datebook.
54
customize
option
Daily Begin: Sets the beginning of your day.
This is the earliest time of day displayed in
week view, if you have a 12-hour day view.
Delete After: Sets the amount of time
Datebook waits to delete an event after it
occurs.
Time Shift: Lets you shift the times of all
Datebook events. This is useful if you are
traveling to a different time zone.
Alert Timeout: Sets the amount of time a tone
continues to sound when you receive a
Datebook reminder.
Clock: Controls whether the time and date
appear on the idle screen; sets time and
date format; sets year.
other features
advanced calling
feature
call waiting
To accept the second
call and put the active
call on hold press - under
Yes.
To accept the second call
and end the active call press
O.
Your phone rings with the
second call for you to
answer.
feature
flip
activation
any key
answer
To make your handset to
answer and end calls by
opening and closing the flip
press M > Settings >
Phone Calls > Flip Activation.
Select Flip To Ans > On and
Flip to End > On.
To answer phone calls by
pressing any key on the
keypad press M > Settings >
Phone Calls > Any Key Ans > On.
other features - advanced calling
55
contacts
datebook
feature
edit/delete
contact
entry
Press - under Contacts.
Select a contact and press
- under Edit. Change the
desired content and press
- under Done.
set ringer ID Press - under Contacts.
Select a contact and press
- under Edit > Ringer.
Select desired ringer and
press - under Done.
feature
create
datebook
events
see datebook
event
To create a new Datebook
event press M > Datebook >
[New Event].
To see a calendar event
press M > Datebook. Press
left or right to see the
day and
up or down to
see the events.
When an event reminder
occurs press - under View.
OK
OK
event
reminder
Press - under Back to close
the reminder.
56
other features—contacts
GPS
Note: To improve GPS performance:
• Stay in the open,
• Extend your phone's antenna
• Move away from other electrical or
electronic devices
• Remain stationary.
• Avoid touching the antenna with your
fingers.
feature
view
To see your approximate
approximate location press M > GPS >
location
Position. Scroll to view the
entire screen.
To recalculate position press
- under Rfrsh. This may
take several minutes.
feature
set GPS
privacy
options
To set the level of privacy for
your GPS system press
M > GPS > Privacy.
If your GPS PIN security
feature is enabled, enter
your GPS PIN and select the
privacy option you want.
change GPS Note: When you receive
PIN
your phone, your GPS PIN is
0000.
To change your GPS PIN
press M > Settings >
Security > Change Passwords > GPS
PIN. Enter the current GPS
PIN and enter the new 4- to
8-digit GPS PIN. Re-enter
the new 4- to 8-digit GPS
PIN to confirm.
other features - GPS
57
handsfree
Note: The use of wireless phones while
driving may cause distraction. Discontinue a
call if you can't concentrate on driving.
Additionally, the use of wireless devices and
their accessories may be prohibited or
restricted in certain areas. Always obey the
laws and regulations on the use of these
products.
feature
speakerphone
58
To activate the
speakerphone while driving
press and hold the
speakerphone key t or
press - under Speaker.
other features—handsfree
feature
auto
answer
To automatically answer
calls when connected to a
car kit or headset press
O > Phone Calls > Auto Ans.
Select the amount of rings
before answering.
pc applications
feature
other PC
For a list of complete PC
applications applications visit
www.motorola.com/iden
personalize
feature
language
backlight
time length
menu style
clock
display
Set menu language:
Press M > Settings >
Display/Info > Language
Select how long the display
screen and keypad are
backlit:
Press M > Settings >
Display/Info > Backlight
Show the main menu as
graphic icons or a text-based
list:
Press M > Settings >
Display/Info > Menu View
Press M > Settings >
Display/Info > Clock > On
TTY
feature
turn On TTY From the home screen
feature
press M > Settings >
Phone Calls > TTY > Use TTY > On.
choose TTY From the home screen
mode
press M > Settings >
Phone Calls > TTY > Type.
change the
TTY baud
rate
Select from TTY, VCO or HCO.
From the home screen
press M > Settings >
Phone Calls > TTY > Baud.
Select 45.45 or 50.00
change TTY While in the TTY call, press
mode
M > In Call Setup > TTY > Type.
during a call Select from TTY, VCO or HCO.
other features - personalize
59
security
feature
phone lock
keypad lock
enable SIM
PIN
change SIM
PIN
60
Note: You can make emergency calls on a
locked phone (see page 49).
To lock the phone press M
> Settings > Security >
Phone Lock > Lock Now or
Auto Lock.
To lock the keypad press M
> Settings > Security >
Keypad Lock > Lock Now or
Auto Lock.
Shortcut: To lock the
keypad press M > *
To enable SIM PIN, press M
> Settings > Security > SIM PIN >
On.
To change the SIM PIN,
press M > Settings > Security >
Change Passwords > SIM PIN.
other features—security
Important Safety and
Legal Information
61
Safety and General Information
This section contains important information on the safe and
efficient operation of your phone. Read this information
before using your integrated multi-service portable radio.*
Safety Information
Exposure to Radio Frequency (RF)
Energy
Your phone contains a transmitter and receiver. When it is ON, it
receives and transmits RF energy. When you communicate with
your phone, the system handling your call controls the power level
at which your phone transmits.
Your Motorola phone is designed to comply with local regulatory
requirements in your country concerning exposure of human beings
to RF energy.
Portable Radio Product Operation and
EME Exposure
Your Motorola radio product is designed to comply with the
following national and international standards and guidelines
regarding exposure of human beings to radio frequency
electromagnetic energy (EME):
62
Safety Information
• United States Federal Communications Commission, Code
of Federal Regulations; 47 CFR part 2 sub-part J.
• American National Standards Institute (ANSI) / Institute of
Electrical and Electronics Engineers (IEEE). C95. 1-1992.
• Institute of Electrical and Electronics Engineers (IEEE).
C95. 1-2005 Edition.*
• International Commission on Non-Ionizing Radiation
Protection (ICNIRP) 1998.
• Ministry of Health (Canada). Safety Code 6. Limits of
Human Exposure to Radio frequency Electromagnetic
Fields in the Frequency Range from 3 kHz to 300 GHz,
1999.
• Australian Communications Authority Radio
communications (Electromagnetic Radiation - Human
Exposure) Standard 2003.
• ANATEL, Brazil Regulatory Authority, Resolution 303 (July
2, 2002) "Regulation of the limitation of exposure to
* The information provided in this document supersedes
the general safety information in user’s guides
published prior to May 1, 2006
electrical, magnetic, and electromagnetic fields in the
radio frequency range between 9 kHz and 300 GHz."
"Attachment to Resolution 303 from July 2, 2002."
Operational Precautions
To assure optimal radio product performance and to be sure that
human exposure to RF does not exceed the guidelines set forth in
the relevant standards, always follow these instructions and
precautions:
Phone Operation
When placing or receiving a phone call, hold your radio product as
you would a wireline telephone. Speak directly into the
microphone.
Two-way radio operation
Your radio product has been designed and tested to comply with
national and international standards and guidelines regarding
human exposure to RF electromagnetic energy, when operated in
the two-way mode (at the face, or at the abdomen when using an
audio accessory) at usage factors of up to 50% talk/50% listen.
Transmit no more than the rated duty factor of 50% of the time. To
transmit (talk), push the PTT button. To receive calls, release the
PTT button. Transmitting 50% of the time or less, is important
because this radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
When using your radio product as a traditional
two-way radio, hold the radio product in a
vertical position with the microphone one
to two inches (2.5 to 5 cm) away from the
lips.
If you wear a radio product on your body when
transmitting, always place the radio product in a Motorola
approved clip, holder, holster, case or body harness. If you do not
use a body-worn accessory supplied or approved by Motorola and
are not using the radio product in the intended use positions along
side the head in the phone mode or in front of the face in the
two-way radio mode, or if you hang your device from a lanyard
around your neck, keep the device at least 2.5 centimeters (1 inch)
from your body when transmitting.
Approved Accessories
For a list of approved Motorola accessories call 1-800-453-0920, or
visit our website at www.motorola.com/iden.
RF Energy Interference/Compatibility
Nearly every electronic device is subject to RF energy interference
from external sources if inadequately shielded, designed or
otherwise configured for RF energy compatibility. In some
circumstances your handset may cause interference with other
devices.
Safety Information
63
Follow Instructions to Avoid Interference
Problems
your wireless phone with your implantable medical device, consult
your health care provider.
Turn OFF your radio product where posted notices instruct you to
do so.
In an aircraft, turn off your radio product whenever instructed to do
so by airline staff. If your radio product offers an airplane mode or
similar feature, consult airline staff about using it in flight.
Hearing Aids
Implantable Medical Devices
If you have an implantable medical devices, such as a pacemaker
or defibrillator, consult your physician before using this radio
product.
Persons with implantable medical devices should observe the
following precautions:
• ALWAYS keep the phone more than 20 centimeters (8
inches) from the implantable medical device when the
phone is turned ON.
• DO NOT carry the phone in a breast pocket;
• Use the ear opposite the implantable medical device to
minimize the potential for interference.
• Turn OFF the phone immediately if you have any reason to
suspect that the interference is taking place.
Read and follow the directions from the manufacturer of your
implantable medical device. If you have any questions about using
64
Safety Information
Some phones may interfere with some hearing aids. In the event of
such interference, you may want to consult your hearing aid
manufacturer or physician to discuss alternatives.
Other Medical Devices and Health Care Facilities
If you use any other personal medical devices, consult your
physician or the manufacturer or your device to determine if it is
adequately shielded from RF energy. Turn off your radio product
when instructed to do so in hospitals or health care facilities that
may be using equipment that is sensitive to external RF energy.
Driving Precautions
Check the laws and regulations on the use of radio products in the
area where you drive. Always obey them.
When using your radio product while driving, please:
• Give full attention to driving and to the road. Using a
phone may be distracting. Discontinue a call if you can’t
concentrate on driving.
• Use hands free operation, if available.
• Pull off the road and park before making or answering a
call if driving conditions so require.
• Do not place a handset in the airbag deployment area.
Responsible driving practices can be found in the “Smart Practices
While Driving” section at the end of this guide and/or at the
Motorola Web site: www.motorola.com/callsmart.
Note: The use of wireless phones while driving may cause
distraction. Discontinue a call if you can’t concentrate on driving.
Additionally, the use of wireless devices and their accessories may
be prohibited or restricted in certain areas. Always obey the laws
and regulations on the use of these products.
Operational Warnings
Batteries and Chargers
Caution: Improper treatment or use of batteries may present
a danger of fire, explosion, leakage, or other hazard. For
more information, see the “Battery Use and Battery Safety”
section in this user’s guide.
Your battery, charger, or portable radio may contain symbols,
defined as follows:
Symbol
032374o
Obey all posted signs when using phones in public areas.
032376o
Potentially Explosive Atmospheres
Areas with potentially explosive atmospheres are often but not
always posted, and can include fueling areas such as below decks
on boats, fuel or chemical transfer or storage facilities, or areas
where the air contains chemicals or particles, such as grain, dust
or metal powders.
When you are in such area, turn off your handset, and do not
remove, install, or charge batteries unless it is a radio product type
especially qualified for use in such areas as “Intrinsically Safe” (for
example, Factory Mutual, CSA, or UL approved). In such areas,
sparks can occur and cause an explosion or fire.
032375o
Definition
Important safety information
follows.
Do not dispose of your battery
or phone in a fire.
Your battery or phone may
require recycling in
accordance with local laws.
Contact your local regulatory
authorities for more
information.
Do not throw your battery or
phone in the trash.
Li Ion BATT
032378o
Your phone contains an
internal lithium ion battery.
Safety Information
65
Symbol
Definition
Do not let your battery,
charger, or phone get wet.
Listening at full volume to
music or voice through a
headset may damage your
hearing.
Choking Hazards
Your portable radio or its accessories may include detachable
parts, which may present a choking hazard to small children. Keep
your device and its accessories away from small children.
If you have experienced seizures or blackouts, or if you have a
family history of such occurrences, please consult with your
physician before playing video games or enabling a flashing-lights
feature (if available) on your phone.
Discontinue use and consult a physician if any of the following
symptoms occur: convulsion, eye or muscle twitching, loss of
awareness, involuntary movements, or disorientation. It is always
a good idea to hold the screen away from your eyes, leave the
lights on in the room, take a 15-minute break every hour, and stop
use if you are very tired.
Caution About High Volume Usage
Listening at full volume to music or voice through a
headset may damage your hearing.
Glass Parts
Some parts of your phone may be made of glass. This glass could
break if the product is dropped on a hard surface or receives a
substantial impact. If glass breaks, do not touch or attempt to
remove. Stop using your phone until the glass is replaced by a
qualified service center.
Seizures/Blackouts
Some people may be susceptible to epileptic seizures or blackouts
when exposed to flashing lights, such as when playing video
games. These may occur even if a person has never had a previous
seizure or blackout.
66
Safety Information
Repetitive Motion
When you repetitively perform actions such as pressing keys or
entering finger-written characters, you may experience occasional
discomfort in your hands, arms, shoulders, neck, or other parts of
your body. If you continue to have discomfort during or after such
use, stop use and see a physician.
Service & Repairs
If you have questions or need assistance, we’re here to help.
Go to www.motorola.com/iden, where you can select from a
number of customer care options. You can also contact the
Motorola Customer Support Center at 1-800-453-0920 (United
States), 1-877-483-2840 (TTY/TDD United States for hearing
impaired).
Export Law Assurances
This product is controlled under the export regulations of the
United States of America and Canada. The Governments of the
United States of America and Canada may restrict the exportation
or re-exportation of this product to certain destinations. For further
information contact the U.S. Department of Commerce or the
Canadian Department of Foreign Affairs and International Trade.
Export Law
Export Law
67
Specific Absorption Rate Data
ALL MODELS WITH FCC ID AZ489FT5844 MEET THE
GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO
WAVES.
Your wireless phone is a radio transmitter and receiver. It is
designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government. These limits
are part of comprehensive guidelines and establish permitted
levels of RF energy for the general population. The guidelines are
based on standards that were developed by independent scientific
organizations through periodic and thorough evaluation of
scientific studies. The standards include a substantial safety
margin designed to assure the safety of all persons, regardless of
age and health.
The exposure standard for wireless mobile phones employs a unit
of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg.1 Tests for SAR are
conducted using standard operating positions reviewed by the FCC
with the phone transmitting at its highest certified power level in
all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the phone
while operating can be well below the maximum value. This is
because the phone is designed to operate at multiple power levels
so as to use only the power required to reach the network. In
68
Export Law
general, the closer you are to a wireless base station antenna, the
lower the power output.
Before a phone model is available for sale to the public, it must be
tested and certified to the FCC that is does not exceed the limit
established by the government-adopted requirement for safe
exposure. The tests are performed in positions and locations (e.g.,
at the ear and worn on the body) as required by the FCC for each
model. The highest SAR value for this model phone when tested
for use at the ear is 1.05 W/kg and when tested on the body, as
described in this user guide, is 1.15 W/kg during packet data
transmission. (Body-worn measurements differ among phone
models, depending upon available accessories and FCC
requirements.)2
While there may be differences between the SAR levels of various
phones and at various positions, they all meet the government
requirement for safe exposure. Please note that improvements to
this product model could cause differences in the SAR value for
later products; in all cases, products are designed to be within the
guidelines.
Additional information on Specific Absorption Rates (SAR) can be
found on the Cellular Telecommunications Industry Association
(CTIA) web-site at http://www.ctia.org or the Canadian Wireless
Telecommunications Association (CWTA) Web site:
http://www.cwta.ca
1. In the United States and Canada, the SAR limit for mobile
phones used by the public is 1.6 watts/kg (W/kg) averaged over
one gram of tissue. The standard incorporates a substantial margin
of safety to give additional protection for the public and to account
for any variations in measurements.
2. The SAR information includes the Motorola testing protocol,
assessment procedure, and measurement uncertainty range for
this product.
Export Law
69
Motorola Limited Warranty for the United States and
Canada
What Does this Warranty Cover?
Products Covered
Length of Coverage
Note: FOR IDEN SUBSCRIBER PRODUCTS, ACCESSORIES
AND SOFTWARE PURCHASED IN THE UNITED STATES OR
CANADA
Subject to the exclusions contained below, Motorola, Inc. warrants
its Motorola iDEN Digital Mobile and Portable Handsets
("Products"), Motorola-branded or certified accessories sold for
use with these Products ("Accessories") and Motorola software
contained on CD-Roms or other tangible media and sold for use
with these Products ("Software") to be free from defects in
materials and workmanship under normal consumer usage for the
period(s) outlined below. This limited warranty is a
consumer's exclusive remedy, and applies as follows to
new Products, Accessories and Software purchased by
consumers in the United States or Canada, which are
accompanied by this written warranty:
Products as defined
above.
Ninety (90) days from the date of
purchase by the first consumer
purchaser of the product.
Accessories as
defined above.
Ninety (90) days from the date of
purchase by the first consumer
purchaser of the product.
Products or
Accessories that are
Repaired or
Replaced.
The balance of the original
warranty or for ninety (90) days
from the date returned to the
consumer, whichever is longer.
Software as defined
above. Applies only to
physical defects in the
media that embodies
the copy of the software
(e.g. CD-ROM, or floppy
disk).
Ninety (90) days from the date
of purchase.
70
Export Law
What is not covered? (Exclusions)
Normal Wear and Tear. Periodic maintenance, repair and
replacement of parts due to normal wear and tear are excluded
from coverage.
Ornamental Decorations. Ornamental decorations such as
emblems, graphics, rhinestones, jewels, gemstones and their
settings, and other decorative elements, are excluded from
coverage.
Batteries. Only batteries whose fully charged capacity falls below
80% of their rated capacity and batteries that leak are covered by
this limited warranty.
Abuse & Misuse. Defects or damage that result from: (a)
improper operation, storage, misuse or abuse, accident or neglect,
such as physical damage (cracks, scratches, etc.) to the surface of
the product resulting from misuse; (b) contact with liquid, water,
rain, extreme humidity or heavy perspiration, sand, dirt or the like,
extreme heat, or food; (c) use of the Products or Accessories for
commercial purposes or subjecting the Product or Accessory to
abnormal usage or conditions; or (d) other acts which are not the
fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories. Defects or
damage that result from the use of Non-Motorola branded or
certified Products, Accessories, Software or other peripheral
equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages
resulting from service, testing, adjustment, installation,
maintenance, alteration, including without limitation, software
changes, or modification in any way by someone other than
Motorola, or its authorized service centers, are excluded from
coverage.
Altered Products. Products or Accessories with (a) serial
numbers or date tags that have been removed, altered or
obliterated; (b) broken seals or that show evidence of tampering;
(c) mismatched board serial numbers; or (d) nonconforming or
non-Motorola housings, antennas, or parts, are excluded from
coverage.
Communication Services. Defects, damages, or the failure of
Products, Accessories or Software due to any communication
service or signal you may subscribe to or use with the Products,
Accessories or Software is excluded from coverage.
Software Embodied in Physical Media. No warranty is made
that the software will meet your requirements or will work in
combination with any hardware or software applications provided
by third parties, that the operation of the software products will be
uninterrupted or error free, or that all defects in the software
products will be corrected.
Software NOT Embodied in Physical Media. Software that is
not embodied in physical media (e.g. software that is downloaded
from the internet), is provided "as is" and without warranty.
Who is covered? This warranty extends only to the first
consumer purchaser, and is not transferable.
What will Motorola Do? Motorola, at its option, will at no
charge repair, replace or refund the purchase price of any Products,
Accessories or Software that does not conform to this warranty.
Export Law
71
We may use functionally equivalent
reconditioned/refurbished/pre-owned or new Products,
Accessories or parts. No data, software or applications added to
your Product, Accessory or Software, including but not limited to
personal contacts, games and ringer tones, will be reinstalled. To
avoid losing such data, software and applications please create a
back up prior to requesting service.
How to Obtain Warranty Service or Other Information? To
obtain service or information, please call:
Motorola iDEN Customer Services 1-800-453-0920 or
954-723-4910
TTY-877-483-2840
Or visit us online at http://www.motorola.com/iden
You will receive instructions on how to ship the Products,
Accessories or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a
copy of your receipt, bill of sale or other comparable proof of
purchase; (b) a written description of the problem; (c) the name of
your service provider, if applicable; (d) the name and location of the
installation facility (if applicable) and, most importantly; (e) your
address and telephone number.
What Other Limitations Are There? ANY IMPLIED
WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF
THIS LIMITED WARRANTY, OTHERWISE THE REPAIR,
REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
72
Export Law
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE
CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL
MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR TORT
(INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE
PURCHASE PRICE OF THE PRODUCT, ACCESSORY OR SOFTWARE,
OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND, OR LOSS OF
REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF
INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS,
ACCESSORIES OR SOFTWARE TO THE FULL EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or
exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or
exclusions may not apply to you. This warranty gives you specific
legal rights, and you may also have other rights that vary from
state to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for
Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute
copies of the Motorola software. Motorola software may only be
copied into, used in, and redistributed with, the Products
associated with such Motorola software. No other use, including
without limitation disassembly of such Motorola software or
exercise of the exclusive rights reserved for Motorola, is
permitted.
Patent and Software Provisions
MOTOROLA will defend, at its own expense, any suit brought
against the end user purchaser to the extent that it is based on a
claim that the Product or parts infringe a United States patent, and
Motorola will pay those costs and damages finally awarded
against the end user purchaser in any such suit which are
attributable to any such claim, but such defense and payments are
conditioned on the following:
a.That MOTOROLA will be notified promptly in writing by such
purchaser of any notice of such claim;
b.That MOTOROLA will have sole control of the defense of
such suit and all negotiations for its settlement or
compromise; and
c.Should the Product or parts become, or in MOTOROLA'S opinion
be likely to become, the subject of a claim of infringement of a
United States patent, that such purchaser will permit MOTOROLA,
at its option and expense, either to procure for such purchaser the
right to continue using the Product or parts or to replace or modify
the same so that it becomes non-infringing or to grant such
purchaser a credit for the Product or parts as depreciated and
accept its return. The depreciation will be an equal amount per
year over the lifetime of the Product or parts as established by
MOTOROLA.
MOTOROLA will have no liability with respect to any claim of
patent infringement which is based upon the combination of the
Product or parts furnished hereunder with software, apparatus or
devices not furnished by MOTOROLA, nor will MOTOROLA have
any liability for the use of ancillary equipment or software not
furnished by MOTOROLA which is attached to or used in
connection with the Product or any parts thereof.
Laws in the United States and other countries preserve for
MOTOROLA certain exclusive rights for copyrighted MOTOROLA
software, such as the exclusive rights to reproduce in copies and
distribute copies of such MOTOROLA software. MOTOROLA
software may be used in only the Product in which the software
was originally embodied and such software in such Product may
not be replaced, copied, distributed, modified in any way, or used
to produce any derivative thereof. No other use including, without
limitation, alteration, modification, reproduction, distribution, or
reverse engineering of such MOTOROLA software or exercise or
rights in such MOTOROLA software is permitted. No license is
granted by implication, estoppel or otherwise under MOTOROLA
patent rights or copyrights.
Export Law
73
Hearing Aid Compatibility
A number of Motorola phones have been tested for hearing aid
compatibility. When some wireless phones are used with certain
hearing aids, users may detect a noise which can interfere with
the effectiveness of the hearing aid.
Some hearing aids are more “immune” than others to this
interference noise, and phones can also vary in the amount of
interference noise they may generate. ANSI standard C63.19 was
developed to provide a standardized means of measuring both
mobile phone and hearing aids to determine usability rating
categories for both.
Ratings have been developed for mobile phones to assist hearing
aid users find phones that may be compatible with their hearing
aid. Not all phones have been rated for compatibility with hearing
aids. Phones that have been rated have a label with the rating(s)
located on the box, and at www.motorola.com/accessibility.
These ratings are not guarantees of compatibility. Results will vary
depending on the user's hearing aid and individual type and degree
of hearing loss. If a hearing aid is particularly vulnerable to
interference, even a phone with a higher rating may still cause
unacceptable noise levels in the hearing aid Trying out the phone
with your hearing aid is the best way to evaluate it for your
personal needs.
74
Export Law
“M” Rating: Phones rated M3 or M4 meet FCC requirements for
hearing aid compatibility and are likely to generate less
interference to hearing aids than unrated phones. (M4 is the
“better” or higher of the two ratings.) On those models with an
extendable antenna, this rating is determined only with the
antenna extended.
“T” Rating: Phones rated T3 or T4 meet FCC requirements and are
likely to be more usable with a hearing aid's telecoil (“T Switch” or
“Telephone Switch”) than unrated phones. (T4 is the “better” or
higher of the two ratings.) On those models with a telecoil mode
setting, this rating is determined only with the phone so set. For
setting instructions, see “Features for the Hearing Impaired” in the
section entitled “Advanced Calling Features”. Note that not all
hearing aids have telecoils in them.
Hearing aids may also be measured for immunity to interference
from wireless phones and may have ratings similar to wireless
phones. Ask your hearing health care professional for the rating of
your hearing aid. Add the rating of your hearing aid and your phone
to determine the estimated usability:
• Any combined rating equal to or greater than six offers
excellent use.
• Any combined rating equal to five is considered normal
use.
• Any combined rating equal to four is considered usable.
Thus, if you use an M3 phone with a M3 hearing aid you will have
a combined rating of six for “excellent use.” This methodology
applies equally for T ratings.
More information about hearing aid compatibility may be found at:
www.motorola.com/accessibility, www.fcc.gov, www.fda.gov, and
www.hearingloss.org/learn/cellphonetech.asp
Export Law
75
Information From the World Health Organization
Present scientific information does not indicate the need for any
special precautions for the use of mobile phones. If you are
concerned, you may want to limit your own or your children’s RF
WHO Information
Product Registration
Online Product Registration:
http://direct.motorola.com/hellomoto/
Motosupport/source/registration.asp
Product registration is an important step toward enjoying your new
Motorola product. Registering helps us facilitate warranty service,
and permits us to contact you should your product require an
update or other service. Registration is for U.S. residents only and
is not required for warranty coverage.
Please retain your original dated sales receipt for your records. For
warranty service of your Motorola Personal Communications
Product you will need to provide a copy of your dated sales receipt
to confirm warranty status.
Thank you for choosing a Motorola product.
Registration
76
WHO Information
exposure by limiting the length of calls or by using hands-free
devices to keep mobile phones away from your head and body.
Source: WHO Fact Sheet 193
Further information: http://www.who.int./peh-emf
Wireless: The New Recyclable
Your wireless phone can be recycled. Recycling your phone
reduces the amount of waste disposed in landfills and allows
recycled materials to be incorporated into new products.
The Cellular Telecommunications Industry Association (CTIA) and
its members encourage consumers to recycle their phones and
have taken steps to promote the collection and environmentally
sound recycling of end-of-life devices.
Recycling
As a phone user, you have an important role in ensuring that this
device is recycled properly. When it comes time to give this phone
up or trade it in for a new one, please remember that the phone,
the charger, and many of its accessories can be recycled. It's easy.
To learn more about CTIA's Recycling Program for Used Wireless
Devices, please visit us at:
http://recycling.motorola.young-america.com/ index.html
California Perchlorate Label
Some mobile phones use an internal, permanent backup battery on
the printed circuit board that may contain very small amounts of
perchlorate. In such cases, California law requires the following
label:
“Perchlorate Material - special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate.”
There is no special handling required by consumer.
Perchlorate Label
Recycling
77
Patent and Trademark Information
MOTOROLA, the Stylized M Logo and all other trademarks
indicated as such herein are trademarks of Motorola, Inc. ® Reg.
U.S. Pat. & Tm. Off. © 2007 Motorola, Inc. All rights reserved.
Microsoft and Microsoft Internet Explorer are registered
trademarks of Microsoft Corporation.
T9 is a trademark owned by Tegic Communications.
T9® Text Input Patent and Trademark Information.
This product is covered by U.S. Pat. 5,818,437, U.S. Pat. 5,953,541,
U.S. Pat. 6,011,554 and other patents pending.
Java and all other Java-based marks are trademarks or registered
trademarks of Sun Microsystems, Inc. in the U.S. and other
countries.
All other product names or services mentioned in this manual are
the property of their respective trademark owners.
Patent and Trademark
78
Patent and Trademark
Software Copyright Notice
The Motorola products described in this manual may include
copyrighted Motorola and third party software stored in
semiconductor memories or other media. Laws in the United
States and other countries preserve for Motorola and third party
software providers certain exclusive rights for copyrighted
software, such as the exclusive rights to distribute or reproduce
the copyrighted software. Accordingly, any copyrighted software
contained in the Motorola products may not be modified,
reverse-engineered, distributed, or reproduced in any manner to
the extent allowed by law. Furthermore, the purchase of the
Motorola products shall not be deemed to grant either directly or
by implication, estoppel, or otherwise, any license under the
copyrights, patents, or patent applications of Motorola or any third
party software provider, except for the normal, non-exclusive,
royalty-free license to use that arises by operation of law in the
sale of a product.
Privacy and Data Security
Motorola understands that privacy and data security are important
to everyone. Because some features of your phone may affect your
privacy or data security, please follow these recommendations to
enhance protection of your information:
• Monitor access: Keep your phone with you and do not
leave it where others may have unmonitored access. Lock
your device’s keypad where this feature is available.
• Keep software up to date: If Motorola or a
software/application vendor releases a patch or software
fix for your phone which updates the device’s security,
install it as soon as possible.
• Erase before recycling: Delete personal information or
data from your phone prior to disposing of it or turning it in
for recycling. For step-by-step instructions on how to
delete all personal information from your device, please
contact your local service provider.
Privacy and Data Security
• Understanding AGPS: In order to comply with
emergency caller location requirements of the FCC, certain
Motorola phones incorporate Assisted Global Positioning
System (AGPS) technology. AGPS technology also can be
used in non-emergency applications to track and monitor a
user’s location, for example, to provide driving directions.
Users who prefer not to permit such tracking and
monitoring should avoid using such applications.
If you have further questions regarding how use of your phone may
impact your privacy or data security, please contact Motorola at
[email protected], or contact your service provider.
Privacy and Data Security
79
Smart Practices While Driving
Drive Safe, Call Smart SM
Check the laws and regulations on the use of phones and
their accessories in the areas where you drive. Always
obey them. The use of these devices may be prohibited or
restricted in certain areas. Go to www.motorola.com/callsmart
for more information.
Your phone lets you communicate by voice and data, almost
anywhere, anytime, wherever wireless service is available and
safe conditions allow. When driving a car, driving is your first
responsibility. If you choose to use your phone while driving,
remember the following tips:
• Get to know your Motorola phone and its features
such as speed dial and redial. If available, these
features help you to place your call without taking your
attention off the road.
• When available, use a hands-free
device. If possible, add an additional
layer of convenience to your phone with
one of the many Motorola Original
hands-free accessories available today.
• Position your phone within easy reach. Be able to
access your phone without removing your eyes from the
Driving Safety
80
Driving Safety
•
•
•
•
•
road. If you receive an incoming call at an inconvenient
time, if possible, let your voice mail answer it for you.
Let the person you are speaking with know you are
driving; if necessary, suspend the call in heavy
traffic or hazardous weather conditions. Rain, sleet,
snow, ice, and even heavy traffic can be hazardous.
Do not take notes or look up phone numbers while
driving. Jotting down a “to do” list or going through your
address book takes attention away from your primary
responsibility, driving safely.
Dial sensibly and assess the traffic; if possible,
place calls when your car is not moving or before
pulling into traffic. If you must make a call while
moving, dial only a few numbers, check the road and your
mirrors, then continue.
Do not engage in stressful or emotional
conversations that may be distracting. Make people
you are talking with aware you are driving and suspend
conversations that can divert your attention away from the
road.
Use your phone to call for help. Dial 911 or other local
emergency number in the case of fire, traffic accident, or
medical emergencies.**
• Use your phone to help others in emergencies. If you
see an auto accident, crime in progress, or other serious
emergency where lives are in danger, call 911 or other
local emergency number, as you would want others to do
for you.**
• Call roadside assistance or a special
non-emergency wireless assistance number when
necessary. If you see a broken-down vehicle posing no
serious hazard, a broken traffic signal, a minor traffic
accident where no one appears injured, or a vehicle you
know to be stolen, call roadside assistance or other
special non-emergency wireless number.*
* Wherever wireless phone service is available.
Driving Safety
81
index
A
C
D
accessories 9, 39
active phone line 41
advanced calling 55
call waiting 55
airplane mode 44
alert
set 52, 53
turn off 52
answer a call 15
call
answer 15
any key answer 55
end 15
make 15
call forward 48
caller ID 48
center key 43
center select key 9
cleanup options 38
clock 59
contacts 56
edit/delete 56
set ringer ID 56
datebook 56
create events 56
customize 54
see events 56
view reminders 56
dial a phone number 15
dialed calls 47
display 40
Drafts 20
see also text messages,
drafts
B
backlight 59
battery 13, 14
battery indicator 41
82
E
earpiece volume 52
emergency number 49
end a call 15
end key 15
export regulations 67
F
flip 15
flip activation 55
frequently asked questions
service and repairs 67
G
GPS 57
approximate location 57
privacy options 57
GPS enabled
emergency calls 50
GPS, see GPS enabled
H
handsfree 58
auto answer 58
speaker-phone 58
handsfree speaker 44
Hearing Aid
using your phone with 44
Hearing Aid Compatibility 74
home screen 40
I
incoming call message 48
international calls 50
iTAP text entry mode 42
L
language 59
low battery message 41
M
make a call 15
Memory
text messages 21
menu style 59
Message center
text messages 19
message indicator 41
MMS 26
N
navigation key 9, 43
O
one touch PTT 26
optional accessory 9, 39
optional feature 9
P
packet data 41
PC applications 58
personalize 59
phone number 18
picture ID 48
power key 14
private calls
answer 16
83
PTT features
push to send 22
PTV features 22
send My Info 24
send pictures 22
Q
quick PTT 26
R
radio frequency 62
received calls 47
recent calls 47
recycling 77
redial 48
ring style indicator 41
ring style, setting 52
ring tones
off 52, 53
setting 52
vibrate 52, 53
84
ring tones, setting 52
ringer volume 52
S
safety
radio frequency 62
RF energy interference 63
safety information 62
safety tips 80
security 60
send key 15
set 18
signal strength indicator 40
SIM card 10
change SIM PIN 60
enable SIM PIN 60
soft keys 40
speaker 41
speed dial 50
store your number 18
surveillance profile 39
T
tap text entry mode 42
text 18
text entry 41
text messages 18
creating 19
deleting 20, 21
drafts 20
memory 21
message center 19
receiving 19
resend messages 20
sending 19
sent messages 20
setting up 18
TTY calls 59
turn on/off 14
U
using 44
V
voice mail
receiving 51
setting up 51
voice names 49
voicemail 51
voicemail message indicator
51
volume 52
W
wallpaper 53
WHO information 76
Y
your phone number 18
85
www.motorola.com
NNTN7682A
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
