towerraid tr4utbpn

towerraid tr4utbpn

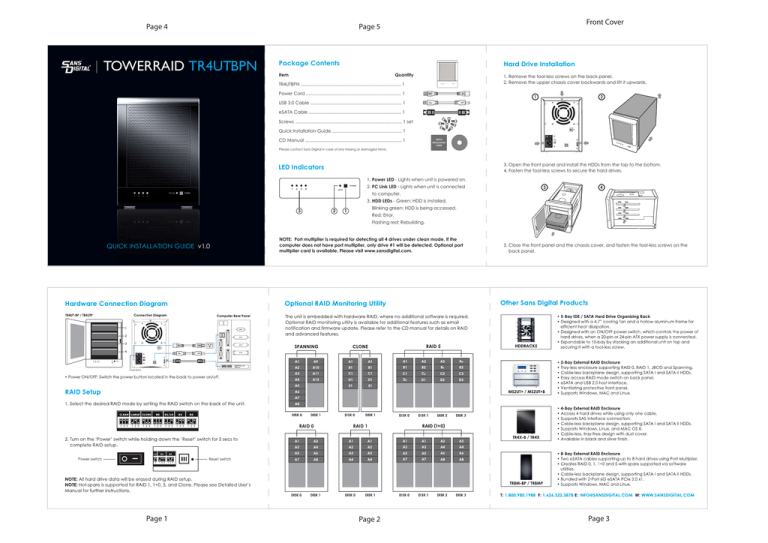

Page 4
TOWERRAID TR4UTBPN
Front Cover
Page 5
Package Contents
Hard Drive Installation
Item
Quantity
1. Remove the tool-less screws on the back panel.
2. Remove the upper chassis cover backwards and lift it upwards.
TR4UTBPN ................................................................................ 1
Power Cord ............................................................................ 1
1
2
USB 3.0 Cable ......................................................................... 1
eSATA Cable .......................................................................... 1
Screws ..................................................................................... 1 set
Quick Installation Guide ........................................................ 1
CD Manual ............................................................................. 1
QUICK
INSTALLATION
GUIDE
Please contact Sans Digital in case of any missing or damaged items.
3. Open the front panel and install the HDDs from the top to the bottom.
4. Fasten the tool-less screws to secure the hard drives.
LED Indicators
1. Power LED - Lights when unit is powered on.
POWER
1
2
3
4
HOST
2. PC Link LED - Lights when unit is connected
3
4
to computer.
3. HDD LEDs - Green: HDD is installed.
3
2
1
Blinking green: HDD is being accessed.
Red: Error.
Flashing red: Rebuilding.
QUICK INSTALLATION GUIDE v1.0
Page 1
NOTE: Port multiplier is required for detecting all 4 drives under clean mode. If the
computer does not have port multiplier, only drive #1 will be detected. Optional port
multiplier card is available. Please visit www.sansdigital.com.
Page 2
5. Close the front panel and the chassis cover, and fasten the tool-less screws on the
back panel.
Page 3
