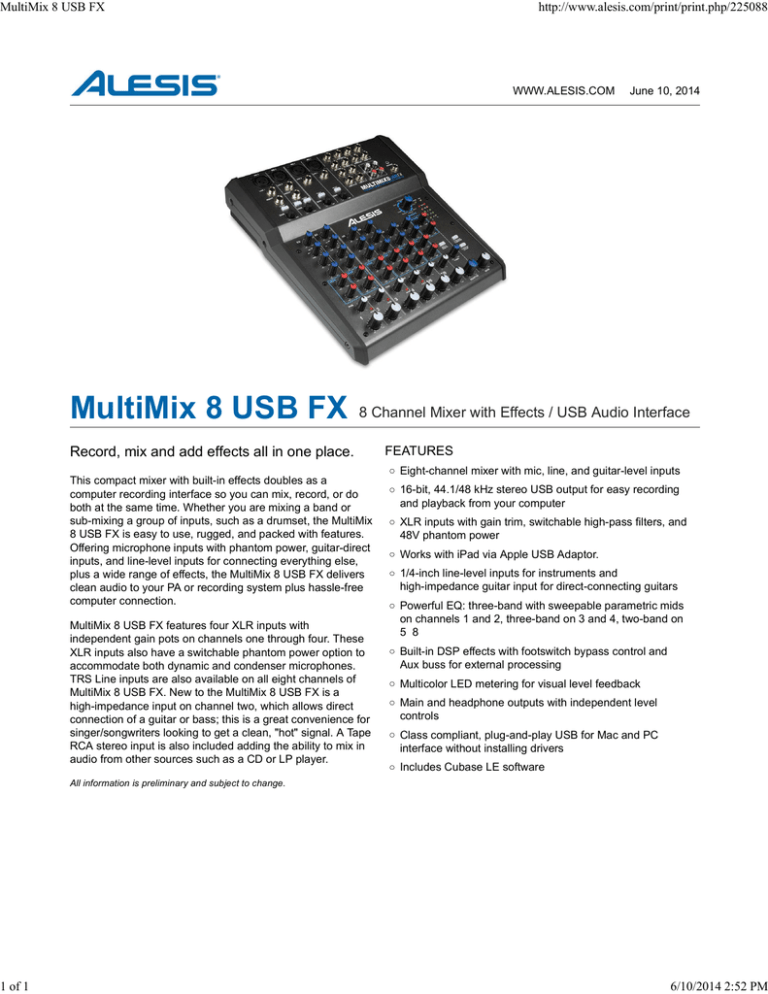

MultiMix 8 USB FX
June 10, 2014
8 Channel Mixer with Effects / USB Audio Interface
Record, mix and add effects all in one place.
This compact mixer with built-in effects doubles as a
computer recording interface so you can mix, record, or do
both at the same time. Whether you are mixing a band or
sub-mixing a group of inputs, such as a drumset, the MultiMix
8 USB FX is easy to use, rugged, and packed with features.
Offering microphone inputs with phantom power, guitar-direct
inputs, and line-level inputs for connecting everything else,
plus a wide range of effects, the MultiMix 8 USB FX delivers
clean audio to your PA or recording system plus hassle-free
computer connection.
MultiMix 8 USB FX features four XLR inputs with
independent gain pots on channels one through four. These
XLR inputs also have a switchable phantom power option to
accommodate both dynamic and condenser microphones.
TRS Line inputs are also available on all eight channels of
MultiMix 8 USB FX. New to the MultiMix 8 USB FX is a
high-impedance input on channel two, which allows direct
connection of a guitar or bass; this is a great convenience for
singer/songwriters looking to get a clean, "hot" signal. A Tape
RCA stereo input is also included adding the ability to mix in
audio from other sources such as a CD or LP player.
FEATURES
Eight-channel mixer with mic, line, and guitar-level inputs
16-bit, 44.1/48 kHz stereo USB output for easy recording
and playback from your computer
XLR inputs with gain trim, switchable high-pass filters, and
48V phantom power
Works with iPad via Apple USB Adaptor.
1/4-inch line-level inputs for instruments and
high-impedance guitar input for direct-connecting guitars
Powerful EQ: three-band with sweepable parametric mids
on channels 1 and 2, three-band on 3 and 4, two-band on
5 8
Built-in DSP effects with footswitch bypass control and
Aux buss for external processing
Multicolor LED metering for visual level feedback
Main and headphone outputs with independent level
controls
Class compliant, plug-and-play USB for Mac and PC
interface without installing drivers
Includes Cubase LE software
All information is preliminary and subject to change.
