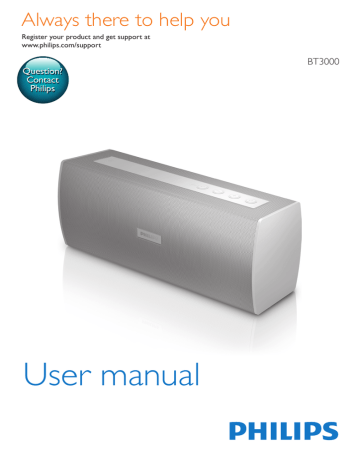

Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
User manual
BT3000
Contents
1Important
2
2 Your Bluetooth speaker
3
Introduction3
What's in the box
3
Overview of the speaker
4
3 Get started
6
6
6
4 Use Bluetooth devices
8
8
8
5 Other features
9
9
9
Power supply
Turn on
Play from Bluetooth devices
Control your phone call
Listen to an external device
Adjust volume
6 Product information
Specifications
10
10
7Troubleshooting
11
General11
About Bluetooth device
11
8Notice
12
Compliance12
Care of the environment
12
Trademark notice
12
EN
1
1Important
Warning
•• Never remove the casing of this speaker.
•• Never lubricate any part of this speaker.
•• Never place this speaker on other electrical equipment.
•• Keep this speaker away from direct sunlight, naked
flames or heat.
•
•
•
•
•
•
Make sure that there is enough free space
around the speaker for ventilation.
Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to the
speaker:
• Install the batteries correctly, + and - as
marked on the speaker.
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove the batteries when the
speaker is not used for a long time.
• The batteries shall not be exposed to
excessive heat such as sunshine, fire or
the like.
Use only power supplies listed in the user
manual.
The speaker shall not be exposed to
dripping or splashing.
Do not place any sources of danger on
the speaker (e.g. liquid filled objects, lighted
candles).
Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Note
•• The type plate is located on the bottom of the product.
2
EN
2 Your Bluetooth
speaker
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this speaker, you can enjoy audio from
your Bluetooth-enabled devices, or other
external audio devices.
What's in the box
Check and identify the contents of your
package:
• Speaker
• Power adapter
• Audio-in cable
• 4 x AA batteries
• Short user manual
• Safety and notice leaflet
Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
Short User Manual
EN
3
Overview of the speaker
c b
a
f e
d
a
• Turn the speaker on or off.
b +/• Adjust volume.
4
EN
c /PAIRING
• Enter Bluetooth pairing mode.
• Disconnect Bluetooth connection.
• Answer or reject an incoming call.
• End the current phone call.
d Battery compartment
e AUDIO IN
• Connect an external audio device.
f DC IN
• Connect power.
EN
5
3 Get started
Option 2: AC power
Caution
Always follow the instructions in this chapter in
sequence.
Power supply
The Bluetooth speaker can be powered by
either AC mains or batteries.
•• Risk of product damage! Make sure that the power
voltage corresponds to the voltage printed on the back
or underside of the speaker.
Connect the power adaptor to:
• the DC IN socket on the speaker.
• the wall outlet.
Option 1: Battery power
Caution
•• Risk of explosion! Keep batteries away from heat,
sunshine, or fire. Never discard batteries in fire.
•• Batteries contain chemical substances, so they should
be disposed of properly.
Note
•• When LED indicator flashes red, replace the batteries.
1
2
Open the battery compartment.
Turn on
Press and hold for 2 seconds.
»» The speaker switches to Bluetooth
mode automatically.
»» The LED indicator flashes blue.
Note
•• If battery is low, the LED indicator flashes red.
2”
Insert 4 AA batteries with correct polarity
(+/-) as indicated.
4 x AA
3
Close the battery compartment.
6
EN
Turn off
The speaker is turned off in the following
situations:
• Press and hold for 2 seconds again;
or
• The Bluetooth connection is
disconnected and there is no audio-in
cable inserted for 15 minutes.
»» The LED indicator is turned off.
EN
7
4 Use Bluetooth
devices
With this speaker, you can listen to audio from
Bluetooth-enabled devices and control the
incoming call through Bluetooth.
Play from Bluetooth devices
Note
To disconnect the Bluetooth-enabled device:
• Press and hold PAIRING for two seconds;
• Disable Bluetooth on your device; or
• Move the device beyond the
communication range.
To reconnect the Bluetooth device:
• Next time you turn on the speaker, the
speaker will reconnect the last connected
device automatically; or
• On your Bluetooth device, select "PHILIPS
BT3000" on your Bluetooth menu.
To connect another Bluetooth-enabled device:
1
•• Make sure that your Bluetooth device is compatible
with this speaker.
•• Before pairing a device with this speaker, read its user
manual for Bluetooth compatibility.
•• The speaker can memorize a maximum of 4 paired
devices.
•• Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
•• Any obstacle between this speaker and a Bluetooth
device can reduce the operational range.
•• Keep away from any other electronic device that may
cause interference.
•• The operational range between this speaker and a
Bluetooth device is approximately 10 meters (30 feet).
•• If there is an incoming call on the connected mobile
phone, music playback pauses.
1
2
3
4
8
Press and hold for 2 seconds.
»» The LED indicator flashes blue.
On your Bluetooth device, enable
Bluetooth and search for Bluetooth devices
that can be paired (refer to the user
manual of the device).
When [PHILIPS BT3000] is displayed on
your device, select it to start pairing and
connection. If necessary, input “0000” as
the pairing password.
»» After successful pairing and connection,
the speaker beeps twice, and the LED
indicator turns solid blue.
Play audio on the Bluetooth device.
»» Audio streams from your Bluetooth
device to the speaker.
EN
2
Press and hold PAIRING for two seconds
to disconnect the currently connected
device;
»» The speaker enters Bluetooth pairing
mode.
Connect another Bluetooth device.
LED indicator
Description
Flashing blue
Connecting;
Waiting for pairing
Connected
Solid blue
Control your phone call
After Bluetooth connection, you can control an
incoming call with this speaker.
Button
Function
Press to answer an incoming call.
Press and hold for 2 seconds to reject
an incoming call.
During a call, press to end the current
call.
5 Other features
Adjust volume
During play, press + or - repeatedly to increase
or decrease the volume level.
Listen to an external device
With this speaker, you can also listen to an
external audio device such as an MP3 player.
Tip
•• To increase or decrease volume continuously, press and
hold + or - for 2 seconds.
Note
•• Make sure that there is no Bluetooth connection, or
music playback through Bluetooth is pauzed.
1
2
Connect the supplied audio-in cable to
• the AUDIO IN socket on this speaker,
and
• the headphone socket on the external
device.
»» The speaker switches to audio-in
mode automatically.
Play audio on the external device (refer to
its user manual).
EN
9
6Product
information
Note
•• Product information is subject to change without prior
notice.
Specifications
Amplifier
Total Output Power
Signal to Noise Ratio
Audio-in Input
5W
>67 dB
600 mV RMS
20 kohm
Bluetooth
Bluetooth Version
Supported Profiles
Range
V3.0
HFP, A2DP, AVRCP
10 m (Free space)
General information
Power Supply
- AC Power
(power adapter)
10
EN
Power adapter A:
Brand name: PHILIPS;
Model: AS100-050AE150;
Input: 100-240 V~,
50/60 Hz, 0.5 A
Output: 5 V 1.5 A;
Power adapter B:
Brand name: PHILIPS;
Model: SAW12-0501500GD;
Input: 100-240 V~,
50/60 Hz, 0.3 A
Output: 5 V 1.5 A;
- Battery
Operation Power
Consumption
Dimensions - Main
Unit (W x H x D)
Weight - Main Unit
4 x 1.5 V LR6 AA
1.95 W
280 x 121 x 93 mm
1.3 kg
7Troubleshooting
Warning
•• Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
Cannot connect with the device.
•• The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•• This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•• The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•• For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this product.
General
No power
•• Make sure that the AC power plug of the
speaker is connected properly.
•• Make sure that there is power at the AC
outlet.
•• Make sure that the batteries are inserted
correctly.
No sound or poor sound
•• Adjust volume on the product.
•• Adjust volume on the connected device.
No response from the speaker
•• Restart the speaker.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•• The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•• The batteries are low. Replace the
batteries.
EN
11
8Notice
Any changes or modifications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
Hereby, WOOX Innovations declares that this
product is in compliance with the essential
requirements and other relevant provisions
of Directive 1999/5/EC. You can find the
Declaration of Conformity on www.philips.com/
support.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
12
EN
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by WOOX
Innovations is under license.
EN
13
Specifications are subject to change without notice.
2014 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered trademarks of
Koninklijke Philips N.V. and are used by WOOX Innovations Limited
under license from Koninklijke Philips N.V.
BT3000_19_UM_V1.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
